09 Always-On Rear View Camera

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Aalders, Jun 28, 2009.

  1. Jan 8, 2019 at 7:36 PM
    #261
    HBMurphy

    HBMurphy Ban Pending

    Joined:
    Jun 27, 2009
    Member:
    #18993
    Messages:
    6,518
    Gender:
    Male
    First Name:
    Paul
    So California Coast
    Vehicle:
    09 Off Road Delete Model
    None

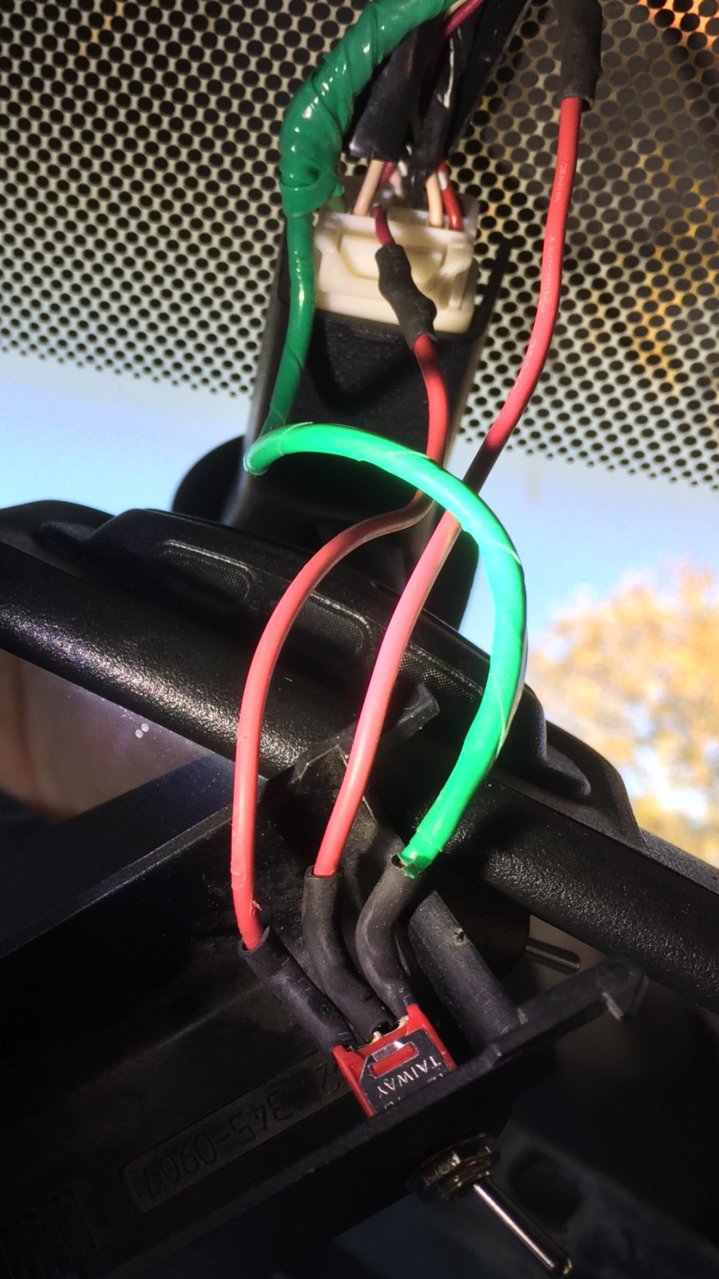

    Not with truck now but when I flip the switch in the ‘always on’ position the trans indicator shows R when I am in Drive.

  2. Jan 8, 2019 at 9:49 PM
    #262
    hemitruk

    hemitruk Old man , young boi truk

    Joined:
    Oct 17, 2009
    Member:
    #24461
    Messages:
    2,037
    Gender:
    Male
    First Name:
    Kurt
    Hawaii
    Vehicle:
    2010 Dbl Cab Sport,
    A few
    If Im not mistaken the red wire you cut the wire coming out of connector to mirror , goes to com terminal of switch . Other wire going to EDIT ( harness going back to truck harness under headliner ) goes to one of other outside terminal. Looks like you got it reversed . If I got time I can double check mine but been under the weather the last few days . :sick:

    EDITED about wire going back to headliner side

    Last edited: Jan 8, 2019
  3. Jan 9, 2019 at 7:23 AM
    #263
    HBMurphy

    HBMurphy Ban Pending

    Joined:
    Jun 27, 2009
    Member:
    #18993
    Messages:
    6,518
    Gender:
    Male
    First Name:
    Paul
    So California Coast
    Vehicle:
    09 Off Road Delete Model
    None
    That would make sense why it wouldn't work. Let me know what you find. Thanks!!!

    Edit: Noticed this in the first post: "the lead that goes to the clip is soldered to post 2 (because that goes directly to the mirror)"

    THANK YOU!

    Last edited: Jan 9, 2019
    hemitruk likes this.
  4. Jan 9, 2019 at 10:41 AM
    #264
    hemitruk

    hemitruk Old man , young boi truk

    Joined:
    Oct 17, 2009
    Member:
    #24461
    Messages:
    2,037
    Gender:
    Male
    First Name:
    Kurt
    Hawaii
    Vehicle:
    2010 Dbl Cab Sport,
    A few
    Yea just swap the 2 wires around and should be good :fingerscrossed:

    HBMurphy likes this.
  5. Jan 9, 2019 at 2:17 PM
    #265
    HBMurphy

    HBMurphy Ban Pending

    Joined:
    Jun 27, 2009
    Member:
    #18993
    Messages:
    6,518
    Gender:
    Male
    First Name:
    Paul
    So California Coast
    Vehicle:
    09 Off Road Delete Model
    None
    I will update when I do.

  6. Feb 18, 2019 at 5:27 PM
    #266
    86250rrippin

    86250rrippin Well-Known Member

    Joined:
    Jul 30, 2018
    Member:
    #261107
    Messages:
    53
    Gender:
    Male
    Leechburg ,PA
    Vehicle:
    2009 Base Access Cab 4.0
    3 inch lift , 32's , updated grille , seat mod , camera mod ,cap w/ led inside lighting, stainless step bars, 32" light bar recessed ,ultra guage mx 1.3 ,mesa cutoms dome and maps , tw custom cupholder, OG husky liners. Need seat covers and bed rug and she is done !
    I did this mod the other day and it works perfect . If you choose the middle position ,the mirror view will stay off . I also tapped the 3 wires in the kick panel to tie to my aftermarket HU video input . Its a lil grainy at times ,will try a few chokes on it to see if they help at all. great mod !

  7. Oct 5, 2019 at 4:53 PM
    #267
    robfox

    robfox Well-Known Member

    Joined:
    Sep 6, 2017
    Member:
    #229234
    Messages:
    51
  8. Oct 5, 2019 at 4:57 PM
    #268
    13tacosport

    13tacosport Well-Known Member

    Joined:
    Jul 4, 2019
    Member:
    #298330
    Messages:
    777
    Gender:
    Male
    First Name:
    Arbi
    818
    Vehicle:
    13 Trd Sport
    I have a 2013 that displays the rear camera in the rear view mirror, I want it to display on the lcd screen head unit when I put the truck in reverse, all I will need is this wiring harness? Or a switch to press to activate camera when I want to reverse?

  9. Oct 5, 2019 at 5:02 PM
    #269
    robfox

    robfox Well-Known Member

    Joined:
    Sep 6, 2017
    Member:
    #229234
    Messages:
    51
    You'll need to do more than just get this part. I used this in conjunction with a switch to display the backup camera anytime to the LCD, but my camera was already routed to the screen.

  10. Oct 5, 2019 at 5:05 PM
    #270
    13tacosport

    13tacosport Well-Known Member

    Joined:
    Jul 4, 2019
    Member:
    #298330
    Messages:
    777
    Gender:
    Male
    First Name:
    Arbi
    818
    Vehicle:
    13 Trd Sport
    I was just speaking parts wise, I understand there are some cutting or re wiring etc,

  11. Oct 7, 2019 at 1:56 PM
    #271
    TACOMA2NDGEN

    TACOMA2NDGEN Well-Known Member

    Joined:
    Jan 24, 2018
    Member:
    #242230
    Messages:
    1,279
    Gender:
    Male
    First Name:
    ROLAND
    new jersey
    Vehicle:
    2010 dcsb silver sport trd
    baja squadron pros

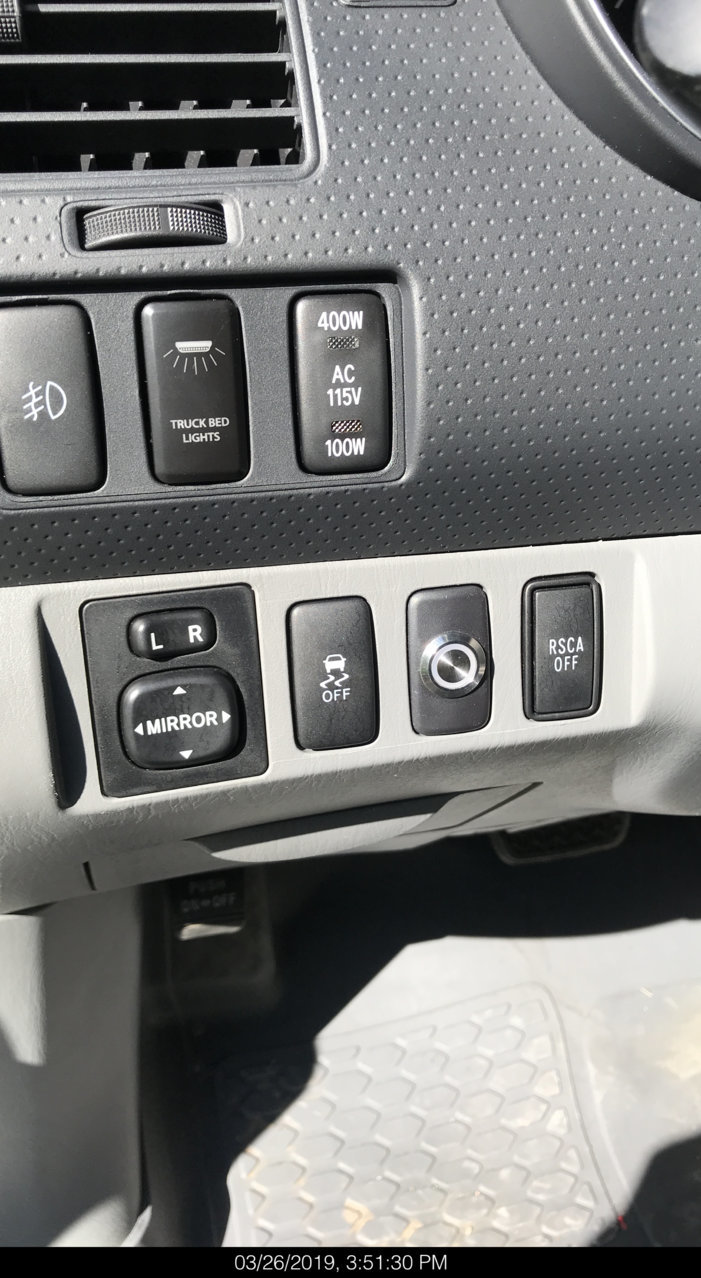

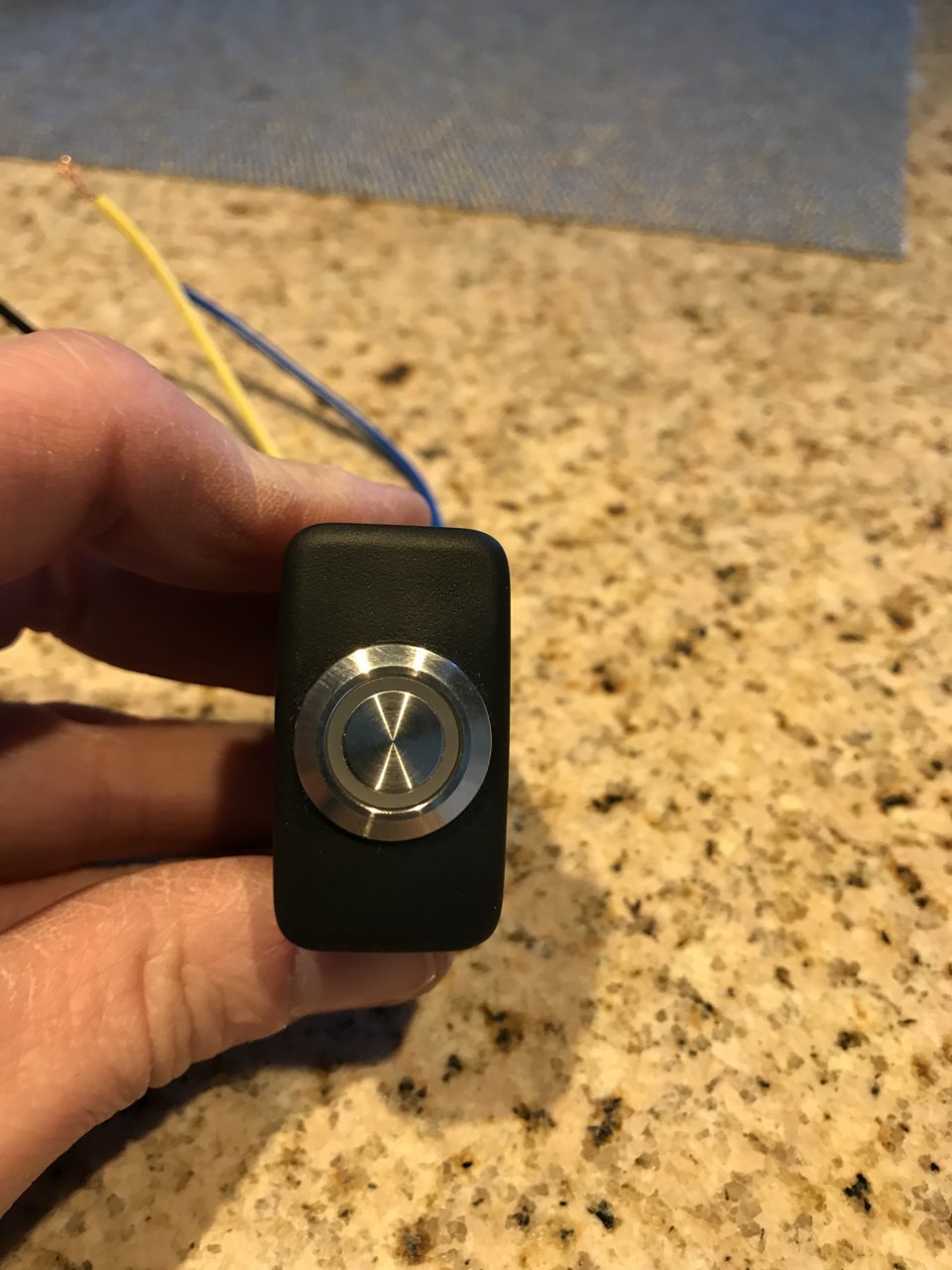

    Great little mod did mine also 2010 but bought a push button switch and installed it in one of the blanksDF79D44A-DD5D-4675-92EA-EE85E2B16078.jpg124AD216-230A-4E85-A83A-68321CA92789.jpg

  12. Aug 24, 2020 at 1:18 PM
    #272
    indaclear

    indaclear Member

    Joined:
    Aug 10, 2020
    Member:
    #337229
    Messages:
    8
    First Name:
    Yoshi
    WInston Salem NC
    Vehicle:
    2013 Tacoma SR 4cyl manual 4x4
    Bone stock
    If you have a newer model rear view mirror, with the temperature and compass display, will it still cut off after 5 minutes and enter screen saver mode when the switch is engaged?

  13. Oct 30, 2020 at 8:41 AM
    #273
    rosqeaux

    rosqeaux Badjes?

    Joined:
    Mar 3, 2011
    Member:
    #52252
    Messages:
    141
    Gender:
    Male
    I'd like to do this mod but have an aftermarket camera I installed in the bumper since I removed the tailgate (with camera) to carry a camper shell. I now have two sets of guidelines superimposed on the image. The new camera instructions tell you to cut a wire to eliminate the lines for their camera, but I want to eliminate the ones from the OEM camera since they're now in the wrong place as the new camera is mounted at a different location and angle. Is there a way to get rid of the guidelines while doing this mod as well?

  14. Oct 31, 2020 at 5:16 PM
    #274
    xguntherc

    xguntherc Taco Time

    Joined:
    Dec 19, 2012
    Member:
    #93383
    Messages:
    1,705
    Gender:
    Male
    First Name:
    Cory
    Vegas
    Vehicle:
    11 TRD Off Road - Black
    Icon Stage 4, BFGoodrich KO2, Raceline wheels, Baja Design XL 80s, Baja Squad Pro WC fogs, HomerTaco grill, raptor "dudebro" lights, Prinsu rack, trail rash pinstripes, BAMF sliders, BAMF LCA skids, and a few other things I can't think of.

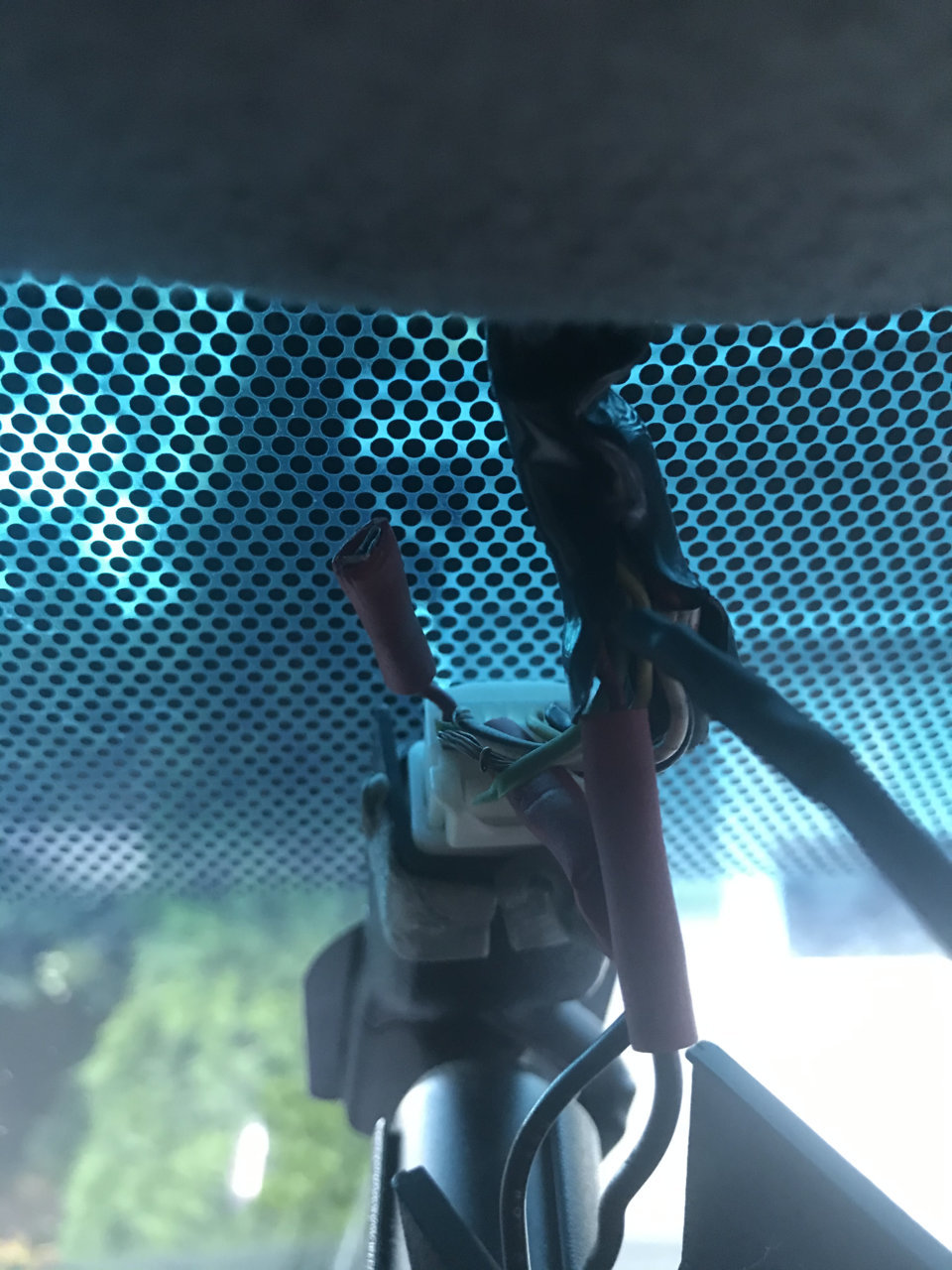

    Can anyone tell me which wires are the power and ground. I have a 2011 with the JBL system and the backup camera in the mirror...

    It looks like the lime green is power but then on the backside facing the windshield there is three black wires.. are those ground?

    I'm thinking the white and black wire next to the green is ground

  15. Apr 29, 2021 at 2:02 PM
    #275
    Cosmo58

    Cosmo58 New Member

    Joined:
    Apr 25, 2021
    Member:
    #363894
    Messages:
    4
    Gender:
    Male
    Vehicle:
    Black 2007 Tacoma
    That is awesome. Not sure I'm smart enough to do this. I'll have to watch the video about 15 more times

  16. Jun 11, 2021 at 6:47 PM
    #276
    2kool4skool

    2kool4skool New Member

    Joined:
    Friday
    Member:
    #368334
    Messages:
    1
    Gender:
    Male
    First Name:
    William
    Vehicle:
    2009 Tacoma 4dr TRD 4x4
    Light bar, full skids, Snugtop
    I followed your directions on my 2009 Tacoma and it worked great. I can monitor my trailer occasionally during towing with a full bed of stuff. Thanks for the post.
