09 Always-On Rear View Camera

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Aalders, Jun 28, 2009.

  1. Sep 15, 2010 at 9:52 PM
    #121
    willerz

    willerz Member

    Joined:
    Aug 18, 2010
    Member:
    #41906
    Messages:
    11
    Gender:
    Male
    Vehicle:
    2010 Prerunner TRD Sport
    I did this mod and it only works when in reverse . Any ideas why is not working when i flip the switch to always on position? I read the write up so many times and checked my wirings and still no luck.

  2. Sep 16, 2010 at 4:10 AM
    #122
    BGrutter

    BGrutter Well-Known Member

    Joined:
    Aug 9, 2010
    Member:
    #41476
    Messages:
    378
    Gender:
    Male
    First Name:
    Baron
    Kansas City, MO
    Vehicle:
    2010 4x4 DCSB TRD OR
    Rear-View Camera Mod, Anti-theft Tailgate, No Mud-Flaps, Diff Breather Mod, Color-matched Mirror/Handle covers, Front Valance mod, Phone/GPS/Camera mount, and Illuminated 4x4 Switch ToyTec Ultimate Lift Light Racing UCAs
    I can think of only 3 possible problems.
    1: Your switch is bad.
    2: Your tap-in is none functoning.
    3: Your soldering is not creating a good connection.

    All three scenarios revolve around having something wrong with your lead that pulls power from the tap. Could you posts picture of the wires and where they connect?

  3. Sep 16, 2010 at 12:39 PM
    #123
    willerz

    willerz Member

    Joined:
    Aug 18, 2010
    Member:
    #41906
    Messages:
    11
    Gender:
    Male
    Vehicle:
    2010 Prerunner TRD Sport
    The green wire is 12v right? I think the tap-in is the problem. I'm gonna try this again later. Thanks.

  4. Sep 16, 2010 at 1:28 PM
    #124
    BGrutter

    BGrutter Well-Known Member

    Joined:
    Aug 9, 2010
    Member:
    #41476
    Messages:
    378
    Gender:
    Male
    First Name:
    Baron
    Kansas City, MO
    Vehicle:
    2010 4x4 DCSB TRD OR
    Rear-View Camera Mod, Anti-theft Tailgate, No Mud-Flaps, Diff Breather Mod, Color-matched Mirror/Handle covers, Front Valance mod, Phone/GPS/Camera mount, and Illuminated 4x4 Switch ToyTec Ultimate Lift Light Racing UCAs
    Click this link if you'd like to see the image I have of the final product. I wasn't able to find the same telephone tap that the OP used, but I used a basic 20-22 gauge wire tap.

  5. Oct 16, 2010 at 1:58 PM
    #125
    Tactical Tacoma

    Tactical Tacoma Well-Known Member

    Joined:
    Aug 4, 2009
    Member:
    #20639
    Messages:
    1,061
    Gender:
    Male
    First Name:
    Seth
    McKinney, TX
    Vehicle:
    '12 MGM DCSB Sport 4WD
    ARB air compressor, ARB rear air locker, sPOD switch panel in sunglass holder, OME Front & rear shocks, 885x coils, Dakar leaf springs, Icon tubular UCA's, Flowmaster 40 Series Exhaust, aFe Pro Dry, TRD Sport wheels powder coated anthracite, FJ TRD center caps, Thule roof rack, 886 fog lights for reverse light mod, CSjumper LED DTRL's, Nokya Yellow fogs, plastidipped lower valence, Weathertechs, Wet Okoles. And MANY MORE MODS, READ BUILD!
    I had the same problem, and found that on my 09 I had to run the wire from tab 3 on the switch to the wire coming TO the harness and run the wire from tab 2 on the switch to the wire coming FROM the harness. Basically my wiring on 2&3 is opposite of the OP's. Not sure why it had to be done this way, but don't care, it has taken me 3 attempts to get it right so I am just happy it works

  6. Oct 16, 2010 at 7:15 PM
    #126
    JKD

    JKD Well-Known Member

    Joined:
    Jun 9, 2009
    Member:
    #18207
    Messages:
    2,010
    Gender:
    Male
    I think I'm going to take this mod and mod it...put a small SPDT relay in the mirror wiring, wired as the OP did the switch; then control the relay with a 30 second or 1 minute timed switch. Button for the switch will be in the overhead console somewhere.

  7. Oct 20, 2010 at 6:28 PM
    #127
    cactuscorn

    cactuscorn Another FNG

    Joined:
    Oct 20, 2010
    Member:
    #44966
    Messages:
    502
    Gender:
    Male
    El Paso, TX
    Vehicle:
    '10 SR5 PreRunner
    OEM bedmat, D rings in front keep it from gettin ripped off. Wet Okole seat covers
    super cool aalders! last week im sittin in what will be my new '10 prerunner tomorrow morning, and asked the sales guy if there was a full time option on the cam. i was bummed when he said no and now im simply giddy with anticipation of this mod. i see a radio snack stop on my way home from the dealership. but as others have said, id prefer a dash position if possible. any electrical wizards found the magic place yet? i can barely spell "wire" so a tutorial as well done as the op's will be a huge help.

  8. Nov 14, 2010 at 6:22 PM
    #128
    timmo

    timmo Well-Known Member

    Joined:
    Sep 13, 2010
    Member:
    #43193
    Messages:
    128
    Gender:
    Male
    First Name:
    Tim
    OKC
    Vehicle:
    2010 doble cab 4wd sr5-silver

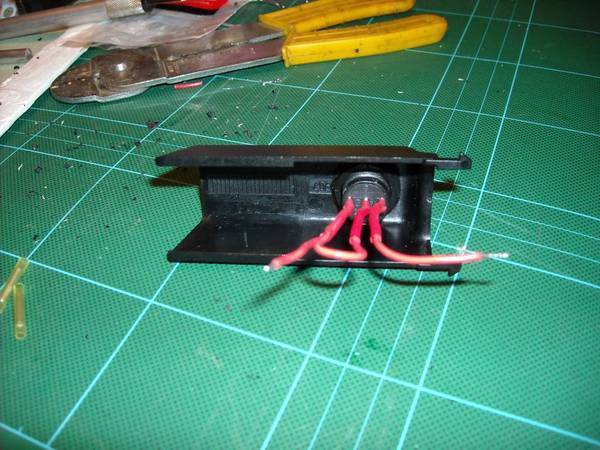

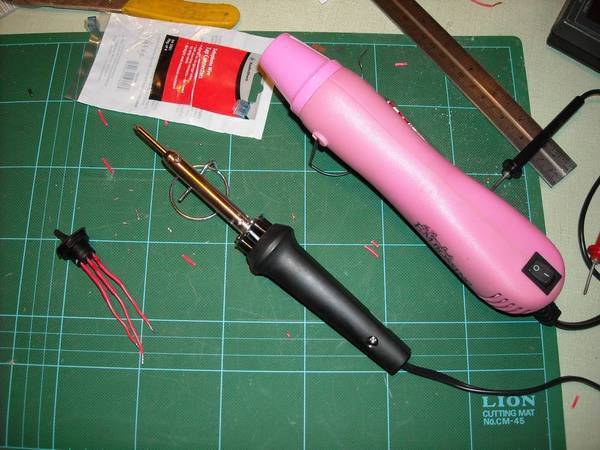

    i finally did it and it's great!
    the only thing i did differently was use a different model switch. it was the same piece of crap from radio shack as was mentioned earlier in this thread apparently cause i totally melted the first one (although that was my fault as i had the soldering iron set too high and the second switch is now working just fine.)
    know this: if you use a switch that requires an external cover plate, make sure you install it onto the mirror stem faceplate before you start splicing. i made it as far as the first splice and then started cursing!!!
    all is well now, however and life is good.
    it's great to be able to make sure that paint line is behind me when i park at work!


    [​IMG][/url][/IMG]

  9. Nov 14, 2010 at 6:24 PM
    #129
    timmo

    timmo Well-Known Member

    Joined:
    Sep 13, 2010
    Member:
    #43193
    Messages:
    128
    Gender:
    Male
    First Name:
    Tim
    OKC
    Vehicle:
    2010 doble cab 4wd sr5-silver

    damn you image posting!!!

  10. Nov 14, 2010 at 6:27 PM
    #130
    timmo

    timmo Well-Known Member

    Joined:
    Sep 13, 2010
    Member:
    #43193
    Messages:
    128
    Gender:
    Male
    First Name:
    Tim
    OKC
    Vehicle:
    2010 doble cab 4wd sr5-silver
    [​IMG]


    [​IMG]


    [​IMG]


    there!

  11. Dec 12, 2010 at 10:37 PM
    #131
    Walt

    Walt Member

    Joined:
    Oct 12, 2009
    Member:
    #24213
    Messages:
    11
    Gender:
    Male
    First Name:
    Walt
    SE Valley, Phoenix, Arizona
    Vehicle:
    2011 D-Cab Silver Sport 4X4
    Nice write up on switch for always on backup camera. Has anyone put a camera on the front of the vehicle and be able to use the rear view mirror via a toggle switch so that you can see how close you are to say a rock and your front bumper?

  12. Jan 4, 2011 at 11:04 AM
    #132
    JC808

    JC808 Active Member

    Joined:
    Dec 21, 2010
    Member:
    #48014
    Messages:
    28
    Gender:
    Male
    First Name:
    JC
    Kailua, Hawaii
    Vehicle:
    10,DBL CAB, Blacked OUT!
    AFE Pro Dry Intake, Flowmaster 50 Series, Rear Camera Mod, Day Running Light Mod, Kill Switches!
    I tried this mod with my 10 Taco and didn't get the results I wanted. Instead, my road traction indicator and check engine lights are on continually. I followed your instructions to the letter even avoiding the white wire. Is it possible that you used a different type of switch? Did your switch have two or three positions? Also, I noticed that there are two red wires and a red wire with gray stripping. Did you cut into the red wire in front or in back?

    Any assistance with this is greatly appreciated!

  13. Jan 4, 2011 at 11:15 AM
    #133
    JC808

    JC808 Active Member

    Joined:
    Dec 21, 2010
    Member:
    #48014
    Messages:
    28
    Gender:
    Male
    First Name:
    JC
    Kailua, Hawaii
    Vehicle:
    10,DBL CAB, Blacked OUT!
    AFE Pro Dry Intake, Flowmaster 50 Series, Rear Camera Mod, Day Running Light Mod, Kill Switches!
    I also have that problem with my check engine light and road hazard lights continually emitting. So, did you place your power wire in slot 2? If so, did that eventually work for you? I tried placing the green wire in slot 1 which only turned the camera off full time.

  14. Jan 4, 2011 at 11:17 AM
    #134
    TiMe

    TiMe Well-Known Member

    Joined:
    Oct 8, 2010
    Member:
    #44388
    Messages:
    229
    Gender:
    Male
    CA
    Vehicle:
    05 Dbl Cab 4x4
    6" Fabtech with coilovers 33" nitto mud grapplers
    I really wish the 05's were wired for a camera :(

  15. Jan 4, 2011 at 2:04 PM
    #135
    whitetacoma1

    whitetacoma1 White Tacoma 4X4

    Joined:
    Jul 28, 2009
    Member:
    #20318
    Messages:
    84
    Gender:
    Male
    First Name:
    Dan
    Alberta
    Vehicle:
    2009 and 1997 tacoma 4x4
    3" toytec Lift front OME 885s and AAL in the back
    very nice mod! are there any side effects with this mod like throwing codes etc?

  16. Jan 4, 2011 at 8:50 PM
    #136
    BGrutter

    BGrutter Well-Known Member

    Joined:
    Aug 9, 2010
    Member:
    #41476
    Messages:
    378
    Gender:
    Male
    First Name:
    Baron
    Kansas City, MO
    Vehicle:
    2010 4x4 DCSB TRD OR
    Rear-View Camera Mod, Anti-theft Tailgate, No Mud-Flaps, Diff Breather Mod, Color-matched Mirror/Handle covers, Front Valance mod, Phone/GPS/Camera mount, and Illuminated 4x4 Switch ToyTec Ultimate Lift Light Racing UCAs
    I have a 2010 and didn't have any issues other than installer error. After swapping out the first switch that I broke, it works great. No codes thrown or lights eliminated.

    If you're having issues with the install, you can take a look at my build thread. I documented it all pretty well on one dedicated post (linked in my first post). Not that I did it any better, but perhaps a different perspective will help you to troubleshoot.

    Let me know if I can be of any assistance.

  17. Jan 7, 2011 at 12:46 AM
    #137
    whitetacoma1

    whitetacoma1 White Tacoma 4X4

    Joined:
    Jul 28, 2009
    Member:
    #20318
    Messages:
    84
    Gender:
    Male
    First Name:
    Dan
    Alberta
    Vehicle:
    2009 and 1997 tacoma 4x4
    3" toytec Lift front OME 885s and AAL in the back
    Got my switch today going to install the mod this weekend.

  18. Jan 7, 2011 at 3:24 AM
    #138
    Gitmo

    Gitmo Well-Known Member

    Joined:
    Oct 25, 2009
    Member:
    #24884
    Messages:
    471
    Gender:
    Male
    First Name:
    Justin
    Siick! This is perfect, now I can flip it on to see how close the asshole behind me really is...then I can flip on my PA and yell at him xD. Shit, I can also flip it on to see if it really is a cop behind me too!!

    +1 rep man!

  19. Jan 8, 2011 at 8:59 AM
    #139
    honejim

    honejim New Member

    Joined:
    Sep 10, 2010
    Member:
    #43052
    Messages:
    3
    Gender:
    Male
    First Name:
    Jim
    Colorado
    Vehicle:
    2010 Tacoma
    Dude!! (1) Do the "brighter reverse light mod" (2) Put it on a seperate switch. (3) When they are to close you can blind them AND watch them at the same time LOL

  20. Jan 9, 2011 at 1:30 AM
    #140
    Gitmo

    Gitmo Well-Known Member

    Joined:
    Oct 25, 2009
    Member:
    #24884
    Messages:
    471
    Gender:
    Male
    First Name:
    Justin
    Helll yea! I want to install a pair of backup lights under my bumber but the reverse lights would be much more stealthier incase a cop checks it!! Good lookin out :cool:
