09 Auto LSD

Discussion in '2nd Gen. Tacomas (2005-2015)' started by jiles111, Jun 2, 2009.

  1. Jun 2, 2009 at 7:03 PM
    #1
    jiles111

    jiles111 [OP] Well-Known Member

    Joined:
    May 27, 2009
    Member:
    #17718
    Messages:
    53
    Gender:
    Male
    Abilene, TX
    Vehicle:
    09 RegCab 4x4 Super White
    I know what it is, and how it works, but one thing I noticed that if you turn off the traction control (With the button) the "Auto LSD" light comes on only when you are in 2WD. When you are in 4 hi the "traction control off" lite never comes on, and the "Auto LSD On" never comes on. In 4 LO the "Traction Control off" light comes on, but the Auto LSD does not. Is it available in 4x4 or just 2WD only.
    What gives lol.

  2. Jun 3, 2009 at 6:27 PM
    #2
    Isthatahemi

    Isthatahemi Well-Known Member

    Joined:
    Apr 29, 2009
    Member:
    #16582
    Messages:
    1,160
    Gender:
    Male
    Vehicle:
    TRD OFF ROAD
    BFG AT's, Weathertechs, Hoppy's brake controller.
    New system configuration for 2009, I'm still waiting to hear how it behaves in tough off-road situation. If it has ATRAC, it is supposed to have 4 wheel LSD in 4 low. Someone needs to test this out....

  3. Jun 3, 2009 at 6:34 PM
    #3
    DriverSound

    DriverSound Señor Member

    Joined:
    Mar 29, 2009
    Member:
    #15329
    Messages:
    2,469
    Gender:
    Male
    SoCal
    Vehicle:
    2015 TRD-OR DCSB
    Just enough! Other vehicles: 2015 Mustang GTPP 2014 Prius 2010 4runner SR5 4x4 2009 TRD-OR AC
    With the rear locker on 4wd Low, the auto lsd is off. I think if you don't engage the rear locker, the auto lsd is on at 4wd low.

  4. Jun 3, 2009 at 6:49 PM
    #4
    JeffRock

    JeffRock Well-Known Member

    Joined:
    Mar 18, 2009
    Member:
    #14910
    Messages:
    1,198
    Gender:
    Male
    Capital region, NY
    Vehicle:
    09 Tacoma accesscab 4x4 SR5 2.7L
    Toyota all weather floor mats. Mag light that clunks around in the jack compartment. Dog hair. Dog drool on the windows.
    if you push and hold the button while stopped, it turns off vsc, And auto lsd..
    I was pretty disappointed when we got some snow right after i bought my truck, And went to get sideways in the snow and all these lights and buzzers came on and the brakes started locking up and such....

  5. Jun 3, 2009 at 6:56 PM
    #5
    DriverSound

    DriverSound Señor Member

    Joined:
    Mar 29, 2009
    Member:
    #15329
    Messages:
    2,469
    Gender:
    Male
    SoCal
    Vehicle:
    2015 TRD-OR DCSB
    Just enough! Other vehicles: 2015 Mustang GTPP 2014 Prius 2010 4runner SR5 4x4 2009 TRD-OR AC
    Or you can just do the abs, lsd, and auto trac mod that turns all of those off. Search "cheap free mods". It's a simple mod.

  6. Jun 3, 2009 at 7:42 PM
    #6
    jiles111

    jiles111 [OP] Well-Known Member

    Joined:
    May 27, 2009
    Member:
    #17718
    Messages:
    53
    Gender:
    Male
    Abilene, TX
    Vehicle:
    09 RegCab 4x4 Super White
    Mine does not have the locker.
    The buttons only work in 2wd. In 4hi and 4lo the buttons are inactive. You can hold them in for hours and nothing happens lol.

    I am not sure if I have the atrac or not. The book states you turn it off and on by the button on the steering wheel. I have the button with the truck and swirly lines behind it, but it only works in 2wd.

  7. Jun 3, 2009 at 8:21 PM
    #7
    jiles111

    jiles111 [OP] Well-Known Member

    Joined:
    May 27, 2009
    Member:
    #17718
    Messages:
    53
    Gender:
    Male
    Abilene, TX
    Vehicle:
    09 RegCab 4x4 Super White
    This is from the book

    'Auto LSD System operation:
    The system can be used on 2WD models and in 2WD mode on
    4WD models."


    And

    Turning off TRAC and VSC
    Push and hold the button for
    more than 3 seconds while the
    vehicle is stopped to turn off both
    TRAC and VSC.
    The VSC OFF indicator light
    should come on.
    Push the button again to turn both
    systems back on.

    Automatic reactivation of TRAC and VSC
    Turning the engine switch off after turning off the TRAC and VSC systems
    will automatically re-enable them.

    Automatic TRAC reactivation (AUTO LSD mode)
    With AUTO LSD mode, VSC OFF and AUTO LSD indicator lights turn on.
    The TRAC system will turn on when the vehicle speed increases.

    Automatic TRAC and VSC reactivation
    If the TRAC and VSC systems are turned off, the systems will not turn on
    even when vehicle speed increases.

    Sounds and vibrations caused by the ABS, TRAC, VSC, brake assist
    and hill-start assist control system. A sound may be heard from the engine compartment when the engine is started or just after the vehicle begins to move. This sound does not indicate that a malfunction has occurred in any of these systems. Any of the following conditions may occur when the above systems are operating. None of these indicates that a malfunction has occurred.
    • Vibrations may be felt through the vehicle body and steering.
    • A motor sound may be heard after the vehicle comes to a stop.
    • The brake pedal may pulsate slightly when the ABS is activated.
    • The brake pedal may move down slightly after the ABS is activated.

  8. Jun 4, 2009 at 11:00 AM
    #8
    mgrande

    mgrande iKill

    Joined:
    Apr 11, 2009
    Member:
    #15830
    Messages:
    5,433
    Gender:
    Male
    Orlando
    Vehicle:
    2011 TRD off road
    Kings, AP 3" leaf pack, timbrens front and rear, TC UCA's, pro comp 7189's, baja ATZ's, CBI sliders and rear, relentless front, dynomax catback
    Very confusing.... So the simple answer is??
    When in 2WD on the road I assume the TRAC and VSC are on and no lights apear?
    What about when you put it in 4HI? No lights come on, so does that mean I should hold the button until the light comes on? The auto LSD is supposed to give you more traction correct?

  9. Jun 4, 2009 at 1:42 PM
    #9
    fishshooter

    fishshooter Well-Known Member

    Joined:
    Feb 13, 2009
    Member:
    #13586
    Messages:
    318
    Gender:
    Male
    Northwest Florida
    Vehicle:
    09 Super White TRD Off Road 4X4
    Stock
    You should be able to turn off the vsc in 4 hi by pushing the button and holding it down while stopped. I don't know if this turns off trac in this situation, I haven't tried it. If you have A-trac, there will be a button above the front cup holders and below the little cubby hole, and an A-trac light on the instrument panel that comes on in 4 lo when it is engaged. If you have a locker, you can engage both the locker and A-trac, which then will only work the front wheels. The locker engaged turns off ABS.
    Hitting vsc button once in 2 wd will engage the ALSD and turn off vsc, until a certain speed, where ALSD will stay on and the vsc will come back on. ALSD will give you more traction by limiting wheel spin with the brakes, without the vsc tinkering with the throttle. Use ALSD when VSC is would prevent you from using full throttle because of wheel spin, like on a muddy road, or coming up the side of a ditch. If you hold the VSC button down for a few second while stopped in 2 wd, it will turn off the ALSD and VSC and it will act like a regular differential with no interference from the computer. Got it? :)

  10. Jun 4, 2009 at 1:52 PM
    #10
    Mon Leb

    Mon Leb Tacoma's Quest!

    Joined:
    Apr 25, 2009
    Member:
    #16414
    Messages:
    92
    Gender:
    Male
    St-Jean-sur-Richelieu, Quebec, Canada
    Vehicle:
    09' 4X4 SR5-TRD Sport, Leather, BackUp camera
    Chromed Bull-Bar Westin. Sport pedals. Round side steps bars. Stainless Steel Exhaust Tip 4WD Switch Light Mod Door Sill Protectors
    2WD mode only when you have a 4WD.

  11. Jun 4, 2009 at 1:52 PM
    #11
    fishshooter

    fishshooter Well-Known Member

    Joined:
    Feb 13, 2009
    Member:
    #13586
    Messages:
    318
    Gender:
    Male
    Northwest Florida
    Vehicle:
    09 Super White TRD Off Road 4X4
    Stock
    It works, and seems to work well. But, it's a bit shaky and noisy, especially when real wet. The DAC is the same way, it works, but it lets you know it's working. When A-Trac detects wheel spin, it brakes that wheel HARD and doesn't waste any time doing it. I was playing on a gravel pile with it a while back. I could hear one of the tires let loose and then a stuttering and BAM, that tire was locked and the truck would keep putting along. There are few You Tube vids of FJs using it.

  12. Jun 4, 2009 at 2:07 PM
    #12
    Mon Leb

    Mon Leb Tacoma's Quest!

    Joined:
    Apr 25, 2009
    Member:
    #16414
    Messages:
    92
    Gender:
    Male
    St-Jean-sur-Richelieu, Quebec, Canada
    Vehicle:
    09' 4X4 SR5-TRD Sport, Leather, BackUp camera
    Chromed Bull-Bar Westin. Sport pedals. Round side steps bars. Stainless Steel Exhaust Tip 4WD Switch Light Mod Door Sill Protectors
    In 2WD mode like you said no lights appears and the systems are "ON".In 4WD HI mode you cannot turn "Off" the auto LSD/VSC, so it's useless to hold that button in that mode. The LSD is a system that controls gas/brakes by the means of a computer to help control the vehicle when one of the rear wheel spins you're right.

  13. Jun 4, 2009 at 2:30 PM
    #13
    mgrande

    mgrande iKill

    Joined:
    Apr 11, 2009
    Member:
    #15830
    Messages:
    5,433
    Gender:
    Male
    Orlando
    Vehicle:
    2011 TRD off road
    Kings, AP 3" leaf pack, timbrens front and rear, TC UCA's, pro comp 7189's, baja ATZ's, CBI sliders and rear, relentless front, dynomax catback
    ok, so the LSD is always on and when I put it in 4HI I dont have to worry about doing anything else right?

  14. Jun 4, 2009 at 2:34 PM
    #14
    fishshooter

    fishshooter Well-Known Member

    Joined:
    Feb 13, 2009
    Member:
    #13586
    Messages:
    318
    Gender:
    Male
    Northwest Florida
    Vehicle:
    09 Super White TRD Off Road 4X4
    Stock

    ??

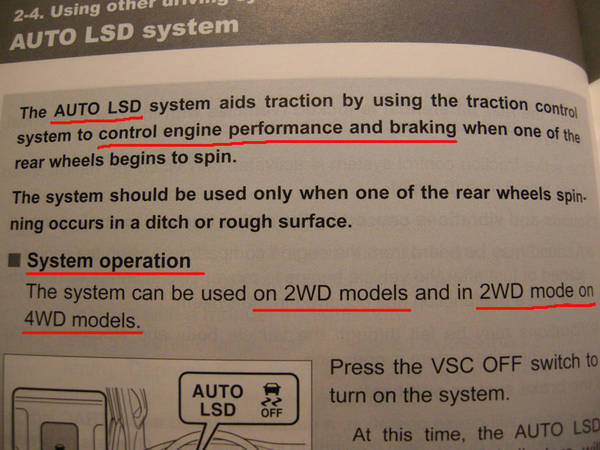

    [​IMG]



    And the ALSD should NOT interefere with the throttle control.

  15. Jun 4, 2009 at 5:24 PM
    #15
    Mon Leb

    Mon Leb Tacoma's Quest!

    Joined:
    Apr 25, 2009
    Member:
    #16414
    Messages:
    92
    Gender:
    Male
    St-Jean-sur-Richelieu, Quebec, Canada
    Vehicle:
    09' 4X4 SR5-TRD Sport, Leather, BackUp camera
    Chromed Bull-Bar Westin. Sport pedals. Round side steps bars. Stainless Steel Exhaust Tip 4WD Switch Light Mod Door Sill Protectors
    I don't know bud, maybe it's because you have a "Off Road" model and I have a "Sport". I'll check it out and let you know. You sure your on 4 Hi not Lo ?

  16. Jun 4, 2009 at 5:52 PM
    #16
    Mon Leb

    Mon Leb Tacoma's Quest!

    Joined:
    Apr 25, 2009
    Member:
    #16414
    Messages:
    92
    Gender:
    Male
    St-Jean-sur-Richelieu, Quebec, Canada
    Vehicle:
    09' 4X4 SR5-TRD Sport, Leather, BackUp camera
    Chromed Bull-Bar Westin. Sport pedals. Round side steps bars. Stainless Steel Exhaust Tip 4WD Switch Light Mod Door Sill Protectors
    Damned YOU'RE RIGHT! Just went to check it out in my truck and it does the same as yours. So sorry! But my owner's manuel says this:
    [​IMG]

    I'll ask at the dealer tomorrow to clarify this.

  17. Jun 4, 2009 at 6:06 PM
    #17
    Mon Leb

    Mon Leb Tacoma's Quest!

    Joined:
    Apr 25, 2009
    Member:
    #16414
    Messages:
    92
    Gender:
    Male
    St-Jean-sur-Richelieu, Quebec, Canada
    Vehicle:
    09' 4X4 SR5-TRD Sport, Leather, BackUp camera
    Chromed Bull-Bar Westin. Sport pedals. Round side steps bars. Stainless Steel Exhaust Tip 4WD Switch Light Mod Door Sill Protectors
    FishShooter's right. I didn't know it was possible to turn that system "Off" in 4WD HI mode but it is, just did it in my truck. But the owner's manuel says otherwise (see my pic of the owner's manuel underlined in red). So trying to help you I guess I just found out I was as much confused :rolleyes:.
    All my apologies! :eek:

  18. Jun 14, 2009 at 6:03 PM
    #18
    jiles111

    jiles111 [OP] Well-Known Member

    Joined:
    May 27, 2009
    Member:
    #17718
    Messages:
    53
    Gender:
    Male
    Abilene, TX
    Vehicle:
    09 RegCab 4x4 Super White
    Umm Ok here is something strange. I was out Storm Chasing yesterday on a long dirt road. I was parked on the side looking for rotation and noticed that I was going to get hit by the dust front. Well I took off and got a little exited and pressed on the gas and the tires let go for about 2 seconds. Then the traction "Beep" came on, then all of a sudden the truck turned off the main traction control and turned on the AUTO LSD. Was this normal? I thought that I had to do this manually.

  19. Jun 15, 2009 at 6:59 PM
    #19
    mgrande

    mgrande iKill

    Joined:
    Apr 11, 2009
    Member:
    #15830
    Messages:
    5,433
    Gender:
    Male
    Orlando
    Vehicle:
    2011 TRD off road
    Kings, AP 3" leaf pack, timbrens front and rear, TC UCA's, pro comp 7189's, baja ATZ's, CBI sliders and rear, relentless front, dynomax catback
    I had something similar happen to me. I had to back on to a concrete curb with wet grass (parking lot style) and one of my rear wheels got up there first and sliped a little on the grass, all of a sudden, I hear some beeping and next thing I know both wheels are on the curb. It happened really fast and I was on the phone so I can't be sure exactly what lights came on.
