Discussion in '2nd Gen. Tacomas (2005-2015)' started by camsbored, Dec 3, 2008.

  1. Dec 3, 2008 at 11:34 AM
    #1
    camsbored

    camsbored [OP] Well-Known Member

    Joined:
    Apr 12, 2008
    Member:
    #5932
    Messages:
    185
    Raleigh, NC
    Vehicle:
    08 PreRunner DC/Sport/LB
    Kenwood DNX8120, Homelink mirror, Valentine One hardwire
    I've had a backup camera on my license plate since I bought the truck in April, but the angle wasn't great for depth perception (useful for backing up!). So... I retrofitted an 09-style backup camera in the tailgate location.

    09 tailgate handle ~ $70 shipped from Toyota of Dallas
    Pioneer ND-BC2 Camera ~ $170 from eBay

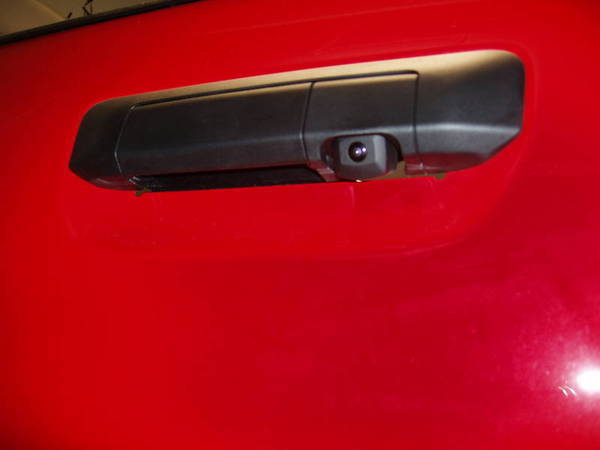

    Here's the result. By the way, you can see light through the handle because I still had the tailgate back off... looks much cleaner with it all put back together.
    [​IMG]

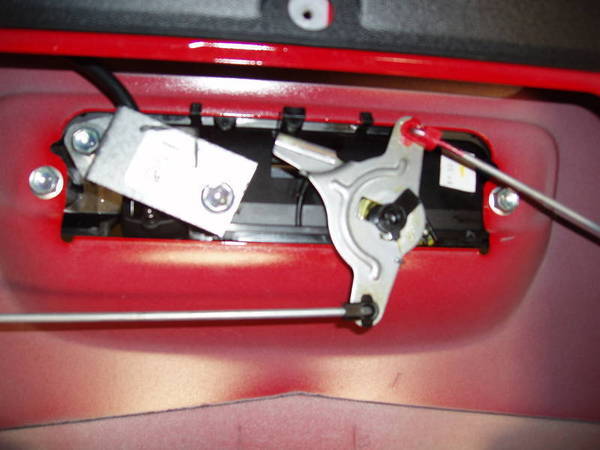

    The handle has two threaded holes for the stock Toyota camera to mount onto. The Pioneer camera has a simple gimbled monting bracket with double-sided adhesive tape. I bent a simple metal bracket to stick the camera to that fit the existing threaded bolt locations. I also had to dremel the bottom side of the handle where the camera fits to be able to get the correct angle.
    [​IMG]

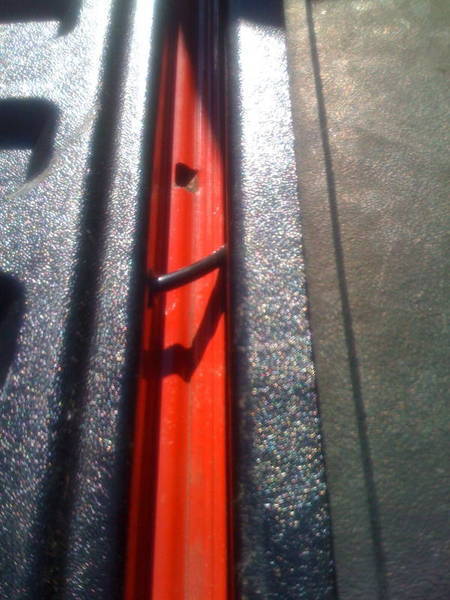

    The camera's wire is really really thin and easily damaged, so I ran it through some irrigation drip tubing from the camera through the tailgate and under the truck. The wire exits the tailgate about 3 inches off center on the bottom and goes underneath the truck through the spare-tire winch access hole. Seems to work out very well and doesn't interfere with anything (spare winch or moving the tailgate up/down).
    [​IMG]

    The rest of the install was standard... running the wire to the cab along the frame rail, in through the grommet under the driver's seat, etc, etc. Since I had to remove the old camera it was twice as much work! I'm very happy with the results.

    If anyone wants to buy a lightly used Boyo VTL300, PM me.

  2. Dec 3, 2008 at 11:38 AM
    #2
    LonghornTaco

    LonghornTaco Can you pass the bailout please?

    Joined:
    Oct 6, 2008
    Member:
    #9763
    Messages:
    3,355
    Gender:
    Male
    First Name:
    Jason
    Minnesota
    Vehicle:
    Black 09 4x4 TRD Off Road Doublecab
    3" ToyTec coilover lift on Bilstein 5100s, Total Chaos UCAs, ToyTec diff drop, Scangauge II, 4D MagLite mounted on the drivers seat, Painted engine cover, Painted calipers (red), Painted skid plate (red) Valentine 1 radar detector hard wired, Damplifier Pro on the floor, back wall and doors, Luxury Liner Pro on the floor and doors, Kenwood DNX8120, 2 Pioneer TS-SW1041D 10" shallow mount subs, 2 Pioneer PRS-D4200F 1200W amps, Mr Marv sub enclosure, Hybrid Audio Clarus 6.5" components in the front doors, Alpine 5.25" coaxials in the rear doors, A.R.E. LSII fiberglass tonneau cover, All Pro bumper, All Pro sliders, Wet Okole seat covers, Sockmonkey Mountain badges, PIAA 510 SMR Driving Lights, Warn M8000 Winch, Bud Built skids
    Nice job! I just installed the 8120 and was thinking about trying to connect the '09 stock camera to the 8120, just hadn't gotten there yet...

  3. Dec 3, 2008 at 11:38 AM
    #3
    MyToyTaco

    MyToyTaco ╒╪╕

    Joined:
    Sep 23, 2008
    Member:
    #9417
    Messages:
    4,320
    Gender:
    Male
    First Name:
    Nick
    Port Hueneme
    Vehicle:
    08 Taco
    Good job!

  4. Dec 3, 2008 at 12:15 PM
    #4
    MyToyTaco

    MyToyTaco ╒╪╕

    Joined:
    Sep 23, 2008
    Member:
    #9417
    Messages:
    4,320
    Gender:
    Male
    First Name:
    Nick
    Port Hueneme
    Vehicle:
    08 Taco
    It's helpful when hooking up to a trailer, for one.

    Or maybe seeing small children playing while backing out of your driveway..or bikes maybe? Just a thought.

  5. Dec 3, 2008 at 12:16 PM
    #5
    MyToyTaco

    MyToyTaco ╒╪╕

    Joined:
    Sep 23, 2008
    Member:
    #9417
    Messages:
    4,320
    Gender:
    Male
    First Name:
    Nick
    Port Hueneme
    Vehicle:
    08 Taco
    Put it this way, the MORE you can see, the less chance you have of hitting something, Stinger.

  6. Dec 3, 2008 at 4:00 PM
    #6
    TheOne

    TheOne Beach Prerunner

    Joined:
    Sep 8, 2008
    Member:
    #9079
    Messages:
    60
    Gender:
    Male
    East Coast, nc
    Vehicle:
    06 Prerunner Impulse red
    stock
    looks good how long did it take " roughly"

  7. Dec 3, 2008 at 4:14 PM
    #7
    Johnson8537

    Johnson8537 Well-Known Member

    Joined:
    Oct 27, 2007
    Member:
    #3258
    Messages:
    518
    Oregon
    Vehicle:
    06 TRD SPORT 4x4 Double Cab Long bed
    Revtek Leveling Kit with 1 1/2 block spacer in rear. 17" MotoMetal blacks on 32" tires. Access Lorado Tonneau - Bed mat Billet Grill Tinted Windows Pioneer 700BT with PAC steering wheel inerface. Wet Okole Seat Covers Front and back.
    Looks great!!! Might be a future mod.....

  8. Dec 4, 2008 at 6:18 AM
    #8
    camsbored

    camsbored [OP] Well-Known Member

    Joined:
    Apr 12, 2008
    Member:
    #5932
    Messages:
    185
    Raleigh, NC
    Vehicle:
    08 PreRunner DC/Sport/LB
    Kenwood DNX8120, Homelink mirror, Valentine One hardwire
    Probably 3-4 hours... the most time consuming tasks were figuring out placement for the camera on the bracket and soldering in a quick-disconnect in case I need to remove the tailgate. Included in that is also removing the old camera.

  9. Dec 4, 2008 at 6:22 AM
    #9
    longbow

    longbow I see you now..................

    Joined:
    Jun 26, 2008
    Member:
    #7586
    Messages:
    4,041
    Gender:
    Male
    First Name:
    Bill
    Indiana
    Vehicle:
    05 Tacoma Silver Mica TRD 4 Door
    Toy-tec Coil over lift, Eibach 700 lb springs, Sway bar relocate, Total Chaos UCA's, Moto metal wheels, BFG mudterrians, HID, custom 3 piece grill, Highlift jack w/custom mount, Highlift jack cover, bed matt, de-badged 100%, storage box lock mod, using defrost w/o AC mod, short antenna mod, horn re-locate, Tire Gate flat spare tire mount, engine cover painted, bed light (1) mod, wreck bar carrier, Blue Sea 5026 fuse block, center console outlet, flash light mod, Blue Sea inline fuse, Shrockworks sliders, All-Pro front bumper, Piaa 510 driving lights, Warn shackles front, Kennesaw rear bumper, "Tag Boltz" plate lights, Warn shackles rear, Warn M8000 winch, devil horns, BHLM, weathech liners front and rear.....T.W. sticker of course. Custom Sock bed decal for Michele
    I like it and the idea, swing by this way and you can do one for me :D

  10. Dec 4, 2008 at 7:19 AM
    #10
    David Tarantino

    David Tarantino Well-Known Member

    Joined:
    Jun 20, 2008
    Member:
    #7428
    Messages:
    6,123
    Gender:
    Male
    N.J.
    Vehicle:
    08 tacoma
    nice job i was going to ask about removel of the tail gate

  11. Dec 4, 2008 at 8:03 AM
    #11
    TacoNut

    TacoNut IgnoringChrisWatchingEdLi veVicariouslyThroughMJP2

    Joined:
    Mar 29, 2008
    Member:
    #5597
    Messages:
    5,243
    Gender:
    Male
    First Name:
    Adam
    Denver, Co
    Vehicle:
    16 TRD OR DCSB Quicksand
    looks good man! Great job!

  12. Dec 4, 2008 at 12:42 PM
    #12
    Evil Monkey

    Evil Monkey There's an evil monkey in my truck

    Joined:
    Aug 8, 2007
    Member:
    #2352
    Messages:
    8,337
    Gender:
    Male
    First Name:
    Robert
    Escondido, CA
    Vehicle:
    07 4x4 DC SR5 TRD Off-road
    Weathertech front & rear mats, rear suspension TSB, Toytec AAL for TSB, Hi-Lift Jack, Bilstein 5100 & Toytec Adjustable coilovers, Built Right UCAs, KMC XD 795 Hoss Wheels, Definity Dakota MTs 285/75R16, Leer XR, Thule Tracker II & Thule MOAB basket
    I prefer the sonar types (beeps faster as you get close to something). With a video screen in front of you, your head is turned forward. With sonar, I can just look back like I normally would while listening to the beeps if there's something I don't see. Mine's pretty sensitive. It'll pick up curbs or even small shrubs. The only time it doesn't function right is when the tailgate is down (it thinks something is behind me), but that would be no different than the tailgate camera.

  13. Dec 4, 2008 at 1:11 PM
    #13
    paintdiddy

    paintdiddy Machine gun shits

    Joined:
    Oct 12, 2008
    Member:
    #9924
    Messages:
    10,307
    Gender:
    Male
    First Name:
    shithead
    nj and not from "the jersey shore"
    Vehicle:
    silver bullet
    great thread.it should be a sticky.i am def doing it.i'm getting a cap after the holidays and really want a back up cam

  14. Dec 4, 2008 at 1:22 PM
    #14
    007Tacoma

    007Tacoma I dub thee malicious!

    Joined:
    Jan 4, 2007
    Member:
    #643
    Messages:
    6,664
    Gender:
    Male
    First Name:
    Mark
    San Antonio, TX
    Vehicle:
    2015 4Runner Trail Edition Premium
    Cloaking Device
    That looks really good. I would love to do this to my truck, but I need to keep my tailgate lock. I wonder how long until someone offers a tailgate lock for this kind of handle...

  15. Dec 10, 2008 at 9:16 AM
    #15
    trtripoli

    trtripoli lower management

    Joined:
    Aug 1, 2008
    Member:
    #8266
    Messages:
    344
    Gender:
    Male
    Denver, CO
    Vehicle:
    07 4,0 L, 6M, Dbl Cab, TRD Off Road
    Eclipse AVN6620 JL 500/1 amp JL 13TW5 sub JL 300/4 JL XR-650CSi Mr Marv Box Blu tooth XM radio Back Up camera, RAAMmat and Ensolite everywhere but ceiling
    does anyone know the part number for the tailgate handle. I'm about to add a rear view camera to my 07. Can't find the handle online though.

  16. Dec 10, 2008 at 10:27 AM
    #16
    camsbored

    camsbored [OP] Well-Known Member

    Joined:
    Apr 12, 2008
    Member:
    #5932
    Messages:
    185
    Raleigh, NC
    Vehicle:
    08 PreRunner DC/Sport/LB
    Kenwood DNX8120, Homelink mirror, Valentine One hardwire
    PM sent. Email Toyota of Dallas through their website: http://trdparts4u.com/ I got a response within 12 hours. I don't have the actual part number, sorry.

  17. Dec 11, 2008 at 10:37 AM
    #17
    trtripoli

    trtripoli lower management

    Joined:
    Aug 1, 2008
    Member:
    #8266
    Messages:
    344
    Gender:
    Male
    Denver, CO
    Vehicle:
    07 4,0 L, 6M, Dbl Cab, TRD Off Road
    Eclipse AVN6620 JL 500/1 amp JL 13TW5 sub JL 300/4 JL XR-650CSi Mr Marv Box Blu tooth XM radio Back Up camera, RAAMmat and Ensolite everywhere but ceiling
    90105-A0063 BOLT, FLA 115H 2 0.43
    69090-04020 HANDLE AS 0 1 63.08

    Here are the part number and quotes for the handle and the screws. I'm going to go by my local dealer see if they can get it for me. Rep said handle wouldn't ship for at least a week.

  18. Dec 30, 2008 at 10:24 AM
    #18
    trtripoli

    trtripoli lower management

    Joined:
    Aug 1, 2008
    Member:
    #8266
    Messages:
    344
    Gender:
    Male
    Denver, CO
    Vehicle:
    07 4,0 L, 6M, Dbl Cab, TRD Off Road
    Eclipse AVN6620 JL 500/1 amp JL 13TW5 sub JL 300/4 JL XR-650CSi Mr Marv Box Blu tooth XM radio Back Up camera, RAAMmat and Ensolite everywhere but ceiling

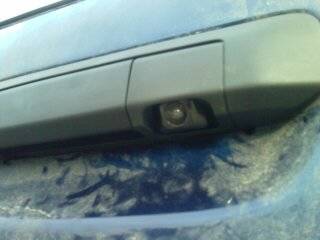

    I did mine last week. Hardest part was fabricating the bracket to hold the camera in place. I ended up using zip ties to hold on the bracket. I don't have a picture of it, but here's the finished project.

    [​IMG]

  19. Dec 30, 2008 at 10:26 AM
    #19
    camsbored

    camsbored [OP] Well-Known Member

    Joined:
    Apr 12, 2008
    Member:
    #5932
    Messages:
    185
    Raleigh, NC
    Vehicle:
    08 PreRunner DC/Sport/LB
    Kenwood DNX8120, Homelink mirror, Valentine One hardwire
    Nice! I agree - the bracket is the hardest part... just a lot of trial and error.

  20. Dec 30, 2008 at 10:34 AM
    #20
    trtripoli

    trtripoli lower management

    Joined:
    Aug 1, 2008
    Member:
    #8266
    Messages:
    344
    Gender:
    Male
    Denver, CO
    Vehicle:
    07 4,0 L, 6M, Dbl Cab, TRD Off Road
    Eclipse AVN6620 JL 500/1 amp JL 13TW5 sub JL 300/4 JL XR-650CSi Mr Marv Box Blu tooth XM radio Back Up camera, RAAMmat and Ensolite everywhere but ceiling
    how often do you use your backup camera? I find it's usefull for getting into tight areas (like my garage when I need to work on my truck), but otherwise it's easier to just look behind me.

    I can turn it on manually, so sometimes I like to look at the person behind me (especially if it's a hot chick) at a stop light.

    Randomfury likes this.
