$10 DIY Power Lock Tailgate

Discussion in '3rd Gen. Tacomas (2016+)' started by MESO, Mar 26, 2016.

  1. Mar 26, 2016 at 5:36 PM
    #1
    MESO

    MESO [OP] Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    15,033
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    Parts used:
    12V Actuator (search Amazon/ebay/etc) ~$5
    15ft power/ground wire ~$5

    Step1:
    Bent metal bar to hook from the actuator to tailgate;
    [​IMG]

    Step2:
    Drill hole in tailgate lock plastic(to the left of the orange connector)
    [​IMG]

    Step4(optional)
    Because the actuators are so noisy, I built an enclosure to dampen the sound(ABS plastic)
    Then covered the inside with sound deadening. This helps A LOT
    [​IMG]
    [​IMG]

    Step5
    Position actuator box, mark holes and bolt it in
    [​IMG]

    inside view;
    [​IMG]

    Put a piece of sound deadening over the holes. More can't hurt!
    [​IMG]

    Step6:
    Route the wires. I followed the OEM camera wires.
    [​IMG]
    [​IMG]

    then ran them up the drivers side and into the grommet right behind the drivers seat on the floor.

    Step7:
    Pop off B pillar panel, find the harness going to rear drivers door. The 2 wire colors are pink/red and pink/green. Tap these 2 and plug your actuator in. I choose tapping off the rear because I drive the truck 99% of the time and only unlock the drivers door. 2 button presses, and it will unlock the rest of the doors/tailgate.
    [​IMG]

    Good luck!!

  2. Mar 26, 2016 at 5:38 PM
    #2
    mthopton

    mthopton Well-Known Member

    Joined:
    Feb 17, 2016
    Member:
    #178440
    Messages:
    348
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    '16 TRD DCSB 4x4
    Pics don't work....

    Stryker420, kgilly and jasonct like this.
  3. Mar 26, 2016 at 5:44 PM
    #3
    OnceARunner

    OnceARunner War Eagle!

    Joined:
    Sep 24, 2015
    Member:
    #165068
    Messages:
    297
    Georgia
    Vehicle:
    2016 DCSB TRD Sport Tacoma
    I can see pics fine.

  4. Mar 26, 2016 at 6:32 PM
    #4
    SSG665

    SSG665 Well-Known Member

    Joined:
    Jul 24, 2011
    Member:
    #60437
    Messages:
    781
    Gender:
    Male
    Georgia
    Vehicle:
    18 Tacoma
    Very cool!

  5. Mar 27, 2016 at 12:27 AM
    #5
    SamChieftan

    SamChieftan Well-Known Member

    Joined:
    Sep 30, 2015
    Member:
    #165513
    Messages:
    815
    Gender:
    Male
    Dallas, Texas
    Vehicle:
    2016 TRD OR AUTO 4x4 Super White
    Interior LEDs, Truck Mat, Door sills
    Awesome write up! Thanks!


  6. Mar 27, 2016 at 12:52 AM
    #6
    artesho

    artesho Well-Known Member

    Joined:
    Jan 12, 2015
    Member:
    #146197
    Messages:
    633
    Gender:
    Male
    First Name:
    Randy
    awesome, might have to try this! thanks

  7. Mar 27, 2016 at 3:52 AM
    #7
    Mach428

    Mach428 Well-Known Member

    Joined:
    Feb 8, 2016
    Member:
    #177492
    Messages:
    178
    Gender:
    Male
    First Name:
    Tom
    Ocala, Florida
    Vehicle:
    2016 Tacoma Sport Barcelona Red DCSB
    Very good information and write-up. Thank for taking the time to share this!

  8. Mar 27, 2016 at 4:11 AM
    #8
    Noslow100

    Noslow100 Well-Known Member

    Joined:
    Sep 8, 2011
    Member:
    #63108
    Messages:
    515
    Gender:
    Male
    First Name:
    Josh
    VA
    Vehicle:
    08 SR5 4x4
    Toytec 3 Inch lift kit with Bilstein 5100's, and more
    Hey @mesojdm you have any plans to make this into a ready to install kit that you can sell to other tacomaworld members? Looks like you did a great job and I like the idea of tapping into the rear doors for the lock/unlock feature.

    sorgon82 and Mach428 like this.
  9. Mar 27, 2016 at 1:45 PM
    #9
    MESO

    MESO [OP] Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    15,033
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD OR QS
    ^ Probably not. It's not too hard if you are somewhat mechanically inclined. If not, Pop-N-lock sells the kit but its $100+.

    RobP62 and JaCado like this.
  10. Mar 27, 2016 at 3:44 PM
    #10
    jmcharles

    jmcharles Well-Known Member

    Joined:
    Oct 15, 2014
    Member:
    #140395
    Messages:
    65
    Gender:
    Male
    Beaufort, SC
    Vehicle:
    2008 PreRunner SR5
    Treadwright Warden 265/75/R16 Mediabridge Multimedia Integration Kit
    Pics don't work.

    Edit: They don't work in the Tapatalk app, but do on website.

  11. Mar 27, 2016 at 3:56 PM
    #11
    RNJNKE

    RNJNKE Pounding Trails

    Joined:
    Dec 29, 2015
    Member:
    #173433
    Messages:
    480
    Gender:
    Male
    First Name:
    Russ
    VA
    Vehicle:
    2016 Tacoma TRD DCSB OR, Inferno
    '17 TRD PRO SEMA Wheels, 265/70/17 BFG AT KO2, Prinsu Racks, A.R.E Overland Topper, Redline Tuning Hood Strut, Relentless Fab Locking Bed Doors, Waterport, Angry Beaver
    Or shop around and you can get it on ebay and Amazon for $85 shipped.

    Really cool DIY.

    I would definitely give this a go if I didn't already purchase the P&L.

  12. Mar 27, 2016 at 4:14 PM
    #12
    vuTron

    vuTron Well-Known Member

    Joined:
    Sep 9, 2015
    Member:
    #163855
    Messages:
    1,084
    Gender:
    Male
    SF Bay Area
    Vehicle:
    2016 Quicksand TRD O/R DCSB AT
    Subd. Thanks a lot OP

  13. Dec 29, 2017 at 12:38 PM
    #13
    cowboyup_again

    cowboyup_again Well-Known Member

    Joined:
    Oct 18, 2015
    Member:
    #166958
    Messages:
    72
    Gender:
    Male
  14. Dec 29, 2017 at 12:59 PM
    #14
    yarberrymt

    yarberrymt Well-Known Member

    Joined:
    Apr 20, 2017
    Member:
    #216810
    Messages:
    119
    Gender:
    Male
    Nice job - beats paying MSRP for a pop n lock.

    Speaking of, my pop n lock is extremely noisy, and putting sound deadening in the tailgate is an idea I'm going to steal from you.

  15. Dec 29, 2017 at 1:05 PM
    #15
    vuTron

    vuTron Well-Known Member

    Joined:
    Sep 9, 2015
    Member:
    #163855
    Messages:
    1,084
    Gender:
    Male
    SF Bay Area
    Vehicle:
    2016 Quicksand TRD O/R DCSB AT
    OP, do you think something like this can be rigged to automate my caps lock? I have an ARE Overlander cap, it only has manual locking features, I want to automate like this.

  16. Dec 30, 2017 at 10:54 AM
    #16
    synaps3

    synaps3 Wag more bark less

    Joined:
    Feb 27, 2017
    Member:
    #211822
    Messages:
    743
    First Name:
    Dave
    Atlanta, GA
    Vehicle:
    2017 White SR5 4x4 DCLB
    SOS armor, ARE MX walk-in, Fox coils, Dakar leafs, etc
    The difference with a cap is it's actuating two locking bars, so more torque is needed than a simple actuator for a lock. Tracing the circuit, tapping into the wire, and adding an actuator will definitely work the same in your cap as it would in a tailgate. But again, the needed torque is higher for the latching mechanism on the camper top.

    It will probably work if you grease the latch and long pins. You certainly won't know until you try! :thumbsup:

    vuTron likes this.
  17. Dec 30, 2017 at 11:04 AM
    #17
    khouan

    khouan Well-Known Member

    Joined:
    Aug 17, 2017
    Member:
    #227053
    Messages:
    103
    Gender:
    Male
    Fresno CA
    Vehicle:
    2017 Tacoma TRD Off Road DCSB
    TRD Pro Grill, KB Voodoo Remote Start, Softopper, SCS F5 Wheels, Morimoto Elite HID Kit, ME-SO Map Lights.
    Which actuator did you get exactly? I'd like to get the same one you used. Awesome write up btw!

  18. Dec 30, 2017 at 11:08 AM
    #18
    DPT852

    DPT852 Well-Known Member

    Joined:
    Jul 2, 2017
    Member:
    #222934
    Messages:
    45
    Gender:
    Male
    First Name:
    Dan
    Connecticut
    Vehicle:
    2017 BR TRDOR
    @mesojdm Making TW members feel shitty about their DIY capabilities since 2015

  19. Jan 3, 2018 at 11:51 AM
    #19
    samwoo2go

    samwoo2go Well-Known Member

    Joined:
    Aug 28, 2017
    Member:
    #228365
    Messages:
    130
    Gender:
    Male
    SoCal
    Vehicle:
    2018 Taco TRDOR DCSB Cement
    I have the same question. I can't find the actuator OP used.

  20. Jan 3, 2018 at 2:45 PM
    #20
    Captqc

    Captqc Well-Known Member

    Joined:
    Mar 5, 2017
    Member:
    #212458
    Messages:
    3,081
    Gender:
    Male
    Tigard, OR
    Vehicle:
    2017 Tacoma 4x4 TRD AC Off Road

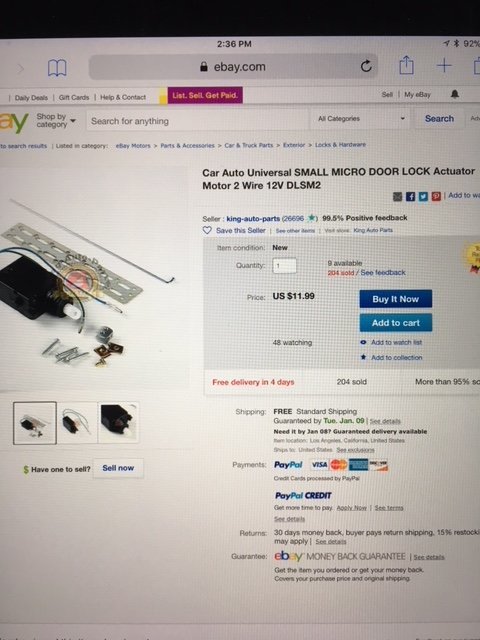

    I found this one for $12.544B67D6-8638-4D67-9FDE-97B3F26E1DDB.jpg
