$10 DIY Power Lock Tailgate

Discussion in '3rd Gen. Tacomas (2016+)' started by MESO, Mar 26, 2016.

  1. Dec 8, 2018 at 3:10 PM
    #221
    JaCado

    JaCado Water Janitor

    Joined:
    Aug 29, 2016
    Member:
    #195947
    Messages:
    36,670
    Post 1 has the write up on it.

    DR TACO and pinochle like this.
  2. Dec 8, 2018 at 3:22 PM
    #222
    Pikestaco

    Pikestaco Newbie

    Joined:
    Dec 29, 2016
    Member:
    #206007
    Messages:
    1,033
    Gender:
    Male
    Los Angeles
    Vehicle:
    2017 Quicksand 4x4 TRD Sport DCLB
    need to learn more about this stuff
    I need more explanation than that. And what are the pieces used to attach wire into exsisting wire. Like you’re showing a 5 year old.

    I have everything else done. Just need major assistance on the wire part. I don’t want to fry any wire on my truck

    JaCado likes this.
  3. Dec 8, 2018 at 3:29 PM
    #223
    JaCado

    JaCado Water Janitor

    Joined:
    Aug 29, 2016
    Member:
    #195947
    Messages:
    36,670
    I understand. I am kind of the same way. I would like to watch someone do it correctly vs looking at pictures and reading instructions. Especially on wiring. Have you watched the pop n lock installs on YouTube. It's virtually the same and I am sure you will get a better parts list.
    Actuator
    Wire
    Wire taps
    Wire loom
    Small piece of wood and mounting hardware.

  4. Dec 8, 2018 at 4:06 PM
    #224
    Pikestaco

    Pikestaco Newbie

    Joined:
    Dec 29, 2016
    Member:
    #206007
    Messages:
    1,033
    Gender:
    Male
    Los Angeles
    Vehicle:
    2017 Quicksand 4x4 TRD Sport DCLB
    need to learn more about this stuff
    I’ll check that out. I just need to know what the wiretaps are and how to do them. Thanks.

    JaCado likes this.
  5. Dec 16, 2018 at 2:06 PM
    #225
    Wicker24

    Wicker24 Well-Known Member

    Joined:
    Feb 16, 2018
    Member:
    #244592
    Messages:
    215
    Gender:
    Male
    Vehicle:
    2018 TRD Off Road
  6. Dec 16, 2018 at 4:31 PM
    #226
    venezian

    venezian Well-Known Member

    Joined:
    Dec 8, 2015
    Member:
    #171740
    Messages:
    594
    Gender:
    Male
    Los Angeles
    Vehicle:
    2017 TRD OR 4x4 M/T
    Did mine a couple weeks ago and followed Meso's idea of rubbing wire to the drivers side B pillar. There's a plastic grommet that i drilled and put my wire through then siliconed and hit it with plastidip because why not.

  7. Dec 23, 2018 at 10:58 AM
    #227
    DUBBEST

    DUBBEST Active Member

    Joined:
    Mar 12, 2018
    Member:
    #247128
    Messages:
    31
    Gender:
    Male

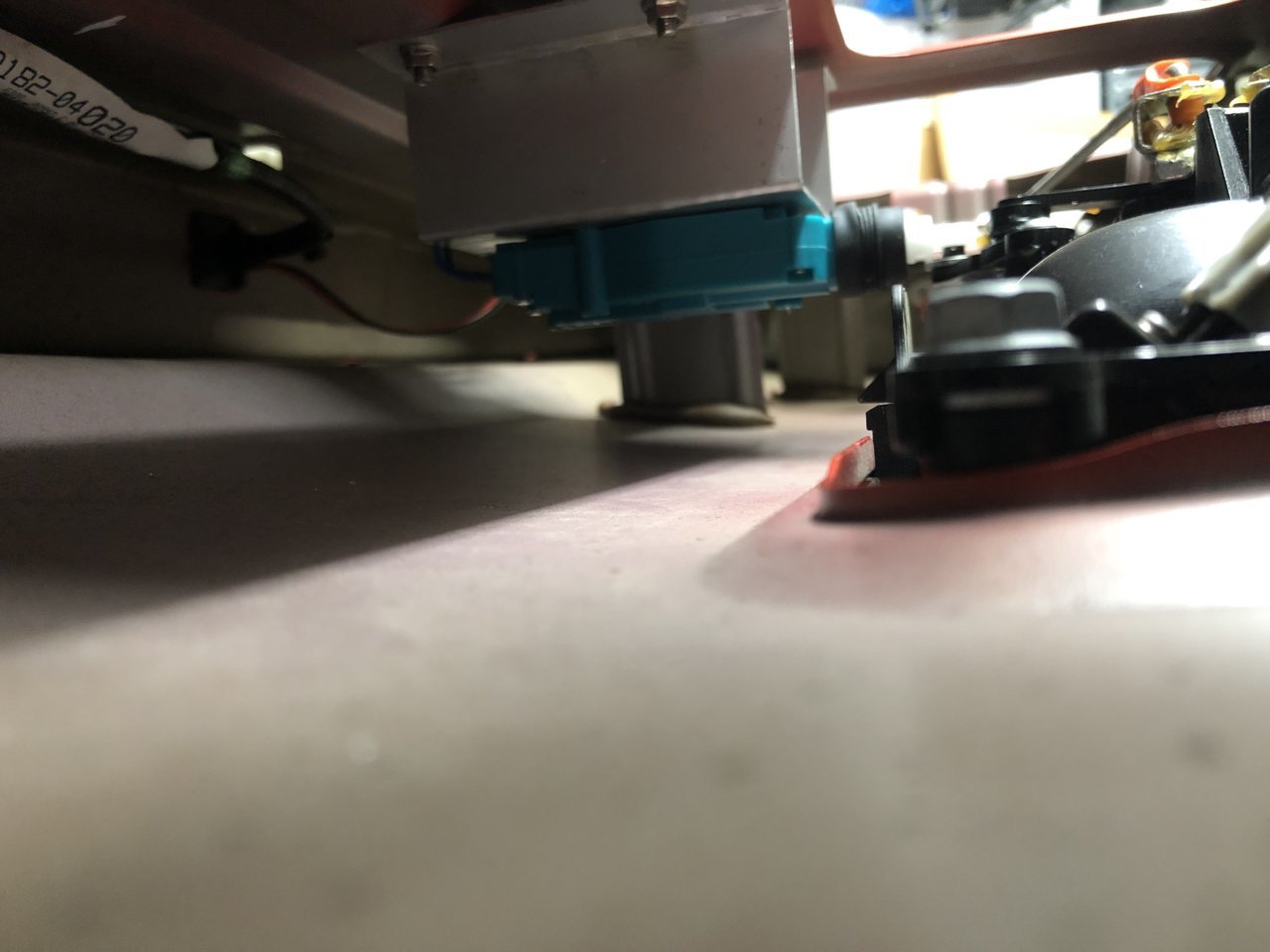

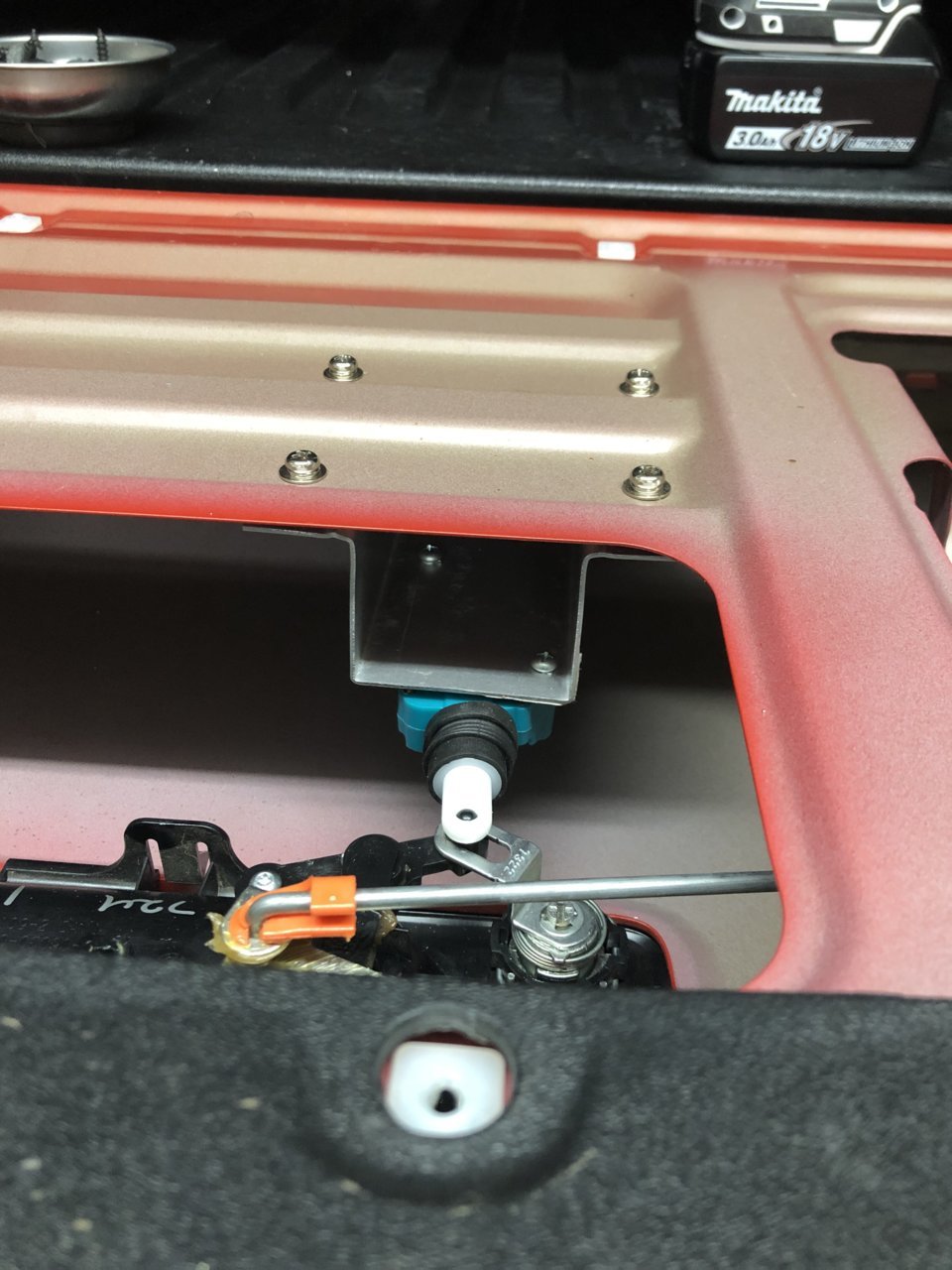

    I took some inspiration from all of the posts here and came up with my own implementation which i'm very happy with. I used this actuator since its the same one used for the pop&lock and bent some aluminum i had laying around to create a bracket to mount the actuator on. Overall its very clean with less moving parts. Hope this helps anyone who is planning to undertake the project.


    I enlarged the hole slightly in the white plastic to allow the round pin to move freely.

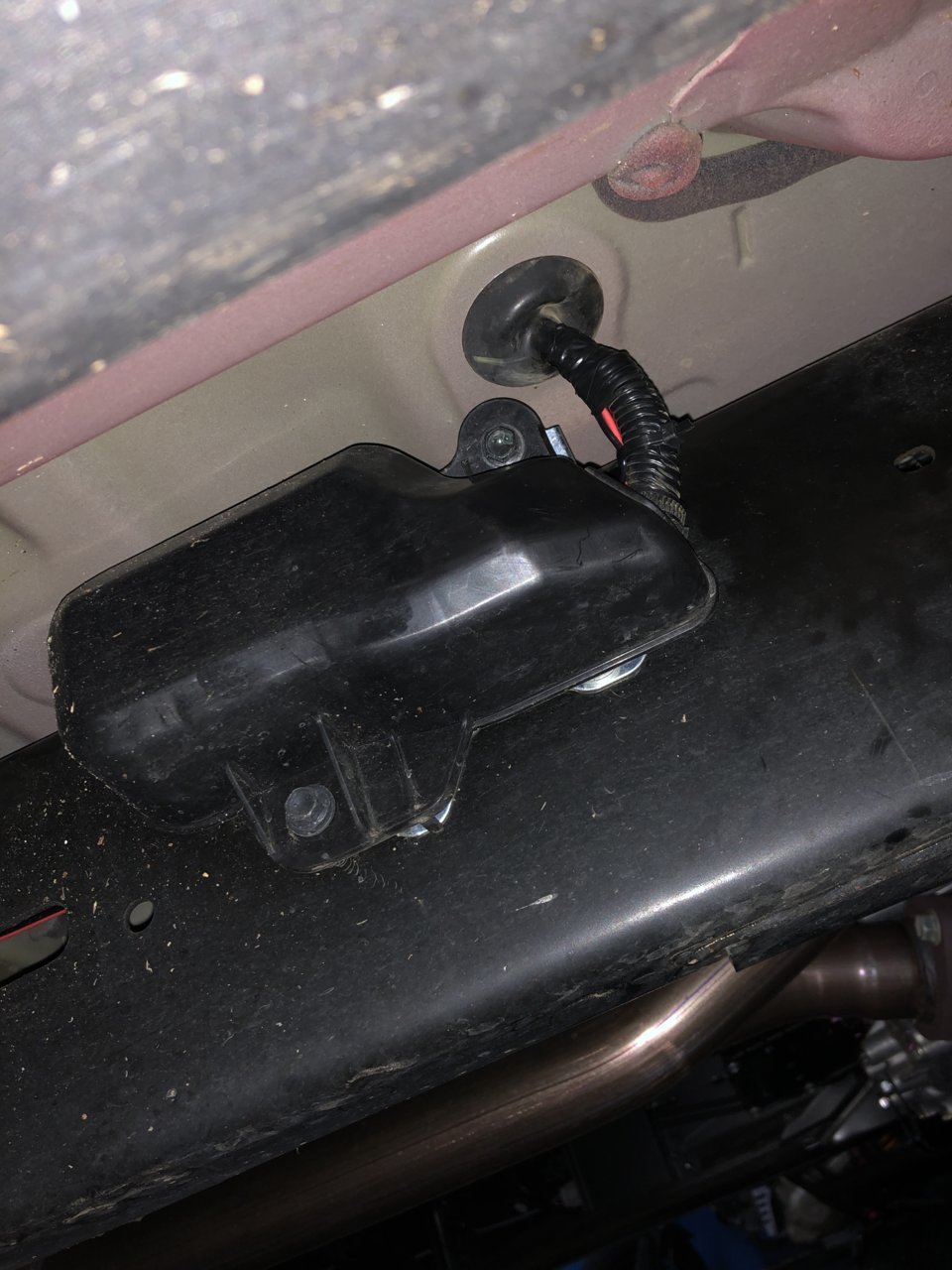

    i ran it to the passenger side harness panel and tapped into the same wires that pop&lock suggest. I also managed to squeeze the wire into the same grommet where this harness is going to and didnt need to make any more holes in the bottom of my truck.


  8. Dec 27, 2018 at 4:44 PM
    #228
    Bach88

    Bach88 Well-Known Member

    Joined:
    Feb 8, 2018
    Member:
    #243814
    Messages:
    78
    Gender:
    Male
    Florida
    Vehicle:
    2016 Tacoma OR DC
    Thanks @mesojdm and to everyone else that shared their installations and knowledge. This saved me a bunch of time not having to figure all this out as I go. Finished it in about an hour this afternoon. Now I can make fun of my ford buddies for not having soft opening tailgates.

    RobP62 and MESO [OP] like this.
  9. Jan 6, 2019 at 1:40 PM
    #229
    Harleydcycler

    Harleydcycler New Member

    Joined:
    Aug 2, 2018
    Member:
    #261497
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD Sport DCSB 4X4 MGM
    Thanks for the suggestion and pics, I set mine up the same way and it works great!

    DUBBEST likes this.
  10. Jan 8, 2019 at 10:56 AM
    #230
    r1200gs4ok

    r1200gs4ok Well-Known Member

    Joined:
    Aug 8, 2016
    Member:
    #194111
    Messages:
    1,735
    Gender:
    Male
    First Name:
    O. K.
    Irvine, Ca
    Vehicle:
    2016 Tacoma TRD Sport DCLB w/ Tech, Nav, Tow Pkg, MGM
    isn't there a concern that the pin will pop out at the top of the actuator?.......is it long enough to protrude far enough where it won't cont out with movement?

  11. Jan 8, 2019 at 11:00 AM
    #231
    DUBBEST

    DUBBEST Active Member

    Joined:
    Mar 12, 2018
    Member:
    #247128
    Messages:
    31
    Gender:
    Male
    No concerns for me. If you really wanted you can use a cotter pin to ensure it doesn’t move. I think there may be enough “meat” on the pin do it.

  12. Jan 8, 2019 at 11:03 AM
    #232
    r1200gs4ok

    r1200gs4ok Well-Known Member

    Joined:
    Aug 8, 2016
    Member:
    #194111
    Messages:
    1,735
    Gender:
    Male
    First Name:
    O. K.
    Irvine, Ca
    Vehicle:
    2016 Tacoma TRD Sport DCLB w/ Tech, Nav, Tow Pkg, MGM
    how far does the pin stick out/up?

  13. Jan 8, 2019 at 5:25 PM
    #233
    Harleydcycler

    Harleydcycler New Member

    Joined:
    Aug 2, 2018
    Member:
    #261497
    Messages:
    4
    Gender:
    Male
    Vehicle:
    2017 Tacoma TRD Sport DCSB 4X4 MGM
    I shaved off some of the base of the actuator arm so that it would drop all the way down on the pin. If you position the actuator at the correct level, there is not enough play in the arm for it to lift off of the pin. I used a wood block to mount the actuator and it took a few tries to get it to the proper thickness. The pin sticks up about 1/8” over the top of the actuator arm.

    DUBBEST likes this.
  14. Jan 8, 2019 at 7:13 PM
    #234
    r1200gs4ok

    r1200gs4ok Well-Known Member

    Joined:
    Aug 8, 2016
    Member:
    #194111
    Messages:
    1,735
    Gender:
    Male
    First Name:
    O. K.
    Irvine, Ca
    Vehicle:
    2016 Tacoma TRD Sport DCLB w/ Tech, Nav, Tow Pkg, MGM
    thanks...that was what i wanted to here.....i was concerned if the actuator hole was thicker and that would make it easier to come pff, but if it is sticking out by ⅛", that should be enough

    DUBBEST likes this.
  15. Feb 7, 2019 at 6:01 PM
    #235
    Anchovy

    Anchovy Rule #1: Never take me seriously

    Joined:
    Sep 4, 2017
    Member:
    #229096
    Messages:
    4,796
    Gender:
    Male
    First Name:
    TRD Ferguson
    Vehicle:
    2016 TRD Off Road (OVTuned)
    :popcorn:

    JaCado likes this.
  16. Feb 8, 2019 at 3:37 PM
    #236
    jimmerheck

    jimmerheck Well-Known Member

    Joined:
    Mar 21, 2018
    Member:
    #248007
    Messages:
    270
    Gender:
    Male
    Vancouver, WA
    Vehicle:
    2019 Tacoma Limited in white
    any idea how tall that aluminum spacer bracket you made is, that spaces the actuator from the tailgate surface? Awesome job, I am going to duplicate yours. I could just wait and measure when I do it, but if I knew the height of that spacer, I could make it at work better than I could at home.

  17. Feb 8, 2019 at 3:43 PM
    #237
    DUBBEST

    DUBBEST Active Member

    Joined:
    Mar 12, 2018
    Member:
    #247128
    Messages:
    31
    Gender:
    Male
    ill take some measurements this weekend and post them here.

    The bracket is 62mm. Sorry for using metric but that’s the caliper I have.

    Last edited: Mar 21, 2019
  18. Feb 8, 2019 at 4:21 PM
    #238
    jimmerheck

    jimmerheck Well-Known Member

    Joined:
    Mar 21, 2018
    Member:
    #248007
    Messages:
    270
    Gender:
    Male
    Vancouver, WA
    Vehicle:
    2019 Tacoma Limited in white
    awesome, thanks!!!

  19. Feb 20, 2019 at 8:00 AM
    #239
    jimmerheck

    jimmerheck Well-Known Member

    Joined:
    Mar 21, 2018
    Member:
    #248007
    Messages:
    270
    Gender:
    Male
    Vancouver, WA
    Vehicle:
    2019 Tacoma Limited in white
    ready to do this mod, anyone have the cheap actuator fail so the tailgate wont open, or if it fails, can you use the key to override it? Or can you pull the tailgate cover off with the tailgate closed?

  20. Feb 20, 2019 at 8:38 AM
    #240
    Rick.

    Rick. Member

    Joined:
    Sep 27, 2018
    Member:
    #267646
    Messages:
    19
    Gender:
    Male
    First Name:
    Rick.
    Alberta, Canada
    Vehicle:
    2016 double cab trd sport LB
    Not much
    The key would still operate the lock.
