$10 DIY Power Lock Tailgate

Discussion in '3rd Gen. Tacomas (2016+)' started by MESO, Mar 26, 2016.

  1. Feb 20, 2019 at 9:06 AM
    #241
    jimmerheck

    jimmerheck Well-Known Member

    Joined:
    Mar 21, 2018
    Member:
    #248007
    Messages:
    270
    Gender:
    Male
    Vancouver, WA
    Vehicle:
    2019 Tacoma Limited in white
    Unless the actuator failed in the "closed or locked" position where its jamming the lock mechanism forward, or am I thinking too much into this?

  2. Feb 20, 2019 at 1:17 PM
    #242
    Tunngavik

    Tunngavik Well-Known Member

    Joined:
    Oct 14, 2009
    Member:
    #24328
    Messages:
    2,966
    Gender:
    Male
    Alberta, Canada
    Vehicle:
    2018 TRD Off-Road Access Cab 6 speed manual
    KC-HiLites Fog Lamps, Kicker speaker and tweeter upgrade, USB in center console, Power tailgate lock, Soundproofing
    You are thinking too much. The key has worked for me in all circumstances even when I had the tailgate open and accidentally locked it using the power / actuator. The tailgate closed as normal even in the "locked" position and I could use the key to unlock or relock.

    RobP62 likes this.
  3. Feb 20, 2019 at 1:18 PM
    #243
    jimmerheck

    jimmerheck Well-Known Member

    Joined:
    Mar 21, 2018
    Member:
    #248007
    Messages:
    270
    Gender:
    Male
    Vancouver, WA
    Vehicle:
    2019 Tacoma Limited in white
    great, thank you for your help!

  4. Mar 13, 2019 at 5:00 PM
    #244
    12backvader

    12backvader Well-Known Member

    Joined:
    Jan 29, 2019
    Member:
    #281147
    Messages:
    91
    Gender:
    Male
    First Name:
    Mike
    Houston
    Vehicle:
    2017 TACOMA TRD OFF-ROAD DCSB
    XD 820 grenades, 285/55r20 Toyo Open Country, leveled, dB customs grille, lightbar, predator steps, OEM tonneau
    https://www.amazon.com/dp/B07583X7TD/ref=cm_sw_r_tw_dp_U_x_YEzICbHYGTV7Q

    https://www.amazon.com/dp/B00CZBQCR2/ref=cm_sw_r_tw_dp_U_x_rFzICb97J8FYF

    This was the wire and actuator I used. My install was pretty tough but I got it working.
    1) running the wire was the most time consuming, I went along the passenger side, it was drizzling rain outside so this part sucked, I wish I had a garage.
    PRO TIP: WEAR eye protection, and keep your mouth shut. I knocked some truck sludge loose into my eyes and mouth.
    2) I ended up using t-taps on the passenger side front door harness (this is good for access cab models too) Eventually I will go back in and solder the wires in place, I don't trust crimp on connectors and I solder all the time.
    3) I screwed up the alignment of my holes in the tailgate
    4) I broke the actuator arm bending it too much (luckily my kit came with two!)
    5) to fix the alignment of the holes in the tailgate I used the scrap of 2x4 method and ran some 2.5" deck screws through into the actuator, then used the supplied screws to screw the 2x4 to the tailgate.. (this is way easier to get the actuator arm in the right place.

    I didn't take any pictures because of the rain and I was just trying to get things done, but it works like a charm and mine isn't too loud.

    TexasTaco4x4 likes this.
  5. Mar 16, 2019 at 7:30 PM
    #245
    hewhoeatsapples

    hewhoeatsapples New Member

    Joined:
    Mar 16, 2019
    Member:
    #286857
    Messages:
    4
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    2019 TRD OR 4x4 DCLB SSM
    Brand new to the forum, this thread just saved me spending $400 to have a dealer do this. Thanks @mesojdm!

    WunderSlug, TexasTaco4x4 and cshrum like this.
  6. Mar 20, 2019 at 6:59 AM
    #246
    D Tripp

    D Tripp Well-Known Member

    Joined:
    Apr 10, 2018
    Member:
    #250114
    Messages:
    127
    Gender:
    Male
    First Name:
    Derek
    CA
    Don't worry, today you saved money, tomorrow you are spending more then you planned because of what you found on TW. Enjoy!!!

  7. Apr 6, 2019 at 9:25 PM
    #247
    hewhoeatsapples

    hewhoeatsapples New Member

    Joined:
    Mar 16, 2019
    Member:
    #286857
    Messages:
    4
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    2019 TRD OR 4x4 DCLB SSM
    Wow, so true! I’ve already grabbed a set of glovebox letters, and I just placed my first MESO order yesterday. Down the rabbit-hole I go...

  8. Apr 11, 2019 at 11:00 AM
    #248
    Edgar

    Edgar Well-Known Member

    Joined:
    Sep 2, 2018
    Member:
    #264887
    Messages:
    539
    Gender:
    Male
    San Diego
    Vehicle:
    2018 TRD OR 2wd DCSB MGM
    So this method is done instead of using the rod that comes with the actuators correct?

  9. Jun 9, 2019 at 5:14 PM
    #249
    rsm420

    rsm420 Member

    Joined:
    May 8, 2018
    Member:
    #252906
    Messages:
    23
    Gender:
    Male
    Vehicle:
    2018 Silver trd offroad

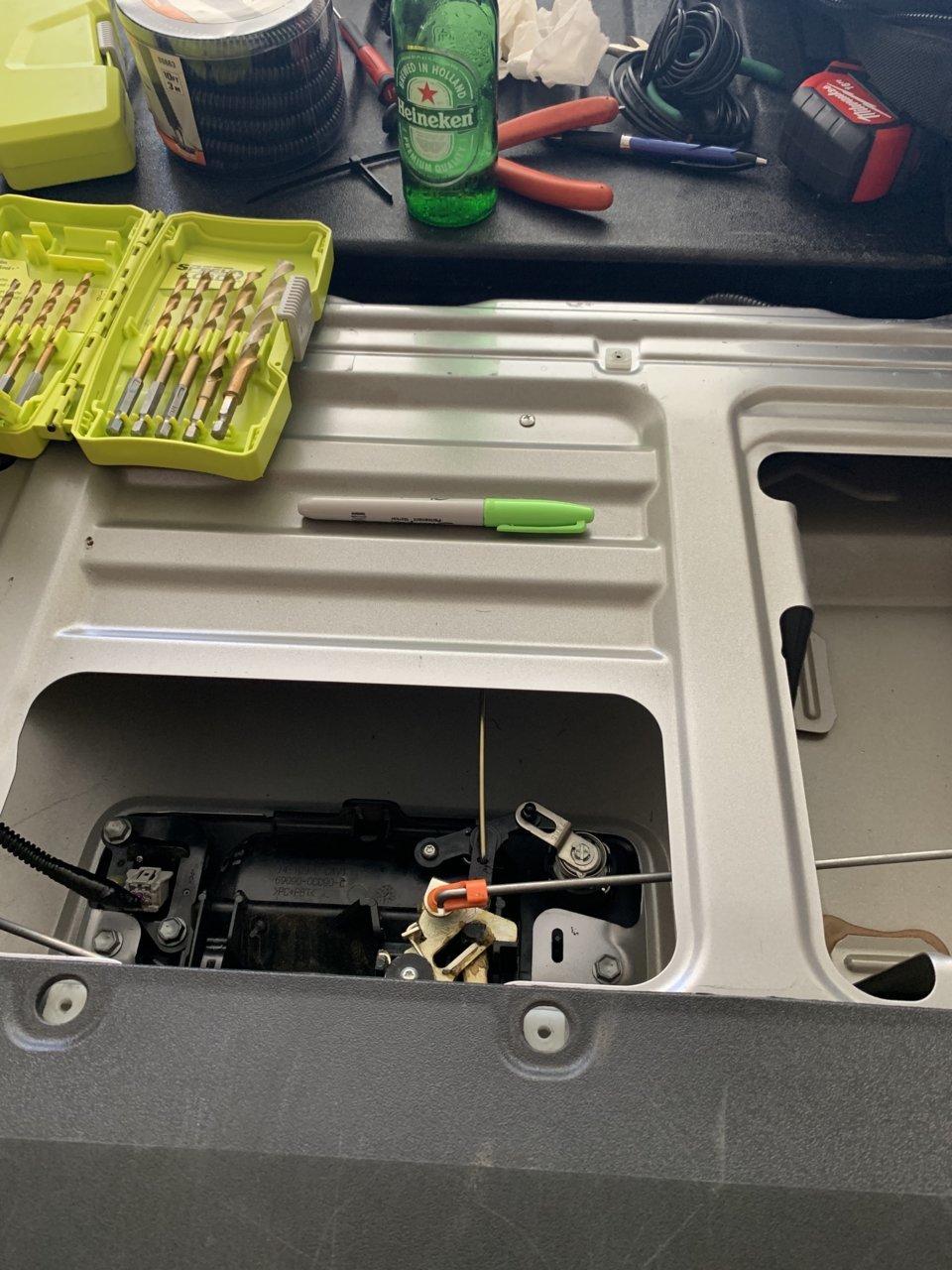

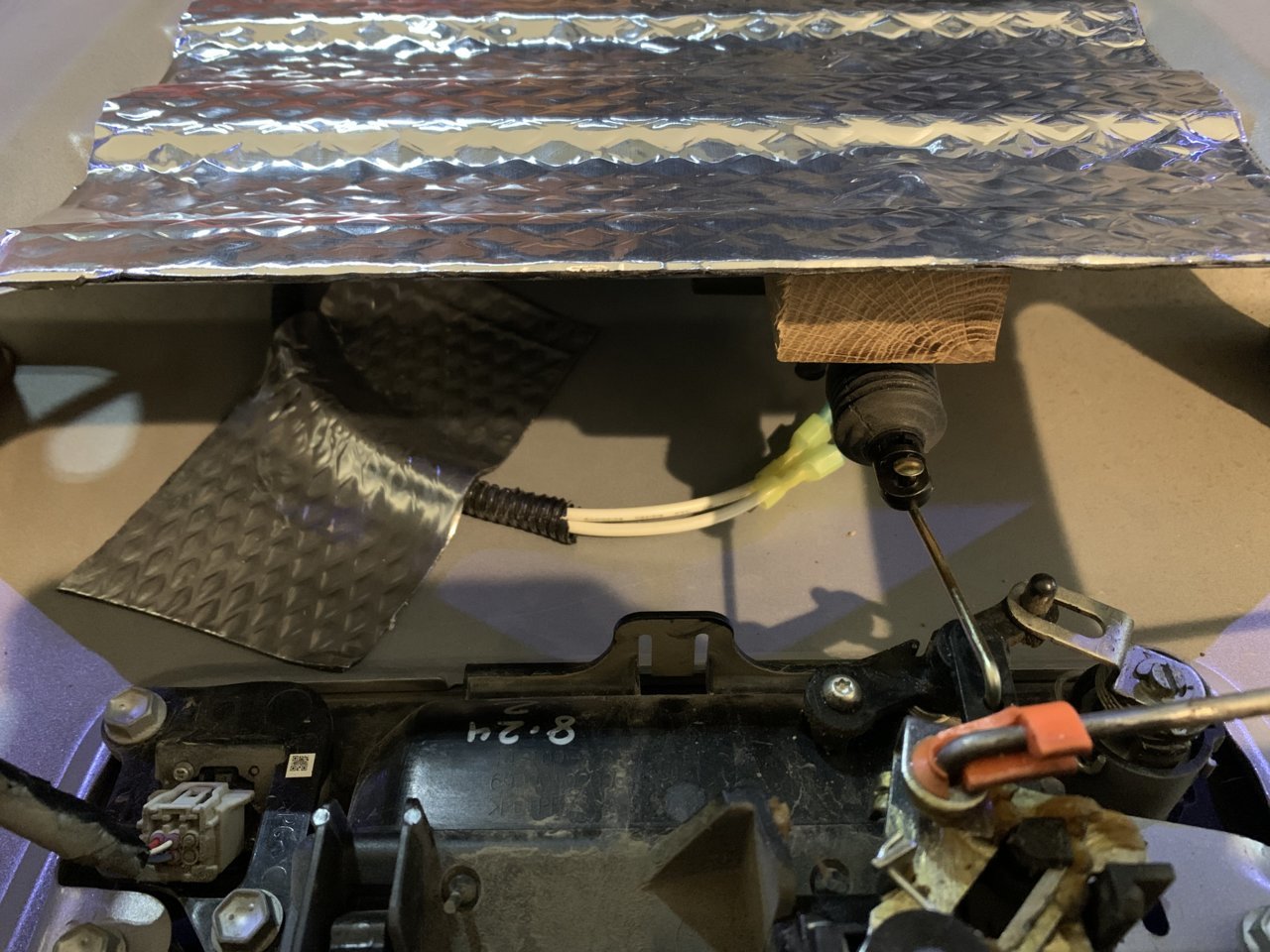

    7CF7FB40-E749-417C-A8CD-BA047C1F3E89.jpg DONE!!!

    tonered likes this.
  10. Aug 4, 2019 at 11:24 AM
    #250
    TripleEight

    TripleEight Well-Known Member

    Joined:
    Jun 29, 2016
    Member:
    #190895
    Messages:
    66
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD Off Road DCSB Gray
    Thanks OP for saving all of us money!

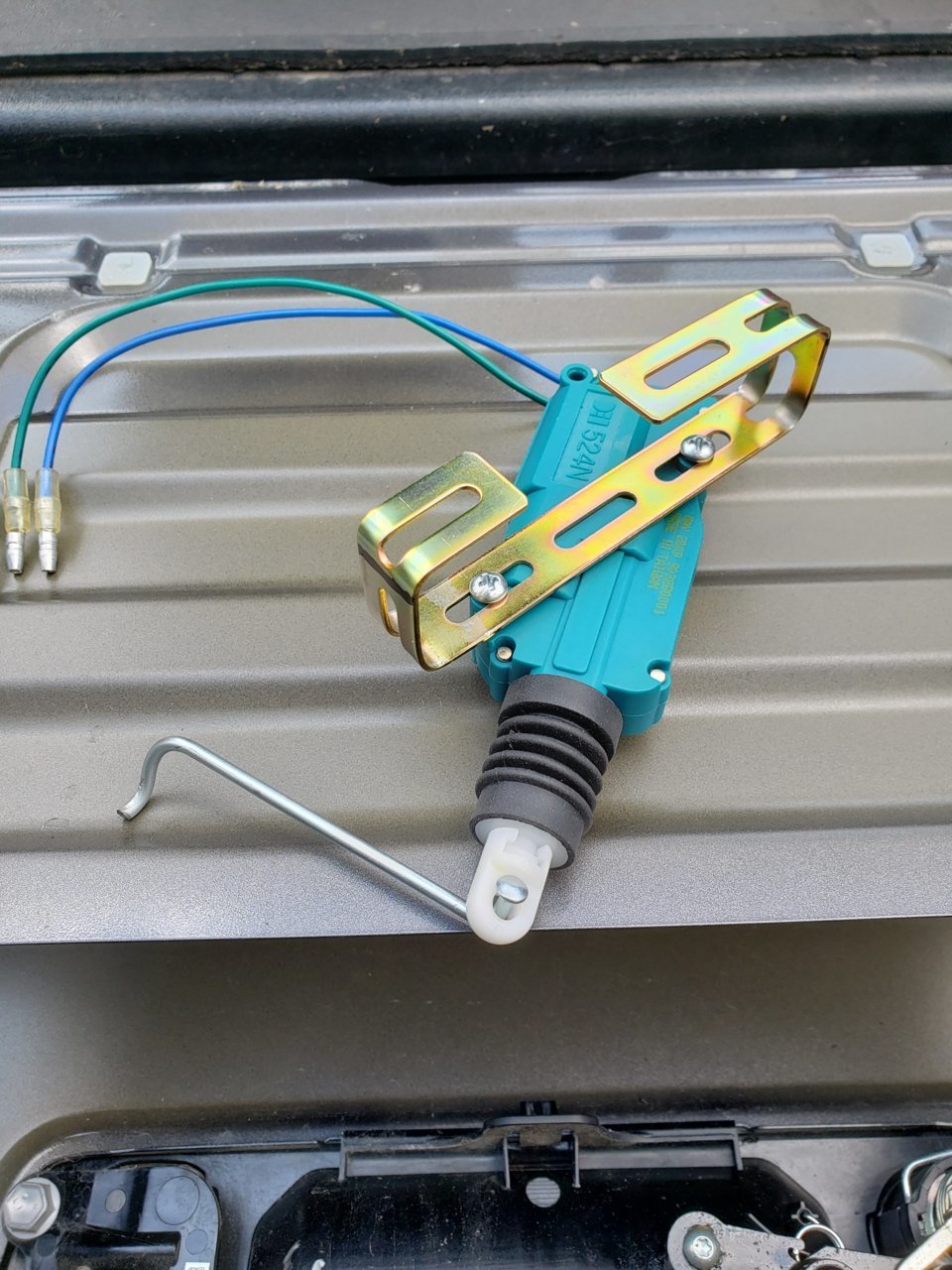

    The DEI 524N kit worked out perfect since it came with a mounting bracket. Paid $9 on the Pepboys ebay store.
    I used one of these waterproof connectors in case i ever need to take off the tailgate. https://www.ebay.com/ulk/itm/283204741851
    I think in total this mod costed me about $40 between the actuator kit, waterproof connector, 2 inline fuses, a pack of posi taps, GXL wiring, and split loom.

    RobP62 and MESO [OP] like this.
  11. Aug 12, 2019 at 10:50 AM
    #251
    Mikenewgun87

    Mikenewgun87 Active Member

    Joined:
    Mar 31, 2019
    Member:
    #288583
    Messages:
    41
    Gender:
    Male
    First Name:
    Mike
    Sparta, Wi
    Vehicle:
    19 Cement DCLB OR
    Nice, now can you do it for me??? :p

  12. Jan 21, 2020 at 11:56 AM
    #252
    RobP62

    RobP62 Bla Bla Bla

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    34,846
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    Why the In-Line fuses? Thank you.

    I ordered the same actuator kit today.

  13. Jan 21, 2020 at 3:54 PM
    #253
    TripleEight

    TripleEight Well-Known Member

    Joined:
    Jun 29, 2016
    Member:
    #190895
    Messages:
    66
    Gender:
    Male
    Vehicle:
    2016 Tacoma TRD Off Road DCSB Gray
    The fuses may not be necessary, but better to be safe than sorry. For me, the cost of the fuses was worth it for peace of mind.

    RobP62 likes this.
  14. Jan 23, 2020 at 2:52 PM
    #254
    RobP62

    RobP62 Bla Bla Bla

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    34,846
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    Ahhh, gotcha. Thanks.

    Everything to do mine was delivered today. Gonna try to get it done this Saturday.

  15. Feb 9, 2020 at 1:58 PM
    #255
    Tnc

    Tnc Well-Known Member

    Joined:
    Nov 6, 2019
    Member:
    #309983
    Messages:
    249
    Gender:
    Male
    First Name:
    Tim
    NE Oklahoma
    Vehicle:
    2017 DCLB TRD OR
    Got this mod done today. Running the wire up under the truck is by far the hardest part. Thanks @MESO for the idea.

    RobP62 and MESO [OP] like this.
  16. Feb 9, 2020 at 3:37 PM
    #256
    RobP62

    RobP62 Bla Bla Bla

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    34,846
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    And that's a big negatory! :bananadead:

    I'm such a slacker. I did pick up some stranded wire today though. :thumbsup:

    :anonymous:

  17. Feb 29, 2020 at 10:08 PM
    #257
    ivanza

    ivanza Well-Known Member

    Joined:
    Jan 10, 2017
    Member:
    #207121
    Messages:
    134
    Gender:
    Male
    Bay area, CA
    Vehicle:
    2017 MGM TRD OR MT
    Mobtown skids Fox 2.5 DSC OME heavy leaf
    for this actuator, which of the wires corresponds to which of the wires on the passenger door harness? Sorry if I missed this on another post.

    RobP62 likes this.
  18. Mar 21, 2020 at 6:32 AM
    #258
    Cappy

    Cappy Well-Known Member

    Joined:
    Mar 5, 2018
    Member:
    #246396
    Messages:
    1,283
    Gender:
    Male
    First Name:
    John
    Georgia
    Vehicle:
    2017 White Tacoma TRD Sport 4X4
    From what I understand if the wires are crossed the actuator will just work in reverse. So if you press unlock and it locks just swap the connections at the actuator. I haven't seen anything that tells what color wires are positive and negative. Hope this helps.

    RobP62 likes this.
  19. Mar 21, 2020 at 6:49 AM
    #259
    Cappy

    Cappy Well-Known Member

    Joined:
    Mar 5, 2018
    Member:
    #246396
    Messages:
    1,283
    Gender:
    Male
    First Name:
    John
    Georgia
    Vehicle:
    2017 White Tacoma TRD Sport 4X4
    While I understand this is an old thread I would like to know after 4 years how this is holding up. I plan on doing this very soon but I'm concerned about the wear and tear of the locking mechanism. I plan to set my head unit to where only the drivers door unlocks when touching the door handle to prevent unnecessary unlocking. Would appreciate your input. Thanks

    RobP62 likes this.
  20. Mar 21, 2020 at 7:27 AM
    #260
    RobP62

    RobP62 Bla Bla Bla

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    34,846
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    I'd also be curious to know if anyone has tested the status of the tailgate during the following:

    My truck is set to unlock all doors when I use the key fob, or shift to park, it locks them all when I shift into park.
