10 " JL w0 in a double cab

Discussion in 'Audio & Video' started by TRD Toy85, Aug 16, 2013.

  1. Aug 16, 2013 at 6:20 PM
    #1
    TRD Toy85

    TRD Toy85 [OP] Well-Known Member

    Joined:
    Jul 1, 2012
    Member:
    #81685
    Messages:
    739
    Gender:
    Male
    CT
    Vehicle:
    loaded 2013 TRD sport
    Hey guys, thought Id share my new setup .

    Box is custom built, requires come cutting of the storage bin behind the rear drivers side seat. I also saved my child seat hook as most others dont, down side is my box vol is a little smaller .

    The sub is amazing, my first JL product, and it must say it hits hard and clean. I'm actually surprised how good it sounds in this tiny box.

    Here are some pics, details, and box dimensions. Im far from a box building pro but this works and sounds good.

    also I still have my 8" rockford shallow mount in the OEM JBL box running off the stock amp .

    [​IMG]

    [​IMG]



    the box build, as you can see the sub has about 1/8 - 3/16 clearance :eek: . Once I added the carpet and gasket it might have been about 1/4"


    [​IMG]


    In this picture it looks as if there was a lot of clearance, but if you go any wider at the bottom your seat will most likely touch the sub if you try to fold it down.
    [​IMG]


    [​IMG]


    test fit
    [​IMG]



    [​IMG]









    Box is held in place to the back wall with some Velcro, also If using a 10" sub, try to center it towards the bottom.

    [​IMG]

    [​IMG]

  2. Aug 16, 2013 at 7:01 PM
    #2
    overload

    overload Active Member

    Joined:
    Jul 3, 2013
    Member:
    #107508
    Messages:
    25
    Gender:
    Male
    Nice job. HAd a 10w6 in my X-Runner.
    This gives me a nice idea for my new DC

  3. Aug 20, 2013 at 9:29 AM
    #3
    spieler

    spieler Well-Known Member

    Joined:
    Aug 16, 2013
    Member:
    #110561
    Messages:
    426
    Gender:
    Male
    First Name:
    Ryan
    Jonesborough, TN
    Vehicle:
    13 white DCSB SR5 4x4
    3" Lift kit/265 Duratracs/SCS Stealth 6 matte black wheels, OEM White grille switcheroo, TRD skid derped white, CSjumper drtl map dome parking lights fog light bulbs, Lifetime LED headlights, **Reverse light mod, Foglight anytime Mod, Trimmed mudflaps, Fully Debadged, 3rd brake light cover by well...me, Liquid Innovations black carbon dipped front emblem, G-Tek Fab diamond plate white door sill protectors, SOS Bolt-on Sliders bedlined, MattGecko rear window security bar, Hardwired Radar Detector w/custom sucker mount, Horse Stall Bed Mat, Audiocontrol LC2i with custom mount ACR-1 remote, Custom sub box behind drivers rear seat, Mag light holder behind seat, Center console organizer , Passenger seatbelt flapper fix, Tailgate anti-theft Mod, Bed storage Locks Mod, hygieneboy ghetto gutter grille guard
    Perfect! Thanks for posting the dimensions, im gonna do the same for my MTX10 I already have! What did you have to cut away from the stock tray area? pics?

  4. Aug 20, 2013 at 4:41 PM
    #4
    TRD Toy85

    TRD Toy85 [OP] Well-Known Member

    Joined:
    Jul 1, 2012
    Member:
    #81685
    Messages:
    739
    Gender:
    Male
    CT
    Vehicle:
    loaded 2013 TRD sport

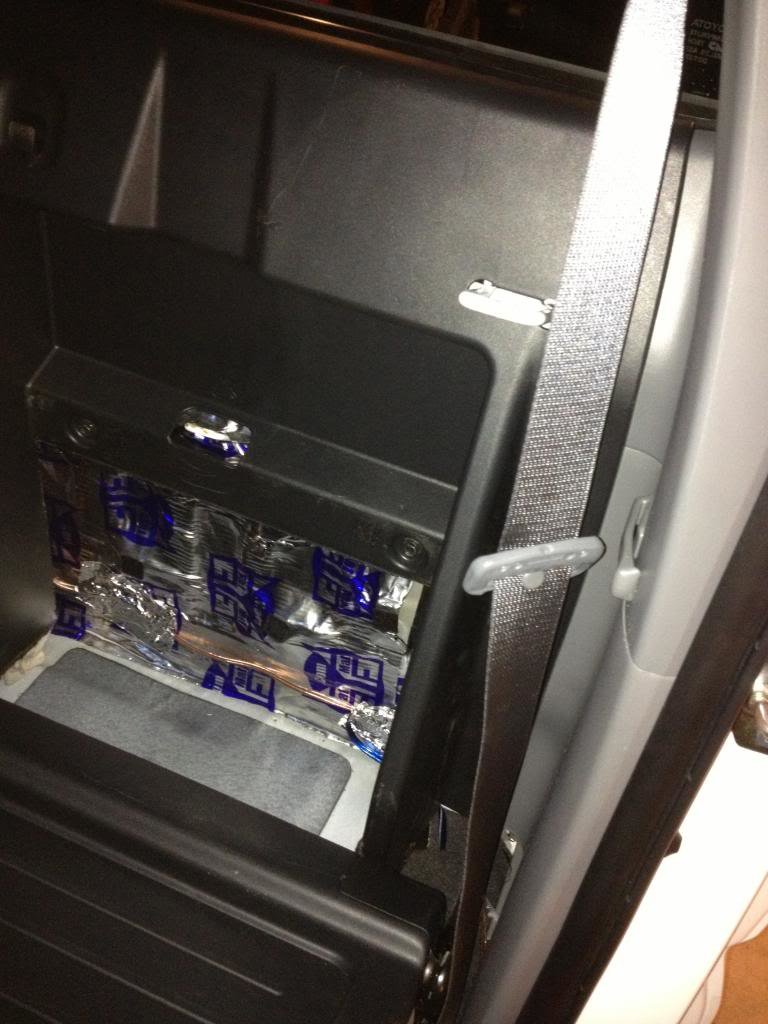

    Heres a pic of what you have to cut away, not the best pic but you get the idea. You can also see the little black velcro squares which hold the box in place .

    Whats the mounting depth of your sub?

    [​IMG]

  5. Aug 21, 2013 at 7:06 AM
    #5
    spieler

    spieler Well-Known Member

    Joined:
    Aug 16, 2013
    Member:
    #110561
    Messages:
    426
    Gender:
    Male
    First Name:
    Ryan
    Jonesborough, TN
    Vehicle:
    13 white DCSB SR5 4x4
    3" Lift kit/265 Duratracs/SCS Stealth 6 matte black wheels, OEM White grille switcheroo, TRD skid derped white, CSjumper drtl map dome parking lights fog light bulbs, Lifetime LED headlights, **Reverse light mod, Foglight anytime Mod, Trimmed mudflaps, Fully Debadged, 3rd brake light cover by well...me, Liquid Innovations black carbon dipped front emblem, G-Tek Fab diamond plate white door sill protectors, SOS Bolt-on Sliders bedlined, MattGecko rear window security bar, Hardwired Radar Detector w/custom sucker mount, Horse Stall Bed Mat, Audiocontrol LC2i with custom mount ACR-1 remote, Custom sub box behind drivers rear seat, Mag light holder behind seat, Center console organizer , Passenger seatbelt flapper fix, Tailgate anti-theft Mod, Bed storage Locks Mod, hygieneboy ghetto gutter grille guard
    Awesome thanks for the pic. I am using my old MTX Thunder 10" and its depth is 4.937"

  6. Aug 22, 2013 at 2:27 AM
    #6
    TRD Toy85

    TRD Toy85 [OP] Well-Known Member

    Joined:
    Jul 1, 2012
    Member:
    #81685
    Messages:
    739
    Gender:
    Male
    CT
    Vehicle:
    loaded 2013 TRD sport
    It's going to be close , the mounting depth of the w0 is 4 15/16 . But the magnet tapper allows it to fit .

  7. Aug 22, 2013 at 7:25 AM
    #7
    spieler

    spieler Well-Known Member

    Joined:
    Aug 16, 2013
    Member:
    #110561
    Messages:
    426
    Gender:
    Male
    First Name:
    Ryan
    Jonesborough, TN
    Vehicle:
    13 white DCSB SR5 4x4
    3" Lift kit/265 Duratracs/SCS Stealth 6 matte black wheels, OEM White grille switcheroo, TRD skid derped white, CSjumper drtl map dome parking lights fog light bulbs, Lifetime LED headlights, **Reverse light mod, Foglight anytime Mod, Trimmed mudflaps, Fully Debadged, 3rd brake light cover by well...me, Liquid Innovations black carbon dipped front emblem, G-Tek Fab diamond plate white door sill protectors, SOS Bolt-on Sliders bedlined, MattGecko rear window security bar, Hardwired Radar Detector w/custom sucker mount, Horse Stall Bed Mat, Audiocontrol LC2i with custom mount ACR-1 remote, Custom sub box behind drivers rear seat, Mag light holder behind seat, Center console organizer , Passenger seatbelt flapper fix, Tailgate anti-theft Mod, Bed storage Locks Mod, hygieneboy ghetto gutter grille guard
    did you just center your hole you cut in the panel?

  8. Aug 22, 2013 at 7:42 AM
    #8
    xaqori

    xaqori I need gas money

    Joined:
    Jun 10, 2012
    Member:
    #80410
    Messages:
    1,780
    Gender:
    Male
    First Name:
    Zac
    Marietta, Georgia
    Vehicle:
    '06 4x4 Limo
    ARB lockers and 4.88s front and rear, OME 886s, Dakars, etc., Safari Snorkel, 17"Fuel Revolvers w/ 35x12.50r17 KM2s, fenders cut 3" all around, Pioneer AVH-P4400BH w/ Backup cam, CB/PA (PA Installed), Weathertech Digis, Foglight anytime, AP: front bumper, skids, and pack rack, custom sliders, Warn 9.5XP, dual VIAIR 480Cs with a 2.5gal tank, OTRATTW switches galore, URD y-pipe, RCI skids, LF 240s, etc.
    What amp are you running?

  9. Aug 22, 2013 at 7:53 AM
    #9
    brochacho

    brochacho Well-Known Member

    Joined:
    Feb 27, 2013
    Member:
    #98619
    Messages:
    147
    Gender:
    Male
    First Name:
    Ryan
    Troutdale, OR
    Vehicle:
    09' Double Cab 4x4 TRD Offroad
    5100's @ .85 w/Eibach coils, Wheelers 2" AAL, 17x8 MK6 wheels, 255/75/17 KM1's
    Nice! Thanks for posting the dimensions.

  10. Aug 22, 2013 at 5:01 PM
    #10
    TRD Toy85

    TRD Toy85 [OP] Well-Known Member

    Joined:
    Jul 1, 2012
    Member:
    #81685
    Messages:
    739
    Gender:
    Male
    CT
    Vehicle:
    loaded 2013 TRD sport
    you mean the hole in the box ? that about 1/2" closer towards the bottom of the box



    rockford prime 500 , way more then i need but i had it from my previous system so .....

  11. Aug 23, 2013 at 10:30 AM
    #11
    BLOODYMARY

    BLOODYMARY Well-Known Member

    Joined:
    Jul 6, 2013
    Member:
    #107733
    Messages:
    520
    Gender:
    Male
    First Name:
    Keith
    Tulsa, OK
    Vehicle:
    2012 Tacoma Double
    AFE Exhaust, AFE Panel Filter
    Very nice! Thanks for all the useful info!

  12. Aug 29, 2013 at 8:12 AM
    #12
    spieler

    spieler Well-Known Member

    Joined:
    Aug 16, 2013
    Member:
    #110561
    Messages:
    426
    Gender:
    Male
    First Name:
    Ryan
    Jonesborough, TN
    Vehicle:
    13 white DCSB SR5 4x4
    3" Lift kit/265 Duratracs/SCS Stealth 6 matte black wheels, OEM White grille switcheroo, TRD skid derped white, CSjumper drtl map dome parking lights fog light bulbs, Lifetime LED headlights, **Reverse light mod, Foglight anytime Mod, Trimmed mudflaps, Fully Debadged, 3rd brake light cover by well...me, Liquid Innovations black carbon dipped front emblem, G-Tek Fab diamond plate white door sill protectors, SOS Bolt-on Sliders bedlined, MattGecko rear window security bar, Hardwired Radar Detector w/custom sucker mount, Horse Stall Bed Mat, Audiocontrol LC2i with custom mount ACR-1 remote, Custom sub box behind drivers rear seat, Mag light holder behind seat, Center console organizer , Passenger seatbelt flapper fix, Tailgate anti-theft Mod, Bed storage Locks Mod, hygieneboy ghetto gutter grille guard
    Many thanks to Toy for the schematic. I sent it to my shop here and the shopbot cut it all out, then all I had to do was rip the 15deg and screw and glue it. I just threw some rubberized undercoat on mine as I could care less how it looks as its behind a seat (therefore no pix of said black box). The MTX fit in there perfectly with 1/4 behind it. Stuffed that beyotch with polyfill and hooked her to my Thunder 251D as before. Only problem is now its too boomy as its running full range because of the cheap lino out I had lying around so my Audio Control Lc2I with ACR-1 remote should be here today so I have control!

  13. Aug 29, 2013 at 5:01 PM
    #13
    TRD Toy85

    TRD Toy85 [OP] Well-Known Member

    Joined:
    Jul 1, 2012
    Member:
    #81685
    Messages:
    739
    Gender:
    Male
    CT
    Vehicle:
    loaded 2013 TRD sport

    nice!

    share a pic anyways . If you do ever want to carpet it, its really easy. few good tutorials on youtube, and carpet with spray is cheap on eBay.

    I looked into the cleansweep and LC2 aswell, but for now im pretty satisfied. Though as well all know, bass is addicting and after a short period of time you crave more :p

  14. Aug 29, 2013 at 7:13 PM
    #14
    NerdAlert

    NerdAlert Well-Known Member

    Joined:
    Aug 22, 2013
    Member:
    #110986
    Messages:
    61
    Gender:
    Male
    650
    Vehicle:
    06 PreRunner
    Wow impressive planning and execution. Congrats on your first JL product, you'll find that they are expensive but excellent quality; I only go JL for bass. The only drawback is that you may want to start upgrading soon to w3, w6, w7 (if you're crazy about bass).

  15. Aug 29, 2013 at 7:24 PM
    #15
    User Name01

    User Name01 I leave on a donkey and come back on a horse

    Joined:
    Jul 15, 2013
    Member:
    #108296
    Messages:
    3,190
    Gender:
    Male
    First Name:
    El Chicken Little
    Port Arthur/Lubbock, Tx
    Vehicle:
    TRD Sport Barcelona Red Metallic Dbl Cab 4x4
    mehh
    Nice...good job on posting the dimensions. I tried to build a custom box once. I got frustrated and smashed it on the ground. :)

  16. Aug 29, 2013 at 7:27 PM
    #16
    sfcadams

    sfcadams Retired Senior NCO

    Joined:
    Aug 13, 2011
    Member:
    #61645
    Messages:
    1,431
    Gender:
    Male
    First Name:
    Dan
    Elizabeth, Indiana
    Vehicle:
    2011 TRD Off Road DCSB Prerunner Skeewped
    Nice...

  17. Aug 30, 2013 at 5:17 AM
    #17
    spieler

    spieler Well-Known Member

    Joined:
    Aug 16, 2013
    Member:
    #110561
    Messages:
    426
    Gender:
    Male
    First Name:
    Ryan
    Jonesborough, TN
    Vehicle:
    13 white DCSB SR5 4x4
    3" Lift kit/265 Duratracs/SCS Stealth 6 matte black wheels, OEM White grille switcheroo, TRD skid derped white, CSjumper drtl map dome parking lights fog light bulbs, Lifetime LED headlights, **Reverse light mod, Foglight anytime Mod, Trimmed mudflaps, Fully Debadged, 3rd brake light cover by well...me, Liquid Innovations black carbon dipped front emblem, G-Tek Fab diamond plate white door sill protectors, SOS Bolt-on Sliders bedlined, MattGecko rear window security bar, Hardwired Radar Detector w/custom sucker mount, Horse Stall Bed Mat, Audiocontrol LC2i with custom mount ACR-1 remote, Custom sub box behind drivers rear seat, Mag light holder behind seat, Center console organizer , Passenger seatbelt flapper fix, Tailgate anti-theft Mod, Bed storage Locks Mod, hygieneboy ghetto gutter grille guard
    [​IMG][​IMG][​IMG]
    Here she is.! And Toy I installed car stereos for many a years when I was young, built boxes, entered contests, etc. I'm too old to care now if it cant be seen. I know full well the stock touchscreeen h/u is the weak spot but I like it and im going to get the integration cable so my back up camera shows in there so its staying. I hope the LC2 takes care of my issue as well!

  18. Aug 30, 2013 at 6:00 AM
    #18
    tillithz

    tillithz Active Member

    Joined:
    Jul 22, 2013
    Member:
    #108834
    Messages:
    26
    Gender:
    Male
    Oakland
    Vehicle:
    2013 Toyota Tacoma Double Cab PreRunner Sport
    Viper 5704 Tonneau Cover Rear view camera in Stock Head Unit

    it seems like the bottom and horizontal 1.25 inch piece is different in the pics and the dimensions pic, is it? whats the internal volume? (too lazy to do math if you already have) thanks

  19. Aug 30, 2013 at 8:26 AM
    #19
    NerdAlert

    NerdAlert Well-Known Member

    Joined:
    Aug 22, 2013
    Member:
    #110986
    Messages:
    61
    Gender:
    Male
    650
    Vehicle:
    06 PreRunner
    I did the same thing when trying to build a factory spec box for a 12w7 in the trunk of an m3 convertible. After many hours of designing and redesigning and assembling and disassembling I literally took it on top of my friend's roof and threw it off.

  20. Aug 30, 2013 at 9:06 AM
    #20
    TRD Toy85

    TRD Toy85 [OP] Well-Known Member

    Joined:
    Jul 1, 2012
    Member:
    #81685
    Messages:
    739
    Gender:
    Male
    CT
    Vehicle:
    loaded 2013 TRD sport
    Ya I cut it long on my box , but the over external dimensions are the same .
