12v bed wiring w/ LEDs (pic heavy)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Schinkey10689, Feb 27, 2014.

  1. Feb 27, 2014 at 8:17 PM
    #1
    Schinkey10689

    Schinkey10689 [OP] Well-Known Member

    Joined:
    Mar 26, 2011
    Member:
    #53754
    Messages:
    91
    Gender:
    Male
    First Name:
    Justin
    Tampa, Florida
    Vehicle:
    09 PreRunner SR5
    Fog Light Anytime, Plasti-dip badges
    I decided to brighten up my LEER topper a little because it gets pretty dark in there at night.

    Parts:
    30ft 8AWG red wire
    8AWG ring terminals
    50' 3/8" split wire loom
    25' 20AWG red/black 2 conductor wire
    60AMP inline fuse
    18" zip ties
    5/16" rubber grommets
    1" vinyl tubing
    Blue Sea 5025 fuse block
    Two strips of 5050 cool white LEDs 16'
    Multi Use 12v vehicle charger w/ dual USB

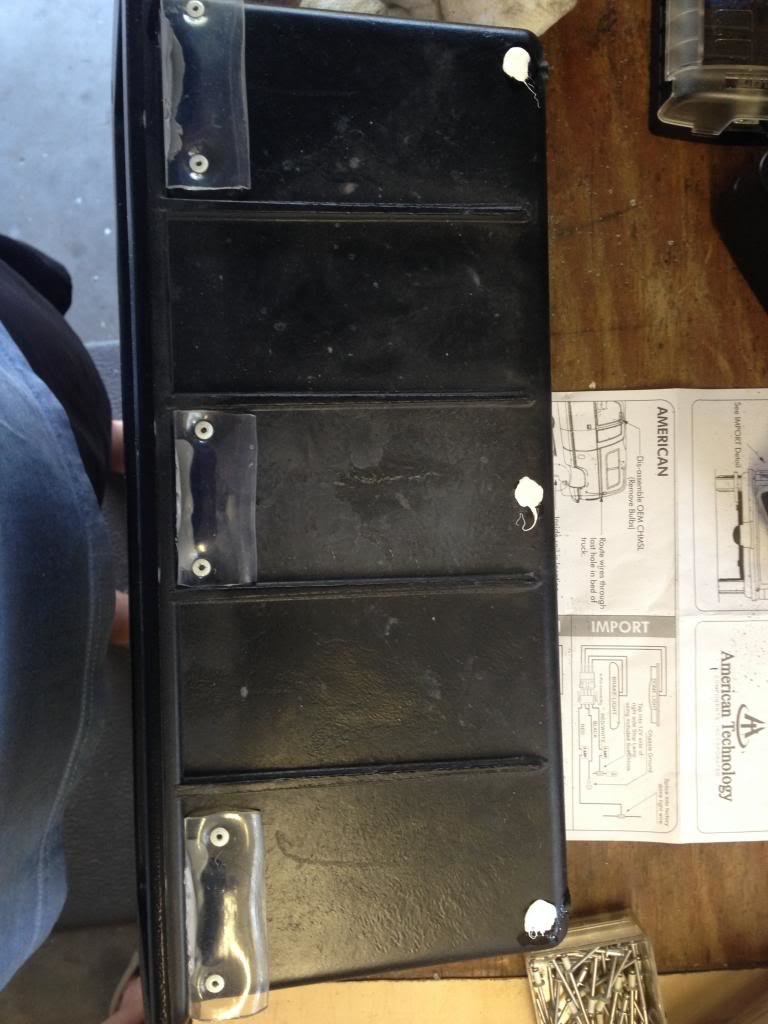

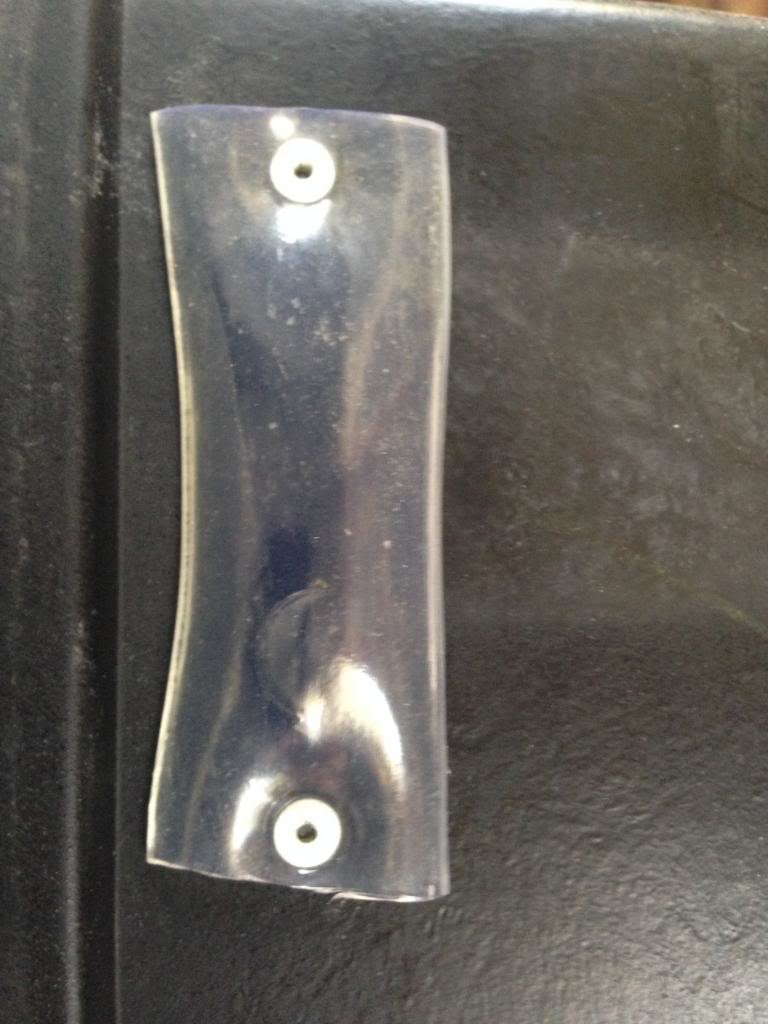

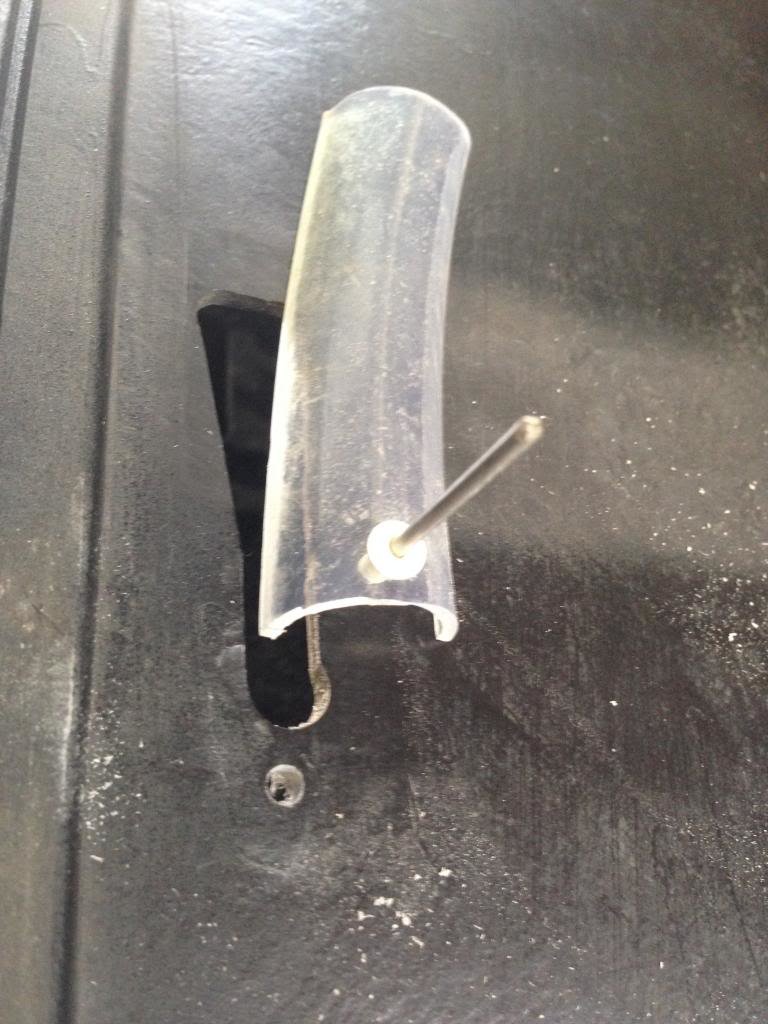

    I started by (sort of) sealing the boxes in the side of the bed. I used 1" vinyl tubing cut in half and riveted over the holes to cover where the door locks and feet stick through.



    I then sealed the bottom drain holes with 5200.

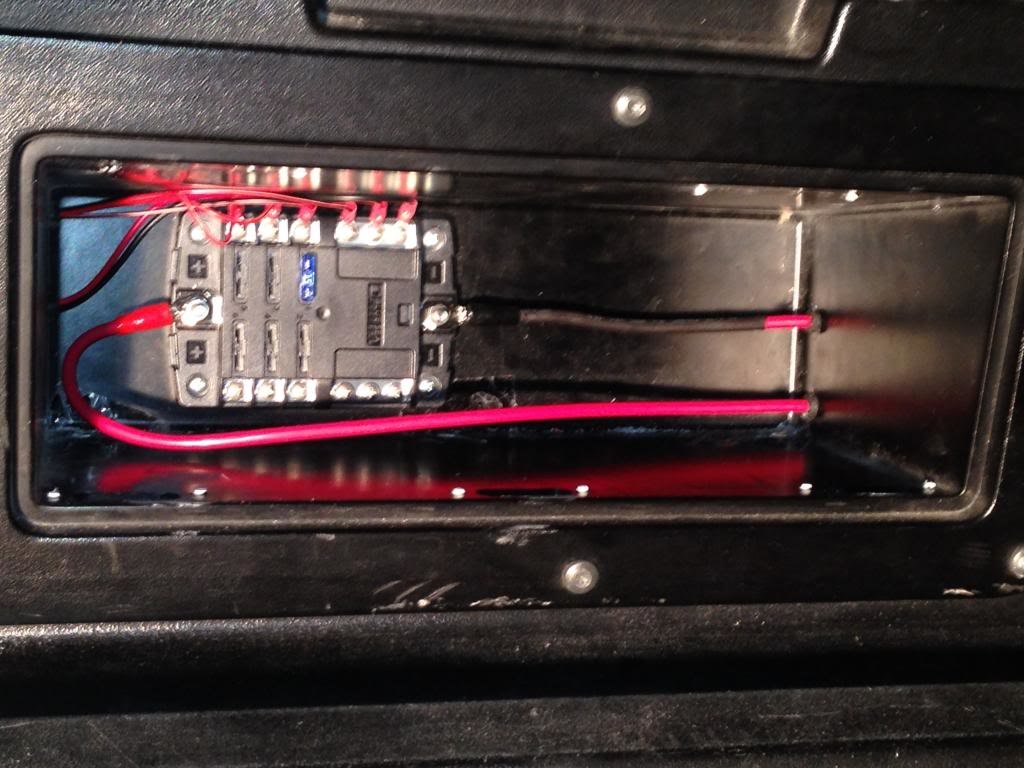

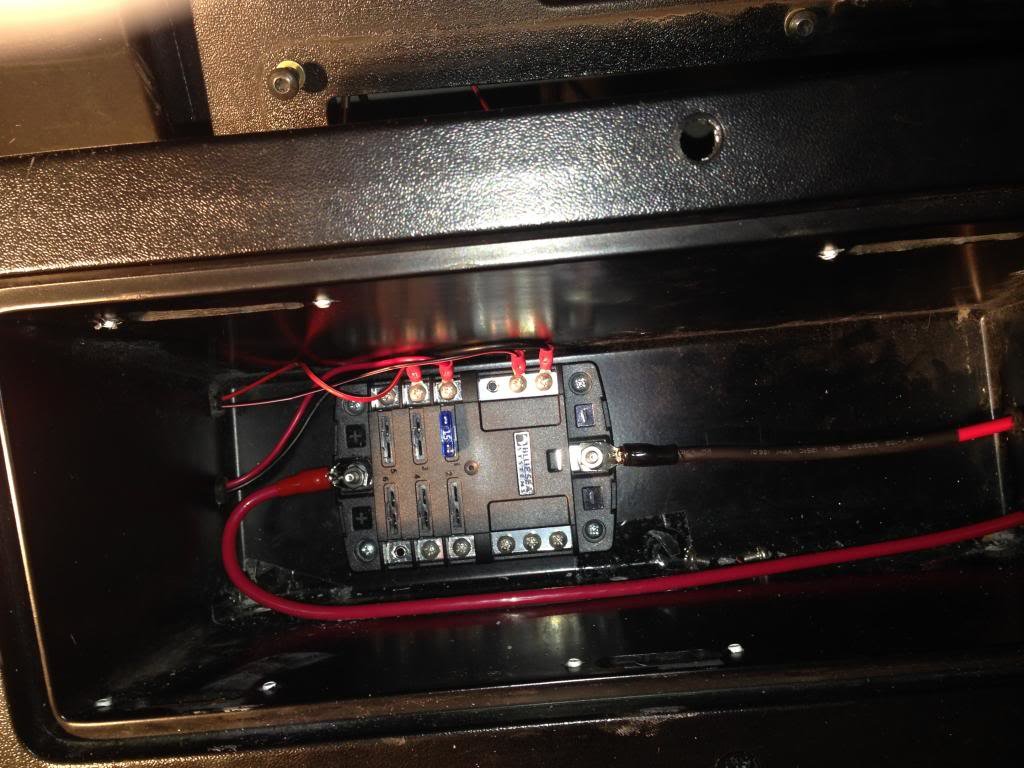

    I mounted the fuse block on the back of the box incase any moisture did get in there it would be above it.


    Then I drilled 2 holes on each side of the box for the wires. I used 5/16" grommets

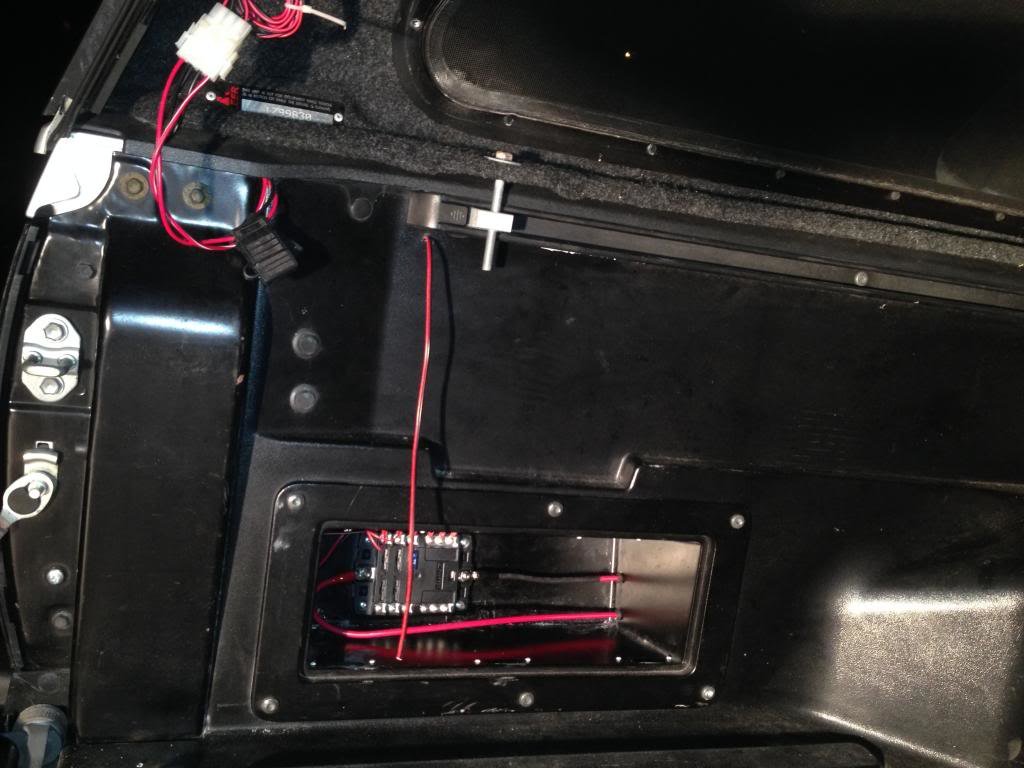

    I then ran the 8 AWG wire from my battery back to the bed box. This isn't hard to do as there is already a huge wiring harness running back there. I just followed it and zip tied the wire to the frame in a few places.

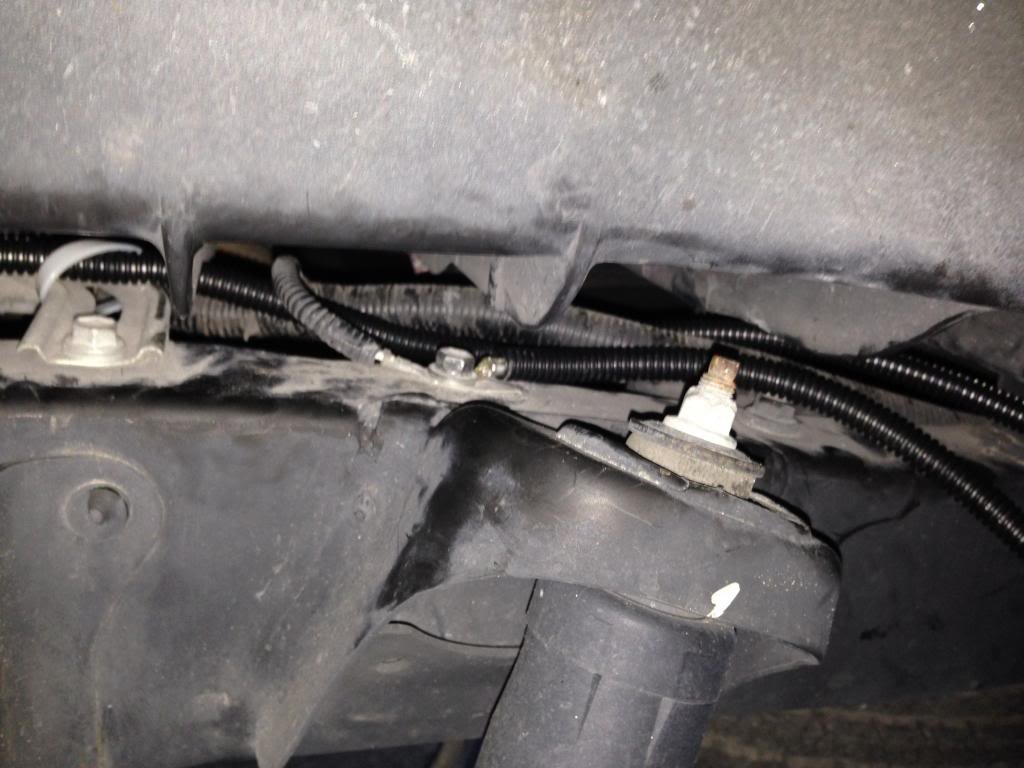

    I found one of the main grounds in the rear and added my ground to the bolt.

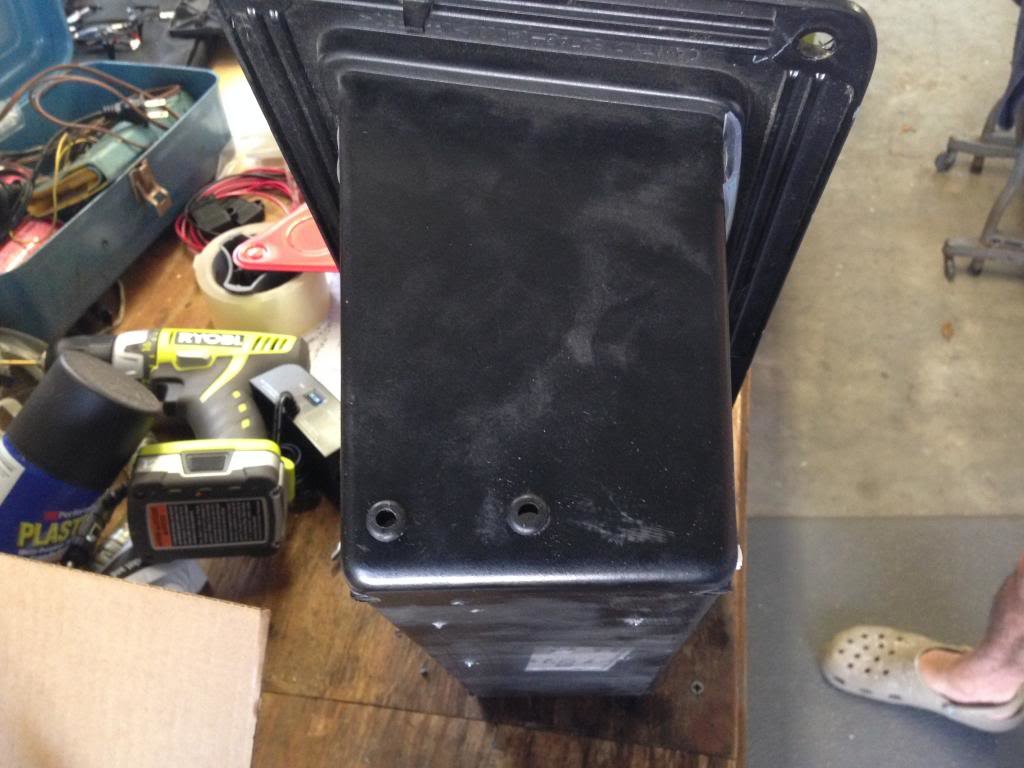

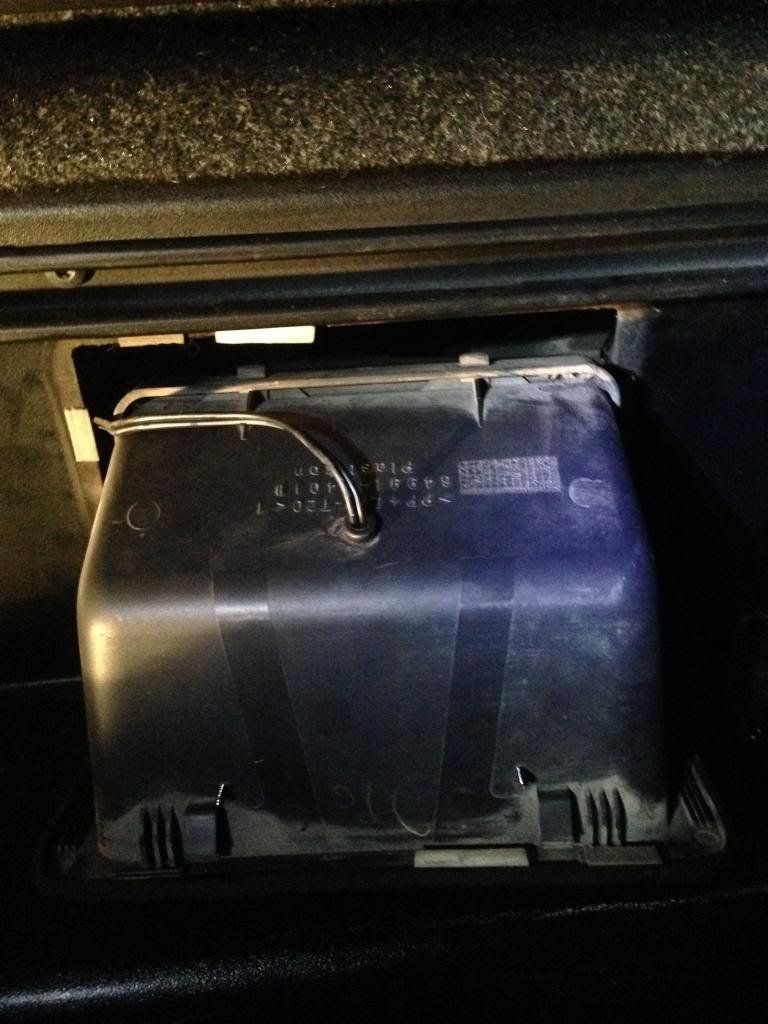

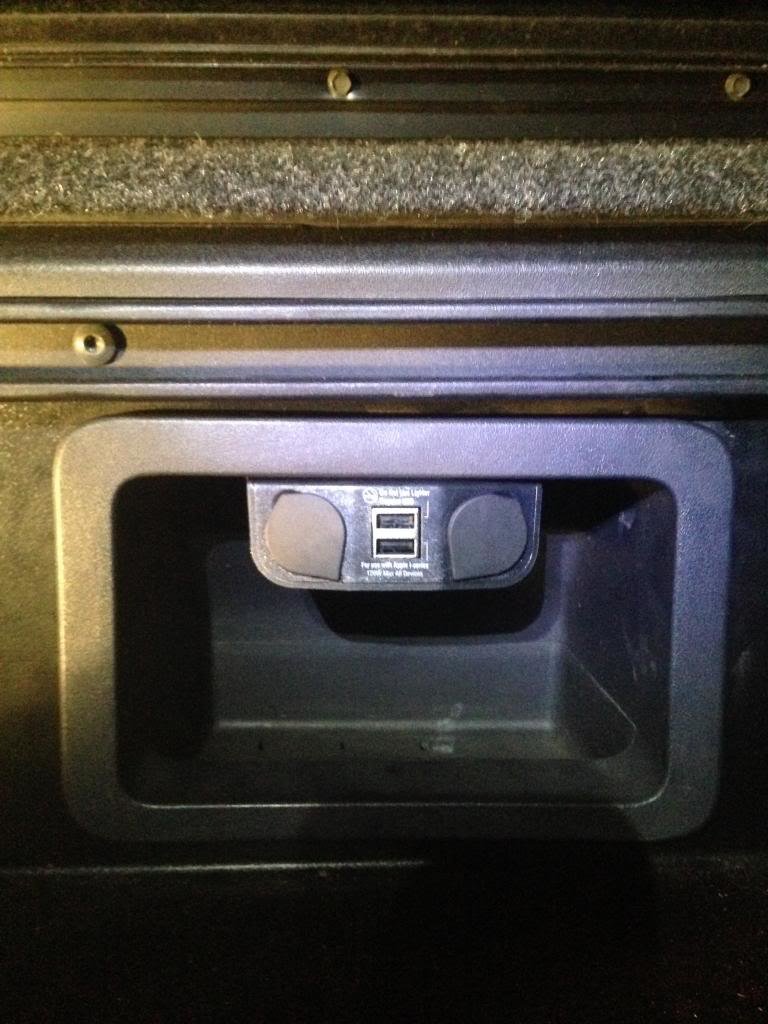

    I installed a 12v outlet with USB ports to the cubby in the side of the bed and ran the wire back to the fuse block. It was super simple and attached with 2 small screws. The cubby pops off as it is only attached with some double sided foam tape.



    Next came actually wiring the fuse block. I didn't get many pictures because I did it after work one day and it was dark already.


    I had to wire my topper to the fuse block as well as the tail light because it has a built in light with a switch that I want to always be hot.
    (pic coming)

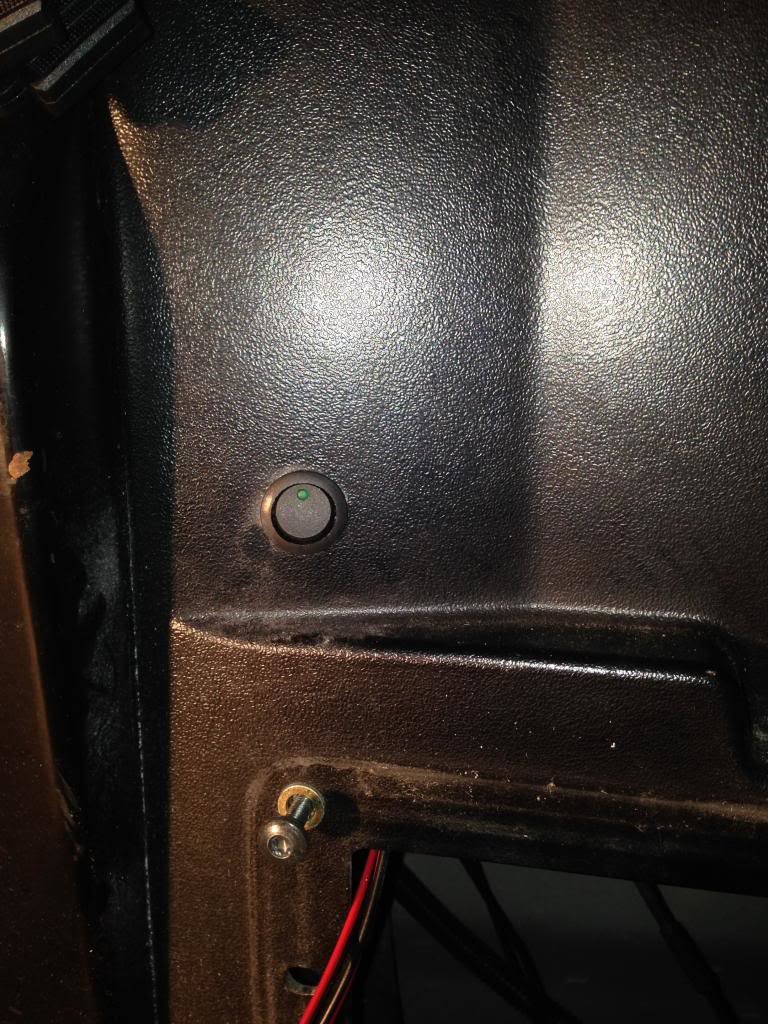

    This is where I put the switch that controls the 12v outlets (I installed a switch because I tested the outlets and they are always drawing about 15 mA even when nothing is plugged into them).


    I added another switch on top of the first to control the first set of LED lights that are mounted under the bed rail.


    Here's a crappy pic of the finished product


    I added two LED strips to the topper that are wired into the switch that came with the topper.

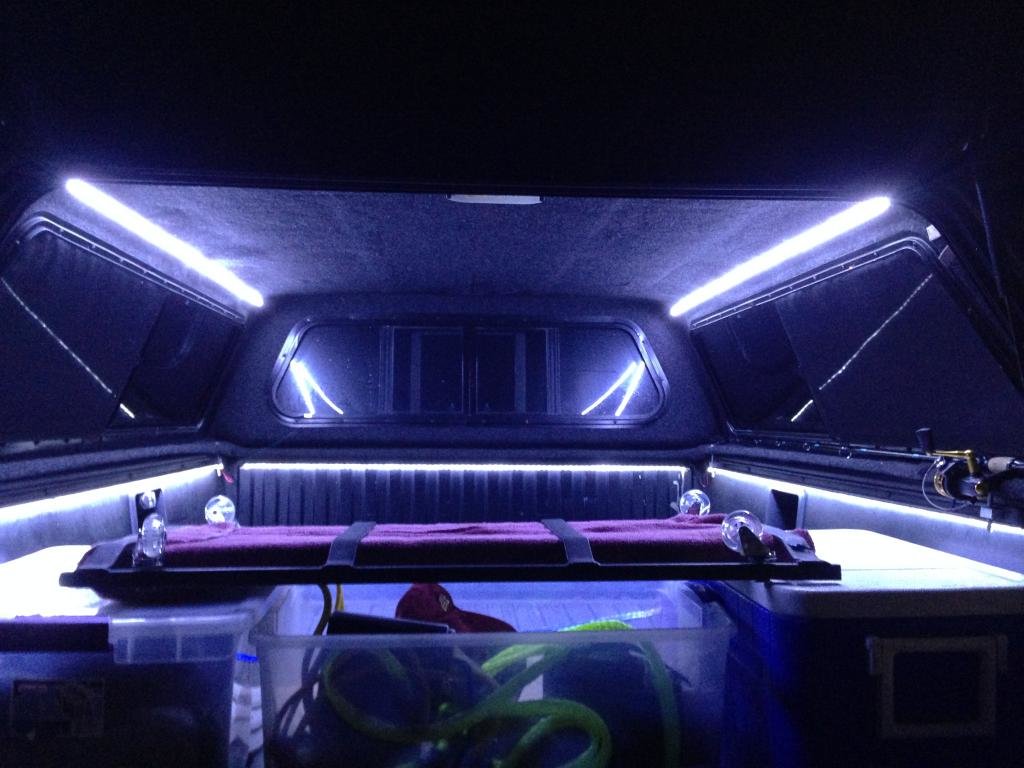

    This is the finished product:

    JUST FYI:
    I tried mounting the LEDs to the bed rail with the adhesive 3M tape that comes on the back but after about 10 days in the hot Florida sun they melted off.
    I ended up using acetone to get the adhesive off and using a VERY thin bead of 5200 to stick them to the bed. I had to tape them in place for 48 hours for the adhesive to set but now I know they won't be going anywhere.

    I have yet to install the LEDs on the roof but when I do I will update again with more pictures.
