1996 SR5 Leaf Spring / Shock Height Issue

Discussion in '1st Gen. Tacomas (1995-2004)' started by kaeferfan, Feb 15, 2019.

  1. Feb 15, 2019 at 1:27 PM
    #1
    kaeferfan

    kaeferfan [OP] New Member

    Joined:
    Feb 15, 2019
    Member:
    #283134
    Messages:
    2
    Gender:
    Male
    Dear all, I am new to the forum... trying to restore this 1995/1996 SR5 down here in Brazil where they are pretty rare, since this one as you know was made specially for the US market, this was a private import I guess, I found it and really trying to do my best to bring it back to original which is not easy as we have to import every single part directly from the US.

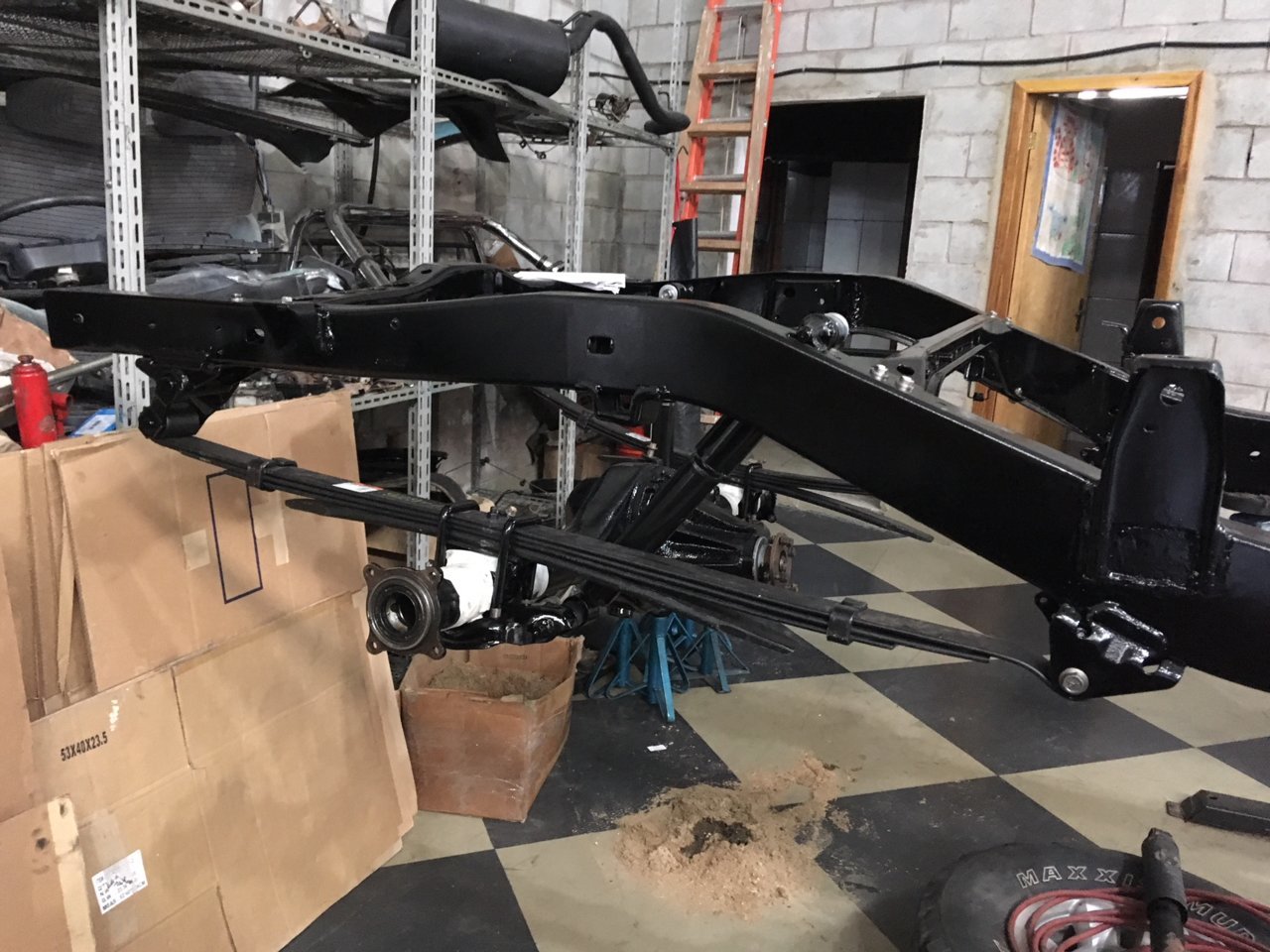

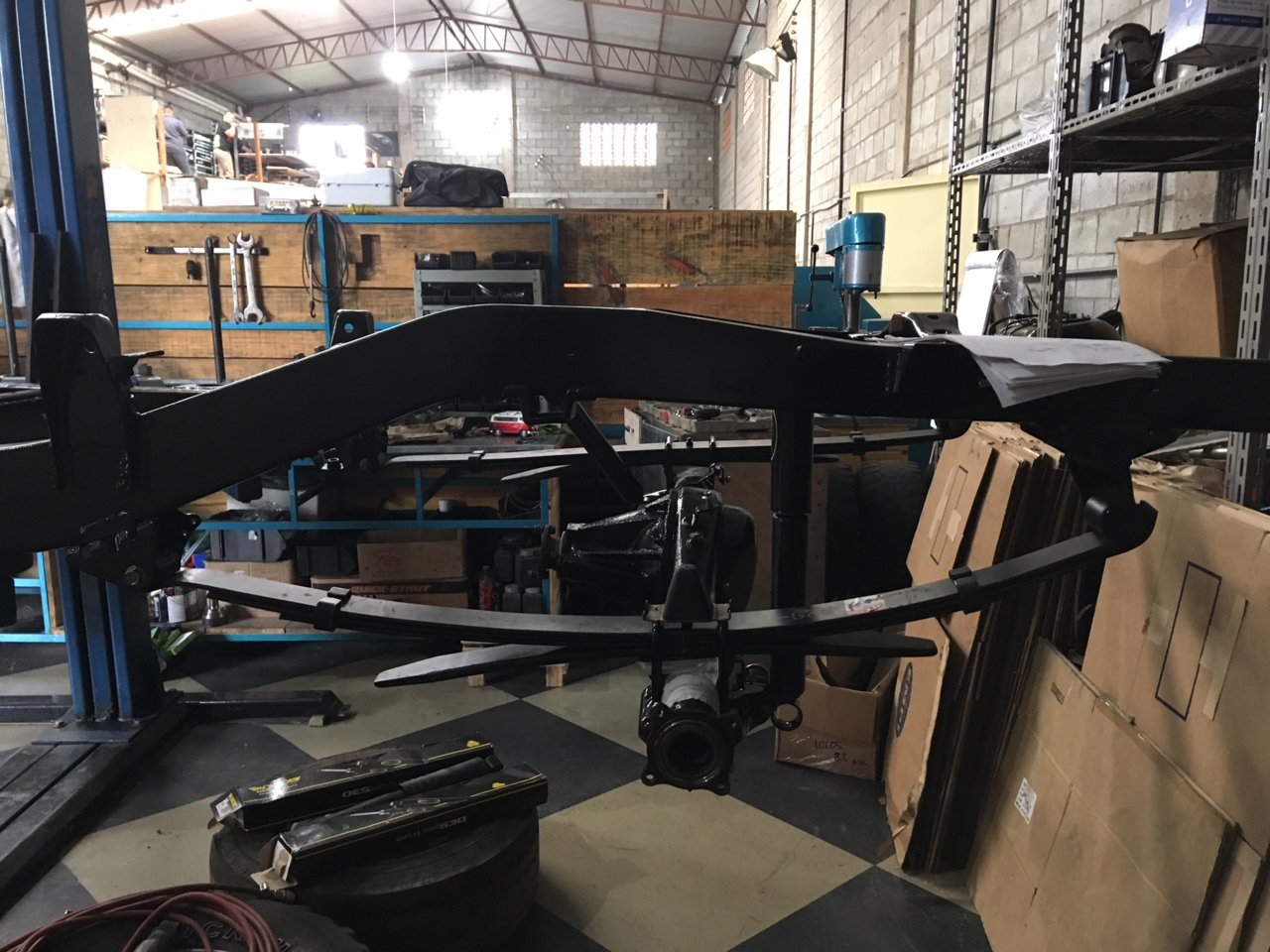

    Sorry if my questions are plain dumb, but I am kinda lost here. Please take a look at the pictures. Installed new leaf springs (Dormans 929-400) and shocks (MONROE 37113/114) I bought from RockAuto and am having some difficulties. As you can see the leaf spring on the left side of the car with the rear shock installed looks OK, but the right side is another story.

    To my understanding the right shock should indeed be longer than the left side because of the upper chassis mounting points and the angle of the shock being different. Fine, but still the right shock seems too short for the job therefore putting too much pressure on the leaf spring.

    Am I doing something wrong? I did check both with Dorman and Monroe and the parts seem to be the right ones for the truck.

    Any kind of help will be appreciated as I am really lost here. Thank you.


  2. Feb 15, 2019 at 2:54 PM
    #2
    lukester78

    lukester78 Well-Known Member

    Joined:
    Nov 3, 2016
    Member:
    #201425
    Messages:
    849
    Gender:
    Male
    First Name:
    Luke
    Vehicle:
    97 Tacoma Single Cab 4x4
    Are the leaf springs backwards? Axle is way far back.

  3. Feb 15, 2019 at 3:00 PM
    #3
    jbrandt

    jbrandt Well-Known Member

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    12,970
    Gender:
    Male
    Sacramento, CA
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    King ext travel coils Total Chaos UCAs Custom skids Sticker mod
    That is my thought too. Axles should be under the "bump" in the frame...

  4. Feb 15, 2019 at 3:02 PM
    #4
    Shortman5

    Shortman5 Well-Known Member

    Joined:
    Mar 30, 2013
    Member:
    #100952
    Messages:
    1,923
    Gender:
    Male
    ..
    Vehicle:
    Supercharged TRD
    TRD S/C, ADS coilovers.
    Yep. The short side of the leaf spring should be going toward the front.

  5. Feb 15, 2019 at 8:01 PM
    #5
    Sperrunner

    Sperrunner Respect the International Dibs Law

    Joined:
    Feb 23, 2018
    Member:
    #245334
    Messages:
    38,067
    Gender:
    Male
    First Name:
    Miguel
    Berkeley, Ca
    Vehicle:
    2004 Tacoma S-Runner 1987 toyota van 96 4wd frame
    Wd40, zipties, duck tape, and my hopes and dreams
    Yeah you can see the military wrap on the back in the second pic. Definitely backwards

  6. Feb 15, 2019 at 8:44 PM
    #6
    Tour991

    Tour991 Well-Known Member

    Joined:
    Nov 24, 2011
    Member:
    #67616
    Messages:
    2,301
    Gender:
    Male
    First Name:
    James
    South Lake Tahoe
    Vehicle:
    97 2/4wd, 2014 Crew cab 4x4
    2nd this. Flip the driver side leaf pack

    Sperrunner likes this.
  7. Feb 15, 2019 at 8:48 PM
    #7
    kystnTRD

    kystnTRD Ramblin Man

    Joined:
    Sep 19, 2007
    Member:
    #2741
    Messages:
    699
    Gender:
    Male
    NW Pennsylvania
    Vehicle:
    2016 TRD Sport 6MT
    95 - 97 Tacoma had different leafs than later years. Also backwards

  8. Feb 15, 2019 at 8:51 PM
    #8
    Sperrunner

    Sperrunner Respect the International Dibs Law

    Joined:
    Feb 23, 2018
    Member:
    #245334
    Messages:
    38,067
    Gender:
    Male
    First Name:
    Miguel
    Berkeley, Ca
    Vehicle:
    2004 Tacoma S-Runner 1987 toyota van 96 4wd frame
    Wd40, zipties, duck tape, and my hopes and dreams
    Quick look at the link he sent it says the pack is for 95-97

  9. Feb 15, 2019 at 8:52 PM
    #9
    kystnTRD

    kystnTRD Ramblin Man

    Joined:
    Sep 19, 2007
    Member:
    #2741
    Messages:
    699
    Gender:
    Male
    NW Pennsylvania
    Vehicle:
    2016 TRD Sport 6MT
    Didn't realize it was a link, just the first thing that popped into my head

  10. Feb 15, 2019 at 8:58 PM
    #10
    Sperrunner

    Sperrunner Respect the International Dibs Law

    Joined:
    Feb 23, 2018
    Member:
    #245334
    Messages:
    38,067
    Gender:
    Male
    First Name:
    Miguel
    Berkeley, Ca
    Vehicle:
    2004 Tacoma S-Runner 1987 toyota van 96 4wd frame
    Wd40, zipties, duck tape, and my hopes and dreams

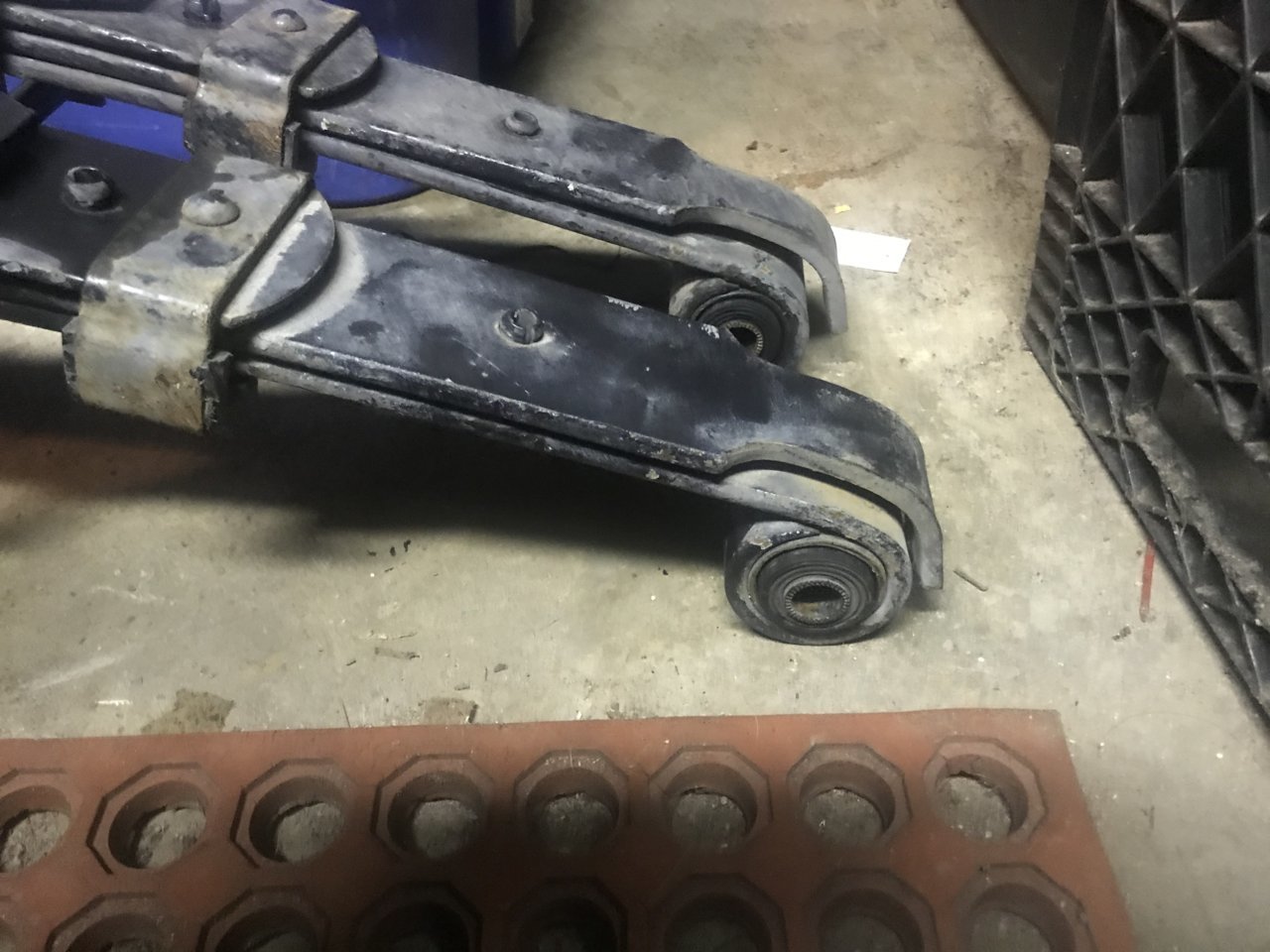

    OP The part the pack that looks like this goes in the front hanger


  11. Feb 16, 2019 at 8:53 AM
    #11
    kaeferfan

    kaeferfan [OP] New Member

    Joined:
    Feb 15, 2019
    Member:
    #283134
    Messages:
    2
    Gender:
    Male
    Thank you guys, I am sure I will need some more of your valuable help!

    Sperrunner likes this.
  12. Feb 16, 2019 at 9:35 AM
    #12
    drock3

    drock3 Well-Known Member

    Joined:
    Jun 23, 2017
    Member:
    #222226
    Messages:
    73
    Gender:
    Male
    First Name:
    Derek
    California
    Vehicle:
    97 2.7L 5 Speed 4x4
    Stock as of now.
    I just purchased and picked up these Leaf Springs. I have a 97 2.7L 4x4 Extra Cab.
    I am also replacing the shocks/struts with Bilstein 4600's. Interested to see you build the truck!
    I'll try to make and maintain an updated Build Page for my Toyota.
