1996 Wiring Diagram, Circuits and Part Locations

Discussion in '1st Gen. Tacomas (1995-2004)' started by mechanicjon, Apr 30, 2018.

  1. Apr 30, 2018 at 2:39 PM
    #1
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,466
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
  2. Apr 30, 2018 at 9:45 PM
    #2
    BartMaster1234

    BartMaster1234 American Auto Horns

    Joined:
    Aug 21, 2016
    Member:
    #195197
    Messages:
    44,276
    Gender:
    Male
    First Name:
    Tyler
    San Francisco, California
    Vehicle:
    1998 PreRunner 4x4 2.7l Supercharged
    Flux Capacitor
  3. Apr 30, 2018 at 11:35 PM
    #3
    mechanicjon

    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    9,466
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.
  4. May 1, 2018 at 12:11 AM
    #4
    Wyoming09

    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    14,306
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck 5 speed 4x4 3.4
    Super Springs
    If i had this I would share

  5. May 1, 2018 at 3:11 AM
    #5
    COMAtized99

    COMAtized99 Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25746
    Messages:
    1,857
    Gender:
    Male
    North Carolina
    Vehicle:
    99 DCLB v8
    The Bed is stock...ish
    I have the wiring if you still need it. PM me your email

    TwoStickTrick likes this.
  6. May 1, 2018 at 4:06 AM
    #6
    nzbrock

    nzbrock Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    2,673
    Gender:
    Male
    First Name:
    Noah
    San Marcos, TX
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf + 3 AAL Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 255/85/16 Cooper ST Maxx 4Runner overhead sunglass console 4Runner leather seats All LED lights Red/Clear Tail Light Tundra Brakes HID Projector Retrofits 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system E-locker axle swap w/4.56 Gears ARE MX Cap Prinsu Toprac Custom heated turn signal/puddle light mirrors Volant Intake Tube
    Here is 1999 Tacoma Wiring


    Attached Files:

  7. May 1, 2018 at 4:31 AM
    #7
    COMAtized99

    COMAtized99 Well-Known Member

    Joined:
    Nov 10, 2009
    Member:
    #25746
    Messages:
    1,857
    Gender:
    Male
    North Carolina
    Vehicle:
    99 DCLB v8
    The Bed is stock...ish

    96 is different

  8. May 1, 2018 at 5:05 AM
    #8
    nzbrock

    nzbrock Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    2,673
    Gender:
    Male
    First Name:
    Noah
    San Marcos, TX
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf + 3 AAL Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 255/85/16 Cooper ST Maxx 4Runner overhead sunglass console 4Runner leather seats All LED lights Red/Clear Tail Light Tundra Brakes HID Projector Retrofits 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system E-locker axle swap w/4.56 Gears ARE MX Cap Prinsu Toprac Custom heated turn signal/puddle light mirrors Volant Intake Tube
    Yea I know, but a lot of the circuits are the same for accessories.

  9. May 1, 2018 at 6:56 AM
    #9
    cooper4x4

    cooper4x4 Well-Known Member

    Joined:
    Mar 26, 2012
    Member:
    #75663
    Messages:
    290
    Gender:
    Male
    Dallas
    Vehicle:
    02 Tacoma SAS
    Does this help? From the 96 FSM


    Attached Files:

    TwoStickTrick, Wulf and tony2018 like this.
  10. Dec 13, 2018 at 4:03 PM
    #10
    Coldstar64

    Coldstar64 New Member

    Joined:
    Dec 13, 2018
    Member:
    #275739
    Messages:
    3
    Gender:
    Male
    Do you have the wire routing diagrams?

  11. Dec 13, 2018 at 4:49 PM
    #11
    RysiuM

    RysiuM Well-Known Member

    Joined:
    Oct 18, 2015
    Member:
    #167004
    Messages:
    2,684
    Gender:
    Male
    First Name:
    Rysiu
    Was Golden State, now Poland EU
    Vehicle:
    1995 4x4 LX Ext Cab, I4 2.7, MT, 335K miles
    DD Deck+backup camera, LED DRL, All LED except H4 Hella
    I have 95 Wiring manual, but it is printed one (not on-line). But from what I see in 1999 it is very close but very small differences.

    Edit: I think I found one: 1995 did not have rear diff locker, so no diagram for it. One more: SRS is different. 1995 came with one airbag and no seat belts pre-tensioner so SRS diagram is completely different.

    Last edited: Dec 13, 2018
  12. Jun 26, 2019 at 4:13 AM
    #12
    TwoStickTrick

    TwoStickTrick Well-Known Member

    Joined:
    Jun 24, 2019
    Member:
    #297302
    Messages:
    245
    Gender:
    Male
    First Name:
    Wes
    Frederick MD
    Vehicle:
    96 Xtra-cab
    All Stock Baby
    I'm looking for the 1996 SRS wiring diagram/routing. The light went on and I just want to start troubleshooting but would like to look at at diagram/routing to get a basis of whats connected. Would you mind just sending one picture of that page in your paperback? (If it is one page lol)

    The cruise control does not work either but I believe the clutch is not connecting the switch to tell the CC that the clutch is not depressed. That is just assumptions from reading one post relevant to manual transmissions and CC, and looking at a picture of a didagram someone posted on the thread.

    Edit: the clutch is hitting the switch from what I believe so idk why CC is not working. Going to check the SRS codes this afternoon

    Last edited: Jun 27, 2019
  13. Jun 26, 2019 at 7:49 AM
    #13
    cooper4x4

    cooper4x4 Well-Known Member

    Joined:
    Mar 26, 2012
    Member:
    #75663
    Messages:
    290
    Gender:
    Male
    Dallas
    Vehicle:
    02 Tacoma SAS
    Does this help?


    Attached Files:

    TwoStickTrick likes this.
  14. Jun 26, 2019 at 9:27 AM
    #14
    RysiuM

    RysiuM Well-Known Member

    Joined:
    Oct 18, 2015
    Member:
    #167004
    Messages:
    2,684
    Gender:
    Male
    First Name:
    Rysiu
    Was Golden State, now Poland EU
    Vehicle:
    1995 4x4 LX Ext Cab, I4 2.7, MT, 335K miles
    DD Deck+backup camera, LED DRL, All LED except H4 Hella
    Here it is from 1995 book:

    Tacoma 1995 SRS-1.jpg

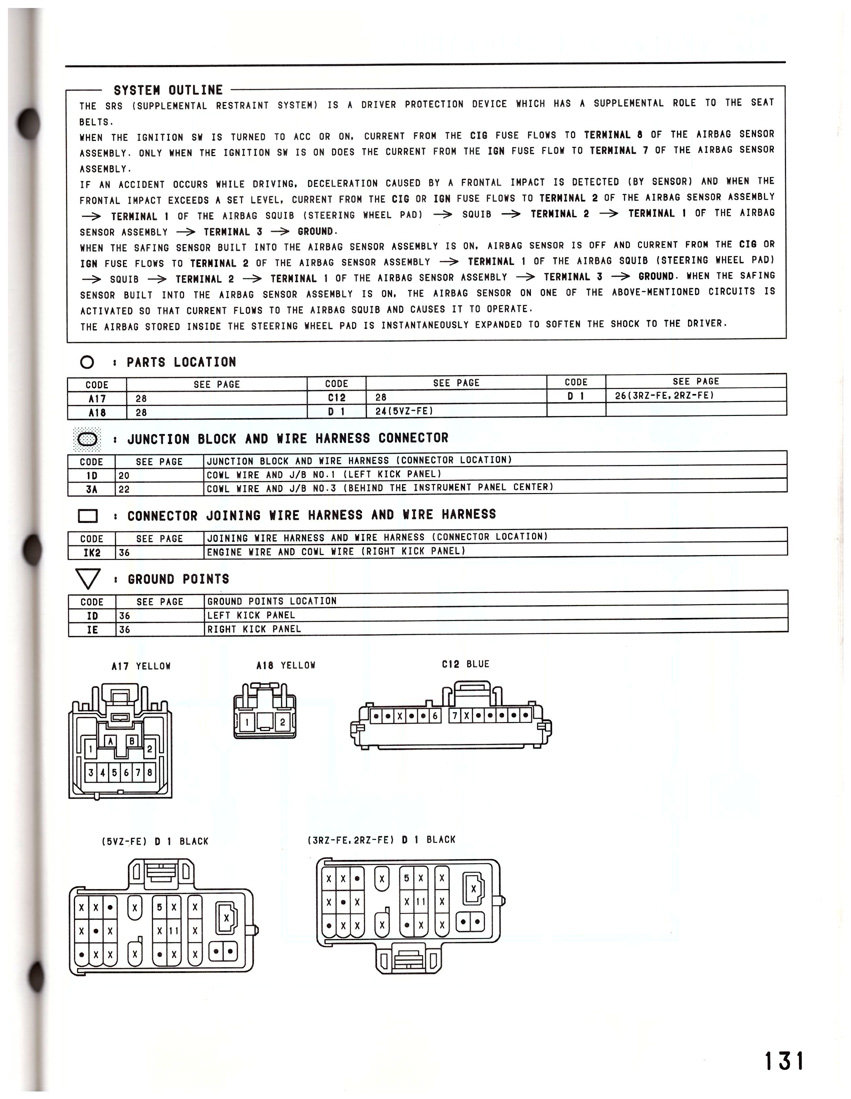

    Tacoma 1995 SRS-2.jpg

    TwoStickTrick likes this.
  15. Jun 26, 2019 at 10:00 AM
    #15
    TwoStickTrick

    TwoStickTrick Well-Known Member

    Joined:
    Jun 24, 2019
    Member:
    #297302
    Messages:
    245
    Gender:
    Male
    First Name:
    Wes
    Frederick MD
    Vehicle:
    96 Xtra-cab
    All Stock Baby
    Working like a dog right now for the man but when I get home I'll look over them but it looks like they will all help. Thanks dudes!

  16. Jun 27, 2019 at 5:36 AM
    #16
    TwoStickTrick

    TwoStickTrick Well-Known Member

    Joined:
    Jun 24, 2019
    Member:
    #297302
    Messages:
    245
    Gender:
    Male
    First Name:
    Wes
    Frederick MD
    Vehicle:
    96 Xtra-cab
    All Stock Baby
    Where did you get all this stuff? It looks completely useful and I think I may be able to find the problem in both systems

  17. Jun 27, 2019 at 9:05 AM
    #17
    cooper4x4

    cooper4x4 Well-Known Member

    Joined:
    Mar 26, 2012
    Member:
    #75663
    Messages:
    290
    Gender:
    Male
    Dallas
    Vehicle:
    02 Tacoma SAS
    there used to be a site that had a bunch of FSMs, before Toyota found it and filed as cease and desist. I downloaded the 96 and 03 Tacoma FSMs.

  18. Jun 27, 2019 at 1:43 PM
    #18
    TwoStickTrick

    TwoStickTrick Well-Known Member

    Joined:
    Jun 24, 2019
    Member:
    #297302
    Messages:
    245
    Gender:
    Male
    First Name:
    Wes
    Frederick MD
    Vehicle:
    96 Xtra-cab
    All Stock Baby

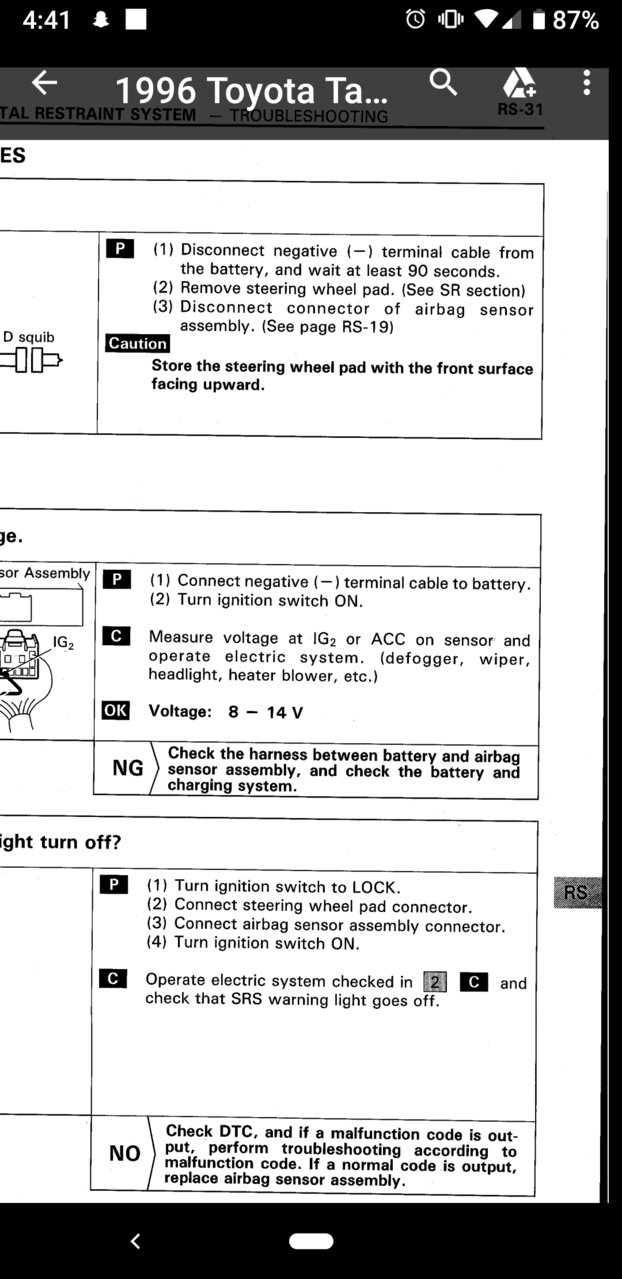

    In the first box, second step, for removing the steering wheel pad, it says see SR section. Is that a different document that you may have? I don't think its a section in that SRS FSM

    I'm man enough to do it myself but I also have a safety degree so if I blow my head off with my airbag my professors would probably not come to my funeral.

    It's giving me a 12 and 31 code, while the CC lights flashes



  19. Jun 27, 2019 at 2:53 PM
    #19
    cooper4x4

    cooper4x4 Well-Known Member

    Joined:
    Mar 26, 2012
    Member:
    #75663
    Messages:
    290
    Gender:
    Male
    Dallas
    Vehicle:
    02 Tacoma SAS
    here ya go


    Attached Files:

  20. Jun 30, 2019 at 12:10 PM
    #20
    TwoStickTrick

    TwoStickTrick Well-Known Member

    Joined:
    Jun 24, 2019
    Member:
    #297302
    Messages:
    245
    Gender:
    Male
    First Name:
    Wes
    Frederick MD
    Vehicle:
    96 Xtra-cab
    All Stock Baby
    Hey Cooper do you have a torque spec guide for the 1996? Looking for the steering wheel and column specs but you know whatever you have will do. I've been printing them out
