1996 Wiring Diagram, Circuits and Part Locations

Discussion in '1st Gen. Tacomas (1995-2004)' started by mechanicjon, Apr 30, 2018.

Page 2 of 2
  1. Jul 2, 2019 at 8:12 AM
    #21
    cooper4x4

    #21
    cooper4x4 Well-Known Member

    Joined:
    Mar 26, 2012
    Member:
    #75663
    Messages:
    290
    Gender:
    Male
    Dallas
    Vehicle:
    02 Tacoma SAS
    should be in that steering guide, right?

    cooper4x4, Jul 2, 2019
    #21
  2. Jul 2, 2019 at 8:26 AM
    #22
    TwoStickTrick

    #22
    TwoStickTrick Well-Known Member

    Joined:
    Jun 24, 2019
    Member:
    #297302
    Messages:
    246
    Gender:
    Male
    First Name:
    Wes
    Frederick MD
    Vehicle:
    96 Xtra-cab
    All Stock Baby
    Yeah they were. Thanks

    TwoStickTrick, Jul 2, 2019
    #22
  3. Jul 2, 2019 at 10:37 AM
    #23
    Russianman92

    #23
    Russianman92 Well-Known Member

    Joined:
    Sep 15, 2014
    Member:
    #138340
    Messages:
    823
    Gender:
    Male
    Dunwoody GA
    Vehicle:
    1995 White Tacoma 3RZ 4x4 5 speed
    bilstein shocks/struts Add-a-leaf Mostly stock. Running 31x10.5 r15
    If anyone needs Wir/Rep Mans PM me I have up to 2006

    Russianman92, Jul 2, 2019
    #23
    sgarciag149 likes this.
  4. Feb 24, 2024 at 10:01 AM
    #24
    BudderDabz

    #24
    BudderDabz New Member

    Joined:
    Feb 24, 2024
    Member:
    #444549
    Messages:
    1
    I know it’s a long shot but I’m hoping to get my hands on a 96 FSM. Just swapped a 3.4 w/ECU and harness from a ‘96 Tacoma into my ‘94 4Runner. Both are factory 4x4 M/T.

    It starts then dies within seconds. Throttle kills it as well. I have some strange wiring at my MAF that doesn’t match anything I can find online.

    Verified firing order wires on correct.

    The colors of the wires from left to right in my MAF plug are

    Brown w/White tracer
    Brown w/Black tracer
    Yellow w/Green tracer
    White w/ Red tracer
    White w/ Red tracer

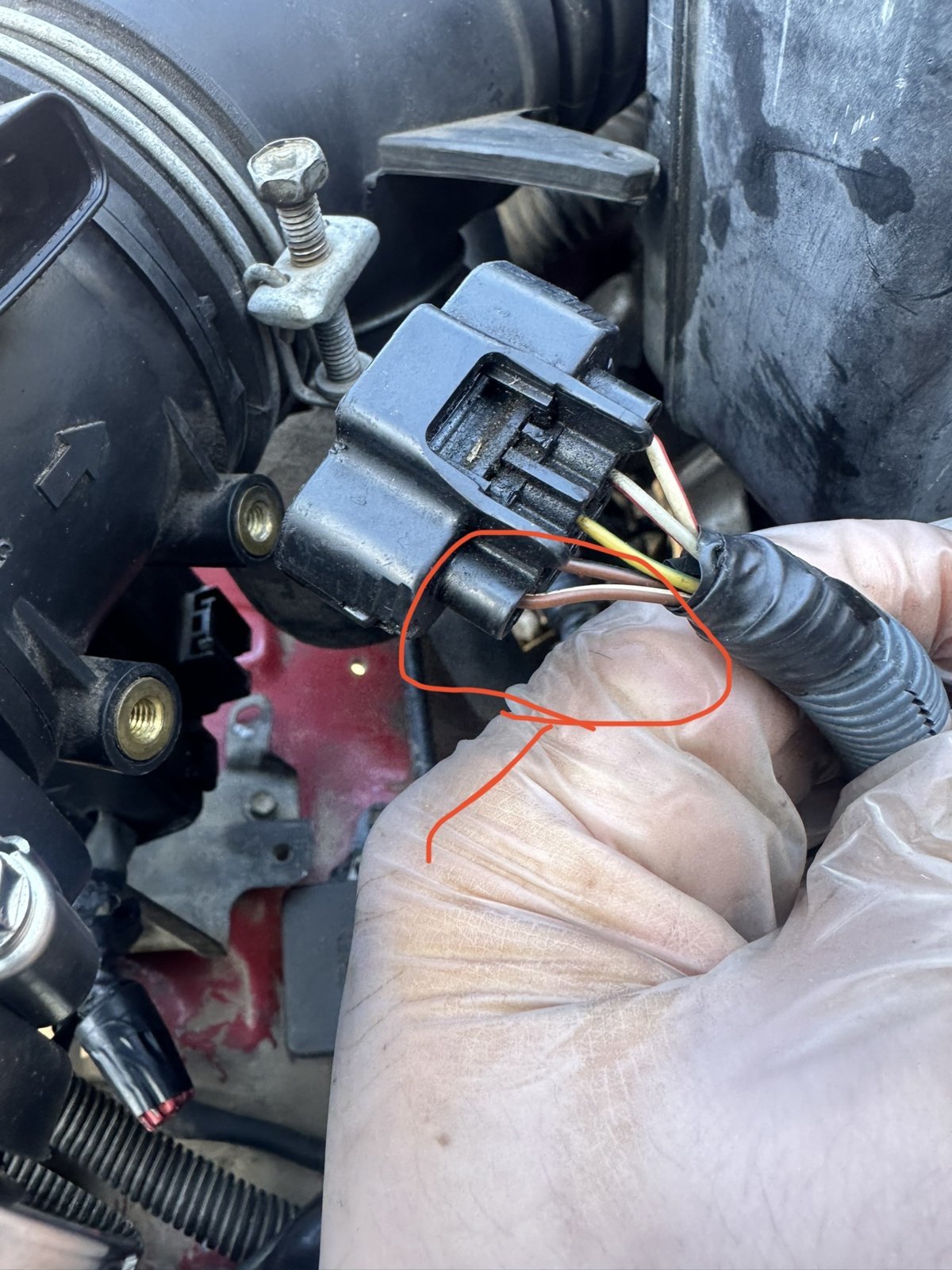

    I also found that 2 of my wires have continuity to ground with the key out. I’ll add a photo. Any help is appreciated


    BudderDabz, Feb 24, 2024
    #24
  5. Feb 25, 2024 at 12:03 AM
    #25
    mechanicjon

    #25
    mechanicjon [OP] They call me "Jonny Stubs"

    Joined:
    Dec 2, 2016
    Member:
    #203828
    Messages:
    10,078
    Gender:
    Male
    First Name:
    Jon
    Scottsdale Arizona
    Vehicle:
    04 Taco SC 4dr SR5 TRD Prerunner
    Supercharged, AEM FIC/6, Meth Inj, ION Alloy's, Radio & Phone steering Wheel controls,Fabtech AAL, Billie's wrapped with 880's , Tundra big brake conversion, bully bars and Pioneer DDin Stereo/dvd with exterrnal usb ports. 290K and going strong.

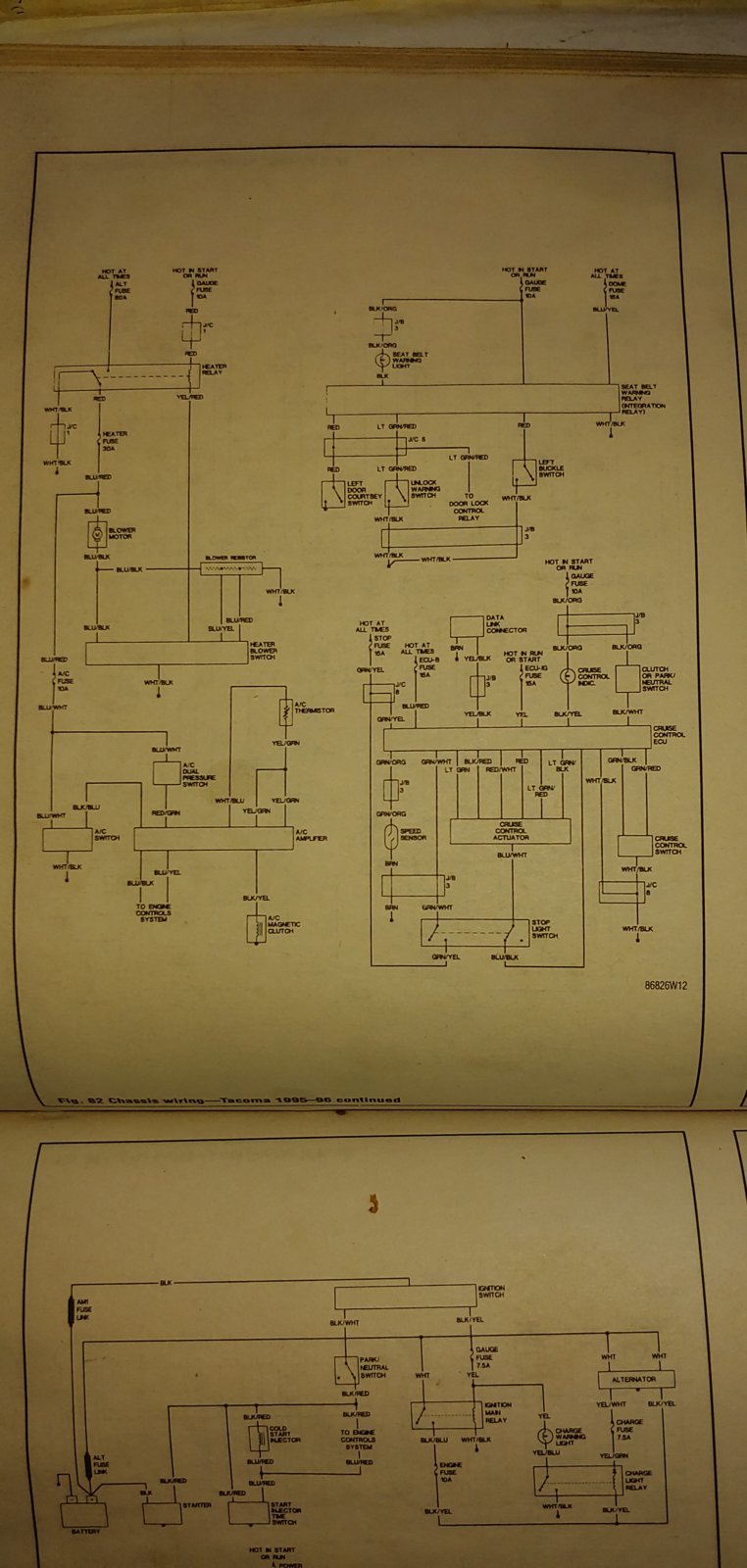

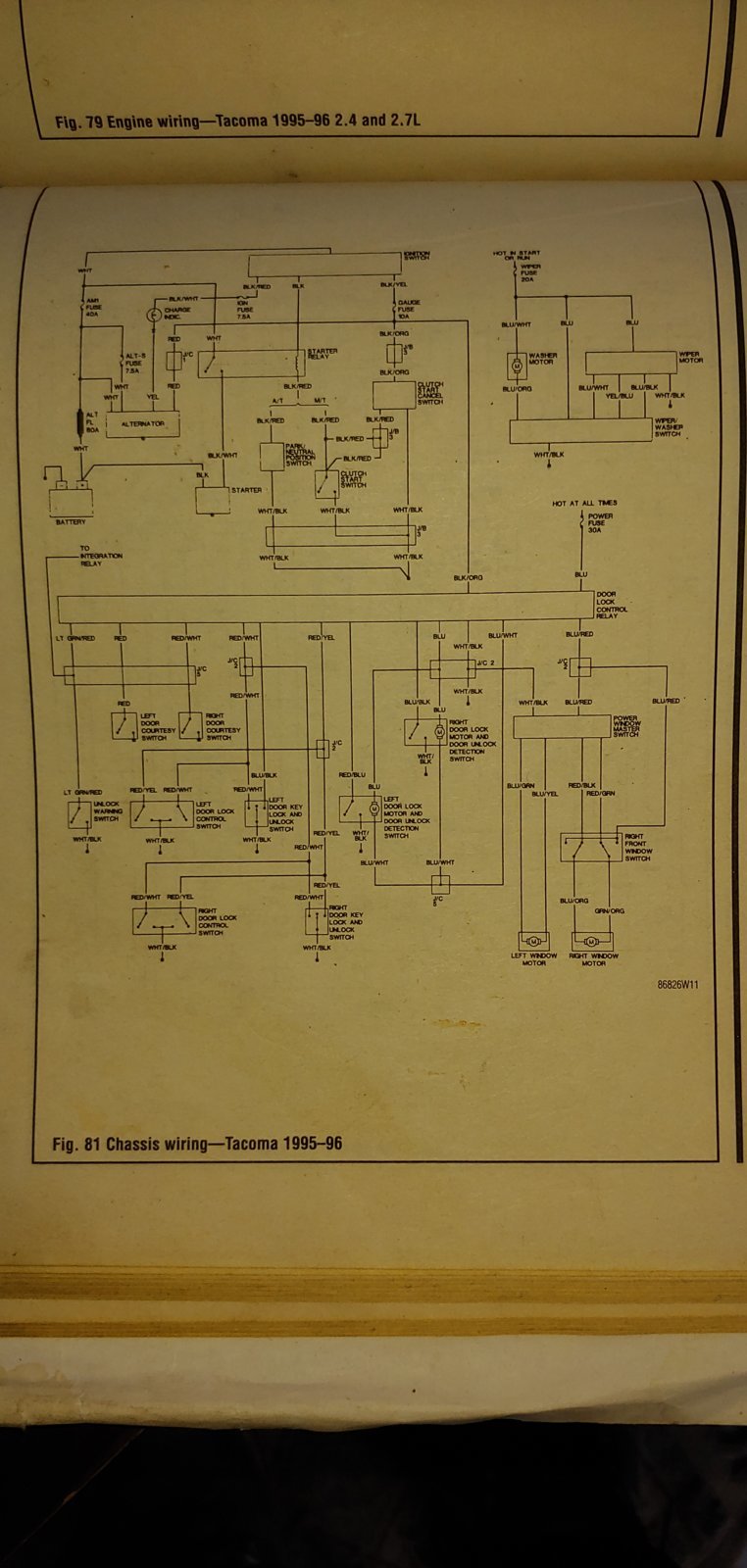

    wiring diagram. #2 is faded green/red wire not white/red


    Attached Files:

    Last edited: Feb 25, 2024
    mechanicjon, Feb 25, 2024
    #25
  6. Feb 25, 2024 at 1:10 AM
    #26
    FixMyTaco

    #26
    FixMyTaco Active Member

    Joined:
    Nov 7, 2023
    Member:
    #437041
    Messages:
    30
    First Name:
    Lee
    Alaska
    Vehicle:
    96 ext cab 4wd mt 3rz 400k mi.
    Rebuilding seats with leather from furniture and extra padding. Might put leather on the dash and other interior parts.


    FixMyTaco, Feb 25, 2024
