1GR-FE Billet Anodized Fuel Rails *** TRD SC approved ***

Discussion in 'Performance and Tuning' started by 05Taco4x4, Jun 8, 2019.

  1. Jun 8, 2019 at 10:39 PM
    #1
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    3,857
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    4x4 Conversion, FJ case, Manual Hubs, 2017 Suspension, TSB Leafsprings, 2015 Interior update, 2017 Head unit, Lock on start, Mirror Riser
    A few members complimented my 2TR fuel rail and encouraged me to make 1GR rails but I wasn't excited to do it because my truck wouldn't benefit and there would be development expenses. But then @loginfailed communicated his seriousness and commitment to buy and I guess that's what I needed- it also helped that he already had the parts I needed to measure and develop from haha. Three months later we have verified 3D prints that clear the TRD supercharger and confidence in the design to allow others in.
    If you want in let me know here. Once the target number is reached we'll proceed.

    Driver Side

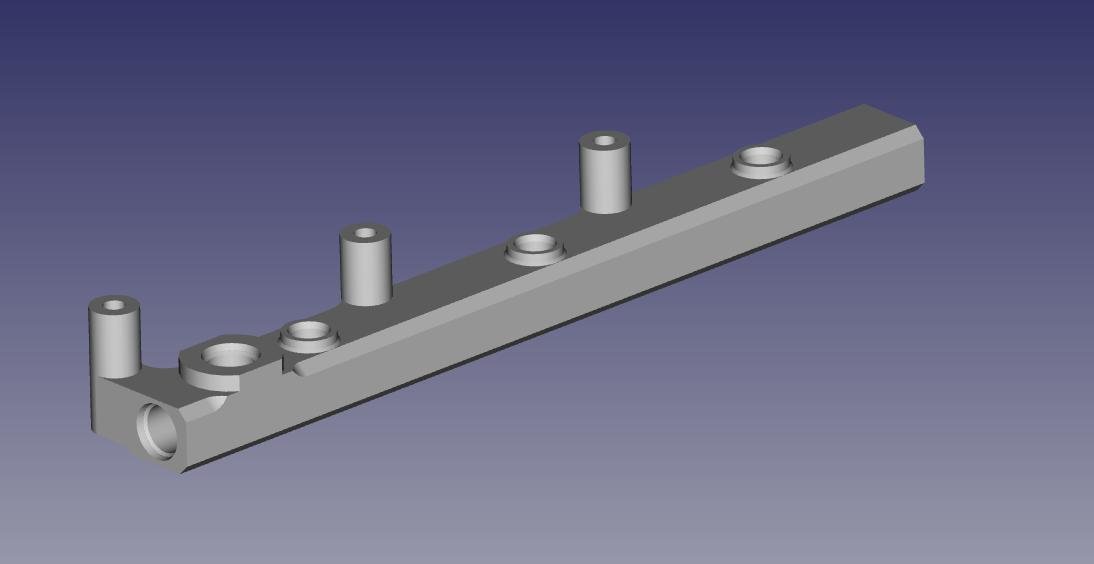

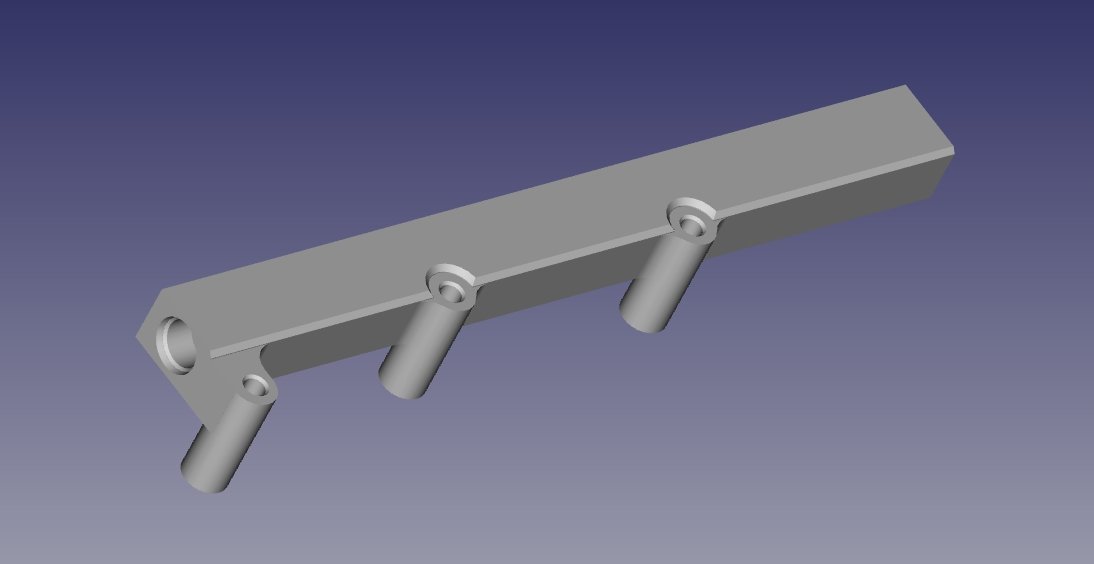

    1GR Driver.jpg

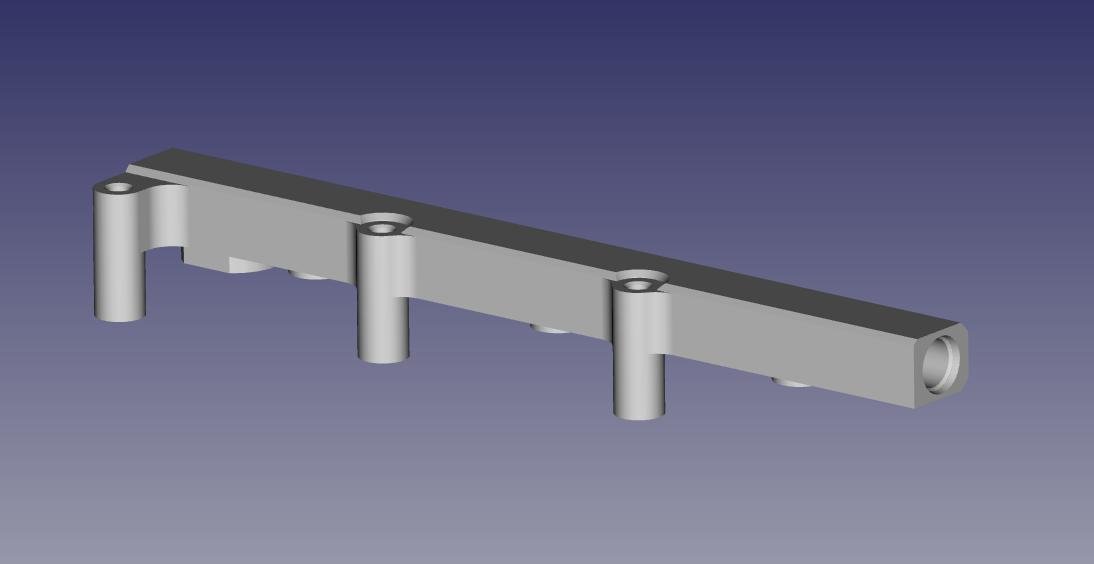

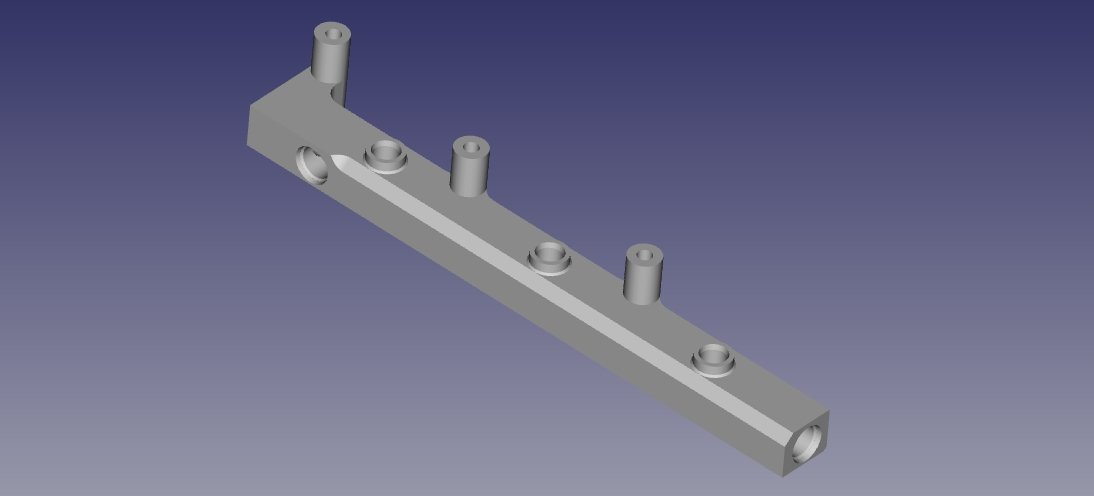

    1GR Driver bottom.jpg

    Passenger Side

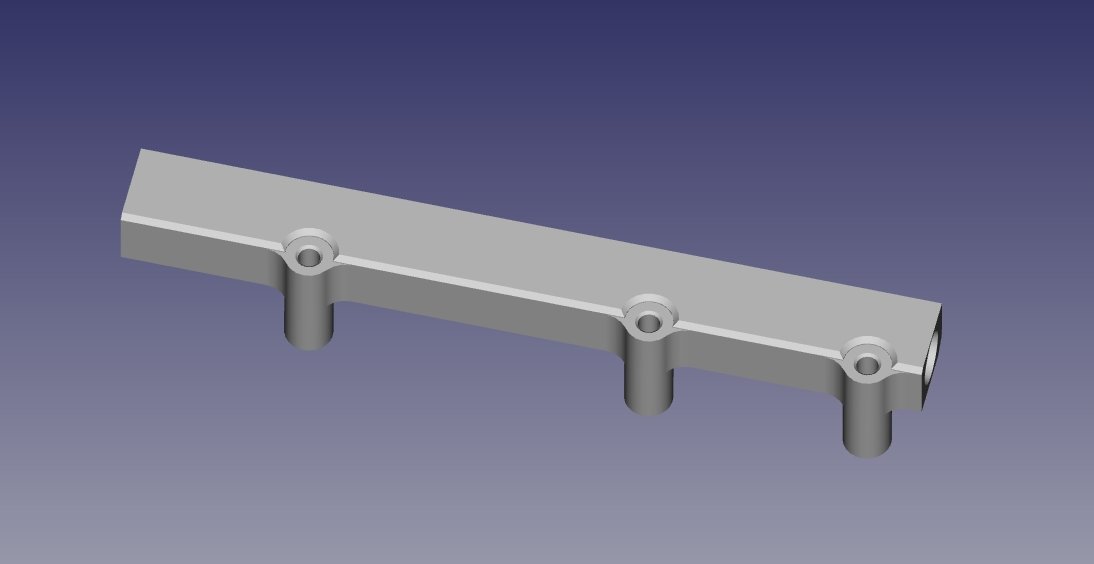

    1GR Passenger.jpg

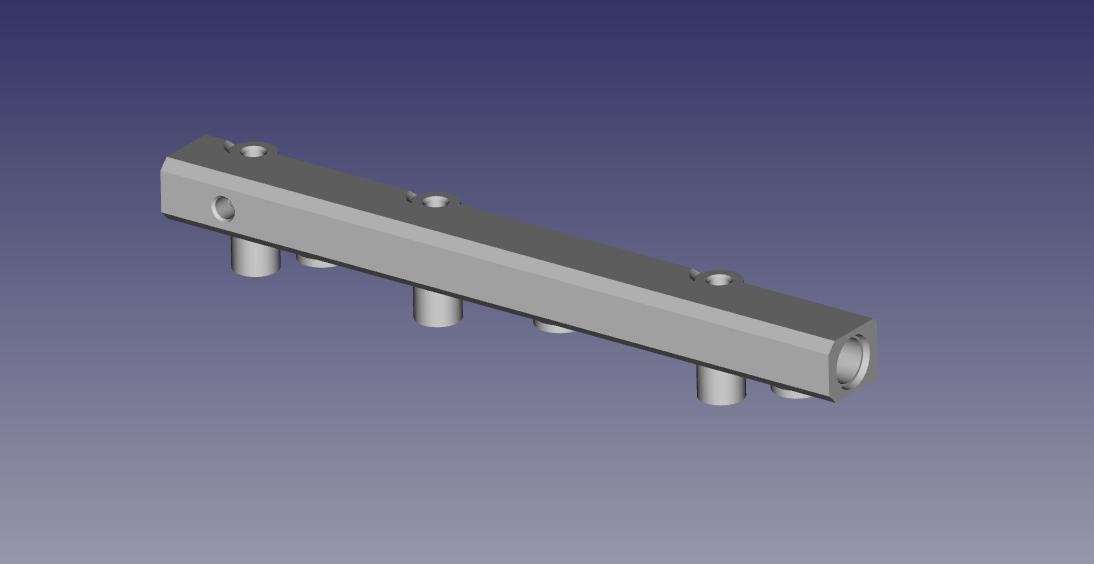

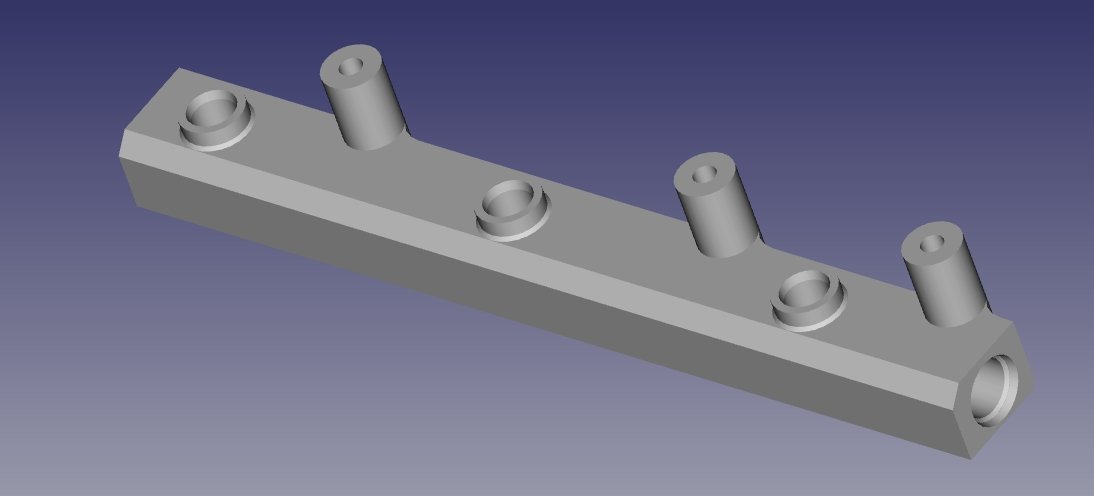

    1GR Passenger bottom.jpg


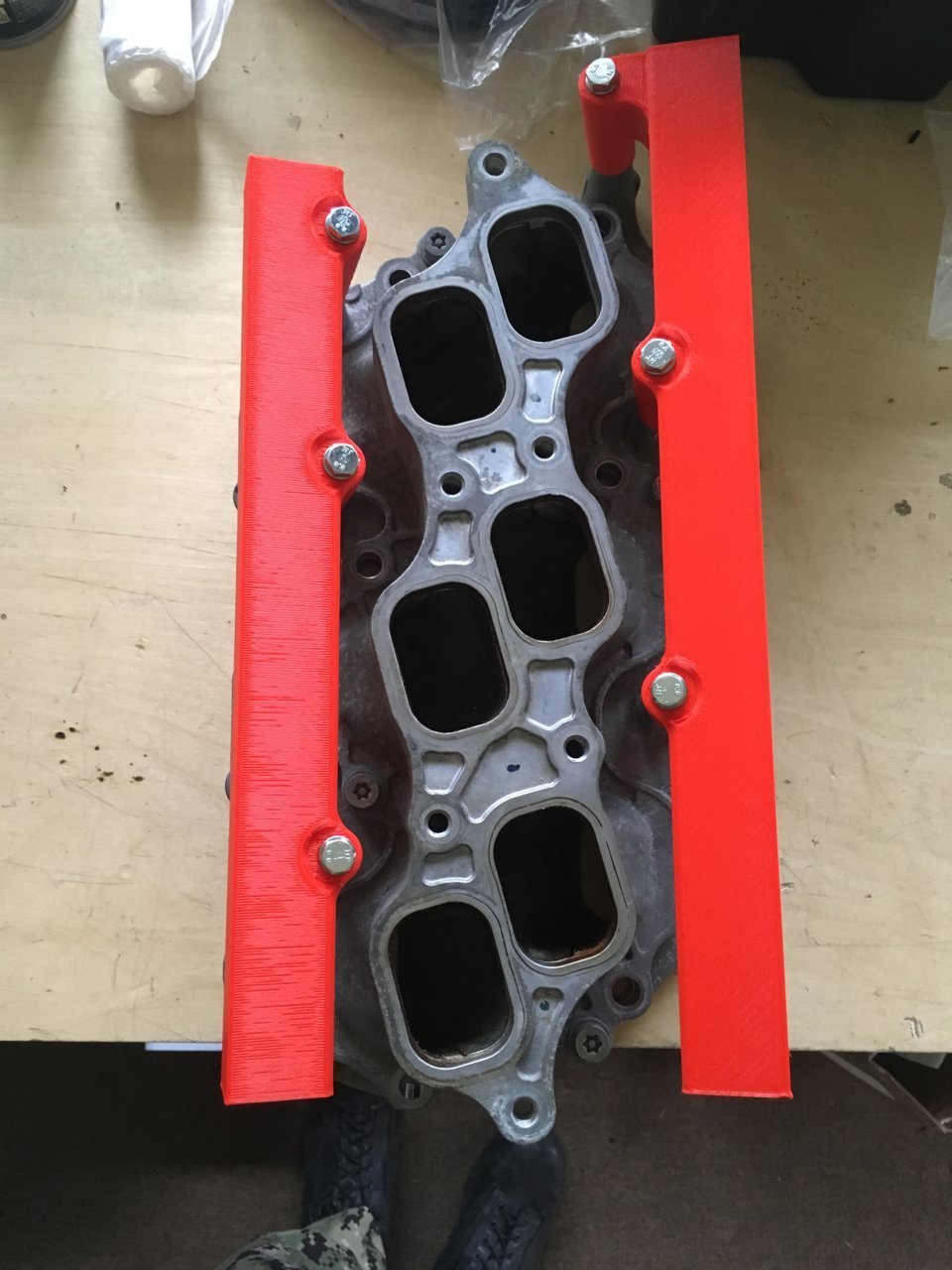

    Supercharger clearance
    SC clearance.jpg


    Jumper soft line is not included

    7075-T6
    Anodized black
    8-ORB ports (1/2" ID)

    Pricing

    1- $946
    5- $489
    10- $404

  2. Jun 8, 2019 at 10:39 PM
    #2
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    3,857
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    4x4 Conversion, FJ case, Manual Hubs, 2017 Suspension, TSB Leafsprings, 2015 Interior update, 2017 Head unit, Lock on start, Mirror Riser
    Last edited: Jun 24, 2019 at 8:39 PM
    BillDaCat8 and Biscuits like this.
  3. Jun 8, 2019 at 10:40 PM
    #3
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    3,857
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    4x4 Conversion, FJ case, Manual Hubs, 2017 Suspension, TSB Leafsprings, 2015 Interior update, 2017 Head unit, Lock on start, Mirror Riser
    Fuel Pulse Damper
    I recommend Radium Engineering's 20-0176 FPD-R
    http://www.radiumauto.com/Fuel-Pulse-Damper-Direct-Mount-Kits-P759.aspx

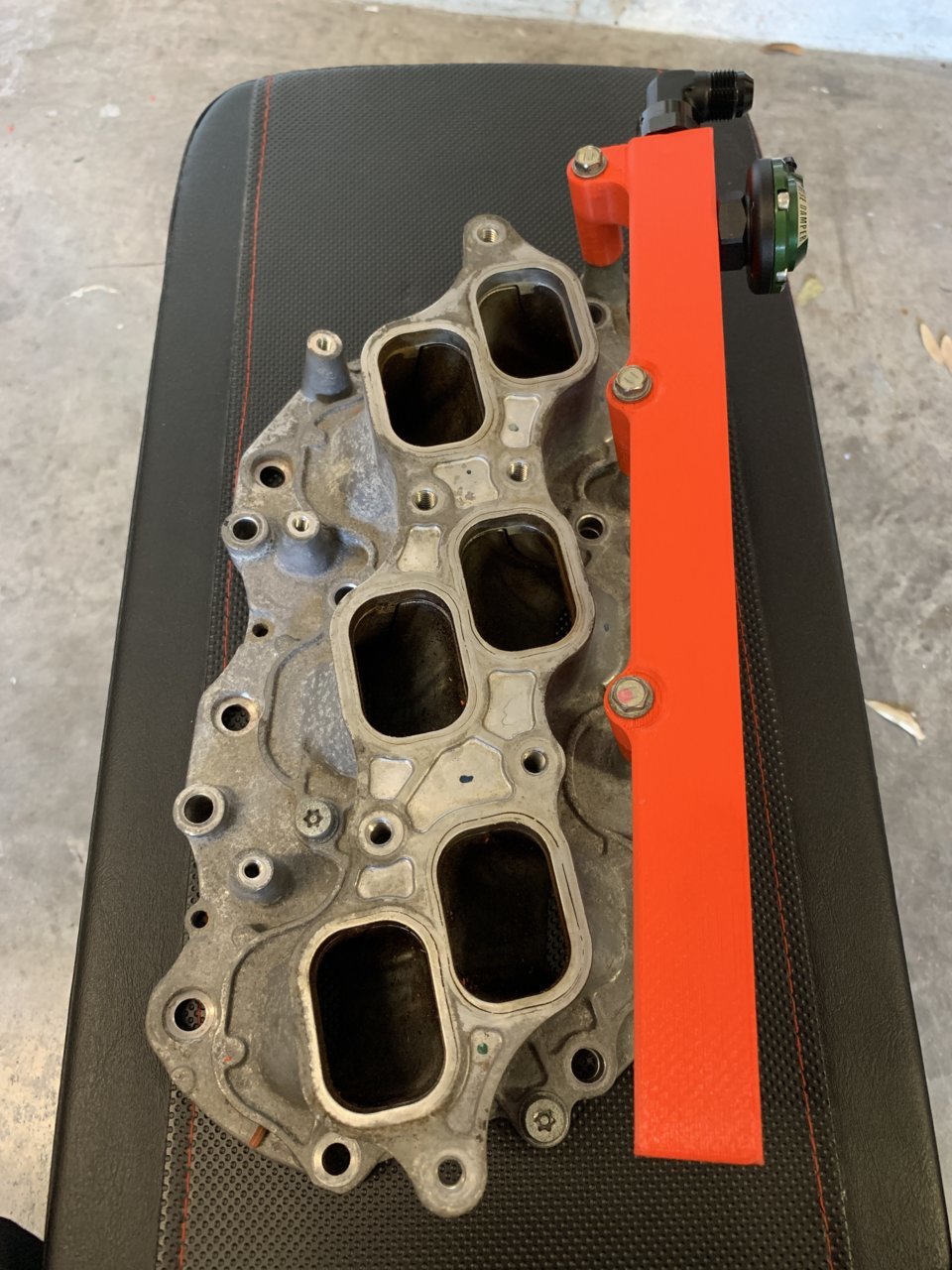

    FPD-R Supercharger clearance

    FPD SC.jpg

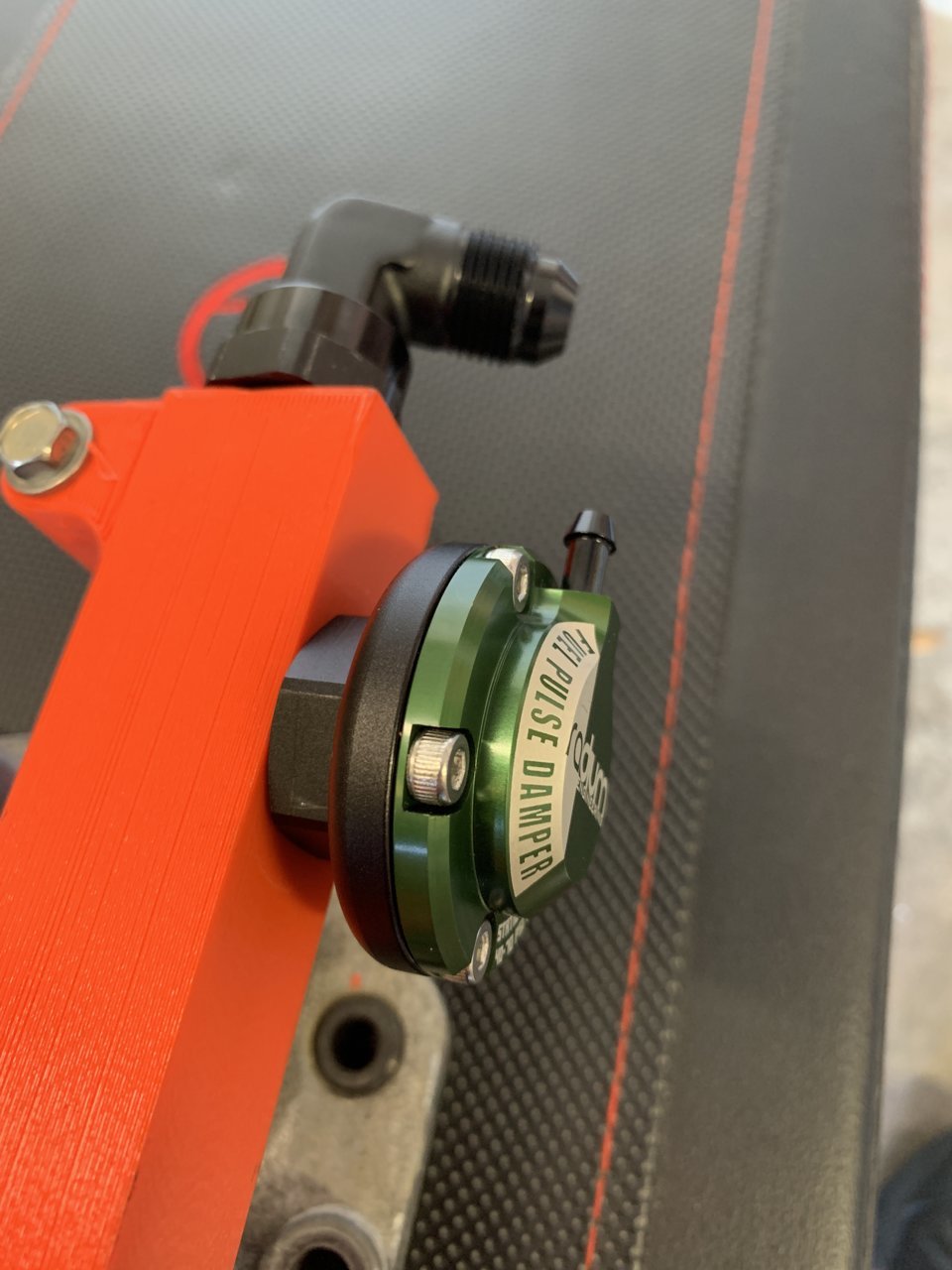

    FPD-R Valve Cover clearance
    FPD valve cover.jpg

    Fuel Pressure Regulator
    I recommend Radium Engineering's 20-0223-00 Direct Mount Regulator
    http://www.radiumauto.com/DMR-Direct-Mount-Regulator-P909.aspx
    (clearance not verified)

    I recommend and use the Aeromotive 13139
    (1/8” NPT port for sensor or gauge)
    https://www.amazon.com/dp/B01LW9JFNM/
    https://www.amazon.com/dp/B001O06BGM/
    (clearance not verified)

    Last edited: Jun 16, 2019
    12TRDTacoma likes this.
  4. Jun 9, 2019 at 3:04 AM
    #4
    loginfailed

    loginfailed Well-Known Member

    Joined:
    Aug 29, 2016
    Member:
    #195923
    Messages:
    4,425
    Gender:
    Male
    First Name:
    Dwayne
    Houston, TX
    Vehicle:
    2014 DCSB 4WD
    Big thanks to @05Taco4x4 for doing all of the legwork on this that I don’t have the skill set for!
    There is about 5.25” of clearance between the end of the passenger side fuel rail and the firewall, so the Radium DMR 20-0223-00 should easily fit there.

    The fuel input will be at the back end of the driver side rail. The pulse damper will go on the side of the driver rail, pointing roughly in line with the PCV nipple on the valve cover.

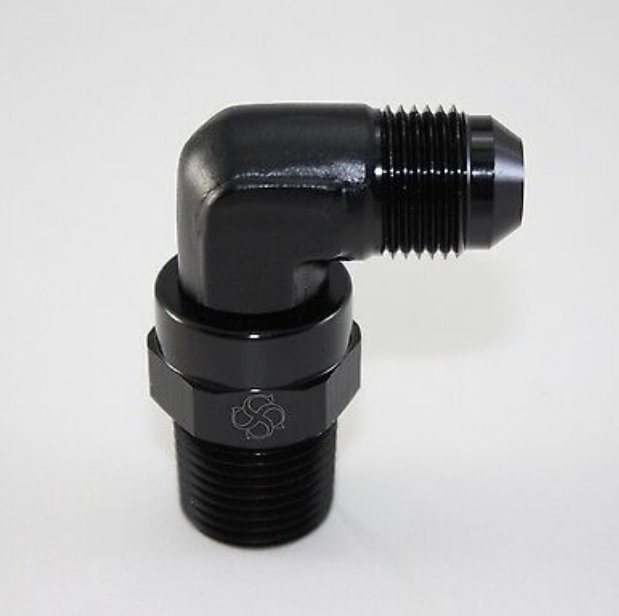

    To make the crossover tube, the 90* fittings that I found to easily clear everything are these -8an orb swivel fittings from Fassterllc on eBay.

    https://www.ebay.com/itm/X771-8AN-F...re-Aluminum-SWIVEL-Fitting-BLACK/141849263715

    I know of a few guys that have already expressed interest so I’m tagging them as well as guys who might be at least potentially interested or could help spread the word.

    There is a huge price drop if we can get 5 orders and another small drop if we can get to a batch of 10.

    1-4 $946
    5-9 $489
    10+ $404

    @Athlaos
    @White lightning boosted
    @GT7
    @Roostfactor
    @Torspd
    @Biscuits
    @5thGearPinned
    @JustDSM
    @ThomasMore66
    @TRON
    @12TRDTacoma

    Last edited: Jun 9, 2019
  5. Jun 9, 2019 at 3:30 AM
    #5
    loginfailed

    loginfailed Well-Known Member

    Joined:
    Aug 29, 2016
    Member:
    #195923
    Messages:
    4,425
    Gender:
    Male
    First Name:
    Dwayne
    Houston, TX
    Vehicle:
    2014 DCSB 4WD
    Note for those of us with FIC injectors:

    EDIT: There will be an FIC injector version of these rails to accommodate the additional 3mm length. Thank you @05Taco4x4 !

    Last edited: Jun 12, 2019
  6. Jun 9, 2019 at 8:18 AM
    #6
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    17,213
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Very very very nice!

  7. Jun 9, 2019 at 11:23 AM
    #7
    Roostfactor

    Roostfactor Well-Known Member

    Joined:
    Jun 2, 2015
    Member:
    #156609
    Messages:
    2,778
    Gender:
    Male
    First Name:
    John
    TX panhandle
    Vehicle:
    2015 DCSB OR Pyrite Mica
    HPT/justDSM tuned factory ecu, URD Headers, JFR Y-Pipe/l 3" exhaust, Walbro 255 fuel pump, Maggy SC (JFR ported), JFR ported lower intake manifold, 76mm tb, 2.5 pulley, 640cc injectors, CSF Radiator, custom electric fan wit Autocoolguy controller, JFR SC pulley wrap mod
    I wish I was rich!

    Stryker420, Biscuits, Athlaos and 2 others like this.
  8. Jun 9, 2019 at 12:26 PM
    #8
    loginfailed

    loginfailed Well-Known Member

    Joined:
    Aug 29, 2016
    Member:
    #195923
    Messages:
    4,425
    Gender:
    Male
    First Name:
    Dwayne
    Houston, TX
    Vehicle:
    2014 DCSB 4WD
    Make the y-pipes faster! LOL

  9. Jun 9, 2019 at 1:12 PM
    #9
    Kelvin

    Kelvin Well-Known Member

    Joined:
    Mar 8, 2013
    Member:
    #99256
    Messages:
    2,074
    San Pablo, CA
    Vehicle:
    Beat up Lexus LS430
    Garbage. Pure garbage.
    Slight thread jack but I see the first post says pricing for 1. Would you be willing to make me a one off set of 2UZ rails?

    I had to adapt 2UZ rails to my 3UZ in order to use the supercharger. But the 2UZ has a return line and my 3UZ is returnless. What I had to do was use the biggest bolt possible and block the return port. Looks stupid.

    Athlaos likes this.
  10. Jun 9, 2019 at 2:22 PM
    #10
    Roostfactor

    Roostfactor Well-Known Member

    Joined:
    Jun 2, 2015
    Member:
    #156609
    Messages:
    2,778
    Gender:
    Male
    First Name:
    John
    TX panhandle
    Vehicle:
    2015 DCSB OR Pyrite Mica
    HPT/justDSM tuned factory ecu, URD Headers, JFR Y-Pipe/l 3" exhaust, Walbro 255 fuel pump, Maggy SC (JFR ported), JFR ported lower intake manifold, 76mm tb, 2.5 pulley, 640cc injectors, CSF Radiator, custom electric fan wit Autocoolguy controller, JFR SC pulley wrap mod
    I am just slow and methodical. Besides, there is just no way I could keep up with the "Silent Ninja Wizard"! I even spoke of that exact topic yesterday when fitting @BassAckwards TRD exhaust to my y-pipe.

    You have some speedy skills my friend! More importantly your quality doesnt suffer with said speed.

    BassAckwards likes this.
  11. Jun 9, 2019 at 2:51 PM
    #11
    White lightning boosted

    White lightning boosted Well-Known Member

    Joined:
    Dec 30, 2017
    Member:
    #239848
    Messages:
    3,306
    Gender:
    Male
    First Name:
    Jesse
    Lynnwood wa.
    Vehicle:
    15' DCSB OR S/C
    Lift, pedal commander, led foglights, led interior lights, led back ups, led under lighting, urd tcai, led headlights, methanol injection, 76mm tb, hood struts, dif breather mod, ratiotek trans kit, x-series gauges, true cool trans cooler, belt wrap mod, 2.8 pulley
    My only hesitation is the shaving down the ports to make this work.

    Biscuits, loginfailed and GT7 like this.
  12. Jun 9, 2019 at 2:56 PM
    #12
    loginfailed

    loginfailed Well-Known Member

    Joined:
    Aug 29, 2016
    Member:
    #195923
    Messages:
    4,425
    Gender:
    Male
    First Name:
    Dwayne
    Houston, TX
    Vehicle:
    2014 DCSB 4WD
    If we can get at least 5 FIC injector guys in, we might be able to convince @05Taco4x4 to make an FIC specific version.

  13. Jun 9, 2019 at 3:02 PM
    #13
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    3,857
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    4x4 Conversion, FJ case, Manual Hubs, 2017 Suspension, TSB Leafsprings, 2015 Interior update, 2017 Head unit, Lock on start, Mirror Riser
    If you're saying you need returnless 2UZ rails, how about I do 2UZ rails and you use a flush 8-ORB plug on the end.
    I don't mind but you're looking at more than that price because the V8 rails are longer, and loginfailed already had extra parts to ship me to take measurements. I'll PM you.

  14. Jun 9, 2019 at 3:04 PM
    #14
    White lightning boosted

    White lightning boosted Well-Known Member

    Joined:
    Dec 30, 2017
    Member:
    #239848
    Messages:
    3,306
    Gender:
    Male
    First Name:
    Jesse
    Lynnwood wa.
    Vehicle:
    15' DCSB OR S/C
    Lift, pedal commander, led foglights, led interior lights, led back ups, led under lighting, urd tcai, led headlights, methanol injection, 76mm tb, hood struts, dif breather mod, ratiotek trans kit, x-series gauges, true cool trans cooler, belt wrap mod, 2.8 pulley
    I greatly favor that idea. Make it specific for fic injectors, with slight modifications to make factory trd injectorsto work. If yes, count me in. Let's rally the troops to get 10 guys. We're 1/5th there now.

  15. Jun 9, 2019 at 3:07 PM
    #15
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    3,857
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    4x4 Conversion, FJ case, Manual Hubs, 2017 Suspension, TSB Leafsprings, 2015 Interior update, 2017 Head unit, Lock on start, Mirror Riser
    I have no problem with this, I imagine most you guys getting at this time will have the FIC anyways.
    I could have 3mm injector port spacers made for those wishing to use stock size injectors, the o-ring is well above that line that it would seal the same. Or if there's at least 5 of each sub-group, enough to capture the reasonable price, then maybe everyone happy to split to two orders.

    Roostfactor and loginfailed like this.
  16. Jun 9, 2019 at 3:11 PM
    #16
    White lightning boosted

    White lightning boosted Well-Known Member

    Joined:
    Dec 30, 2017
    Member:
    #239848
    Messages:
    3,306
    Gender:
    Male
    First Name:
    Jesse
    Lynnwood wa.
    Vehicle:
    15' DCSB OR S/C
    Lift, pedal commander, led foglights, led interior lights, led back ups, led under lighting, urd tcai, led headlights, methanol injection, 76mm tb, hood struts, dif breather mod, ratiotek trans kit, x-series gauges, true cool trans cooler, belt wrap mod, 2.8 pulley
    Both solutions I really like. Put me on the list.

  17. Jun 9, 2019 at 3:12 PM
    #17
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    3,857
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    4x4 Conversion, FJ case, Manual Hubs, 2017 Suspension, TSB Leafsprings, 2015 Interior update, 2017 Head unit, Lock on start, Mirror Riser
    Done

  18. Jun 9, 2019 at 3:12 PM
    #18
    White lightning boosted

    White lightning boosted Well-Known Member

    Joined:
    Dec 30, 2017
    Member:
    #239848
    Messages:
    3,306
    Gender:
    Male
    First Name:
    Jesse
    Lynnwood wa.
    Vehicle:
    15' DCSB OR S/C
    Lift, pedal commander, led foglights, led interior lights, led back ups, led under lighting, urd tcai, led headlights, methanol injection, 76mm tb, hood struts, dif breather mod, ratiotek trans kit, x-series gauges, true cool trans cooler, belt wrap mod, 2.8 pulley
    Will anodizing be included? Bright red would be my first choice if I have one. If no I'll take whatever finish happens.

  19. Jun 9, 2019 at 3:15 PM
    #19
    05Taco4x4

    05Taco4x4 [OP] ToyotaHubs

    Joined:
    Jun 29, 2011
    Member:
    #59085
    Messages:
    3,857
    Gender:
    Male
    Vehicle:
    2TR-FE Enthusiast
    4x4 Conversion, FJ case, Manual Hubs, 2017 Suspension, TSB Leafsprings, 2015 Interior update, 2017 Head unit, Lock on start, Mirror Riser
    Anodizing included, black standard. I'll request different colors but usually bulk pricing means everything is EXACTLY the same.
    Everyone getting in on this can request a color, but must accept that it may be black.

  20. Jun 9, 2019 at 3:39 PM
    #20
    Athlaos

    Athlaos A comfortable ride is for chumps

    Joined:
    Nov 24, 2010
    Member:
    #46672
    Messages:
    978
    Gender:
    Male
    First Name:
    Athlaos
    Edmonton
    Vehicle:
    Silver 2011 SR5
    TRD supercharger, 1.87" pulley, everything URD sells
    I confirm I'm on the list for this buy.
