1st gen 105 amp bolt in alternator.

Discussion in '1st Gen. Tacomas (1995-2004)' started by chagovatoloco, Sep 21, 2019.

  1. Sep 25, 2019 at 3:25 PM
    #101
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TVS1320 Supercharger,Haltech, 800k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    10,388
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 800,001 plus miles, Original Owner
    V6 5sp,RegCab,TVS1320 Supercharger, 56mm pulley, methanol injected Haltech ECU, AC Tvs1320 supercharger,(MUST DO) every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 56mm custom pulley, (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ATM Pathfinders Dynopro ATM ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back dual exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, bucket seats corbeau lg1 Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks, King shocks JBA UCA trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Marlin crawl shift kit. Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Snow Methonal kit stage 2 Custom 3 core aluminum radiator Linex bed liner Haltech stand alone ECU, Intake supercharger gauge. Stainless steel brake lines, Custom leather wrapped steering wheel, Haltech stand-alone ECU,
    Do you think you have to run another thicker ground strap wire from negative side of the battery to the frame or body?
    The positive battery to the alternator is a given it need a thicker wire.

  2. Sep 25, 2019 at 3:40 PM
    #102
    chagovatoloco

    chagovatoloco [OP] Active Member

    Joined:
    Sep 21, 2019
    Member:
    #305968
    Messages:
    44
    Gender:
    Male
    First Name:
    Santiago
    Vehicle:
    1999 Tacoma SR5 4x4
    Arb front bumper, EMU 883 front springs, Bilstein 5100, power stop front rotors, 105 amp alternator, KC underhood lights, 33" KO2 tires, KC LED daylighters.
    The ground wire from the battery to the engine is a 4 gauge and the alternator charge wire is a 10 gauge, so the ground should be good.

    1997tacomav6 likes this.
  3. Sep 25, 2019 at 4:11 PM
    #103
    0xDEADBEEF

    0xDEADBEEF Swaying to the Symphony of Destruction

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    19,831
    Vehicle:
    2000 reg cab 4x4 flatbed MT
    I don't believe so. You can see the red wire on the left going to the alternator. The big fat one disappears, but it's too big for fuse box. You can also see a relatively little white wire on the side, that matches up with the white wire going to the fuse box on my truck.

    1997tacomav6[QUOTED] likes this.
  4. Sep 25, 2019 at 7:53 PM
    #104
    ThunderOne

    ThunderOne Well-Known Member

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    10,042
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    Toyota NERD
    But why though? What's the point of that

  5. Sep 25, 2019 at 8:00 PM
    #105
    MattJakobs

    MattJakobs Everything but a Tacoma

    Joined:
    Dec 12, 2014
    Member:
    #144174
    Messages:
    7,309
    Gender:
    Male
    First Name:
    Matthew
    NorCal
    Vehicle:
    1985 4Runner w/ FlipPac
    Improve current capacity

    1997tacomav6 likes this.
  6. Sep 25, 2019 at 8:05 PM
    #106
    0xDEADBEEF

    0xDEADBEEF Swaying to the Symphony of Destruction

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    19,831
    Vehicle:
    2000 reg cab 4x4 flatbed MT
    Starters are the most current hungry device and so providing a nice fat path for that current will minimize voltage drop and allow the starter motor to have it's maximum torque. Probably not a big deal 99% of the time, but it might be nice on a cold day.

    1997tacomav6 likes this.
  7. Sep 25, 2019 at 8:26 PM
    #107
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TVS1320 Supercharger,Haltech, 800k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    10,388
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 800,001 plus miles, Original Owner
    V6 5sp,RegCab,TVS1320 Supercharger, 56mm pulley, methanol injected Haltech ECU, AC Tvs1320 supercharger,(MUST DO) every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 56mm custom pulley, (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ATM Pathfinders Dynopro ATM ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back dual exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, bucket seats corbeau lg1 Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks, King shocks JBA UCA trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Marlin crawl shift kit. Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Snow Methonal kit stage 2 Custom 3 core aluminum radiator Linex bed liner Haltech stand alone ECU, Intake supercharger gauge. Stainless steel brake lines, Custom leather wrapped steering wheel, Haltech stand-alone ECU,
    Do you know what gauge the stock starter cable is that goes to the battery?

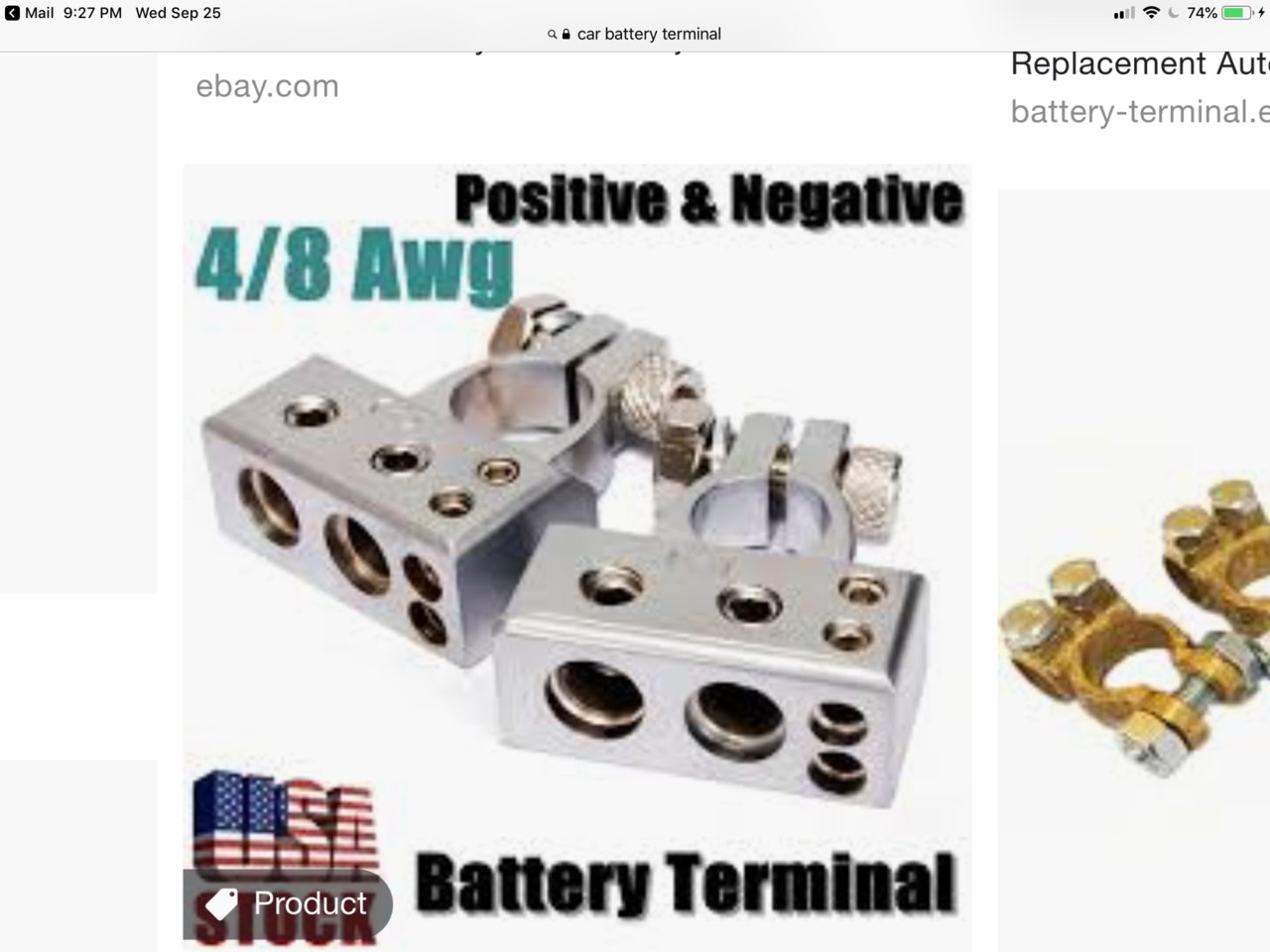

    Trying to find some new battery terminals where the wires go into the housing but they have various
    gauge sizes


    Last edited: Sep 26, 2019
  8. Sep 25, 2019 at 8:50 PM
    #108
    00_5VZ

    00_5VZ Dumbest smart guy you’ll ever meet

    Joined:
    Jun 24, 2017
    Member:
    #222322
    Messages:
    237
    Gender:
    Male
    First Name:
    Rob
    Thornton, CO
    Vehicle:
    2004 DC TRD, S/C, Impulse Red Pearl
    TRD S/C, URD 7th injector, Deck plate mod, gray wire mod, 2 low mod, magnaflow cat back exhaust
    This is a great upgrade to hear about. Definitely gonna have to save some money to do this

    chagovatoloco[OP] likes this.
  9. Sep 25, 2019 at 8:52 PM
    #109
    chagovatoloco

    chagovatoloco [OP] Active Member

    Joined:
    Sep 21, 2019
    Member:
    #305968
    Messages:
    44
    Gender:
    Male
    First Name:
    Santiago
    Vehicle:
    1999 Tacoma SR5 4x4
    Arb front bumper, EMU 883 front springs, Bilstein 5100, power stop front rotors, 105 amp alternator, KC underhood lights, 33" KO2 tires, KC LED daylighters.
    I should be 4 gauge, that's pretty much OE for most vehicles.

    1997tacomav6[QUOTED] likes this.
  10. Sep 26, 2019 at 4:53 AM
    #110
    1997tacomav6

    1997tacomav6 V6 5sp,RegCab,TVS1320 Supercharger,Haltech, 800k

    Joined:
    Oct 5, 2013
    Member:
    #113940
    Messages:
    10,388
    Gender:
    Male
    First Name:
    John
    Denver
    Vehicle:
    97 reg cab, v6 5sp 300hp supercharged, Methonal Injection, 800,001 plus miles, Original Owner
    V6 5sp,RegCab,TVS1320 Supercharger, 56mm pulley, methanol injected Haltech ECU, AC Tvs1320 supercharger,(MUST DO) every 125,000- 150,000 needs rebuild Projector headlights HID 5 speed manual Amsoil for all drive train Smaller 56mm custom pulley, (MUST DO) 2004 DESNO fuel injectors, zero ping ping, 2004 side door mirrors Dick Cepek Rims, Michelin tires LTX, ATM Pathfinders Dynopro ATM ( that last 100,000 miles) Now running Dynopro ATM mud and snow tires KN cold air intake Cat back dual exhaust with ss exhaust tip, Raised exhaust tail pipe to 2" below body line Optima*dry cell battery,red top Alpine sirius radio, 200 watt amp, focal is165 split door pod speakers Focal door speakers Subwoffer behind seat Viper alarm, Electric Locks Dark tinted windows, bucket seats corbeau lg1 Tacoma Rubber floor mats TRD fender extenders, Bilstien shocks, King shocks JBA UCA trailer iv hitch, electric brake control, Drilled slotted brakes, High carbon steel (MUST DO) EBS green stuff 7000 series pads(MUST DO) TRD engine oil cap TRD stick shift, Marlin crawl shift kit. Rear sliding window 2002 4Runner functional hood scoop cut into Tacoma hood, 4Runner dual overhead map light Gentex Auto dim + Compass + Temp, garage,rearview mirror Snow Methonal kit stage 2 Custom 3 core aluminum radiator Linex bed liner Haltech stand alone ECU, Intake supercharger gauge. Stainless steel brake lines, Custom leather wrapped steering wheel, Haltech stand-alone ECU,
    Perfect, I’m looking at the options for the 6 gauge cable and need to figure out what size ring terminal to get that attaches to the alternator in order for me to order the correct cable.

    Do you happen to remember what size the nut is on that alternator?
    7m=1/4,
    8mm=5/16,
    10mm=3/8”?

  11. Sep 26, 2019 at 6:58 AM
    #111
    chagovatoloco

    chagovatoloco [OP] Active Member

    Joined:
    Sep 21, 2019
    Member:
    #305968
    Messages:
    44
    Gender:
    Male
    First Name:
    Santiago
    Vehicle:
    1999 Tacoma SR5 4x4
    Arb front bumper, EMU 883 front springs, Bilstein 5100, power stop front rotors, 105 amp alternator, KC underhood lights, 33" KO2 tires, KC LED daylighters.
    I used 1/4 and it was a good fit.

    1997tacomav6 likes this.
  12. Sep 26, 2019 at 7:24 AM
    #112
    paetersen

    paetersen Well-Known Member

    Joined:
    Dec 23, 2018
    Member:
    #276726
    Messages:
    424
    It's the windings. All the voltage regulator does is make sure you have 14.2 DC volts. It has nothing to do with rated amperage output. You can also take your stock alternator to an alternator repair shop and have them overwind it for higher amperage output.

    chagovatoloco[OP] likes this.
  13. Sep 26, 2019 at 9:21 AM
    #113
    ThunderOne

    ThunderOne Well-Known Member

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    10,042
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    Toyota NERD
    I get that.. I just don't see what the point is. I can understand needing it for a higher output alternator, but the starter... well if it ain't broke don't fix it. Not like people are swapping the starter with a "high output" starter. Unless they have the cold weather package on their truck, in which case I do not know if Toyota even bothered to change the wire gauge for the cold-rated starter. 1.4Kw vs 1.8Kw or something like that.

    allenfab and chagovatoloco[OP] like this.
  14. Sep 26, 2019 at 9:26 AM
    #114
    0xDEADBEEF

    0xDEADBEEF Swaying to the Symphony of Destruction

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    19,831
    Vehicle:
    2000 reg cab 4x4 flatbed MT
    Yeah, I agree. There are a ton of vehicle modifications that make no actual sense. At least this one has a plausible one, even if it's not useful to 99.99%

    chagovatoloco[OP] likes this.
  15. Sep 26, 2019 at 9:34 AM
    #115
    ThunderOne

    ThunderOne Well-Known Member

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    10,042
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    Toyota NERD
    yeah, if what others are saying is true (the starter wire is 4 ga), then even a 2.0Kw starter is going to pull 166 amps, which is well within the boundaries of a 4 gauge wire.

  16. Sep 26, 2019 at 9:40 AM
    #116
    chagovatoloco

    chagovatoloco [OP] Active Member

    Joined:
    Sep 21, 2019
    Member:
    #305968
    Messages:
    44
    Gender:
    Male
    First Name:
    Santiago
    Vehicle:
    1999 Tacoma SR5 4x4
    Arb front bumper, EMU 883 front springs, Bilstein 5100, power stop front rotors, 105 amp alternator, KC underhood lights, 33" KO2 tires, KC LED daylighters.
    I was looking at mine this morning, the ground is four gauge but the positive is a 2 gauge.

  17. Sep 26, 2019 at 9:42 AM
    #117
    ThunderOne

    ThunderOne Well-Known Member

    Joined:
    May 20, 2009
    Member:
    #17473
    Messages:
    10,042
    First Name:
    Mitchell
    Nashville
    Vehicle:
    1ST GEN OR GTFO
    Toyota NERD
    Well heck, I won't be touching my starter wires then. I'll just do the alternator wires.

    1997tacomav6 likes this.
  18. Sep 26, 2019 at 10:17 AM
    #118
    se7enine

    se7enine MCMLXXIX

    Joined:
    Apr 18, 2013
    Member:
    #102322
    Messages:
    23,442
    Gender:
    Male
    Reno, NV
    Vehicle:
    07 Lexus GX470, 84 4Runner 3RZ, 85 MR2
    The stock starter wire is plenty big enough and rarely needs upgrade. Comes directly from the battery + with no interference.

  19. Sep 26, 2019 at 10:20 AM
    #119
    Empty_Lord

    Empty_Lord Toyotaholic

    Joined:
    Mar 13, 2016
    Member:
    #181186
    Messages:
    28,297
    Gender:
    Male
    First Name:
    Dan
    Northwest Indiana/Chicagoland
    Vehicle:
    66 Mercedes, 93 mr2, 95,98,01,02 Tacomas, 05 Tundra + others
    Too many trucks and mods to list.. check builds
    Yea no need to mess with the starter wire unless you have issues

    1997tacomav6 likes this.
  20. Sep 26, 2019 at 11:02 AM
    #120
    jammer

    jammer 2003 Toyota PreRunner 3.4L

    Joined:
    Jan 23, 2014
    Member:
    #121272
    Messages:
    1,281
    Gender:
    Male
    First Name:
    Ben
    Bentonville, AR
    Vehicle:
    2003 Lunar Mist Tacoma PreRunner 3.4l
    OME Coils/Bilstein 5100's front / 5125's rear 105 Amp Denso Alternator
    Speaking from experience I agree with members Empty_Lord and Se7enine. Last year when doing the big three I used 4 Gauge AWG from the starter, directly to the battery. I piggybacked on the oem starter wire. My "thinking" was I would notice a faster start but I really can't tell a difference. When I say faster start, I mean as the starter spinning over faster. Again, I can't tell a difference.
