1st Gen Fuel tank replacement part list

Discussion in '1st Gen. Tacomas (1995-2004)' started by WISCOMA, Dec 21, 2019.

  1. Dec 21, 2019 at 3:32 PM
    #1
    WISCOMA

    WISCOMA [OP] Member

    Joined:
    Apr 8, 2016
    Member:
    #183673
    Messages:
    10
    Gender:
    Male
    Vehicle:
    2004 Tacoma, 4x4, XTRA CAB, TRD OFF-ROAD
    Bilstein 5100 Shocks, OME 881 Coils, 1.5" Progressive AAL, U-Bolt filp, Front Differential Drop, Afermarket front skid plate, Extended Rear Brake line, BPV Extender, Carrier Bearing Drop Kit, Gray Wire Mod, Rear Frame Plates, Extended Rear Axle Breather, NGK Plugs and Wires, E-Locker Guard.
    Just replaced my fuel tank and I wanted to share the parts list to make this easier for anyone else who is wishing to do this job. My tank was leaking due to rust. I only replaced the parts that I felt needed to be replaced with this job, not all parts were replaced. Here is the list of parts replaced along with where I ordered the parts from. Below is additional parts you may also need to replace depending on the condition.
    **NOTES**I highly recommend removing the box for easier access to the tank and all components. I also recommend replacing as many parts as you can since you are already doing the job. *DEFINITELY be sure replace the fuel filter with this job as well*

    Parts for this job were ordered from
    https://www.rockauto.com/
    https://www.toyotapartsdeal.com/
    however, there are numerous other options to order parts, just use the part numbers provided.

    ***Pricing is of 12/20/19 and are subject to change***

    Fuel Tank - 77001-04170 Rock Auto $243

    Fuel Tank Inlet - 77201-35710 Rock Auto $54.79

    Fuel Filler Hose - 77213-04020 Rock Auto $12.22

    Fuel Filter - 23300-62010 Toyota Parts Deal $32.70

    SEAT, FUEL TANK BAND - 77681-35020 Toyota Parts Deal $9.83

    VALVE ASSY, FUEL TANK - 77390-35010 Toyota Parts Deal $52.31

    TUBE SUB-ASSY - 77018-35110 Toyota Parts Deal $22.88

    CUSHION, FUEL TANK - $22.36 77652-35050 + $19.72 77652-35020 Toyota Parts Deal
    (*there are 2 different cushions needed*)

    HOSE SUB-ASSY, FUEL - 77404-04010 Toyota Parts Deal $22.84

    HOSE, VALVE TO FUEL - 77394-04010 Toyota Parts Deal $9.69

    VALVE ASSY, FUEL CUT - 77380-26010 Toyota Parts Deal $11.90

    FUEL TANK CAP - 77300-08010 Toyota Parts Deal $23.05

    Charcoal Canister – 7774004010 $244.35 Toyota Parts Deal ***replaced 2019/02/03***

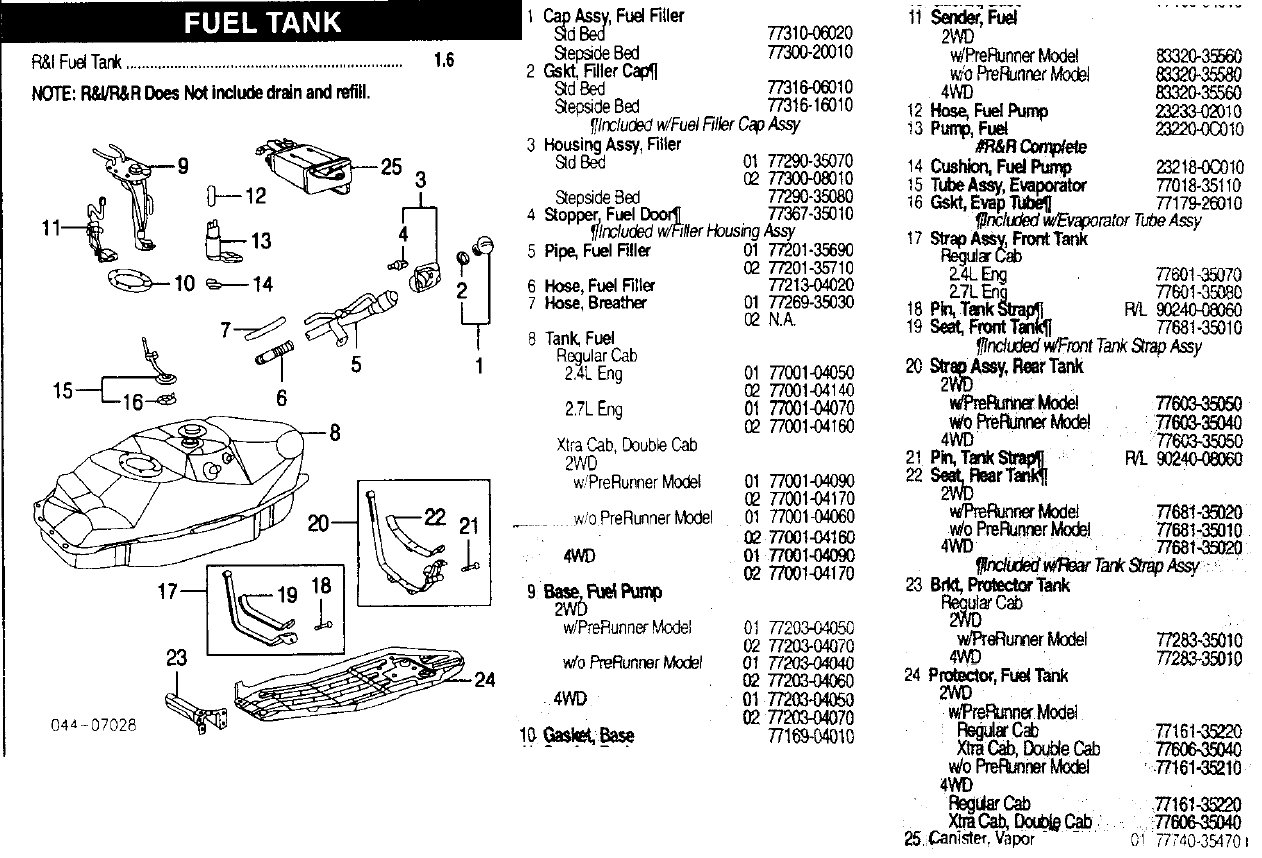

    ****ADDITIONAL PARTS THAT GO ALONG WITH THIS JOB. SOME PARTS LISTED HERE WERE NOT CHANGED BECAUSE THEY WERE IN GOOD CONDITION***

    Fuel Tank Part List.jpg


  2. Dec 21, 2019 at 5:24 PM
    #2
    slander

    slander Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    5,603
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.
    Sweet! My tank only holds 10 gallons due to offroad thrashing and I have been looking to do this and build a skid for it. How was the quality of that rock auto fuel tank? I cant stomach the price of OEM and finding used tacoma parts is harder than finding italian exotic car parts around here.

    GQ7227 likes this.
  3. Dec 21, 2019 at 5:26 PM
    #3
    GQ7227

    GQ7227 mw survivor

    Joined:
    Dec 6, 2018
    Member:
    #275019
    Messages:
    28,450
    Gender:
    Male
    First Name:
    J A Y
    309km east of Hazard ...
    Vehicle:
    '97 black SR5 0g ~ MT or bust @ 155k ...
    borla catBack custom Line-X PC drums, skid, nuts, hooks, 1/4 silver frame...
    thank you, need to remove next spring to replace defective frame paint right next to it

    what part on the tank was the rust found exactly? i try to keep mine hosed off rountinely in the winter but you never know!

  4. Dec 21, 2019 at 5:28 PM
    #4
    GQ7227

    GQ7227 mw survivor

    Joined:
    Dec 6, 2018
    Member:
    #275019
    Messages:
    28,450
    Gender:
    Male
    First Name:
    J A Y
    309km east of Hazard ...
    Vehicle:
    '97 black SR5 0g ~ MT or bust @ 155k ...
    borla catBack custom Line-X PC drums, skid, nuts, hooks, 1/4 silver frame...
    ain't that the truth!
    at least good condition parts

    slander likes this.
  5. Dec 21, 2019 at 5:30 PM
    #5
    slander

    slander Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    5,603
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.
    When my transmission blew up, the cheapest one I could find at a pick and pull was 1600.00 with 100k unknownmiles on it. A zero time rebuild from marlin crawler was 1400 shipped to my house from California. Crazy man!!!

    GQ7227 likes this.
  6. Dec 21, 2019 at 5:36 PM
    #6
    Diesel Preferred

    Diesel Preferred Member

    Joined:
    Nov 24, 2019
    Member:
    #311597
    Messages:
    6
    Gender:
    Male
    First Name:
    David
    SoCal - Inland Empire
    Vehicle:
    2003 White Tacoma with White Camper Shell.
    New (to me) Tacoma owner. None at this time. Stock, but changes are planed in the future.
    Great to see this info. Previous (original) owner told me there's a lot of "stuff" (my word, not his) in the bottom of the tank and needs to be dropped & cleaned or replaced.
    If possible, I'd like to install as big a tank that Toyota offered or offers. Maybe even one from a Lexus SUV if practicle. Still need to investigate possibilities.
    Thank for the post!

  7. Dec 21, 2019 at 5:51 PM
    #7
    WISCOMA

    WISCOMA [OP] Member

    Joined:
    Apr 8, 2016
    Member:
    #183673
    Messages:
    10
    Gender:
    Male
    Vehicle:
    2004 Tacoma, 4x4, XTRA CAB, TRD OFF-ROAD
    Bilstein 5100 Shocks, OME 881 Coils, 1.5" Progressive AAL, U-Bolt filp, Front Differential Drop, Afermarket front skid plate, Extended Rear Brake line, BPV Extender, Carrier Bearing Drop Kit, Gray Wire Mod, Rear Frame Plates, Extended Rear Axle Breather, NGK Plugs and Wires, E-Locker Guard.

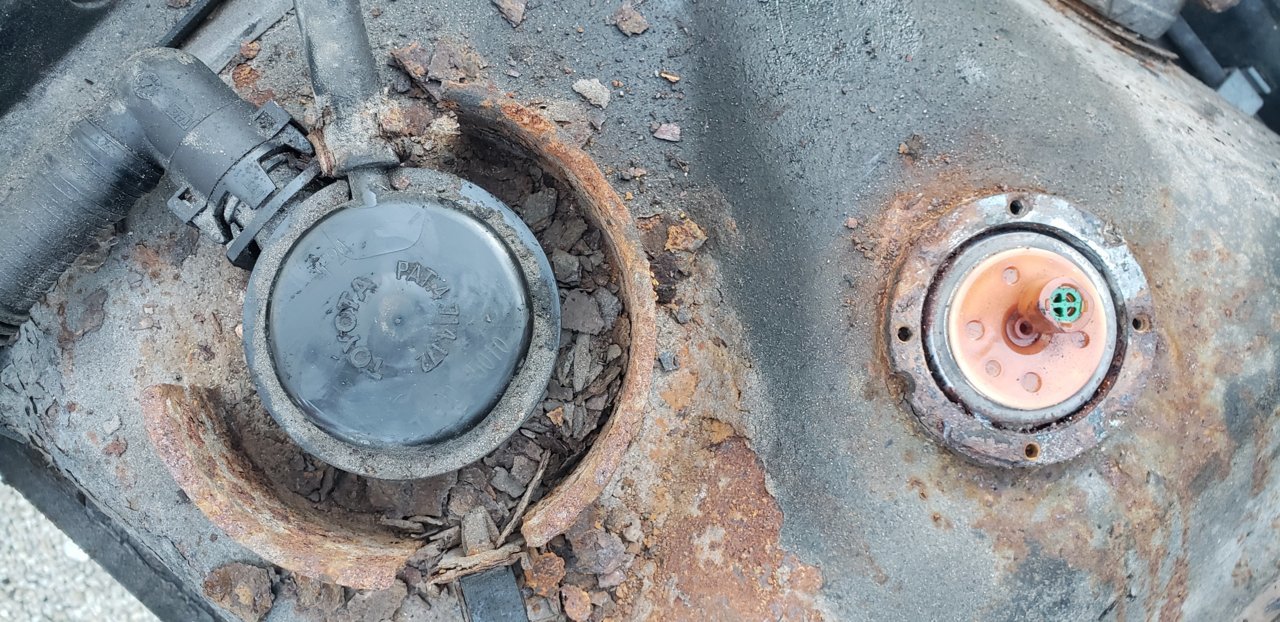

    My old fuel tank was very rusty, mainly on the top of the tank. Especially around the filler neck and tank vents.

    The Rock Auto tank is great quality, you can check it out on their site using this link:
    https://www.rockauto.com/en/moreinfo.php?pk=5806059&jsn=657
    It is over half the price of an OEM tank which is the main reason I chose this option. In fact all of the parts for the entire job weren't much more than just the cost of an OEM tank alone.

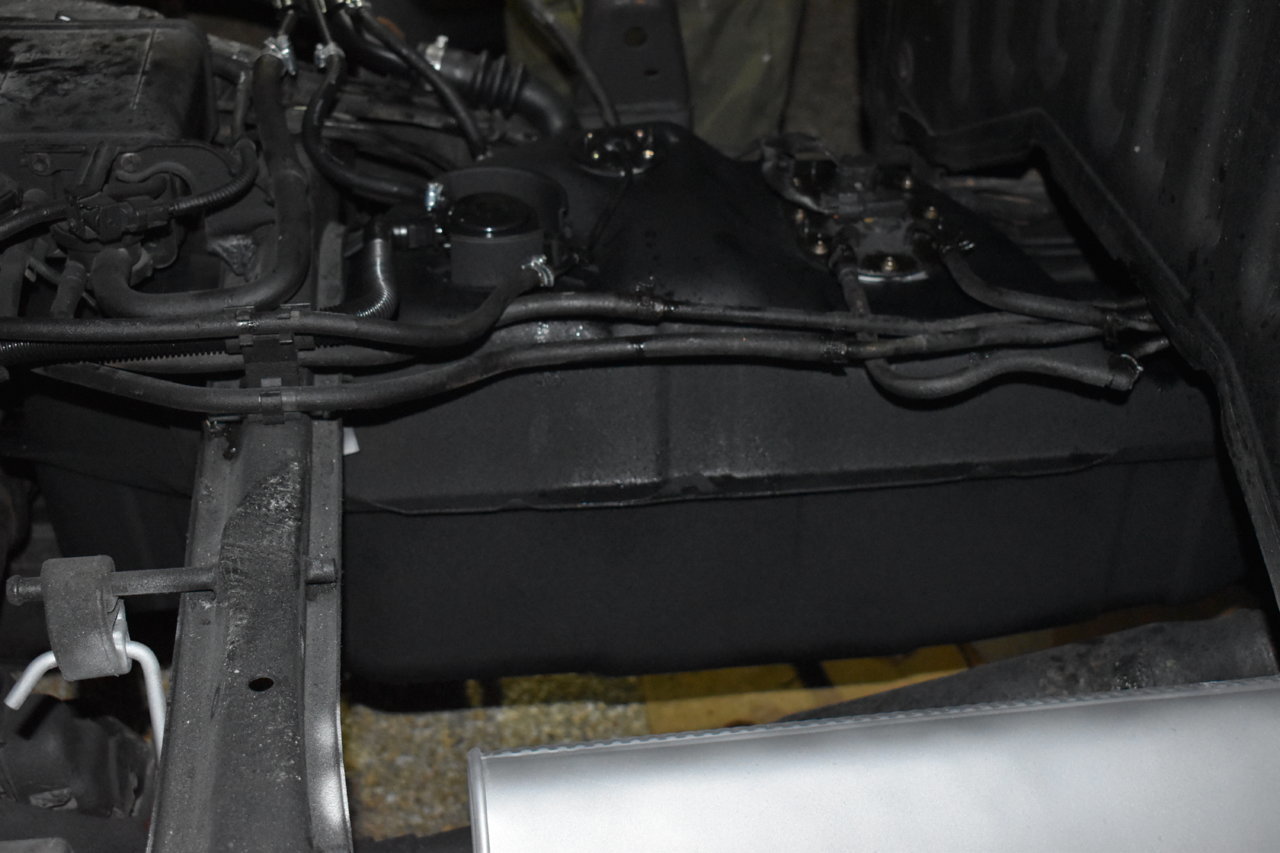

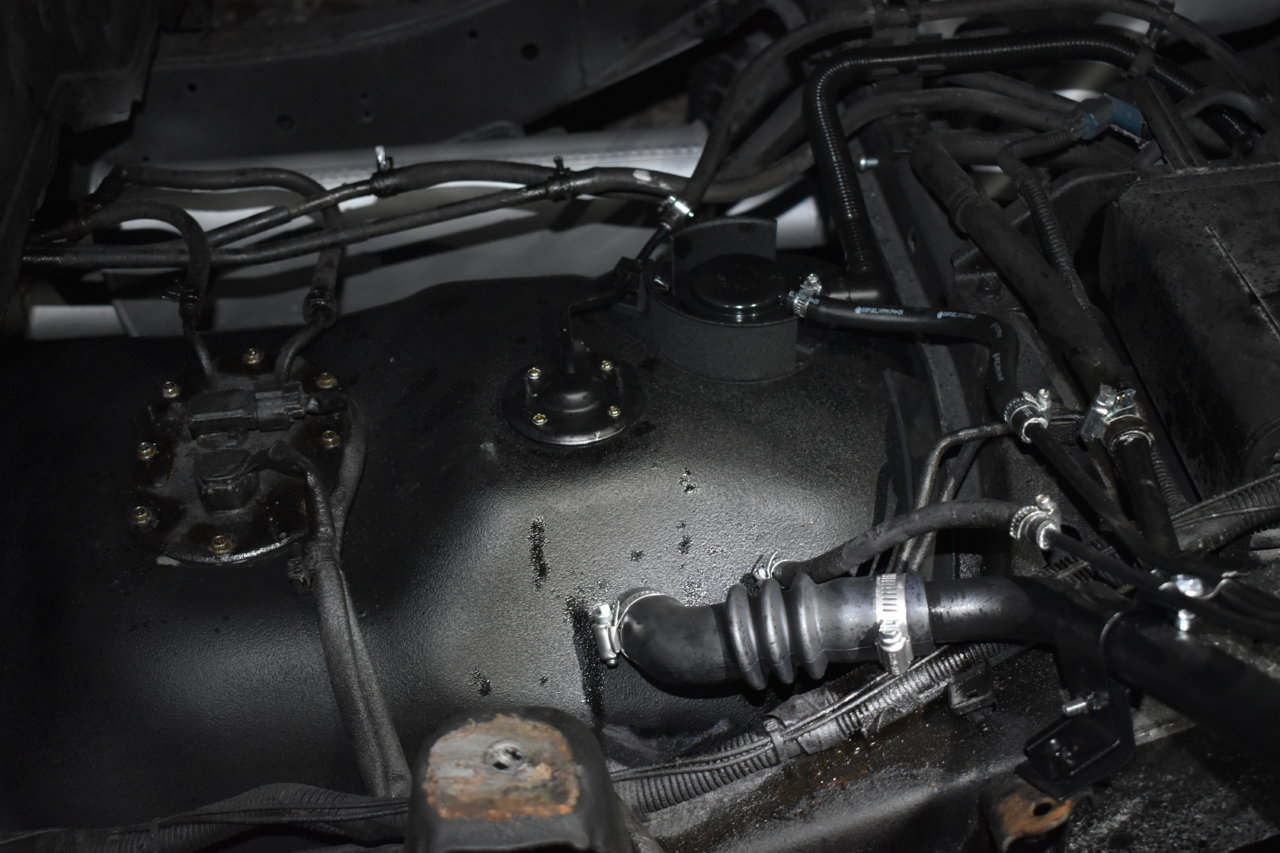

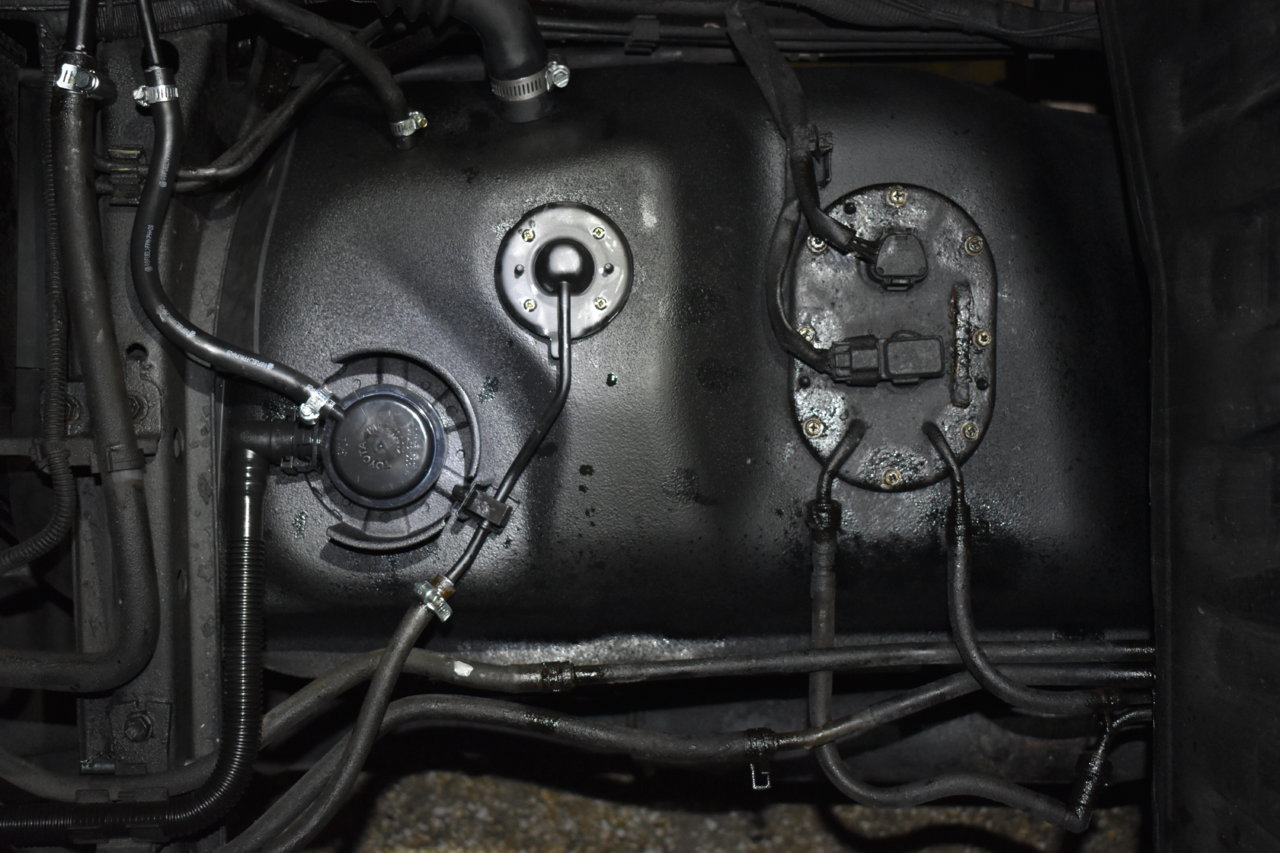

    The tank comes painted with a nice gray primer style coating. I painted the tank black myself for additional protection and to match my black undercoating. The tank design is identical to the OEM tank and everything lined up an installed without any issues. So far everything is working great, no leaks or smells of gas fumes anymore!

    Tank info:

    SPECTRA PREMIUM TO31C

    8.5" Gallon; 14" Depth
    Innovative engineering, manufacturing technology and quality control ensure that Spectra Premium fuel tanks meet or exceed the performance of the original equipment they replace.

    Features:
    • Includes lock ring to reduce installation time and to ensure a complete repair
    • Made with corrosion resistant, OE approved, Ni Terne steel for durability
    • Leak tested and pressure tested to ensure quality
    • Application specific fit tested and road tested to ensure OE fit and real world performance
    • Packaged with double-layered foam wrap and heavy-gauge corrugated board to ensure product quality at installation
    Warranty Information:
    36 Months


    slander and GQ7227 like this.
  8. Dec 21, 2019 at 7:31 PM
    #8
    Diesel Preferred

    Diesel Preferred Member

    Joined:
    Nov 24, 2019
    Member:
    #311597
    Messages:
    6
    Gender:
    Male
    First Name:
    David
    SoCal - Inland Empire
    Vehicle:
    2003 White Tacoma with White Camper Shell.
    New (to me) Tacoma owner. None at this time. Stock, but changes are planed in the future.
    WISCOMA... Thanks again. Went to Rockauto's website. Found the 18.5 Gal tank. Now on my "wish list" for next year.
    I think I have the 16 Gal tank in my Tacoma but I can't get more than about 10.5 Gal in it, maybe a tad more.
    I want as much range as I can get even if it only add 1 more day before I need to fill up.
    I only do about 20 miles a day, 65% to 70% city, stop and go.

  9. Dec 21, 2019 at 8:21 PM
    #9
    agalloch07

    agalloch07 Well-Known Member

    Joined:
    Oct 15, 2016
    Member:
    #199847
    Messages:
    143
    Gender:
    Male
    I do not like steel tanks does anyone make a poly/plastic tank for Tacomas?

  10. Dec 21, 2019 at 9:16 PM
    #10
    slander

    slander Well-Known Member

    Joined:
    May 10, 2013
    Member:
    #103909
    Messages:
    5,603
    Gender:
    Male
    Bolingbrook, Il
    Vehicle:
    02 Tacoma, fixed with curse words.
    Was the 18.5 gallon tank an option on these trucks from the factory?

    GQ7227 likes this.
  11. Jun 5, 2020 at 8:39 AM
    #11
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    5,137
    Gender:
    Male
    @WISCOMA How did you remove the vent hose connector?

  12. Jun 5, 2020 at 8:55 AM
    #12
    tony2018

    tony2018 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123866
    Messages:
    5,137
    Gender:
    Male
    sumbiitch.....oh well...

  13. Jun 5, 2020 at 11:29 PM
    #13
    joe25rs

    joe25rs Well-Known Member

    Joined:
    Jul 4, 2019
    Member:
    #298314
    Messages:
    221
    Gender:
    Male
    First Name:
    Joe
    Mrr’land
    Vehicle:
    2004 Black TRD
    @WISCOMA, very helpful post, nicely done. Thank you.

    I’ve received conflicting part numbers (from dealership parts counters and online) for the fuel tank strap. Specifically, the pinned strap underneath the rear of the tank. The number I was was given 77603-35050 doesn’t match Wiscomas number.

    Anyone care to set the record straight? Application is an 04 xtra cab, 4x4, v6.

  14. Jun 29, 2020 at 1:52 PM
    #14
    Tacoscar-the-grouch

    Tacoscar-the-grouch Well-Known Member

    Joined:
    Mar 22, 2019
    Member:
    #287551
    Messages:
    196
    Gender:
    Male
    First Name:
    Josh
    North Idaho
    Vehicle:
    2001 Reg. Cab Tacoma
    OME kit
    There are two straps for the rear, one is a bit longer, for the 18ga tank, and one is shorter, for the 16ga tank. I believe 77603-35050 is for the 18ga tank, while 77603-35040 is the 16ga tank.

    OP did not purchase a strap, though. He purchased 77681-35020, which is the seat, a little rubber bit that sits on the strap and prevents metal on metal under the tank.

    joe25rs likes this.
  15. Jun 29, 2020 at 11:01 PM
    #15
    joe25rs

    joe25rs Well-Known Member

    Joined:
    Jul 4, 2019
    Member:
    #298314
    Messages:
    221
    Gender:
    Male
    First Name:
    Joe
    Mrr’land
    Vehicle:
    2004 Black TRD
    @Tacoscar-the-grouch I appreciate this, thank you!

    Tacoscar-the-grouch likes this.
  16. Jun 30, 2020 at 10:08 AM
    #16
    Tacoscar-the-grouch

    Tacoscar-the-grouch Well-Known Member

    Joined:
    Mar 22, 2019
    Member:
    #287551
    Messages:
    196
    Gender:
    Male
    First Name:
    Josh
    North Idaho
    Vehicle:
    2001 Reg. Cab Tacoma
    OME kit
    you are welcome. I am trying to decipher the parts needed to swap a new tank into my truck, so it was useful for me to go through the PN's and figure out what is what...

    And thanks to @WISCOMA for the thread.

    Any issues with the Spectra tank so far? Other than some reports of leaky spot welds, the only downside to these aftermarket tanks is they do not have a baffle around the sump. Any problems with fuel starvation at lower fuel, or offroad (if you partake)?

  17. Jul 1, 2020 at 5:33 AM
    #17
    NSDON

    NSDON Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58511
    Messages:
    150
    Gender:
    Male
    First Name:
    Don
    NS
    Vehicle:
    02 SR5 TRD 4X4 Step Side
    Spectra build a very good product, most are made in Canada and maybe USA. Quality is excellent, I have one in my Tacoma and Pontiac.

    I concur on removing the box to do this job, very easy to get everything apart and back together.

    Tacoscar-the-grouch likes this.
  18. Jul 1, 2020 at 5:36 AM
    #18
    Tacoscar-the-grouch

    Tacoscar-the-grouch Well-Known Member

    Joined:
    Mar 22, 2019
    Member:
    #287551
    Messages:
    196
    Gender:
    Male
    First Name:
    Josh
    North Idaho
    Vehicle:
    2001 Reg. Cab Tacoma
    OME kit
    Thanks for the vote of confidence. North American manufacturing of spectra also helps me choose between the Dorman, which is probably made in china

  19. Jul 1, 2020 at 6:20 AM
    #19
    NSDON

    NSDON Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58511
    Messages:
    150
    Gender:
    Male
    First Name:
    Don
    NS
    Vehicle:
    02 SR5 TRD 4X4 Step Side
    Dorman products may be good or not , Spectra is highly recommended in the old car world.

    I have a 63 Pontiac Parisienne, 409 4 speed, new tank in 2016. Tacoma done around the same time, rusted out on top where rustproofing was not applied. Under the strap.

    Tacoscar-the-grouch likes this.
  20. Jul 1, 2020 at 8:52 AM
    #20
    Tacoscar-the-grouch

    Tacoscar-the-grouch Well-Known Member

    Joined:
    Mar 22, 2019
    Member:
    #287551
    Messages:
    196
    Gender:
    Male
    First Name:
    Josh
    North Idaho
    Vehicle:
    2001 Reg. Cab Tacoma
    OME kit
    My Tacoma tank is rusted under the fuel sending unit gasket. The amount of rust does not allow for a good seal, and fuel splashes and seeps out when the tank is full, or bumping along off road. Also the beginning of some rust in the seam around the perimeter of the tank.

    Thanks for the brand endorsement and sharing your experience. I am glad to hear Spectra is a reputable brand!
