1st Gen Sound Ordnance B-8PTD Install

Discussion in '1st Gen. Tacomas (1995-2004)' started by Fuzzy Dustmite, Jan 25, 2014.

  1. Jan 25, 2014 at 3:50 PM
    #1
    Fuzzy Dustmite

    Fuzzy Dustmite [OP] Active Member

    Joined:
    Dec 3, 2013
    Member:
    #117805
    Messages:
    36
    Gender:
    Male
    First Name:
    Greg
    Mesa, AZ
    Vehicle:
    02 DLX Lunar Mist / Grey
    Got a Sound Ordnance B-8PTD powered subwoofer off ebay a few days back. Installed it today. Took some pics to serve as a walkthrough of sorts. I don't claim I'm an expert by any means, just watched a few videos on YouTube. Probably other, better ways to do it, but it's working :)

    Comments appreciated!

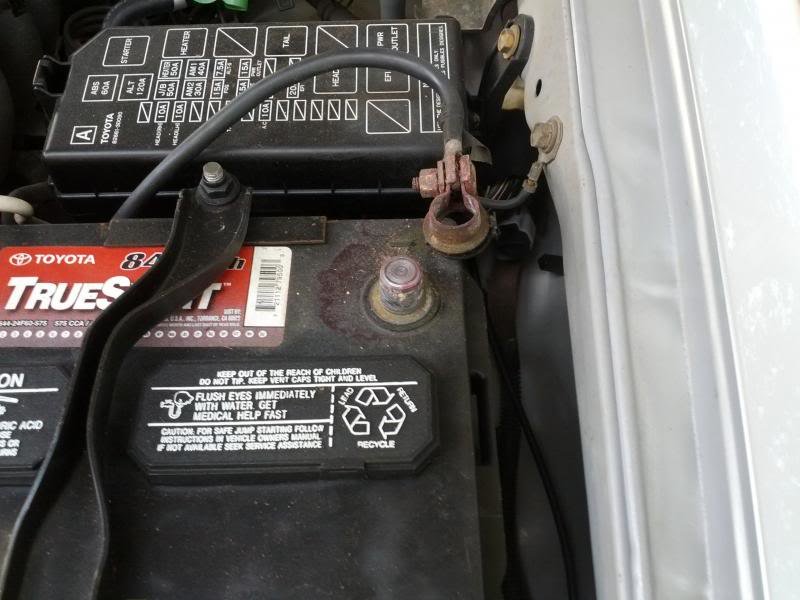

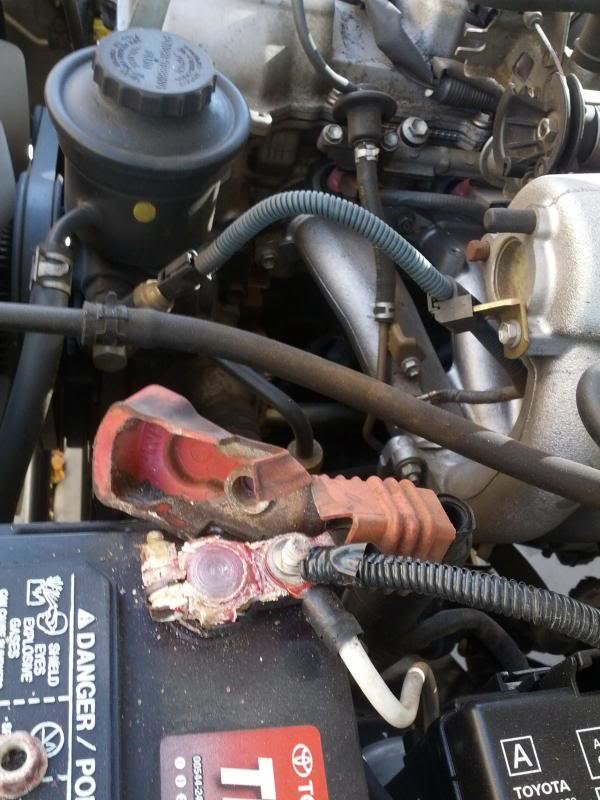

    Disconnect negative battery terminal:

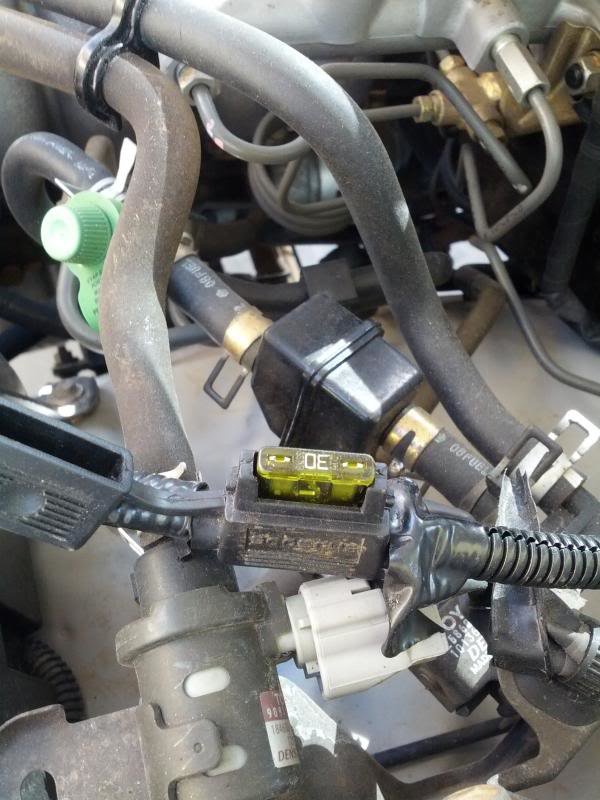

    Removed the fuse while I hooked everything up

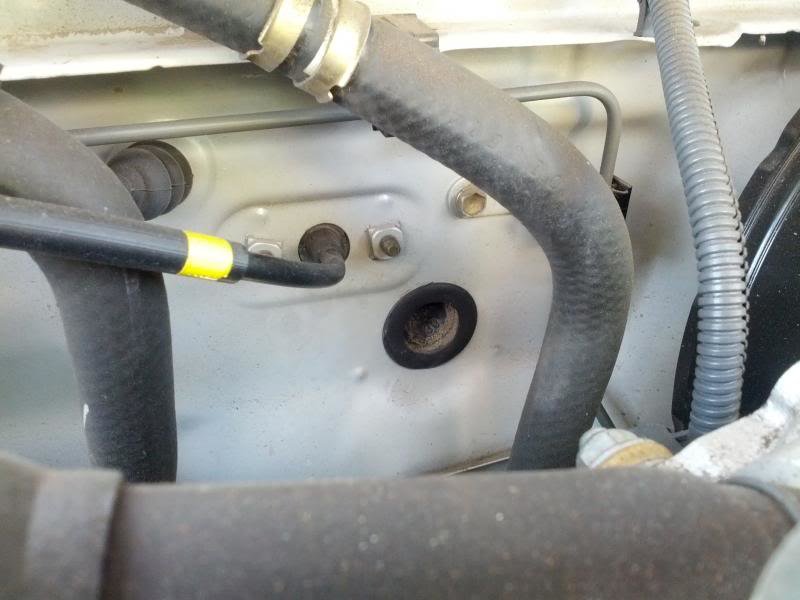

    Found this unused firewall opening with grommet:

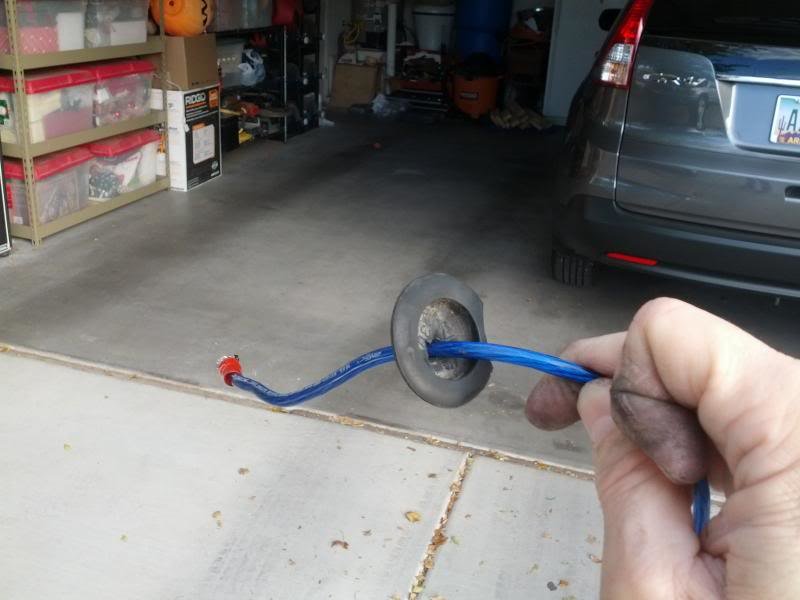

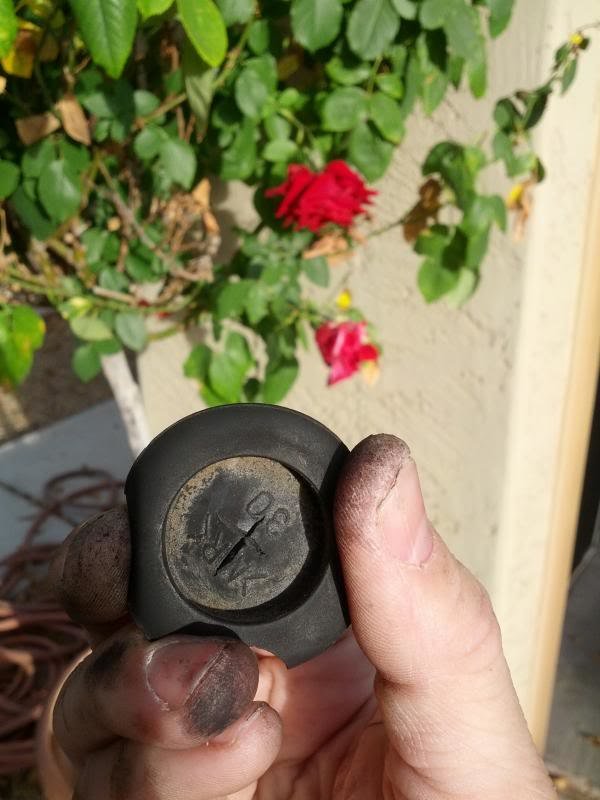

    Pulled the grommet and cut an X in it with a box cutter:

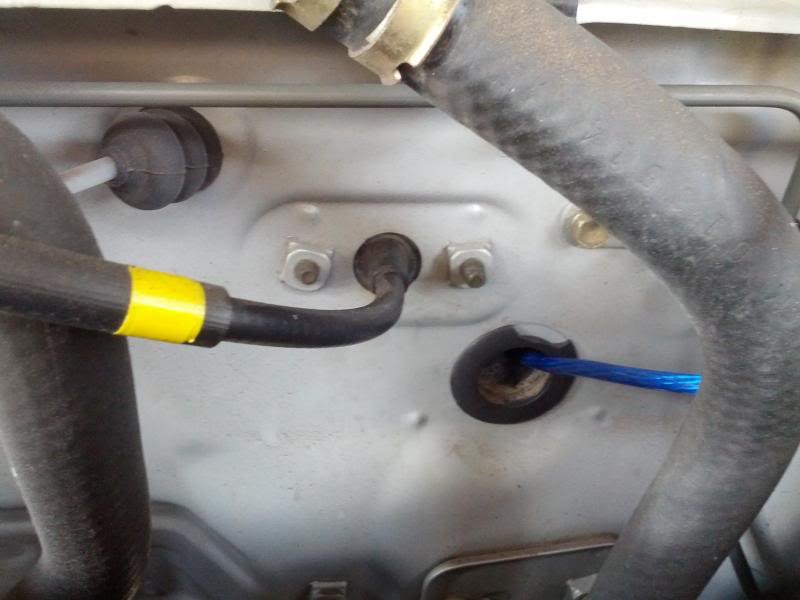

    Fed the power cable through that into the cab:

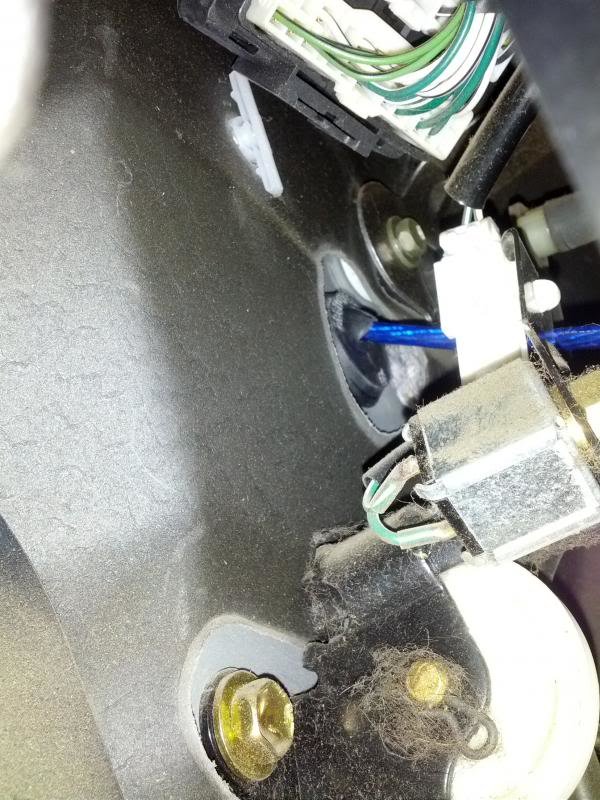

    This is where it comes through in the cab, just above the gas pedal:

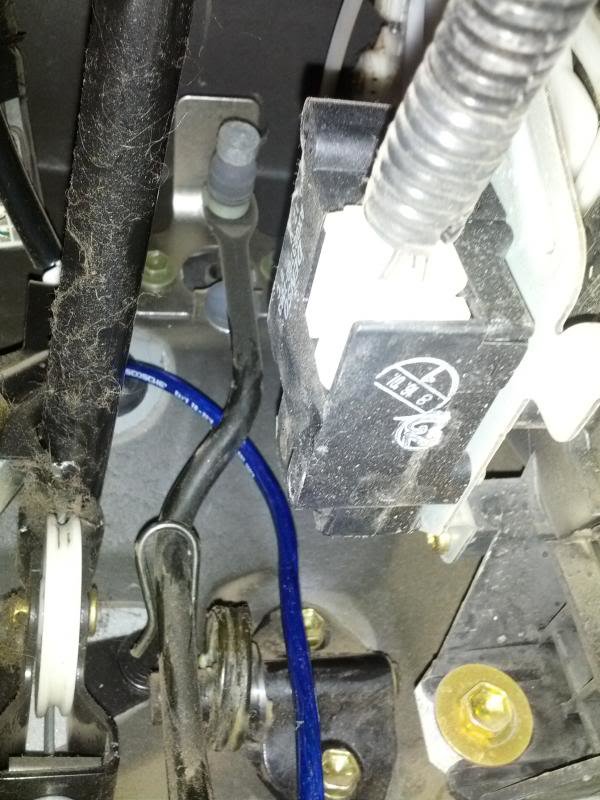

    Routed it behind the pedal to prevent any problems:


    Started disassembling the interior to feed the wires cleanly:
    Remove this pin:

    Pin removed:

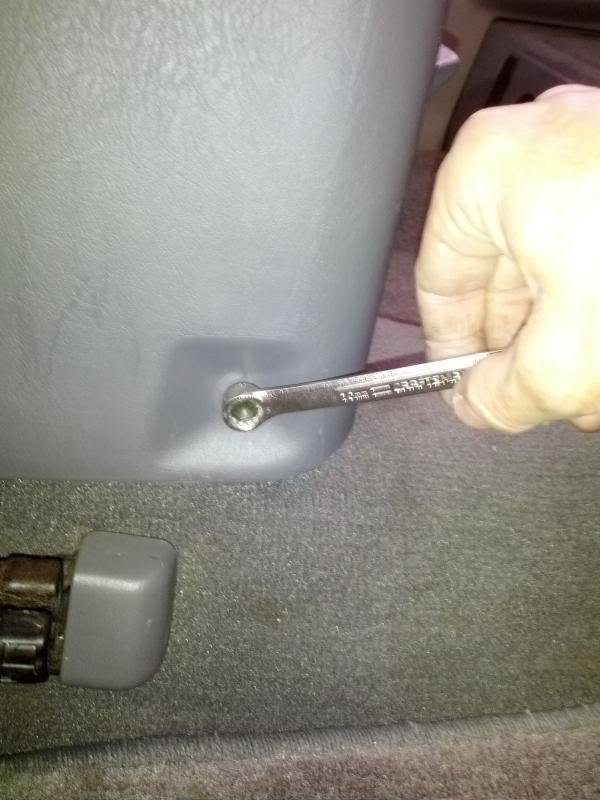

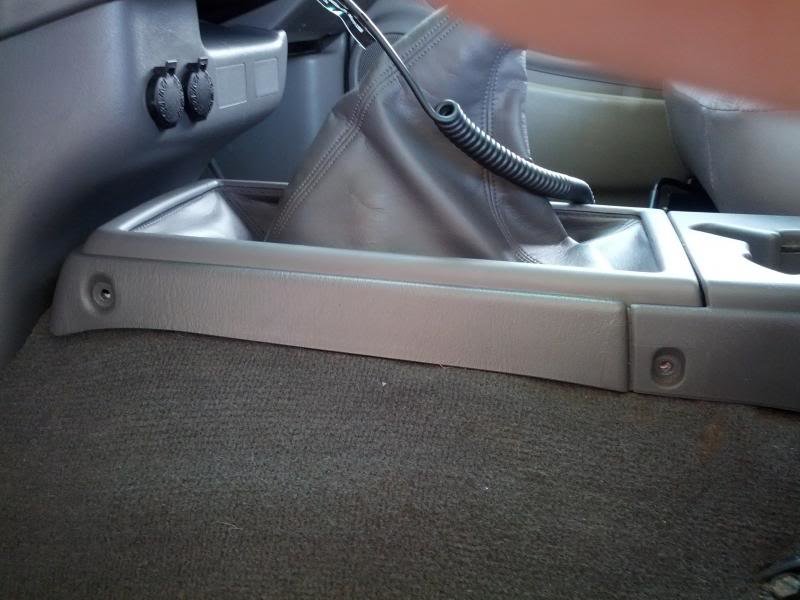

    Remove the 6 screws on either side of the center console:
    2 here:
    One here

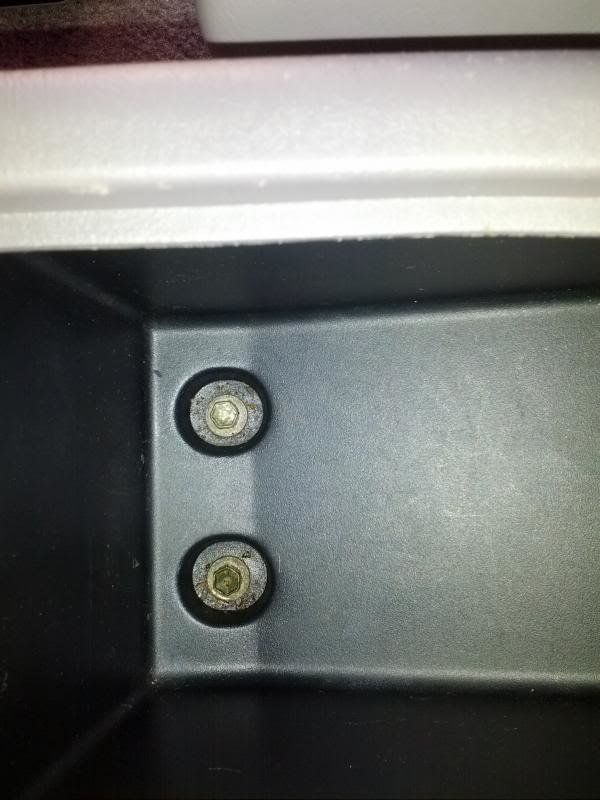

    Two inside the storage area:
    IMG_20140125_090532_28b3ff15fafd191d45ee1641bbc10adda978f598.jpg\

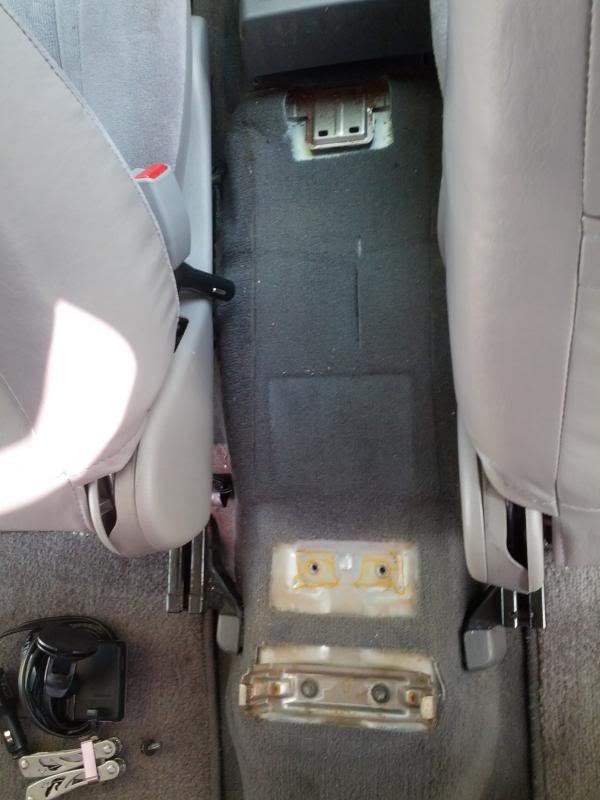

    Center console removed:

    Remove the shifter knob:

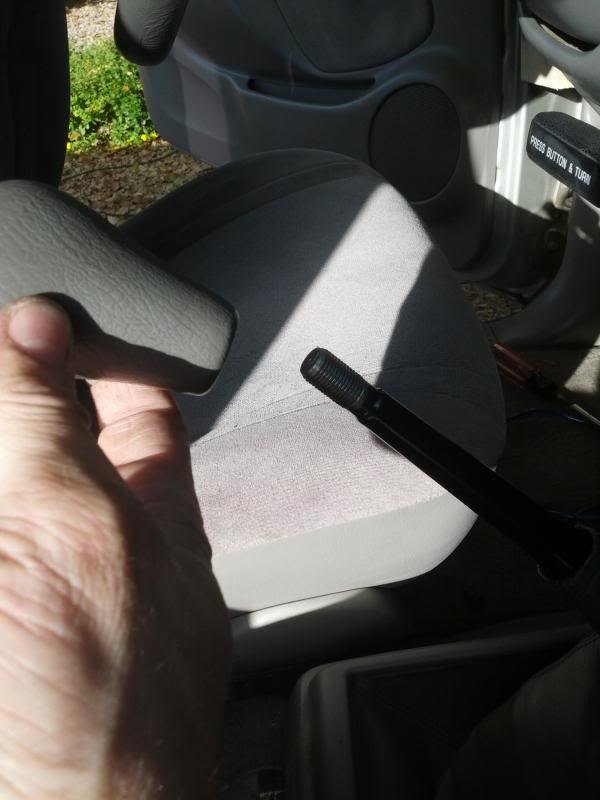

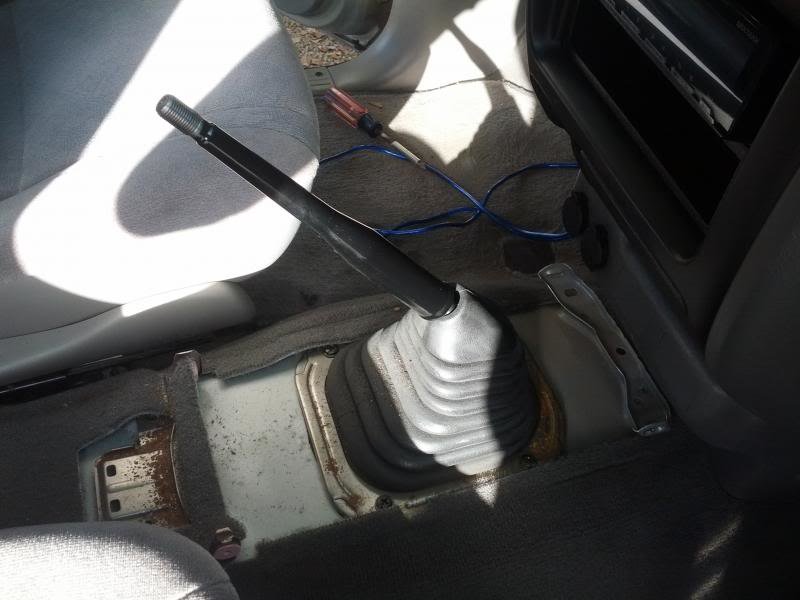

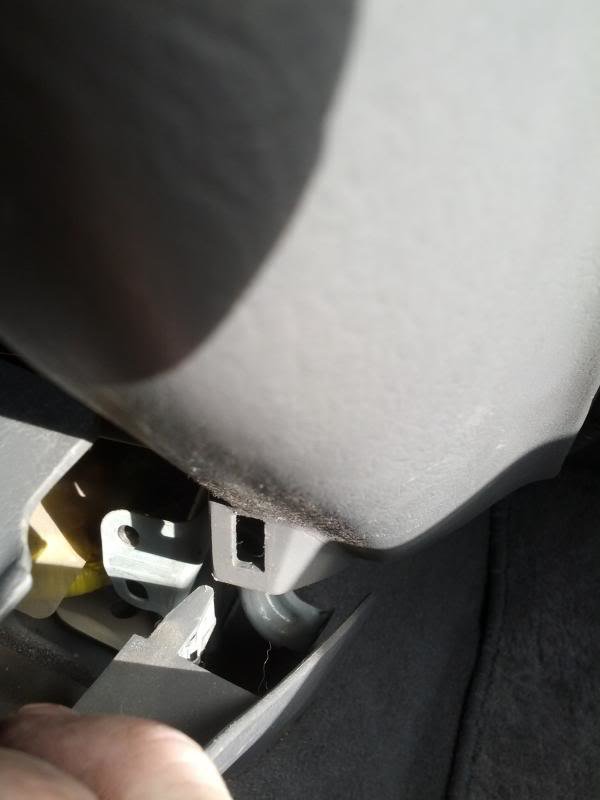

    Shifter cover removed:

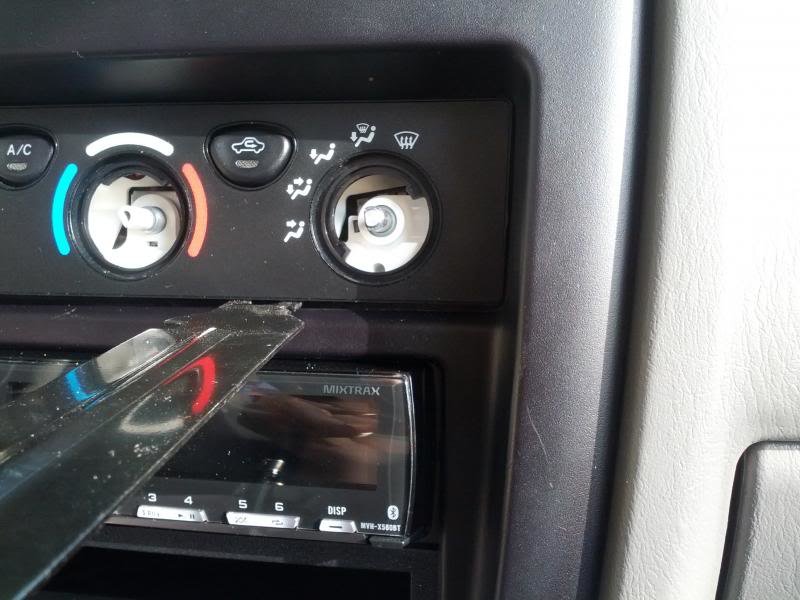

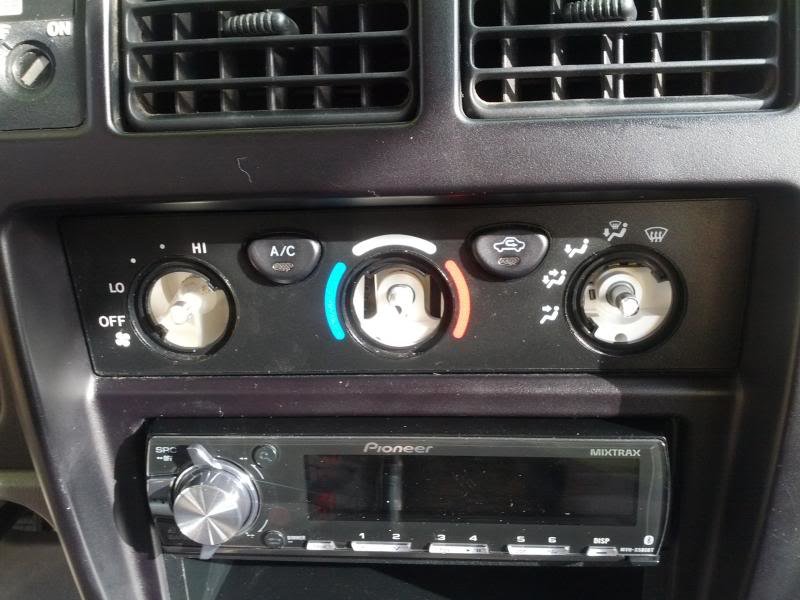

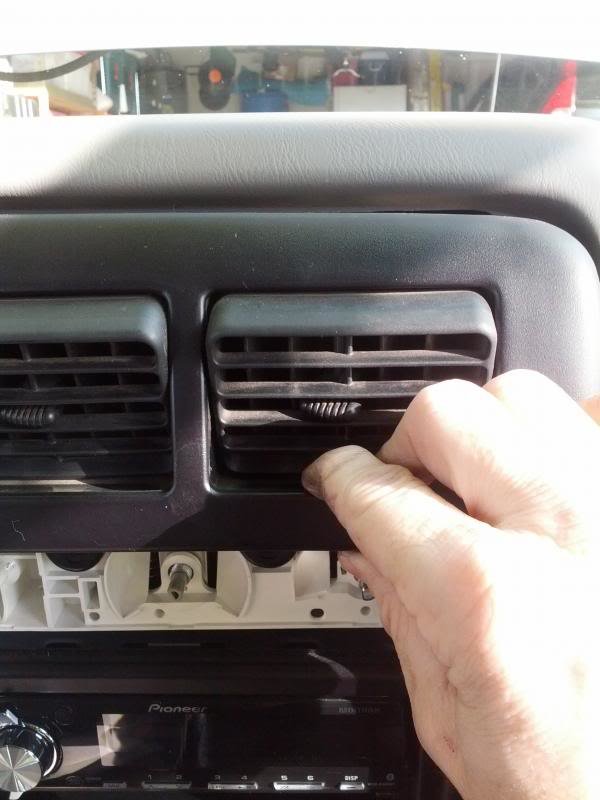

    Pull the knobs off the air controls:
    Pop the cover:

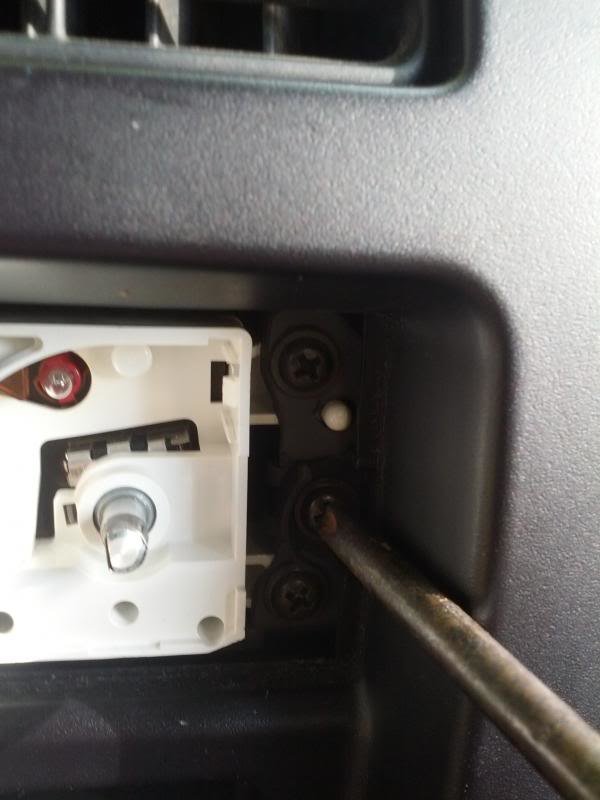

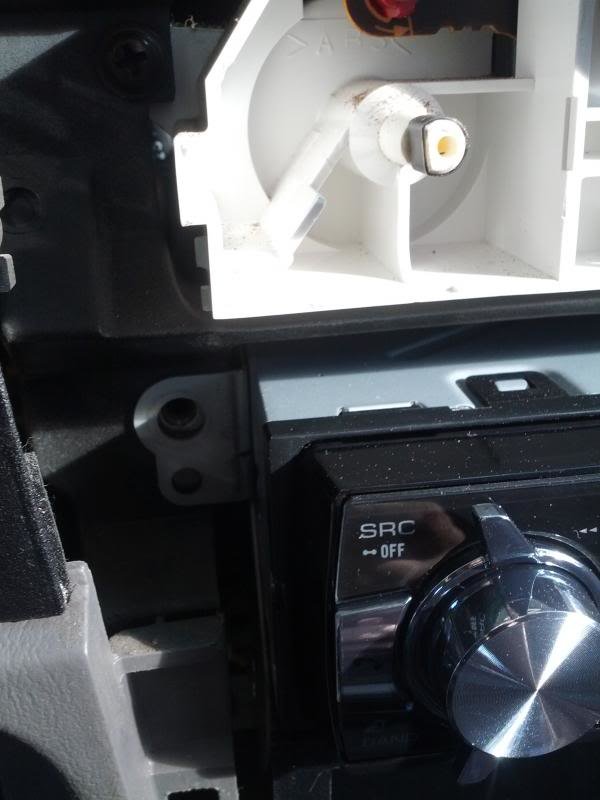

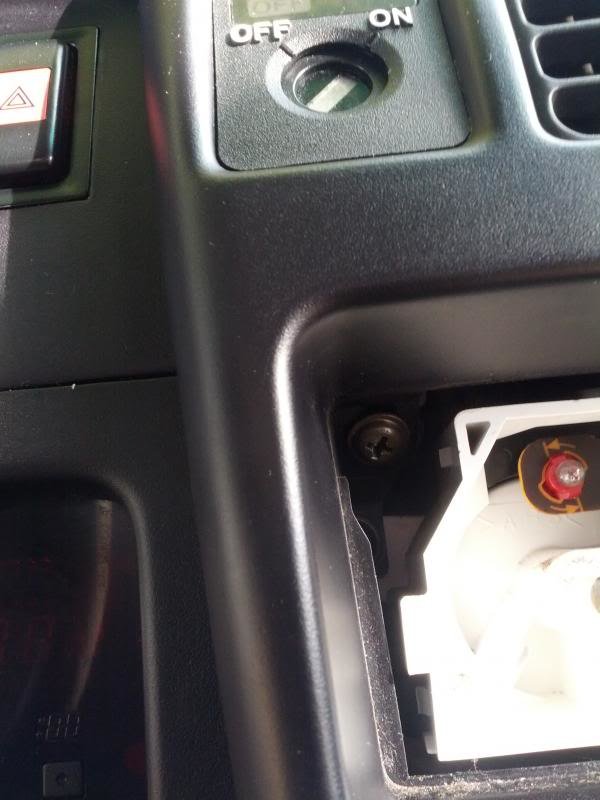

    Remove the two screws holding the stereo surround:
    Grab the cover and pull straight out:

    After it came out, I disconnected the connections to the airbag and the cigarette lighter. Couldn't get the ashtray light cable disconnected, so I just let it hang by that.

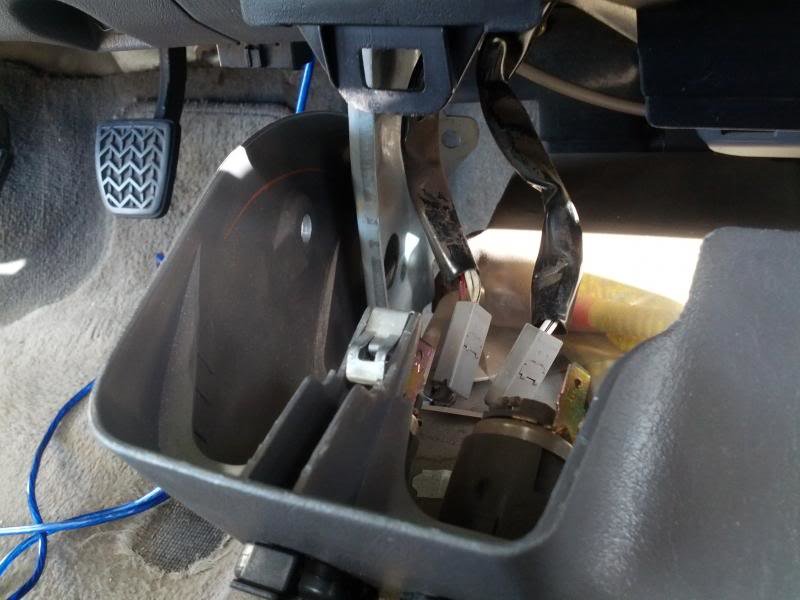

    Removing the lower cover:

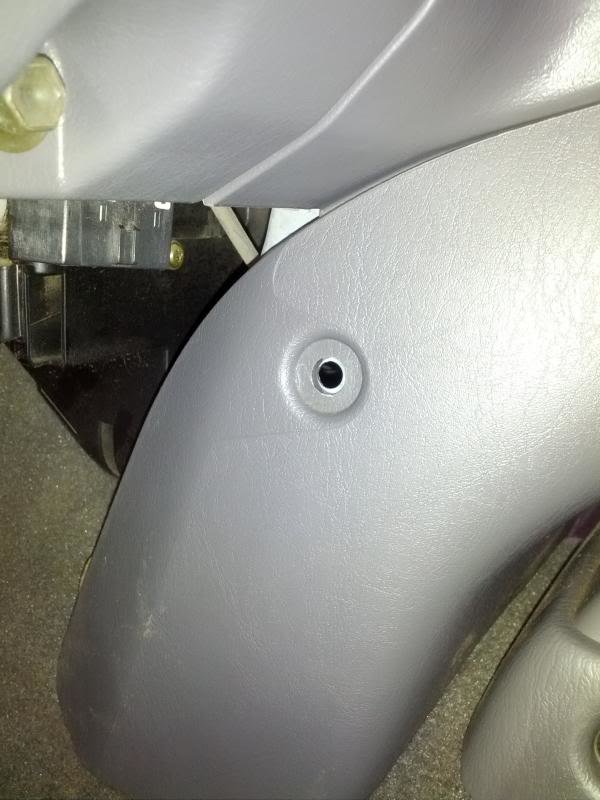

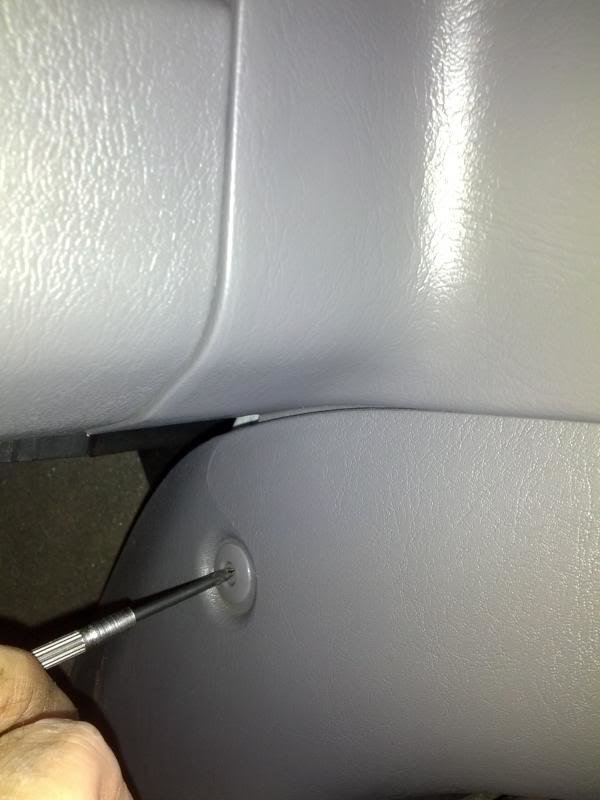

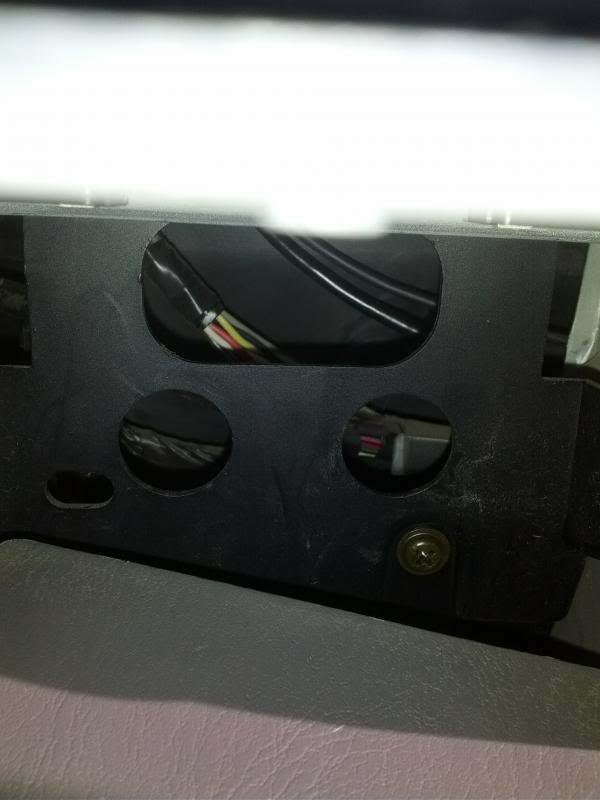

    Remove the screw behind the lower cover:

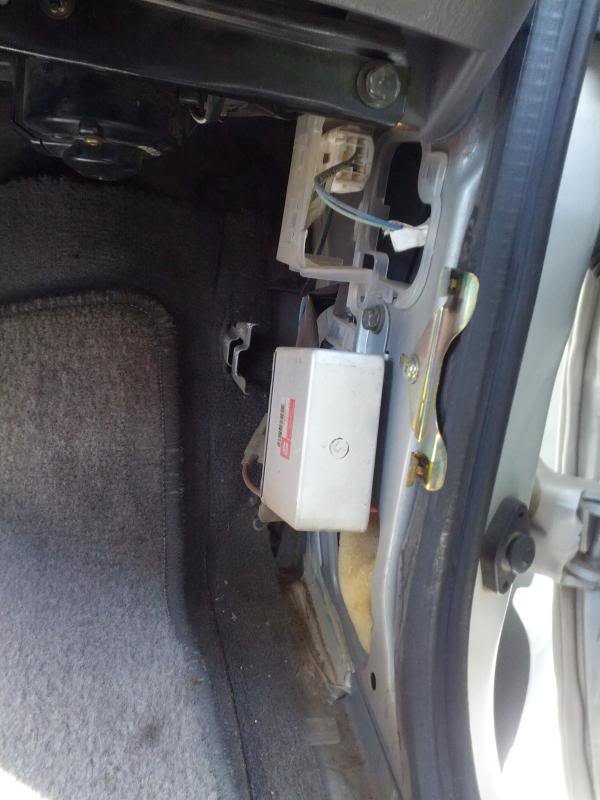

    Lower cover removed, aux powers disconnected:

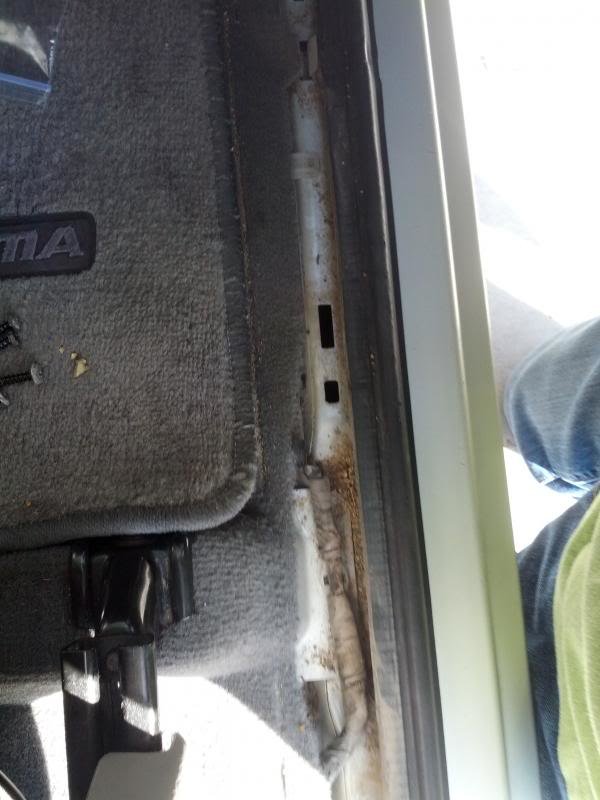

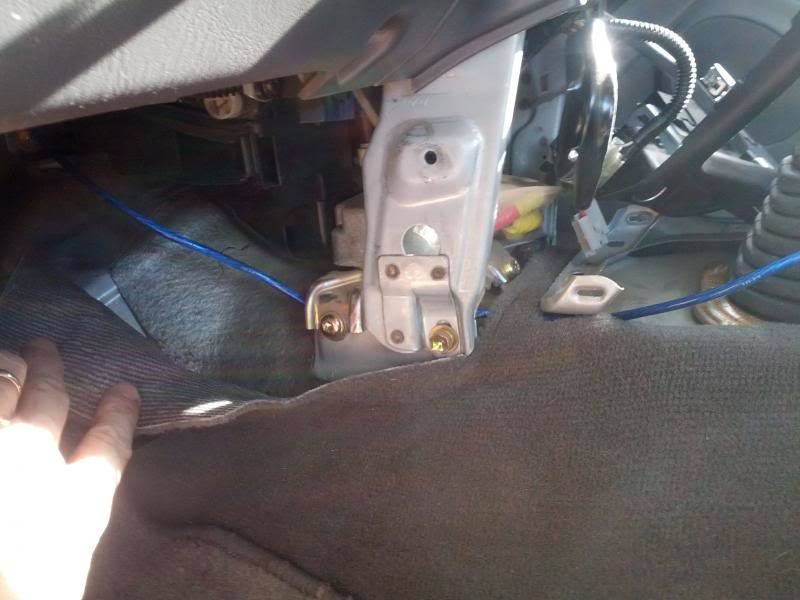

    Interior disassembled, now running the power to the passenger seat:

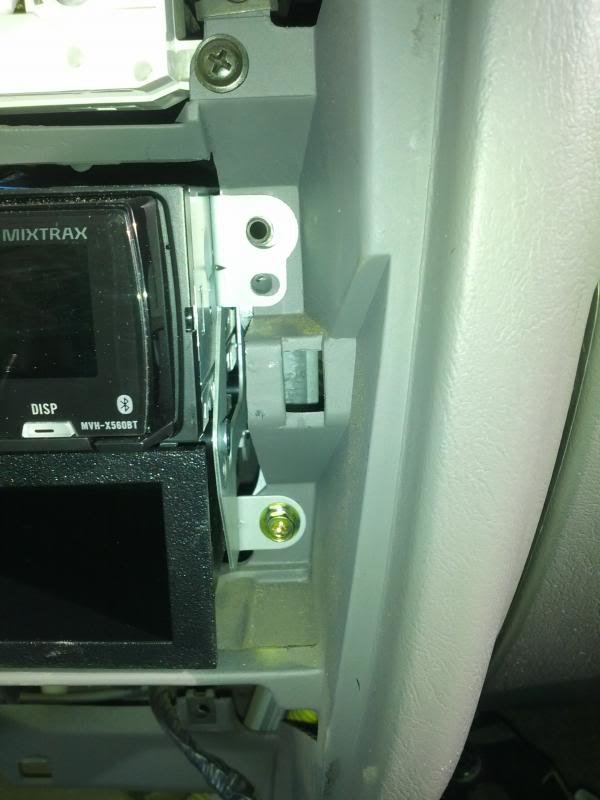

    Removing the receiver to get at the sub connections in the back (there are 4 screws here):

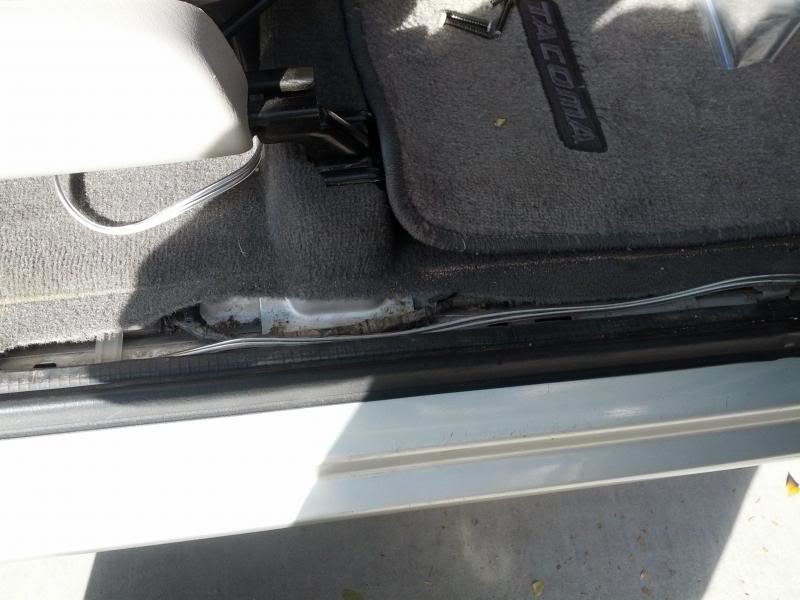

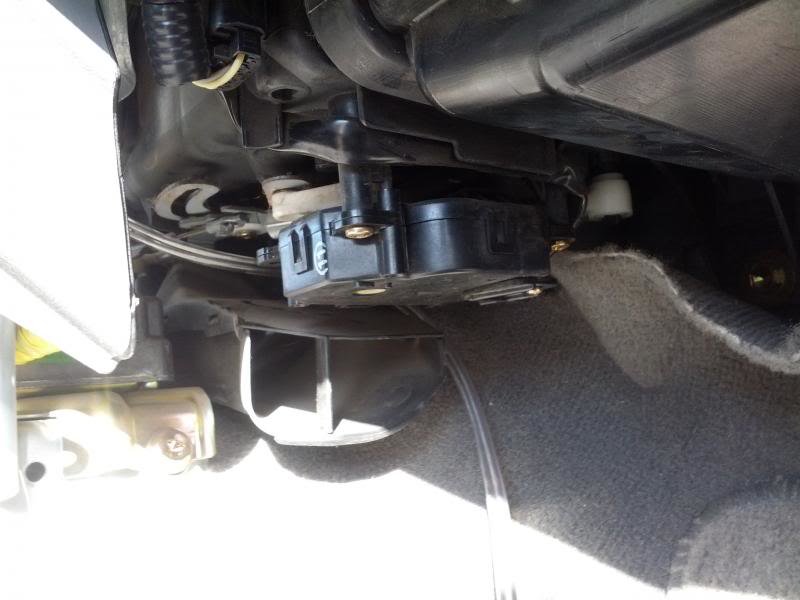

    Removing the interior panels to route the sub audio cables:

    Routing the audio cables:

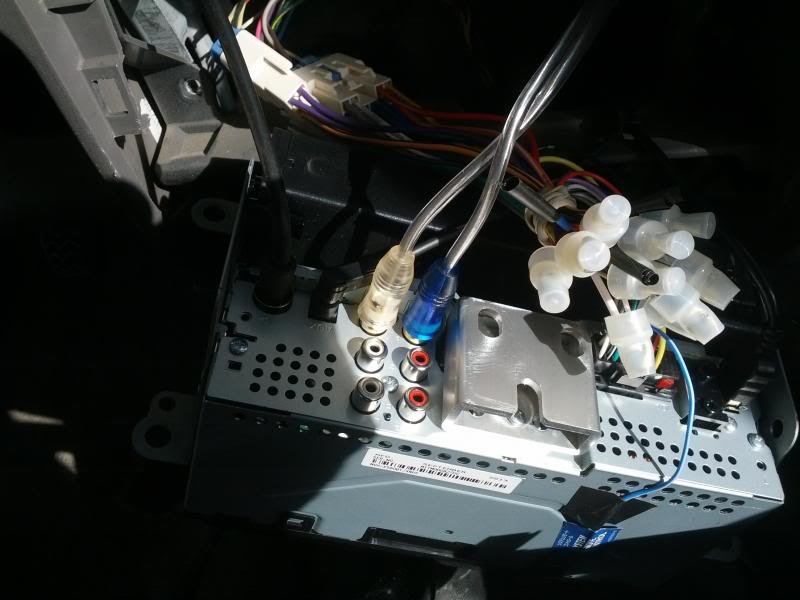

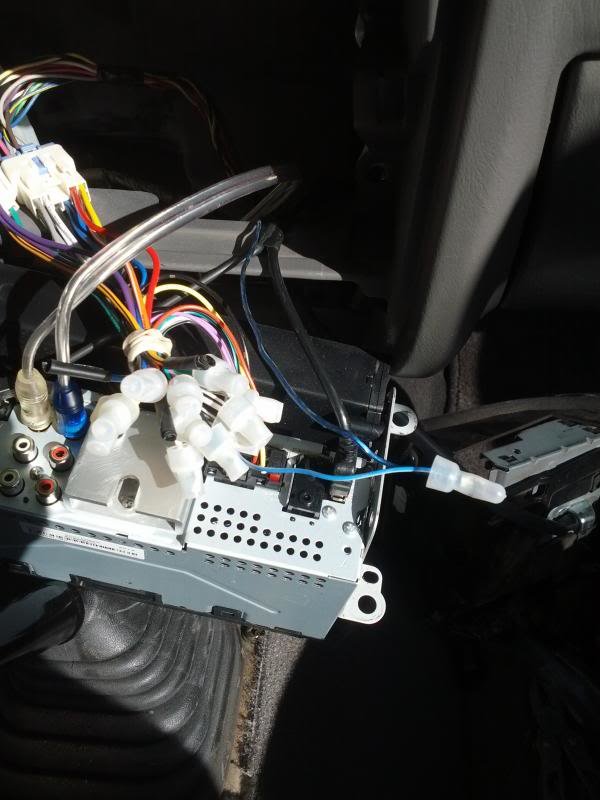

    Connecting the audio cables to the receiver's sub ports:

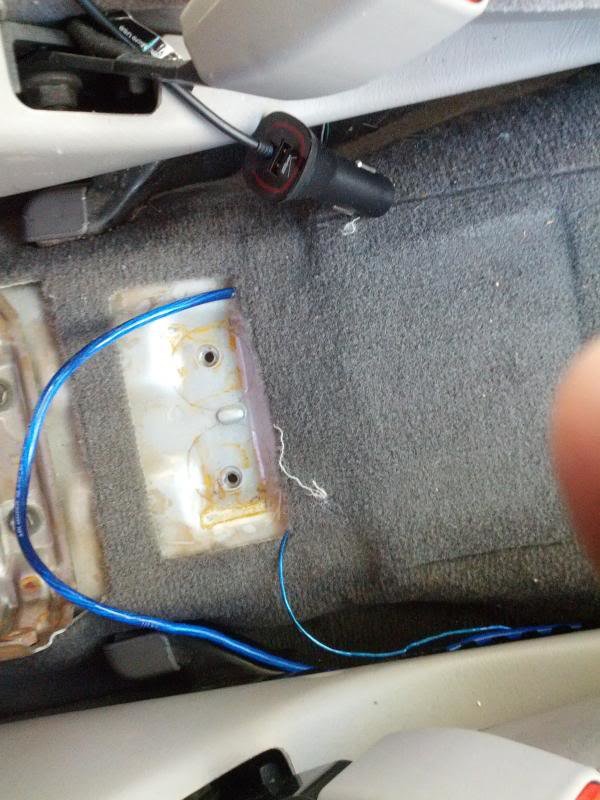

    Running the remote power from the head to the passenger seat, using the same path as the power:
    Remote power connected:

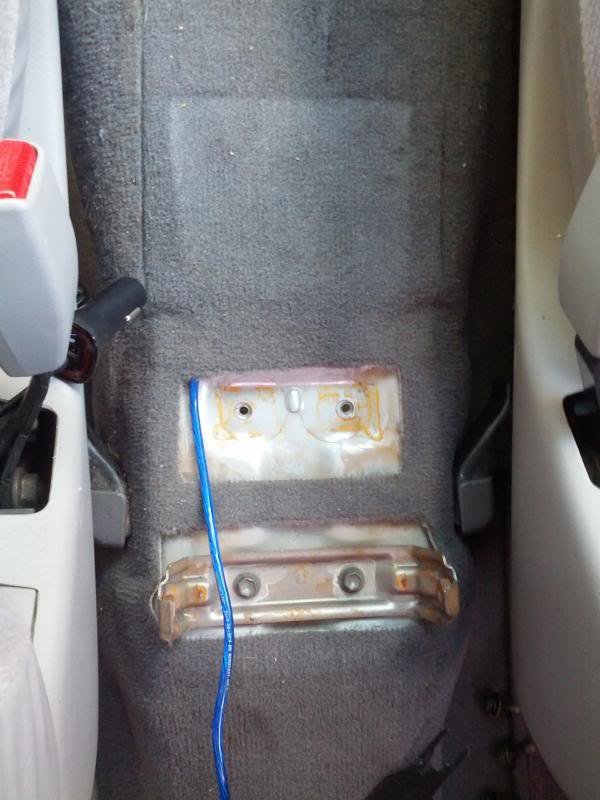

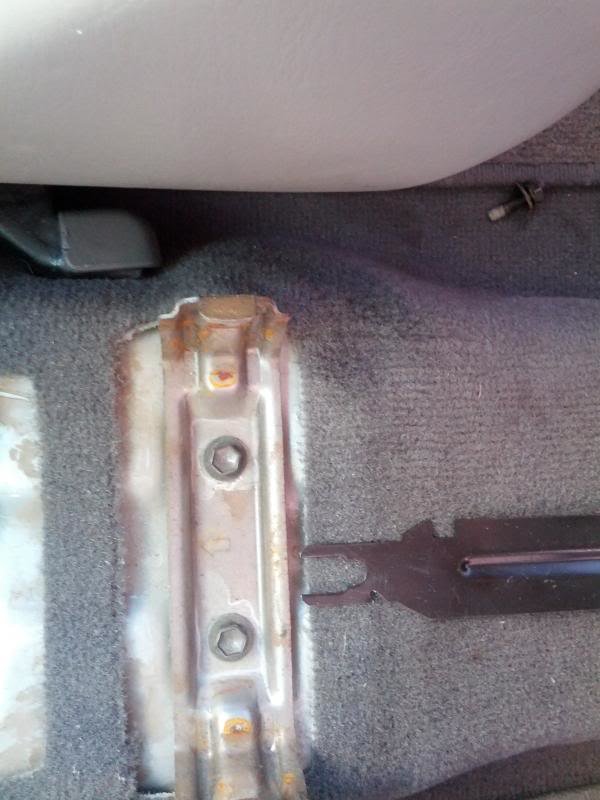

    Decided to use the center console mounting bracket for the ground as it is unpainted:

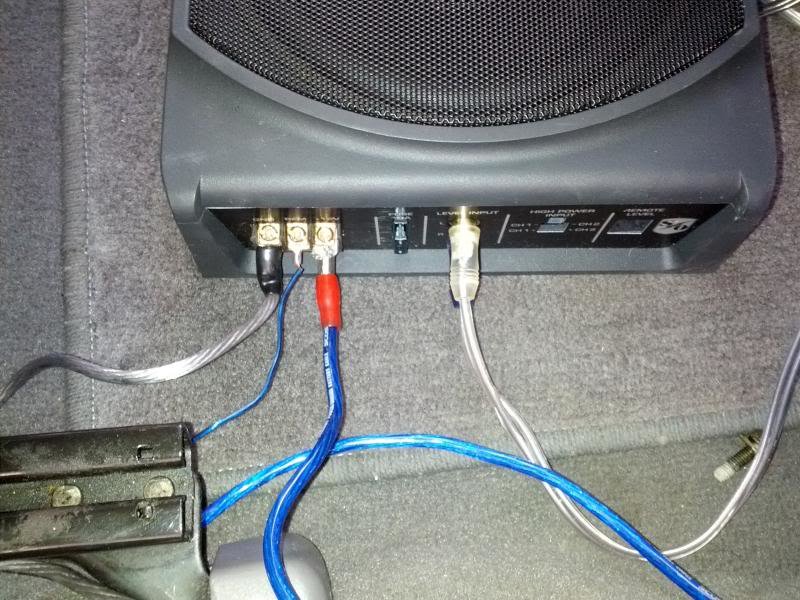

    Connections made on the sub:

    Hooking up positive power:

    Fuse back in:

    Hooked up negative power and reassembled.

    Not too bad, took a couple of hours. I had recently replaced the stock stereo with the Pioneer, so I was familiar with the radio removal.
