1st Gen Stock Bumper Winch Mount

Discussion in '1st Gen. Tacomas (1995-2004)' started by iwagner, Jan 17, 2017.

?

Would you buy one?

  1. Yes

    89.7%
  2. No

    10.3%
  1. Jan 17, 2017 at 6:47 PM
    #1
    iwagner

    iwagner [OP] Well-Known Member

    Joined:
    Dec 3, 2016
    Member:
    #203971
    Messages:
    51
    Gender:
    Male
    Washington
    Vehicle:
    2002 Tacoma 2.7l 5spd
    I just installed a custom stock bumper winch mount and wanted to share with the community. The winch mount was designed by Evan Hasse (TacoRex) of L.R.FAB and you can view his original post here.

    If you're interested in purchasing a mount, contact Evan at hasse.evan@gmail.com. Great company and a great product.

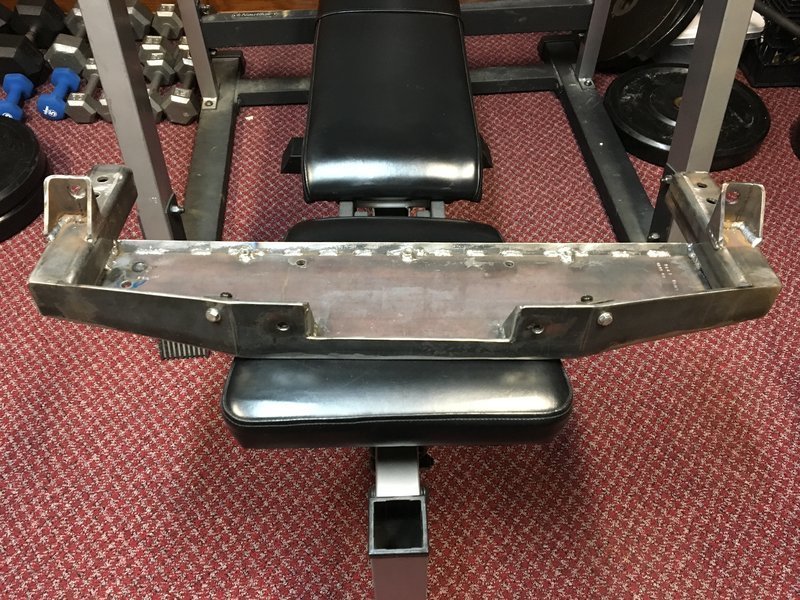

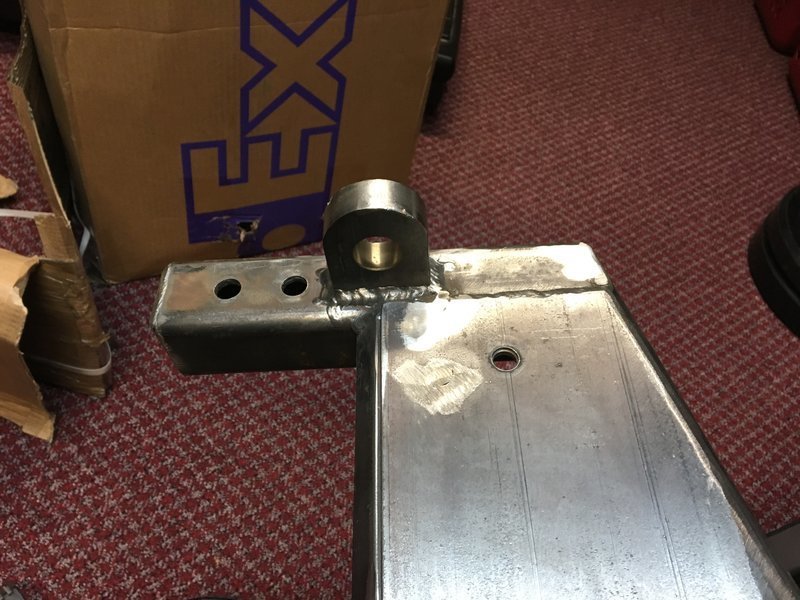

    The mount came unpainted, here is a picture of it as shipped. It has two heavy duty shackle mounts underneath.

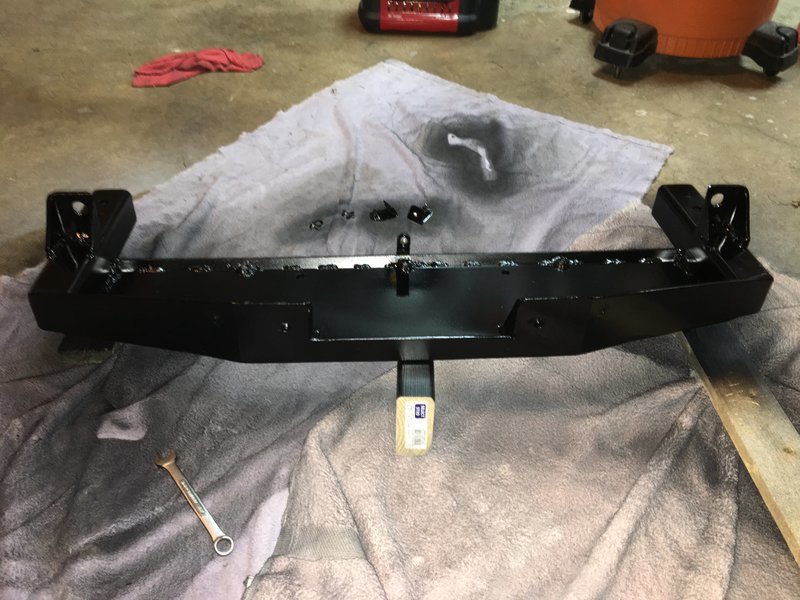

    It was then primed and painted...

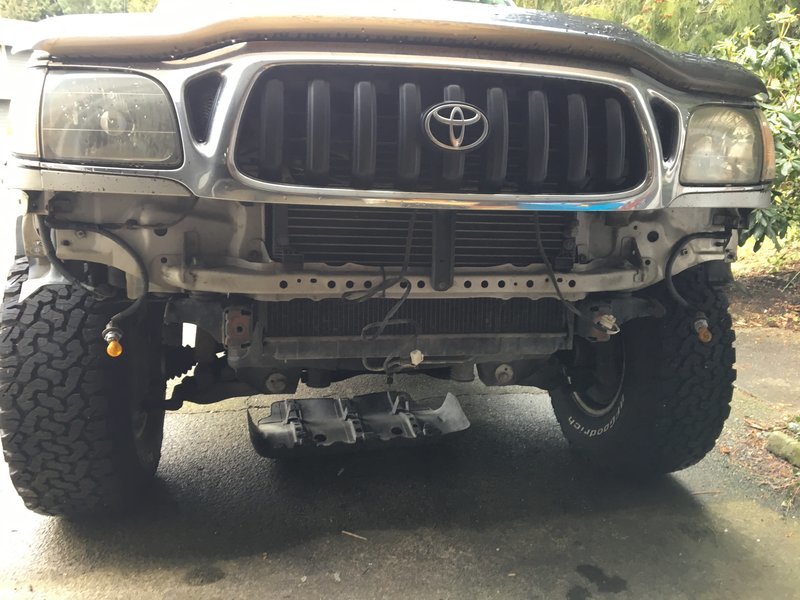

    The front bumper and skid plate were removedIMG_0192.jpg

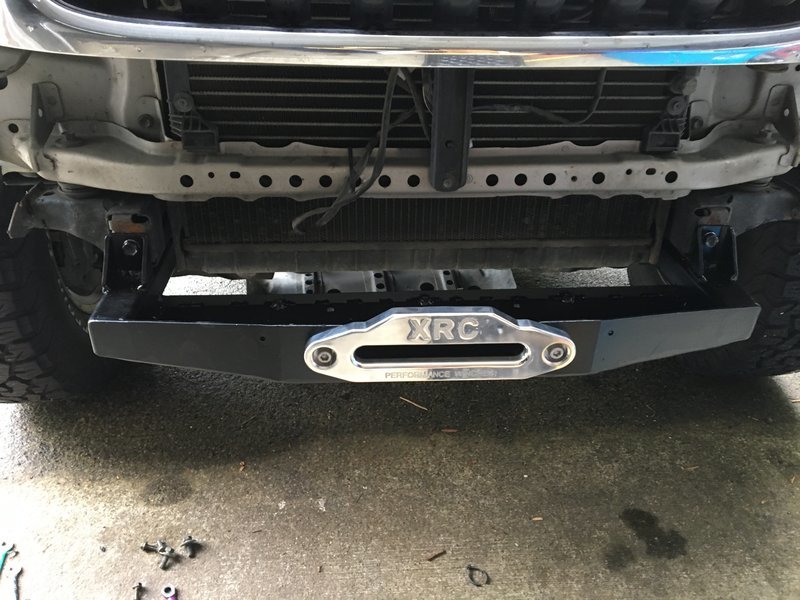

    The winch mount was then fitted and the bumper was trimmedIMG_0194.jpg

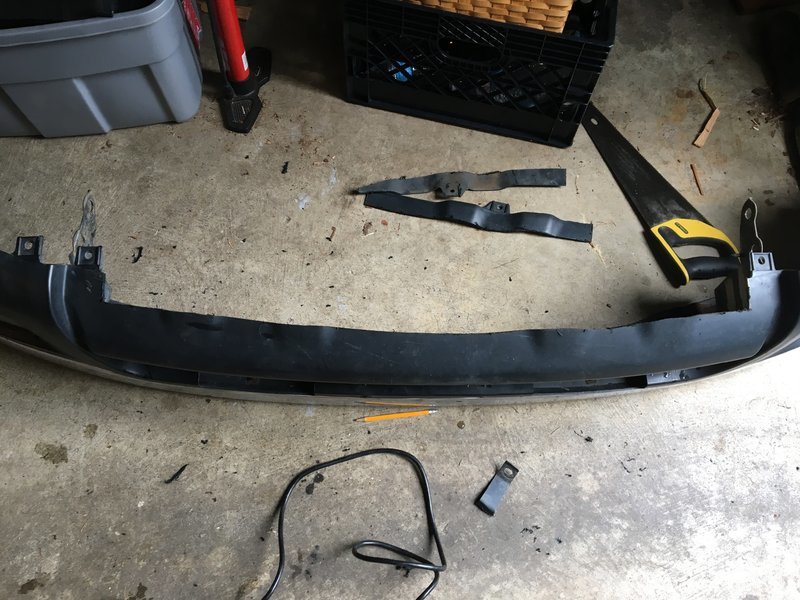

    A substantial amount of plastic was removed from the bottom of the front bumper

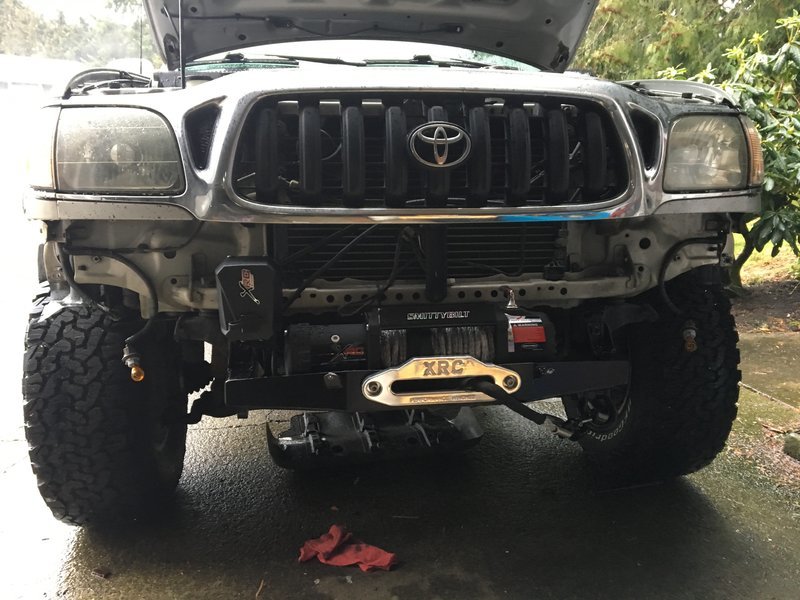

    The winch was installed into the mount and connected

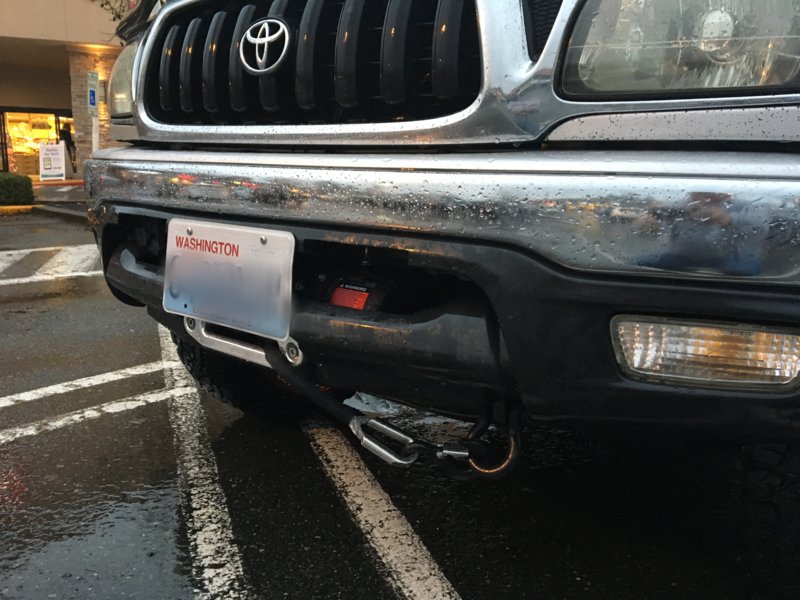

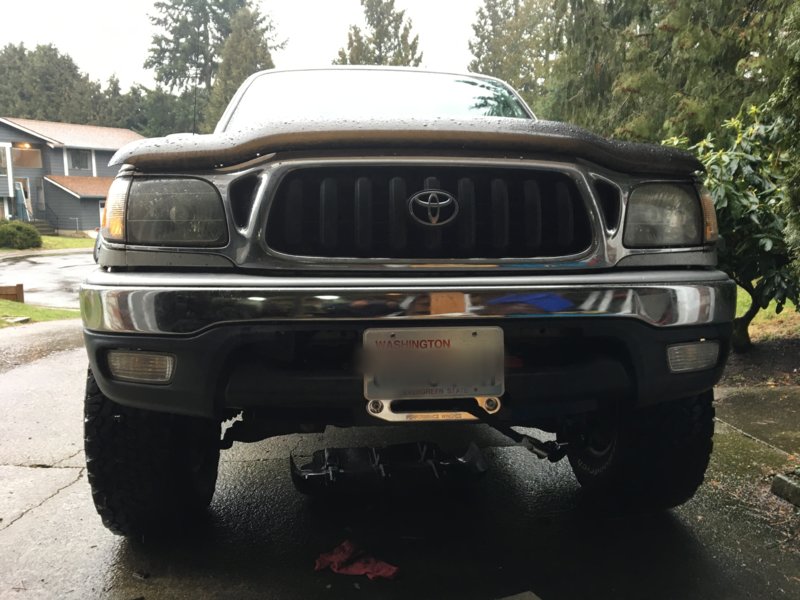

    The bumper was reattached and skid plate remounted. In all, it took about 5 hours to complete and I'm very satisfied with the results. It's a clean looking alternative if you're looking to keep a stock look. The winch used was a Smittybilt 98495 XRC Synthetic Rope Aviary Photo_131291794830568154.jpg Aviary Photo_131291785794276739.jpg

  2. Jan 17, 2017 at 7:00 PM
    #2
    cruiserguy

    cruiserguy Well-Known Member

    Joined:
    Jul 31, 2016
    Member:
    #193416
    Messages:
    8,610
    Gender:
    Male
    First Name:
    Elijah
    SLC
    Vehicle:
    2000 ext cab, 2.7L, auto, 4x4
    Looks awesome, brother. Looks very good.

    cruxofthebisquit and Dalandser like this.
  3. Jan 17, 2017 at 7:23 PM
    #3
    TacoREX

    TacoREX -TacoREX

    Joined:
    May 17, 2014
    Member:
    #130048
    Messages:
    193
    Gender:
    Male
    First Name:
    Evan
    NORCAL
    Vehicle:
    01 Taco 2.7 5spd
    2.5" lift, 285's, CB, DIY HiLift Bed Mount, AllPro Sliders,Warn
    Thanks for working with me on this! Glad to see it mounted and tucked in there so nicely!

    Dalandser likes this.
  4. Jan 17, 2017 at 10:25 PM
    #4
    lonelywanderer

    lonelywanderer Well-Known Member

    Joined:
    May 2, 2012
    Member:
    #78097
    Messages:
    77
    Gender:
    Male
    Oahu, Hawaii
    Vehicle:
    04 double cab 4wd
    Suppose to be stock
    Looks awesome! Idk why but i always thought the fairlead part came out of the opening on the valence not below it. Gonna have to put one of these on my wish list for when i finish up my suspension

  5. Jan 17, 2017 at 10:45 PM
    #5
    Mikeybuck

    Mikeybuck Well-Known Member

    Joined:
    Aug 20, 2014
    Member:
    #136572
    Messages:
    572
    Gender:
    Male
    First Name:
    Mike
    SW WA
    Vehicle:
    2018, 2010, Tacoma
    If I didn't have a plate bumper, this would be perfect. I've always liked the hidden winch mounts.

  6. Jan 18, 2017 at 4:36 AM
    #6
    BossFan

    BossFan Well-Known Member

    Joined:
    Jan 31, 2015
    Member:
    #147590
    Messages:
    64
    Gender:
    Male
    NJ
    Vehicle:
    03 TRD 4x4 X-Cab
    Looks great! I've been on the fence about a front plate bumper and really like the look of this hidden winch! Nice job!

  7. Jan 18, 2017 at 12:04 PM
    #7
    TurtleTruckTraveler

    TurtleTruckTraveler Well-Known Member

    Joined:
    Jun 17, 2016
    Member:
    #189849
    Messages:
    51
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    2002 White Extra Cab V6 4x4 TRD w/ Custom aluminum cabover shell
    Super clean. Well done tacorex. But the real question is how much does it bench? (First photo in thread)

    TacoREX, WildLand and iwagner [OP] like this.
  8. Jan 18, 2017 at 12:34 PM
    #8
    Ktaco

    Ktaco Well-Known Member

    Joined:
    Mar 25, 2009
    Member:
    #15130
    Messages:
    284
    Gender:
    Male
    New Brunswick, Canada
    Vehicle:
    03 Black 4x4 TRD SR5 Xtra cab.
    Grey wire mod, Deck plate mod, diff breather mod. K&N air filter. Toytec coilovers. AAL. Custom rear lift shackles. diff drop. Centerforce clutch. Superwinch LP8500 with custom "behind bumper" mount. Winch solenoid relocation with in cab winch control. 33x12x15 Duratracs. Aisin manual hub swap.
    Pretty much like what I built but more fancy. Except it looks like your sits under the frame. Clearance and approach angle was very important to me so I installed mine in line with the frame. Nice work.

  9. Jan 18, 2017 at 4:54 PM
    #9
    ekul310

    ekul310 Lurker

    Joined:
    Jun 1, 2016
    Member:
    #188443
    Messages:
    135
    Gender:
    Male
    First Name:
    Luke
    Pennsylvania
    Vehicle:
    2003 Black DC TRD
    32 BFG MTs 3" Lift OME 883s All pro leafs/5125s
    How many bolts holds this mount to the frame? It looks like 3 per side from the pics.

  10. Jan 19, 2017 at 8:22 AM
    #10
    iwagner

    iwagner [OP] Well-Known Member

    Joined:
    Dec 3, 2016
    Member:
    #203971
    Messages:
    51
    Gender:
    Male
    Washington
    Vehicle:
    2002 Tacoma 2.7l 5spd
    3 per side, two from the bottom and one from the front. Fits exactly where Toyota subframe was bolted in.

  11. Jan 19, 2017 at 8:25 AM
    #11
    iwagner

    iwagner [OP] Well-Known Member

    Joined:
    Dec 3, 2016
    Member:
    #203971
    Messages:
    51
    Gender:
    Male
    Washington
    Vehicle:
    2002 Tacoma 2.7l 5spd
    My clearances didn't change at all. The mount is slightly higher than the bottom of the front bumper and the skid plate mounts to it.

  12. Jan 19, 2017 at 8:09 PM
    #12
    gmr102

    gmr102 Well-Known Member

    Joined:
    Dec 24, 2015
    Member:
    #173068
    Messages:
    493
    Gender:
    Male
    Utah County
    Vehicle:
    2002 Silver Stepside TRD OR Ext Cab V6
    This is awesome. I love the idea of not having the winch add another 10 feet (exaggeration I know but that is what it feels like) to the front of my truck. adding to the list of mods I want.

  13. Jan 22, 2017 at 7:40 AM
    #13
    02Taco4x4Trd

    02Taco4x4Trd Member

    Joined:
    Sep 30, 2016
    Member:
    #198606
    Messages:
    24
    Gender:
    Male
    First Name:
    J
    Vehicle:
    02 Tacoma Ext-Cab V-6 4x4 5spd TRD
    2'' Suspension lift, Wheels n 31" tires
    How much? How much of the plastic valance did you have to cut out, all of the middle? I wonder if my Warn would fit, it looks a little bit taller but it might just be me. Will you take some more pictures when you get a chance and post them please?

  14. Jan 22, 2017 at 12:48 PM
    #14
    iwagner

    iwagner [OP] Well-Known Member

    Joined:
    Dec 3, 2016
    Member:
    #203971
    Messages:
    51
    Gender:
    Male
    Washington
    Vehicle:
    2002 Tacoma 2.7l 5spd
    I had to cut a 33" long and 2" high section out of the bottom and then slightly more to have the fair lead fully exposed in the middle, about anoth 1.5" x 7".

  15. Jan 23, 2017 at 5:31 AM
    #15
    02Taco4x4Trd

    02Taco4x4Trd Member

    Joined:
    Sep 30, 2016
    Member:
    #198606
    Messages:
    24
    Gender:
    Male
    First Name:
    J
    Vehicle:
    02 Tacoma Ext-Cab V-6 4x4 5spd TRD
    2'' Suspension lift, Wheels n 31" tires
    I am a little new to the forum but have been driving and working on trucks for 20 years. I really like the way yours turned out, Painting it black, etc... Made a lot of difference. If you don't mind just so I can see what it looks like up-close & Personal, would you take some more pictures for me like from the front, side, underneath, different angles and you can post them or email me at jwg212121@gmail.com I would really appreciate it. I have a winch right now but I don't was to mount it in front of the bumper on a big bracket that will get hung up on stuff and probably forget it's there when I go to park and bam, besides those weigh so much and I don't want to add much more weight to the truck. I have the 3.4 V-6, 4.10's Trd but I am used to V-8s This is the first V6 I have owned, I have owned 6 Chevys in the 8 years and one of them I kept for 3 of those years. I can really tell a difference, but I try to baby her but it just seems like when I have gotten down on it the couple times I did, I was a little disappointed. Sorry for going on and on.
    Thanks,
    Joe
    jwg212121@gmail.com

  16. Jan 23, 2017 at 5:48 PM
    #16
    iwagner

    iwagner [OP] Well-Known Member

    Joined:
    Dec 3, 2016
    Member:
    #203971
    Messages:
    51
    Gender:
    Male
    Washington
    Vehicle:
    2002 Tacoma 2.7l 5spd
  17. Jan 23, 2017 at 5:48 PM
    #17
    iwagner

    iwagner [OP] Well-Known Member

    Joined:
    Dec 3, 2016
    Member:
    #203971
    Messages:
    51
    Gender:
    Male
    Washington
    Vehicle:
    2002 Tacoma 2.7l 5spd

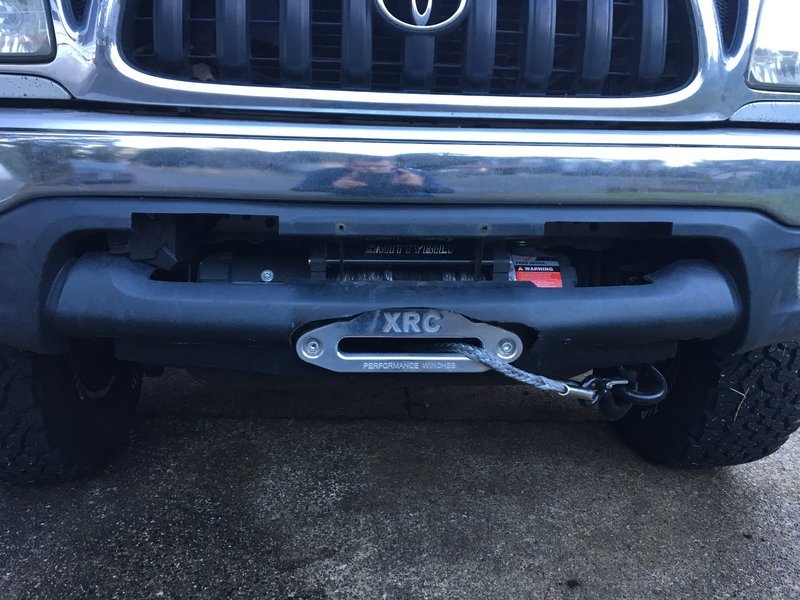

    Here's one, I'll post more tomorrow

  18. Jan 23, 2017 at 8:50 PM
    #18
    arifleman

    arifleman Well-Known Member

    Joined:
    Jul 14, 2012
    Member:
    #82626
    Messages:
    155
    Gender:
    Male
    Pacific NW
    Vehicle:
    2002 TRD 3.4L Ext Cab
    Wow, slick, real nice!

  19. Jan 24, 2017 at 4:40 AM
    #19
    Flat four 56

    Flat four 56 New Member

    Joined:
    Jan 24, 2017
    Member:
    #208467
    Messages:
    1
    Gender:
    Male
    First Name:
    Justin
    Vehicle:
    2004 Tacoma TRD double cab
    I am very interested in this. As far as I've seen, no one else produces one.

  20. Feb 7, 2017 at 9:31 AM
    #20
    02Taco4x4Trd

    02Taco4x4Trd Member

    Joined:
    Sep 30, 2016
    Member:
    #198606
    Messages:
    24
    Gender:
    Male
    First Name:
    J
    Vehicle:
    02 Tacoma Ext-Cab V-6 4x4 5spd TRD
    2'' Suspension lift, Wheels n 31" tires
    That looks really good. I have a Warn M6000 it looks to be about the same size as the Smitty so it shouldn't be a problem, I will just have to move the box/plug like you did. Mine sits on-top of the winch motor right now. If you get a chance to take some more pictures I would love to see it from a coupe different angles up close. Guess I'm going to have to start putting a little $$ away here and there so I can get one.
    Thanks,
    Joe
