2002 Tacoma SAS

Discussion in 'Solid Axle Suspension' started by Yia, Jan 8, 2014.

  1. Jan 8, 2014 at 4:41 PM
    #1
    Yia

    Yia [OP] Member

    Joined:
    Jan 8, 2014
    Member:
    #120178
    Messages:
    18
    Gender:
    Male
    Bakersfield
    Vehicle:
    02 Tacoma
    Bent the frame on my 2002 Toyota Tacoma so I decided to do a SAS. Found a Frame for $100 from a local guy that was rust free and straight.

    Before:

    Specs:
    2002 Tacoma Reg Cab 2.7L 5 speed

    Front suspension-
    TG 3in SAS Kit
    TG driver drop axle housing with Toyota elocker 5.29

    Rear suspension-
    Allpro Offroad 5in Tacoma lift
    TG rear axle housing with Toyota e locker 5.29

    Drivetrain-
    TG 4.7 Tacoma Dual Case

    [​IMG]
    [​IMG]

    In progress:

    Front suspension-
    4WheelUnderground front 3 link kit with 14in Radflo Shocks
    Passenger Drop 66 wms-wms Diamond Axle housing with Toyota elocker 5.29

    Rear suspension-

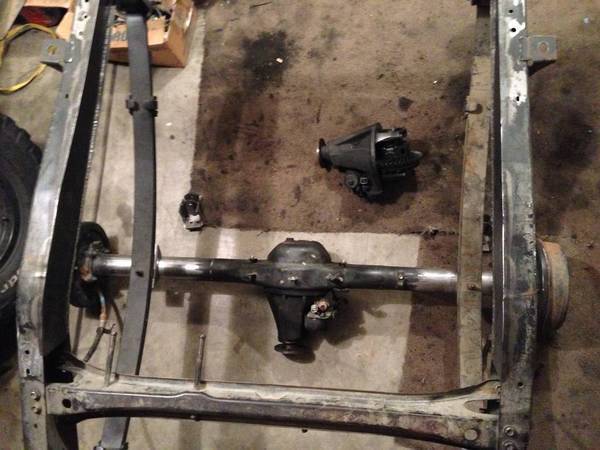

    Chevy 63 leaf spring
    2005 Toyota Tacoma Rear elocker Axle 5.29

    Drivetrain-
    Toyota dual gear driven transfer case with TG adapters

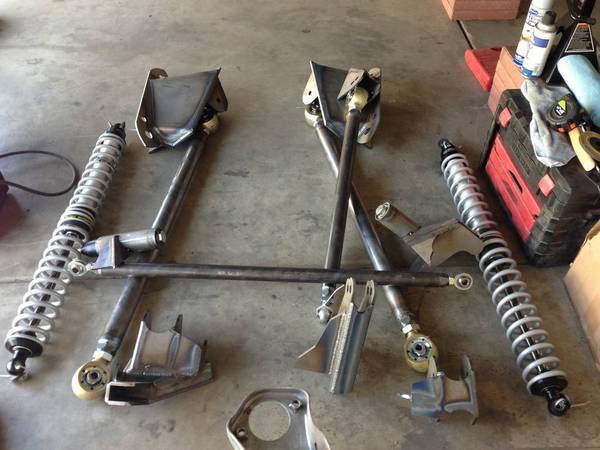

    4WheelUnderGround Front 3 Link Kit
    [​IMG]


    Mocking the steering box and lower links
    [​IMG]

  2. Jan 17, 2014 at 2:24 PM
    #2
    Yia

    Yia [OP] Member

    Joined:
    Jan 8, 2014
    Member:
    #120178
    Messages:
    18
    Gender:
    Male
    Bakersfield
    Vehicle:
    02 Tacoma

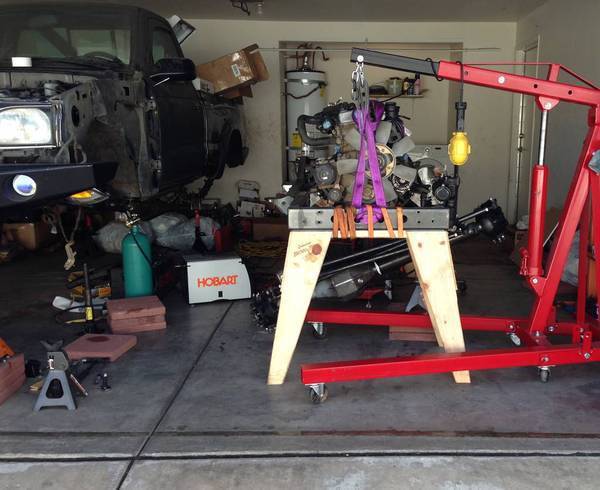

    Dropped the motor and transmission and welded some motor mounts.
    [​IMG]
    [​IMG]

  3. Jan 17, 2014 at 3:28 PM
    #3
    Supra TT

    Supra TT Solid Axle FTMFW!!

    Joined:
    Jan 3, 2011
    Member:
    #48645
    Messages:
    5,662
    Gender:
    Male
    First Name:
    Eric
    Lafayette, Indiana
    Vehicle:
    2000 SAS D44/Ford 9"
    SAS.. Need I say more.
    Nice looking truck!! That 4WU kit looks beautiful, as always. Should be pretty bad ass after it's all done.

    Got any more pictures from the initial swap?

  4. Jan 17, 2014 at 3:29 PM
    #4
    Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    16,106
    Gender:
    Male
    Damn goood work.

  5. Jan 17, 2014 at 3:34 PM
    #5
    foxhead

    foxhead Well-Known Member

    Joined:
    Dec 22, 2013
    Member:
    #119035
    Messages:
    198
    Gender:
    Male
    First Name:
    Andrew
    Bay Area, Ca and Bozeman, Montana for college
    Good looking shit

  6. Jan 17, 2014 at 3:59 PM
    #6
    Gear Head

    Gear Head Well-Known Member

    Joined:
    Oct 27, 2012
    Member:
    #89921
    Messages:
    3,766
    Gender:
    Male
    First Name:
    Jacob
    Winston Salem, NC
    Vehicle:
    82 Pickup
    The usual toyota parts..
    Subbed!

  7. Jan 17, 2014 at 9:19 PM
    #7
    Yia

    Yia [OP] Member

    Joined:
    Jan 8, 2014
    Member:
    #120178
    Messages:
    18
    Gender:
    Male
    Bakersfield
    Vehicle:
    02 Tacoma
    Thanks.

    The 4WU 3 link design looks amazing.

    Here are some pictures from the TG kit.
    When it was first completed. Sitting on 33 BFG KM2.
    [​IMG]
    [​IMG]
    With the new wheels and 35.
    [​IMG]

  8. Jan 17, 2014 at 9:23 PM
    #8
    Yia

    Yia [OP] Member

    Joined:
    Jan 8, 2014
    Member:
    #120178
    Messages:
    18
    Gender:
    Male
    Bakersfield
    Vehicle:
    02 Tacoma
    Yes its the Elite bumpers.

  9. Jan 20, 2014 at 9:56 AM
    #9
    Yia

    Yia [OP] Member

    Joined:
    Jan 8, 2014
    Member:
    #120178
    Messages:
    18
    Gender:
    Male
    Bakersfield
    Vehicle:
    02 Tacoma

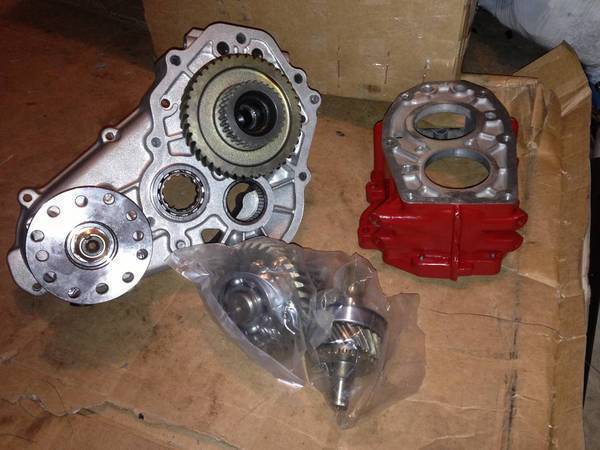

    4.7 Gears
    [​IMG]

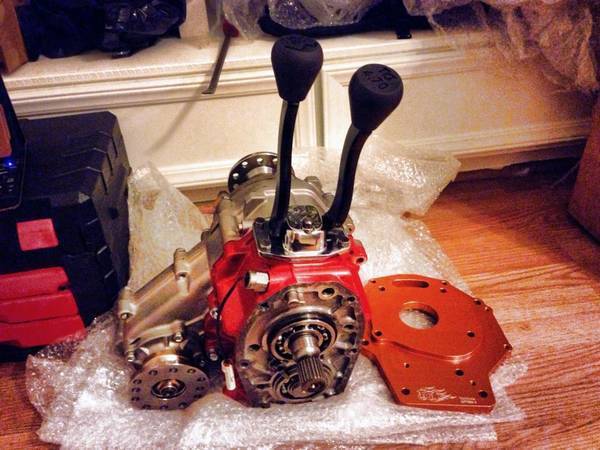

    Installed with TG twin shifter and adapter plate
    [​IMG]

  10. Jan 24, 2014 at 9:50 AM
    #10
    Yia

    Yia [OP] Member

    Joined:
    Jan 8, 2014
    Member:
    #120178
    Messages:
    18
    Gender:
    Male
    Bakersfield
    Vehicle:
    02 Tacoma

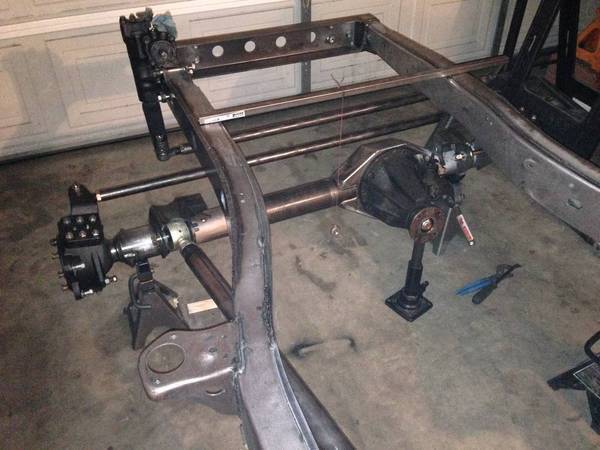

    Mounted the motor on the frame and started mocking the front 3 link kit.
    [​IMG]

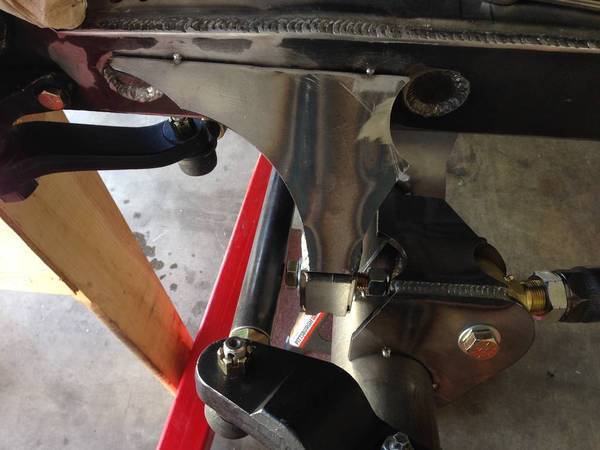

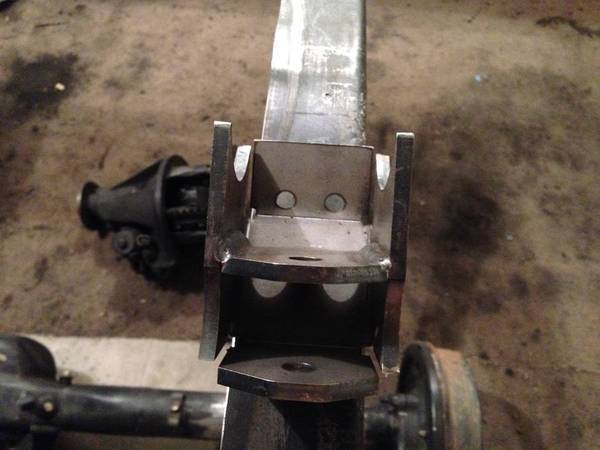

    Panhard Frame Mount
    [​IMG]

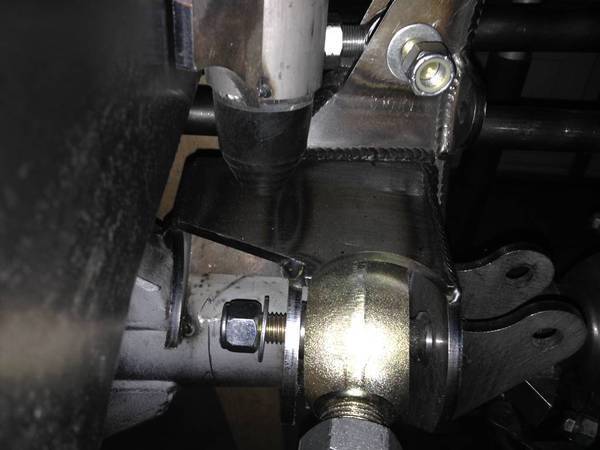

    Driver side bump stop
    [​IMG]
    Passenger side bump stop
    [​IMG]
    Going to install the cab, mock the coilovers and cycle the suspension checking for clearance next.

  11. Jan 24, 2014 at 1:57 PM
    #11
    99nmtaco

    99nmtaco Well-Known Member

    Joined:
    Sep 21, 2010
    Member:
    #43586
    Messages:
    300
    Gender:
    Male
    First Name:
    Patrick
    NM / VA
    Vehicle:
    99 Tacoma SR5
    3" lift -(Bilstein 5100 adjustable front with Eibach Coils, Bilstein 5100 rears w/ Deaver aal), B.A.M.F. BPV relocate bracket, Hella 500's with DDM Tuning HID mod, Aero 2525XL muffler "Freakin Sweet!", Custom built Linear Actuated Light Bar w 1-32" LED bar, Custom Rear Bumper with Swing Out Tire Carrier
    Wow! That 4WU kit looks awesome! Love your truck by the way cant wait to see the rest of the 3 link done! Did you just keep the trail gear frame plates and steering box mount to use with the 4WU kit?

  12. Jan 24, 2014 at 2:05 PM
    #12
    JLee

    JLee The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,419
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Looking good Subbed! :popcorn:

  13. Jan 27, 2014 at 8:21 AM
    #13
    Yia

    Yia [OP] Member

    Joined:
    Jan 8, 2014
    Member:
    #120178
    Messages:
    18
    Gender:
    Male
    Bakersfield
    Vehicle:
    02 Tacoma

    I purchased new TG frame plates and steering box mount.

  14. Jan 27, 2014 at 8:46 AM
    #14
    Yia

    Yia [OP] Member

    Joined:
    Jan 8, 2014
    Member:
    #120178
    Messages:
    18
    Gender:
    Male
    Bakersfield
    Vehicle:
    02 Tacoma

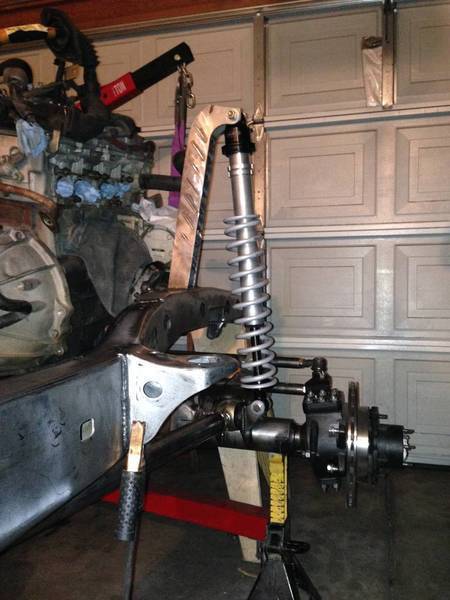

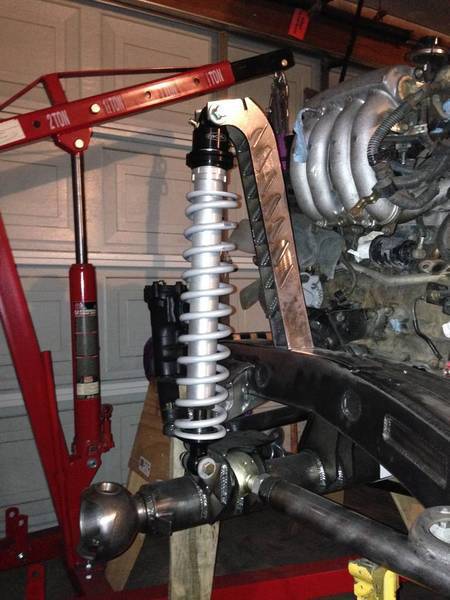

    Got the coilovers mocked up. I need to figure a way to transfer the cab over in this garage. Any ideas?

    Driver Side
    [​IMG]
    Passenger Side
    [​IMG]

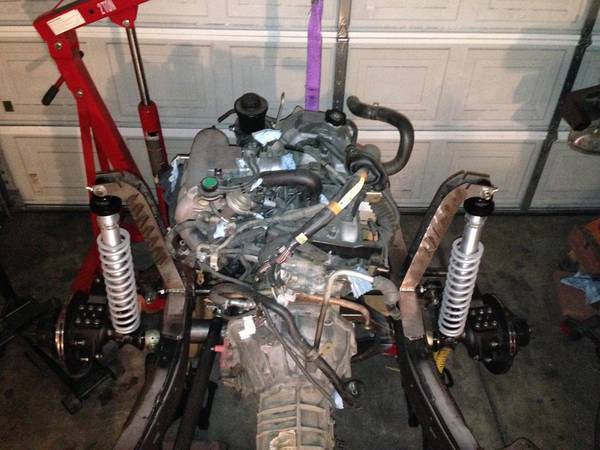

    Both
    [​IMG]

  15. Jan 28, 2014 at 1:57 PM
    #15
    99nmtaco

    99nmtaco Well-Known Member

    Joined:
    Sep 21, 2010
    Member:
    #43586
    Messages:
    300
    Gender:
    Male
    First Name:
    Patrick
    NM / VA
    Vehicle:
    99 Tacoma SR5
    3" lift -(Bilstein 5100 adjustable front with Eibach Coils, Bilstein 5100 rears w/ Deaver aal), B.A.M.F. BPV relocate bracket, Hella 500's with DDM Tuning HID mod, Aero 2525XL muffler "Freakin Sweet!", Custom built Linear Actuated Light Bar w 1-32" LED bar, Custom Rear Bumper with Swing Out Tire Carrier
    Haha dang moving that body over looks like its gonna be fun! Maybe just drop the new frame down as low as you can and slide the body over?

  16. Feb 4, 2014 at 8:40 AM
    #16
    Yia

    Yia [OP] Member

    Joined:
    Jan 8, 2014
    Member:
    #120178
    Messages:
    18
    Gender:
    Male
    Bakersfield
    Vehicle:
    02 Tacoma
    Boxed the frame and started mocking up the Chevy 63 in the rear. I decided to go with the RuffStuff Specialties 63" Chevy spring swap kit and the side mount shock brackets.
    Boxed the frame using the Trial Gear kit.
    [​IMG]

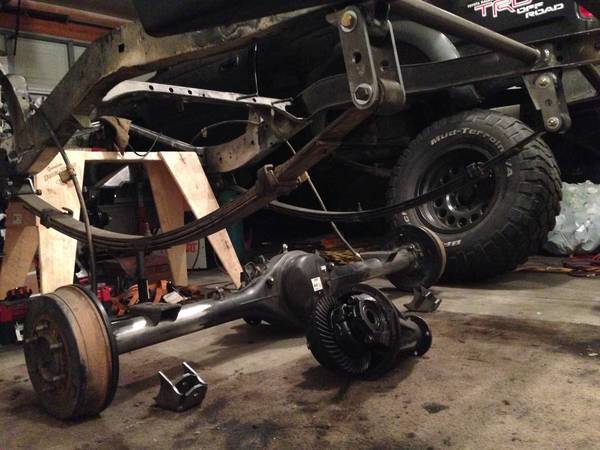

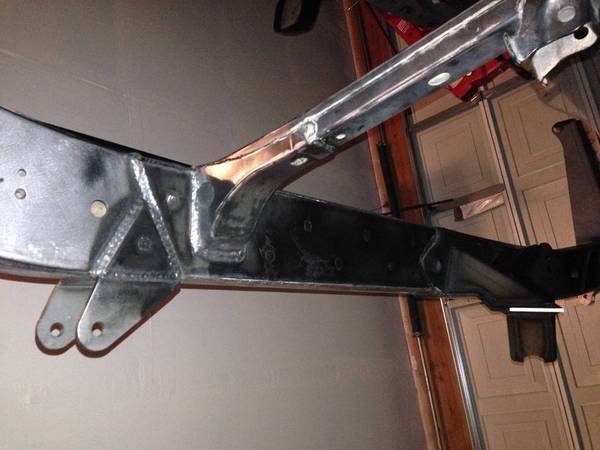

    For the Chevy 63 I moved the front hangers 7.5" forward and the rear shackle hangers in the original location.
    [​IMG]

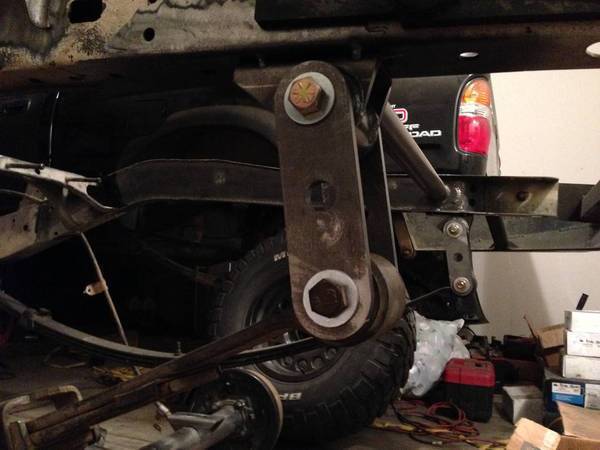

    Chevy 63 mocked up.
    [​IMG]
    [​IMG]
    Welded the RuffStuff Specialties axle shock mounts.
    [​IMG]
    [​IMG]

  17. Feb 4, 2014 at 8:40 AM
    #17
    PcBuilder14

    PcBuilder14 Well-Known Member

    Joined:
    Jun 19, 2011
    Member:
    #58522
    Messages:
    19,838
    Gender:
    Male
    First Name:
    Brent
    Missouri
    Vehicle:
    2003 Tacoma TRD/SR5 4x4
    Suspension: Front - Bilstein 5100's/Eibach coils Rear - All Pro Expo Leafs/Rear Icon Remote Reservoir Shocks Wheels & Tires: 33x12.50x15 KM2's/Summit Racing 85 Black 8 Series Wheels/15x8/3.75" Backspacing [U]Armor:[/U] - [URL="http://www.tacomaworld.com/forum/relentless-fabrication/152694-just-released-re
    :eek:

    How did I miss this!? Haha

  18. Feb 9, 2014 at 11:33 PM
    #18
    YotaOverAll

    YotaOverAll Run it

    Joined:
    Jul 9, 2012
    Member:
    #82254
    Messages:
    7,996
    Gender:
    Male
    First Name:
    Jessie
    Panama City, FL
    Vehicle:
    02 Prerunner SR5
    3" Toytec spacers, Bilstein 5100s in the back with add a leaf and overloads removed.
  19. Mar 2, 2014 at 12:02 AM
    #19
    Yia

    Yia [OP] Member

    Joined:
    Jan 8, 2014
    Member:
    #120178
    Messages:
    18
    Gender:
    Male
    Bakersfield
    Vehicle:
    02 Tacoma
    Welded the rock sliders. Working on the last leg.
    [​IMG]

  20. Mar 17, 2014 at 9:33 PM
    #20
    Yia

    Yia [OP] Member

    Joined:
    Jan 8, 2014
    Member:
    #120178
    Messages:
    18
    Gender:
    Male
    Bakersfield
    Vehicle:
    02 Tacoma

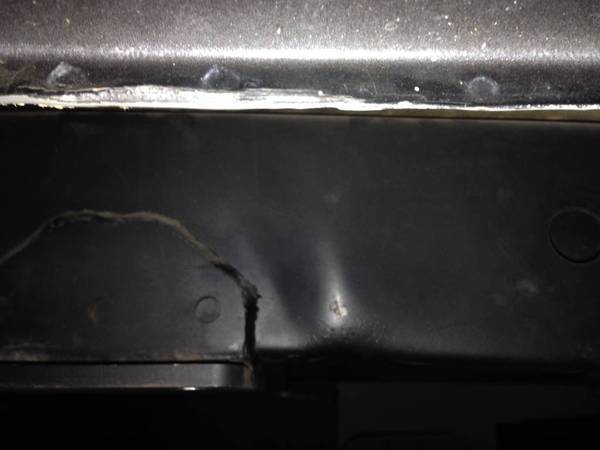

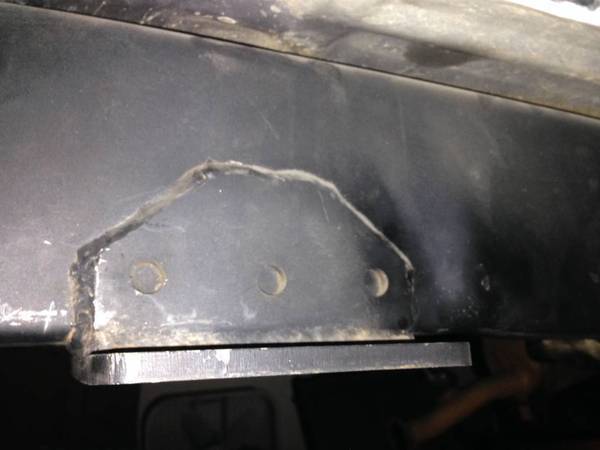

    Old bent frame.
    [​IMG]
    [​IMG]
    I decided to plate the inside and outside of the frame with 3/16 steel to prevent the above from happening again.
    [​IMG]
