2003 Tacoma frame rust repair

Discussion in '1st Gen. Tacomas (1995-2004)' started by BossFan, Dec 24, 2020.

  1. Dec 24, 2020 at 3:48 PM
    #1
    BossFan

    BossFan [OP] Well-Known Member

    Joined:
    Jan 31, 2015
    Member:
    #147590
    Messages:
    228
    Gender:
    Male
    First Name:
    Frank
    NJ
    Vehicle:
    03 TRD 4x4 X-Cab
    Tundra brakes Bilstein 5100s OME springs

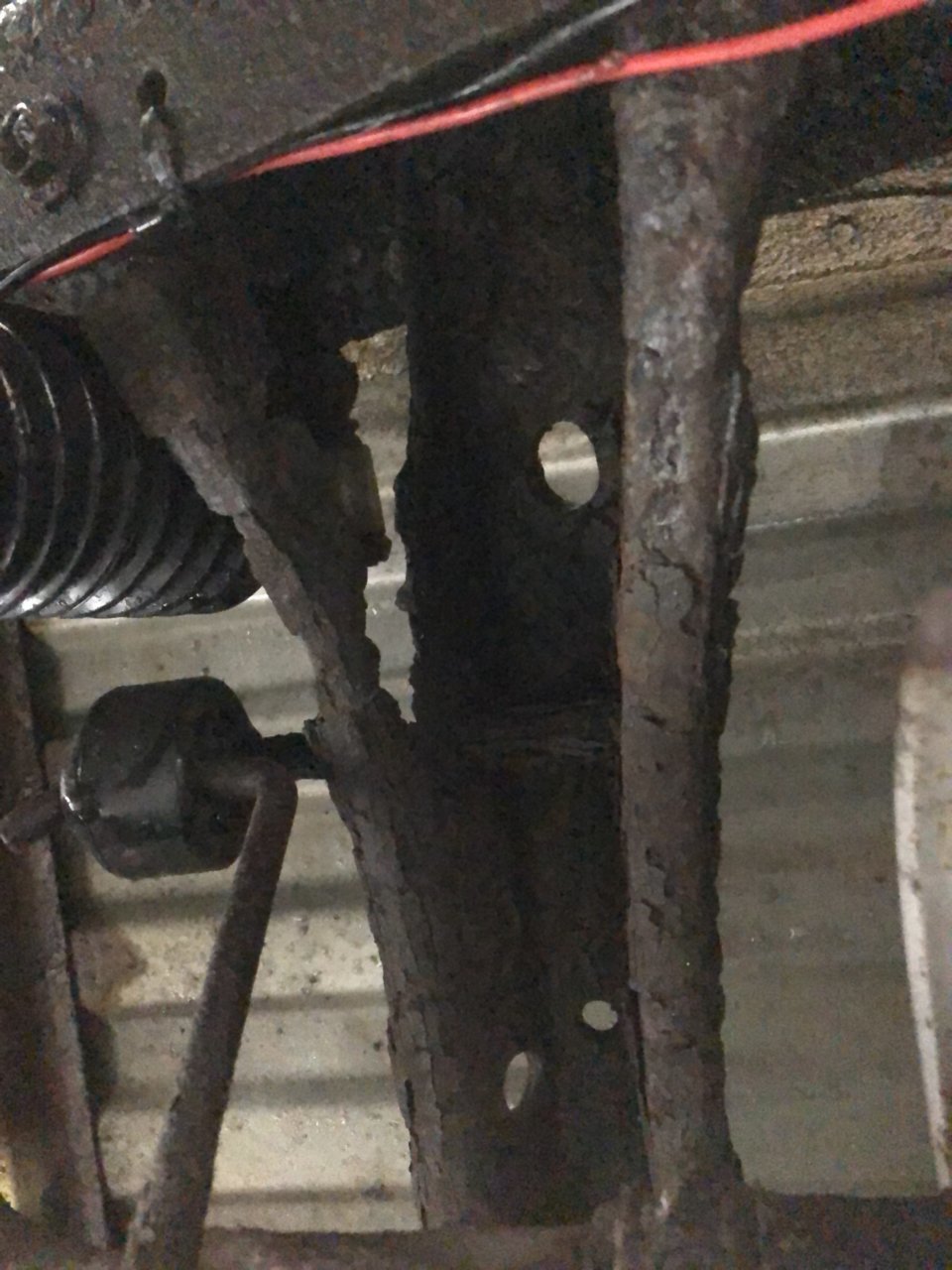

    A couple months back I put a rear-view camera/mirror in my ‘03 XC. When I was running the wires along the frame rail, I noticed the the crossmember near where the rear shocks are was rusted through pretty bad. I ordered a new one from ToyotaAtlanta and it finally got here last week. I also ordered new bed bolts. I’m off from work next week and was going to remove the bed and do the crossmember swap, but I started thinking should I also replace anything else while I have the bed off? Gas tank straps? Fuel pump, study like that? Here’s what the crossmember rust looks like



    I noticed that the rear driveshFt has rust in it? Should this be repaired/replaced?

    And lastly, in reading the ‘how to’ on removing the bed, it was suggested to drop the spare. How do you get the bar that holds the spare in place to turn? I’m assuming that’s how the spare comes down.

    Thanks!

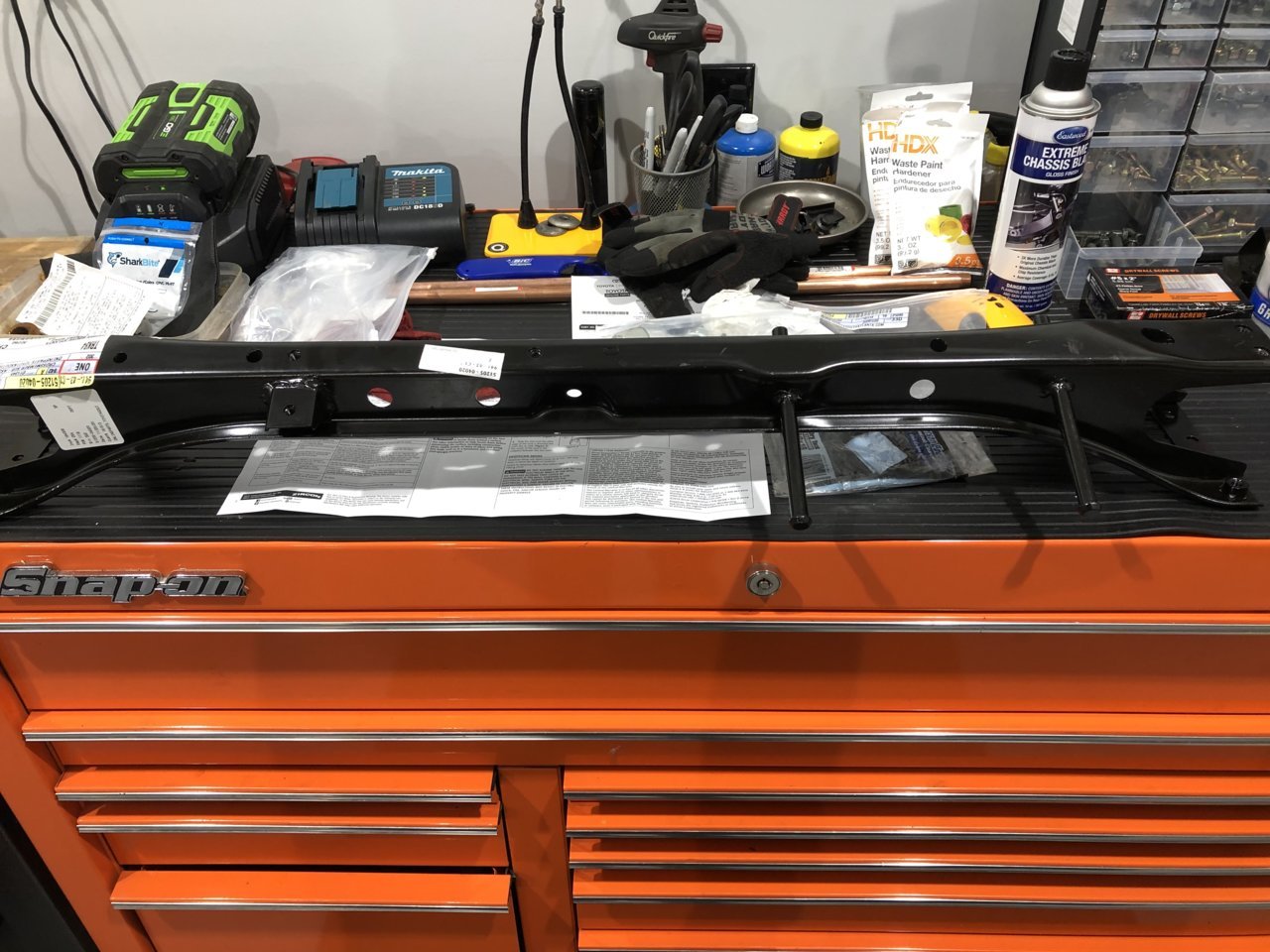

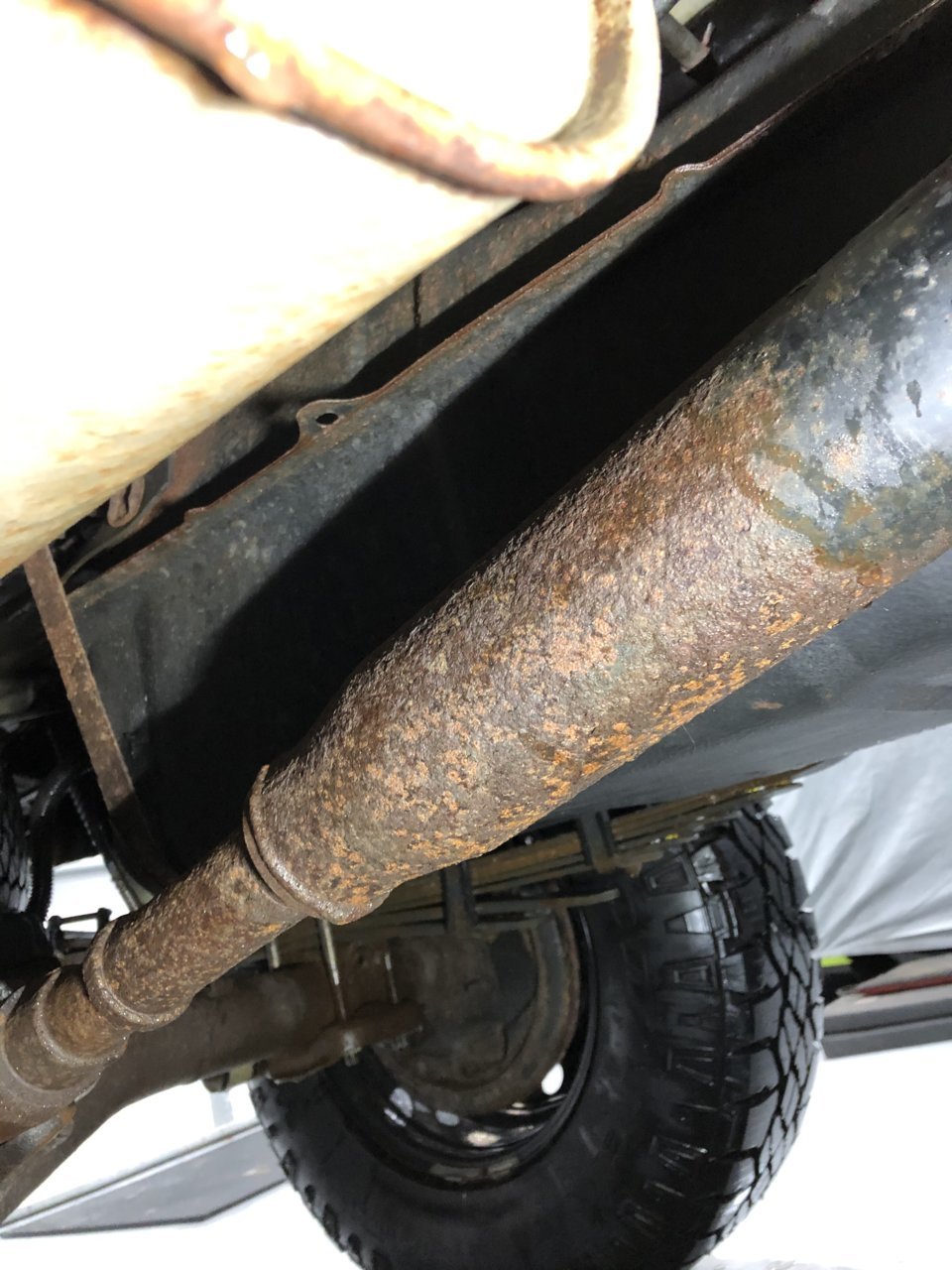

    New crossmember


    Attached Files:

  2. Dec 24, 2020 at 3:52 PM
    #2
    TheFang

    TheFang No Big Deal

    Joined:
    Jul 15, 2014
    Member:
    #133985
    Messages:
    2,273
    Gender:
    Male
    SoCal
    Vehicle:
    Tacoma TRD Sport
    TRD Exhaust, URD Short Shift, TRD Supercharger, Hellwig rear sway bar, TWM shift knob, limo tint, URD Y-pipe, URD LT Headers, URD Rear O2 Sim, Custom tube front and rear bumpers, LED spot pods, K&N CAI
    There should be a small window in your back bumper by the license plate. Through it you access the crank that lowers the spare. In your tire changing kit are the extensions used to crank it down.

    If you dont have a window, you access it in the crack between your rear bumper and the tailgate.

    TRDSport10 likes this.
  3. Dec 24, 2020 at 4:07 PM
    #3
    Black DOG Lila

    Black DOG Lila Well-Known Member

    Joined:
    Jun 14, 2019
    Member:
    #296344
    Messages:
    6,880
    Virginia
    Vehicle:
    2003 Tacoma SR5 2.7 5 speed 4WD
    Stock. EZ pass.Dump pass.Inspection sticker.Convict printed lic.plates.FG cap.

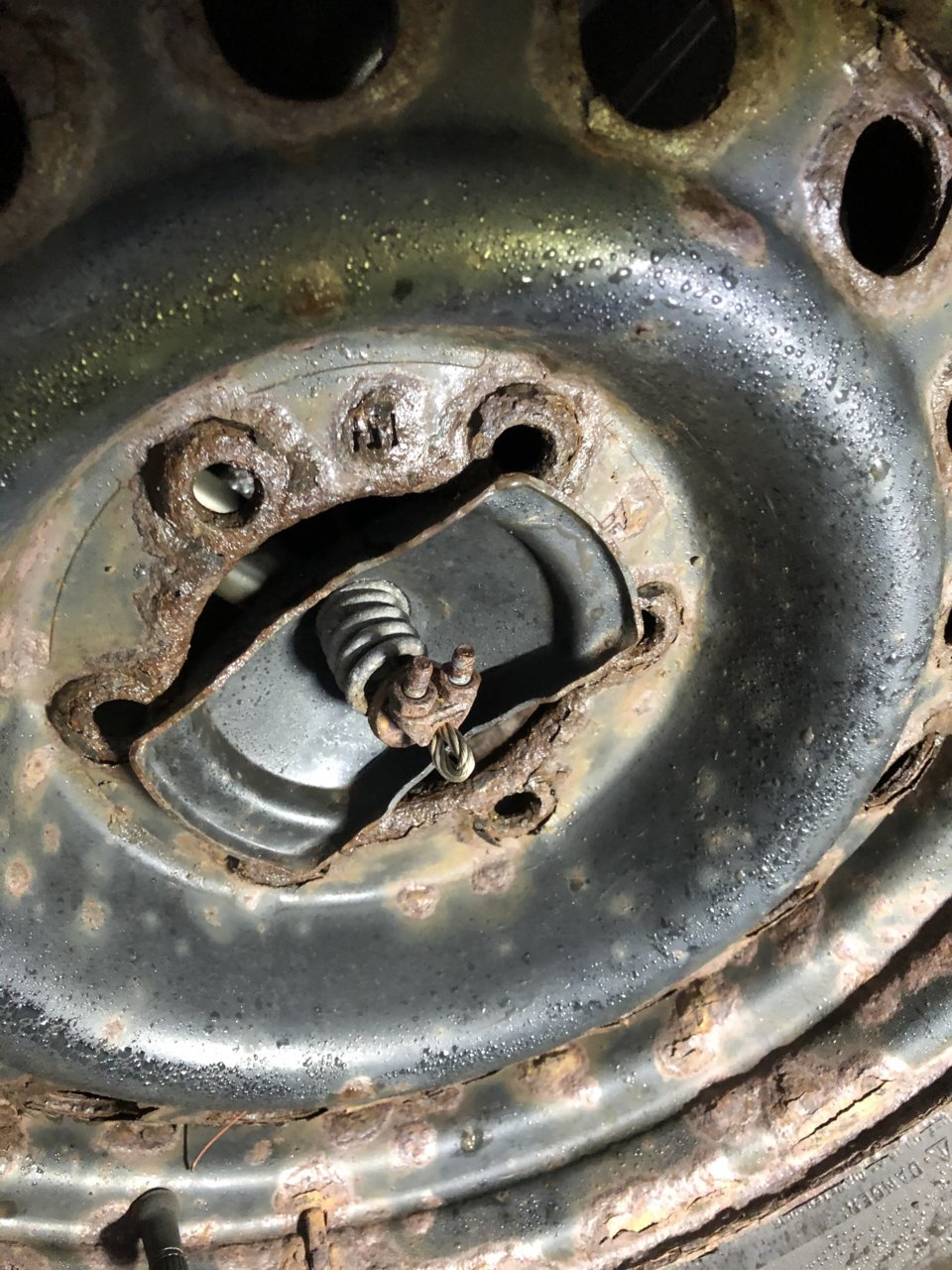

    You should have a jack kit with folding crank that fits between middle of rear bumper and bottom of tailgate. The round end goes in there and into a slot above spare to crank down the spare.

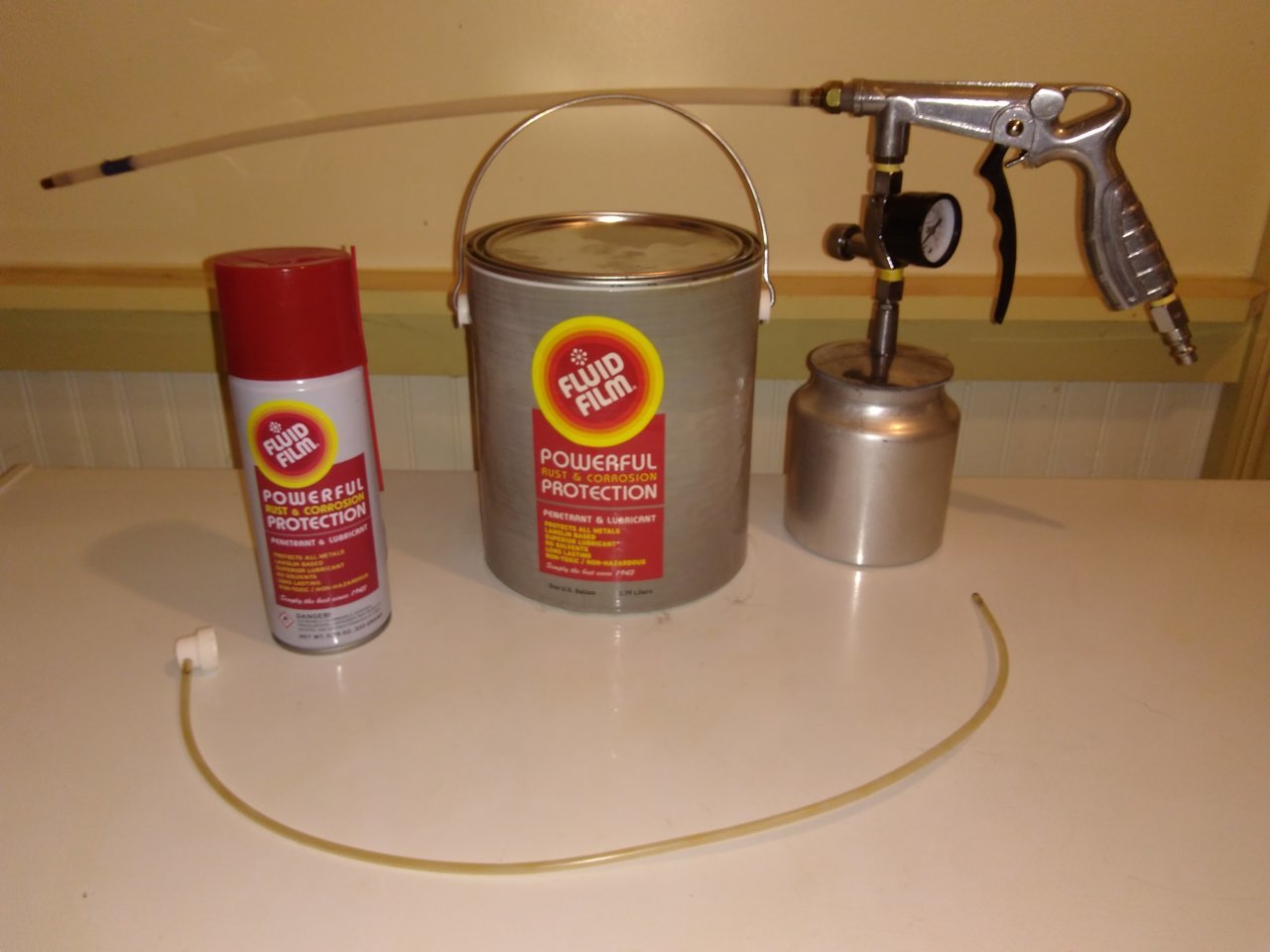

    Looks like a good time to hammer test the frame for rust through. With bed off is time for needle gun, Coroseal and paint frame. Top with Fluid Film inside and outside of FrameIMG_20191008_145233266.jpg

    TRDSport10 likes this.
  4. Dec 24, 2020 at 4:08 PM
    #4
    0xDEADBEEF

    0xDEADBEEF Segmentation Fault (Core Dumped)

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    9,410
    Kansas City
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles, extra metal.
    You're going want to inspect everything under there with a hammer, there's gonna be more rust.


    Also how much did that cross member run ya?

    Bleep100 likes this.
  5. Dec 24, 2020 at 4:11 PM
    #5
    BossFan

    BossFan [OP] Well-Known Member

    Joined:
    Jan 31, 2015
    Member:
    #147590
    Messages:
    228
    Gender:
    Male
    First Name:
    Frank
    NJ
    Vehicle:
    03 TRD 4x4 X-Cab
    Tundra brakes Bilstein 5100s OME springs
    Thanks everyone. This frame was replaced (original owner had it done by Toyota - I am second owner). Not that it matters. Just wanted to let you know that this wasn’t original frame.

    how do I hammer test? Is it literally tapping in frame with ball peen hammer?

  6. Dec 24, 2020 at 4:14 PM
    #6
    0xDEADBEEF

    0xDEADBEEF Segmentation Fault (Core Dumped)

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    9,410
    Kansas City
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles, extra metal.
    If you tap on a solid part, then a soft part, you should be able to hear difference. The rusted bits tend to sound dead and less ringy.

    Or you can break out the punch and see where it dents or goes through.

    TRDSport10 and Black DOG Lila like this.
  7. Dec 24, 2020 at 4:16 PM
    #7
    Black DOG Lila

    Black DOG Lila Well-Known Member

    Joined:
    Jun 14, 2019
    Member:
    #296344
    Messages:
    6,880
    Virginia
    Vehicle:
    2003 Tacoma SR5 2.7 5 speed 4WD
    Stock. EZ pass.Dump pass.Inspection sticker.Convict printed lic.plates.FG cap.
    Yes, hit with ball. If it rings=good
    If it thuds =Bad
    Ball goes through= OH SHIT

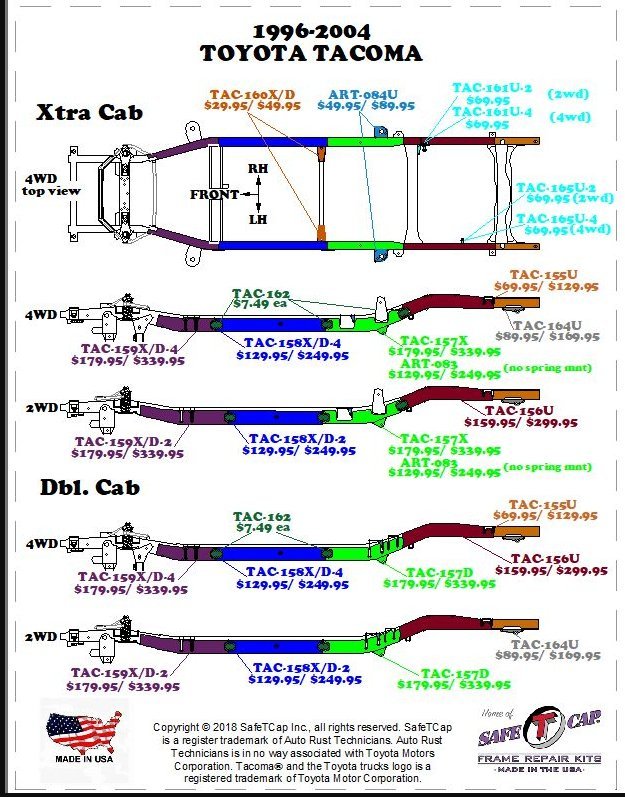

    Shop here and buy a flux core MIG Welder.upload_2020-1-29_20-32-46.jpg

    TRDSport10 and Key-Rei like this.
  8. Dec 24, 2020 at 4:20 PM
    #8
    Black DOG Lila

    Black DOG Lila Well-Known Member

    Joined:
    Jun 14, 2019
    Member:
    #296344
    Messages:
    6,880
    Virginia
    Vehicle:
    2003 Tacoma SR5 2.7 5 speed 4WD
    Stock. EZ pass.Dump pass.Inspection sticker.Convict printed lic.plates.FG cap.
    Replacement frames left untreated rusted as bad as original frames.
    Good luck

  9. Dec 24, 2020 at 5:24 PM
    #9
    BossFan

    BossFan [OP] Well-Known Member

    Joined:
    Jan 31, 2015
    Member:
    #147590
    Messages:
    228
    Gender:
    Male
    First Name:
    Frank
    NJ
    Vehicle:
    03 TRD 4x4 X-Cab
    Tundra brakes Bilstein 5100s OME springs
    Thanks everyone. I have a Millermatic MIG welder. Funny, I just posted over on the 1st Gen Bumper thread that I finally found a winch bumper I like, and was all set to pull the trigger, but now I’m wondering if I should wait until after I get the bed off the truck and do this hammer test. That bumper was going to run a little over $2000 but I may need that cash elsewhere. Ugh.

  10. Dec 24, 2020 at 5:48 PM
    #10
    Black DOG Lila

    Black DOG Lila Well-Known Member

    Joined:
    Jun 14, 2019
    Member:
    #296344
    Messages:
    6,880
    Virginia
    Vehicle:
    2003 Tacoma SR5 2.7 5 speed 4WD
    Stock. EZ pass.Dump pass.Inspection sticker.Convict printed lic.plates.FG cap.
    Good plan :thumbsup:

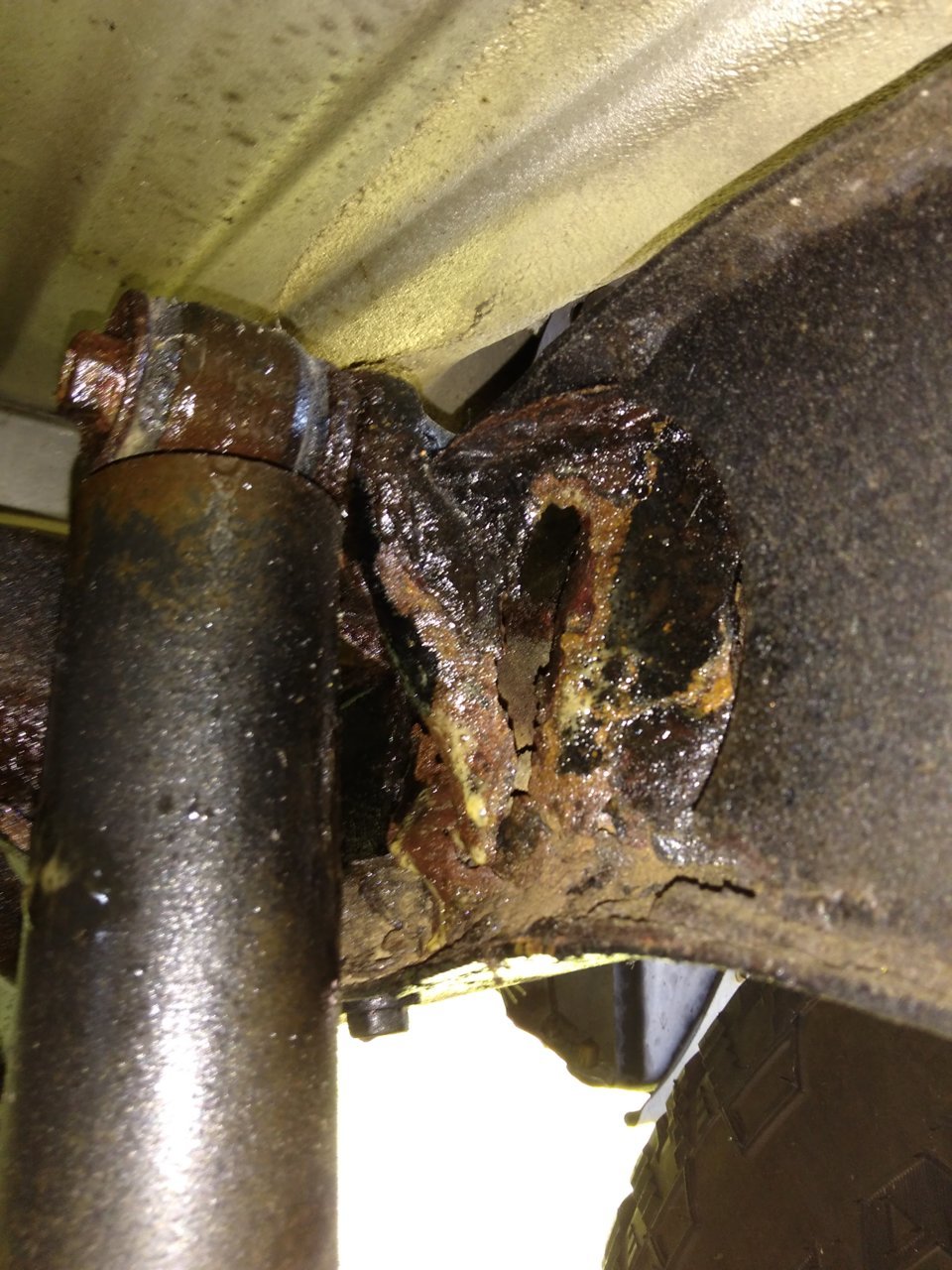

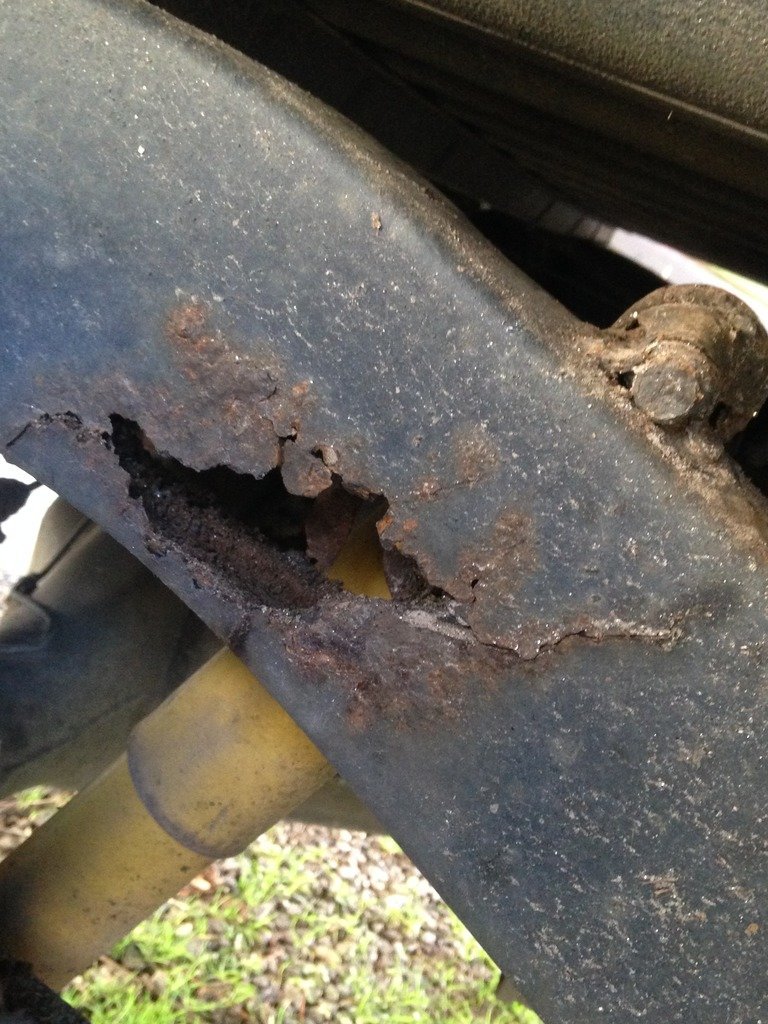

    Rust out prone areas are passenger side rear shock mount, area by catalytic converter and fuel tank.

    IMG_20200419_111719027.jpg 2015-12-03 14.39.17_zpsfcezohib_7cb4c29fbd48c958e8ff26fbcc412b65c59ac690.jpg

    Last edited: Dec 24, 2020
  11. Dec 24, 2020 at 6:05 PM
    #11
    BossFan

    BossFan [OP] Well-Known Member

    Joined:
    Jan 31, 2015
    Member:
    #147590
    Messages:
    228
    Gender:
    Male
    First Name:
    Frank
    NJ
    Vehicle:
    03 TRD 4x4 X-Cab
    Tundra brakes Bilstein 5100s OME springs
    The crossmember was $240.

    1997tacomav6 and 0xDEADBEEF like this.
  12. Dec 24, 2020 at 6:10 PM
    #12
    BossFan

    BossFan [OP] Well-Known Member

    Joined:
    Jan 31, 2015
    Member:
    #147590
    Messages:
    228
    Gender:
    Male
    First Name:
    Frank
    NJ
    Vehicle:
    03 TRD 4x4 X-Cab
    Tundra brakes Bilstein 5100s OME springs
    Ok thanks. What about the rust on the driveshaft. Is that a problem?

    TRDSport10 and Black DOG Lila like this.
  13. Dec 24, 2020 at 6:14 PM
    #13
    Black DOG Lila

    Black DOG Lila Well-Known Member

    Joined:
    Jun 14, 2019
    Member:
    #296344
    Messages:
    6,880
    Virginia
    Vehicle:
    2003 Tacoma SR5 2.7 5 speed 4WD
    Stock. EZ pass.Dump pass.Inspection sticker.Convict printed lic.plates.FG cap.
    Wouldn't hurt to wire brush, convert rust with Coroseal and top coat with Rust-Oleum black farm enamel.
    If it's not causing vibrations now it should be ok, keep the Ujoints zerks lubed at oil changes.

    TRDSport10 and slander like this.
  14. Dec 24, 2020 at 6:18 PM
    #14
    Black DOG Lila

    Black DOG Lila Well-Known Member

    Joined:
    Jun 14, 2019
    Member:
    #296344
    Messages:
    6,880
    Virginia
    Vehicle:
    2003 Tacoma SR5 2.7 5 speed 4WD
    Stock. EZ pass.Dump pass.Inspection sticker.Convict printed lic.plates.FG cap.
    TRDSport10 likes this.
  15. Dec 24, 2020 at 6:19 PM
    #15
    MoreMonkey

    MoreMonkey Well-Known Member

    Joined:
    Apr 12, 2013
    Member:
    #101975
    Messages:
    54
    Gender:
    Male
    Maine
    Vehicle:
    red, stock, TRD
    Bilstein 5100
    Be ready to replace brake lines. The line running from the master cylinder to the load valve on my 2003 was crusty, and when I gave it a pass with a wire brush it started seeping brake fluid. It’s super easy to access when the bed is off. I also replaced the tank strap and shocks while my bed was off for rust repair.

    TRDSport10 and Black DOG Lila like this.
  16. Dec 24, 2020 at 6:43 PM
    #16
    BossFan

    BossFan [OP] Well-Known Member

    Joined:
    Jan 31, 2015
    Member:
    #147590
    Messages:
    228
    Gender:
    Male
    First Name:
    Frank
    NJ
    Vehicle:
    03 TRD 4x4 X-Cab
    Tundra brakes Bilstein 5100s OME springs
    Thanks. I definitely plan on keeping this truck. The wife makes fun of me because I like this truck so much. She thinks I should just get a new one.

    I replaced the shocks (with new Bilsteins) and the rear springs last summer. So I’m good there.

  17. Dec 24, 2020 at 6:52 PM
    #17
    Black DOG Lila

    Black DOG Lila Well-Known Member

    Joined:
    Jun 14, 2019
    Member:
    #296344
    Messages:
    6,880
    Virginia
    Vehicle:
    2003 Tacoma SR5 2.7 5 speed 4WD
    Stock. EZ pass.Dump pass.Inspection sticker.Convict printed lic.plates.FG cap.
    I know the feeling well. I was told the same thing 10 years ago. I love my Taco more with each passing decade.
    The older they are the more they are worth and harder to part with.IMG_20191007_131834626.jpg

    TRDSport10 likes this.
  18. Dec 24, 2020 at 7:37 PM
    #18
    BossFan

    BossFan [OP] Well-Known Member

    Joined:
    Jan 31, 2015
    Member:
    #147590
    Messages:
    228
    Gender:
    Male
    First Name:
    Frank
    NJ
    Vehicle:
    03 TRD 4x4 X-Cab
    Tundra brakes Bilstein 5100s OME springs
    Black DOG Lila likes this.
  19. Dec 24, 2020 at 7:41 PM
    #19
    BossFan

    BossFan [OP] Well-Known Member

    Joined:
    Jan 31, 2015
    Member:
    #147590
    Messages:
    228
    Gender:
    Male
    First Name:
    Frank
    NJ
    Vehicle:
    03 TRD 4x4 X-Cab
    Tundra brakes Bilstein 5100s OME springs
    Nice. What topper is that?

    Black DOG Lila likes this.
  20. Dec 24, 2020 at 7:51 PM
    #20
    Black DOG Lila

    Black DOG Lila Well-Known Member

    Joined:
    Jun 14, 2019
    Member:
    #296344
    Messages:
    6,880
    Virginia
    Vehicle:
    2003 Tacoma SR5 2.7 5 speed 4WD
    Stock. EZ pass.Dump pass.Inspection sticker.Convict printed lic.plates.FG cap.
    It's a Century
    With locking side windoors to access shelved bins, sliding and lift open front, locking rear hatch.
    All dark smoked glass.
    $675 new in 2004

    TRDSport10 likes this.
