2003 Tacoma Lighting guide

Discussion in 'Lighting' started by ST77, Apr 16, 2009.

Page 1 of 2
  1. Apr 16, 2009 at 10:59 AM
    #1
    ST77

    #1
    ST77 [OP] Wandering doesn't mean you're lost

    Joined:
    Apr 16, 2009
    Member:
    #16048
    Messages:
    2,850
    Gender:
    Male
    First Name:
    Brian
    Sandy, Or
    Vehicle:
    2018 TRD OR DCSB
    Bone Stock
    Hello!
    I'm looking for a lighting guide for my 2003 Tacoma 4x4, that would include the bulb size's, quantity, placement and so on... I have a few interior lights out (dash, dome, shifter) and i've decided to roll through the entire rig and replace all. Thank you in advance for any assistance you could provide!

    ST77, Apr 16, 2009
    #1
  2. Apr 22, 2009 at 12:04 PM
    #2
    Bre2tSco2t

    #2
    Bre2tSco2t Well-Known Member

    Joined:
    Mar 4, 2009
    Member:
    #14310
    Messages:
    98
    Gender:
    Male
    Alabama
    Bedrug, Access Limited Tonneau, Tailgate Clamp, Manual Pop&Lock Keyed and Painted to Match, Westin 3" Nerf Bars, 20" Chrome Wheels.
    I found this informaion for my 2004, I would think for the most part the info should work for your 2003.

    2004 Toyota Tacoma Car Replacement Light Bulb Sizes

    Low Beam Headlight Bulb Size: 9003/HB2
    High Beam Headlight Bulb Size: 9003/HB2
    Parking Light Bulb Size: 168 or 4157NALL
    Front Turn Signal Bulb Size: 4157NALL
    Rear Turn Signal Bulb Size: 1156
    Tail Light Bulb Size: 1157
    Stop Light Bulb Size: 1157
    High Mount Stop Light Bulb Size: 168
    License Plate Bulb Size: 194
    Back Up Light Bulb Size: 921
    Front Sidemarker Bulb Size: 168
    Dome Light Bulb Size:
    $11 DE3175 31mm LED Interior Dome Light Map Bulb Door Courtesy for Car 1.22" DE3021 DE3022 Festoon Bulbs White Pack of 4
    DE3175 or 10W
    Step/Courtesy Light Bulb Size: DE3021 or DE3022
    Instrument-General Bulb Size: 194


    Hope this helps.

    Bre2tSco2t, Apr 22, 2009
    #2
    LITacoQ, 70m4h4wk and buckmaster243 like this.
  3. Apr 22, 2009 at 12:23 PM
    #3
    MiikeyD

    #3
    MiikeyD The Green Machine

    Joined:
    Jul 6, 2007
    Member:
    #2017
    Messages:
    1,432
    Gender:
    Male
    First Name:
    Mike
    Upland, CA
    Vehicle:
    Green Prerunner DC 2.7L
    Suspension / Wheels / Tires 3.5" Fabtech lift w/ AAL 265/75/16 BFG A/T American Racing Baja Audio Alpine HU CDA-9886 Kicker DS650 Z-Edition 1000W Memphis M3 US Amps 4000W 2.5Farad Cap Lighting 6000K HID 2 Hella 500FF 2 Aux Bed Lights 2 Aux Driving Lights Performance Volant CAI Flomaster Super 44 Doug Thorley Long Tube headers (coming soon) NGK Iridium Sparkplugs Accessories Scanguage II Cobra LTD27-NW with 3' Firestik Radio Shack Triple Trunking Scanner Harbor Freight Hi-Lift Cosmetics Flat Black Bumper Trim Flat Black Grill Surrounding with Satoshi Clear Corners Future Modifications (not specific) Longtravel w/ king shocks or fox Caged bed Shackles rear suspension. Fox / king shocks custom front bumper Custom Glassworks extreme kit for 01-04 (only have hood and passenger side.. need driver panel) Supercharger + 8port intake manifold optima yellow top battery remounted new rims caged interior rear bench removal 4 sparc
    use that guide and go to auto zone or something. they have bulbs there.

    MiikeyD, Apr 22, 2009
    #3
  4. Apr 22, 2009 at 1:58 PM
    #4
    ST77

    #4
    ST77 [OP] Wandering doesn't mean you're lost

    Joined:
    Apr 16, 2009
    Member:
    #16048
    Messages:
    2,850
    Gender:
    Male
    First Name:
    Brian
    Sandy, Or
    Vehicle:
    2018 TRD OR DCSB
    Bone Stock
    Thanks guys... I'm pretty sure the 2003 & 2004's are probably the closest. I've just really started with the easy ones... The Dome, map & such... I'm still unsure of how many bulbs it takes to illuminate the dash/instrument cluster?!? I've read so far that there's (2) 194's on a 2000 & (4) on a 2004, I better just pick up 4 just in case... Thanks again, this makes it much easier to pick up the bulbs at Autozone without having to wait at the parts counter forever!

    ST77, Apr 22, 2009
    #4
  5. Apr 22, 2009 at 10:01 PM
    #5
    humanoid

    #5
    humanoid bite me

    Joined:
    Jun 27, 2007
    Member:
    #1932
    Messages:
    2,727
    Gender:
    Male
    Sunny SoCal
    Vehicle:
    I had a '99 Xtra Cab PreRunner SR5 V6
    humanoid, Apr 22, 2009
    #5
  6. Apr 24, 2009 at 9:23 AM
    #6
    ST77

    #6
    ST77 [OP] Wandering doesn't mean you're lost

    Joined:
    Apr 16, 2009
    Member:
    #16048
    Messages:
    2,850
    Gender:
    Male
    First Name:
    Brian
    Sandy, Or
    Vehicle:
    2018 TRD OR DCSB
    Bone Stock
    Just FYI... The Instrument cluster is (4) WEDGE STYLE 194 bulbs... easy enough & I replaced them with PIAA super whites. The Heater/AC controls are a Toyota OEM bulb only and @ $5.00 a bulb i'm thinking I'll just replace the one that out! As I've already completed the Maps & Dome... But, for some reason I'm unable to find the step/courtesy bulb to replace?!? Is there anyone that knows where the placement of that bulb is?? Thank you in advance!

    ST77, Apr 24, 2009
    #6
  7. Apr 24, 2009 at 9:41 AM
    #7
    Bre2tSco2t

    #7
    Bre2tSco2t Well-Known Member

    Joined:
    Mar 4, 2009
    Member:
    #14310
    Messages:
    98
    Gender:
    Male
    Alabama
    Bedrug, Access Limited Tonneau, Tailgate Clamp, Manual Pop&Lock Keyed and Painted to Match, Westin 3" Nerf Bars, 20" Chrome Wheels.

    I seen that too about the step / courtesy light. I assume it is for lighted stepbar or running board. For it to be in the list, makes it appear that it was a factory option. But I don't know. I am not sure I have seen this on a Tacoma. But as soon as I say that, Someone will post a pic to proof me wrng. :D

    Bre2tSco2t, Apr 24, 2009
    #7
  8. Apr 24, 2009 at 9:49 AM
    #8
    humanoid

    #8
    humanoid bite me

    Joined:
    Jun 27, 2007
    Member:
    #1932
    Messages:
    2,727
    Gender:
    Male
    Sunny SoCal
    Vehicle:
    I had a '99 Xtra Cab PreRunner SR5 V6
    IIRC the courtesy/dome lights are the festoon type bulbs, 31mm I think.

    humanoid, Apr 24, 2009
    #8
  9. Apr 24, 2009 at 10:15 AM
    #9
    ST77

    #9
    ST77 [OP] Wandering doesn't mean you're lost

    Joined:
    Apr 16, 2009
    Member:
    #16048
    Messages:
    2,850
    Gender:
    Male
    First Name:
    Brian
    Sandy, Or
    Vehicle:
    2018 TRD OR DCSB
    Bone Stock
    I just can't find out where that bulb is on the truck to replace it... Do you know where it is??

    Thx

    ST77, Apr 24, 2009
    #9
  10. Apr 24, 2009 at 10:18 AM
    #10
    humanoid

    #10
    humanoid bite me

    Joined:
    Jun 27, 2007
    Member:
    #1932
    Messages:
    2,727
    Gender:
    Male
    Sunny SoCal
    Vehicle:
    I had a '99 Xtra Cab PreRunner SR5 V6
    The dome light is right above the rear view mirror, at least that's where it was on my '99, not so sure on your '03.

    humanoid, Apr 24, 2009
    #10
  11. Apr 24, 2009 at 10:32 AM
    #11
    ST77

    #11
    ST77 [OP] Wandering doesn't mean you're lost

    Joined:
    Apr 16, 2009
    Member:
    #16048
    Messages:
    2,850
    Gender:
    Male
    First Name:
    Brian
    Sandy, Or
    Vehicle:
    2018 TRD OR DCSB
    Bone Stock

    All the lighting guides I've read show a map light which I've already replaced both of those, they're right above the rear view. Then it shows the dome which I've already replaced and its obvious between the fron & rear seats... But, then it shows a step/courtesy as a seperate bulb & I can't find the damn thing in the cab anywhere!!:frusty: Maybe it's an option that my taco never came with!!:annoyed:

    ST77, Apr 24, 2009
    #11
  12. Apr 27, 2009 at 7:18 PM
    #12
    rpnkc

    #12
    rpnkc Member

    Joined:
    Apr 27, 2009
    Member:
    #16475
    Messages:
    11
    Gender:
    Male
    Kansas
    Vehicle:
    09 SR5 TRD 4x4
    rpnkc, Apr 27, 2009
    #12
  13. Apr 27, 2009 at 7:32 PM
    #13
    rpnkc

    #13
    rpnkc Member

    Joined:
    Apr 27, 2009
    Member:
    #16475
    Messages:
    11
    Gender:
    Male
    Kansas
    Vehicle:
    09 SR5 TRD 4x4

    FYI....lamps are measured by the diameter of the glass envelope ("bulb") portion, then by the watts (or amps), length is assumed/understood in the industry and not used as a qualifier. There are often slight variations in length based on manufacturer design and tolerances that usually have little or no effect on function or fit. The length part that is more critical is LCL, lamp center length, not important on festoon lamps, but many applications where centering in a reflector or optical path is important.

    Don't feel bad, your length qualifier is common and better than no info at all. :)

    rpnkc, Apr 27, 2009
    #13
  14. Feb 1, 2011 at 9:50 PM
    #14
    sir1123

    #14
    sir1123 Tacomas FTMFW!!!!

    Joined:
    Nov 15, 2010
    Member:
    #46216
    Messages:
    1,383
    Gender:
    Male
    First Name:
    John
    Charleston
    Vehicle:
    99 SR5 Prerunner, Black,3.4L
    3"Ebaich with 5100 Bilstiens, K&N cai, 5% 3M Tint, Magnaflow 18", Hella 500s with 35w 3000k hid retro, 33x9.5x15 BFG A/T
    what size bulbs do you use for the guage cluster not the check engine or any of those but the background color of your speed and such?

    sir1123, Feb 1, 2011
    #14
  15. Feb 2, 2011 at 11:44 AM
    #15
    ST77

    #15
    ST77 [OP] Wandering doesn't mean you're lost

    Joined:
    Apr 16, 2009
    Member:
    #16048
    Messages:
    2,850
    Gender:
    Male
    First Name:
    Brian
    Sandy, Or
    Vehicle:
    2018 TRD OR DCSB
    Bone Stock
    My 2003 uses (4) 194's...:cool:

    ST77, Feb 2, 2011
    #15
  16. Feb 7, 2014 at 9:36 PM
    #16
    blazeraider

    #16
    blazeraider New Member

    Joined:
    Feb 7, 2014
    Member:
    #122545
    Messages:
    1
    Gender:
    Male
    Sonora Ca
    Vehicle:
    03 PreRunner
    it is a light on the lower part of the doors, i think i remember seeing them on a friends 03 extra cab.

    blazeraider, Feb 7, 2014
    #16
  17. Jul 28, 2015 at 10:24 PM
    #17
    mack82

    #17
    mack82 New Member

    Joined:
    Jul 28, 2015
    Member:
    #160542
    Messages:
    1
    Gender:
    Male
    Vehicle:
    04 Toyota Tacoma base
    What is that light called on the back of the cab that lights up the bed of the truck?

    mack82, Jul 28, 2015
    #17
  18. Jul 29, 2015 at 9:09 AM
    #18
    fergyz

    #18
    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    739
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd
    cargo light - usually it is intergated into the High stop mount/3rd brake light. bulb should be the same as the others in the mount. Toyota didn't make a cargo light for the tacomas from 95 and on.... a feature no truck should ever be made without.

    Last edited: Jul 29, 2015
    fergyz, Jul 29, 2015
    #18
  19. Dec 30, 2017 at 10:09 PM
    #19
    03gldxcabtrd

    #19
    03gldxcabtrd 03 xcab gold 5speed TRD

    Joined:
    Aug 10, 2017
    Member:
    #226518
    Messages:
    123
    Gender:
    Male
    First Name:
    Jayme
    Salt Lake city
    Vehicle:
    03 gold extra cab trd
    6" in dash, 10" kicker powered sub, rhino liner, tko rims, Laffen tires

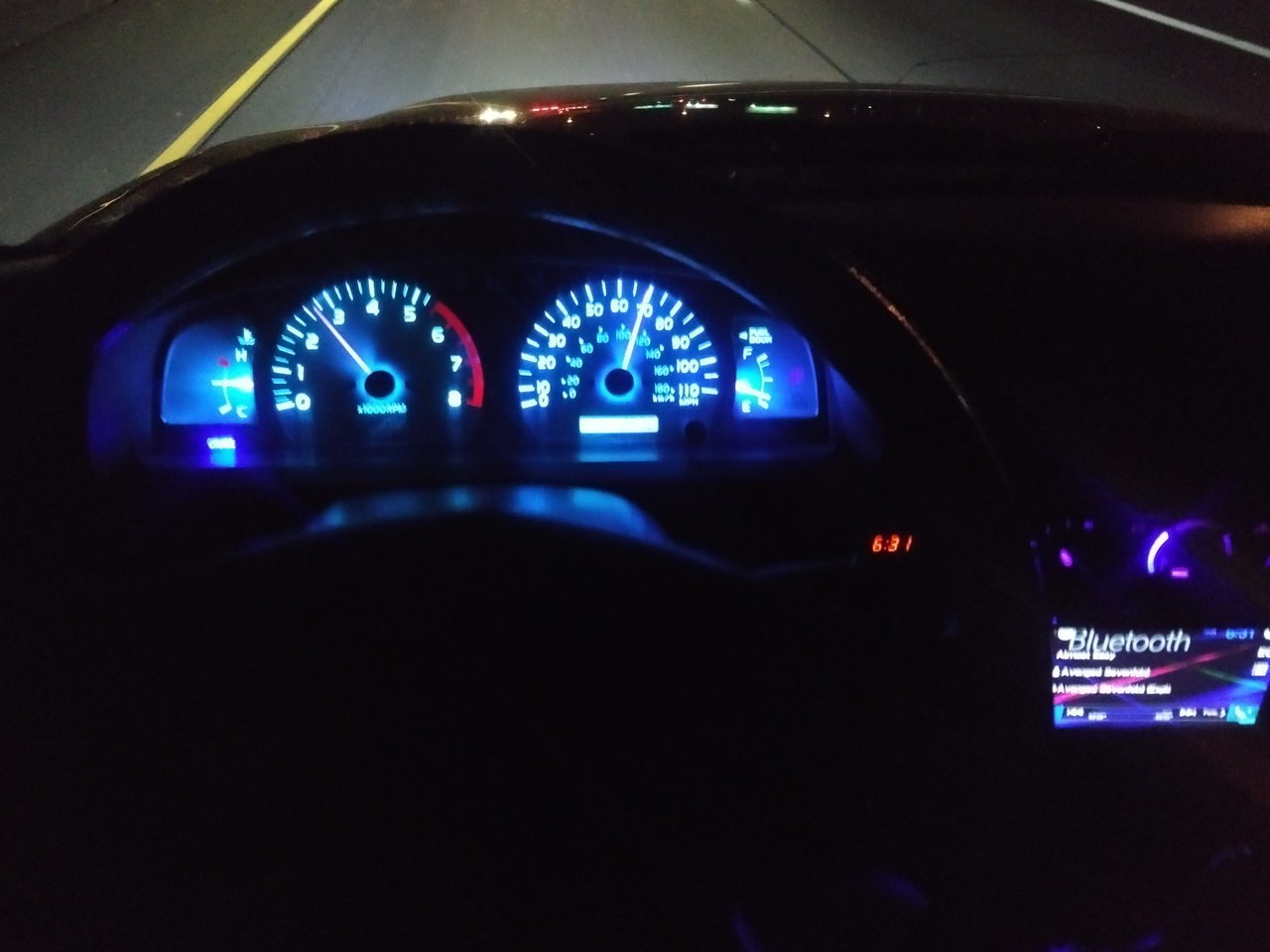

    Not easy but I did mine awhile agoIMG_20171124_1831031.jpg

    03gldxcabtrd, Dec 30, 2017
    #19
    BrowncoatYoda likes this.
  20. Jul 24, 2018 at 10:17 PM
    #20
    BrowncoatYoda

    #20
    BrowncoatYoda Member

    Joined:
    Jun 6, 2018
    Member:
    #255690
    Messages:
    5
    Gender:
    Male
    First Name:
    Craig
    Savannah, GA
    Vehicle:
    2003 Prerunner
    Are those white or blue LEDs? I'm about to replace the heater core and so my dash is going to be torn apart so I was thinking of upgrading my gauge and AC control lights to LEDs and a color other than red. I'd like more of a cool blue to teal-ish color

    BrowncoatYoda, Jul 24, 2018
