2005 Toyota Tacoma HVAC dash lights burned out

Discussion in 'Lighting' started by Geo2199, May 1, 2010.

  1. May 1, 2010 at 8:30 AM
    #1
    Geo2199

    Geo2199 [OP] Active Member

    Joined:
    Jul 20, 2009
    Member:
    #19922
    Messages:
    27
    Gender:
    Male
    First Name:
    Jeovanni
    Atlanta, ga
    Vehicle:
    Prerunner V6 SR-5 Auto
    Limo Tint, 265/75/16 Bridgestone Duelers, Sylvania Silverstar headlights, Lo-Jack, AVS Vent Visor Windows, Draw-Tite Hitch, and some dents & scratches which add "personality"
    I have a 2005 toyota tacoma and just recently the dash lights that illumintae the HVAC controls on the fan selection went out. Not the bulbs that illumintae the fan speed or temperature, but the ones that illuminate which direction the fan blows. For example like the defroster, feet, and face selection button.

    I was tryin to look around the dash to take it apart but couldnt find any screws anywhere near there to take it apart or in the glovebox . Has anyone ever replaced this bulb before on there 2005+ tacoma? If so, how did you go about taking the dash apart and changing the light bulbs?

    I desperately need this fixed because its so dark at night time without the light on that part of the dash that i have to use the light from my cell phone just to illuminate it, which is very dangerous. Especially on dark two lane coutry roads while towing my trailer with all my equipment.

  2. May 2, 2010 at 12:09 PM
    #2
    Agent7

    Agent7 Senior Executive of Nothing.

    Joined:
    May 20, 2008
    Member:
    #6755
    Messages:
    226
    Gender:
    Male
    Toronto, Canada
    Vehicle:
    07 Tacoma TRD Sport 4x4 6spd
    BHLM, Stubby Antenna, Custom Front Grill, Debaged Tailgate, Added TRD Emblem, Removed Factory Pinstripes, Leer 100XL Cap, Prolumen 6000K HID Kit with custom glare shields, Eurolite Yellow fog lights, 20" Fast Hustler wheels (black w/3" deepdish polished lip), Cooper Zeon LTZ 275/60/20's, Spidertrax 1.25" Wheel Spacers, Custom LED Gauges, Pioneer AVIC F700BT All-In-One Indash Navigation (Hacked)
    The whole hvac unit is a press in, meaning if you slide a butter knife or some other dull flat surface under it, it should just pop out. As far as the lights go, there is only actually 2 lights that illuminate all of the orange background. So once you pop out the unit, you'll have access to the twist in bulbs that are there.

  3. May 2, 2010 at 2:21 PM
    #3
    Geo2199

    Geo2199 [OP] Active Member

    Joined:
    Jul 20, 2009
    Member:
    #19922
    Messages:
    27
    Gender:
    Male
    First Name:
    Jeovanni
    Atlanta, ga
    Vehicle:
    Prerunner V6 SR-5 Auto
    Limo Tint, 265/75/16 Bridgestone Duelers, Sylvania Silverstar headlights, Lo-Jack, AVS Vent Visor Windows, Draw-Tite Hitch, and some dents & scratches which add "personality"
    I was able to take it out. I took out the black plastic piece under the a/c vent and reached into the dash and popped it out. Once I popped it out I took off the silver piece that surrounds the dials. But when I tried to take the white piece off the back of the dials by unscrewing them to get to the lights I wasn't able to undue the four tabs that hold them together. Even after I broke 2 of the tabs that hold them together. Is there anyway I can get to the lights without removing the back white plastic piece?

  4. May 2, 2010 at 2:54 PM
    #4
    PreRunnerSeth

    PreRunnerSeth Well-Known Member

    Joined:
    Aug 12, 2009
    Member:
    #21110
    Messages:
    4,438
    Gender:
    Male
    Apex, NC
    Vehicle:
    16 Super White Limited 4x4
    There are two bulbs that light it. there is no need to take the climate controls apart to get them out. you can see two round things on the back with a slot in it for a screwdriver. twist them with a screwdriver and they come right out.

  5. May 2, 2010 at 7:02 PM
    #5
    Agent7

    Agent7 Senior Executive of Nothing.

    Joined:
    May 20, 2008
    Member:
    #6755
    Messages:
    226
    Gender:
    Male
    Toronto, Canada
    Vehicle:
    07 Tacoma TRD Sport 4x4 6spd
    BHLM, Stubby Antenna, Custom Front Grill, Debaged Tailgate, Added TRD Emblem, Removed Factory Pinstripes, Leer 100XL Cap, Prolumen 6000K HID Kit with custom glare shields, Eurolite Yellow fog lights, 20" Fast Hustler wheels (black w/3" deepdish polished lip), Cooper Zeon LTZ 275/60/20's, Spidertrax 1.25" Wheel Spacers, Custom LED Gauges, Pioneer AVIC F700BT All-In-One Indash Navigation (Hacked)
    exactly what he said. They should look like brown circular disks with a slot.

  6. Feb 27, 2020 at 11:32 PM
    #6
    PTreckin'

    PTreckin' Member

    Joined:
    Jan 10, 2020
    Member:
    #315713
    Messages:
    13
    Gender:
    Male
    Vehicle:
    2007 Red Tacoma TRD Sport
    OME Lift Kit, NFab Nerf Bars, K&N Catback Exhaust System, 265-70-17 Goodyear Silent Armors, Flowmater Exhaust, Weather Tech Floor Mats.
    And to source this light you have 2 options. Spend days reading old threads like I just got done doing, and see that the dealership charges $15+ bucks for one light. Or option two (what I just did on mine) was grabbed an aftermarket set off ebay. Seem to work fine so far. Sorry to blow up an old thread, but there is a tun of info out there and I wanted to share what worked for me.

    https://www.ebay.com/itm/153892138896

    Last edited: Apr 10, 2020
  7. Mar 23, 2020 at 7:38 PM
    #7
    KeithB

    KeithB Well-Known Member

    Joined:
    Jan 6, 2009
    Member:
    #12299
    Messages:
    1,301
    Gender:
    Male
    First Name:
    Keith
    Cheshire, CT
    Vehicle:
    SWB '09 Tacoma DCSB Sport 4x4
    Wheels and Tires: 17x8" Ultra Goliath wheels with P285/70R17 Falken Wildpeak AT3/W tires, Suspension: Fox coilovers set at 2", TC UCA's, 1.5" lift 3 leaf pack with overload left in Other: TRD SS exhaust, Pioneer AVIC 4100 H/U with Android Auto (awesomeness), sat radio bluetooth, Accessories: Toyota roof rack, black Toyota running board steps, cargo divider, weathertech floor liners, Literider roll up soft tonneau, thule bars over tonneau, USB ports front and rear, seat heaters, birddawg mirror riser Cosmetic: window tint, grillcraft black mesh upper/lower grill, vinyl armrest in doors, Clazzio black seat covers with blue stitch, Redline steering wheel wrap Lighting: fogs only mod, back up lights, amber interior accent lighting, amber 10" LED light bar in hood scoop, 33" LED bar behind the lower grill, amber lamin-x on fog lights, Tacomabeast headlights and matching tails.
    Mine went out on the right side, direction selector, but the a/c button light is also out. I only see 2 bulbs on the back. Do the buttons have their own bulbs? Both happened at the same time.


  8. Mar 23, 2020 at 7:41 PM
    #8
    PTreckin'

    PTreckin' Member

    Joined:
    Jan 10, 2020
    Member:
    #315713
    Messages:
    13
    Gender:
    Male
    Vehicle:
    2007 Red Tacoma TRD Sport
    OME Lift Kit, NFab Nerf Bars, K&N Catback Exhaust System, 265-70-17 Goodyear Silent Armors, Flowmater Exhaust, Weather Tech Floor Mats.
    2 lights illuminate all 3 selector knobs. It looks like 1 of the 2 lights is out. The a.c. button light should still come on when you press it.

  9. Mar 25, 2020 at 4:30 AM
    #9
    KeithB

    KeithB Well-Known Member

    Joined:
    Jan 6, 2009
    Member:
    #12299
    Messages:
    1,301
    Gender:
    Male
    First Name:
    Keith
    Cheshire, CT
    Vehicle:
    SWB '09 Tacoma DCSB Sport 4x4
    Wheels and Tires: 17x8" Ultra Goliath wheels with P285/70R17 Falken Wildpeak AT3/W tires, Suspension: Fox coilovers set at 2", TC UCA's, 1.5" lift 3 leaf pack with overload left in Other: TRD SS exhaust, Pioneer AVIC 4100 H/U with Android Auto (awesomeness), sat radio bluetooth, Accessories: Toyota roof rack, black Toyota running board steps, cargo divider, weathertech floor liners, Literider roll up soft tonneau, thule bars over tonneau, USB ports front and rear, seat heaters, birddawg mirror riser Cosmetic: window tint, grillcraft black mesh upper/lower grill, vinyl armrest in doors, Clazzio black seat covers with blue stitch, Redline steering wheel wrap Lighting: fogs only mod, back up lights, amber interior accent lighting, amber 10" LED light bar in hood scoop, 33" LED bar behind the lower grill, amber lamin-x on fog lights, Tacomabeast headlights and matching tails.

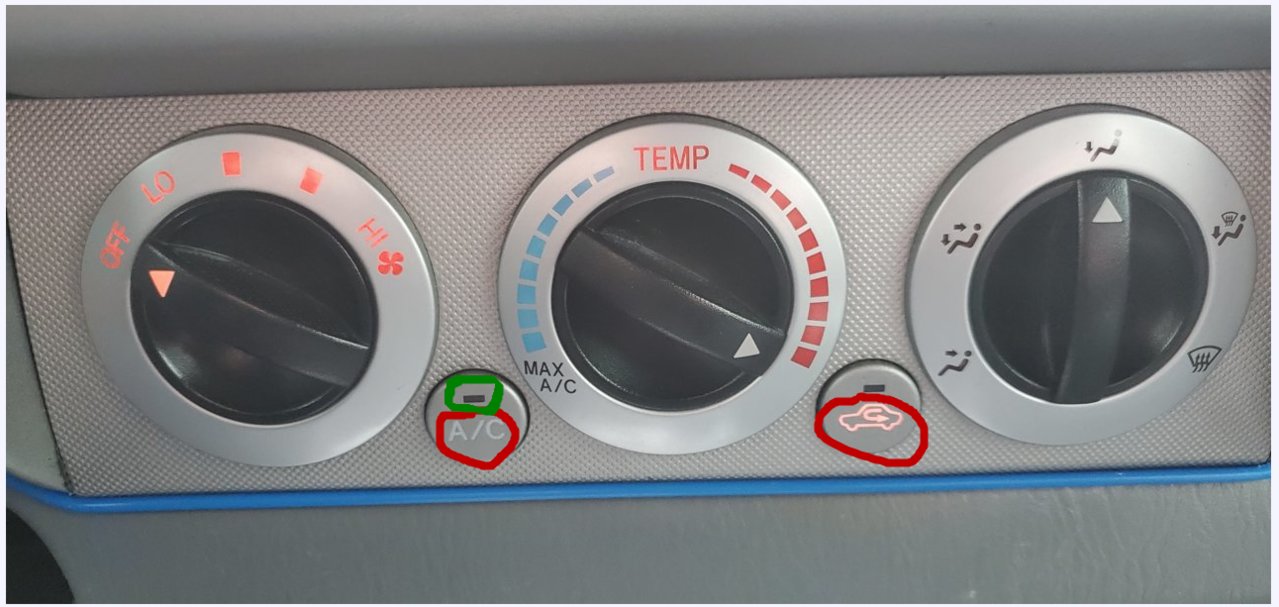

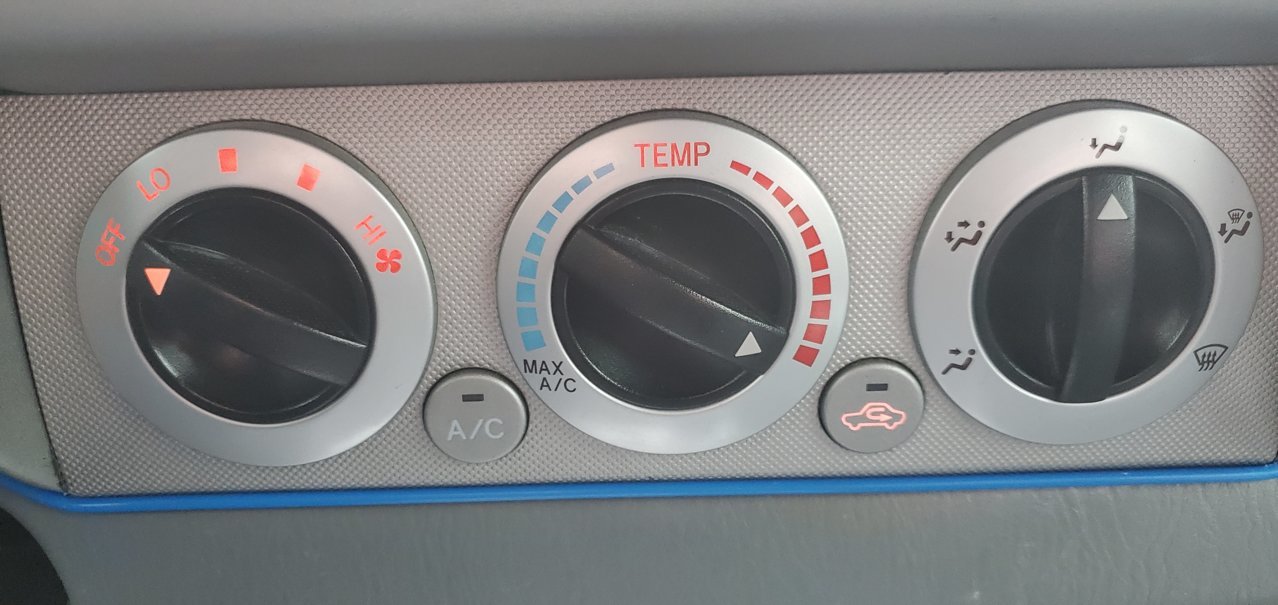

    Yes, 2 lights for all 3 selector knobs and 1 of the 2 is out but I don't know about the a/c button. The light circled in green lights up when I press the button but the letters "A/C" should be lit like the car symbol on the recirc button. There seems to be another bulb in there somewhere but don't know how to access it. Just seems odd that the button on the left and the selector dial on the right would both go out at the exact same time.


  10. Mar 27, 2020 at 11:17 AM
    #10
    PTreckin'

    PTreckin' Member

    Joined:
    Jan 10, 2020
    Member:
    #315713
    Messages:
    13
    Gender:
    Male
    Vehicle:
    2007 Red Tacoma TRD Sport
    OME Lift Kit, NFab Nerf Bars, K&N Catback Exhaust System, 265-70-17 Goodyear Silent Armors, Flowmater Exhaust, Weather Tech Floor Mats.
  11. Mar 27, 2020 at 11:22 AM
    #11
    SalmonTaco

    SalmonTaco Fish out of water

    Joined:
    Mar 22, 2011
    Member:
    #53488
    Messages:
    2,650
    Gender:
    Male
    First Name:
    Andrew
    Naches
    Vehicle:
    Double Cab Shart Bed
    Brute Force bumpers, 5100s & 885s, TRD BroLocks, Falken Wildpeaks, SnugTop MVP Shell, Tuffy Bed Box, Console Vault, Fogs anytime, ImMrYo mirror bracket, Wet Okoles, aFe Pro Dry S, PowerStop Z36 pads & drilled/slotted rotors, more shit I can't remember


    These little suckers are the ticket.

    You need neo wedge T4 bulbs, I ordered my replacements from autolumination.com

  12. Mar 27, 2020 at 8:13 PM
    #12
    KeithB

    KeithB Well-Known Member

    Joined:
    Jan 6, 2009
    Member:
    #12299
    Messages:
    1,301
    Gender:
    Male
    First Name:
    Keith
    Cheshire, CT
    Vehicle:
    SWB '09 Tacoma DCSB Sport 4x4
    Wheels and Tires: 17x8" Ultra Goliath wheels with P285/70R17 Falken Wildpeak AT3/W tires, Suspension: Fox coilovers set at 2", TC UCA's, 1.5" lift 3 leaf pack with overload left in Other: TRD SS exhaust, Pioneer AVIC 4100 H/U with Android Auto (awesomeness), sat radio bluetooth, Accessories: Toyota roof rack, black Toyota running board steps, cargo divider, weathertech floor liners, Literider roll up soft tonneau, thule bars over tonneau, USB ports front and rear, seat heaters, birddawg mirror riser Cosmetic: window tint, grillcraft black mesh upper/lower grill, vinyl armrest in doors, Clazzio black seat covers with blue stitch, Redline steering wheel wrap Lighting: fogs only mod, back up lights, amber interior accent lighting, amber 10" LED light bar in hood scoop, 33" LED bar behind the lower grill, amber lamin-x on fog lights, Tacomabeast headlights and matching tails.
    Thanks for the link. I don't think it's a relay issue since the heat and a/c both work. Just the light for the button doesn't work. I have the T4 bulbs on order for the selector dial but don't know what to do about the A/C button light.

  13. Mar 29, 2020 at 3:31 AM
    #13
    Jerry Bear

    Jerry Bear Well-Known Member

    Joined:
    Feb 23, 2011
    Member:
    #51743
    Messages:
    149
    Gender:
    Male
    First Name:
    Jerry
    Mesquite, Texas
    Vehicle:
    2010 Access Cab
    tint, topper, receiver hitch, trailer wiring, topper lighting, cruise control, intermittent wipers, backup camera, auto-dim mirror
    When you replace the burned out lamp, the AC button will again be backlit. The lamp which backlights the right side of the AC control panel also backlights the AC button. It's counterintuitive but true.

    If you wish, swap the good lamp to the right side and watch the AC button light up along with the right side of the panel.

  14. Mar 29, 2020 at 6:57 PM
    #14
    KeithB

    KeithB Well-Known Member

    Joined:
    Jan 6, 2009
    Member:
    #12299
    Messages:
    1,301
    Gender:
    Male
    First Name:
    Keith
    Cheshire, CT
    Vehicle:
    SWB '09 Tacoma DCSB Sport 4x4
    Wheels and Tires: 17x8" Ultra Goliath wheels with P285/70R17 Falken Wildpeak AT3/W tires, Suspension: Fox coilovers set at 2", TC UCA's, 1.5" lift 3 leaf pack with overload left in Other: TRD SS exhaust, Pioneer AVIC 4100 H/U with Android Auto (awesomeness), sat radio bluetooth, Accessories: Toyota roof rack, black Toyota running board steps, cargo divider, weathertech floor liners, Literider roll up soft tonneau, thule bars over tonneau, USB ports front and rear, seat heaters, birddawg mirror riser Cosmetic: window tint, grillcraft black mesh upper/lower grill, vinyl armrest in doors, Clazzio black seat covers with blue stitch, Redline steering wheel wrap Lighting: fogs only mod, back up lights, amber interior accent lighting, amber 10" LED light bar in hood scoop, 33" LED bar behind the lower grill, amber lamin-x on fog lights, Tacomabeast headlights and matching tails.
    Thanks for that. I thought that might be the case but figured it didn't make sense. Weird! Why would they design it like that?
