2008 4x4 5 speed manual transmission vent/breather locations

Discussion in '2nd Gen. Tacomas (2005-2015)' started by andrew61987, Aug 18, 2021.

  1. Aug 18, 2021 at 12:05 PM
    #1
    andrew61987

    andrew61987 [OP] Well-Known Member

    Joined:
    Jun 2, 2015
    Member:
    #156610
    Messages:
    1,283
    Vehicle:
    2008 Access Cab 4WD, 2.7L 5 speed
    I've had two bouts of leaking transmission gear oil coming out of the bellhousing. I think it may be a clogged breather and high pressure pushing gear oil out through the front seal. The most recent occurrence was after many dusty miles, wondering if the dust could have clogged the breather. Where are they all located and can they be serviced?

  2. Aug 20, 2021 at 5:52 PM
    #2
    Steve_P

    Steve_P Well-Known Member

    Joined:
    Sep 16, 2009
    Member:
    #22854
    Messages:
    751
    Gender:
    Male
    TN
    Vehicle:
    09 Tacoma SR5 4WD 4cyl
    They are on the top and the hoses come up the firewall behind the engine.

  3. Aug 20, 2021 at 7:24 PM
    #3
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,360
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK
    Dm93 likes this.
  4. Aug 20, 2021 at 8:07 PM
    #4
    TnShooter

    TnShooter The TacomaWorld Stray

    Joined:
    Sep 2, 2010
    Member:
    #42625
    Messages:
    21,360
    Gender:
    Male
    First Name:
    Deogee
    Vehicle:
    07' TRD Off-Road, Auto
    STOCK

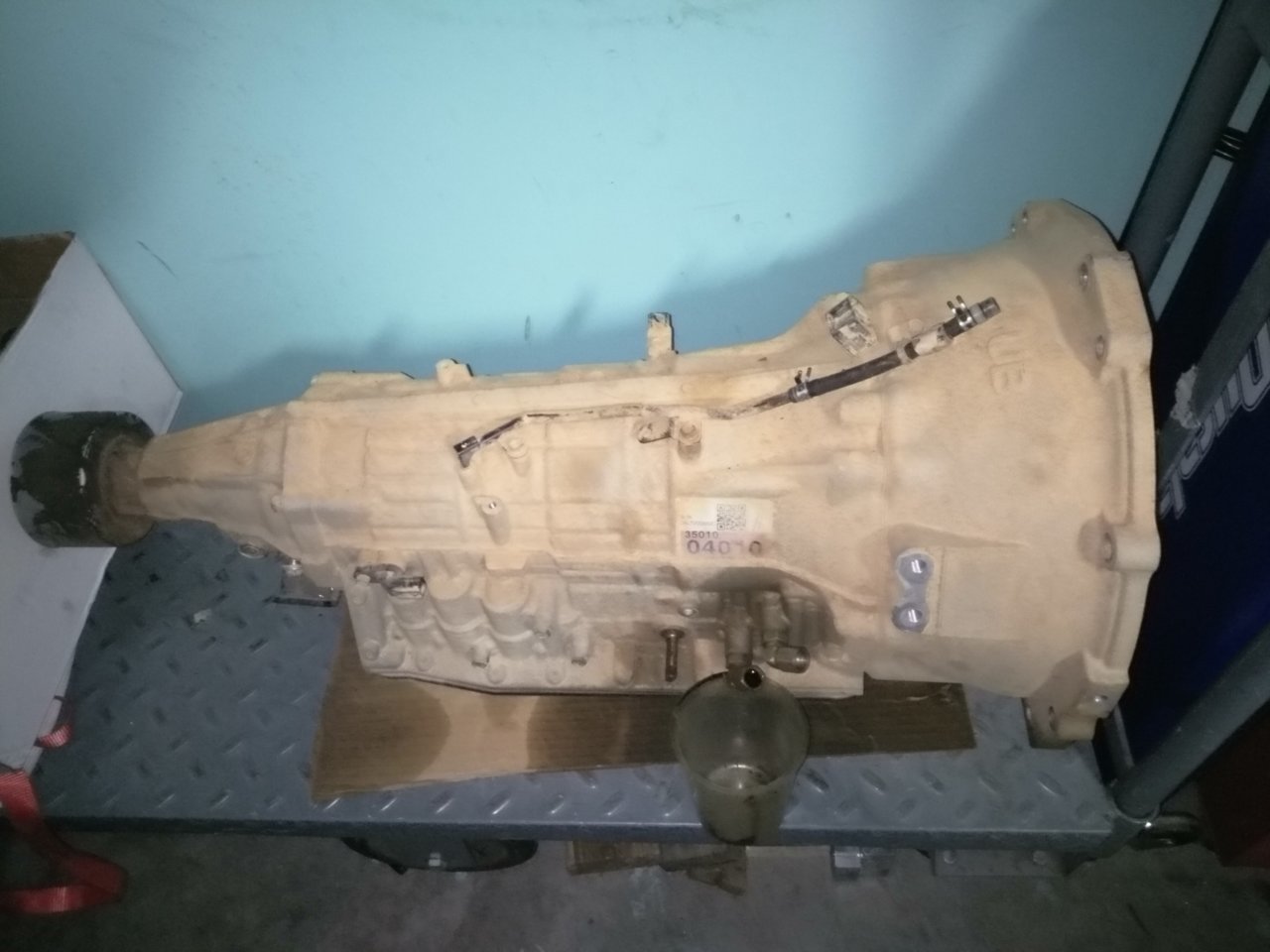

    OP, you can forget the above picture.
    I totally missed the Manual part.

    I don’t have any idea where it would be?
    Maybe @whatstcp or @BassAckwards knows?

    whatstcp likes this.
  5. Aug 20, 2021 at 8:45 PM
    #5
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    13,810
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.

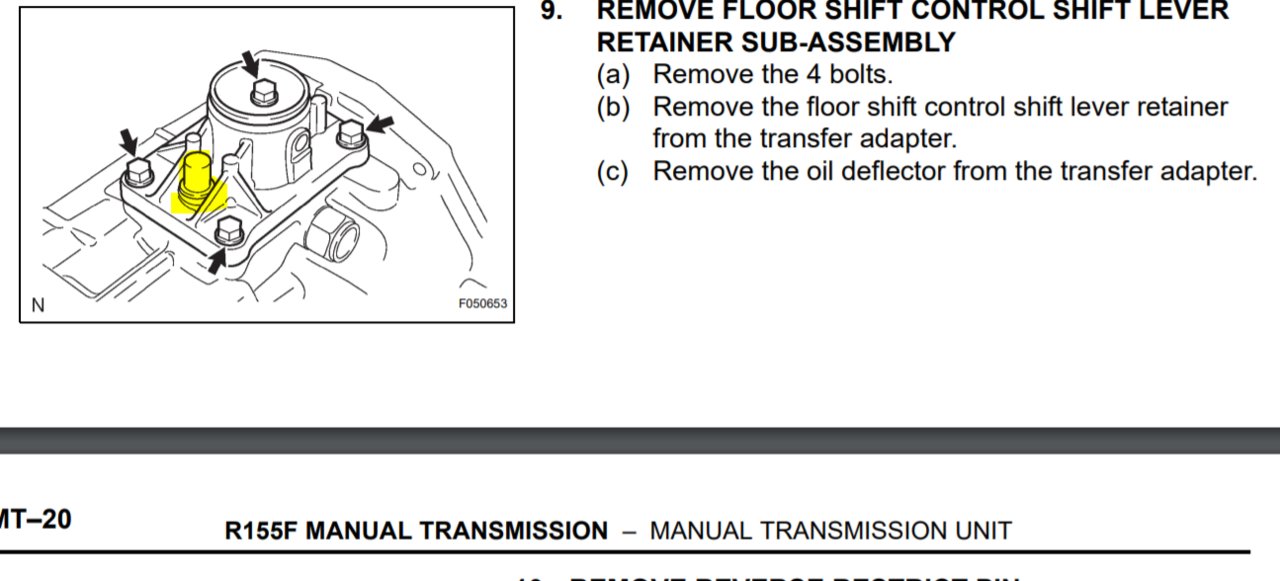

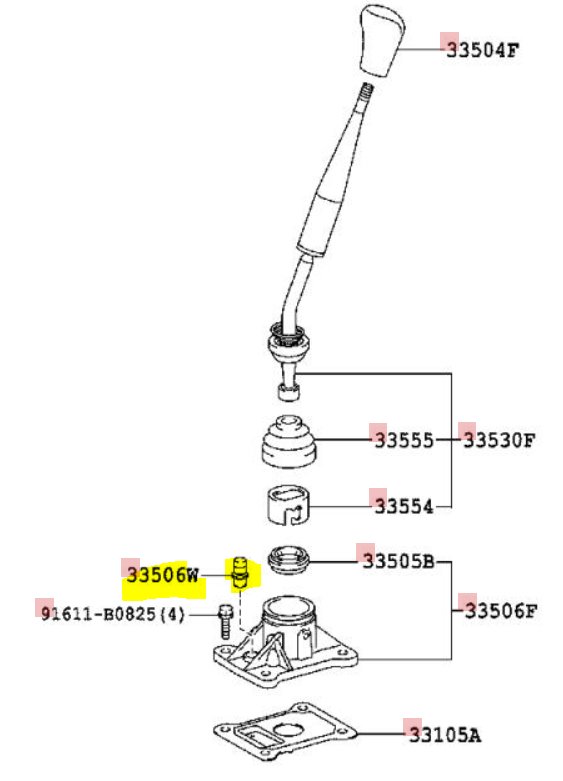

    FSM makes no reference to a vent that I can find but looking at pictures I'd be willing to bet its this guy.
    R155 Vent.jpg

    TnShooter and 6 gearT444E like this.
  6. Aug 20, 2021 at 8:46 PM
    #6
    6 gearT444E

    6 gearT444E Certified Electron Pusher

    Joined:
    Feb 3, 2018
    Member:
    #243372
    Messages:
    7,798
    Deep South
    Herculiner Hootus
    It's on the shifter base, easy to check. Remove the whole base with 4 bolts, or probably can just unscrew the breather if you can get your hands in there.


    whatstcp, TnShooter[QUOTED] and Dm93 like this.
