2011 K&N High-Flow Intake Install 4.0L

Discussion in '2nd Gen. Tacomas (2005-2015)' started by DesertHeat, Aug 21, 2010.

  1. Aug 21, 2010 at 8:23 PM
    #1
    DesertHeat

    DesertHeat [OP] Member

    Joined:
    Aug 16, 2010
    Member:
    #41806
    Messages:
    9
    Gender:
    Male
    First Name:
    Steve
    Kansas City
    Vehicle:
    2011 Tacoma TRD 4x4
    Westin Step Bar K&N Aircharger High-Flow Intake
    Sorry all - I'm going to take this Install of the K&N to another Thread - again I'm new and trying to get this to work.

    1. STEP ONE: Lay everything out on the Garage Floor

    This is the picture of the K&N complete kit that I purchased at Chuxs Trucks in Olathe, KS. It cost me $279.99. I may have been able to get the package online cheaper, but I like to buy locally to support the local business here in town. The Kit number from K&N is "63-9025" - it's called the "Toyota 2005 - 10 Tacoma V6-4.0L AIRCharger High-Flow Intake Kit.

    The instructions supplied by K&N good but the pictures are "tiny"... no kidding. I literally had to get a magnifying glass out to try and see better so I could get a better understanding of what needed to get done for some steps - they are of poor quality in black & white. Really - they could have spent another 50 cents and made a much better copy of the instructions for everyone. Note - they haven't updated the instructions since 2010 and I found it to be roughly 95% correct for the 2011 Tacoma, but maybe there were a few changes in 2011 that weren't updated in the instructions or they just didn't bother to update it - I don't know. So here goes my thread on how to install the K&N kit... by the way it's worth it! Get ready for a "waaaa" sound when you push on the accelerator - it is definitely louder.

    The picture below is the kit open'd up on my garage floor.


    2. VIEW of Engine before any changes:

    This is a straight shot of the engine before any changes.




    3. Another view of the kit - this time it's with the package of nuts / bolts and other items open for a clearer view
    As you can see there aren't that many parts and in reality this install is NOT that complicated. Plan on taking 2 hours to take your time and doing it right. I will try and highlight through these step-by-step instructions which parts were confusing to help everyone and what to look out for in parts that may be "not so obvious" for the beginners (like me).

    4. Initial disassembly - not so scary

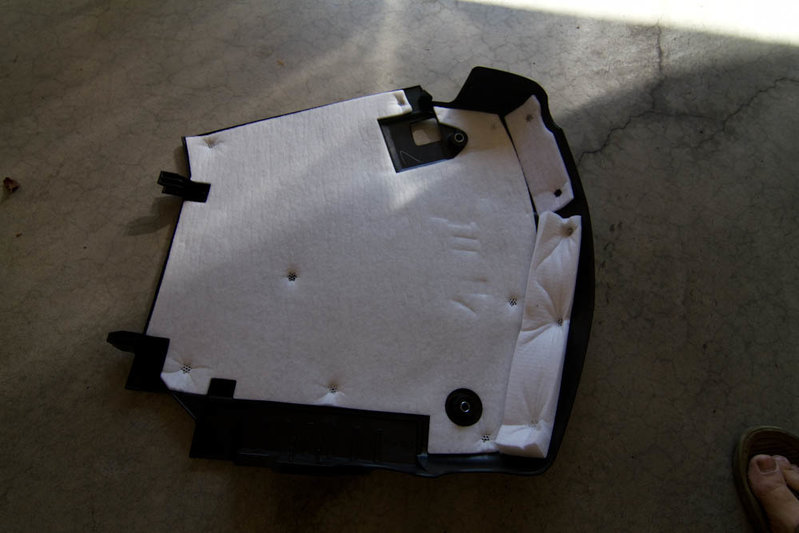

    The REAL 1st step is to takeoff the Engine cover. it's quite simple, just unscrew 2 nuts off the top and and "unhinge" it from the back. It just comes off. There is zero danger here of screwing anything up. Below is a copy of the Engine Cover laying on my garage floor upside down.




    5. Loosen the hose clamps holding the "air box" - the resonator is attached in the 2011
    Just use a screw driver and loosen the hose clamps (see clamp with blue plastic below) so you will be able to remove the hose in later steps. Again - nothing dangerous here.


    5. Idea here is to get the air box assembly, hose removed

    I have several shots below to help get you acclimated to the hose that must be removed, mass air wire harness, etc. Essentially push in the clips on the crank case vent hose - just push in the clips with your fingers. Very simple and pull, it comes right off. Leave it for now.

    If you look at the picture below of the mass air wire harness, its simple to remove also. All you have to do is "push" in the clips on each side of the wire-clip, pull and it comes right off. Again just let it hang.

    Now here is where the instructions differed from my "learned" process. There were two little plastic "ties" that held the mass air wire harness to parts of the engine. I tried like crazy to see if there was a way to push something or jiggle the plastic ties so it would let the mass-air harness come free. But to NO luck. Thus on to plan "B" - which is I simply took a sharp knife and cut them free. In the end it made zero difference. So this was the only part of the process that I was concerned about - but in the end it makes no difference. After you have cut free (2 plastic ties) the mass-air wires they should hang free from the air box assembly (the original part the mass-air clip was attached to.




    5. Remove the air hose

    This is another easy part. Reach into the air-hose that is attached to the air box assembly. As a new owner I cringed a bit here I have to admit, I pulled "straight" out - that is grab the air hose and pull straight out from the wall of the truck. There is a sort of glued foam part that is attached to a hole in the truck wall. It comes out, but will take a bit pull. It comes out clean. See pictures below.


  2. Feb 16, 2012 at 4:48 PM
    #2
    DaveEli

    DaveEli Well- Known Member

    Joined:
    Feb 16, 2012
    Member:
    #72959
    Messages:
    988
    Gender:
    Male
    First Name:
    David
    Virginia Beach
    Vehicle:
    2011 Tacoma Sport 4X4
    Icon Extended Travel Coilovers, King 700lb springs, All-Pro Expo leaf springs, All-pro U-Bolt flip kit, Icon 2.0 Series custom length rear shocks, Wheelers Superbump Bumpstops, All-Pro extended rear brake lines, Warn 86255 VR10000 10,000 lb winch, Warn 90287 wireless remote, Redline Hood Struts, AVS Bugflector II, Pelfreybilt front bumper with Rigid 92031 SR- Series White 20" Spot/Flood lightbar, Brute Force rear bumper with short swingarm, Famous Fabrication Rock Sliders, Pelfreybilt Skid Plates, Rigid 50231 D2 Driving Lights, Rigid 20221 Dually Spotlights, Rigid 98000 SR-M backup lights, ARB CKMTA12 "12V"on-board twin high performance air compressor, Dick Cepek DC-2 17x9" wheels, 285/70R17 Goodyear MTRs with Kevlar tires, Wet Okole seat covers, ARE bed top, TRD cat back exhaust, AVS in channel window vents, Toyota door sill protectors, Pop & Lock tailgate lock, Husky Rear floorliners, WeatherTech Front Floorliners, DeeZee bed mat, Window tint, TRD drop in air filter, Plasmaglow led bed lights, Hi-Lift jack mounted on bed rail, IMMRYO Rear View Mirror Relocate, ARB 63 Quart fridge freezer, Arb ARB209 Snatch Block, ARB ARB730US 3" x 10' Tree saver, ARB ARB705US 2-3/8" x 30' recovery strap, Bubba Rope 7/8" x 30' original rope 28600 lbs, Bubba Rope Gator Jaw soft shackle 7/16.
    Did you ever finish posting (2011 K&N High-Flow Intake Install 4.0L). I bought one and could use some better Instructions than the ones that come with the kit. You are right the photos are too small. I have a 2011Tacoma. Any help would be great. Dave

  3. Apr 19, 2012 at 1:55 PM
    #3
    jpedroza

    jpedroza Member

    Joined:
    Jul 12, 2011
    Member:
    #59783
    Messages:
    10
    Gender:
    Male
    First Name:
    Jared
    University Place, Wa
    Vehicle:
    11 Tacoma TRD AC
    3" Tuff Country suspension kit with rear add-a-leaf
    Wish u finished this... Can't find the rest anywhere. Good beginning though. Lol.

  4. Apr 19, 2012 at 6:09 PM
    #4
    blue02r1

    blue02r1 tom

    Joined:
    Oct 26, 2010
    Member:
    #45261
    Messages:
    42
    Gender:
    Male
    First Name:
    tom
    pennsylvainia
    Vehicle:
    2011 trd timberland green
    toyota hood protector, AVS vent shades, Toyota Bed Mat, TRD Catback Exhaust , K&N Intake, Tacoma Bedmat, Weathertech Mats, Extang Tuff Toneau ,Foglight Mod.
    I installed this on mine, pretty easy. Maybe i can answers your ???

  5. Apr 19, 2012 at 7:06 PM
    #5
    jpedroza

    jpedroza Member

    Joined:
    Jul 12, 2011
    Member:
    #59783
    Messages:
    10
    Gender:
    Male
    First Name:
    Jared
    University Place, Wa
    Vehicle:
    11 Tacoma TRD AC
    3" Tuff Country suspension kit with rear add-a-leaf
    this is where i got stuck at... "Remove fuel pressure regulator hose from back
    side of air box." ... couldnt see the picture clearly enough to see where this was.. thanks!
