2011 TRD OR, OEM backup camera w/ ilx w650

Discussion in 'Audio & Video' started by JeffBoyardee, Jul 14, 2019.

  1. Jul 14, 2019 at 8:17 PM
    #1
    JeffBoyardee

    JeffBoyardee [OP] Well-Known Member

    Joined:
    Mar 26, 2019
    Member:
    #288021
    Messages:
    466
    Gender:
    Male
    First Name:
    Jeff
    Seminole, FL
    Vehicle:
    2011 TRD Off-Road Tacoma DCSB
    I installed an Alpine ILXW650 in my truck, it's a 2011 with the OEM camera in the mirror, and the JBL system.. it's it's currently using the Alpine, and a scosche JBL amp interface (I know that doesn't really matter). I watched a video from another thread on TW, and the guy was using a plug behind the dash that had 4 wires going into it. I have the same plug, but with 10-12 wires, most of the colors, there are 2 of. I've also read that the power needs to be stepped down to 6v, and then I read that 12v is ok. Can anyone help me.make sense of this? I'm going to attach a screenshot of the plug I have.

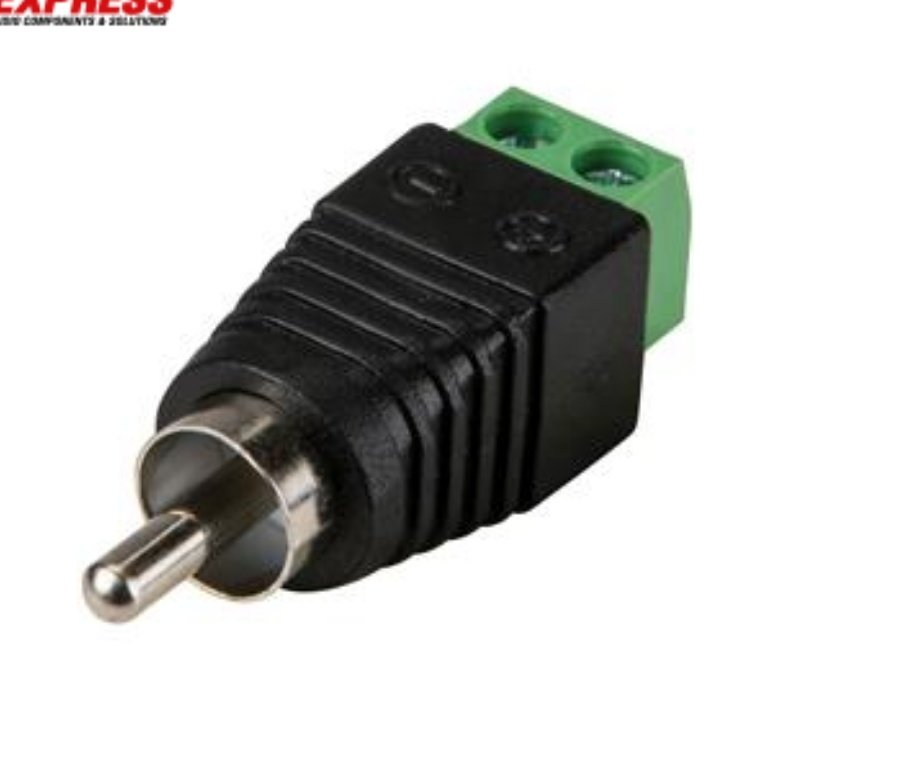

    Another question I have, is that I can't seem to connect/splice the center, solid wire in the RCA cable, without it breaking. Am I ok to use something like this?Screenshot_20190714-231547.jpg

  2. Jul 14, 2019 at 8:42 PM
    #2
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,649
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Since your cam is in the mirror, I don’t believe the wiring for the cam is in the harness behind the radio (although I may be incorrect about this)

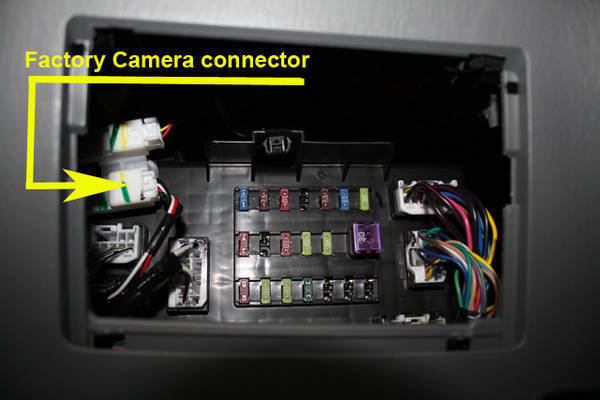

    Pop out the little cubby to the left of the steering wheel and see if there is a little white connector mounted on the fuse box

    Something like this

  3. Jul 15, 2019 at 2:36 AM
    #3
    JeffBoyardee

    JeffBoyardee [OP] Well-Known Member

    Joined:
    Mar 26, 2019
    Member:
    #288021
    Messages:
    466
    Gender:
    Male
    First Name:
    Jeff
    Seminole, FL
    Vehicle:
    2011 TRD Off-Road Tacoma DCSB
    Any idea what the plug I pictured is for? There's a few back there that are unused since I put the new headunit in.

  4. Jul 15, 2019 at 5:35 AM
    #4
    destin_meeks

    destin_meeks I used to fix people's crappy stereos

    Joined:
    Jul 14, 2017
    Member:
    #223997
    Messages:
    2,649
    Gender:
    Male
    First Name:
    Destin
    Tuscaloosa, AL
    Vehicle:
    2017 SSM DoubleCab TRD Off-Road 4x4
    Not entirely sure off the top of my head. I only have the wiring schematics for 3rd gen saved so I’d have to do some digging at work.

  5. Jul 15, 2019 at 5:44 AM
    #5
    JeffBoyardee

    JeffBoyardee [OP] Well-Known Member

    Joined:
    Mar 26, 2019
    Member:
    #288021
    Messages:
    466
    Gender:
    Male
    First Name:
    Jeff
    Seminole, FL
    Vehicle:
    2011 TRD Off-Road Tacoma DCSB
    Ah, don't bother yourself with it.

    I think this is the only car I've owned that I haven't been able to find an FSM online!

  6. Jul 18, 2019 at 8:40 AM
    #6
    cromag27

    cromag27 THE insurance expert - licensed in all 50 states

    Joined:
    Jul 10, 2018
    Member:
    #258888
    Messages:
    727
    Gender:
    Male
    First Name:
    dexter morgan (matt)
    phx-ish
    Vehicle:
    2011 trd off road dcsb
    are you trying to get the backup camera to display on your head unit?

  7. Oct 11, 2020 at 5:03 PM
    #7
    Duhunkachunk

    Duhunkachunk Member

    Joined:
    Jul 17, 2019
    Member:
    #299501
    Messages:
    14
    Gender:
    Male
    Vehicle:
    2009 Tacoma Access base 2.7 2wd
    Same issue just without the display already going to the mirror, did you find your way around this ? Also have an alpine ilxw650 coming in this week and want to install once instead of tossing it in and taking it back out to figure out the camera wiring. Haven’t checked out behind my coin tray near the fuse box yet but I do have the same plug in my headliner console. My take on it is that some of the wires are for the compass/temperature gauges long with homelink, as well as the rear view camera wiring all tied into one plug

  8. Oct 11, 2020 at 5:08 PM
    #8
    JeffBoyardee

    JeffBoyardee [OP] Well-Known Member

    Joined:
    Mar 26, 2019
    Member:
    #288021
    Messages:
    466
    Gender:
    Male
    First Name:
    Jeff
    Seminole, FL
    Vehicle:
    2011 TRD Off-Road Tacoma DCSB
    I never did. Android auto stop working on mine, and I haven't bothered to figure it out, considering that once getting it, I learned I'm not a big fan of Android Auto.
