2012-15 Tacoma Radio Upgrade; Camera Tips

Discussion in 'Audio & Video' started by httuner, Feb 8, 2020.

  1. Feb 8, 2020 at 9:51 AM
    #1
    httuner

    httuner [OP] Well-Known Member

    Joined:
    Nov 17, 2015
    Member:
    #169871
    Messages:
    372
    Gender:
    Male
    Vehicle:
    2015 Tacoma TRD-OffroadPckg
    AFe Rebel Catback Exhaust, AFe GT Momentum Air Intake, Method Wheels, Bilstein 5100, Rigid 30" SR2 Light Bar, Rigid 10" SR Light Bar. Lots of Love
    My Parts;
    Pioneer AVH-W4500NEX
    Maestro RR Module
    Maestro HRN-RR-T01 Harness
    Metra 40-LX11 Antenna Adapter
    Metra 95-8235 Dash install kit
    Metra AX-TOYUSB (If you want to retain your original USB port - I didn't because the orignal usb port doesn't support Carplay or AndriodAuto)


    Solder the Metra 40-LX11 Antenna adapter BLUE wire to the blue wire coming off the Pioneer main harness that connects to the BLUE wire on the T01 Harness; creating a T. This supplies a signal/power to the amplified antenna so I am told.


    WIRING CAMERA(REARVIEW) Notes;

    There is a 24 pin Plug with only 4 wires attached to it;

    Interior Harness

    Camera Power = Black(Use Red Wire off Radio Harness or Yellow/Black off the T01 Harness)
    Ground = (Shield) or just a Bare Wire(Use Black Wire off Radio Harness or Black off T01 Harness)
    Video + = Red (Attach to T01 RCA video plug - Yellow Wire)
    Video - = White
    (Attach to T01 RCA Video plug - Brown Wire)

    (DO NOT FOLLOW THE Maestro Instructions as the blue/yellow wire from the Maestro harness does not supply enough voltage to power the camera(you need to follow the steps below in BOLD lettering, flash it and use the Yellow/Black wire instead as the original Blue/Yellow wire is only pushing nearly 5volts, you need 6volts;)

    If you want to keep the Maestro RR to power the camera; Do these steps - I figured this out after I had already found a different way to power the camera; Otherwise Skip.

    Flash the RR from the Desktop app https://maestro.idatalink.com/weblinkdesktop/en. When it shows the page for recommended firmware select show all and find the firmware titled Test Camera Output on SD; Flash it.

    This changes the Camera power output from the Blue/Yellow wire to the Yellow/Black(Which is originally designated for FOOTBRAKE signal off the Maestro Harness_ This Yellow/Black wire supplys 6volts of power to the Camera but will require the custom flash as described.


    If you want to supply power to the camera like how I did it because I didn't feel like taking it all out and redoing it; Make sure to solder an additional Wire to the RED accessory power wire and an additonal Wire to the black ground wire basically T taping into these wires- So Red goes to Camera Power and Black goes to Ground (Do not use the ground from the Maestro Harness if you do it this way); I just sent it 12volts from the red wire off the radio harness; no ill-effects as this camera can take 6 or 12volts)

    ----------------------------------------------------------------------------------------------------

    I hated putting the radio in; all those wires needs to go somewhere and tucking them behind thet dash was a pain in the ass; With this Pioneer 4500nex and the Metra install kit; I couldn't retain the OEM metal radio brackets as they push the radio too far out and the dash kit wouldn't clip back in place; The flimsy plastic brackets were okay but requires a bit of adjusting to get the radio to sit correctly and not tilted, it didn't help any that there was some wires in the back of the radio in the way; required a lot of shifting things around;

    Another tip; Make sure you don't obstruct the flow of the REAR cooling fan on the radio; so try to keep wires away from it when you go mount the radio.

    The only way I got the radio in was to tuck all the connectors from the interior harness that hooked into the T01 harness into the right side of the dash(Behind the vent); there is space there; limited but will fit; Then route the Maestro RR unit along with the wires that goes into it all the way to the left of the left of the Dash; tucking it behind the left Vent area.

    Mount the GPS antenna to the top of the radio and bundled the extra wiring; tucking that into what little space you have on the left side of the dash behind the Air vent.

    I wish I took photos; but I was so annoyed with the wiring I just wanted it done and over with.

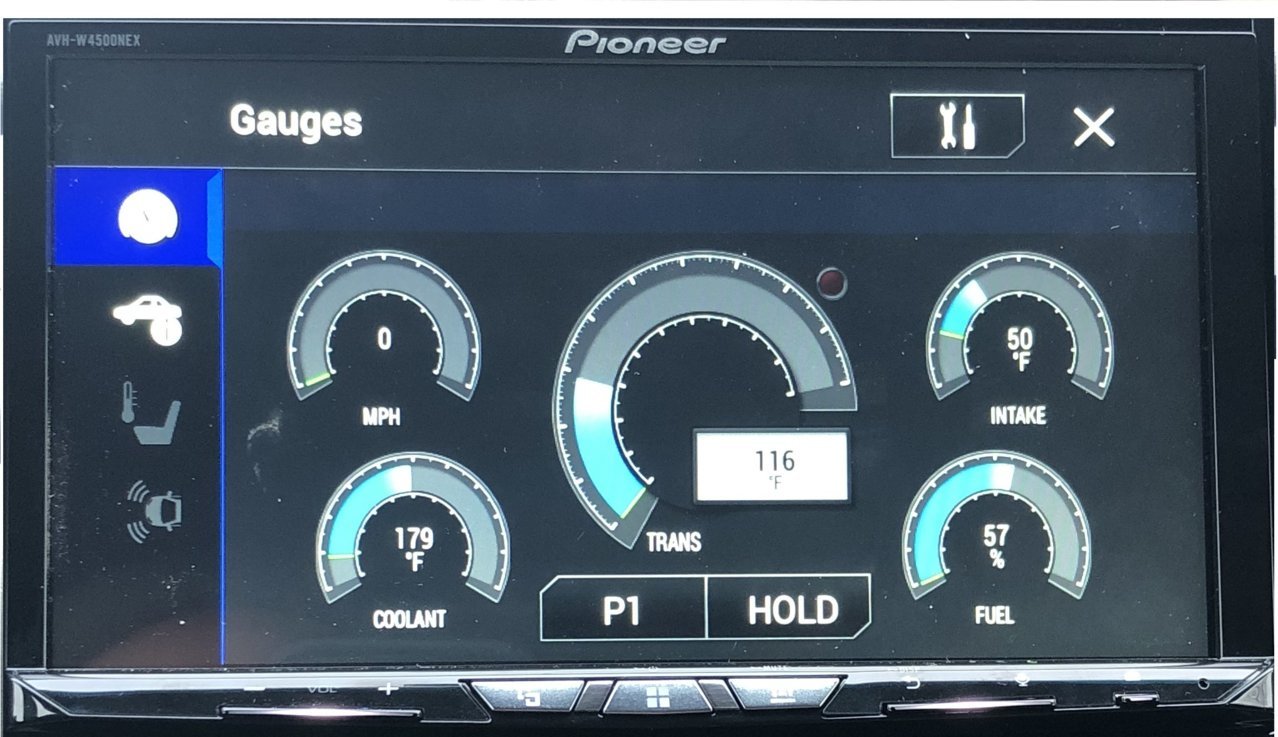

    Also the Maestro RR supports Transmission Temp display =]


    Last edited: Feb 20, 2020
  2. Feb 8, 2020 at 11:32 AM
    #2
    tacovagon

    tacovagon Well-Known Member

    Joined:
    Nov 15, 2018
    Member:
    #272810
    Messages:
    372
    Gender:
    Male
    First Name:
    Dan
    Oceanside CA
    Vehicle:
    2016 SW SR5 DCLB 4x4
    5100s w OME 887s OME EL095R Camburg BJ UCAs
    I have the 4500 and Maestro as well. I really like the SD slot. I have 70 CDs stored as FLACs with room for more. Awesome sound and convenient to use.

    httuner [OP] likes this.
  3. Feb 9, 2020 at 11:17 AM
    #3
    jeff.gt

    jeff.gt New Member

    Joined:
    Aug 4, 2014
    Member:
    #135414
    Messages:
    3
    Gender:
    Male
    First Name:
    Jeff
    Newport, RI
    Vehicle:
    4x4 longbed SR5
    Is there a better dash kit other than the Metra 95-8235? I used it too, it sucks!

  4. Feb 9, 2020 at 3:51 PM
    #4
    tacovagon

    tacovagon Well-Known Member

    Joined:
    Nov 15, 2018
    Member:
    #272810
    Messages:
    372
    Gender:
    Male
    First Name:
    Dan
    Oceanside CA
    Vehicle:
    2016 SW SR5 DCLB 4x4
    5100s w OME 887s OME EL095R Camburg BJ UCAs
    The guys at Best Buy used a 99-8251B on my 2016 and it looks OK to me.

  5. Feb 10, 2020 at 5:44 PM
    #5
    httuner

    httuner [OP] Well-Known Member

    Joined:
    Nov 17, 2015
    Member:
    #169871
    Messages:
    372
    Gender:
    Male
    Vehicle:
    2015 Tacoma TRD-OffroadPckg
    AFe Rebel Catback Exhaust, AFe GT Momentum Air Intake, Method Wheels, Bilstein 5100, Rigid 30" SR2 Light Bar, Rigid 10" SR Light Bar. Lots of Love
    hoarder23 likes this.
  6. Feb 18, 2020 at 6:50 AM
    #6
    bryanh69

    bryanh69 Active Member

    Joined:
    Nov 13, 2017
    Member:
    #235914
    Messages:
    38
    Vehicle:
    2015 MGM Toyota Tacoma TRD OR
    It means purchasing both kits but I bought the Scosche kit for the metal brackets and the Metra kit for the better quality bezel. It looks really great and fits like OEM. I know its probably OCD but the Scosche kit just looked a little off for the color on my 2015. Put the two together and its an OEM fit.

    httuner [OP] likes this.
  7. Mar 13, 2020 at 4:58 PM
    #7
    hoarder23

    hoarder23 Truck fell over

    Joined:
    Aug 14, 2012
    Member:
    #84787
    Messages:
    11,918
    Gender:
    Male
    First Name:
    Shay
    San Diego
    Vehicle:
    15 Pyrite Mica DCSB Sport
    Scratches
    @httuner What's your 30 day review of this setup? I'm looking for a new HU for my new 2015 and like the idea of staying with the NEX line after several years with a AVIC-6000NEX

    asudevil likes this.
  8. Apr 16, 2020 at 1:34 PM
    #8
    httuner

    httuner [OP] Well-Known Member

    Joined:
    Nov 17, 2015
    Member:
    #169871
    Messages:
    372
    Gender:
    Male
    Vehicle:
    2015 Tacoma TRD-OffroadPckg
    AFe Rebel Catback Exhaust, AFe GT Momentum Air Intake, Method Wheels, Bilstein 5100, Rigid 30" SR2 Light Bar, Rigid 10" SR Light Bar. Lots of Love

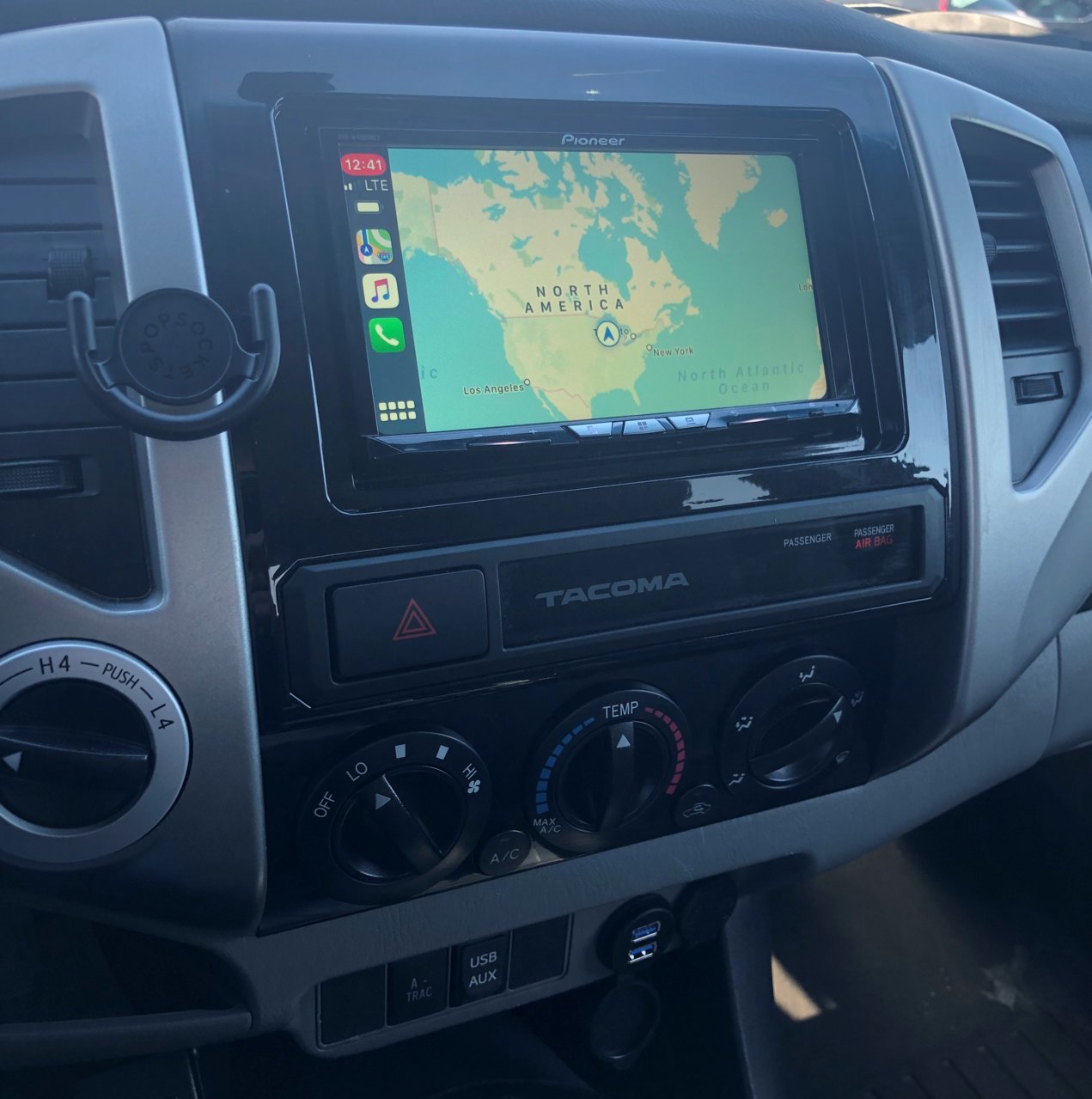

    So far its great; I highly recommend it; DO NOT BUY THE 8500Nex; The additional cost of having the navigation is worthless; Apple Carplay works just as amazing if not better; if you want stand-alone GPS I'd recommend a Garmin GPS unit instead because the software in the 8500nex sucks for navigating; My wife has the 8500nex in her SUV and we never use the built in GPS since Carplay navigating is more smooth and better.

    Sound quality is right on; definitely much better than the OEM head unit; the Matte screen is a MUST HAVE for these trucks; even with the Matte screen the sun still hits it in a way that sometimes makes it hard to see so I can only imagine what the gloss screen will do.

    The readout of the trans temp is dead on when compared to my OBD2 diagnostic computer(Snap-On Solus)_ Everything has been working smoothly.

    Steering Wheel controls work well; sometimes I wish there was a knob on the headunit so you can turn up and down the sound; I find myself looking for the knob every now and then, but you get use to using the steering wheel volume adjustment after a while.

    I say go for it; it was a head-ache doing the install since the stupid brackets on the metra dash kit sucks really bad; you have to find the correct adjustment just to get it right, I had to use washers and shims to get the radio to sit perfectly square with the dash since it sat crooked with those usless brackets. Buy the Scosche kit if you want the metal brackets (or modify your OEM brackets to work) Requires drilling/measuring ect.

    hoarder23 likes this.
  9. Apr 16, 2020 at 1:37 PM
    #9
    httuner

    httuner [OP] Well-Known Member

    Joined:
    Nov 17, 2015
    Member:
    #169871
    Messages:
    372
    Gender:
    Male
    Vehicle:
    2015 Tacoma TRD-OffroadPckg
    AFe Rebel Catback Exhaust, AFe GT Momentum Air Intake, Method Wheels, Bilstein 5100, Rigid 30" SR2 Light Bar, Rigid 10" SR Light Bar. Lots of Love
    Oh and adjust your fuel to 19.1 Gallons on the Radio for the Maestro read out; it gets it pretty accurate; if you put 21.1 like what your tank actually is; It'll be off on the Fuel percentage.

    hoarder23 likes this.
  10. Apr 16, 2020 at 2:42 PM
    #10
    hoarder23

    hoarder23 Truck fell over

    Joined:
    Aug 14, 2012
    Member:
    #84787
    Messages:
    11,918
    Gender:
    Male
    First Name:
    Shay
    San Diego
    Vehicle:
    15 Pyrite Mica DCSB Sport
    Scratches
    Thanks for the update. I bought both dash kits based on what I read elsewhere about the brackets and face plates. I like having the offline maps but Gaia has carplay functionality now so that's less of a concern. I use the nav in the black truck as a backup to a backup.

  11. May 6, 2020 at 8:18 AM
    #11
    ucdbiendog

    ucdbiendog Well-Known Member

    Joined:
    Dec 12, 2017
    Member:
    #238320
    Messages:
    701
    Gender:
    Male
    First Name:
    Ryan
    Reno, NV
    Vehicle:
    2014 DCSB TRD OR
    Bilstein 6112 + 5160 + Dakar MD, Stubbs HD-SKO sliders, BAMF skids, BAMF front bumper, Relentless Rear
    so regarding the mounting brackets... i was kinda pissed when i saw the brackets that came with my metra kit were plastic. could i re-use the stock metal brackets if i cut off the extraneous parts and add the appropriate holes? Also, since the head unit isn't actuall connected to the trim piece, any issues with vibrations or rattles between the two?

  12. May 15, 2020 at 9:06 PM
    #12
    httuner

    httuner [OP] Well-Known Member

    Joined:
    Nov 17, 2015
    Member:
    #169871
    Messages:
    372
    Gender:
    Male
    Vehicle:
    2015 Tacoma TRD-OffroadPckg
    AFe Rebel Catback Exhaust, AFe GT Momentum Air Intake, Method Wheels, Bilstein 5100, Rigid 30" SR2 Light Bar, Rigid 10" SR Light Bar. Lots of Love
    No vibrations or rattles; You can re-use the OEM metal brackets; they do mount up; however they do not position the radio correctly thus causing the plastic faceplate trim to not want to latch back into place. If you have more patience then me you can redrill the OEM brackets to work; however I was in no mood to be attempting it. I did however cut the OEM bracket and mount it to the radio only to find out it doesn't position the radio correctly.

    hoarder23 likes this.
  13. May 16, 2020 at 1:05 PM
    #13
    ucdbiendog

    ucdbiendog Well-Known Member

    Joined:
    Dec 12, 2017
    Member:
    #238320
    Messages:
    701
    Gender:
    Male
    First Name:
    Ryan
    Reno, NV
    Vehicle:
    2014 DCSB TRD OR
    Bilstein 6112 + 5160 + Dakar MD, Stubbs HD-SKO sliders, BAMF skids, BAMF front bumper, Relentless Rear
    Yeah I tried redrilling the OEM and gave up, epic pain in the ass. Ended up using the cheapy plastic ones and they are fine. Seems like it would be a piece of cake for a theif to pull off the trim piece then just rip out the stereo
