2012 Fog light mod anytime help, things went wrong

So I did it this way and now my instrument panels are not lighting along with my tailights. I think I blew a couple of fuses; any help would be great



What thread were you using to reference? If any.



This thread https://www.tacomaworld.com/threads/2012-foglight-anytime-mod.186818/
post number 48

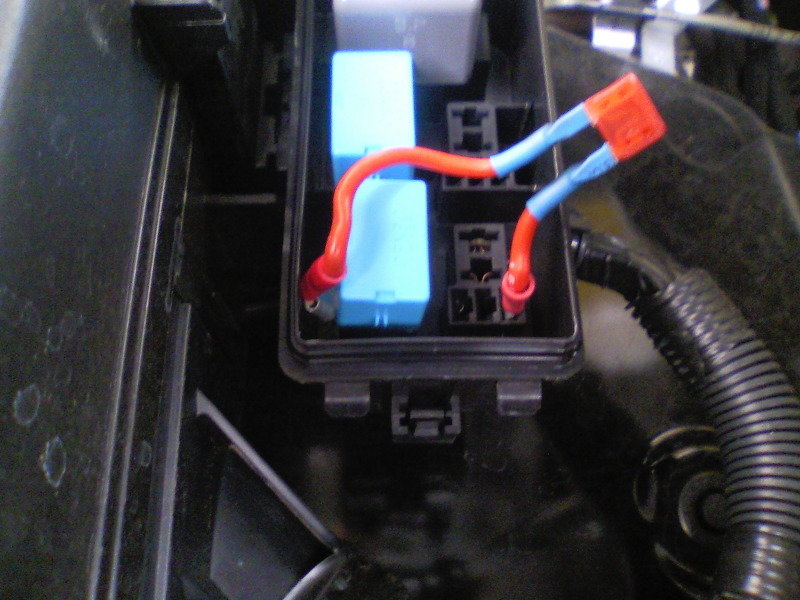

Is that the pic that you took of what it looks like in your truck?



No that is not my truck but I did it the exact same way.



Would it be possible to post up a pic of yours? Just thinking that there may be something there that we could see to help you out without asking 101 questions.
Thanks



I wll try to post a pic of mine but currently Im at work; a little nervous about the ride home; but I can tell you that its identical to the pic above minus the blue relay above the one where the wires coming out of.



Okay, thanks.
Just thinking that the gauge of the wire may not be right, or that the crimp may not be right. Just something like that.
Sorry for being a pia.



This is the post that I followed when I did mine and it worked flawlessly.

https://www.tacomaworld.com/threads...no-splicing-no-bending-100-reversible.309407/



I used 16gauge wire but I noticed in the thread that people were fusing the wires because of extra protection but did not say why.



I used 16gauge wire but I noticed in the thread that people were fusing the wires because of extra protection but did not say why.



I was also reading this in the thread about why they do a fuse

Caribe makaira thought of even a cleaner way to wire it up for 2012 tacos.

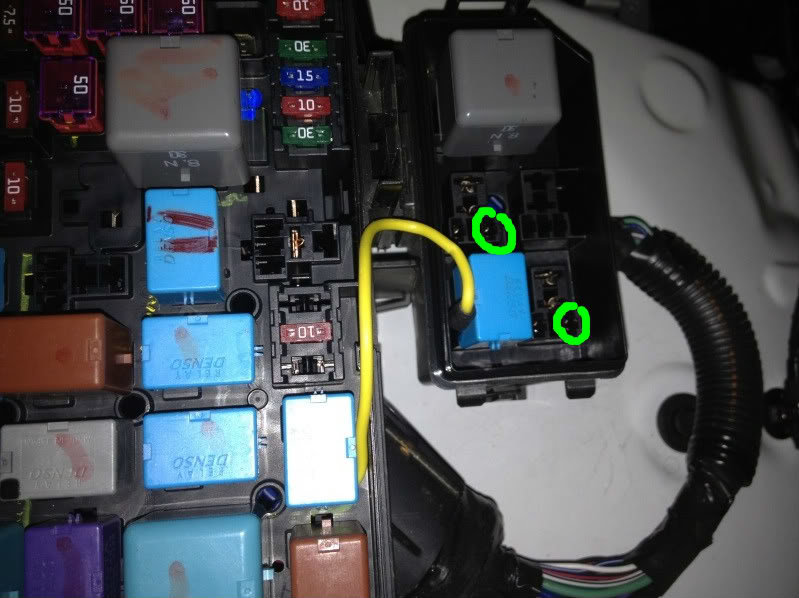

There is no need to run the wire out of the small fuse box where the fog relay is since there are already 2 slots that are wired to ign power. They are the #2 slot (circled in green) and turn on/off with the ignition so you don't drain your battery. Suggested you use an inline fuse (1A will do) for extra protection.

So instead of running it to the Tail light relay in the large fuse box. just plug it into one of the available slots near the fog relay



My other question is what did I do wrong, tail lights dont work, instrument panel doesnt light up, radio works but doesnt show words on the display screen. Did I blow all those fuses??



This is what I was going to say. That there should be more connections. But it appears that others have not had to do that.
He also has a 2012, which could change things.



Exactly how I did mine. Over one year and still running strong



I will probably do mine this way ^^ but Im trying to figure out what went wrong and what fuses I need to replace.



Why not pull the fuses for the items that do not work and check them, replacing if needed?

It's hard for us to tell from here if fuses are blown.



How did you make out with this issue?



Everything turned out ok. Blew 2 fuses. I ended up doing it like post 14 and it works great now.
