2012 foglight anytime mod ?

Discussion in 'Lighting' started by Hydrolai, Nov 8, 2011.

  1. Jan 27, 2012 at 1:26 PM
    #21
    Rossi396

    Rossi396 Rossi396

    Joined:
    Mar 28, 2010
    Member:
    #34126
    Messages:
    117
    Gender:
    Male
    First Name:
    Tony
    Pittsburgh, PA
    Vehicle:
    2012 Super White TRD Off Road Short Bed
    TRD Filter, Running Boards, Vent Visors, Extang-Trifecta, Bed Mat & Extender, Pop N' Lock, WeatherTech's, Fog Lights Anytime and of course...I cut the antenna!
    The diagram above (see the green circles) works. Use the top left slot. The only issue is you have to shut off your fog lights. Not really a big deal. The other wiring method works fine, too. You just have to run the wire outside the box. With that method, you can leave the fog light switch on when you shut the truck off.

    Both ways work fine....

    Rossi


  2. Jan 28, 2012 at 12:54 AM
    #22
    S7ICKlVlAN

    S7ICKlVlAN Cpt. Bubbleguts

    Joined:
    May 15, 2009
    Member:
    #17250
    Messages:
    1,376
    Gender:
    Male
    First Name:
    Dave
    Hawaii
    Vehicle:
    2012 TRD Sport DCSB
    TRD badged | Hunting Cage | Smoked Tails | LED Everything | Slim Cubby HID bi-xenon's | Spidertrax 1.25" | BHLM | FLM | S2000 Ant | 20% Shade | PL 8521 | OME 885 | Bilstein 5100's | Toytec 2" AAL | FN 18x9" Bronze BFD's | 275/65-18 Duratrac's | Wrinkle Red Valve Covers | 3M Di-Noc Wrapped Interior | Kode MB Push Button Ignition | Relentless Sliders | URD TCAI | Mr.Marv Enclosure | Arc Audio 10" | Hybrid Audio Clarus F/R | Alpine PDX-5 | Alpine INE-S920HD
    Very cool write-ups. Did the mod in a few minutes. Used the diagram with the green circles. Thanks guys.

  3. Feb 9, 2012 at 4:50 PM
    #23
    Cobalt719

    Cobalt719 Well-Known Member

    Joined:
    Jan 20, 2012
    Member:
    #71027
    Messages:
    288
    Gender:
    Male
    Chesapeake, VA
    Vehicle:
    '12 4 Banger PreRunner DC
    LED Interior Lights, Tailgate Anit-Theft Mod, OEM Skid Plate, Aftermarket Fogs, Tow Hitch
    So not to completely jack the thread but lets say you want to do the exact opposite and have the fogs cut off with the high beams? I bought some aftermarket fogs and after looking at the wiring it looks like they are independently wired from the lights so they will not turn off when you turn on the high beams. I live in VA and here it is unfortunately a requirement that they turn off with the high beams. Any insights would be great!

  4. Feb 9, 2012 at 5:01 PM
    #24
    Fractured

    Fractured FPS-a-holic

    Joined:
    Dec 23, 2011
    Member:
    #69293
    Messages:
    828
    Gender:
    Male
    First Name:
    Corey
    NOR*Cal
    Vehicle:
    2012 MGM DCSB 4x4
    TRD wheels, TRD cat back exhaust, ScanGauge 2, Debadged, Avid sliders, UWS bed box w/automatic LED light, Led Interior/Reverse/Lic. Plate lights, Yellow Fogs, Flyzeye Light, Color matched grill, Rearview mirror relocate bracket, Power Sliding rear window, Plasti-dipped bumper/"T" emblem

    You would need an additional relay that opened up when voltage hit it instead of closing. Where it would need to be installed, and what size/type of relay I am not sure.

  5. Feb 9, 2012 at 9:11 PM
    #25
    caribe makaira

    caribe makaira Lurker No More

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    508
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Get an add-a-circuit and place it on either low beam fuse. Fuse top slot with 1 to 3 amp fuse and 10 amp for bottom slot. The wire from the add-a-circuit goes to pin 86 of aftermarket fog light relay via the fog switch. (There other manners of obtaining same feature)
    When you select high beams, dim relay disconnects juice to low filament on head light and to fog relay, getting what you asked for.

  6. Feb 10, 2012 at 7:38 PM
    #26
    Cobalt719

    Cobalt719 Well-Known Member

    Joined:
    Jan 20, 2012
    Member:
    #71027
    Messages:
    288
    Gender:
    Male
    Chesapeake, VA
    Vehicle:
    '12 4 Banger PreRunner DC
    LED Interior Lights, Tailgate Anit-Theft Mod, OEM Skid Plate, Aftermarket Fogs, Tow Hitch
    Cool deal thanks. I think I follow you. Just so I understand I'm gonna recap.

    Add a circuit to the low beam fuse in the box > fog light relay > switch?

    Do I still need to connect the power to the battery using the factory harness?

    Sorry pretend I'm dumb. I'm very new to this.:confused:

  7. Mar 8, 2012 at 4:38 PM
    #27
    504taco

    504taco Active Member

    Joined:
    Jan 29, 2011
    Member:
    #50181
    Messages:
    38
    Gender:
    Male
    First Name:
    Jacob
    N.O.L.A.
    Vehicle:
    2011 Prerunner SR5
    -Fog light mod -Yellow laminx fog -shorty antenna -maglight mount -tinted windows -alpine head unit -8" JBL sub -laminx yellow fogs -power inverter installed behind rear passenger seat -TX PRO rims -BFG All Terrain KO
    Does this kill the DTRL's? I noticed in your pic the DTRL's are off...

  8. Mar 10, 2012 at 8:58 PM
    #28
    Johnny E

    Johnny E Active Member

    Joined:
    Mar 10, 2012
    Member:
    #74638
    Messages:
    39
    Gender:
    Male
    Langley, BC Canada
    Vehicle:
    2012 Taco TRD DCSB 6MT
    Anytime Fog Light Mod, 3 Ball Shifter,Custom Behind the Grill Light Mount and PIAA 4" ATP's, Custom Quick Release Bed Divider, Headache Rack, Trimmed front Mud Flaps, Firestone RideRite Air Bags

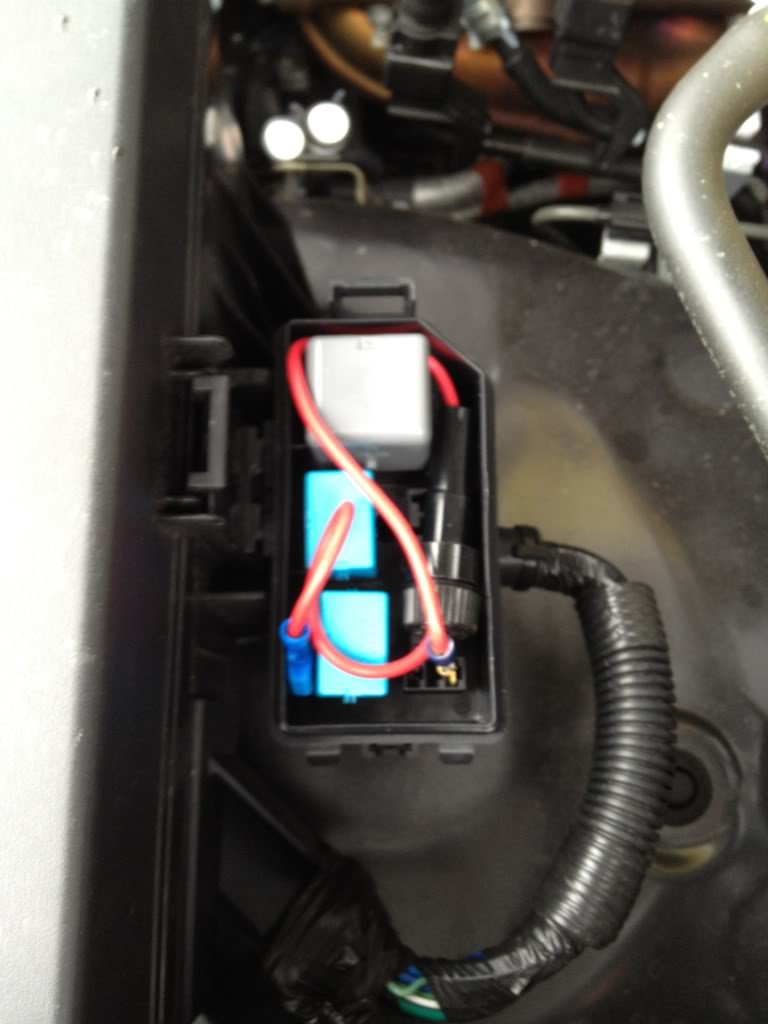

    doing it this way works well. This is a switched source so the the lights will function only when the ignition is on

    thx cintocrunch

    [​IMG]

  9. Mar 10, 2012 at 9:11 PM
    #29
    Johnny E

    Johnny E Active Member

    Joined:
    Mar 10, 2012
    Member:
    #74638
    Messages:
    39
    Gender:
    Male
    Langley, BC Canada
    Vehicle:
    2012 Taco TRD DCSB 6MT
    Anytime Fog Light Mod, 3 Ball Shifter,Custom Behind the Grill Light Mount and PIAA 4" ATP's, Custom Quick Release Bed Divider, Headache Rack, Trimmed front Mud Flaps, Firestone RideRite Air Bags
    Ultra Stealth Mod
    After cintocrunch showed me the easy wayfor a 2012 it occured to me this could be done even cleaner. The image below is the underside of the sub panel. If you were to swap the red/black wire in the upper right corner with the pale green wire in the lower right you would not need the jumper wire or to mess with the relay. Note if you have heated seat the this would be bad as now they would only work with the headlights on lowbeam [​IMG]

    I took a look at this tonight and it seems there is a small clip holding the witing connector in the panel. If anyone know how to release the clipthis would be a super clean mod, heck it would even be fused as it is a factory wire [​IMG]

    [​IMG]

  10. Mar 23, 2012 at 1:27 PM
    #30
    wlandrum

    wlandrum Member

    Joined:
    Nov 17, 2011
    Member:
    #67195
    Messages:
    16
    Gender:
    Male
    Pasco, WA
    Vehicle:
    '12 Tacoma DC/LB, Mag Gray, TRD Sport
    Fog lights anytime, hood protector, door sill protectors, bed mat, exhaust tip, pop and lock keyless entry, tonneau cover.
    This is the way I did it, and it worked great. Thanks for the info here on this thread.

  11. Mar 24, 2012 at 8:08 AM
    #31
    Rossi396

    Rossi396 Rossi396

    Joined:
    Mar 28, 2010
    Member:
    #34126
    Messages:
    117
    Gender:
    Male
    First Name:
    Tony
    Pittsburgh, PA
    Vehicle:
    2012 Super White TRD Off Road Short Bed
    TRD Filter, Running Boards, Vent Visors, Extang-Trifecta, Bed Mat & Extender, Pop N' Lock, WeatherTech's, Fog Lights Anytime and of course...I cut the antenna!
    Anyone have a cleaner pic of this? Having trouble deciphering exactly what was done here...

    Rossi


  12. Mar 31, 2012 at 8:08 PM
    #32
    KrispyTaco

    KrispyTaco Member

    Joined:
    Mar 31, 2012
    Member:
    #76031
    Messages:
    12
    Gender:
    Male
    Indio, CA.
    Fog light mod, removed mud flaps, window tint

    Rossi396,

    I have a 2012 DC TRD O/R and just finished this mod. I'm getting the 12V from the top left connection. Waiting to see if the fog lights turn on after engine shutdown.

  13. Mar 31, 2012 at 8:43 PM
    #33
    KrispyTaco

    KrispyTaco Member

    Joined:
    Mar 31, 2012
    Member:
    #76031
    Messages:
    12
    Gender:
    Male
    Indio, CA.
    Fog light mod, removed mud flaps, window tint
    Okay, I just saw my fog lights turn on for split second, then turn off. I wonder if they're going to be turning on and off every few minutes. I guess I'm going to have to wire it to the trailer relay.

  14. Apr 1, 2012 at 5:33 AM
    #34
    cintocrunch

    cintocrunch Special Substitute Guest Member

    Joined:
    Dec 20, 2011
    Member:
    #69090
    Messages:
    771
    Gender:
    Male
    First Name:
    Mike
    MD
    Vehicle:
    2012 DCSB TRD Sport MGM 6MT
    Anytime fogs, Leer Tonneau
    If you are talking about my picture (the one with the red wire) it doesn't get much simpler. Bend up the bottom left tab on the relay, add female connector to bent tab, add wire, add an inline fuse (I did 1 amp), add male connector, insert in seat heater relay location as shown. It took longer to explain to my father why this wouldn't damage the truck down than to do it (I tried to make it a father/son activity, bad choice).

    Check your fog light fuse. For some reason when I first pulled the relay and put it back it popped the fog light fuse. When I pulled the relay to do the mod I had no issues...

  15. Apr 2, 2012 at 6:47 AM
    #35
    Rossi396

    Rossi396 Rossi396

    Joined:
    Mar 28, 2010
    Member:
    #34126
    Messages:
    117
    Gender:
    Male
    First Name:
    Tony
    Pittsburgh, PA
    Vehicle:
    2012 Super White TRD Off Road Short Bed
    TRD Filter, Running Boards, Vent Visors, Extang-Trifecta, Bed Mat & Extender, Pop N' Lock, WeatherTech's, Fog Lights Anytime and of course...I cut the antenna!
    Yeah...Got it. Thanks. I couldn't tell from the pic if the red wire went somewhere other than the seat heater relay. Which, by the way, I don't have...So this won't work for me anyway..! I'm just using the diagram with the two green circles and trying to remember to shut my fogs off.


  16. Apr 2, 2012 at 10:05 AM
    #36
    TACOconvert2012

    TACOconvert2012 Mini-Monster truck!

    Joined:
    Nov 25, 2011
    Member:
    #67669
    Messages:
    398
    Gender:
    Male
    First Name:
    Mike
    Socal
    Vehicle:
    SC'd 2012 magnetic gray TX/Pro 4x4
    limo tint all windows and tinted tail lights. K&N factory filter replacement. ScanguageII, fog light anytime mod, trailer plug hide-away mod, mud flap delete mod, tirebuddy auto deflators haha not really a mod. Recovery point hitch with shackle. front emblem, tacoma badges and recovery shackle painted red, the V6 badge and little toyota badge have been removed from tailgate and will remain off. CB installed with PA!!! =) for major fun/trouble.. Stealth mode mod to turn DTRL off on command. rear dif breather mod. Pelfrey built rear light bar. weathertech mats front and back in black!! Pelfreybilt skids: IFS, transmission, transfercase and exhaust crossover. ALL painted RED.. ICON 2.5s w/resi's EXTENDED TRAVEL FRONTS, AND 2.5 REARS w/resi's, ICON TUBULAR UCAs, AllPro Standard leaf pack, Total Choas Spindle gussets. 285/75R16 NITTOs. Pelfrey Front bumper, Superwinch Talon 12.5(waiting for install) SUPERCHARGED!!!!!!!

    ok so i used the slot with the green circle closest to the top of the pic... works perfect except that fog lights only com on with key turned all the way to ON position. it does not allow them to be used in the with the key on Acc like the other lights.. but hey still supper clean to keep in in one box no drilling and when the truck is off they stay off too.

  17. Apr 2, 2012 at 12:42 PM
    #37
    KrispyTaco

    KrispyTaco Member

    Joined:
    Mar 31, 2012
    Member:
    #76031
    Messages:
    12
    Gender:
    Male
    Indio, CA.
    Fog light mod, removed mud flaps, window tint

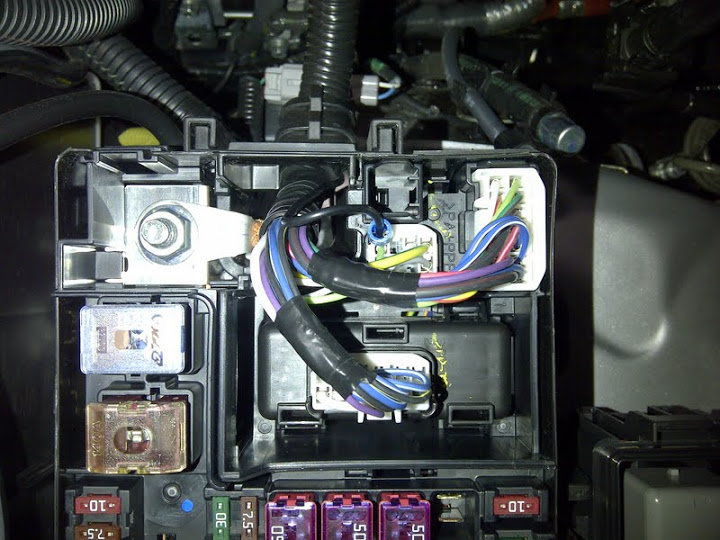

    The other method can be done cleanly as well. These pics are from Johnny E and will give you the options you want:


    • Notice where the wire is coming in with the other harness at the top.

    [​IMG]

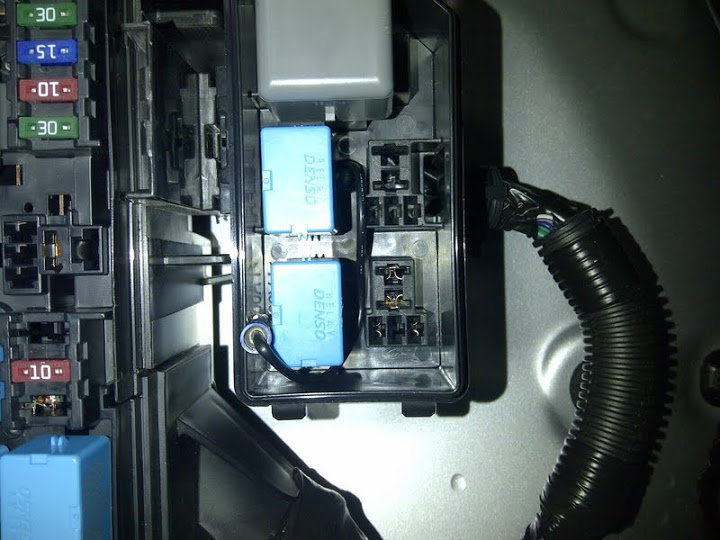

    • You can see the wire coming from the fog relay & going into the hole in the center of the box. Then it runs out with the other harness to the right. I removed the wire loom & ran the wire through the loom and re-taped it. It looks clean and no drilling required. ;)

    [​IMG]

  18. Apr 4, 2012 at 10:13 PM
    #38
    TACOconvert2012

    TACOconvert2012 Mini-Monster truck!

    Joined:
    Nov 25, 2011
    Member:
    #67669
    Messages:
    398
    Gender:
    Male
    First Name:
    Mike
    Socal
    Vehicle:
    SC'd 2012 magnetic gray TX/Pro 4x4
    limo tint all windows and tinted tail lights. K&N factory filter replacement. ScanguageII, fog light anytime mod, trailer plug hide-away mod, mud flap delete mod, tirebuddy auto deflators haha not really a mod. Recovery point hitch with shackle. front emblem, tacoma badges and recovery shackle painted red, the V6 badge and little toyota badge have been removed from tailgate and will remain off. CB installed with PA!!! =) for major fun/trouble.. Stealth mode mod to turn DTRL off on command. rear dif breather mod. Pelfrey built rear light bar. weathertech mats front and back in black!! Pelfreybilt skids: IFS, transmission, transfercase and exhaust crossover. ALL painted RED.. ICON 2.5s w/resi's EXTENDED TRAVEL FRONTS, AND 2.5 REARS w/resi's, ICON TUBULAR UCAs, AllPro Standard leaf pack, Total Choas Spindle gussets. 285/75R16 NITTOs. Pelfrey Front bumper, Superwinch Talon 12.5(waiting for install) SUPERCHARGED!!!!!!!

    how do you pop that sub fuse box up?? i couldnt figure it out and dont want to break it..

  19. Apr 4, 2012 at 10:14 PM
    #39
    TACOconvert2012

    TACOconvert2012 Mini-Monster truck!

    Joined:
    Nov 25, 2011
    Member:
    #67669
    Messages:
    398
    Gender:
    Male
    First Name:
    Mike
    Socal
    Vehicle:
    SC'd 2012 magnetic gray TX/Pro 4x4
    limo tint all windows and tinted tail lights. K&N factory filter replacement. ScanguageII, fog light anytime mod, trailer plug hide-away mod, mud flap delete mod, tirebuddy auto deflators haha not really a mod. Recovery point hitch with shackle. front emblem, tacoma badges and recovery shackle painted red, the V6 badge and little toyota badge have been removed from tailgate and will remain off. CB installed with PA!!! =) for major fun/trouble.. Stealth mode mod to turn DTRL off on command. rear dif breather mod. Pelfrey built rear light bar. weathertech mats front and back in black!! Pelfreybilt skids: IFS, transmission, transfercase and exhaust crossover. ALL painted RED.. ICON 2.5s w/resi's EXTENDED TRAVEL FRONTS, AND 2.5 REARS w/resi's, ICON TUBULAR UCAs, AllPro Standard leaf pack, Total Choas Spindle gussets. 285/75R16 NITTOs. Pelfrey Front bumper, Superwinch Talon 12.5(waiting for install) SUPERCHARGED!!!!!!!

    you dont run a inline fuse??

  20. Apr 5, 2012 at 12:01 PM
    #40
    KrispyTaco

    KrispyTaco Member

    Joined:
    Mar 31, 2012
    Member:
    #76031
    Messages:
    12
    Gender:
    Male
    Indio, CA.
    Fog light mod, removed mud flaps, window tint
    I did just to be safe.;) I also wire tied the green wire and the one coming from the fog relay. Don't want that sucker popping out.
