2013 Fog Light anytime w/ fuse...step by step

Discussion in '2nd Gen. Tacomas (2005-2015)' started by V5ioV, May 26, 2013.

  1. May 26, 2013 at 12:46 PM
    #1
    V5ioV

    V5ioV [OP] My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    5,661
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
    I use this method….http://www.tacomaworld.com/forum/2nd-gen-tacomas/243346-fog-light-mod-2013-a-2.html#post6138091 so credit go to azchris, but i decided to take pics of the step by step i used to make everything fit nice and clean…. also this is my 1st attemp at a DIY write-up!!! so I hope Im clear enough.

    here is what i used:

    *1 In-Line Fuse holder

    *1 Fully Insulated-Crimp-On quick disconnects (1/4')' MALE (insulation came off but these were a little longer than the non insulated) *replaced w/ heat shrink

    *1 Insulated-Crimp-On quick disconnects (3/16'') FEMALE (insulation came off to fit between relay and fuse box wall) *replaced w/ heat shrink

    *about 4in of heat shrink

    ***read the entire install as you may have to shorten the lengh of the In-Line fuse Holder wires***

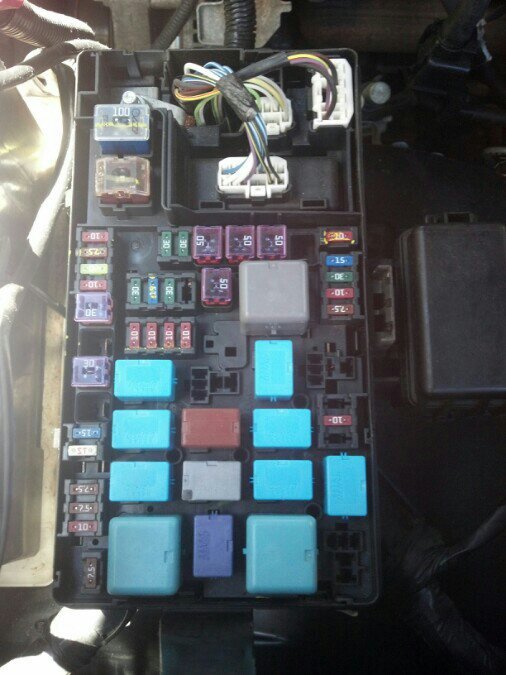

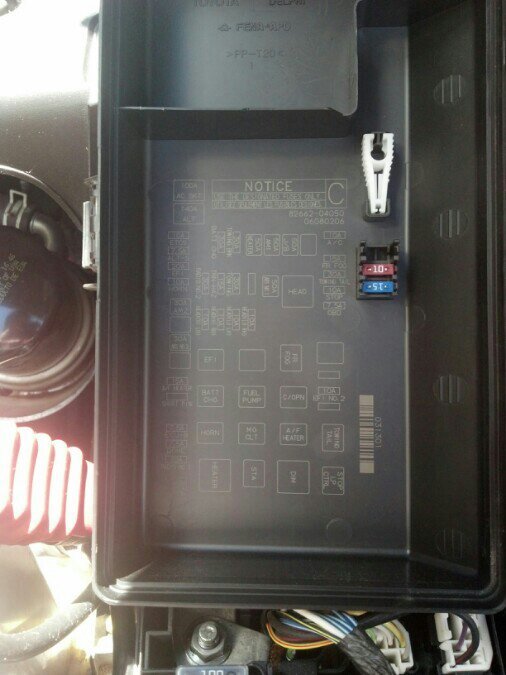

    these are the points of contact we will be using:

    [​IMG]

    i started by taking the insulations off on the quick disconnects, Both male and female

    [​IMG]

    [​IMG]

    the male tab is bigger that the female we are going to tap into, so i use a dremel to shave a little and make fit:
    [​IMG]

    to about this:

    [​IMG]

    and then bend like this:

    [​IMG]

    now you bent the furthest down left tab on the fog relay as tight as possible but with enough space to put in the already stripped female quick disconnect…something like this:

    [​IMG]

    now attach each end of the In-line fuse holder to the quick disconects and put the heat shrinks

    [​IMG]

    and then attach the female to the bent tab of the fog relay:

    [​IMG]

    now finally back to the fuse box….
    insert the male tab as noted in this pic and the inset the relay:

    [​IMG]

    [​IMG]

    and finally replace the fog relay with the female end already attached previously….

    [​IMG]

    if you cut the wires right, you should be able to tuck them in nice and clean and the box will close just as normal:

    [​IMG]

    and here it is!

    [​IMG]

    I tested it and it works in all settings:
    Fogs alone, Fogs with DRL, with parking light, with Low Beams, and with High Beams….
    and they come off when shutting the car off….

    Last edited: Sep 27, 2013
  2. Jun 10, 2013 at 8:44 PM
    #2
    NutsTacoma

    NutsTacoma Active Member

    Joined:
    Apr 26, 2013
    Member:
    #102936
    Messages:
    35
    Gender:
    Male
    Northwest Florida
    Vehicle:
    2013 F-150 XLT crew cab 4x4
    What size fuse did you use in the fuse holder? And thanks that's a great write up with detailed pics.

  3. Jun 10, 2013 at 9:32 PM
    #3
    drstu

    drstu Member

    Joined:
    Jun 8, 2013
    Member:
    #105858
    Messages:
    10
    Gender:
    Male
    Alabama
    Vehicle:
    '13 DCSB TRD Off-Road in Super White
    Coming soon!
    Ditto!

  4. Jun 11, 2013 at 4:12 AM
    #4
    V5ioV

    V5ioV [OP] My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    5,661
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
    Thank you….
    I used a 15amp fuse

  5. Jul 15, 2013 at 7:02 PM
    #5
    machineman89

    machineman89 Well-Known Member

    Joined:
    Jun 3, 2012
    Member:
    #79994
    Messages:
    462
    Gender:
    Male
    First Name:
    Matthew
    San Leandro
    Vehicle:
    overlanding limo in progress :-P
    Weather tech floor mats, fog light any time mod, derped front embelem
    not at truck but iam guessing the 15 amp fuse is what is normally goin to the fog lights????? bout to do this mod.....headlights and foglight sorta defeat the purpose of low lying lights in my opinion.... :cool:

  6. Jul 15, 2013 at 7:15 PM
    #6
    V5ioV

    V5ioV [OP] My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    5,661
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
    yeah its the same

  7. Jul 15, 2013 at 8:35 PM
    #7
    machineman89

    machineman89 Well-Known Member

    Joined:
    Jun 3, 2012
    Member:
    #79994
    Messages:
    462
    Gender:
    Male
    First Name:
    Matthew
    San Leandro
    Vehicle:
    overlanding limo in progress :-P
    Weather tech floor mats, fog light any time mod, derped front embelem
    done!.....sweet time to go cruise a few dark roads n see the difference, thanks for making it easy as pie :D

  8. Jul 16, 2013 at 4:42 AM
    #8
    V5ioV

    V5ioV [OP] My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    5,661
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
    i'm glad it helped!!!

  9. Jul 16, 2013 at 5:01 AM
    #9
    Faryota

    Faryota Well-Known Member

    Joined:
    Jan 29, 2010
    Member:
    #30291
    Messages:
    564
    Gender:
    Male
    First Name:
    Mic
    Ridgefield, WA.
    Vehicle:
    13, 4x4, long bed, Sport, Debad
    6" BDS lift in front, warn winch, AFE cold air intake & exhaust, Body Armor Rear bumper, Tuffy in bed storage box, DZ bed mat, ARB front bumper & Warn winch w/light kit, Husky floor mats, dash mat,
    Great write up and pictures!!!! I like using my fog lights and high beams when I am out in Montana traveling those gravel roads late at nite....coming back from hunting seems I see lots of deer and antelope right beside the road and the fog lights really help me see them!

  10. Jul 16, 2013 at 8:32 AM
    #10
    V5ioV

    V5ioV [OP] My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    5,661
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
    Thanks...

    I like my high beams w fogs in some farm/back roads around my way also because of a lot of wild life jumping on the road.... The fogs give me a nice beam on the ditches and the highs let me look out for animals up ahead...

  11. Jul 17, 2013 at 6:07 PM
    #11
    cgredler

    cgredler It was called thee 80s

    Joined:
    Apr 5, 2013
    Member:
    #101434
    Messages:
    54
    Gender:
    Male
    First Name:
    Cam
    Seattle, WA
    Vehicle:
    07 DCLB 4x4 like a boss
    3" lift Yakima Rack Floor Mats/Wind Defl. Cb Radio Bed Lights Tool Box
    Just did it.... Thanks for the write up, my dude. cost me about 12 bucks and 15 minutes.

    :D

    ...on to the next mod.:kona::kona::kona::kona:

  12. Jul 17, 2013 at 7:01 PM
    #12
    V5ioV

    V5ioV [OP] My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    5,661
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
    cool man!!!

  13. Jul 20, 2013 at 11:24 AM
    #13
    larrybbaker

    larrybbaker Well-Known Member

    Joined:
    Jun 14, 2012
    Member:
    #80690
    Messages:
    164
    Gender:
    Male
    First Name:
    larry
    South Central PA
    Vehicle:
    2013 MGM DCLB TRD SPORT 4WD
    OME 885 | Bilstein 5100 x 4 | WeatherTech Window Visors | VAIS Tech SiriusXM Adapter |Alpine KTP-445U Amp | Anytime fog light mod
    Thanks for the great write up and pics. Took me all of 10 minutes to do it.

  14. Jul 24, 2013 at 11:32 AM
    #14
    lyodbraun

    lyodbraun Well-Known Member

    Joined:
    May 1, 2013
    Member:
    #103255
    Messages:
    487
    Gender:
    Male
    NW Ohio
    Vehicle:
    2006 SR5 TRD Sport
    Nothing yet
    Ok i want to do this mod on my 2006, but just not sure where to run the jumper wire from and to..any help on this, here are the pics of my fuse box, and lid[​IMG][​IMG]

  15. Jul 24, 2013 at 1:02 PM
    #15
    V5ioV

    V5ioV [OP] My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    5,661
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
    I know its the same theory…but not sure where you have to tap into on the 06's
    you could def find a write up that will work with you truck here in TW….

  16. Jul 24, 2013 at 1:03 PM
    #16
    V5ioV

    V5ioV [OP] My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    5,661
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
    :thumbsup:

  17. Jul 24, 2013 at 2:18 PM
    #17
    Wisaunders

    Wisaunders Active Member

    Joined:
    Feb 28, 2013
    Member:
    #98691
    Messages:
    35
    Gender:
    Male
    Where did you get the parts for this? Are these common parts you can pick up from autozone or a similar store?

  18. Jul 24, 2013 at 2:40 PM
    #18
    V5ioV

    V5ioV [OP] My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    5,661
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
    i got them at radio shack… but im sure you could prolly find them in the electrical section at any auto parts store!

  19. Jul 24, 2013 at 3:08 PM
    #19
    b.prall

    b.prall Well-Known Member

    Joined:
    Oct 13, 2011
    Member:
    #65115
    Messages:
    217
    Gender:
    Male
    First Name:
    Brian
    las vegas
    Vehicle:
    06 prerunner sr5
    It's is what I did on my 06 for anytime on fogs, they'd go off when you shut the truck off, found it on tw, thanks goes to the guys that wrote this


  20. Aug 3, 2013 at 3:40 PM
    #20
    SoCalTacos

    SoCalTacos Penis Bird

    Joined:
    Nov 5, 2011
    Member:
    #66543
    Messages:
    3,248
    Gender:
    Male
    socal
    Vehicle:
    2012 TRD Sport 4x4 DC LB Black
    King remote resi coilovers, King rear resis, camburg 1.25" uca, deaver j66 pack, Method race wheels, bfg at ko 285/70/17, Retrofitted headlights FXR IV, debadged, tinted tails, JL audio stealthbox, focal v30, focal pc165, arc audio amp, 7" Kenwood hu, undercarriage led lighting, kibbetech custom bumper with 20" led light bar, RI duallies (6), dtlt's, urd intake, maf cal, urd y-pipe, roto pax gas tank and tacoma bed mount, pelfreybuilt bed bar.
