2013 Fog Light anytime w/ fuse...step by step

Discussion in '2nd Gen. Tacomas' started by V5ioV, May 26, 2013.

  1. Aug 3, 2013 at 4:14 PM
    #21
    SpruceJPG

    SpruceJPG Raging Dunkay

    Joined:
    Dec 24, 2012
    Member:
    #93651
    Messages:
    190
    Gender:
    Male
    First Name:
    .JPG
    Maryland
    Vehicle:
    2013 Spruce Mica DCLB SR5
    WeatherTech Floor Mats and some window tint
    Very nice write up! I have tried doing this on my 2013 SR5, but the open spots in the fuse box are not hot/wired. Just empty... like the feeling in my heart when I realized I still cant turn on just my fog lights.

    [​IMG]

  2. Aug 3, 2013 at 4:36 PM
    #22
    SoCalTacos

    SoCalTacos Penis Bird

    Joined:
    Nov 5, 2011
    Member:
    #66543
    Messages:
    3,249
    Gender:
    Male
    socal
    Vehicle:
    2012 TRD Sport 4x4 DC LB Black
    King remote resi coilovers, King rear resis, camburg 1.25" uca, deaver j66 pack, Method race wheels, bfg at ko 285/70/17, Retrofitted headlights FXR IV, debadged, tinted tails, JL audio stealthbox, focal v30, focal pc165, arc audio amp, 7" Kenwood hu, undercarriage led lighting, kibbetech custom bumper with 20" led light bar, RI duallies (6), dtlt's, urd intake, maf cal, urd y-pipe, roto pax gas tank and tacoma bed mount, pelfreybuilt bed bar.
    imagine what I felt when I just did the wiring and all that happened was my headlights would go on, even in the off position. fml.

  3. Aug 3, 2013 at 5:11 PM
    #23
    Tommiet

    Tommiet Well-Known Member

    Joined:
    Jun 10, 2013
    Member:
    #105990
    Messages:
    250
    Gender:
    Male
    First Name:
    Tom
    Charlotte Area
    Vehicle:
    PreRunner
    I like this mod, but wondering if the plastic housing will hold up to long term use. I did this to my Miata's fog lights and the plastic bulb holder melted after less than a year's use on both sides. Yes they were factory bulbs.

  4. Aug 3, 2013 at 6:59 PM
    #24
    V5ioV

    V5ioV [OP] My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    5,632
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
    thanks,

    find a hot source… preferably one thats only hot when car is on! and follow the same concept!

    I dont know for sure! but I've had mine "on" for hours, *no issues yet!

  5. Aug 3, 2013 at 10:58 PM
    #25
    4508js

    4508js Well-Known Member

    Joined:
    Jul 27, 2013
    Member:
    #109202
    Messages:
    175
    Gender:
    Male
    Tennessee
    Vehicle:
    '13 TRD OR 4x4 DCSB, 4.0L V-6
    3" Rancho Suspension lift, Wet Okole seat covers, FJ TRD beadlock wheels
    If you use the fog light button to turn the lights off will they turn off ? Just curious, I want to do this mod myself. Thanks for the write up

  6. Aug 3, 2013 at 11:20 PM
    #26
    V5ioV

    V5ioV [OP] My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    5,632
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
  7. Aug 12, 2013 at 4:49 PM
    #27
    4508js

    4508js Well-Known Member

    Joined:
    Jul 27, 2013
    Member:
    #109202
    Messages:
    175
    Gender:
    Male
    Tennessee
    Vehicle:
    '13 TRD OR 4x4 DCSB, 4.0L V-6
    3" Rancho Suspension lift, Wet Okole seat covers, FJ TRD beadlock wheels
    Very nice write up with detailed pics, I just went out and did it to my '13 TRDOR and it was very easy. I really like the extra light when my high beams are on, thanks

  8. Aug 12, 2013 at 8:20 PM
    #28
    V5ioV

    V5ioV [OP] My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    5,632
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
    Glad it help!

  9. Aug 14, 2013 at 11:48 AM
    #29
    Naholo808

    Naholo808 Well-Known Member

    Joined:
    Feb 13, 2013
    Member:
    #97465
    Messages:
    557
    Gender:
    Male
    First Name:
    Jordan
    Honolulu, HI
    Vehicle:
    13 PreRunner TRD Sport
    TINTS: 5% all around except windshield LIGHTING: FogLight Anytime (2006KJ) HID Headlights - 6000k Hi/Lo Beam HID Foglights - 5000k DTRLs - Triton 6k white/amber switchback (VLEDS) LED CREE Reverse Lights LED “cool white” Map Lights LED “cool white” Dome light LED “cool white” Parking Lights LED “cool white” License Plate INTERIOR: Wet Okoles - Black w/ Charcoal Piping. (Front and Back) Armrest / Center Console Cover (Blueinstinct) DOOR PULL HANDLE COVERS (Blueinstinct) Pillar Grab Handle Covers (Blueinstinct) Rear "OH SHIT" Grab handles (Blueinstinct) EXTERIOR: Black TRD grill emblem Plasti-dipped emblems Plasti-dipped front bottom insert Black OEM side steps Black OEM bedmat MATTE BLACK TRD w/ Hawaiian Islands BEDSIDE DECAL - (Cboy808) WHT KAHULUI Decal “Maui Built” (Maui Tropix) BLK Decepticon Decal - (Cboy808) BLK Mickey Mouse shaka Decal - (Cboy808) WHEELS: 17in TRD Sport rims P265/70R17 Black Gorilla Lug nuts
    Does this mod make your fogs go on in the middle of the night or just go on random times? I've been reading some posts saying that sometimes those things happen.

  10. Aug 14, 2013 at 2:41 PM
    #30
    V5ioV

    V5ioV [OP] My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    5,632
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
    nope! only when you manually turn them on…. but w this mod you can turn them on at any time…regardless of which light mode you got on or even while all your other lights are off…. also they will always come off when you shut the ignition!

  11. Aug 14, 2013 at 3:11 PM
    #31
    Naholo808

    Naholo808 Well-Known Member

    Joined:
    Feb 13, 2013
    Member:
    #97465
    Messages:
    557
    Gender:
    Male
    First Name:
    Jordan
    Honolulu, HI
    Vehicle:
    13 PreRunner TRD Sport
    TINTS: 5% all around except windshield LIGHTING: FogLight Anytime (2006KJ) HID Headlights - 6000k Hi/Lo Beam HID Foglights - 5000k DTRLs - Triton 6k white/amber switchback (VLEDS) LED CREE Reverse Lights LED “cool white” Map Lights LED “cool white” Dome light LED “cool white” Parking Lights LED “cool white” License Plate INTERIOR: Wet Okoles - Black w/ Charcoal Piping. (Front and Back) Armrest / Center Console Cover (Blueinstinct) DOOR PULL HANDLE COVERS (Blueinstinct) Pillar Grab Handle Covers (Blueinstinct) Rear "OH SHIT" Grab handles (Blueinstinct) EXTERIOR: Black TRD grill emblem Plasti-dipped emblems Plasti-dipped front bottom insert Black OEM side steps Black OEM bedmat MATTE BLACK TRD w/ Hawaiian Islands BEDSIDE DECAL - (Cboy808) WHT KAHULUI Decal “Maui Built” (Maui Tropix) BLK Decepticon Decal - (Cboy808) BLK Mickey Mouse shaka Decal - (Cboy808) WHEELS: 17in TRD Sport rims P265/70R17 Black Gorilla Lug nuts
    Awesome.. I'll try it out soon! ;)

  12. Sep 27, 2013 at 5:04 PM
    #32
    LoneCynic

    LoneCynic Well-Known Member

    Joined:
    Mar 14, 2013
    Member:
    #99696
    Messages:
    89
    Gender:
    Male
    Ohio, USA
    Vehicle:
    NBM Tacoma 4x4 TRD Off Road & Towing
    SmittyBuilt Side Steps, DeeZee Bed Mat, TRD Shift Knob, Pop & Lock Tailgate lock, Stantz Locking Gas Cap, Marshall Instruments Oil Pressure & Oil Temperature Gauges
    Thanks for the write up, I will do this in the near future when time allows. Should be very helpful!

  13. Sep 27, 2013 at 8:24 PM
    #33
    V5ioV

    V5ioV [OP] My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    5,632
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
    Thanks for checking the write-up out! good luck!

    Last edited: Sep 29, 2013
  14. Oct 7, 2013 at 9:51 AM
    #34
    zk6760

    zk6760 Well-Known Member

    Joined:
    Aug 8, 2013
    Member:
    #110092
    Messages:
    113
    Gender:
    Male
    SLC, UT
    Vehicle:
    2010 Off Road
    Just got it!
    Question - is there any sort of 'switch' I can add to the wiring to shut the mod off?

    It wont pass inspection where I live and it would be nice to just "flip the mod off" without DC'ing anything to quickly get inspected and then turn it back on. Thoughts?

  15. Oct 7, 2013 at 12:57 PM
    #35
    08TRDOFFROAD

    08TRDOFFROAD Well-Known Member

    Joined:
    Nov 4, 2008
    Member:
    #10482
    Messages:
    330
    Gender:
    Male
    Vehicle:
    08' 4x4 TRD Offroad
    Bilstein 5100's w/front's set at 1.75", 17x9 Moto Metal 951's, 265/70/17 BFG AT KO's, TRD exhaust, Colormatched grill, GrillCraft,, Rear leaf TSB, Illuminated 4wd selector switch
    [​IMG]

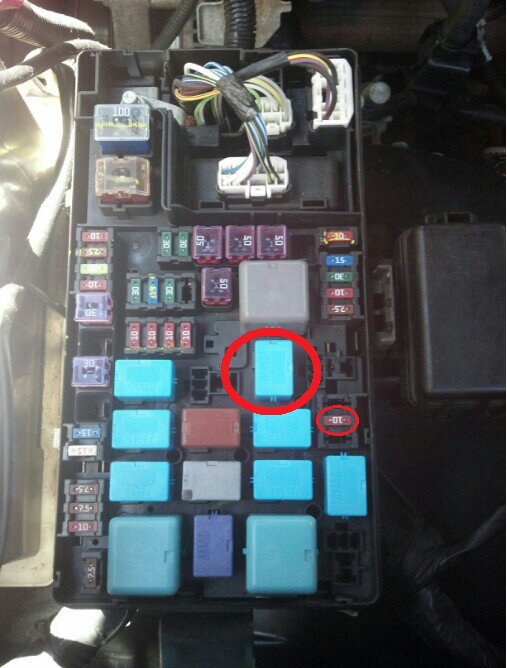

    Take out the blue relay circled in red, bend the tab on the top right (as if it were facing down like it is installed in the truck, just like in your picture) using an add a circuit, crimp a blade connector on to the end of the wire, slide it on the tab you bent from the relay. Remove the 10 amp fuse circled in red, place the add a circuit in its place, replacing the 10 amp fuse into the empty slot in the add a circuit, add a 5 amp fuse to the second slot to fuse your fog lights to avoid blowing your 10 amp ignition fuse if something goes wrong down the road.

    Here is a link to a mini add a circuit, you should be able to pick one up at your local auto parts store for a few bucks, make sure you get the mini blade fuse so it will fit in the ignition fuse's place. PM me if you have any more questions about how to do it.
    http://www.superbrightleds.com/more...gleBaseChild&gclid=CNLZ2L3BhboCFSVgMgod9m0ASg

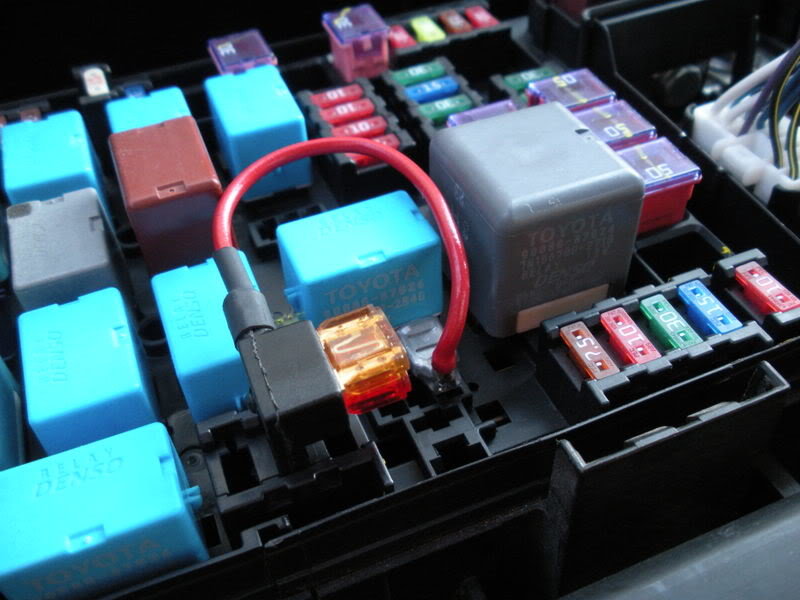

    It should look like this when you're done.
    [​IMG]


    Also, just FYI, using this method, if you leave the switch in the cab turned on, approximately 4-5 hours after you turn the truck off, the fogs will come on for about 90 seconds, the ignition system powers up briefly to run some emission control systems in the truck. So don't panic if your fogs come on...it is normal and won't hurt anything.

    Last edited: Oct 7, 2013
  16. Oct 7, 2013 at 1:14 PM
    #36
    08TRDOFFROAD

    08TRDOFFROAD Well-Known Member

    Joined:
    Nov 4, 2008
    Member:
    #10482
    Messages:
    330
    Gender:
    Male
    Vehicle:
    08' 4x4 TRD Offroad
    Bilstein 5100's w/front's set at 1.75", 17x9 Moto Metal 951's, 265/70/17 BFG AT KO's, TRD exhaust, Colormatched grill, GrillCraft,, Rear leaf TSB, Illuminated 4wd selector switch
    I have had zero issues with the safety inspections on my truck with this mod for the past six years.

  17. Oct 7, 2013 at 3:24 PM
    #37
    V5ioV

    V5ioV [OP] My drinking team has a wheeling problem

    Joined:
    Sep 22, 2012
    Member:
    #87502
    Messages:
    5,632
    Gender:
    Male
    First Name:
    V5ioV
    Out n 'bout
    Vehicle:
    '13 Pewp Water Slut
    King 2.5 Rem Resi Ext Travel w/comp adj w/700# springs, TC Uni-Ball UCAs, ARB/OME Dakar Leaf Springs w/ King 2.5 Rem Resi w/comp adj and custm eyelets, Stealth Custom Series F-5 Wheels wrapped on: 285/75/16 Fierce Attitudes, BORA 2.25 wheel spacers, GOODRIDGE extended Brake lines, Triple-6" Double Row LED Light Bars behind lower grill, ATFL MOD, TRD Ball Type Shift Knob, Husky WeatherBeater Floor Liners, 60'' HiLift Xtreme, 4xInnovations Bolt-On Sliders w/Kickout, Spring Hanger Skid, Custom BlackPipe Fabs CMC and custom FYL Bed Rack, CVT Mt. Shasta RTT, Trasharoo, 4xInnovations HiLift Bedside Mounts, 4xInnovations Front Skid Plate, TOYWERX Ghost Raptor thin-lip Satoshi Grill, RedLine Hood Struts, 4xInnovations Transmission Skid and T-Case Skid Plates, Wheelers Rear SuperBumps Bump Stops, All-Pro Off Road U-Bolt Flip Kit, UltraGauge, ARB OBA, Pelfreybilt HC rear Bumper, Rotopax system (Single Mounting Plate and Bed Rail Mounting Plate both with LOX handles.
    Never knew there were places that check the fogs at the time of inspection!!!

    Last edited: Oct 7, 2013
  18. Oct 8, 2013 at 6:17 AM
    #38
    zk6760

    zk6760 Well-Known Member

    Joined:
    Aug 8, 2013
    Member:
    #110092
    Messages:
    113
    Gender:
    Male
    SLC, UT
    Vehicle:
    2010 Off Road
    Just got it!
    I've had them checked on a prior vehicle - just depends how thorough the inspection is.

  19. Oct 20, 2013 at 12:45 AM
    #39
    romiogt

    romiogt Member

    Joined:
    Apr 10, 2013
    Member:
    #101779
    Messages:
    20
    Gender:
    Male
    Canada
    Vehicle:
    2013 TRD Offroad
    TRD Cat-Back Exhaust, Bilstien 5100's @ 1.75, Weathertech Floormats Larsen NMO 2/70B
    Thanks for azchris for the orginal post, and Naholo808 for the write up, followed these instructions w/o issue and I am very happy with the result.

    Materials

    1x mini auto inline fuse holder 16ga - $1.50
    1x 15a mini auto fuse - $0.60
    1x male quick disconnects - $0.10
    1x female quick disconnect - $0.10

    Photos

    [​IMG][​IMG]

    On a 2013 there are no female connectors going to the empty SEAT HTR relay in the fuse box, so I spliced the male connector in with the male connector of the AC SKT (gray) relay as described; required just a little filing down to fit. Works exactly as per normal but I can turn on my fogs with my high-beams now!

    Last edited: Oct 20, 2013
  20. Oct 20, 2013 at 2:58 PM
    #40
    Naholo808

    Naholo808 Well-Known Member

    Joined:
    Feb 13, 2013
    Member:
    #97465
    Messages:
    557
    Gender:
    Male
    First Name:
    Jordan
    Honolulu, HI
    Vehicle:
    13 PreRunner TRD Sport
    TINTS: 5% all around except windshield LIGHTING: FogLight Anytime (2006KJ) HID Headlights - 6000k Hi/Lo Beam HID Foglights - 5000k DTRLs - Triton 6k white/amber switchback (VLEDS) LED CREE Reverse Lights LED “cool white” Map Lights LED “cool white” Dome light LED “cool white” Parking Lights LED “cool white” License Plate INTERIOR: Wet Okoles - Black w/ Charcoal Piping. (Front and Back) Armrest / Center Console Cover (Blueinstinct) DOOR PULL HANDLE COVERS (Blueinstinct) Pillar Grab Handle Covers (Blueinstinct) Rear "OH SHIT" Grab handles (Blueinstinct) EXTERIOR: Black TRD grill emblem Plasti-dipped emblems Plasti-dipped front bottom insert Black OEM side steps Black OEM bedmat MATTE BLACK TRD w/ Hawaiian Islands BEDSIDE DECAL - (Cboy808) WHT KAHULUI Decal “Maui Built” (Maui Tropix) BLK Decepticon Decal - (Cboy808) BLK Mickey Mouse shaka Decal - (Cboy808) WHEELS: 17in TRD Sport rims P265/70R17 Black Gorilla Lug nuts
    Nice!!! Dont credit me. Credit 2006KJ!!

    Last edited: Oct 20, 2013
