2014 Backup camera

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Frobozz, Apr 22, 2014.

  1. Apr 28, 2014 at 7:30 PM
    #21
    splitsecond

    splitsecond Member

    Joined:
    Apr 17, 2014
    Member:
    #127892
    Messages:
    9
    Gender:
    Male
    First Name:
    Dale
    Manoa
    Vehicle:
    2014 SR PreRunner 4dr
    eMarshall, looks good. Do you see that message on the 6.1" screen when you start up the truck as well? That is what I had. Like I said the dealer is around $750. I found on ebay for $265 (seller listed above). Still expensive for just a camera. But you have figure you are not only paying for the camera, but the right to use the all work done already. It was really plug and play. I took off the plastic tailgate, disconnected the wire that is connected to that black piece. It was 2 10mm bolts holding it in, and then bolted in the new camera and connected it.

    I have been busy so didn't get around to taking pics on how to install, but it is a very elementary install. Hope this helps.

    Aloha,

    Dale

    This site contains affiliate links for which the site may be compensated.
    #21
  2. Apr 29, 2014 at 8:06 AM
    #22
    14SR

    14SR Member

    Joined:
    Feb 22, 2014
    Member:
    #123728
    Messages:
    8
    Gender:
    Male
    First Name:
    Wells
    Chicago
    Vehicle:
    14 Access SR v6_4x4
    Bed Buddy, Avid light bar, ClassIII hitch, custom motorcycle tie-down bar in back, escort 9500ix radar
    At the advice of FroBozz i went with a camera from CameraSource

    I opten for the Pop and Lock option, $284.00 plus shipping. SKU: CS-14TAC-5400.

    I'll update with pics once installed, but CS currently has the unit on backorder (est. 2 weeks before in-stock).

  3. Apr 29, 2014 at 10:16 AM
    #23
    MidwestGreen

    MidwestGreen Member

    Joined:
    Apr 29, 2014
    Member:
    #128744
    Messages:
    13
    Gender:
    Male
    Glad this worked out. I wasn't sure when Dale purchased the cam if it would fall directly into a 2014. It appears that its good to go. Thanks a bunch, and I'm glad it worked out. I have some more of the 2014's.


    This site contains affiliate links for which the site may be compensated.
    #23
  4. Apr 29, 2014 at 10:48 AM
    #24
    DocD

    DocD Well-Known Member

    Joined:
    Aug 5, 2009
    Member:
    #20716
    Messages:
    859
    Gender:
    Male
    Mn./SoCal
    Vehicle:
    09 access cab

    Interesting post as I would really like to ad a camera, My truck is an "09" & has all of the above (although I have not checked the radio yet) When I purchased the truck (new) included with the paper work were these connectors, anyone know if these will be of any help to me, Thanks!!

    [​IMG]

    [​IMG]

  5. Apr 29, 2014 at 1:50 PM
    #25
    MidwestGreen

    MidwestGreen Member

    Joined:
    Apr 29, 2014
    Member:
    #128744
    Messages:
    13
    Gender:
    Male
    You guys know as much as I do about this stuff. I'm just here to try to contribute what I can. Toyota has two part numbers and the parts look the same, but the back connectors are different, and the shape is near the same, but the 86790-04020 camera is a bit smaller.

    Note that the older version, 86790-04010, which I know works in an 09, has four prongs in the harness connector, and it has five little slots all the way around the harness perimeter.

    The newer version, 86790-04020, which was successfully used on this board in a plug an play works on a 2014. This harness connector has 6 prongs, and more of a bottom clip.

    09 Tacoma.jpg
    2009Tacoma back.jpg
    2014 Tacoma.jpg
    2014 Tacoma back.jpg

  6. Apr 29, 2014 at 3:21 PM
    #26
    Frobozz

    Frobozz [OP] Well-Known Member

    Joined:
    Oct 11, 2011
    Member:
    #65011
    Messages:
    148
    Gender:
    Male
    North of Ordinary
    Vehicle:
    15 TRD/OR Access Blue Ribbon Metallic
    Tonneau, Canoe Rack
    Here's hoping your install is as easy as mine.

  7. Apr 29, 2014 at 5:41 PM
    #27
    DocD

    DocD Well-Known Member

    Joined:
    Aug 5, 2009
    Member:
    #20716
    Messages:
    859
    Gender:
    Male
    Mn./SoCal
    Vehicle:
    09 access cab
    I am pretty sure I am good to go on my "09" I have the yellow sticker, wires in the tailgate. The only thing I am unsure of is the Radio, is there any way for a person to tell if the radio will be respective?? Thanks

  8. Apr 30, 2014 at 7:58 AM
    #28
    DocD

    DocD Well-Known Member

    Joined:
    Aug 5, 2009
    Member:
    #20716
    Messages:
    859
    Gender:
    Male
    Mn./SoCal
    Vehicle:
    09 access cab

    Good information, Thanks, I have a 09 & is the four prong. also my manual shows the camera (image) to be located in the rearview mirror, so it would appear my radio would not be compatible, jmop

  9. May 4, 2014 at 6:54 PM
    #29
    8914

    8914 dismember

    Joined:
    May 4, 2014
    Member:
    #129125
    Messages:
    5
    I have the same as eMarshall also. Plugged in the 86790-04020 camera part. Doesn't work yet. Do I need video cable harness in the touch screen unit?

    WP_20140504_003 (3).jpg

  10. May 5, 2014 at 2:41 PM
    #30
    splitsecond

    splitsecond Member

    Joined:
    Apr 17, 2014
    Member:
    #127892
    Messages:
    9
    Gender:
    Male
    First Name:
    Dale
    Manoa
    Vehicle:
    2014 SR PreRunner 4dr
    I'm assuming you have a 2014. What package do you have? I had an SR, and also convenience package. Did you have those warnings on the 6.1" screen too?

    Hmm.

  11. May 5, 2014 at 2:42 PM
    #31
    splitsecond

    splitsecond Member

    Joined:
    Apr 17, 2014
    Member:
    #127892
    Messages:
    9
    Gender:
    Male
    First Name:
    Dale
    Manoa
    Vehicle:
    2014 SR PreRunner 4dr
    With the '09 I think the camera screen was on the rear view mirror. So will probably not be plug and play like mine was.

  12. May 5, 2014 at 7:19 PM
    #32
    MidwestGreen

    MidwestGreen Member

    Joined:
    Apr 29, 2014
    Member:
    #128744
    Messages:
    13
    Gender:
    Male
    I'm curious to how you got 86790-04020 plugged into an 09. Did I read that correctly?

  13. May 13, 2014 at 5:25 PM
    #33
    jbcanes

    jbcanes Well-Known Member

    Joined:
    May 13, 2014
    Member:
    #129747
    Messages:
    226
    Gender:
    Male
    First Name:
    Justin
    Tampa, FL
    Vehicle:
    14 PreRunner double cab
    backup camera, intermittent wiper, step bars, bug deflector, window vent, console vault,solid fold 2.0, 2016 sport wheels, front camera, anytime rear front camera mod, homelink mirror, dash cam, unifilter,
    Bought the below setup on ebay. It was from a 2010 taco. Put in my 2014 prerunner double cab. Had to replace the 6 pin harness inside the tailgate with the 4 pin that came with it. The 4 pin harness connects with no problems to harness under truck.



    [​IMG]

    This site contains affiliate links for which the site may be compensated.
    #33
  14. May 15, 2014 at 4:40 PM
    #34
    Cloudbreakmd

    Cloudbreakmd Well-Known Member

    Joined:
    Jun 20, 2010
    Member:
    #39212
    Messages:
    68
    Gender:
    Male
    Bethesda, Maryland
    Vehicle:
    2018 DCSB 4X4 V6 SR5 Blazing Blue Pearl
    Bed Mat, Factory chromed exhaust tip, Factory all weather mats
    Great thread. Exactly what I needed to know.

  15. May 30, 2014 at 12:27 PM
    #35
    Snookie

    Snookie Monkey Tamer

    Joined:
    May 9, 2014
    Member:
    #129477
    Messages:
    84
    Gender:
    Male
    First Name:
    Snookie
    Lizard Creek Louisiana
    Vehicle:
    14 Texas Edition 4X4
    Ok Mr. Dale

    I got yes's on all the above however; I got this too in the glove compartment that came with my 2014 Double cab 4x4

    So I don't need this is what your implying?

    Simply install camera for 2014 model on tailgate and I should be good to go?

    See pic below..don't need these?

    [​IMG]
    screen capture tool

    [​IMG]
    click image upload

    Thanks in advance for your reply.

  16. May 31, 2014 at 5:17 AM
    #36
    Frobozz

    Frobozz [OP] Well-Known Member

    Joined:
    Oct 11, 2011
    Member:
    #65011
    Messages:
    148
    Gender:
    Male
    North of Ordinary
    Vehicle:
    15 TRD/OR Access Blue Ribbon Metallic
    Tonneau, Canoe Rack
    Yeah, I got those as well. Didn't use them. The unit I purchased from Camera source included a harness, with a male or female connector (I forget which) that plugged into the existing connector of the opposite gender that was mounted to the frame near the rear bumper, passenger side. I think I pulled the existing harness, that was pre mounted and routed within my tailgate back into the tailgate and secured it with tape, then routed the new one, supplied by CS through the tail gate, out through the tail gate opening and then connected the new one back into the existing connector mounted on the frame.

    The vid I posted in my OP is really pretty good.

  17. May 31, 2014 at 5:21 AM
    #37
    jbcanes

    jbcanes Well-Known Member

    Joined:
    May 13, 2014
    Member:
    #129747
    Messages:
    226
    Gender:
    Male
    First Name:
    Justin
    Tampa, FL
    Vehicle:
    14 PreRunner double cab
    backup camera, intermittent wiper, step bars, bug deflector, window vent, console vault,solid fold 2.0, 2016 sport wheels, front camera, anytime rear front camera mod, homelink mirror, dash cam, unifilter,
    Those are covers for when removing the tailgate to cover the connections to prevent dirt from getting in them. [​IMG]

  18. May 31, 2014 at 5:24 AM
    #38
    Frobozz

    Frobozz [OP] Well-Known Member

    Joined:
    Oct 11, 2011
    Member:
    #65011
    Messages:
    148
    Gender:
    Male
    North of Ordinary
    Vehicle:
    15 TRD/OR Access Blue Ribbon Metallic
    Tonneau, Canoe Rack
    Of course..... now I remember.

  19. May 31, 2014 at 5:27 AM
    #39
    Snookie

    Snookie Monkey Tamer

    Joined:
    May 9, 2014
    Member:
    #129477
    Messages:
    84
    Gender:
    Male
    First Name:
    Snookie
    Lizard Creek Louisiana
    Vehicle:
    14 Texas Edition 4X4
    Groovy

    Thanks
    Guy's

  20. Jun 11, 2014 at 8:06 PM
    #40
    andsun

    andsun Member

    Joined:
    Jun 4, 2014
    Member:
    #131281
    Messages:
    7
    Gender:
    Male
    First Name:
    Drew
    Los Angeles
    I bought a '14 DC SR that didn't come with a backup camera but had an entune unit and pre-wiring. The dealer had no clue and told me it would be $600 to add the camera when I asked if it was prewired.

    I drove home and ordered the xxxx420 camera (6 pin) from Midwest Green on eBay and got the part in 2 days. My truck had the camera warning when turning it on, wiring showing when tailgate was open as well as the yellow warning sticker next to the tailgate so I was pretty sure all I needed was the camera.

    As far as the install goes, I just removed all the tailgate screws and took the cover off. Next I removed the two 10mm bolts holding the blank that was in the camera slot. Probably the hardest part is disconnecting the connector from the blank without breaking it. I ended up using a fishing hook. From there all you do is put the camera where the blank is and install the two 10mm bolts and connect the prewired harness. Before I closed up the tailgate cover, I turned on the truck and put it in reverse. Everything was plug and play and the total install time was less than 10 mins. I recommend Midwest Green if you are looking to do this upgrade. (Fast shipping, quick responses). PM me if you need help. Probably one of the easiest installations I've done.

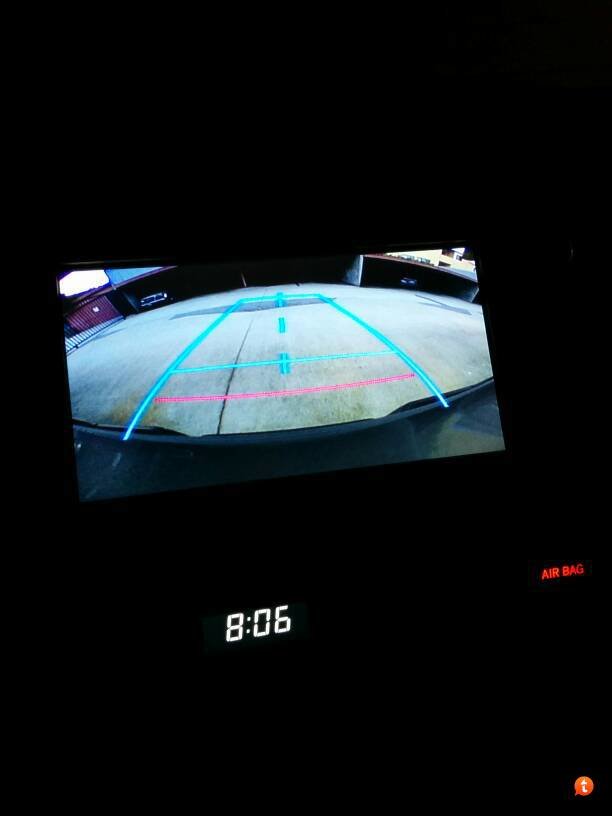

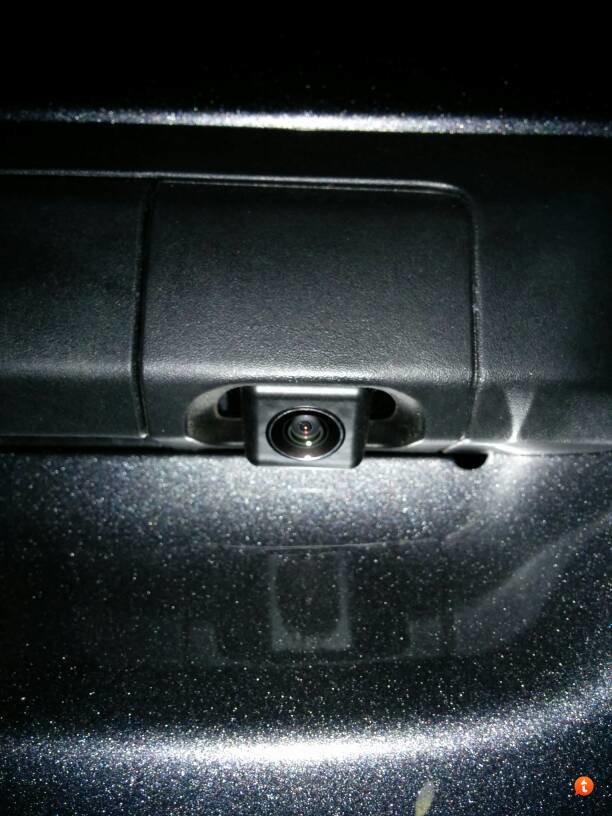

    aruqu4as_99814d0b135d4ad591505d089678bb3f170eb1c1.jpgute8u4u9_7672a77f38fd59d2208088d538eec66e714faab0.jpg
