    Quick Links: Interesting video on LOC's 2013 tacoma radio problems Question about 3rd gen dash speaker impedance and bass blockers. Amplifier Wire Gauge Question New flip down monitor? 1st Gen DC audio setup!

2014 Non JBL w/ navigation retrofit DIY w/ info & part numbers

Discussion in 'Audio & Video' started by steveo27, Mar 3, 2014.

Page 4 of 23
  1. Apr 13, 2014 at 6:01 PM
    #61
    JustinL

    #61
    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    3,756
    Gender:
    Male
    First Name:
    Justin
    Berlin, CT
    Vehicle:
    2009 TRD OffRoad DCSB Pyrite Mica
    2012 Conversion
    Oh Christ I forgot to grab some pins. Back to google!

    JustinL, Apr 13, 2014
    #61
  2. Apr 13, 2014 at 10:02 PM
    #62
    JustinL

    #62
    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    3,756
    Gender:
    Male
    First Name:
    Justin
    Berlin, CT
    Vehicle:
    2009 TRD OffRoad DCSB Pyrite Mica
    2012 Conversion
    This site contains affiliate links for which the site may be compensated.
    JustinL, Apr 13, 2014
    #62
    STOCKTRD likes this.
  3. Apr 14, 2014 at 4:41 AM
    #63
    manthony67

    #63
    manthony67 Member

    Joined:
    Mar 31, 2014
    Member:
    #126614
    Messages:
    13
    Gender:
    Male
    First Name:
    Mike
    Looking for suggestions
    Thanks for the confirmation, very glad to hear that! One other thing to ask. The Auxilary jack, in the picture of the jack in the orig post. It looks like a mini plug on the auxilary jack that would plug into the 20/28 pin harness, but in the picture of the harness I do not see a place to plug them together.

    manthony67, Apr 14, 2014
    #63
  4. Apr 14, 2014 at 6:24 AM
    #64
    JustinL

    #64
    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    3,756
    Gender:
    Male
    First Name:
    Justin
    Berlin, CT
    Vehicle:
    2009 TRD OffRoad DCSB Pyrite Mica
    2012 Conversion
    Mike,

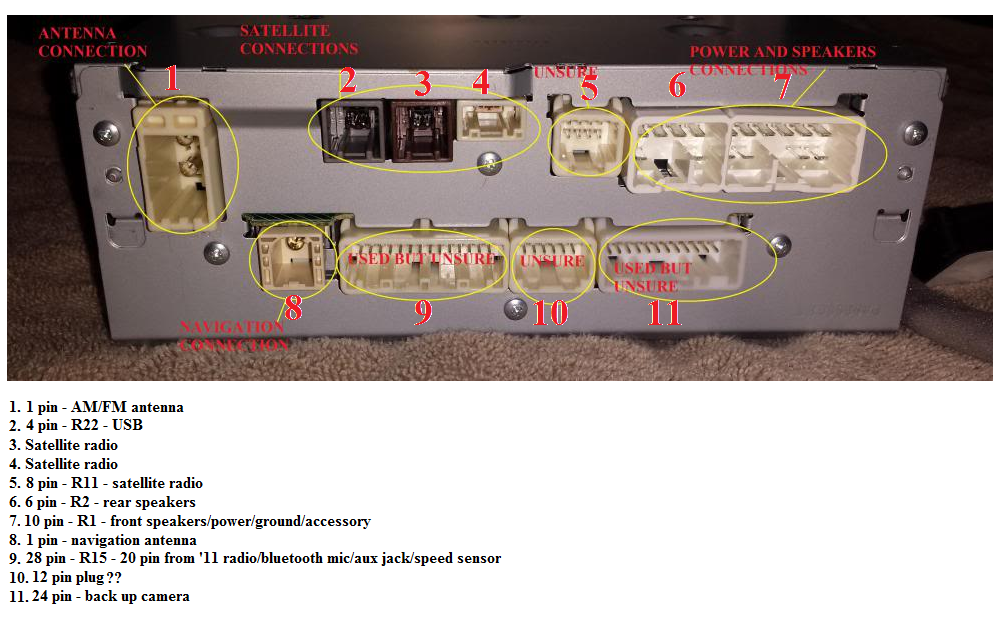

    Check this pic from the original post, the USB goes to plug 2:

    http://i1050.photobucket.com/albums/s405/sfs5004-4/2014tacomanonjblwnavplugs_zps64ddc407.png

    JustinL, Apr 14, 2014
    #64
  5. Apr 15, 2014 at 4:45 AM
    #65
    manthony67

    #65
    manthony67 Member

    Joined:
    Mar 31, 2014
    Member:
    #126614
    Messages:
    13
    Gender:
    Male
    First Name:
    Mike
    Looking for suggestions
    OK so the USB plugs into the back fo the radio not into the 20/28 pin harness. Where does the mini plug go for the aux input for ipods etc?

    manthony67, Apr 15, 2014
    #65
  6. Apr 15, 2014 at 5:52 AM
    #66
    steveo27

    #66
    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    6,046
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    the 3.5mm aux jack? its part of 20/28 pin. if your truck already has an aux jack on the dashboard, when you connect the 20/28 pin harness together, itll work.

    steveo27, Apr 15, 2014
    #66
  7. Apr 16, 2014 at 4:32 AM
    #67
    manthony67

    #67
    manthony67 Member

    Joined:
    Mar 31, 2014
    Member:
    #126614
    Messages:
    13
    Gender:
    Male
    First Name:
    Mike
    Looking for suggestions
    OK thanks so much.

    My truck does not ahve a 3.5mm mini jack and I want one.
    So it sounds like the 20/28 pin will provide that.
    Thanks

    manthony67, Apr 16, 2014
    #67
  8. Apr 16, 2014 at 7:34 AM
    #68
    JustinL

    #68
    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    3,756
    Gender:
    Male
    First Name:
    Justin
    Berlin, CT
    Vehicle:
    2009 TRD OffRoad DCSB Pyrite Mica
    2012 Conversion
    Mike I think the 3 wires added from the servo harness in this thread would have to be added to the 20/28 pin harness if your truck didn't come with a jack fr the factory. I picked up the servo 3 wire harness but I'm thinking I don't need it.

    http://www.tacomaworld.com/forum/au...tereo-input-tacoma-aftermarket-head-unit.html

    JustinL, Apr 16, 2014
    #68
  9. Apr 16, 2014 at 8:51 PM
    #69
    skygear

    #69
    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    Anyone swap a WHOLE steering wheel from an older model year to the current style? Controls work? SRS Airbag issues? Same wireing harness>?

    skygear, Apr 16, 2014
    #69
  10. Apr 17, 2014 at 6:36 AM
    #70
    steveo27

    #70
    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    6,046
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Youll still have to wire in the 3.5 jack after the adapter since its part of the truck side of the harness.

    steveo27, Apr 17, 2014
    #70
  11. Apr 18, 2014 at 11:34 PM
    #71
    cjl226

    #71
    cjl226 Well-Known Member

    Joined:
    Feb 24, 2014
    Member:
    #123909
    Messages:
    231
    Gender:
    Male
    First Name:
    CJ
    Nevada
    I am going to be putting a 2014 entune in my 2009. Small differences, but this will guide me through it!

    cjl226, Apr 18, 2014
    #71
  12. Apr 19, 2014 at 12:20 PM
    #72
    JustinL

    #72
    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    3,756
    Gender:
    Male
    First Name:
    Justin
    Berlin, CT
    Vehicle:
    2009 TRD OffRoad DCSB Pyrite Mica
    2012 Conversion
    Steve I got mine in yesterday and I couldn't thank you enough for putting the info in this thread together. Helped me get through the install without any issues!

    JustinL, Apr 19, 2014
    #72
  13. Apr 20, 2014 at 10:03 PM
    #73
    steveo27

    #73
    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    6,046
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Awesome! Glad it worked for ya.

    :beer:

    steveo27, Apr 20, 2014
    #73
  14. Apr 21, 2014 at 2:12 PM
    #74
    MudFlap

    #74
    MudFlap Well-Known Member

    Joined:
    Jul 13, 2011
    Member:
    #59794
    Messages:
    518
    Gender:
    Male
    First Name:
    Tim
    Memphis (north mississippi)
    Vehicle:
    2012 TRD Off Road


    Ok tell me where I am going wrong with my thinking, It SEEMS that I could buy BOTH of these or the top one to plug into the radio and another just like the LOWER one for the wire harness side of the USB for my paticular model and plug the two adapters into each other...... am I wrong? Is there not a "male" USB adapter to plug into the wire harness?

    This site contains affiliate links for which the site may be compensated.
    MudFlap, Apr 21, 2014
    #74
  15. Apr 21, 2014 at 3:08 PM
    #75
    steveo27

    #75
    steveo27 [OP] Ask me about my weiner

    Joined:
    Aug 12, 2013
    Member:
    #110326
    Messages:
    6,046
    Gender:
    Male
    First Name:
    Steve
    Pittsburgh
    Vehicle:
    '11 TRD Off Road & 1992 VW GLI
    The same shit everyone else has.
    Not sure on your truck, but the 2011 did NOT have a USB port on the dashboard. there is not wiring behind the dashboard for a USB. You have to add it all. The male retention plug allows you to turn the plug out of the radio into a female USB port

    steveo27, Apr 21, 2014
    #75
  16. Apr 21, 2014 at 3:27 PM
    #76
    skygear

    #76
    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    I was lucky and got the whole OEM USB/ AUX plug with the whole Wireing harness up to the radio pins/ USB plug.

    skygear, Apr 21, 2014
    #76
  17. Apr 21, 2014 at 3:37 PM
    #77
    JustinL

    #77
    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    3,756
    Gender:
    Male
    First Name:
    Justin
    Berlin, CT
    Vehicle:
    2009 TRD OffRoad DCSB Pyrite Mica
    2012 Conversion
    On the image above you want the male grey plug to go into the back of the head unit. The other end that's USB can be male or female - USB extension cords are made in both kinds (male to male, female to male, female to female).

    Also - I have a 2009 with an aux port. The plug from the back of my old aux port will not directly plug into the new one I got from Toyota. So I'll have to do some digging for pinouts and possibly source a female plug to make an adapter of sorts. We'll see.

    JustinL, Apr 21, 2014
    #77
  18. Apr 21, 2014 at 3:43 PM
    #78
    skygear

    #78
    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    is it the one that has the USB in it too?

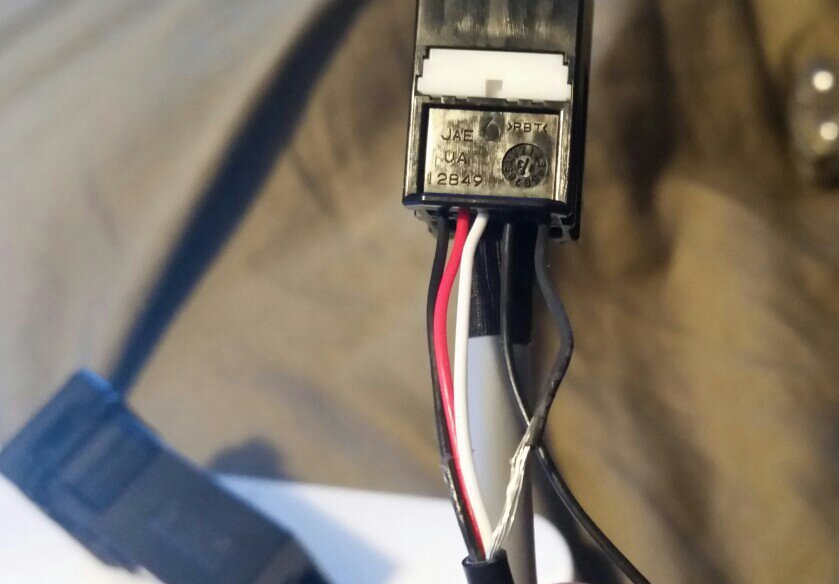

    The pinout is this on it - Looking at the back of the harness, where the USB cable is at the bottom -

    WELL, --- here is my quote -

    Basically, you can cut the wires and splice them together in the proper order.

    NEW w/USB - OLD w/AUX only
    ________________________
    Black to - black/ silver speckle
    Red to - red/ silver speckle
    White to - white/ speckle
    Black to - BLUE
    Black heat shrink shielded ground to - Black Taped shielded Ground

    skygear, Apr 21, 2014
    #78
  19. Apr 21, 2014 at 3:48 PM
    #79
    skygear

    #79
    skygear                    

    Joined:
    Nov 6, 2011
    Member:
    #66558
    Messages:
    8,414
    Pinout file ->

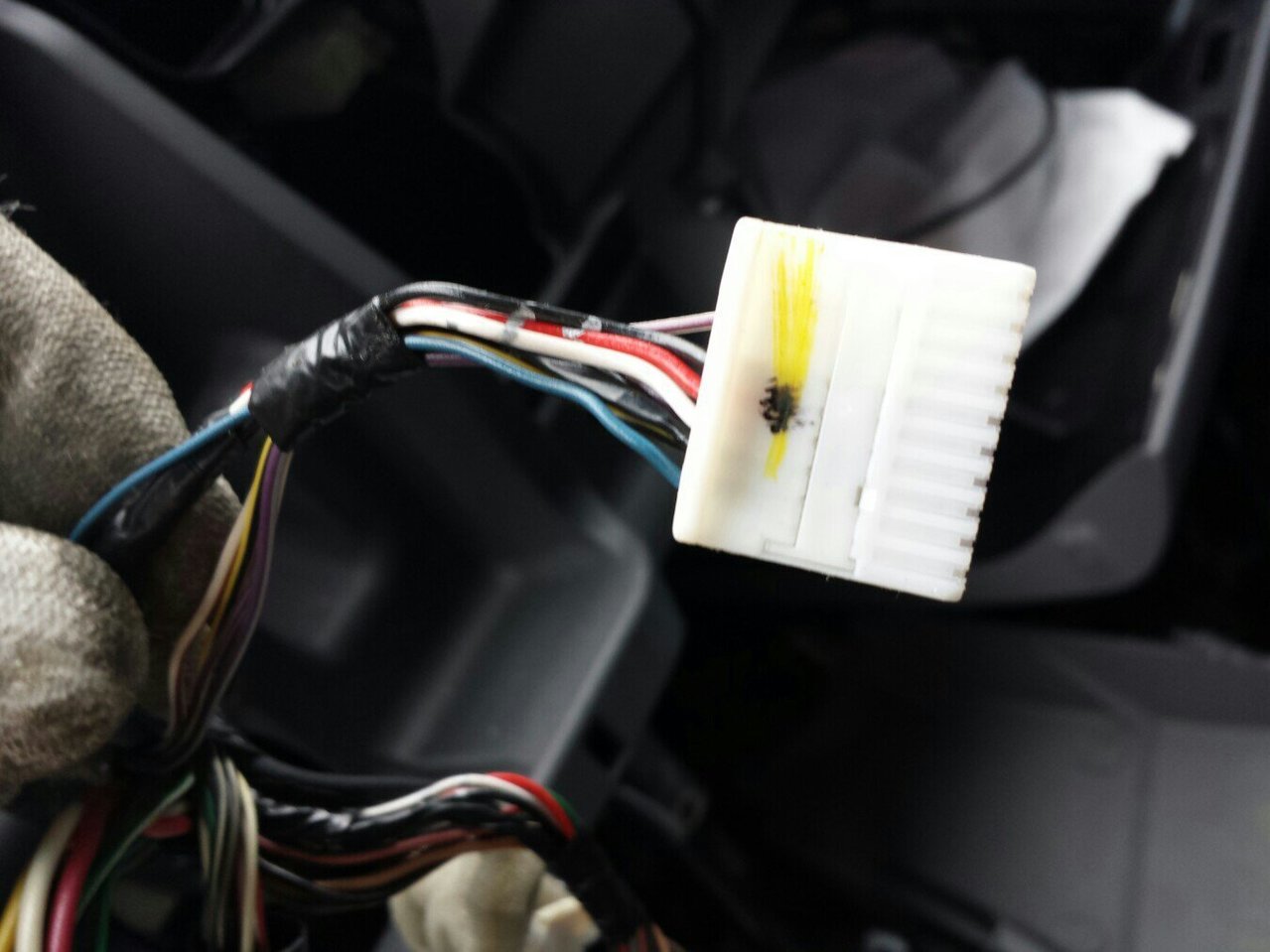

    Here is how it looked at the Headunit


    skygear, Apr 21, 2014
    #79
  20. Apr 21, 2014 at 4:53 PM
    #80
    JustinL

    #80
    JustinL Well-Known Member

    Joined:
    Jan 31, 2011
    Member:
    #50299
    Messages:
    3,756
    Gender:
    Male
    First Name:
    Justin
    Berlin, CT
    Vehicle:
    2009 TRD OffRoad DCSB Pyrite Mica
    2012 Conversion
    Thank you! I have to say this is THE best thread going for info sharing. You rock.

    JustinL, Apr 21, 2014
    #80
