2016 BBP audio build

Discussion in 'Audio & Video' started by Man of Steel TRD, May 2, 2016.

  1. May 2, 2016 at 7:00 PM
    #1
    Man of Steel TRD

    Man of Steel TRD [OP] Ignorance is the new normal

    Joined:
    Mar 1, 2016
    Member:
    #179879
    Messages:
    4,303
    Gender:
    Male
    First Name:
    Jeremy
    Gilbert, AZ
    Vehicle:
    2016 DCSB TRD Man of Steel Edition, 91 300ZXTT
    Tow package, LED interior lighting, led low beams, led fog lights, led licence plate lights, OEM bed mat, OEM mud flaps, OEM chrome raised tailgate letter inserts, nerf bars, AVS ventshades. Complete Kicker audio system (4 channel amp, mids and tweets in the front, 2 ways in the back, 2 10 inch comp rt subs, Zxsum8, alpine pdx 1.600 boxes and amp rack by Mr Marv), Pop & Lock, Mobtown locking bed storage doors, Bilstein 5100s, Katzkin Leather interior, Redline Hoodstruts, Backflip.

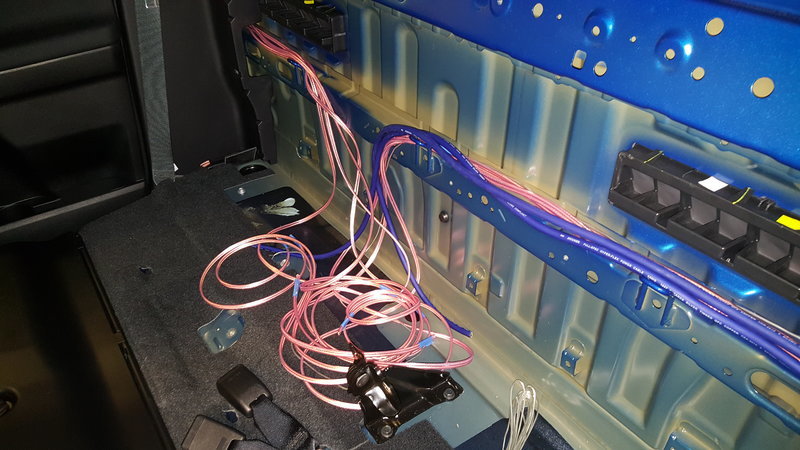

    Alright, I finally have the time to make my audio build thread. I have had it done for a couple of weeks now and it was worth ever minute of the 50+ hours I have in the build. I tried to take lots of pics to help anyone with their truck.

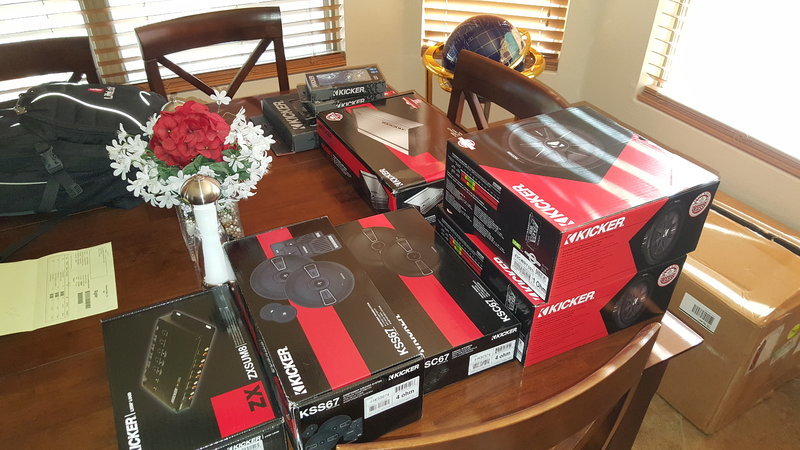

    I started with a mountain of parts, I went with Kicker, good quality product.

    I actually had to buy more parts but anyone that has done anything on their truck knows you don't usually ever get everything the first trip.

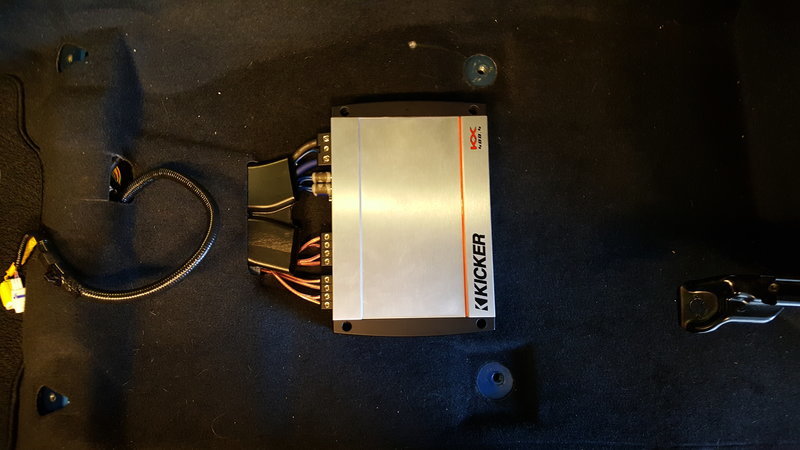

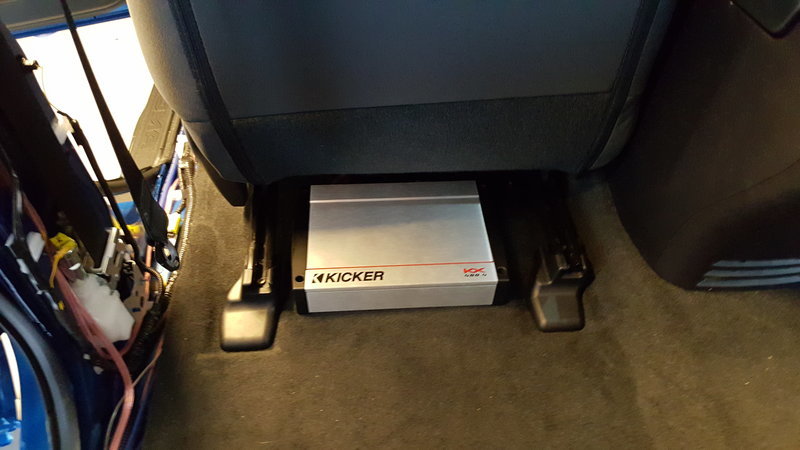

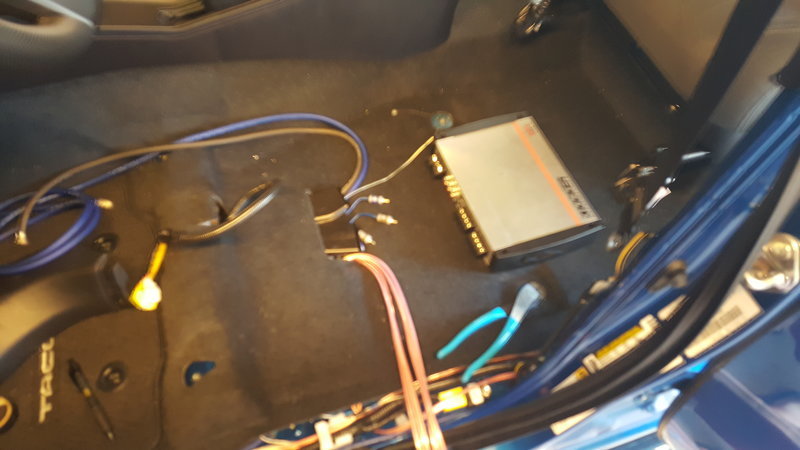

    I went with a Kicker KX 400.4 to run the front mids and tweets and the 2 ways in the back doors. http://www.kicker.com/40KX4004

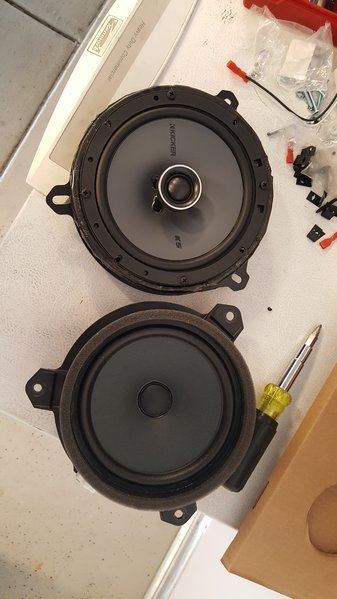

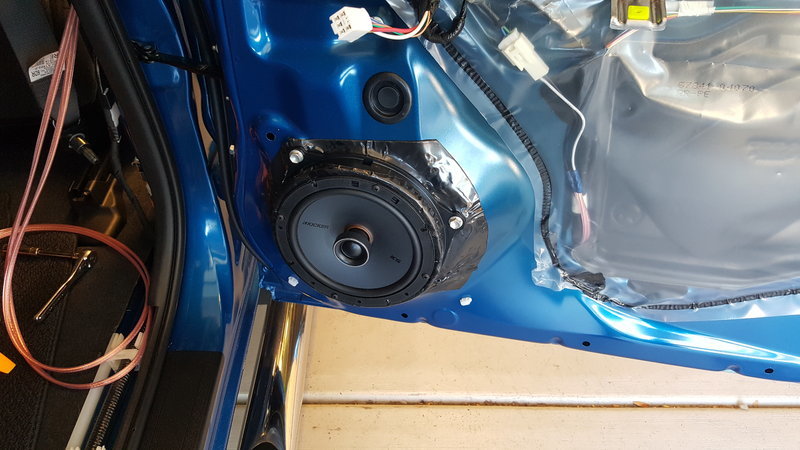

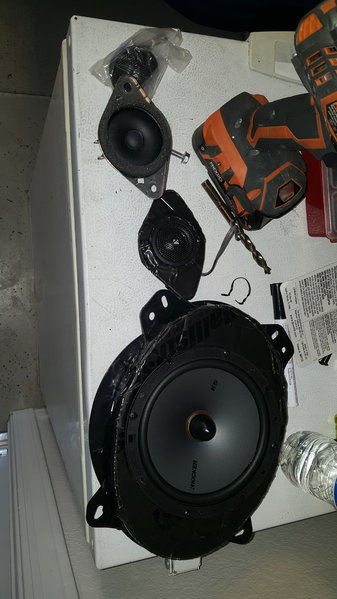

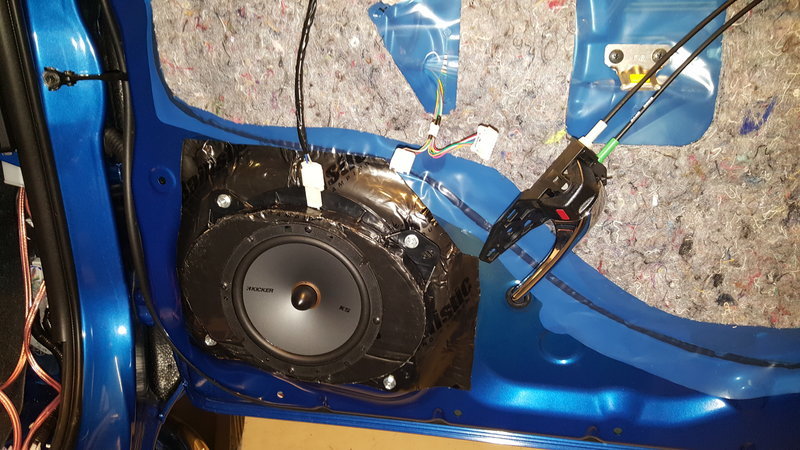

    The mids and tweets I went with for the front doors are Kicker KS Series 6.75 Components. http://www.kicker.com/41KSS674

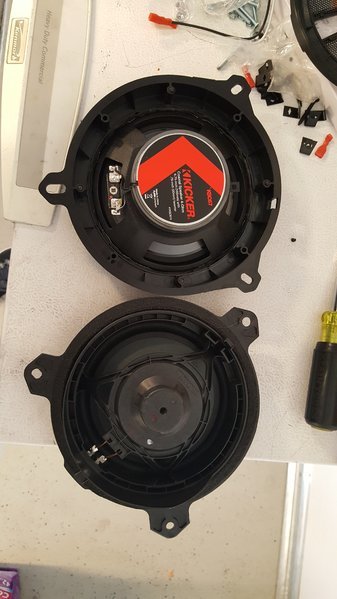

    The 2 ways are KS series 6.75 coaxial speakers for the rear doors. http://www.kicker.com/41KSC674

    I wanted to keep the stock head unit because of how intagrated everything is to it so I went with a zxsum8 signal processor to take the high level speaker outputs from the deck to low level RCA outputs to go to the amplifiers. http://www.kicker.com/10ZXSUM8

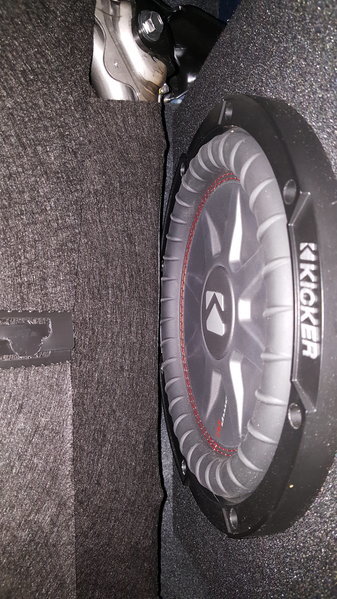

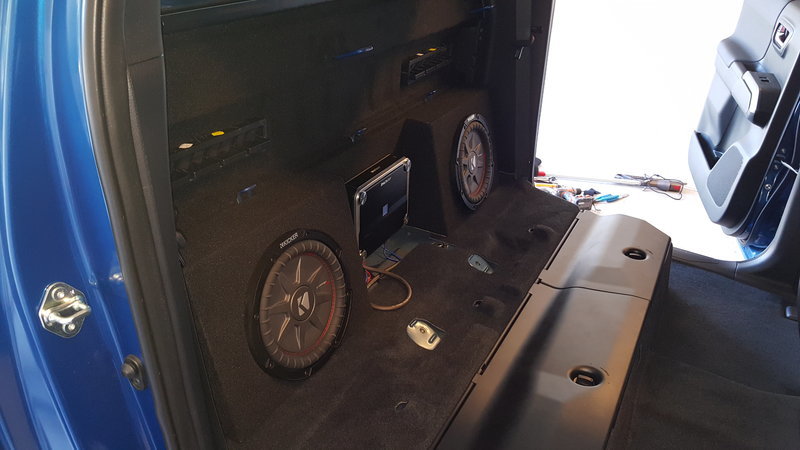

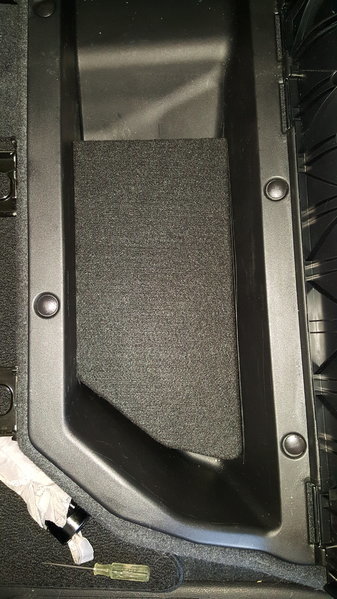

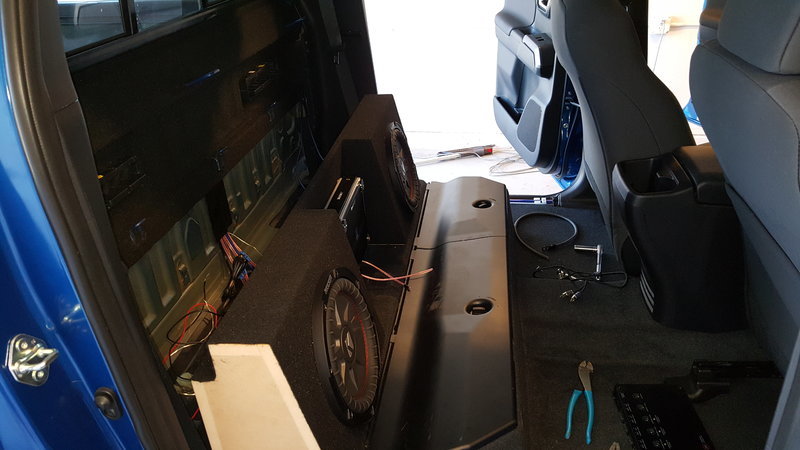

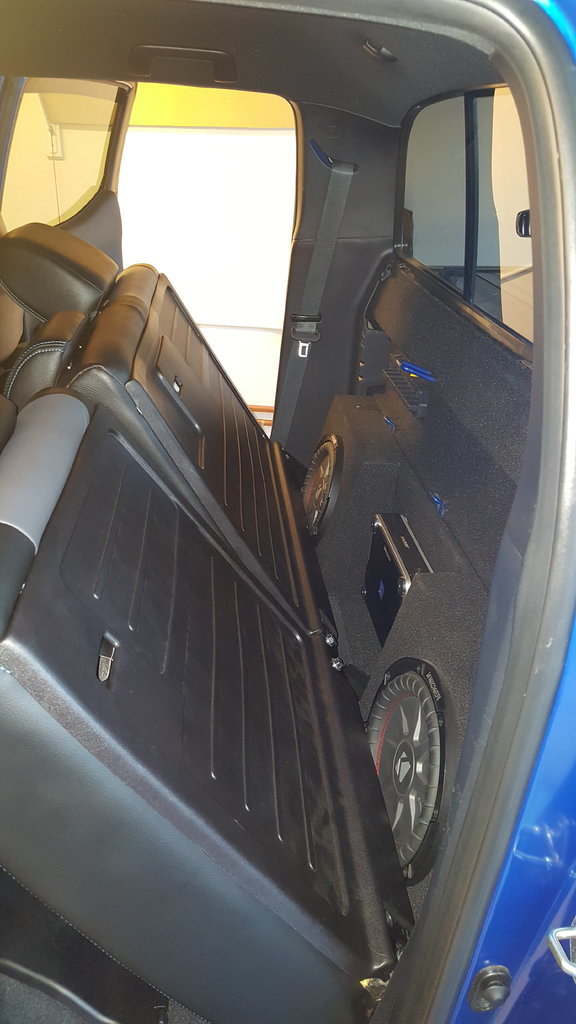

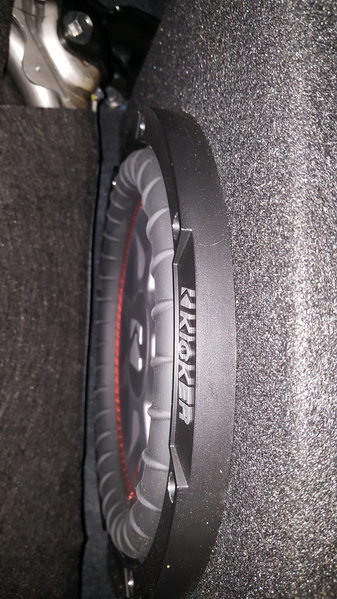

    For my subwoofers I went with Kicker Comp RT shallow mount subs. They hit much lower than I thought they would for a subwoofer built for a small box. I went with 1 ohm voice coils so I could bridge them each up to 2 ohms and then bridge the two of them up to 4 ohms together to help my sub amp run a bit cooler. http://www.kicker.com/43CWRT101

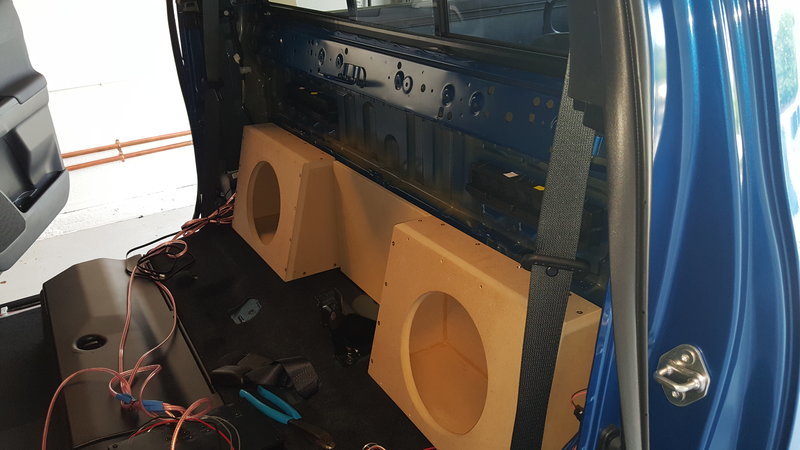

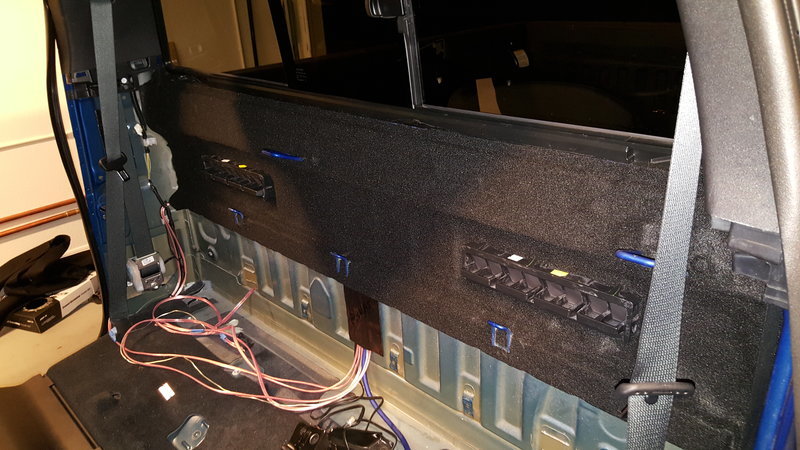

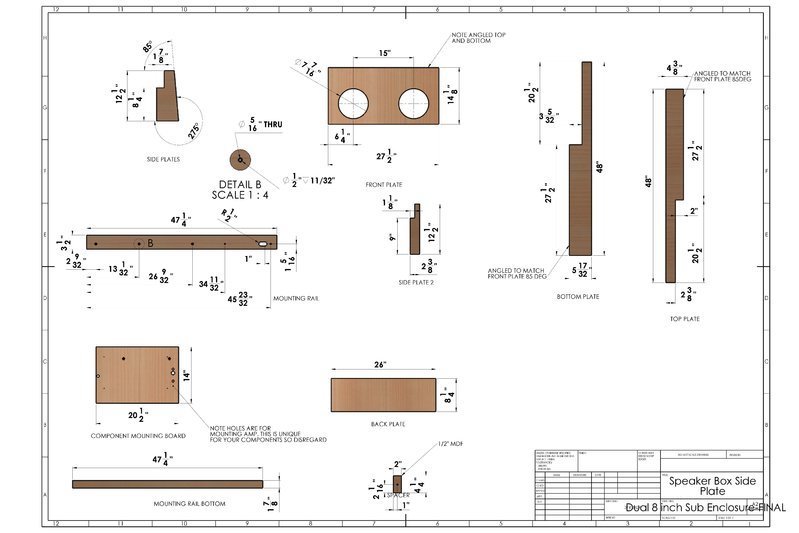

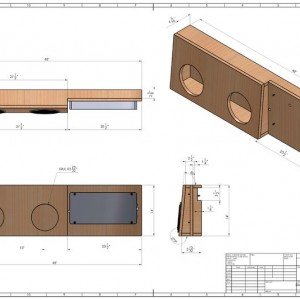

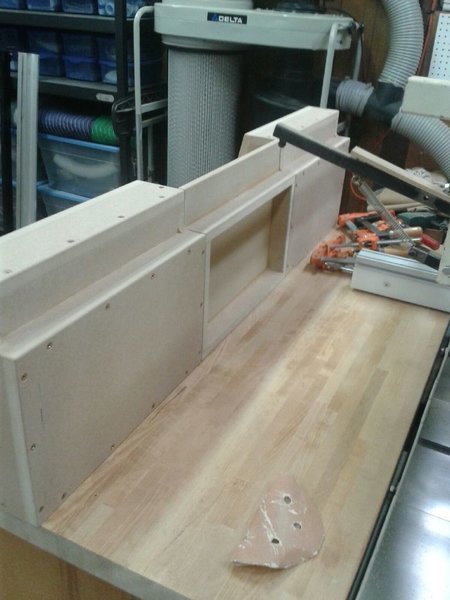

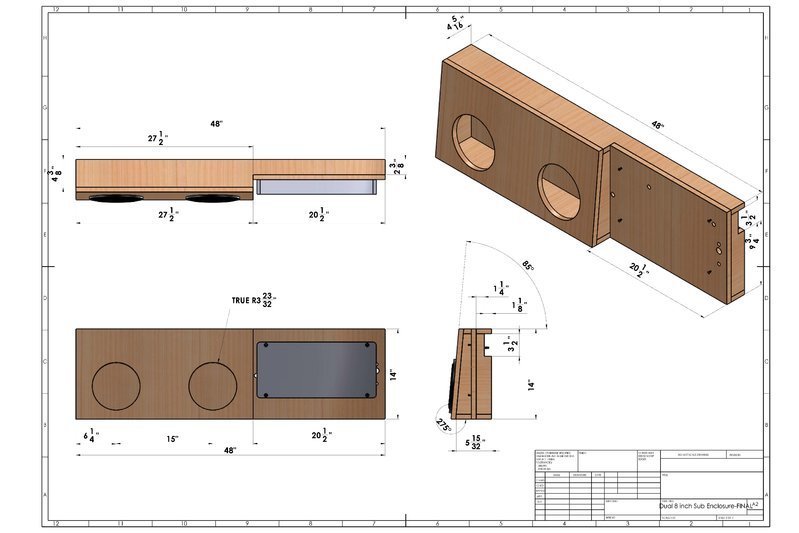

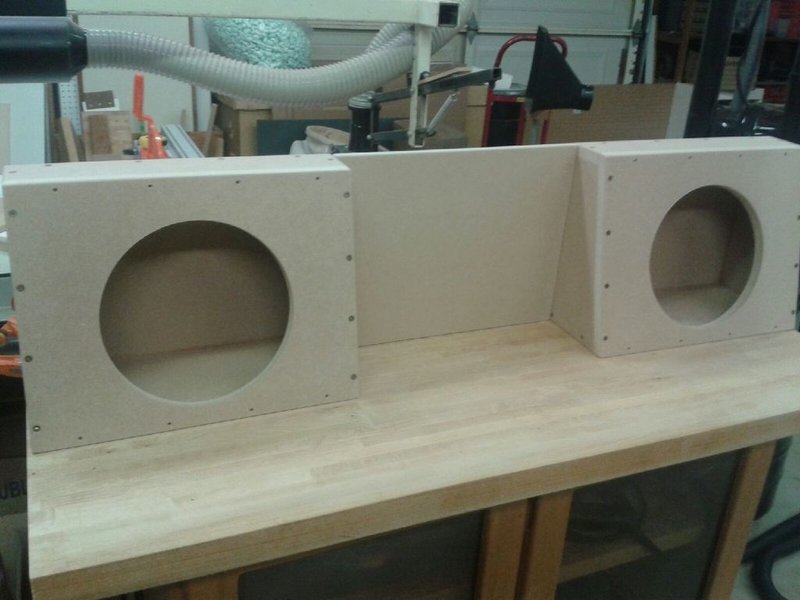

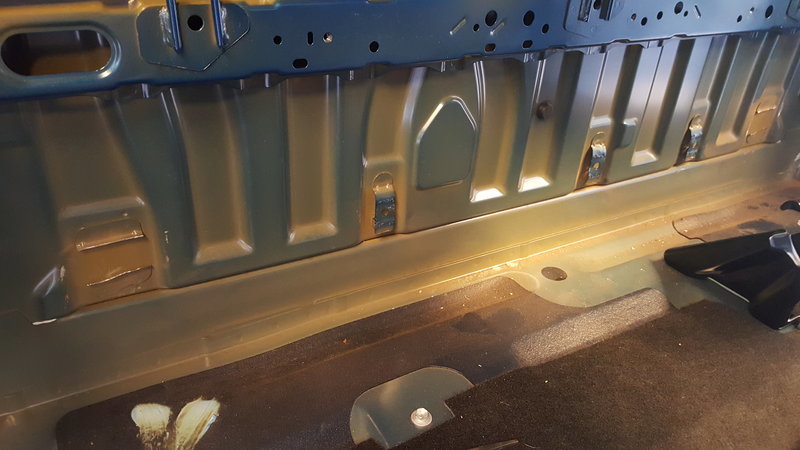

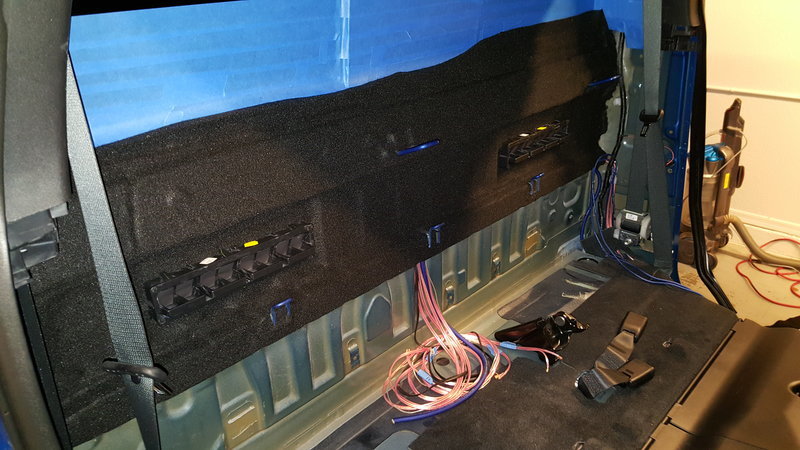

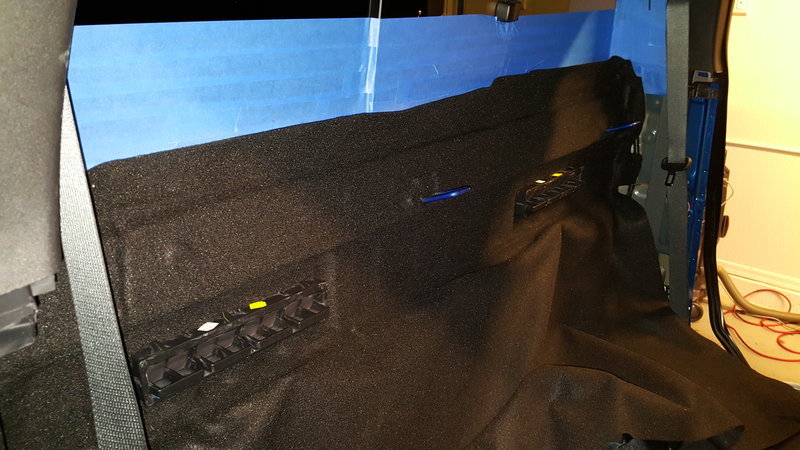

    I had a long time member of TW, @Mr Marv build me my boxes. He was half the price of the local shops here in AZ including shipping! I had to carpet them but that wasn't too big of a deal. He is a true craftsman that has been building enclosures for a very long time. I was actually kind of sad that I carpeted them because they were so well built.

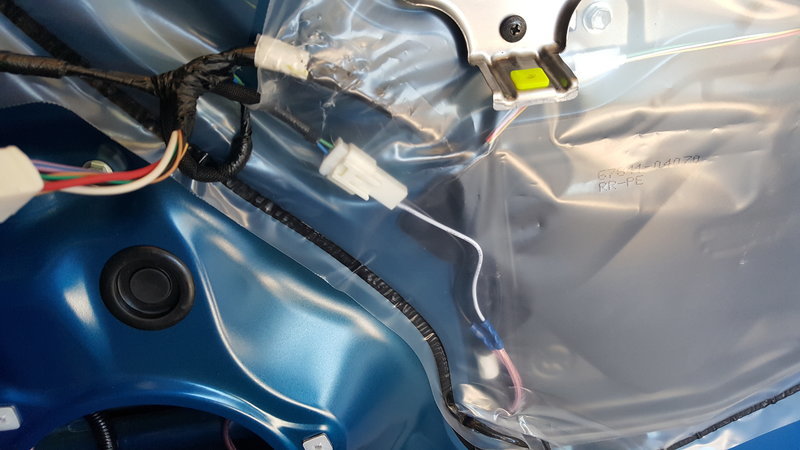

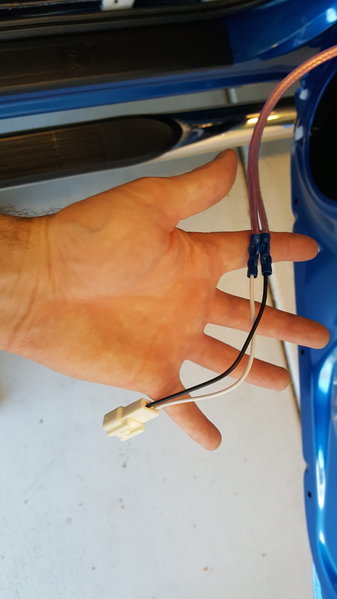

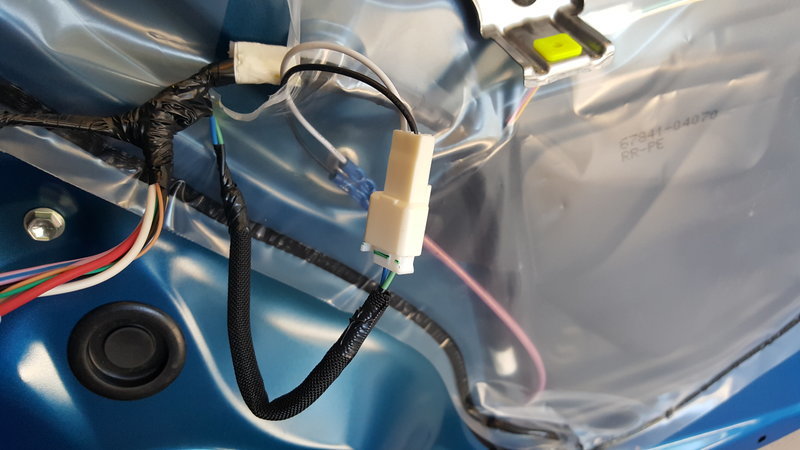

    I didn't want to have to cut any wires so I bought these two metra adapters and used speedwire to get the signal from the head unit to the signal processor.

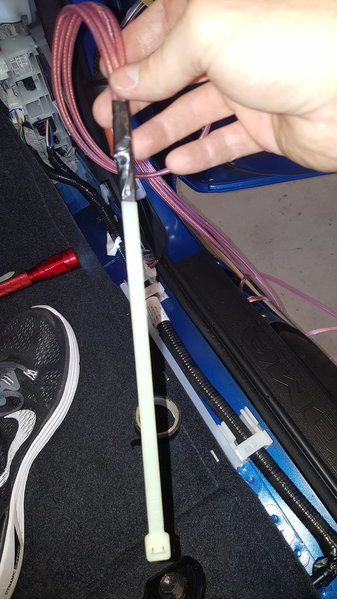

    I HAVE A FULL WALK THROUGH FOR RE-PINNING THE HARNESSES AND WIRING IN THE SPEEDWIRE ON PAGE 7 OF THIS THREAD.

    I HAVE INSTRUCTIONS ON HOW TO INSTALL SPACERS WITH LONGER BOLTS TO PUSH THE BACK SEAT FORWARD ON POST #750.

    THIS WILL ONLY WORK FOR THE NON JBL SYSTEMS.


    http://www.amazon.com/gp/product/B0...rd_t=36701&pf_rd_p=2437869742&pf_rd_i=desktop
    http://www.amazon.com/gp/product/B0...rd_t=36701&pf_rd_p=2437869742&pf_rd_i=desktop
    http://www.amazon.com/Stinger-SGW9920-Conductor-Speedwire-Black/dp/B002ODEZ1G/ref=pd_sim_107_3?ie=UTF8&dpID=31iknfApitL&dpSrc=sims&preST=_AC_UL160_SR160%2C160_&refRID=0RFJWNCGWE4XA7PRS3RX


    I had an Alpine 1.600 monoblock amp to run the subs that I had in my Mazdaspeed3. It is a little monster and can push just about anything.

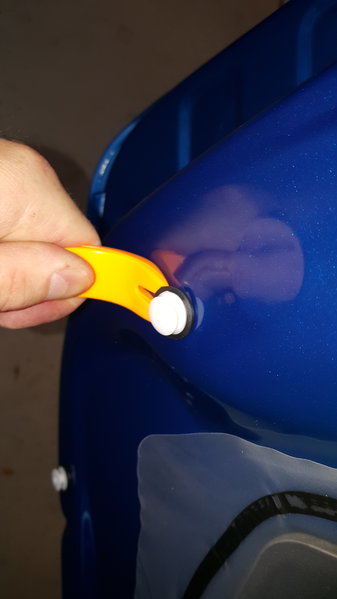

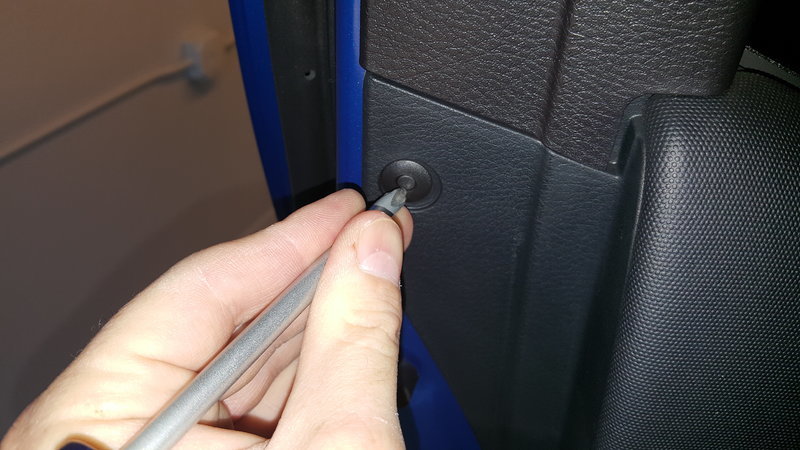

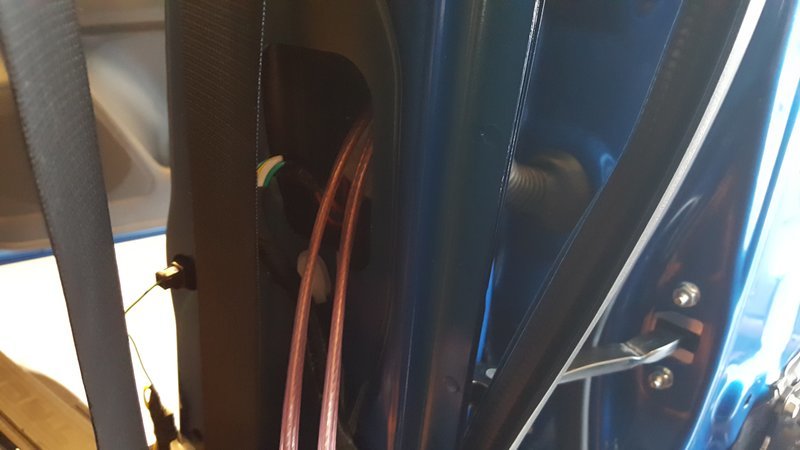

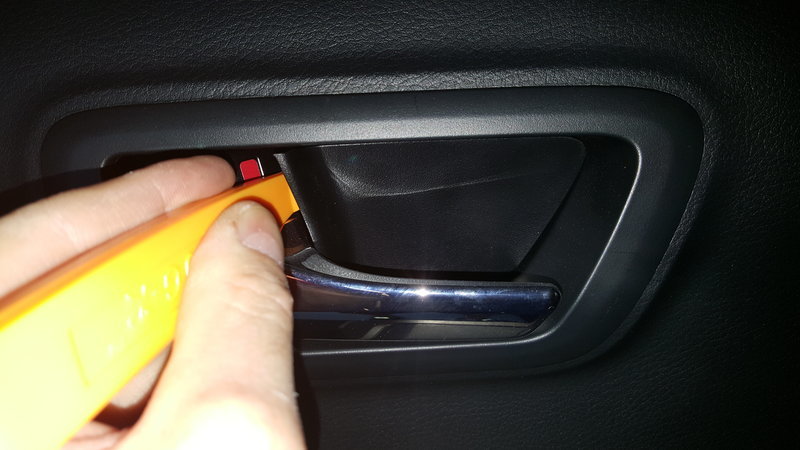

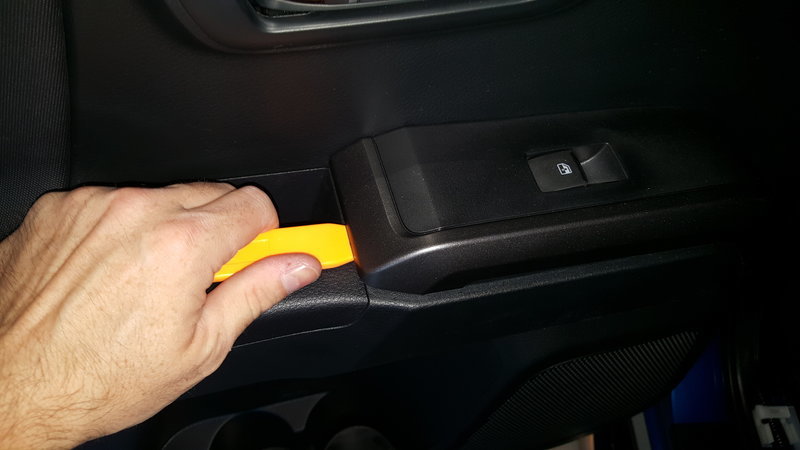

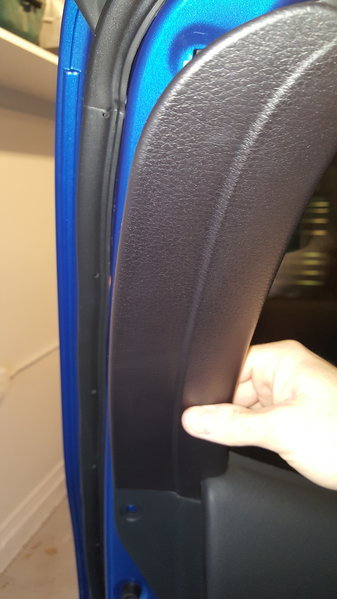

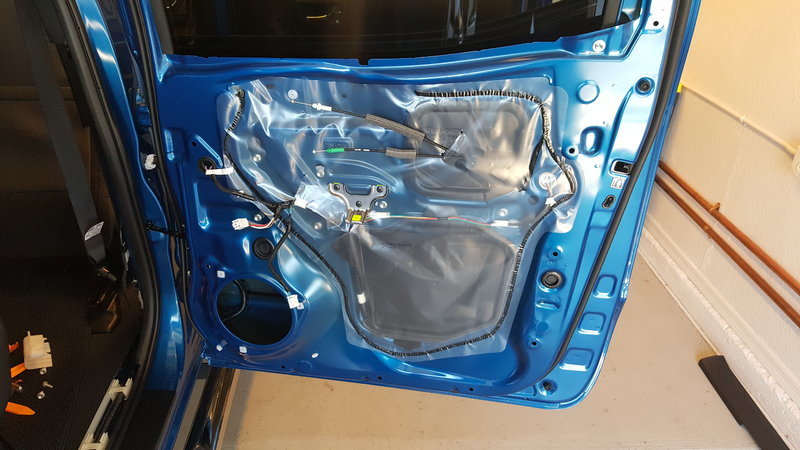

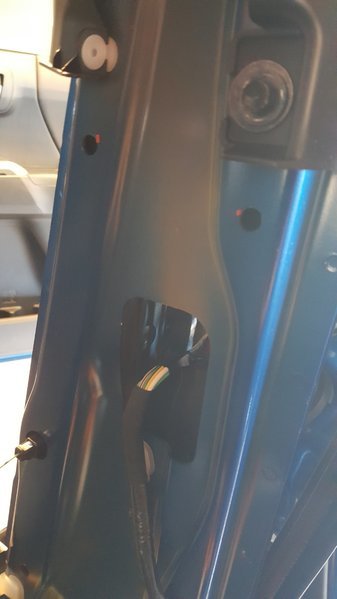

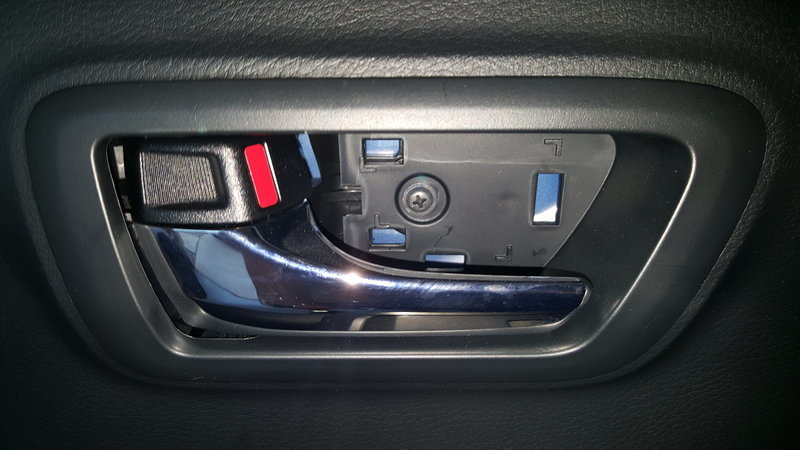

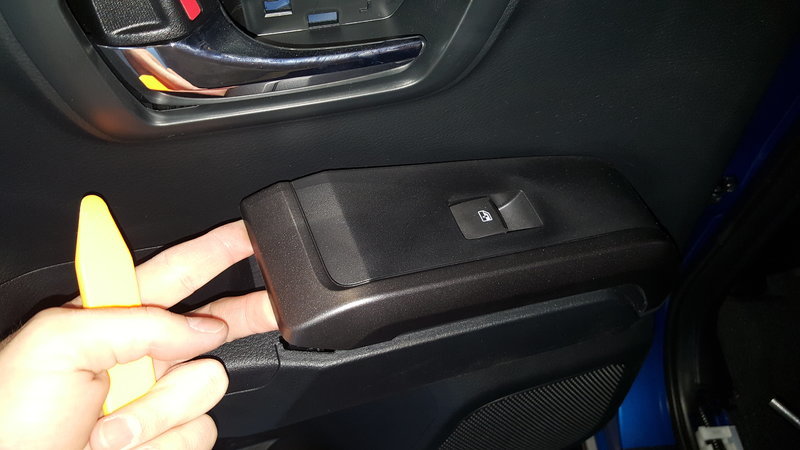

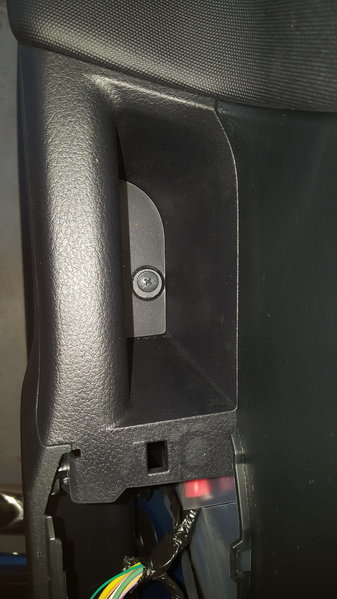

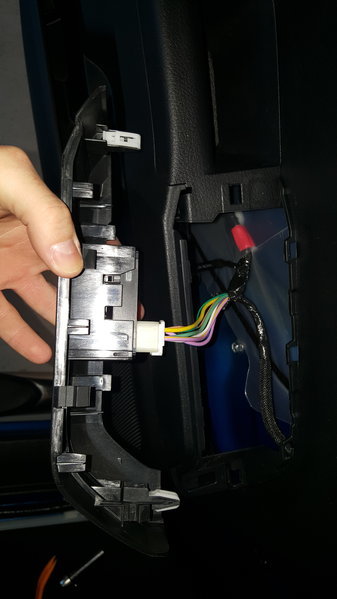

    There is an awesome video on taking the doors apart from OEM audio. This will save me some typing so here it the link to their youtube video.
    https://youtu.be/c37zgaUQsVo

    I am willing to help anyone out so please feel free to ask questions. 20160317_155924.jpg 20160325_155214.jpg 20160325_155227.jpg 20160325_160346.jpg 20160325_160426.jpg 20160325_160503.jpg 20160325_162806.jpg 20160325_162830.jpg 20160325_165549.jpg 20160325_165604.jpg 20160325_165721.jpg 20160326_062713.jpg 20160326_064051.jpg 20160326_064104.jpg 20160326_064131.jpg 20160326_064140.jpg 20160326_064158.jpg 20160326_064243.jpg 20160326_064330.jpg 20160326_064417.jpg 20160326_064457.jpg 20160326_064659.jpg 20160326_084627.jpg 20160326_084638.jpg 20160326_105300.jpg 20160326_210400.jpg 20160326_211657.jpg 20160401_171027.jpg 20160401_175833.jpg 20160401_182109.jpg 20160406_203504_zpsumhulnta.jpg 20160406_212037_zpsgkkzxw2w.jpg 20160415_160112 - Copy.jpg 20160415_170300 - Copy.jpg 20160415_170932.jpg 20160415_202223.jpg 20160415_205053.jpg 20160415_212352.jpg
    20160416_162216.jpg 20160418_175943.jpg 20160418_175949.jpg 20160418_175956.jpg

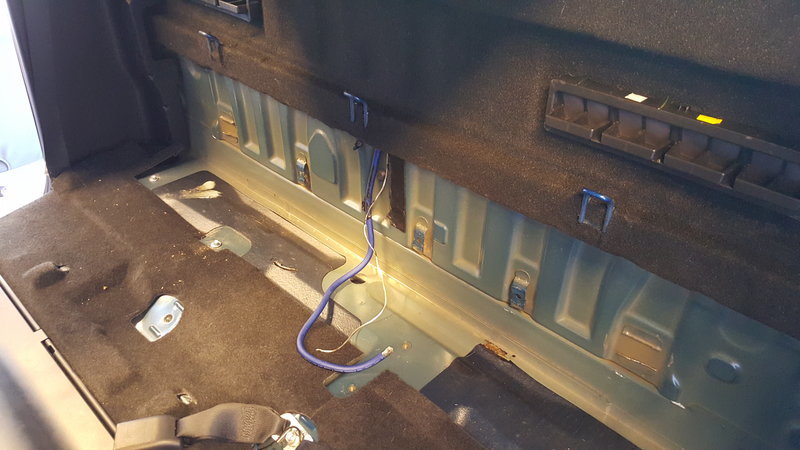

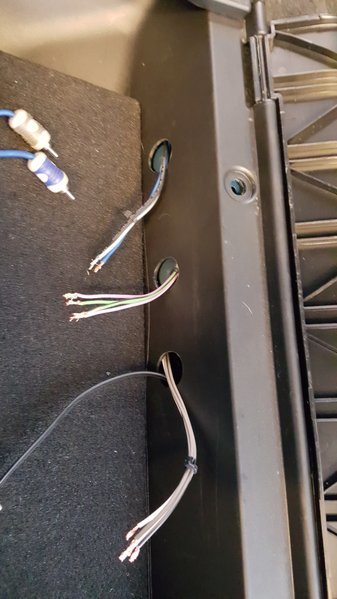

    20160713_170156.jpg 20160713_201100.jpg 20160713_172242.jpg
    https://youtu.be/6DcJKIH4FVc
    https://youtu.be/Uukh75Casrw

    Last edited: Aug 5, 2017
  2. May 2, 2016 at 7:26 PM
    #2
    gkomo

    gkomo Well-Known Member

    Joined:
    Nov 16, 2015
    Member:
    #169821
    Messages:
    828
    Gender:
    Male
    San Diego, CA
    Vehicle:
    2014 MGM AC SR5 4x4
    Can you please re-upload the one picture of how you suggest others wire up the HU to DSP? Its not showing.

    Also, where did you ground out the amps?

  3. May 2, 2016 at 7:33 PM
    #3
    rob feature

    rob feature Tacos!

    Joined:
    Aug 10, 2011
    Member:
    #61468
    Messages:
    1,333
    Gender:
    Male
    Colorado
    Vehicle:
    2003 4x4 V6 X-Cab SR5
    Clean install! How's it sound?

    Man of Steel TRD [OP] likes this.
  4. May 2, 2016 at 7:35 PM
    #4
    Man of Steel TRD

    Man of Steel TRD [OP] Ignorance is the new normal

    Joined:
    Mar 1, 2016
    Member:
    #179879
    Messages:
    4,303
    Gender:
    Male
    First Name:
    Jeremy
    Gilbert, AZ
    Vehicle:
    2016 DCSB TRD Man of Steel Edition, 91 300ZXTT
    Tow package, LED interior lighting, led low beams, led fog lights, led licence plate lights, OEM bed mat, OEM mud flaps, OEM chrome raised tailgate letter inserts, nerf bars, AVS ventshades. Complete Kicker audio system (4 channel amp, mids and tweets in the front, 2 ways in the back, 2 10 inch comp rt subs, Zxsum8, alpine pdx 1.600 boxes and amp rack by Mr Marv), Pop & Lock, Mobtown locking bed storage doors, Bilstein 5100s, Katzkin Leather interior, Redline Hoodstruts, Backflip.

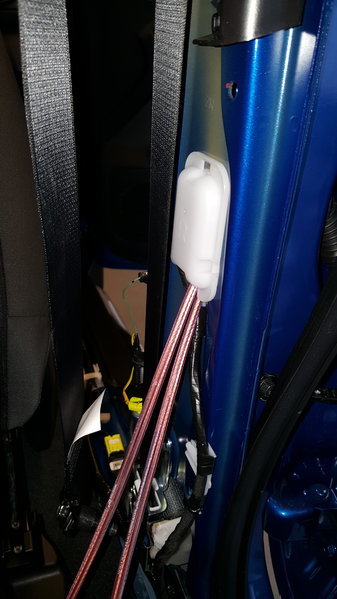

    Sure here it is. I just grounded my amp in the back to the seat belt mount bolt and the one under the driver's seat I grounded to an existing ground spot from the factory.

  5. May 2, 2016 at 7:36 PM
    #5
    Man of Steel TRD

    Man of Steel TRD [OP] Ignorance is the new normal

    Joined:
    Mar 1, 2016
    Member:
    #179879
    Messages:
    4,303
    Gender:
    Male
    First Name:
    Jeremy
    Gilbert, AZ
    Vehicle:
    2016 DCSB TRD Man of Steel Edition, 91 300ZXTT
    Tow package, LED interior lighting, led low beams, led fog lights, led licence plate lights, OEM bed mat, OEM mud flaps, OEM chrome raised tailgate letter inserts, nerf bars, AVS ventshades. Complete Kicker audio system (4 channel amp, mids and tweets in the front, 2 ways in the back, 2 10 inch comp rt subs, Zxsum8, alpine pdx 1.600 boxes and amp rack by Mr Marv), Pop & Lock, Mobtown locking bed storage doors, Bilstein 5100s, Katzkin Leather interior, Redline Hoodstruts, Backflip.
    Thanks!! It sounds really great!! Loud but very clean and clear.

    rkilgore76 likes this.
  6. May 3, 2016 at 4:47 AM
    #6
    SOSHeloPilot

    SOSHeloPilot My Favorite Song :)

    Joined:
    Mar 31, 2009
    Member:
    #15422
    Messages:
    6,320
    Gender:
    Male
    U.S.A.
    Vehicle:
    2019 RAV4, XLE, Stock
    Missing My Last Tacoma
    ... ^^^ ... Great DIY series ... you could be doing DIY pics/vids for Toyota or Crutchfield ... :D

    Man of Steel TRD [OP] likes this.
  7. May 3, 2016 at 9:35 AM
    #7
    solscooter

    solscooter Sh!t Outta Luck

    Joined:
    Nov 8, 2015
    Member:
    #169056
    Messages:
    1,991
    Gender:
    Male
    First Name:
    Brian
    Minnesota
    Vehicle:
    2016 TRD OR DCSB 4x4
    Mobtown Offroad
    Finally got the parts to start building mine. Where did you route the power wire through. I was thinking the same nipple in the OEM video but can't tell if a 4 gauge wire will fit.

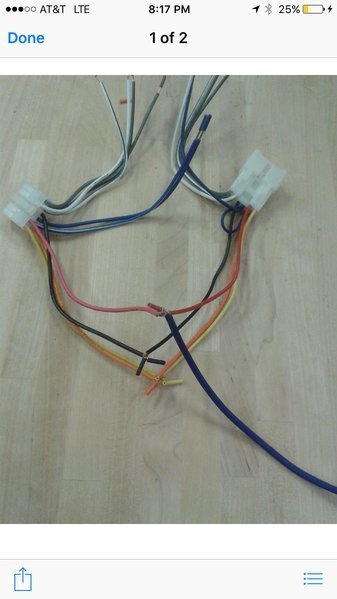

    Here's a pic of the metra harness I started. Removed all the wire that aren't needed. Going to shorten the wires up and solder it again. image.jpg

    Man of Steel TRD [OP] and gkomo like this.
  8. May 3, 2016 at 10:19 AM
    #8
    Man of Steel TRD

    Man of Steel TRD [OP] Ignorance is the new normal

    Joined:
    Mar 1, 2016
    Member:
    #179879
    Messages:
    4,303
    Gender:
    Male
    First Name:
    Jeremy
    Gilbert, AZ
    Vehicle:
    2016 DCSB TRD Man of Steel Edition, 91 300ZXTT
    Tow package, LED interior lighting, led low beams, led fog lights, led licence plate lights, OEM bed mat, OEM mud flaps, OEM chrome raised tailgate letter inserts, nerf bars, AVS ventshades. Complete Kicker audio system (4 channel amp, mids and tweets in the front, 2 ways in the back, 2 10 inch comp rt subs, Zxsum8, alpine pdx 1.600 boxes and amp rack by Mr Marv), Pop & Lock, Mobtown locking bed storage doors, Bilstein 5100s, Katzkin Leather interior, Redline Hoodstruts, Backflip.
    That's some good work right there. There is a grommet directly behind the battery on the firewall that was pretty easy to get through. I will take a pic of it later today for you.

  9. May 3, 2016 at 10:46 AM
    #9
    zinger

    zinger Well-Known Member

    Joined:
    Oct 6, 2015
    Member:
    #165960
    Messages:
    339
    Gender:
    Male
    Vehicle:
    2016 Silver Sky Tacoma SR5

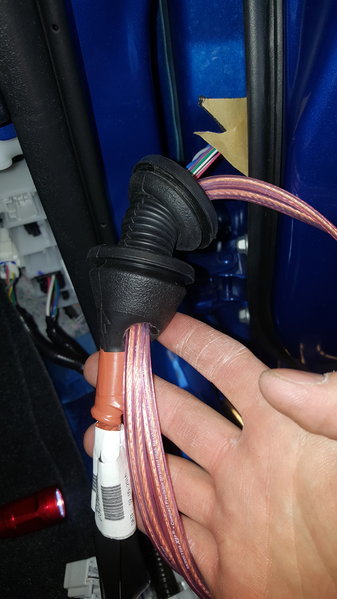

    Like the OP I used the existing rubber grommet on the battery side of the firewall, plenty of room and a 4ga power wire fit through easily. Used a small phillips head screw driver to punch a hole through, just be careful there are other wire bundles going through the grommet. Keep the hole small and the grommet will seal nicely around the power cable.

    Man of Steel TRD [OP] likes this.
  10. May 3, 2016 at 10:54 AM
    #10
    Man of Steel TRD

    Man of Steel TRD [OP] Ignorance is the new normal

    Joined:
    Mar 1, 2016
    Member:
    #179879
    Messages:
    4,303
    Gender:
    Male
    First Name:
    Jeremy
    Gilbert, AZ
    Vehicle:
    2016 DCSB TRD Man of Steel Edition, 91 300ZXTT
    Tow package, LED interior lighting, led low beams, led fog lights, led licence plate lights, OEM bed mat, OEM mud flaps, OEM chrome raised tailgate letter inserts, nerf bars, AVS ventshades. Complete Kicker audio system (4 channel amp, mids and tweets in the front, 2 ways in the back, 2 10 inch comp rt subs, Zxsum8, alpine pdx 1.600 boxes and amp rack by Mr Marv), Pop & Lock, Mobtown locking bed storage doors, Bilstein 5100s, Katzkin Leather interior, Redline Hoodstruts, Backflip.
    Yup, that's exactly what I did too.

  11. May 3, 2016 at 2:51 PM
    #11
    Zac of all trades

    Zac of all trades FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,545
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    what are the dimensions of the box? Specifically how deep did you make the bottom, and how wide did you make each enclosure?

  12. May 3, 2016 at 2:51 PM
    #12
    Zac of all trades

    Zac of all trades FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,545
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s

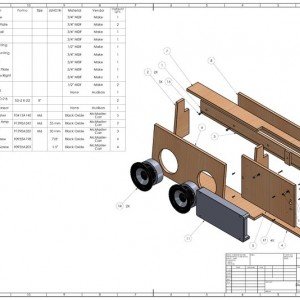

    I am working on something like this.... Trying to get a ported box...

  13. May 3, 2016 at 3:26 PM
    #13
    Man of Steel TRD

    Man of Steel TRD [OP] Ignorance is the new normal

    Joined:
    Mar 1, 2016
    Member:
    #179879
    Messages:
    4,303
    Gender:
    Male
    First Name:
    Jeremy
    Gilbert, AZ
    Vehicle:
    2016 DCSB TRD Man of Steel Edition, 91 300ZXTT
    Tow package, LED interior lighting, led low beams, led fog lights, led licence plate lights, OEM bed mat, OEM mud flaps, OEM chrome raised tailgate letter inserts, nerf bars, AVS ventshades. Complete Kicker audio system (4 channel amp, mids and tweets in the front, 2 ways in the back, 2 10 inch comp rt subs, Zxsum8, alpine pdx 1.600 boxes and amp rack by Mr Marv), Pop & Lock, Mobtown locking bed storage doors, Bilstein 5100s, Katzkin Leather interior, Redline Hoodstruts, Backflip.
    I honestly don't know. I had @Mr Marv build it for me. He asked me not to give the dimensions out. Let me see if I can find the drawings for another enclosure that another member gave to me for his box. It will probably help you out for sure.

  14. May 3, 2016 at 3:32 PM
    #14
    Man of Steel TRD

    Man of Steel TRD [OP] Ignorance is the new normal

    Joined:
    Mar 1, 2016
    Member:
    #179879
    Messages:
    4,303
    Gender:
    Male
    First Name:
    Jeremy
    Gilbert, AZ
    Vehicle:
    2016 DCSB TRD Man of Steel Edition, 91 300ZXTT
    Tow package, LED interior lighting, led low beams, led fog lights, led licence plate lights, OEM bed mat, OEM mud flaps, OEM chrome raised tailgate letter inserts, nerf bars, AVS ventshades. Complete Kicker audio system (4 channel amp, mids and tweets in the front, 2 ways in the back, 2 10 inch comp rt subs, Zxsum8, alpine pdx 1.600 boxes and amp rack by Mr Marv), Pop & Lock, Mobtown locking bed storage doors, Bilstein 5100s, Katzkin Leather interior, Redline Hoodstruts, Backflip.
    DannyD303 and Zac of all trades like this.
  15. May 3, 2016 at 5:12 PM
    #15
    Man of Steel TRD

    Man of Steel TRD [OP] Ignorance is the new normal

    Joined:
    Mar 1, 2016
    Member:
    #179879
    Messages:
    4,303
    Gender:
    Male
    First Name:
    Jeremy
    Gilbert, AZ
    Vehicle:
    2016 DCSB TRD Man of Steel Edition, 91 300ZXTT
    Tow package, LED interior lighting, led low beams, led fog lights, led licence plate lights, OEM bed mat, OEM mud flaps, OEM chrome raised tailgate letter inserts, nerf bars, AVS ventshades. Complete Kicker audio system (4 channel amp, mids and tweets in the front, 2 ways in the back, 2 10 inch comp rt subs, Zxsum8, alpine pdx 1.600 boxes and amp rack by Mr Marv), Pop & Lock, Mobtown locking bed storage doors, Bilstein 5100s, Katzkin Leather interior, Redline Hoodstruts, Backflip.

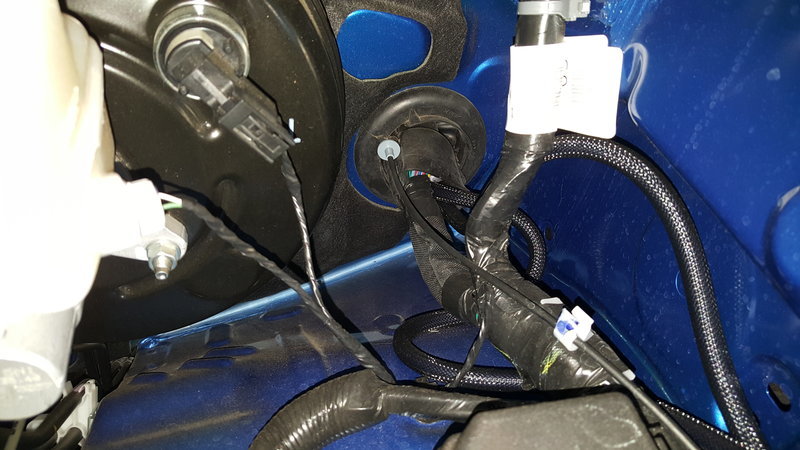

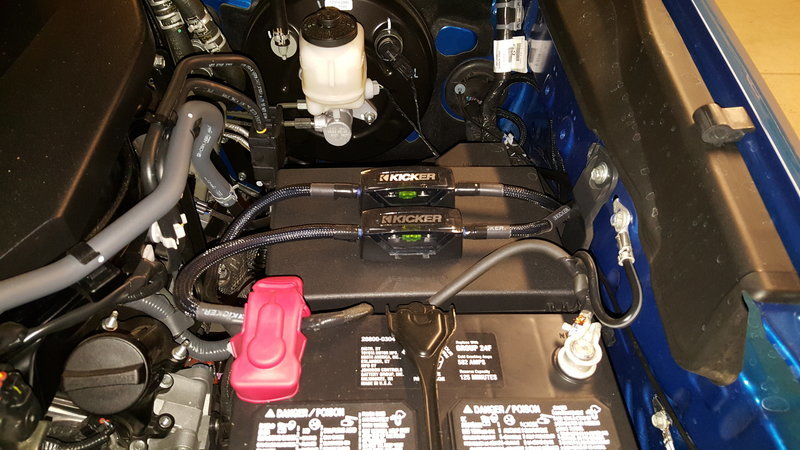

    Here's is where I ran it through the firewall. It is directly behind the battery.
    20160503_170332.jpg 20160503_170320.jpg

  16. May 3, 2016 at 6:48 PM
    #16
    solscooter

    solscooter Sh!t Outta Luck

    Joined:
    Nov 8, 2015
    Member:
    #169056
    Messages:
    1,991
    Gender:
    Male
    First Name:
    Brian
    Minnesota
    Vehicle:
    2016 TRD OR DCSB 4x4
    Mobtown Offroad
    Thanks. So it's part of the main harness grommet. I'll have to look when I get some light

  17. May 3, 2016 at 6:52 PM
    #17
    Man of Steel TRD

    Man of Steel TRD [OP] Ignorance is the new normal

    Joined:
    Mar 1, 2016
    Member:
    #179879
    Messages:
    4,303
    Gender:
    Male
    First Name:
    Jeremy
    Gilbert, AZ
    Vehicle:
    2016 DCSB TRD Man of Steel Edition, 91 300ZXTT
    Tow package, LED interior lighting, led low beams, led fog lights, led licence plate lights, OEM bed mat, OEM mud flaps, OEM chrome raised tailgate letter inserts, nerf bars, AVS ventshades. Complete Kicker audio system (4 channel amp, mids and tweets in the front, 2 ways in the back, 2 10 inch comp rt subs, Zxsum8, alpine pdx 1.600 boxes and amp rack by Mr Marv), Pop & Lock, Mobtown locking bed storage doors, Bilstein 5100s, Katzkin Leather interior, Redline Hoodstruts, Backflip.
    Yeah, I was able to get two 4 gauge wires through it.

  18. May 3, 2016 at 8:14 PM
    #18
    Zac of all trades

    Zac of all trades FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,545
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s

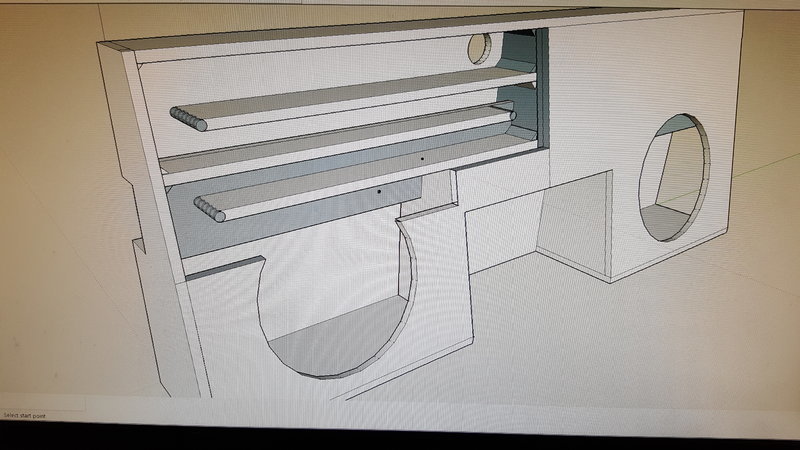

    I like this box design because is allows more room to mount the amp(s). I may have to design another with this in mind. However i am a bit concerned about the air space each enclosure will have... I only need .5ft^3 for the subs i am running.

  19. May 3, 2016 at 8:22 PM
    #19
    Man of Steel TRD

    Man of Steel TRD [OP] Ignorance is the new normal

    Joined:
    Mar 1, 2016
    Member:
    #179879
    Messages:
    4,303
    Gender:
    Male
    First Name:
    Jeremy
    Gilbert, AZ
    Vehicle:
    2016 DCSB TRD Man of Steel Edition, 91 300ZXTT
    Tow package, LED interior lighting, led low beams, led fog lights, led licence plate lights, OEM bed mat, OEM mud flaps, OEM chrome raised tailgate letter inserts, nerf bars, AVS ventshades. Complete Kicker audio system (4 channel amp, mids and tweets in the front, 2 ways in the back, 2 10 inch comp rt subs, Zxsum8, alpine pdx 1.600 boxes and amp rack by Mr Marv), Pop & Lock, Mobtown locking bed storage doors, Bilstein 5100s, Katzkin Leather interior, Redline Hoodstruts, Backflip.
    If it's too small you can stuff the box with polyfil. It makes the sub think there is more air space than there really is.

    Nevermind, you are thinking it doesn't have to be that big. Duh. Sorry about that

  20. May 3, 2016 at 8:25 PM
    #20
    Zac of all trades

    Zac of all trades FWP Fabrication Vendor

    Joined:
    Jun 9, 2015
    Member:
    #157073
    Messages:
    8,545
    Gender:
    Male
    First Name:
    Zac
    fwpfab.com
    Vehicle:
    2013 4x4 Locked DCLB
    886/5100s/AAL/UCAs/360 armor/RTT/295 17s
    yeah i have heard that. I just read that his box gives about .28ft^3 per sub. But his box does not go all the way up like my design which may give me the space i need. Also im thinking that a sealed box will sound better in a truck so the ported design maybe a project box to build after i build a sealed box.
