    I've always been somewhat of an audio junky, so I decided to build myself a subwoofer enclosure for the new truck.
    My goal was to keep everything intact and retain all functions, as I did not want to hack up my brand new truck. This particular enclosure is made for the JL 10tw3 subwoofer. The lack of space behind the rear seats definitely has its share of restrictions. Below are pics of process and finished product.

    Materials and products used:

    - 3/4 + 1/2" mdf
    - woodfiller
    - wood glue
    - silicone sealant
    - primer
    - wood screws
    - herculiner
    - sandpaper

    Pretty happy with the results:

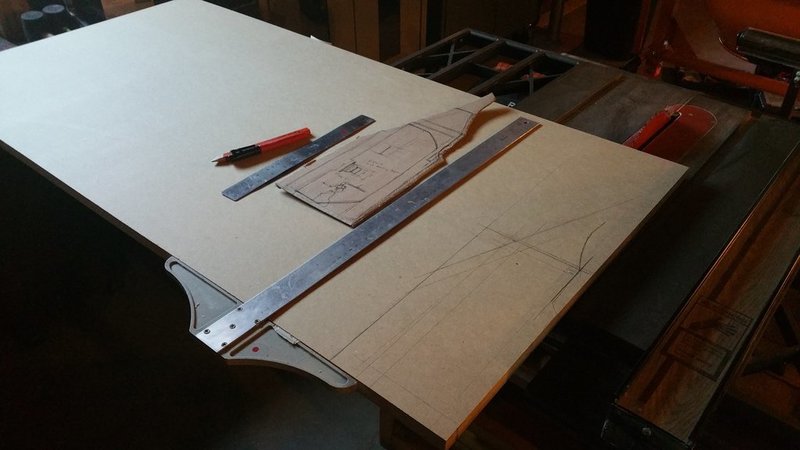

    20151121_153638.jpg 20151121_153718.jpg 20151122_141836.jpg 20151125_194604.jpg 20151125_194618.jpg 20151201_233256.jpg 20151201_233435.jpg 20151210_170758.jpg 20151210_170926.jpg 1453675545657-2138157176.jpg 1453675811484146830201.jpg 1453675944819-1597101855.jpg 1453676199898-136583034.jpg
