2017 Double Cab Audio Build

Discussion in 'Audio & Video' started by 2Loud, Oct 18, 2017.

  1. Oct 18, 2017 at 12:01 PM
    #1
    2Loud

    2Loud [OP] Well-Known Member

    Joined:
    May 11, 2017
    Member:
    #218772
    Messages:
    73
    Gender:
    Male
    TRD Pro Grille Predator Step Tube 17" Maverick Alloy Wheels Nitto A/T Terra Grappler (265/65R17) Tri-Fold Hard Tonneau Cover with LED Lights V6 Tow Package Chrome Exhaust Tip XP Badging Stereo Pioneer AVH-X5800BHS Arc Audio 900.6 - 6 channel amplifier (4x60 watts + 1x550 watts bridged) Arc Audio 300.2 - 2 channel amplifier (2x180 watts) Hybrid Audio Technologies Clarus 1" tweeter Hybrid Audio Technologies Legatia 3.5" mids Hybrid Audio Technologies Legatia 6.5" midbass Image Dynamics IDQ10v4D2 10" DVC sub Stinger Roadkill Sound Deadner 200 AMP Circuit Breaker: Rockford 200 Amp Circuit Breaker Krystal Kable RCA Cable KnuKoncepts wiring and interconnects
    This forum has been so helpful with many questions I have had about my Tacoma. After being a long time lurker and never a contributor, I have decided to give back to the community. Wanted to share my latest project of the aftermarket stereo rebuild I'm doing. I'm still not done yet and have lots to do, but hopefully this will help others.

    Here's a breakdown of my system:

    Headunit
    : Pioneer AVH-X5800BHS
    (These next items are must haves to retain steering wheel control, AUX extension and factory USB ports. They were all super easy to set up and worked on the first try.)
    Mounting Kit: American International TOYK971 Dash Kit
    Toyota Tacoma 16-up "Base" AI TOYK971, "I/DD", Satin Black
    Steering Wheel and USB Interface: Crux SWRTY-61N Toyota Radio Interface
    Crux SWRTY-61N Toyota Radio Interface W/ SWC & BUCam Retention 11-up
    AUX Cable Extension: kenable Panel Mount 3.5mm Male to Female Locking Nut Stereo Adapter Cable 1m​

    Amps:
    Arc Audio 900.6 - 6 channel amplifier (4x60 watts + 1x550 watts bridged)
    Arc Audio 300.2 - 2 channel amplifier (2x180 watts)​

    Speakers:
    Hybrid Audio Technologies Clarus 1" tweeter
    Hybrid Audio Technologies Legatia 3.5" mids
    Hybrid Audio Technologies Legatia 6.5" midbass​

    Subwoofer:

    Interconnects:

    Accessories:

    Last edited: Oct 18, 2017
    JiuJitsu likes this.
  2. Oct 18, 2017 at 12:07 PM
    #2
    2Loud

    2Loud [OP] Well-Known Member

    Joined:
    May 11, 2017
    Member:
    #218772
    Messages:
    73
    Gender:
    Male
    TRD Pro Grille Predator Step Tube 17" Maverick Alloy Wheels Nitto A/T Terra Grappler (265/65R17) Tri-Fold Hard Tonneau Cover with LED Lights V6 Tow Package Chrome Exhaust Tip XP Badging Stereo Pioneer AVH-X5800BHS Arc Audio 900.6 - 6 channel amplifier (4x60 watts + 1x550 watts bridged) Arc Audio 300.2 - 2 channel amplifier (2x180 watts) Hybrid Audio Technologies Clarus 1" tweeter Hybrid Audio Technologies Legatia 3.5" mids Hybrid Audio Technologies Legatia 6.5" midbass Image Dynamics IDQ10v4D2 10" DVC sub Stinger Roadkill Sound Deadner 200 AMP Circuit Breaker: Rockford 200 Amp Circuit Breaker Krystal Kable RCA Cable KnuKoncepts wiring and interconnects
    Things to do include making trim pieces around the equipment, wrapping all of the wire, replacing the battery posts with higher quality ones.

    Also I still have not mounted the 3.5" mids. They are going to go in the A pillars so stay tuned for those. Hoping to do that this weekend.

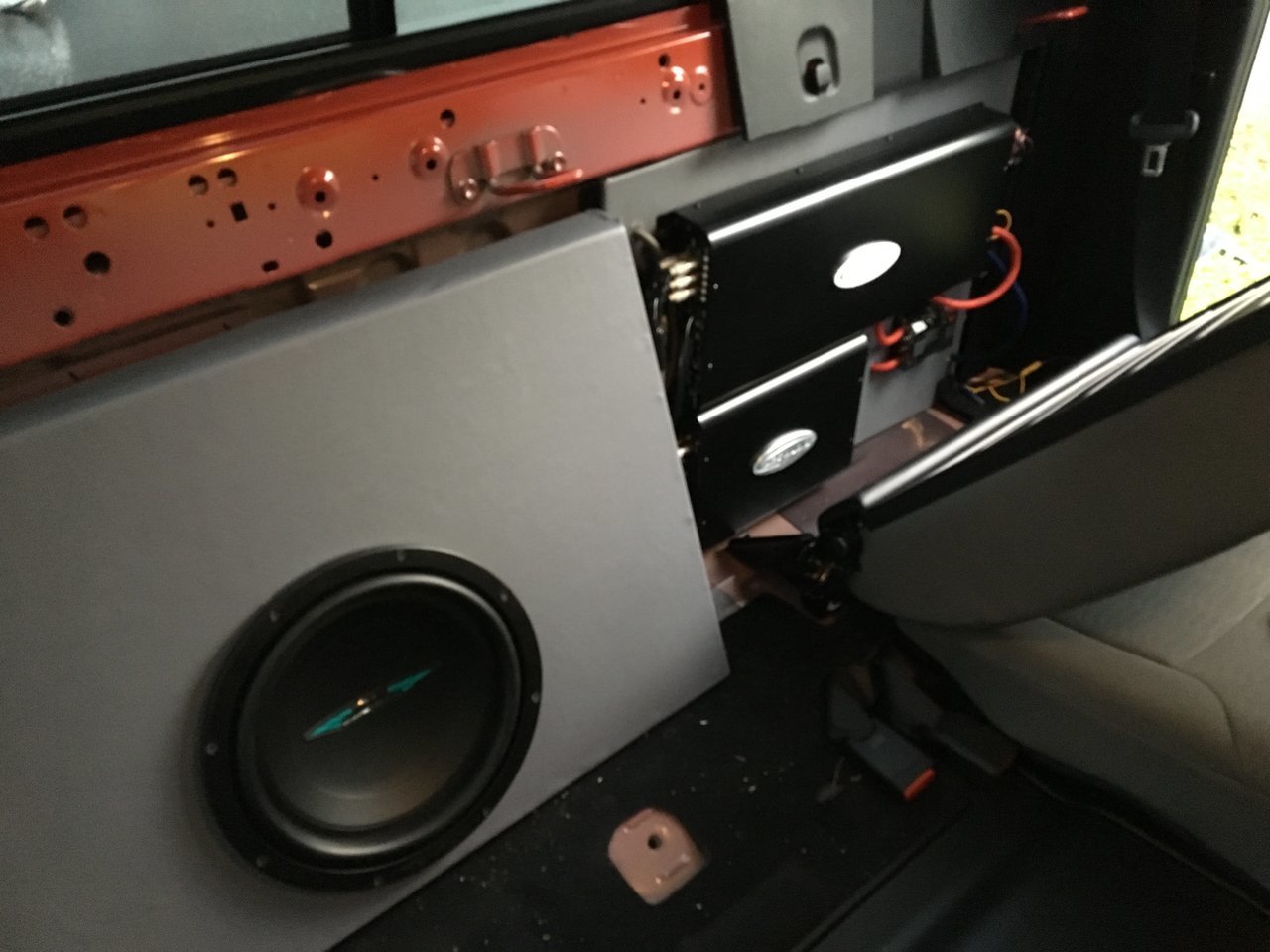

    I did add sound deadner to the entire rear deck and back panel, this pic was a test fit and forgot to take another pic after doing so. Still need to add trim pieces to the area just for appearances and fix the wiring. I don't like how loose it looks.

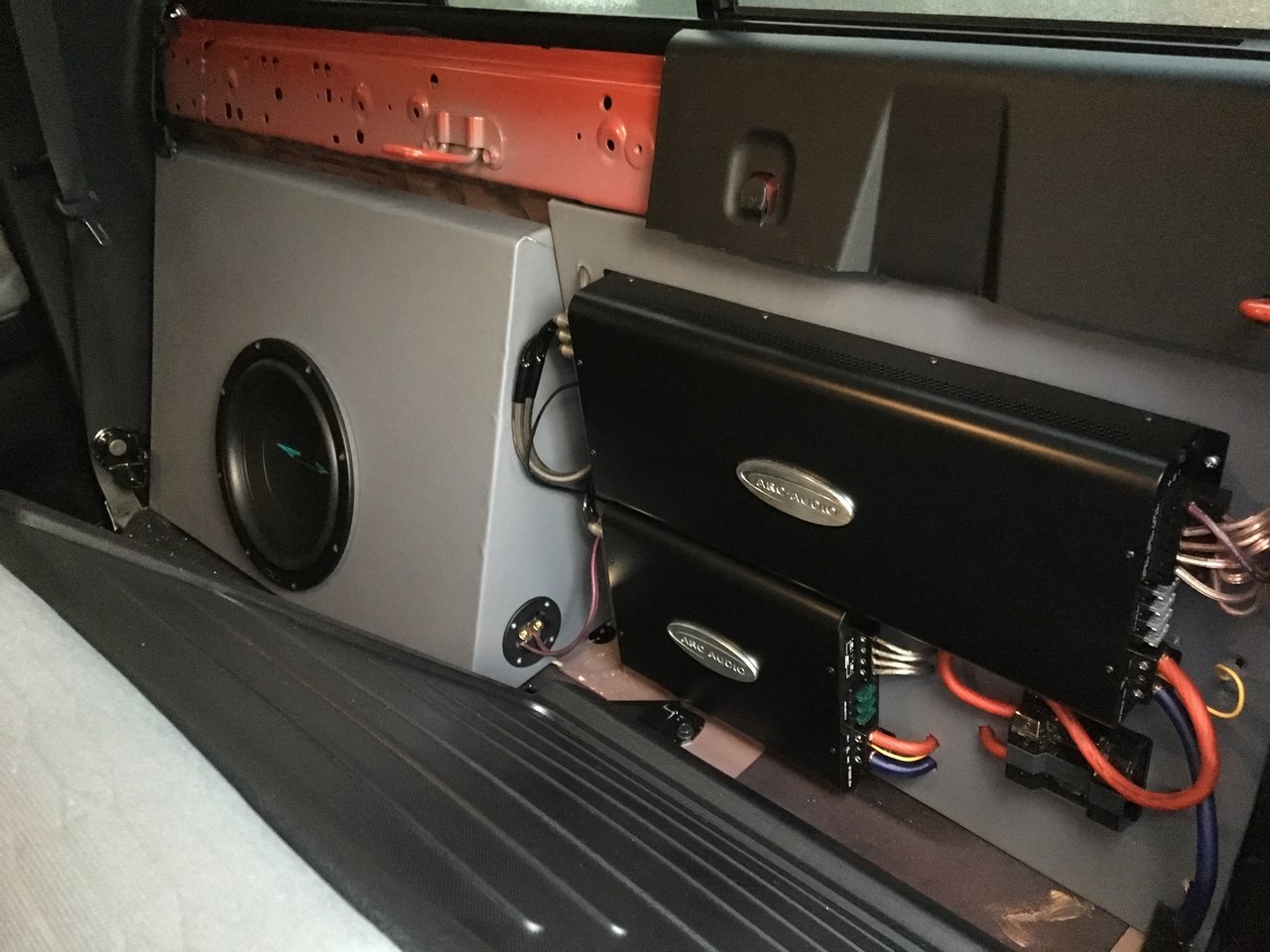

    Subwoofer mounted in a 0.94 cu ft (after speaker displacement) sealed box. Wrapped the box and the amp panel in vinyl.

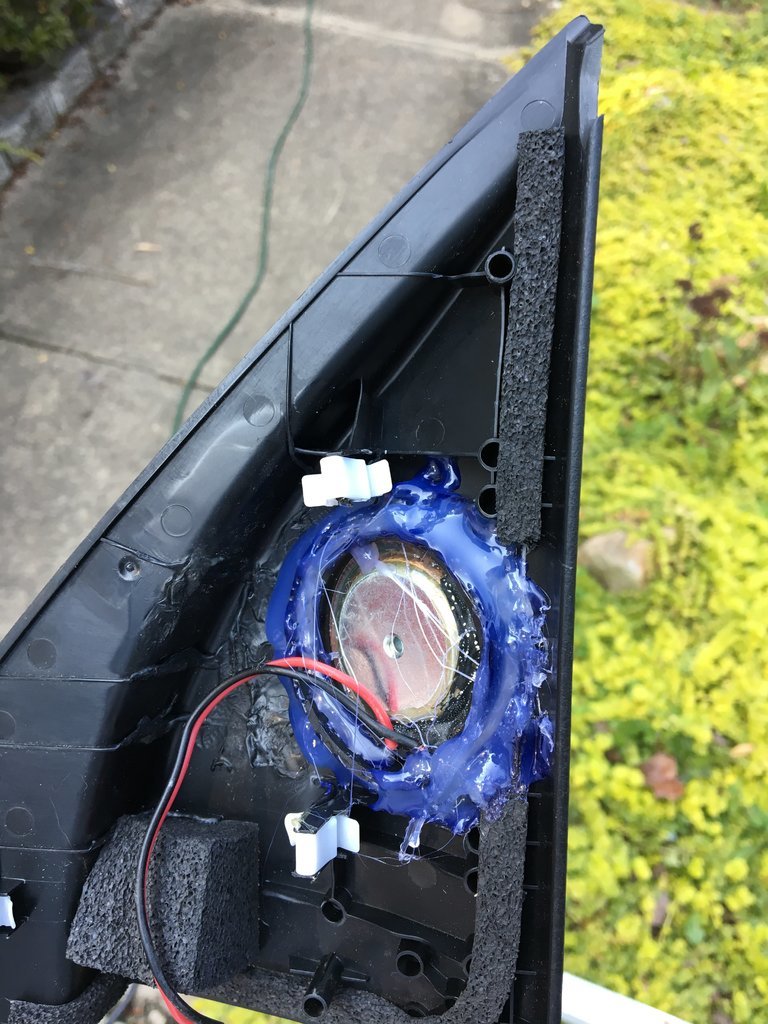

    Lots of hot glue to hold the tweet in place.

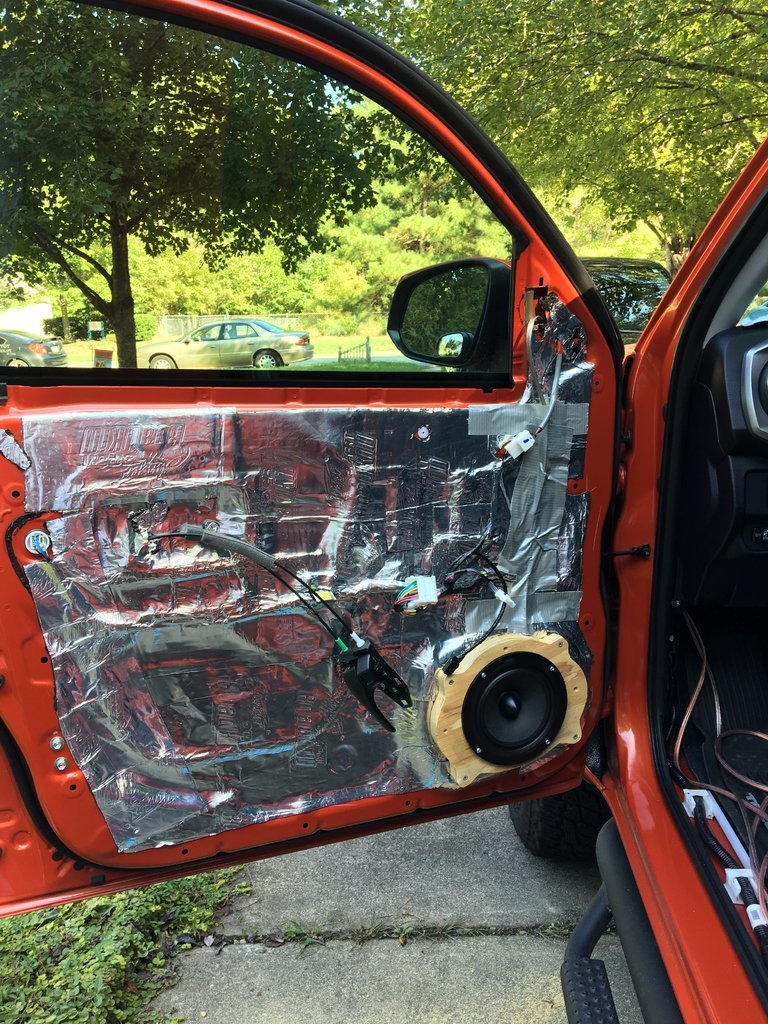

    Stinger Road Kill sound deadner added to both the outer and inner skins of the doors.

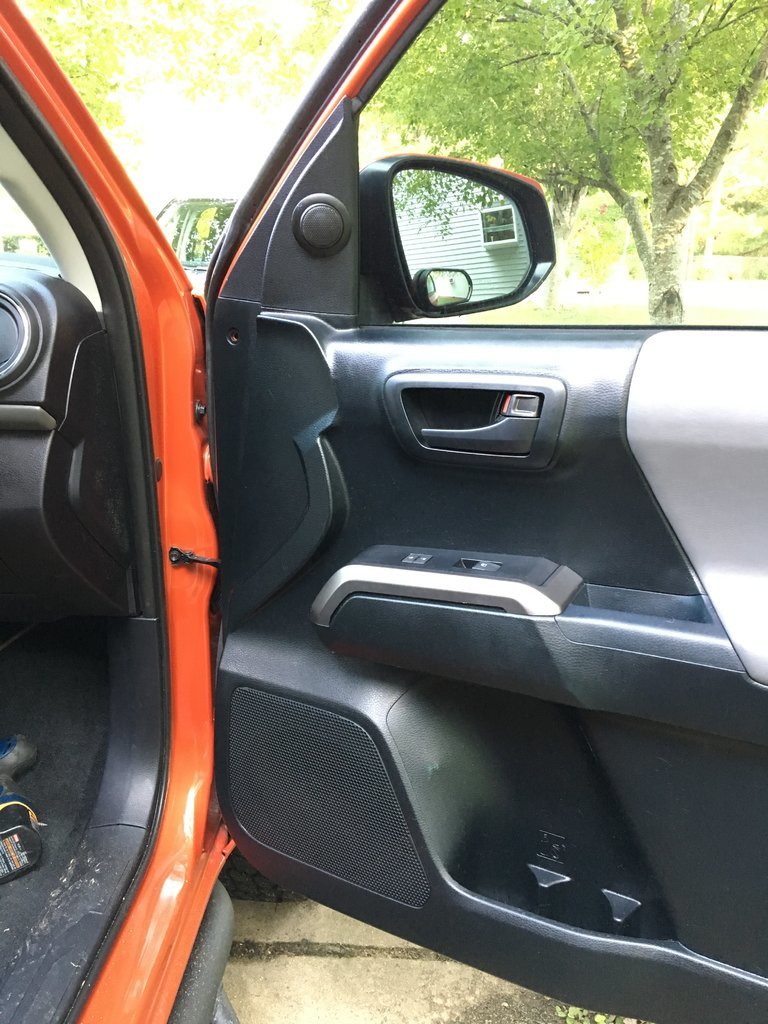

    Tweet mounted in the sail panel and 6.5's mounted in factory location.

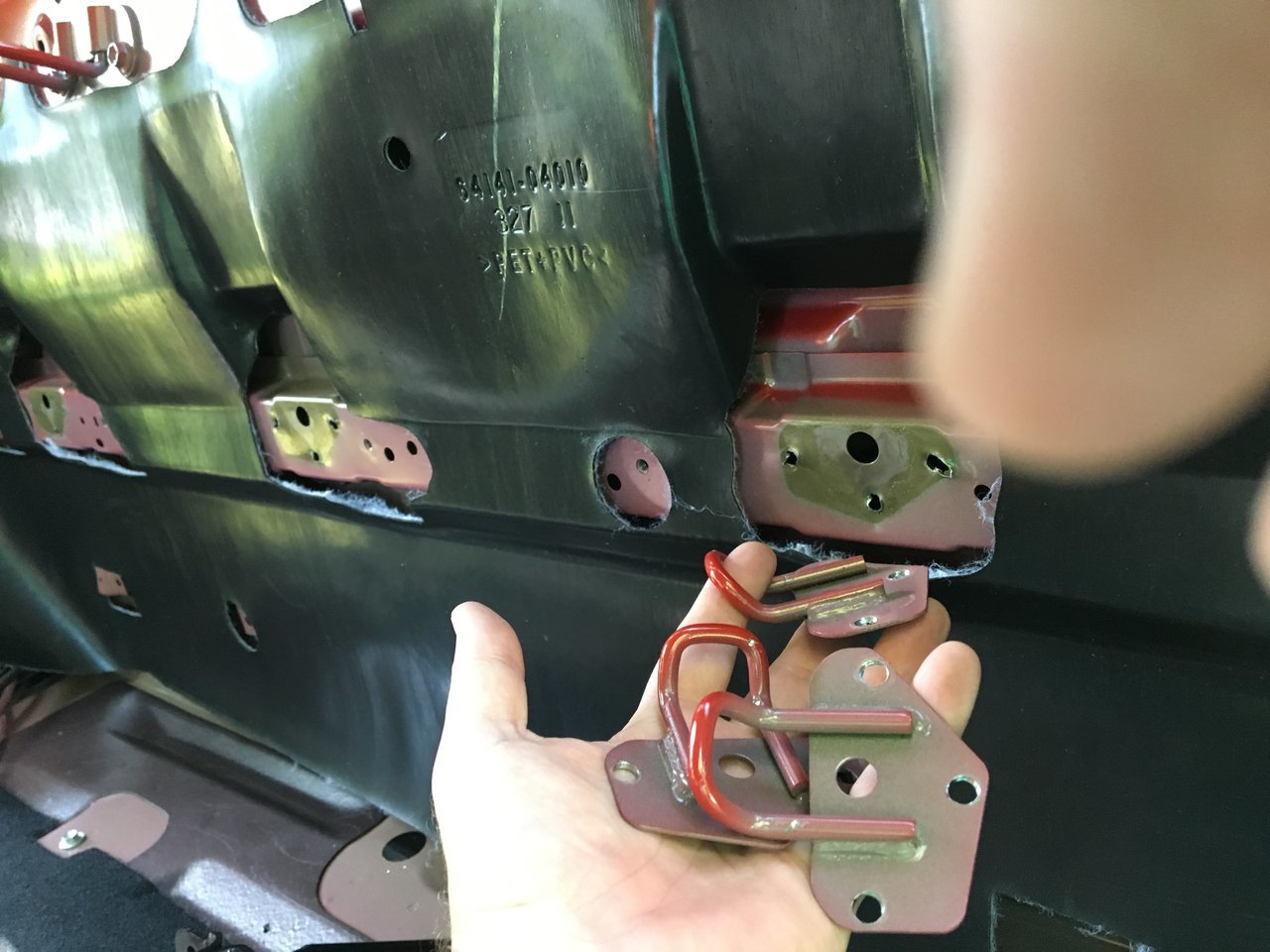

    Had to grind off the rivets to the child seat tie downs to make room for the sub and amp rack:

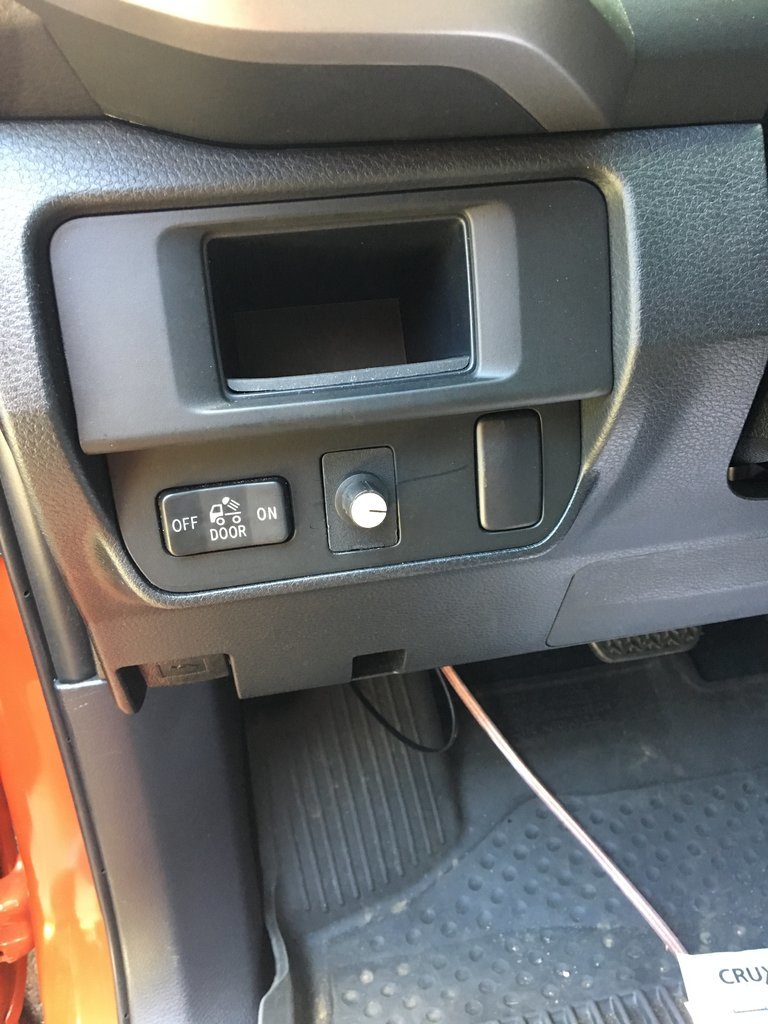

    Bass knob mounted...though I am thinking about moving it. I do want a light bar and want the switch to be there. Since I do not have 4 wheel drive I have lots of space in the overhead console. Might move the bass knob there.

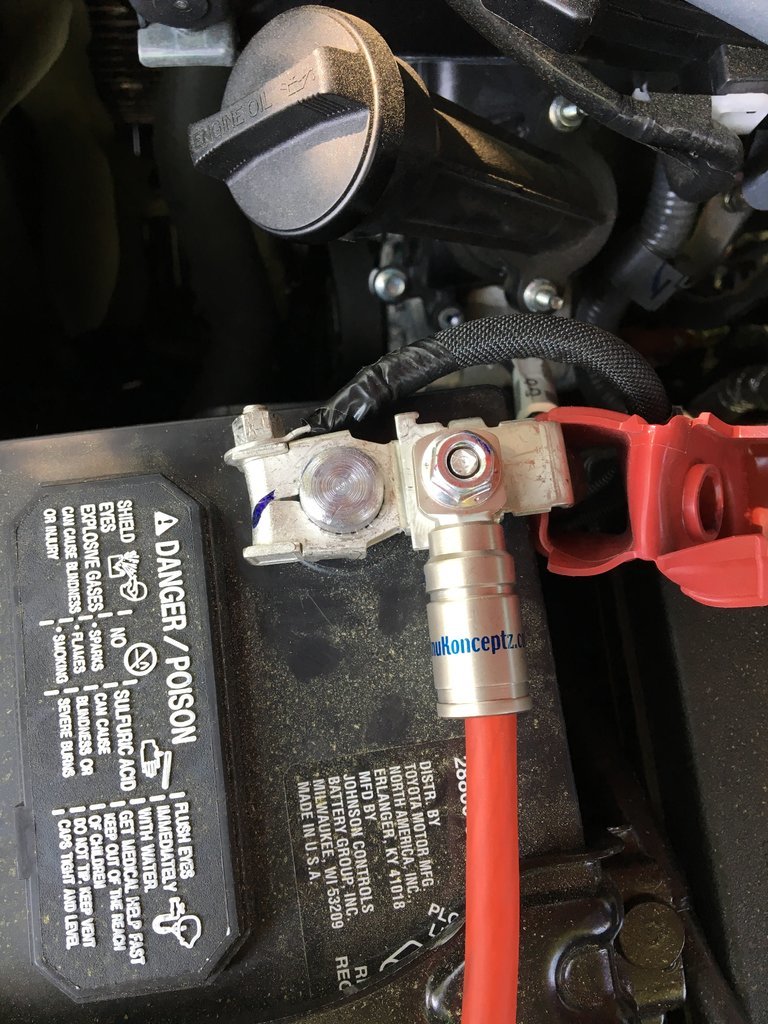

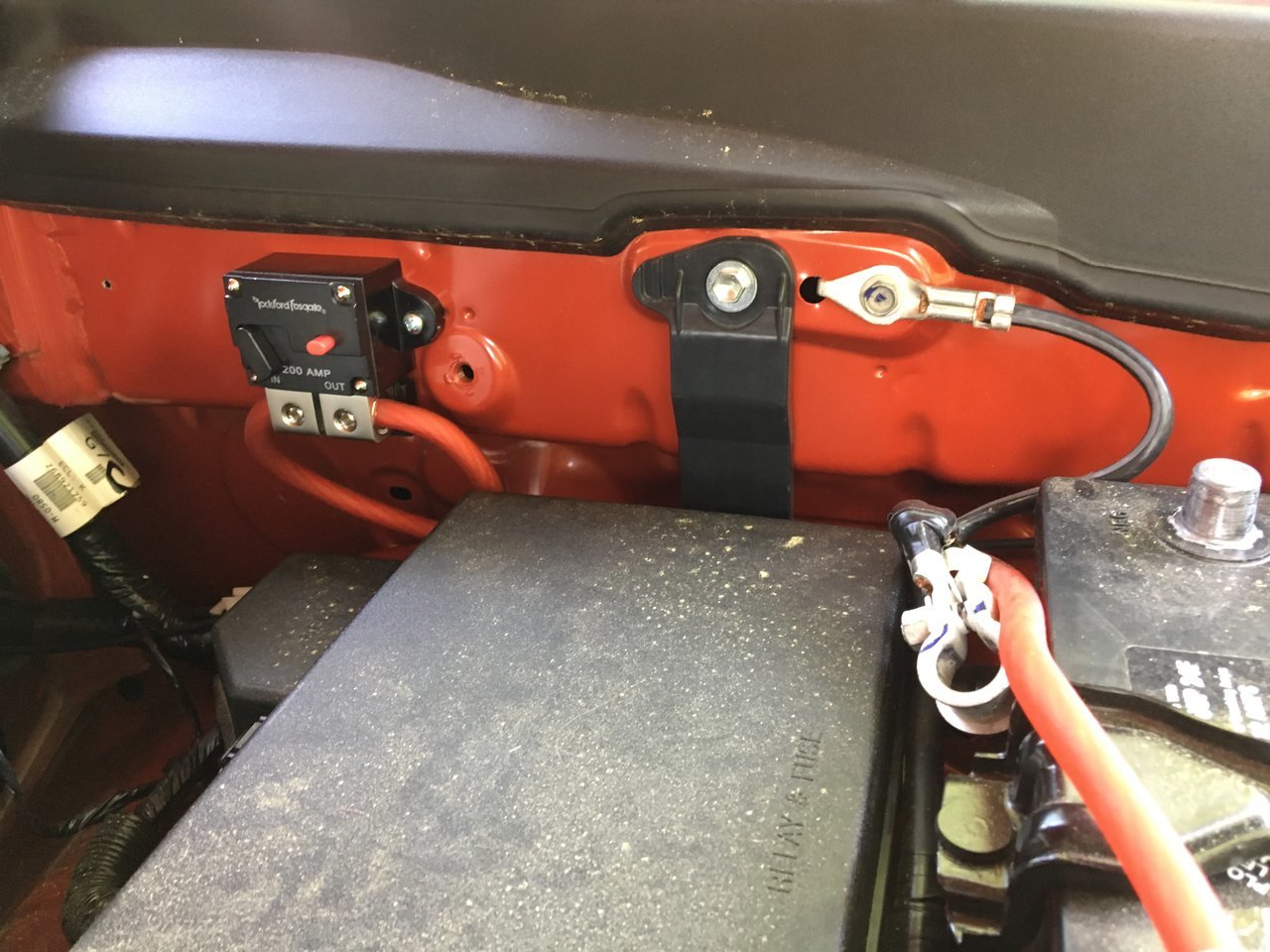

    Rockford Fosgate 200 AMP breaker.



    Last edited: Oct 18, 2017
    JiuJitsu and NIU_Huskies like this.
  3. Oct 23, 2017 at 10:38 AM
    #3
    2Loud

    2Loud [OP] Well-Known Member

    Joined:
    May 11, 2017
    Member:
    #218772
    Messages:
    73
    Gender:
    Male
    TRD Pro Grille Predator Step Tube 17" Maverick Alloy Wheels Nitto A/T Terra Grappler (265/65R17) Tri-Fold Hard Tonneau Cover with LED Lights V6 Tow Package Chrome Exhaust Tip XP Badging Stereo Pioneer AVH-X5800BHS Arc Audio 900.6 - 6 channel amplifier (4x60 watts + 1x550 watts bridged) Arc Audio 300.2 - 2 channel amplifier (2x180 watts) Hybrid Audio Technologies Clarus 1" tweeter Hybrid Audio Technologies Legatia 3.5" mids Hybrid Audio Technologies Legatia 6.5" midbass Image Dynamics IDQ10v4D2 10" DVC sub Stinger Roadkill Sound Deadner 200 AMP Circuit Breaker: Rockford 200 Amp Circuit Breaker Krystal Kable RCA Cable KnuKoncepts wiring and interconnects

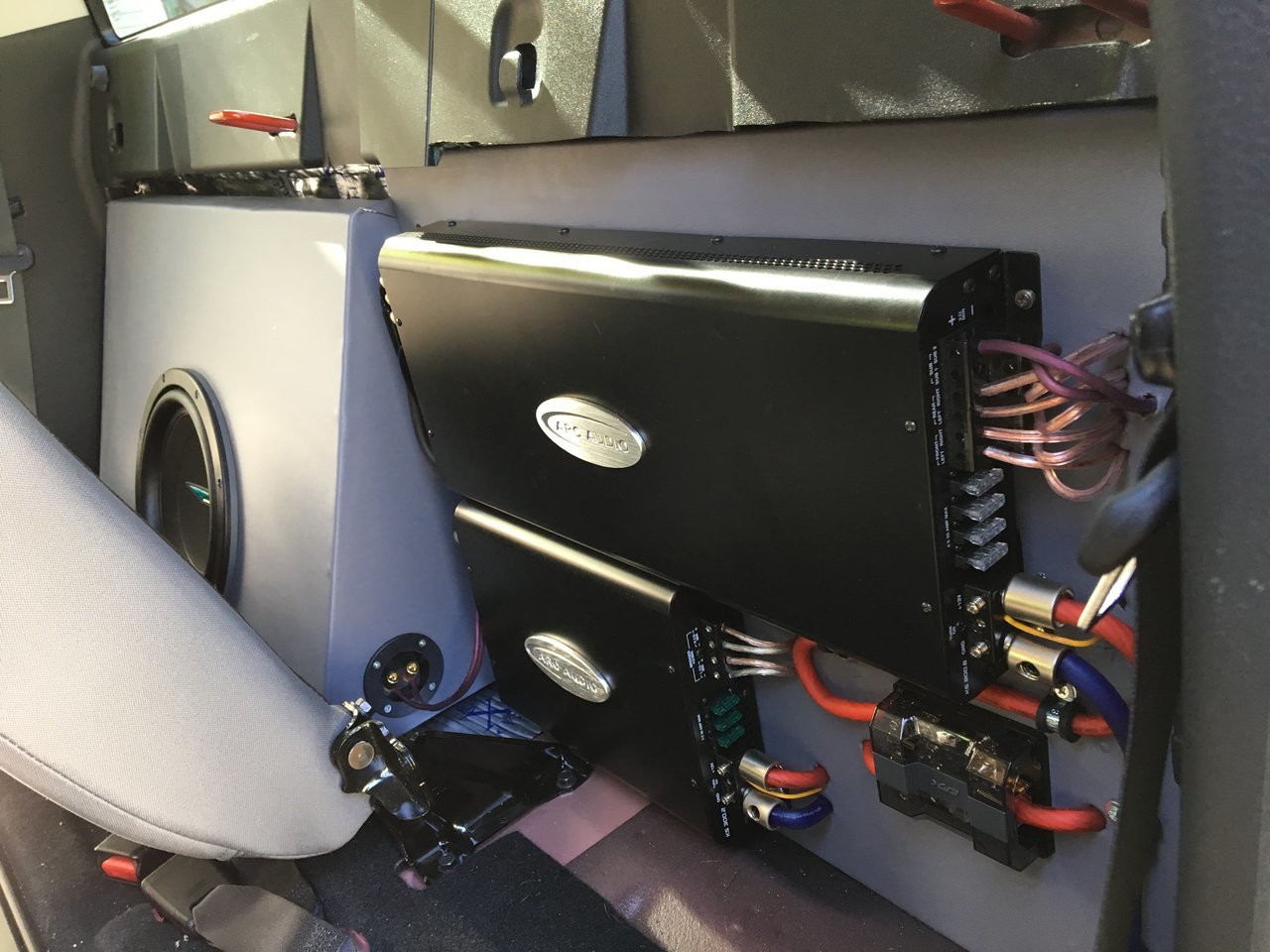

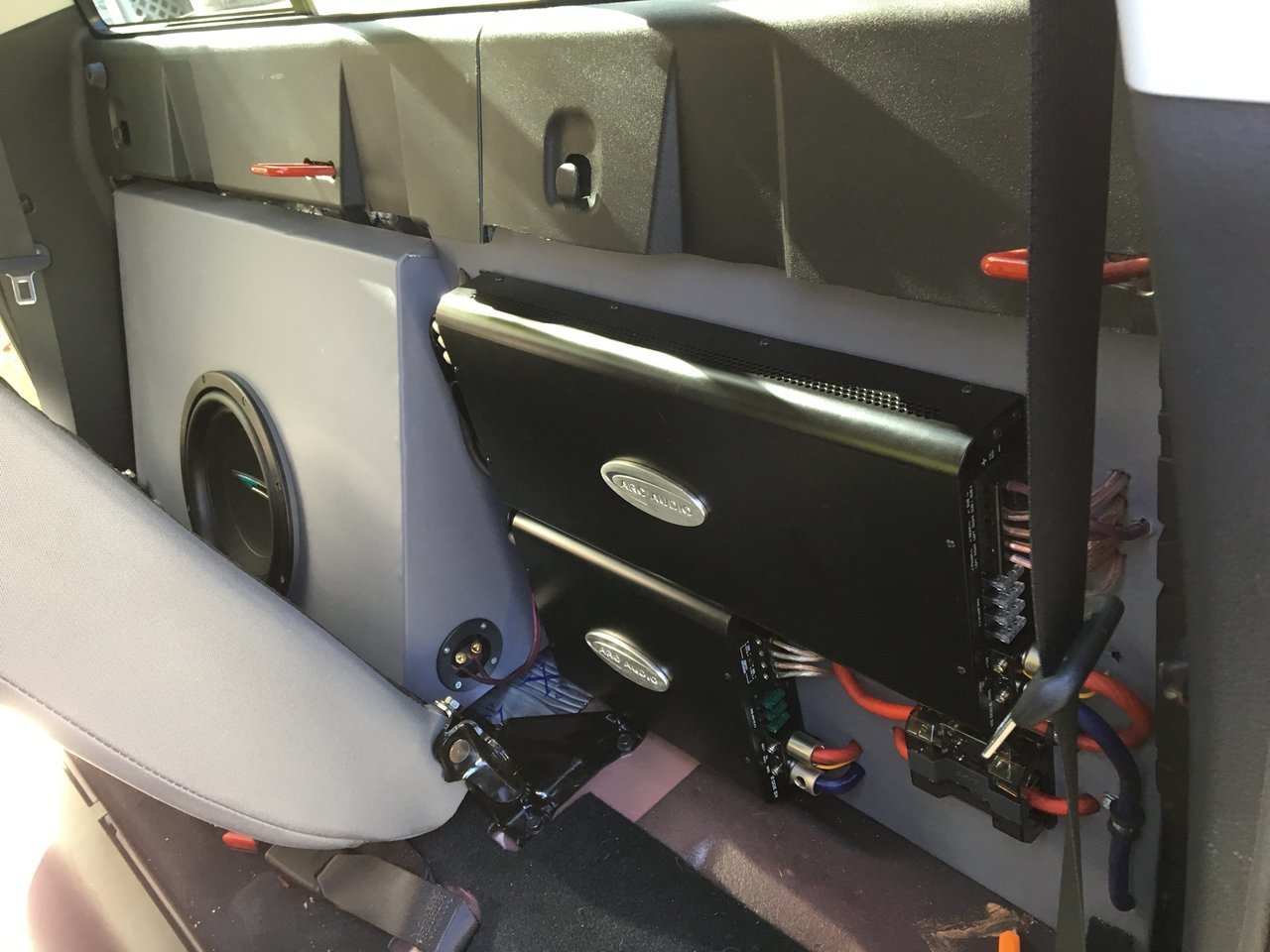

    Made progress on the trim pieces around the amps. Still want to add some to the top of the sub box just to look cleaner. Getting there!

    Also had to remove the plastic back of the seat on the rear passenger side. The subwoofer extension was hitting it. By removing it I gained about 1/2" worth of room back there.



    Attached Files:

    Last edited: Oct 23, 2017
    stealthmode likes this.
  4. Oct 23, 2017 at 11:00 AM
    #4
    azhiaziam

    azhiaziam Well-Known Member

    Joined:
    Feb 8, 2014
    Member:
    #122554
    Messages:
    2,337
    Gender:
    Male
    Clovis
    Looks good man extremely similar to what I did in my 15, why the single ten over a 13.5 jl?

  5. Oct 23, 2017 at 11:20 AM
    #5
    2Loud

    2Loud [OP] Well-Known Member

    Joined:
    May 11, 2017
    Member:
    #218772
    Messages:
    73
    Gender:
    Male
    TRD Pro Grille Predator Step Tube 17" Maverick Alloy Wheels Nitto A/T Terra Grappler (265/65R17) Tri-Fold Hard Tonneau Cover with LED Lights V6 Tow Package Chrome Exhaust Tip XP Badging Stereo Pioneer AVH-X5800BHS Arc Audio 900.6 - 6 channel amplifier (4x60 watts + 1x550 watts bridged) Arc Audio 300.2 - 2 channel amplifier (2x180 watts) Hybrid Audio Technologies Clarus 1" tweeter Hybrid Audio Technologies Legatia 3.5" mids Hybrid Audio Technologies Legatia 6.5" midbass Image Dynamics IDQ10v4D2 10" DVC sub Stinger Roadkill Sound Deadner 200 AMP Circuit Breaker: Rockford 200 Amp Circuit Breaker Krystal Kable RCA Cable KnuKoncepts wiring and interconnects
    Strictly a brand preference. Absolutely nothing wrong with the JL, I am just familiar with Image Dynamics and like their sound. Honestly I was scared to death it wouldn't fit. I did a happy dance when I slid it in and it seated all the way. Magnet missing the back of the box by about 1/6"!

    Last edited: Nov 8, 2017
    mach1man001 likes this.
  6. Oct 23, 2017 at 11:47 AM
    #6
    mach1man001

    mach1man001 eh whatever

    Joined:
    Nov 4, 2009
    Member:
    #25415
    Messages:
    19,750
    Gender:
    Male
    First Name:
    Rob
    Blackstone, MA
    Vehicle:
    '09 Sport DCLB Met Grey
    Toyota bed mat (1st mod), Toyota all season floor mats, Rear spring TSB, Map light mod, Fog light mod, Putco yellow fog bulbs, Weather Tech window vents, Extra d-rings, Mounted mag light, TRD CAI with AFE pro dry filter, '05 front mud flaps (winter only), 2 set's of wheels/tires, 285/75/16 Hankook MT's, Black Painted 1st Gen TRD wheels (wheeling set) Black powder coated FJ Cruiser with 265/70/17 BFGoodrich KO2's (everyday), painted center of grill & bumper black, Devil horns, OME with 885's + spacers front, OME shocks w/OMD designed rear springs, Front diff drop, Rear trailer plug relocate, ATO IFS skid, Relentless Trans & Transfer skids, BAMF bolt on rock sliders, Relentless tailgate reinforcement, Uniden 75 CB radio, BAMF antenna bracket, TRD exhaust, high lift jack w/ATO mounts. And of course ProEFX Towing Mirrors!
    I'm going the same route. How does the IDQ sound?

  7. Oct 23, 2017 at 12:27 PM
    #7
    2Loud

    2Loud [OP] Well-Known Member

    Joined:
    May 11, 2017
    Member:
    #218772
    Messages:
    73
    Gender:
    Male
    TRD Pro Grille Predator Step Tube 17" Maverick Alloy Wheels Nitto A/T Terra Grappler (265/65R17) Tri-Fold Hard Tonneau Cover with LED Lights V6 Tow Package Chrome Exhaust Tip XP Badging Stereo Pioneer AVH-X5800BHS Arc Audio 900.6 - 6 channel amplifier (4x60 watts + 1x550 watts bridged) Arc Audio 300.2 - 2 channel amplifier (2x180 watts) Hybrid Audio Technologies Clarus 1" tweeter Hybrid Audio Technologies Legatia 3.5" mids Hybrid Audio Technologies Legatia 6.5" midbass Image Dynamics IDQ10v4D2 10" DVC sub Stinger Roadkill Sound Deadner 200 AMP Circuit Breaker: Rockford 200 Amp Circuit Breaker Krystal Kable RCA Cable KnuKoncepts wiring and interconnects
    I really like it. I'm a rock and metal kind of guy so it provides the punchiness I am looking for. Smooth transition from sub to 6.5" on the bass guitar. Not into rap or techno so not sure how it would hit with a more boominess type of music. My box is only 1 cu ft and this seems to have a sweet spot about there.

  8. Oct 23, 2017 at 12:34 PM
    #8
    mach1man001

    mach1man001 eh whatever

    Joined:
    Nov 4, 2009
    Member:
    #25415
    Messages:
    19,750
    Gender:
    Male
    First Name:
    Rob
    Blackstone, MA
    Vehicle:
    '09 Sport DCLB Met Grey
    Toyota bed mat (1st mod), Toyota all season floor mats, Rear spring TSB, Map light mod, Fog light mod, Putco yellow fog bulbs, Weather Tech window vents, Extra d-rings, Mounted mag light, TRD CAI with AFE pro dry filter, '05 front mud flaps (winter only), 2 set's of wheels/tires, 285/75/16 Hankook MT's, Black Painted 1st Gen TRD wheels (wheeling set) Black powder coated FJ Cruiser with 265/70/17 BFGoodrich KO2's (everyday), painted center of grill & bumper black, Devil horns, OME with 885's + spacers front, OME shocks w/OMD designed rear springs, Front diff drop, Rear trailer plug relocate, ATO IFS skid, Relentless Trans & Transfer skids, BAMF bolt on rock sliders, Relentless tailgate reinforcement, Uniden 75 CB radio, BAMF antenna bracket, TRD exhaust, high lift jack w/ATO mounts. And of course ProEFX Towing Mirrors!
    Perfect! X2. I have the same preferences in music!

  9. Oct 29, 2017 at 10:09 AM
    #9
    Vasqu3zk

    Vasqu3zk Well-Known Member

    Joined:
    Apr 18, 2017
    Member:
    #216657
    Messages:
    173
    Gender:
    Male
    First Name:
    Kyle
    Bullhead City ARIZONA
    Vehicle:
    2006 Tacoma pre runner
    MCM fab UCA, ADS 2.5 extended coils front pushing 3”, fox2.0 rear.
    Hey! Quick question, I have an 06, double cab. Would that same box your using fit in my back seat or does the new tacos have a deeper pocket or different dimensions?

  10. Oct 31, 2017 at 6:20 AM
    #10
    Zeke2487

    Zeke2487 Member

    Joined:
    Oct 30, 2017
    Member:
    #234592
    Messages:
    5
    Gender:
    Male
    Looks great man. I am looking into doing something similar to my Tacoma. Did you make the box yourself or did you purchase it somewhere?

  11. Oct 31, 2017 at 11:19 AM
    #11
    2Loud

    2Loud [OP] Well-Known Member

    Joined:
    May 11, 2017
    Member:
    #218772
    Messages:
    73
    Gender:
    Male
    TRD Pro Grille Predator Step Tube 17" Maverick Alloy Wheels Nitto A/T Terra Grappler (265/65R17) Tri-Fold Hard Tonneau Cover with LED Lights V6 Tow Package Chrome Exhaust Tip XP Badging Stereo Pioneer AVH-X5800BHS Arc Audio 900.6 - 6 channel amplifier (4x60 watts + 1x550 watts bridged) Arc Audio 300.2 - 2 channel amplifier (2x180 watts) Hybrid Audio Technologies Clarus 1" tweeter Hybrid Audio Technologies Legatia 3.5" mids Hybrid Audio Technologies Legatia 6.5" midbass Image Dynamics IDQ10v4D2 10" DVC sub Stinger Roadkill Sound Deadner 200 AMP Circuit Breaker: Rockford 200 Amp Circuit Breaker Krystal Kable RCA Cable KnuKoncepts wiring and interconnects
    I'm sorry I don't know if it would fit a 2006. Another consideration is the vent's in the back wall for the 2016+. Not sure if 2006 had those or not. It does fit my 2017...its tight, but it fits. :)

    Last edited: Oct 31, 2017
  12. Oct 31, 2017 at 1:56 PM
    #12
    2Loud

    2Loud [OP] Well-Known Member

    Joined:
    May 11, 2017
    Member:
    #218772
    Messages:
    73
    Gender:
    Male
    TRD Pro Grille Predator Step Tube 17" Maverick Alloy Wheels Nitto A/T Terra Grappler (265/65R17) Tri-Fold Hard Tonneau Cover with LED Lights V6 Tow Package Chrome Exhaust Tip XP Badging Stereo Pioneer AVH-X5800BHS Arc Audio 900.6 - 6 channel amplifier (4x60 watts + 1x550 watts bridged) Arc Audio 300.2 - 2 channel amplifier (2x180 watts) Hybrid Audio Technologies Clarus 1" tweeter Hybrid Audio Technologies Legatia 3.5" mids Hybrid Audio Technologies Legatia 6.5" midbass Image Dynamics IDQ10v4D2 10" DVC sub Stinger Roadkill Sound Deadner 200 AMP Circuit Breaker: Rockford 200 Amp Circuit Breaker Krystal Kable RCA Cable KnuKoncepts wiring and interconnects
    I built it myself. Made it out of 1/2" birch. I wanted 3/4" thick, but it would not have given me the near 1cu ft of internal volume needed. The box is sealed and comes out to 0.94 cu ft after removing for speaker displacement. Here are the internal dimensions I used for my box. Remember to add 1/2" to all sides for external dimensions. Oh and I had to remove the plastic back seat cover to allow for the subwoofer extension.

  13. Nov 1, 2017 at 8:24 AM
    #13
    Zeke2487

    Zeke2487 Member

    Joined:
    Oct 30, 2017
    Member:
    #234592
    Messages:
    5
    Gender:
    Male
    Awesome thanks for the write up.

  14. Nov 1, 2017 at 12:57 PM
    #14
    Friedtacolover

    Friedtacolover Well-Known Member

    Joined:
    Sep 2, 2014
    Member:
    #137481
    Messages:
    1,562
    Gender:
    Male
    First Name:
    Travis
    Ontario, Ca
    Vehicle:
    2017 DCSB Off Road 4x4
    my build tread: https://www.tacomaworld.com/threads/socal-no-shame-poser-build.513084/
    I cant fond the bass control that goes in factory light switch spot where did u find it or did u alter it?

  15. Nov 2, 2017 at 11:45 AM
    #15
    2Loud

    2Loud [OP] Well-Known Member

    Joined:
    May 11, 2017
    Member:
    #218772
    Messages:
    73
    Gender:
    Male
    TRD Pro Grille Predator Step Tube 17" Maverick Alloy Wheels Nitto A/T Terra Grappler (265/65R17) Tri-Fold Hard Tonneau Cover with LED Lights V6 Tow Package Chrome Exhaust Tip XP Badging Stereo Pioneer AVH-X5800BHS Arc Audio 900.6 - 6 channel amplifier (4x60 watts + 1x550 watts bridged) Arc Audio 300.2 - 2 channel amplifier (2x180 watts) Hybrid Audio Technologies Clarus 1" tweeter Hybrid Audio Technologies Legatia 3.5" mids Hybrid Audio Technologies Legatia 6.5" midbass Image Dynamics IDQ10v4D2 10" DVC sub Stinger Roadkill Sound Deadner 200 AMP Circuit Breaker: Rockford 200 Amp Circuit Breaker Krystal Kable RCA Cable KnuKoncepts wiring and interconnects
    Made it myself. I took the factory blank that was already in the dash and popped it out. Then just drilled a hole in the center of it the same size as the bass knob shaft. Even after tightening it down it still had a little wiggle so I hot glued the bass knob assembly to the back of the factory blank. Once I snapped the factory blank back into place and put the bass knob back on it looks factory.

  16. Nov 3, 2017 at 7:14 AM
    #16
    Friedtacolover

    Friedtacolover Well-Known Member

    Joined:
    Sep 2, 2014
    Member:
    #137481
    Messages:
    1,562
    Gender:
    Male
    First Name:
    Travis
    Ontario, Ca
    Vehicle:
    2017 DCSB Off Road 4x4
    my build tread: https://www.tacomaworld.com/threads/socal-no-shame-poser-build.513084/
    Did the bass knob come in an assembled box that you had to take apart to get just the dial out or did you buy just a dial? The only ones i find online come in small enclosures

  17. Nov 3, 2017 at 8:03 AM
    #17
    2Loud

    2Loud [OP] Well-Known Member

    Joined:
    May 11, 2017
    Member:
    #218772
    Messages:
    73
    Gender:
    Male
    TRD Pro Grille Predator Step Tube 17" Maverick Alloy Wheels Nitto A/T Terra Grappler (265/65R17) Tri-Fold Hard Tonneau Cover with LED Lights V6 Tow Package Chrome Exhaust Tip XP Badging Stereo Pioneer AVH-X5800BHS Arc Audio 900.6 - 6 channel amplifier (4x60 watts + 1x550 watts bridged) Arc Audio 300.2 - 2 channel amplifier (2x180 watts) Hybrid Audio Technologies Clarus 1" tweeter Hybrid Audio Technologies Legatia 3.5" mids Hybrid Audio Technologies Legatia 6.5" midbass Image Dynamics IDQ10v4D2 10" DVC sub Stinger Roadkill Sound Deadner 200 AMP Circuit Breaker: Rockford 200 Amp Circuit Breaker Krystal Kable RCA Cable KnuKoncepts wiring and interconnects
    Great question. I used the factory bass knob form Arc Audio. Yes, the Arc Audio bass knobs, along with many others comes in a small closed "box". But nearly everyone I have seen can be dissembled exposing the bare circuit board. I took the knob off (it has a small set screw in it), then disassembled the box revealing the small circuit board. Then hot glued the circuit board to the back side of the factor blank after poking the bass knob shaft through the hole I drilled. Here's a pic that may explain better:

  18. Nov 6, 2017 at 2:33 AM
    #18
    CodyH.

    CodyH. Well-Known Member

    Joined:
    Jan 2, 2015
    Member:
    #145483
    Messages:
    273
    Gender:
    Male
    First Name:
    Cody
    Arizona
    Vehicle:
    '17 Inferno TRDORDCLB4x4, '99 SC 4x4 5 spd
    Wow I wish I knew how to do all this stuff. About all I feel comfortable with is replacing the door speakers but wiring amps and subs is out of my comfort zone lol. Especially since my truck is only a couple months old.

    Oh and OP, what are some of your favorite metal bands?

  19. Nov 6, 2017 at 1:30 PM
    #19
    2Loud

    2Loud [OP] Well-Known Member

    Joined:
    May 11, 2017
    Member:
    #218772
    Messages:
    73
    Gender:
    Male
    TRD Pro Grille Predator Step Tube 17" Maverick Alloy Wheels Nitto A/T Terra Grappler (265/65R17) Tri-Fold Hard Tonneau Cover with LED Lights V6 Tow Package Chrome Exhaust Tip XP Badging Stereo Pioneer AVH-X5800BHS Arc Audio 900.6 - 6 channel amplifier (4x60 watts + 1x550 watts bridged) Arc Audio 300.2 - 2 channel amplifier (2x180 watts) Hybrid Audio Technologies Clarus 1" tweeter Hybrid Audio Technologies Legatia 3.5" mids Hybrid Audio Technologies Legatia 6.5" midbass Image Dynamics IDQ10v4D2 10" DVC sub Stinger Roadkill Sound Deadner 200 AMP Circuit Breaker: Rockford 200 Amp Circuit Breaker Krystal Kable RCA Cable KnuKoncepts wiring and interconnects
    Yeah I totally get that. Brand new truck and talking about cutting holes in it. :p

    Some of my favorite bands are Savatage, Maiden, Helloween, Halford, Megadeth, and of course... Motorhead. :)

    licktheenvelope likes this.
  20. Nov 6, 2017 at 2:40 PM
    #20
    CodyH.

    CodyH. Well-Known Member

    Joined:
    Jan 2, 2015
    Member:
    #145483
    Messages:
    273
    Gender:
    Male
    First Name:
    Cody
    Arizona
    Vehicle:
    '17 Inferno TRDORDCLB4x4, '99 SC 4x4 5 spd
    Yeah I didn't even feel brave enough to do the speakers until a few days ago after I read through some threads on here and watched a few videos. I ordered new tweeters, and 4 new door speakers with some Noico sound deadening stuff. And I got a trim removing tool kit so I think that will help a lot.

    Ok, so you like more of the older/classic metal stuff. I like the bands you listed but I also listen to a lot of the newer underground stuff
