2017 rear speaker wires to LOC

Discussion in 'Audio & Video' started by Friedtacolover, Oct 2, 2017.

  1. Oct 2, 2017 at 5:02 PM
    #1
    Friedtacolover

    Friedtacolover [OP] Well-Known Member

    Joined:
    Sep 2, 2014
    Member:
    #137481
    Messages:
    1,562
    Gender:
    Male
    First Name:
    Travis
    Ontario, Ca
    Vehicle:
    2017 DCSB Off Road 4x4
    my build tread: https://www.tacomaworld.com/threads/socal-no-shame-poser-build.513084/

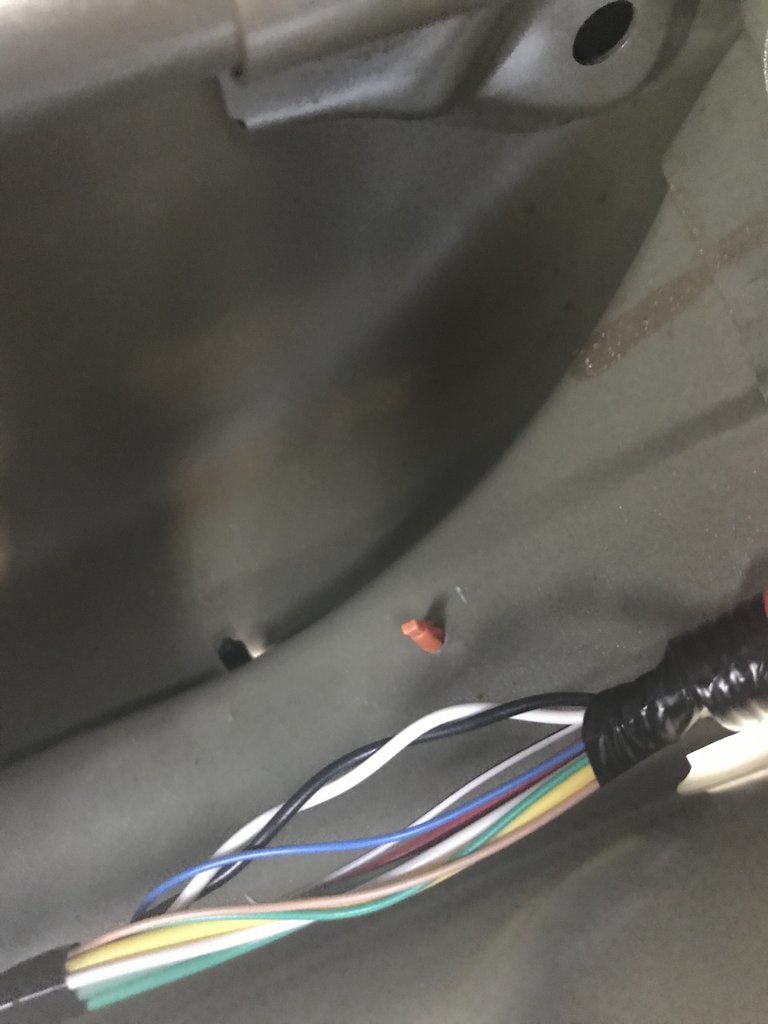

    Hello all. Im currently doing my stereo build. All upgraded speakers. Now time to add my amp. Only question I have for amp is where to get rear speaker wire from to go into Line out converter. When Installing rear speakers they were only black and white wires. They werent color coded. See attached pics. I do not want to pull head unit id rather tap into wire under driver and passenger door thresholds. There is no way they used black and white wires for every speaker the electrician would get mixed up if that was case. Anyone have a 2017 wiring diagram?


    Last edited: Oct 2, 2017
    lpfe42 likes this.
  2. Oct 4, 2017 at 6:45 AM
    #2
    Friedtacolover

    Friedtacolover [OP] Well-Known Member

    Joined:
    Sep 2, 2014
    Member:
    #137481
    Messages:
    1,562
    Gender:
    Male
    First Name:
    Travis
    Ontario, Ca
    Vehicle:
    2017 DCSB Off Road 4x4
    my build tread: https://www.tacomaworld.com/threads/socal-no-shame-poser-build.513084/
    Incase anyone needed this for future rear left is black and white and rear right is blue and green. They are the thicker of the wires in the set cause some other wires are same color but much thinner. As far as adding an amp I located a post that remote wire goes to grey wire behind headunit. The grey wire is the power 12v radio on wire

    lpfe42 likes this.
  3. Apr 23, 2018 at 11:22 PM
    #3
    toyotomotto

    toyotomotto New Member

    Joined:
    Feb 10, 2014
    Member:
    #122798
    Messages:
    2
    Gender:
    Male
    First Name:
    jared
    canada
    Vehicle:
    TRD Sport
    Magnaflow catback, hid headlights, 7" pioneer appradio3, dual 10" rockford punch2's in a custom box, fiberglass tonneau, plastidipped wheels/decals/upper and lower grills/hood scoop.
    On the left side i could only find one thicker wire.. the only black and white wires i saw were the skinny twisted ones. Maybe im looking in the wrong area

  4. Mar 24, 2020 at 2:48 PM
    #4
    cmyers032

    cmyers032 New Member

    Joined:
    Mar 24, 2020
    Member:
    #322903
    Messages:
    3
    Gender:
    Male
    Vehicle:
    2016 TRD off-road
    Having a little trouble installing a line out converter for my amp into the rear driver side speaker. I can't find a wire diagram anywhere. What colors are you hooking up to?

  5. Mar 26, 2020 at 7:11 AM
    #5
    Dr Dam

    Dr Dam New Member

    Joined:
    Mar 25, 2020
    Member:
    #322989
    Messages:
    4
    Gender:
    Male
    First Name:
    Braden
    Vehicle:
    2017 Tacoma TRD Sport
    Alpine Double Amp and DSP Stereo Upgrade
    On the right rear did you happen to figure out which of the blue and green was positive and which was negative?
