2017 SR5 4X4 Build/Maintenance

Discussion in '3rd Gen. Builds (2016+)' started by DavidM310, Feb 18, 2018.

  1. Feb 18, 2018 at 12:49 PM
    #1
    DavidM310

    DavidM310 [OP] Well-Known Member

    Joined:
    Jun 6, 2017
    Member:
    #220899
    Messages:
    493
    Gender:
    Male
    Temple, Texas
    Vehicle:
    2017 Tacoma/2015 4Runner/2015 IS250
    Hello everyone,

    I created this thread to be able to track the progress of my Tacoma with upgrades and maintenance.

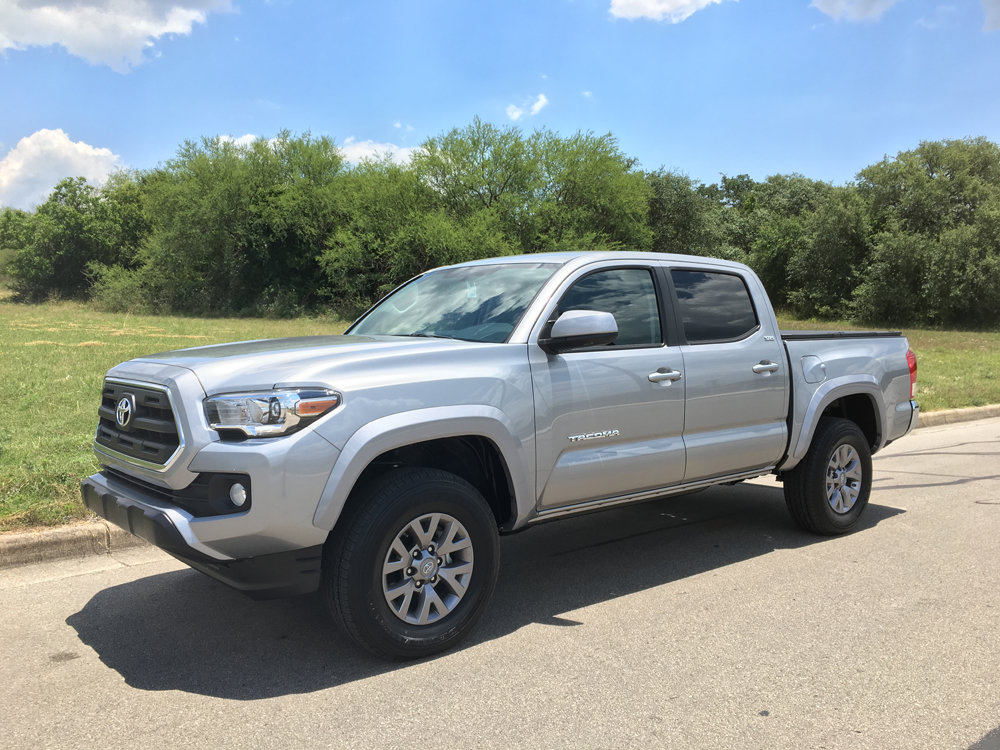

    I purchased my Tacoma out of San Antonio, Texas back in June 2017. It is a Silver Sky Metallic SR5 with the 3.5l V6, automatic transmission and tow package.

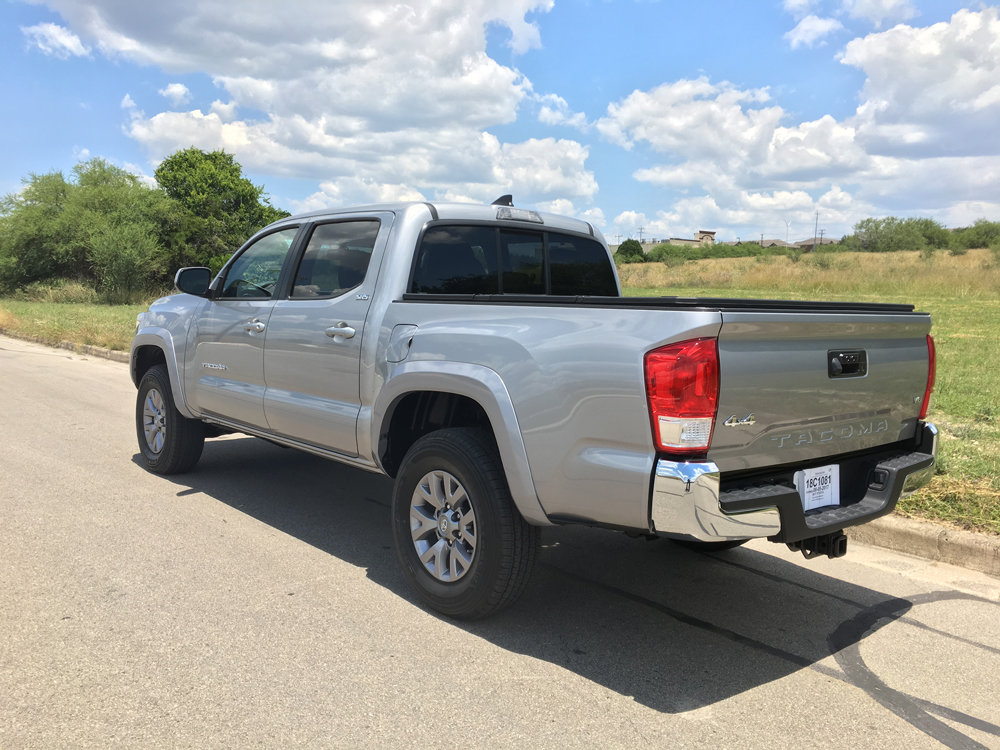

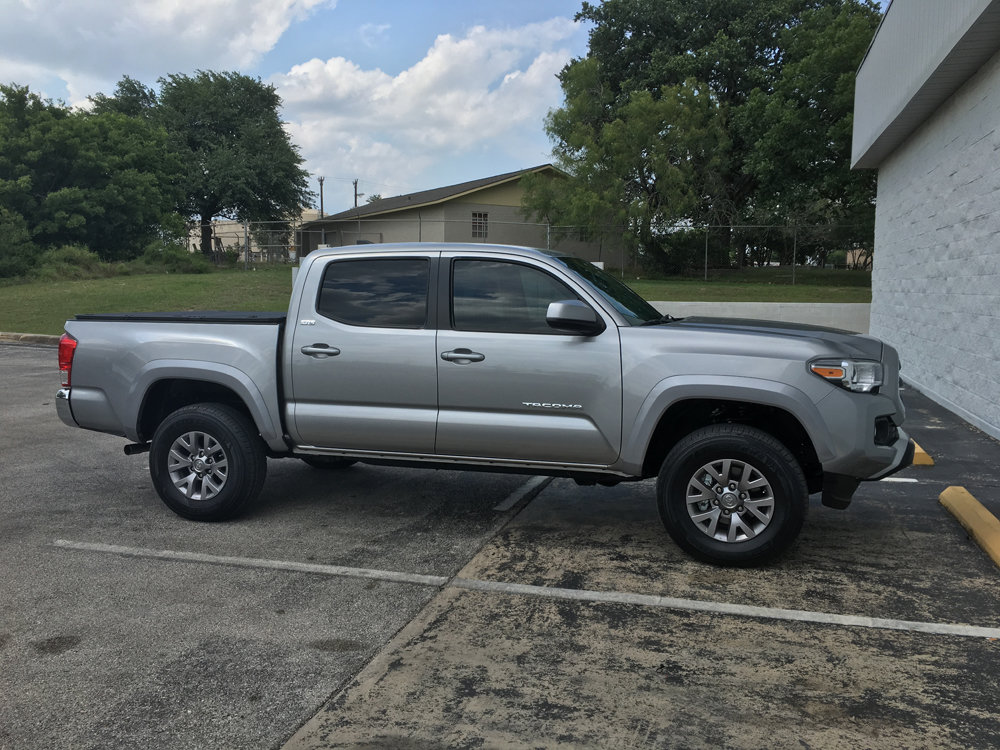

    The day after purchase

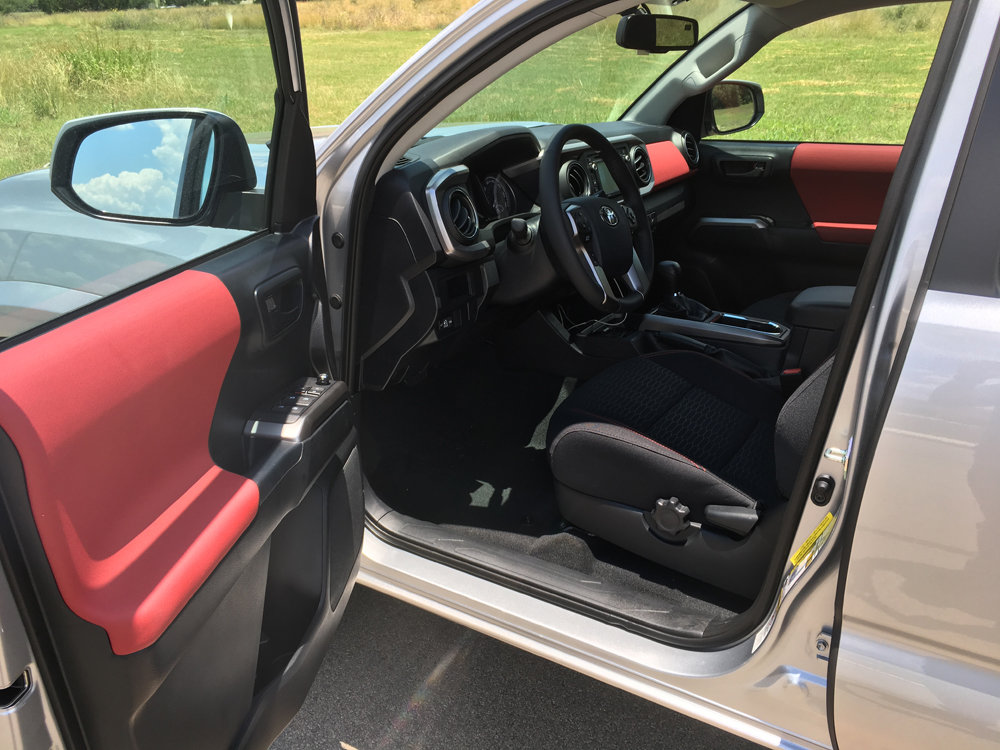

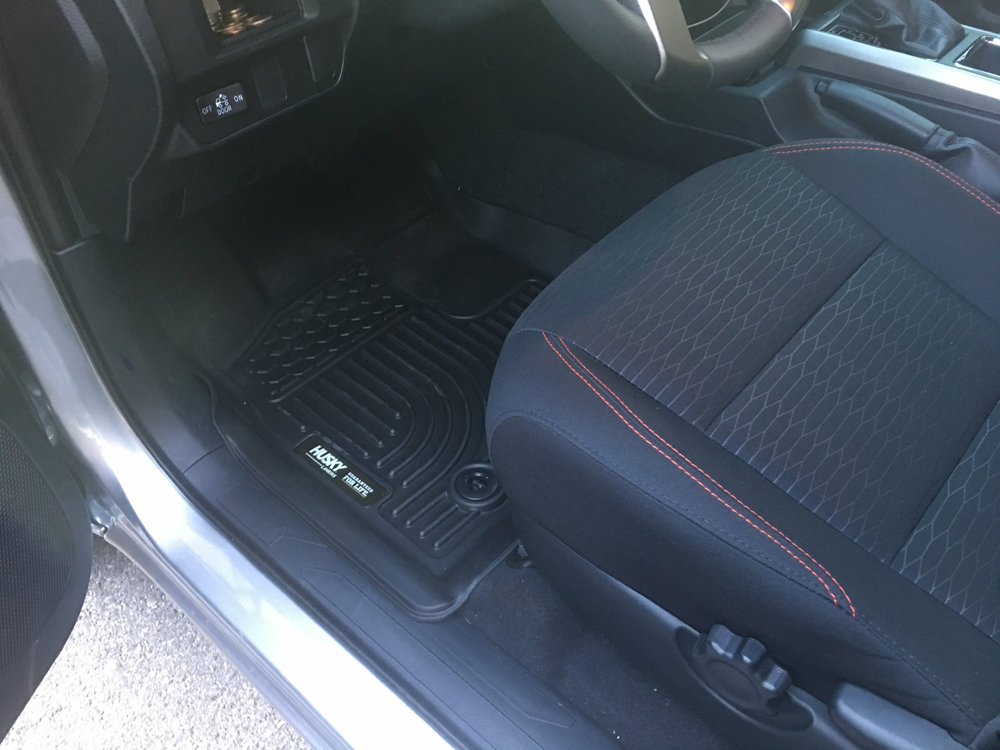

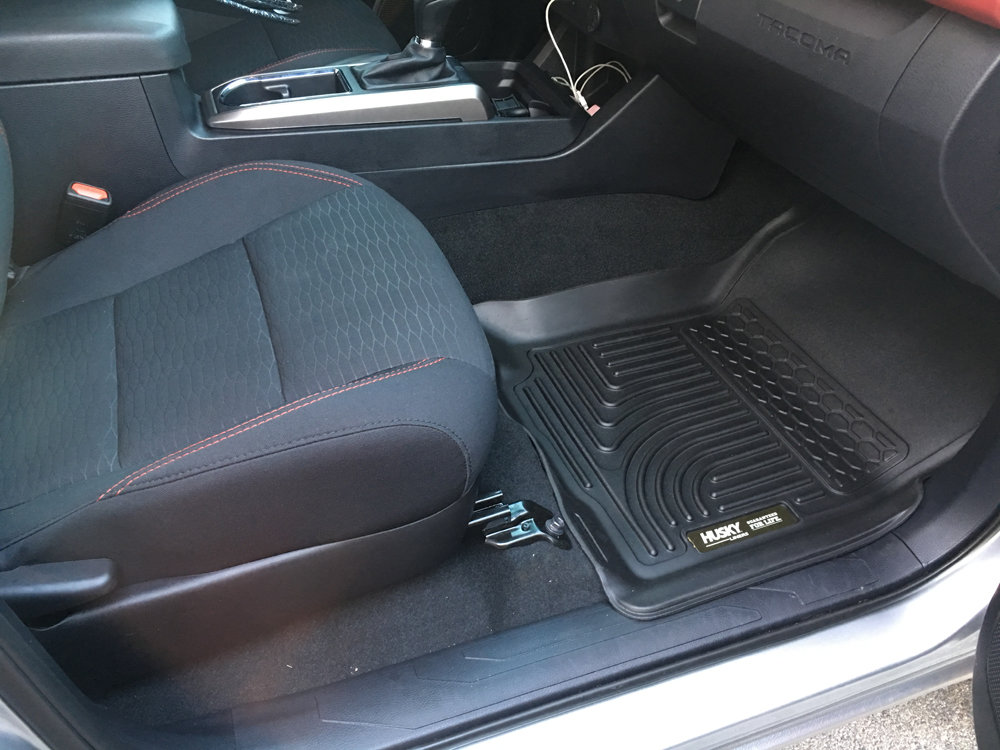

    First purchase, floor mats since my truck did not come with any...

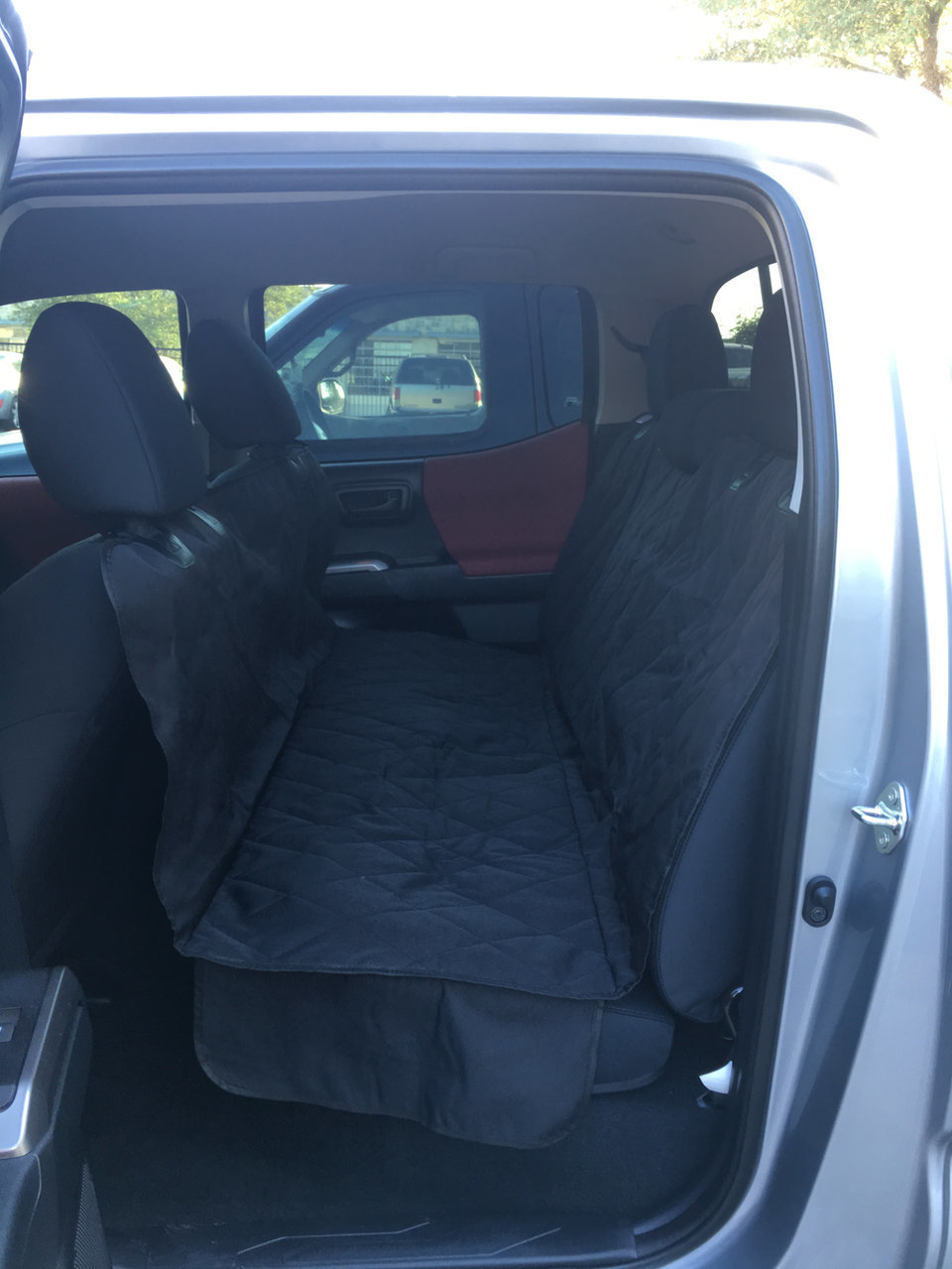

    Back seat hammock to protect the seats from my dogs

    Lluminar Pinnacle 30 window tint for the doors and rear glass. Lluminar Clear film for the windshield

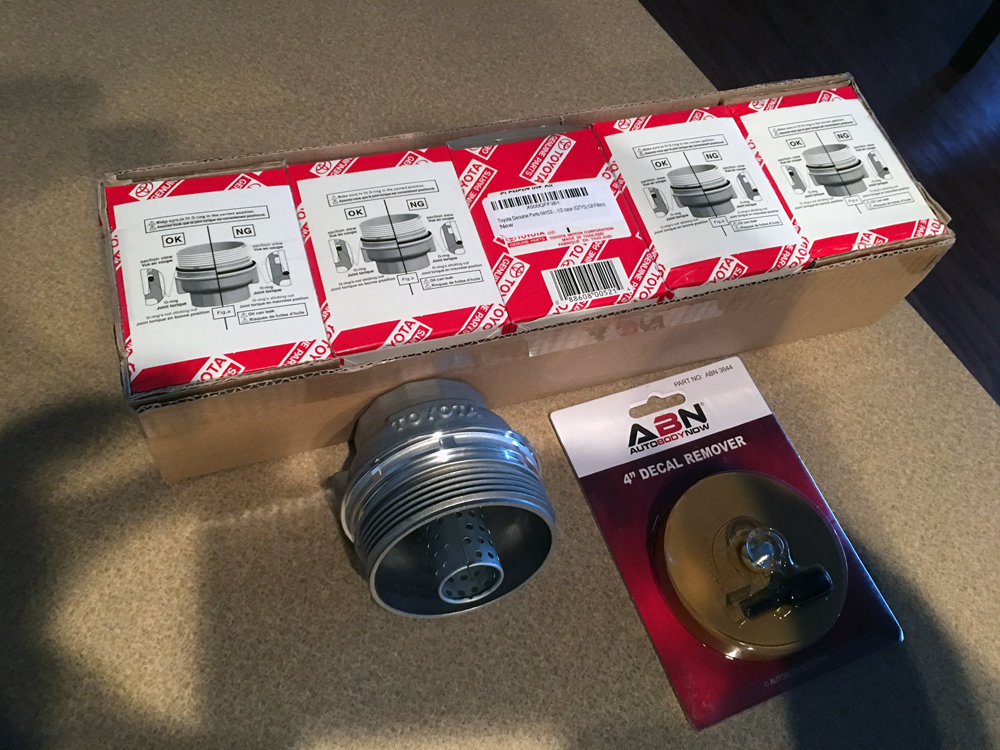

    Picked up 5 oil filters on Amazon for $25. Metal oil filter canister to replace the plastic canister. Plus a rubber wheel to remove decal adhesive

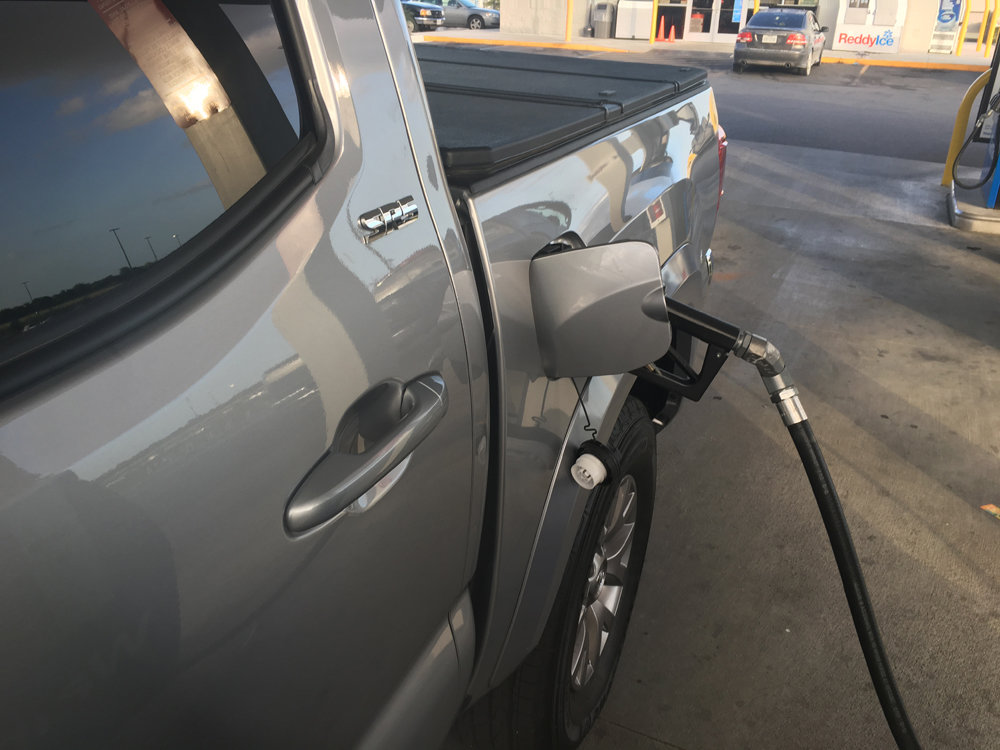

    First fill up! Yes I let the gas cap dangle. lol

    After breaking in the engine with 1,000 miles, took a road trip to AZ. Changed the oil at 1,932 and had to get an alignment since the vehicle started pulling 200 miles before reaching Phoenix. Then drove to Mississipi, putting 5k miles on the Tacoma.
    AZ1.jpg AZ2.jpg new7.jpg

    Last edited: Feb 18, 2018
    carlosg, roger2chris and LostHusker like this.
  2. Feb 18, 2018 at 12:49 PM
    #2
    DavidM310

    DavidM310 [OP] Well-Known Member

    Joined:
    Jun 6, 2017
    Member:
    #220899
    Messages:
    493
    Gender:
    Male
    Temple, Texas
    Vehicle:
    2017 Tacoma/2015 4Runner/2015 IS250

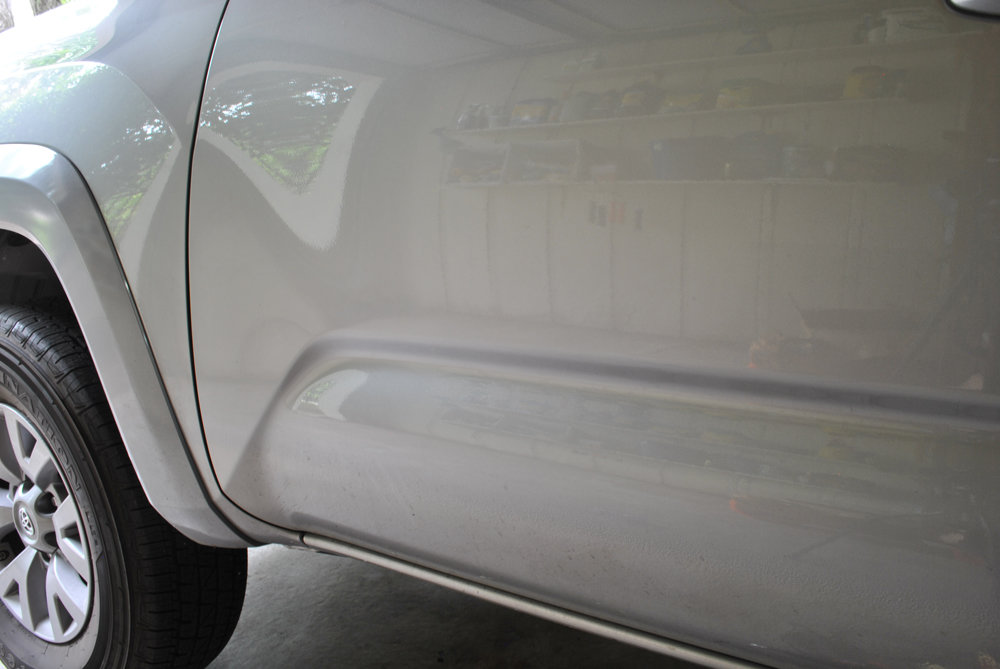

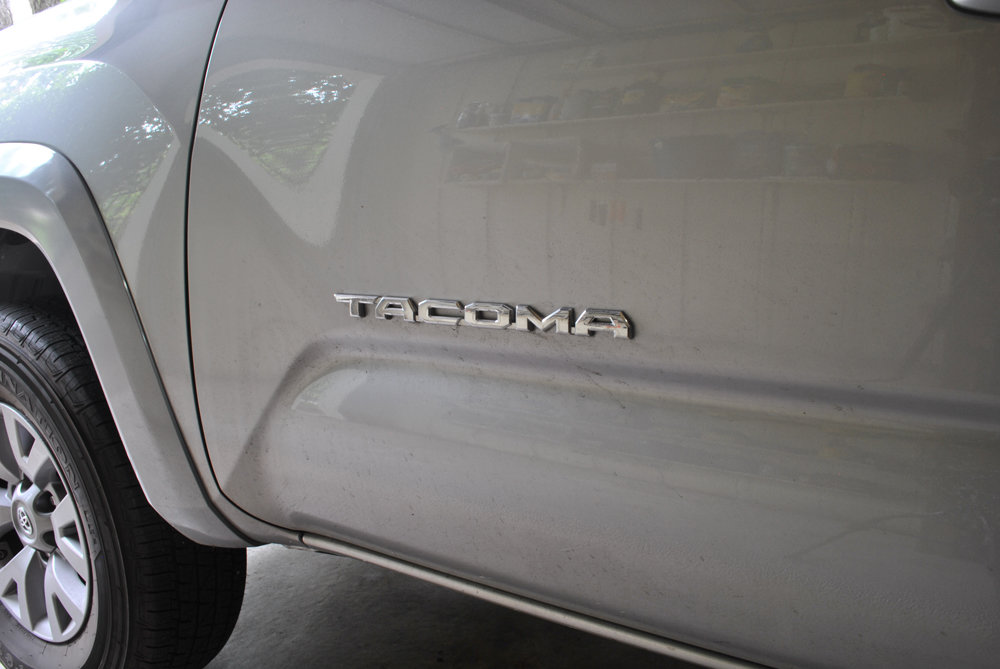

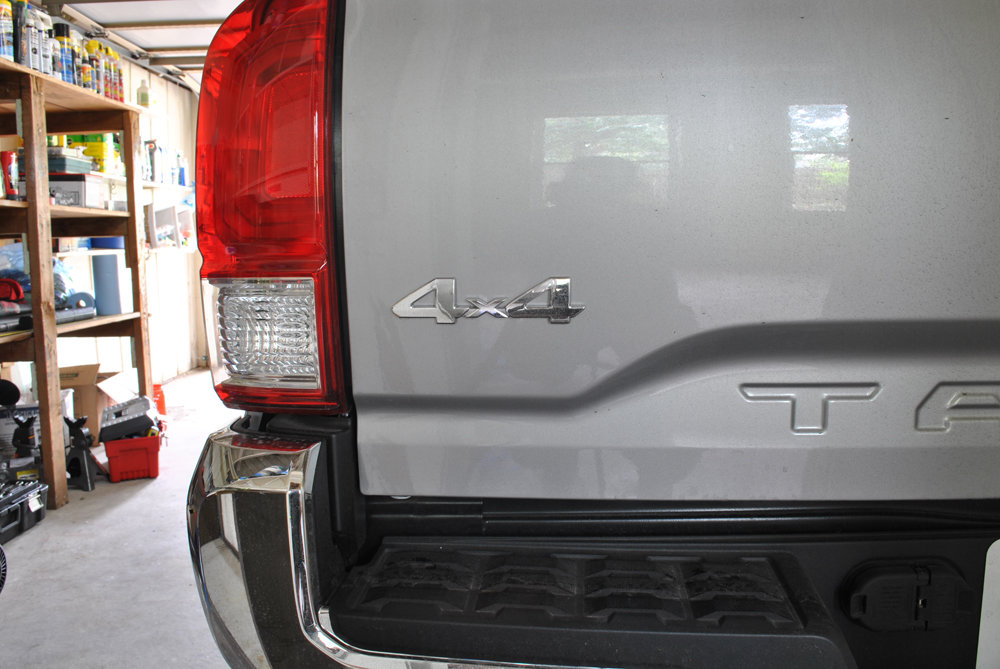

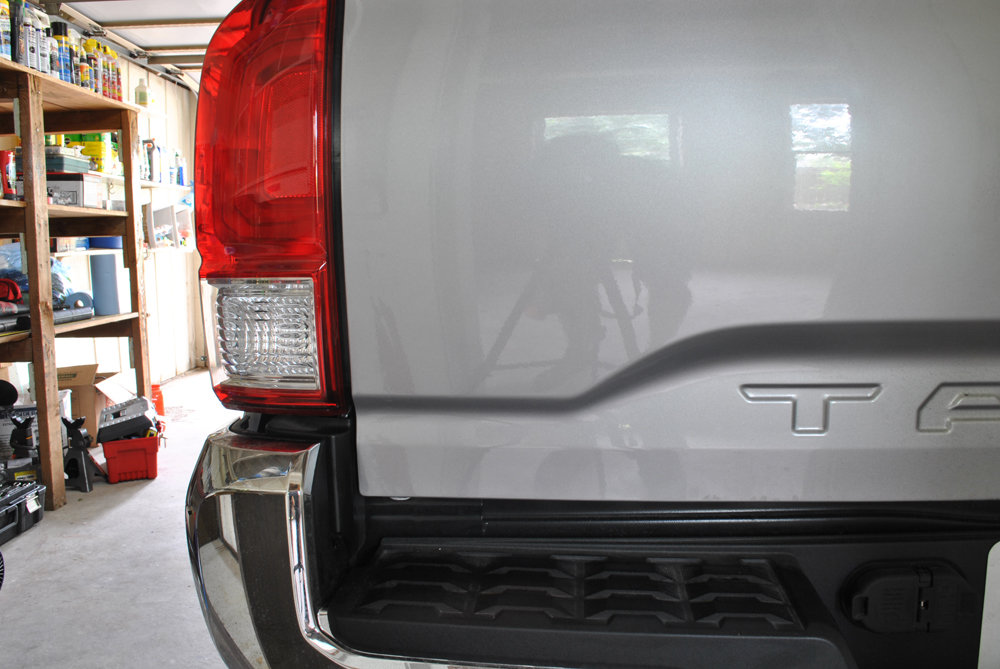

    Removed all the emblems from the truck
    emblems1.jpg emb2.jpg emb7.jpg emb8.jpg

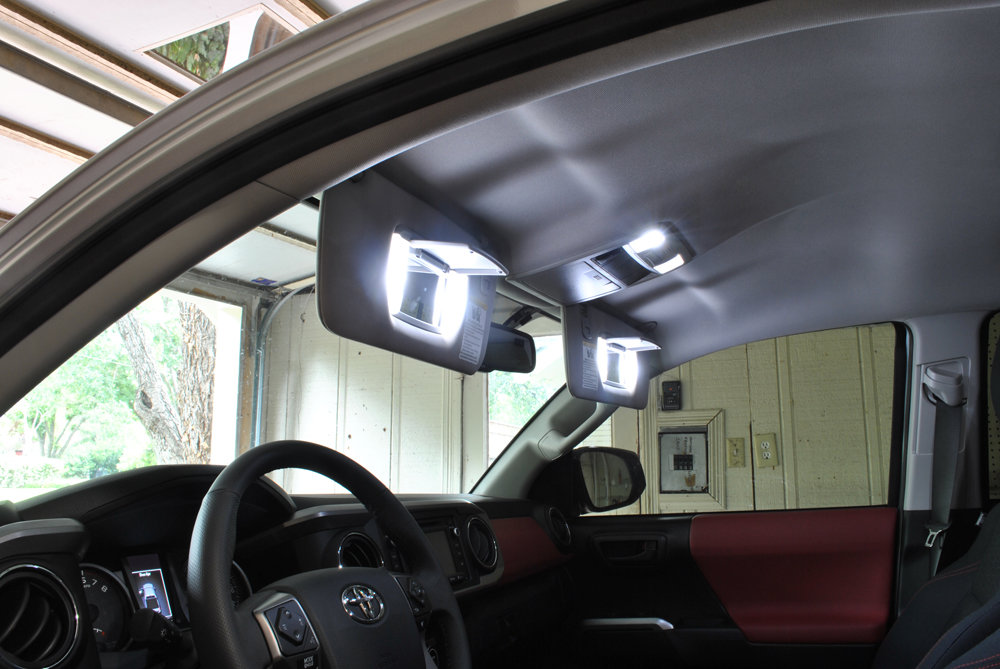

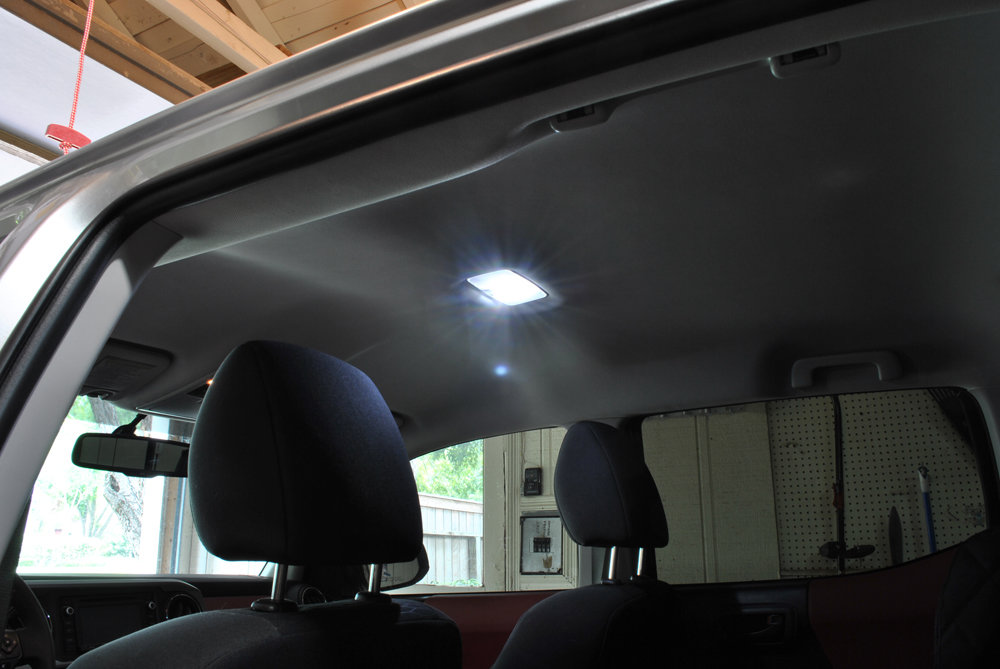

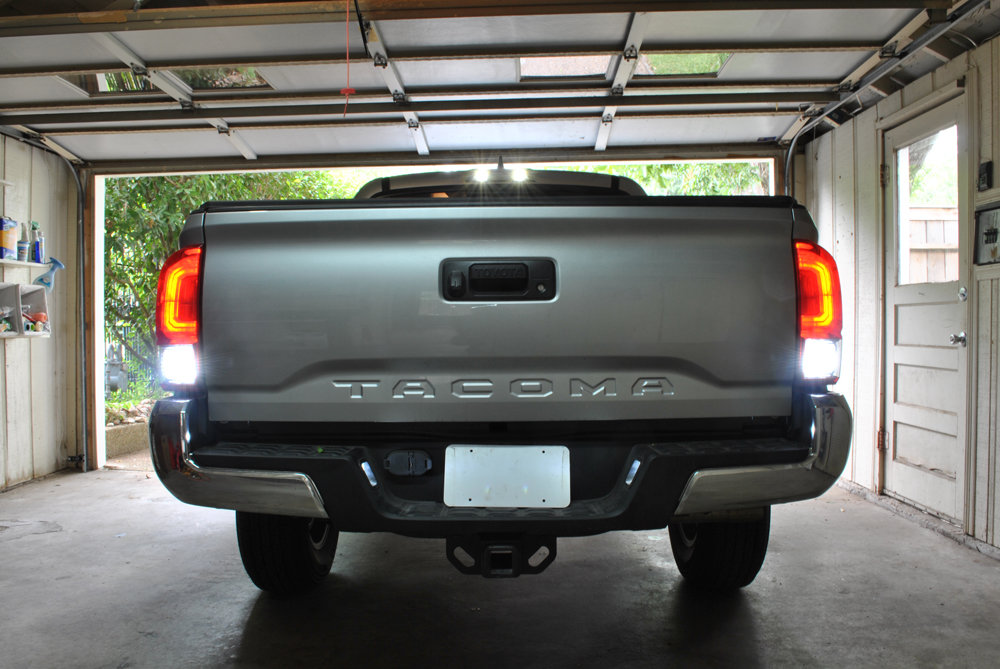

    Swapped out the interior lights to cool white LEDs as well as reverse lights and license plate lights
    lights1.jpg lights2.jpg reverse2.jpg

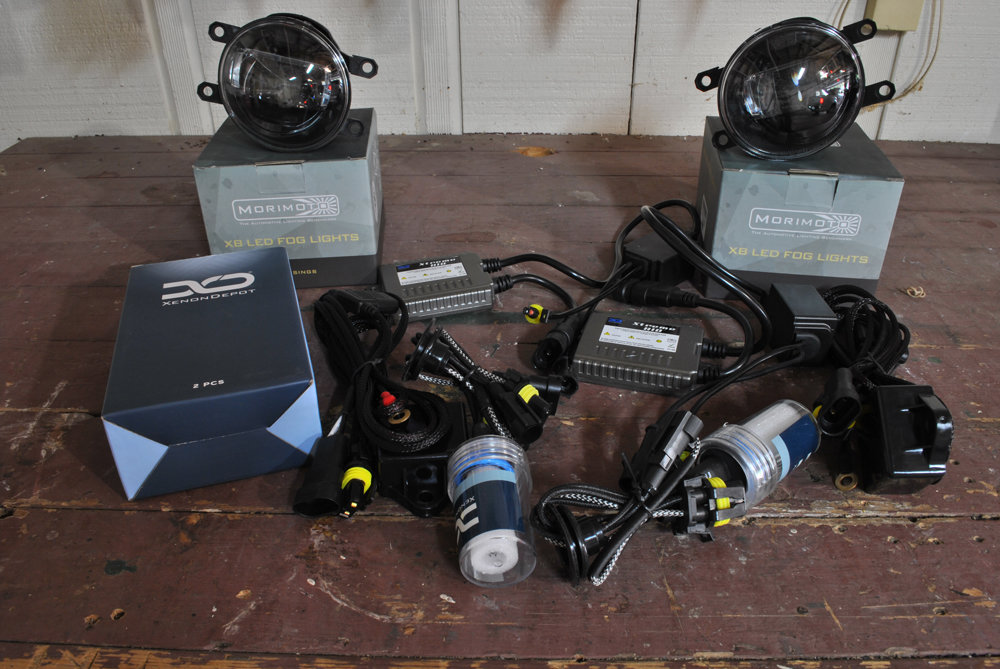

    Xenon Depot 5k HIDs and Morimoto XB LED 5.5k Fog Lights

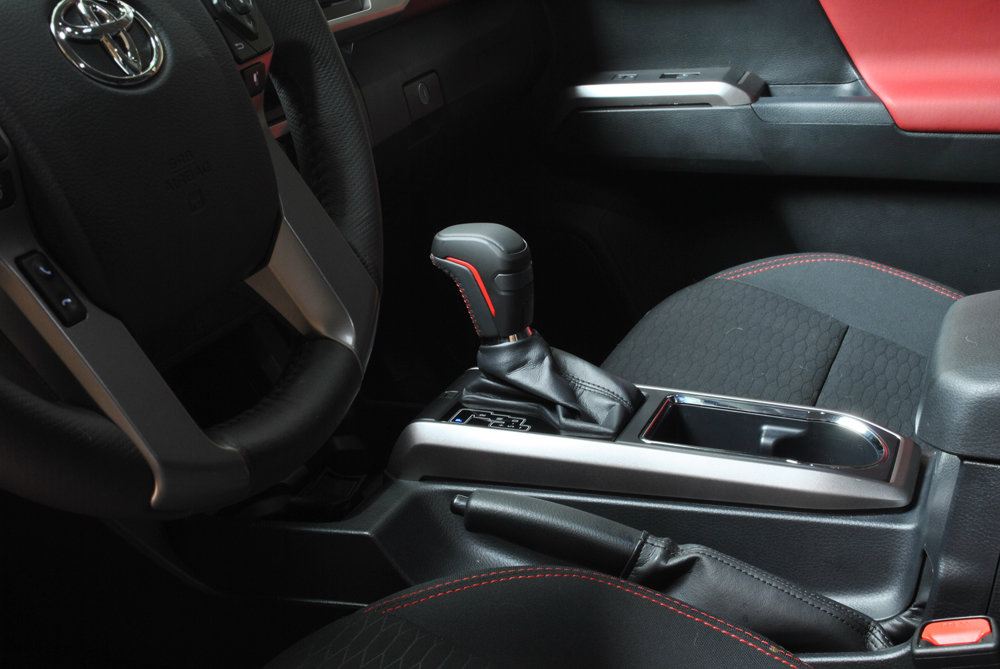

    TRD Pro Shifter

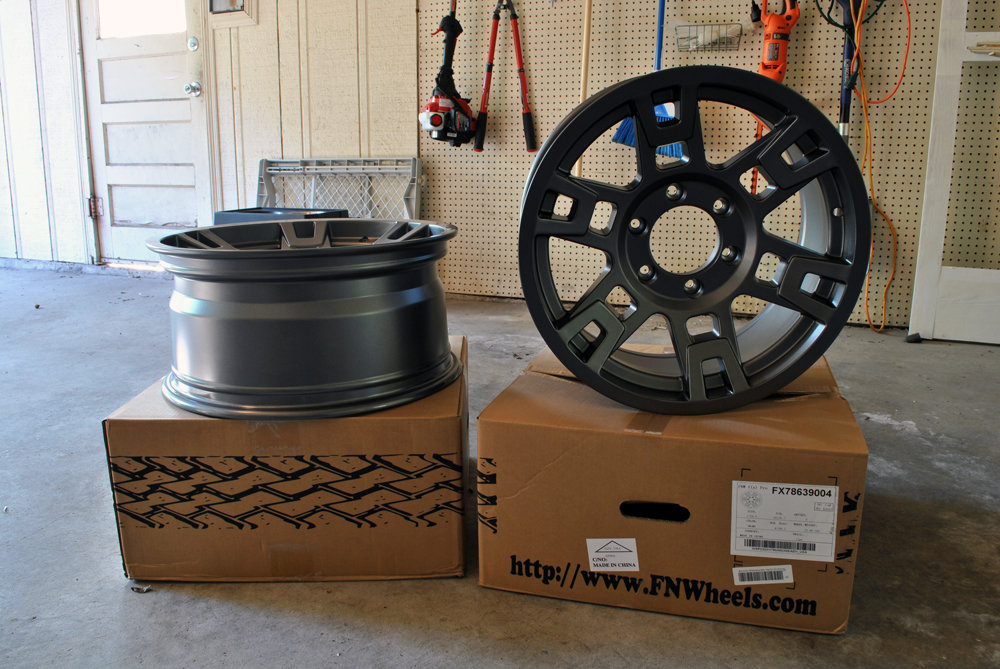

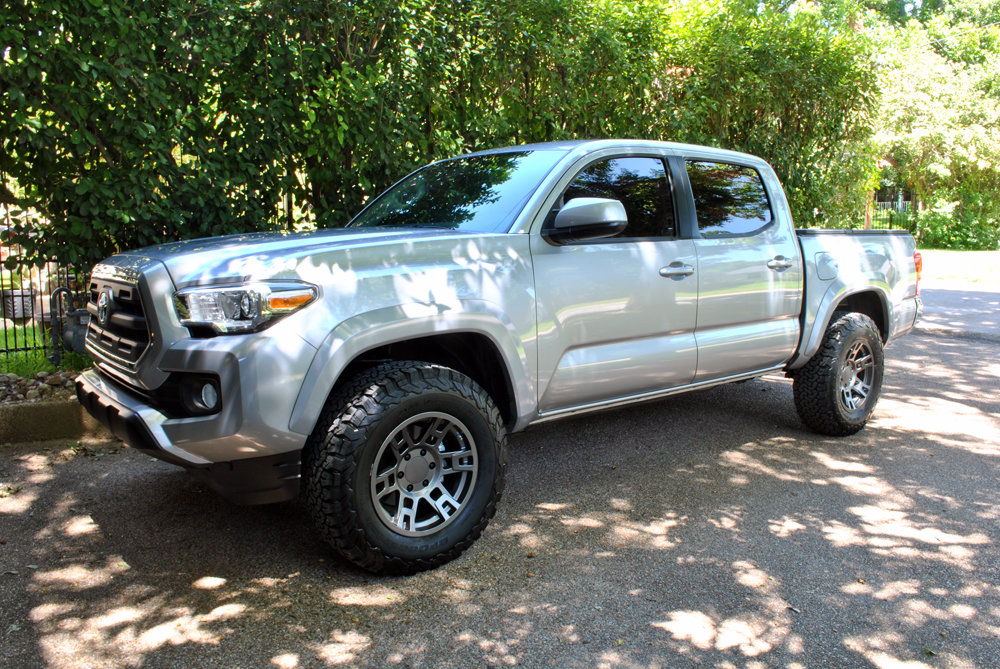

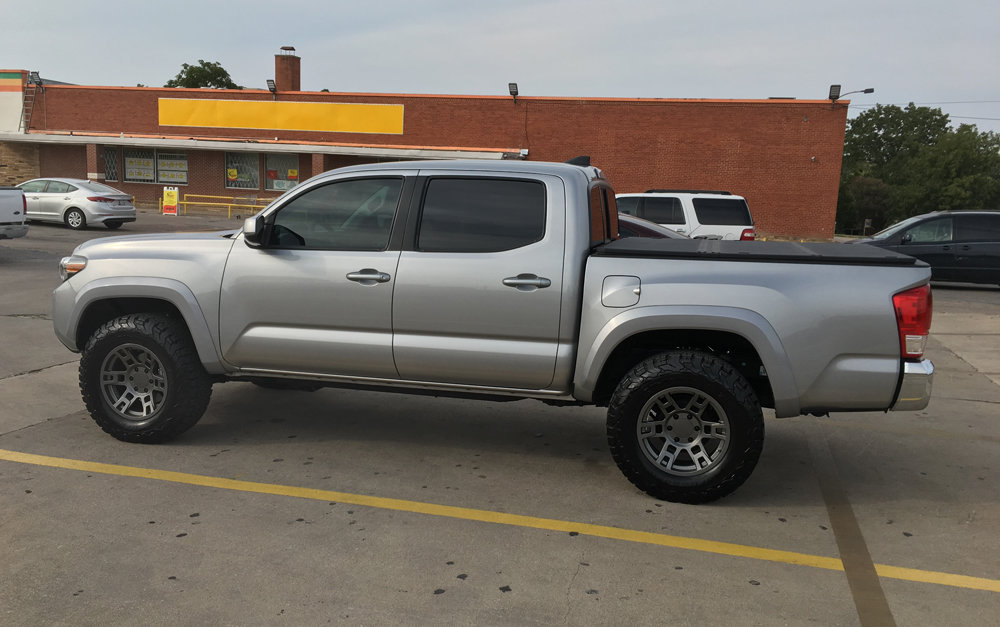

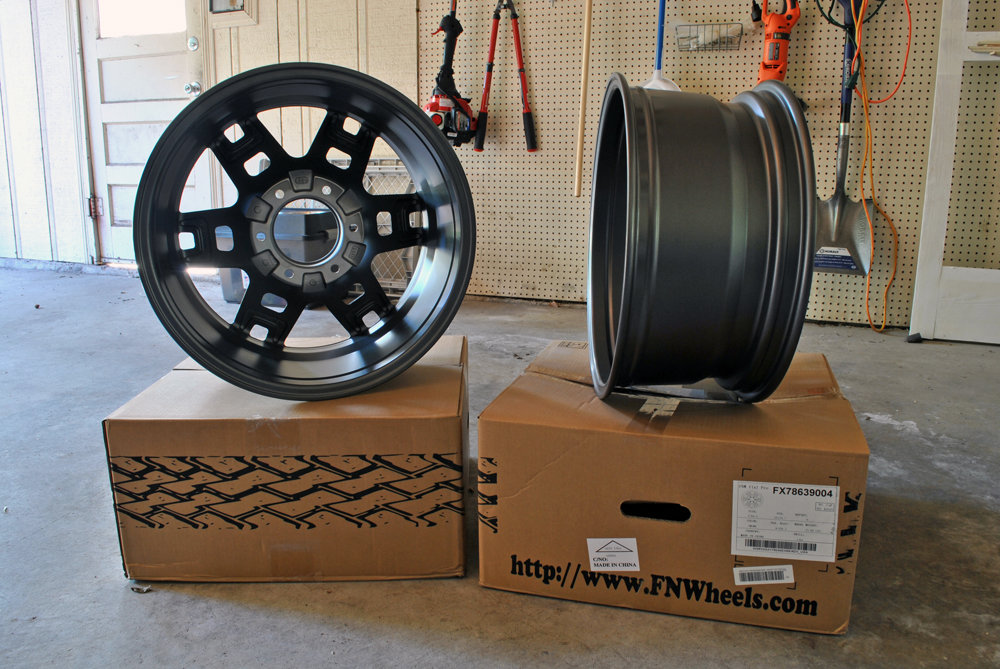

    FN FX PRO wheels 17x8 and BFG KO2 265/70/17 E Load tires

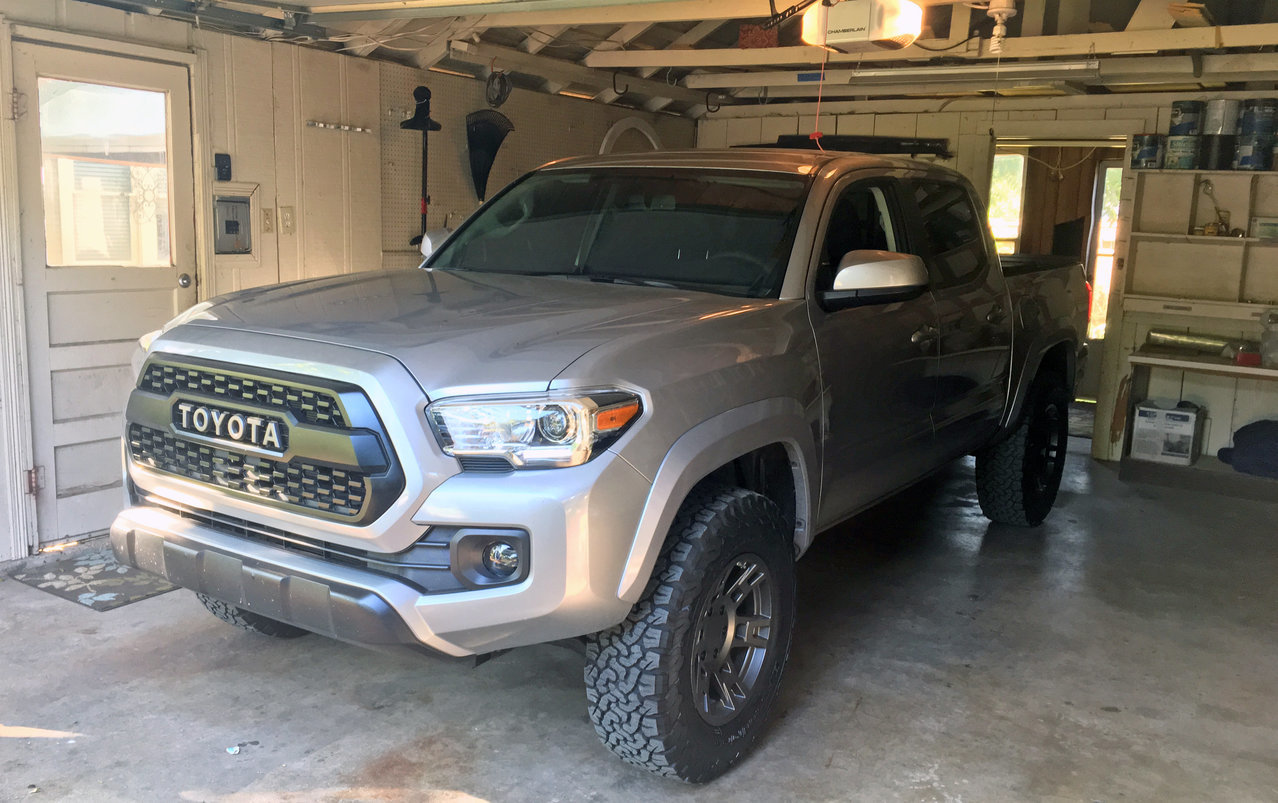

    OEM TRD PRO Grille

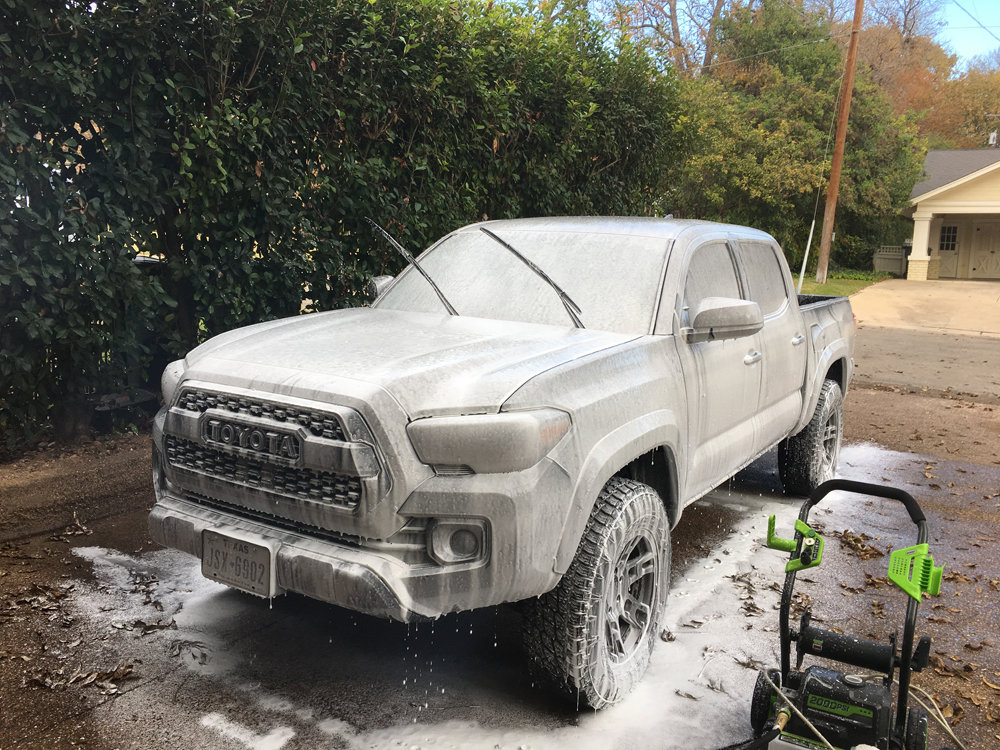

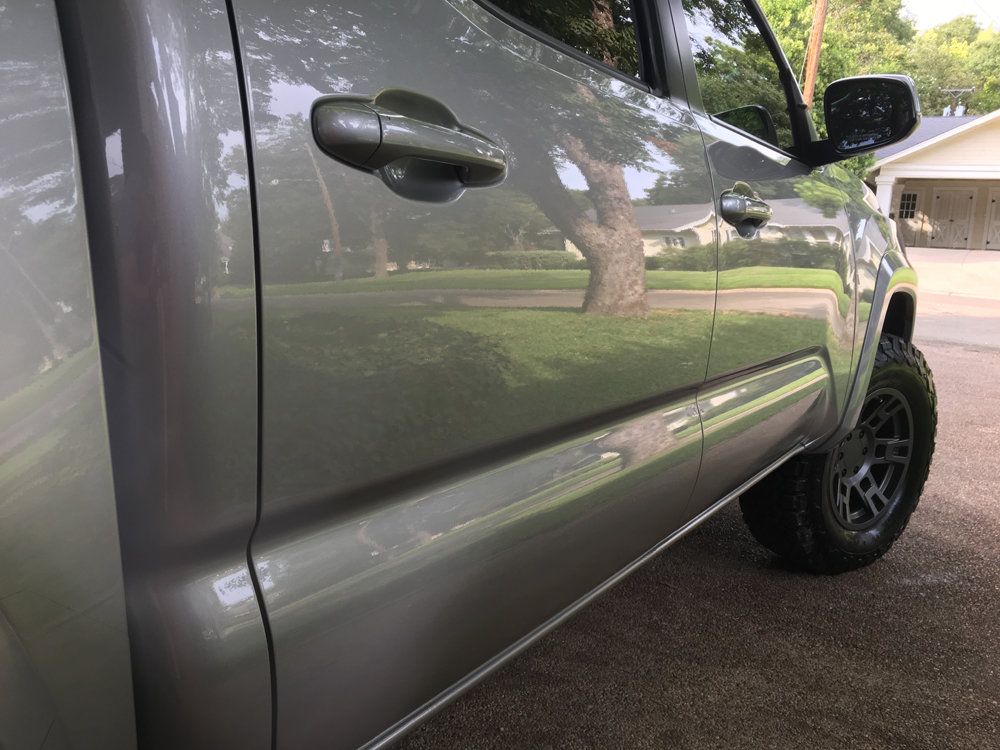

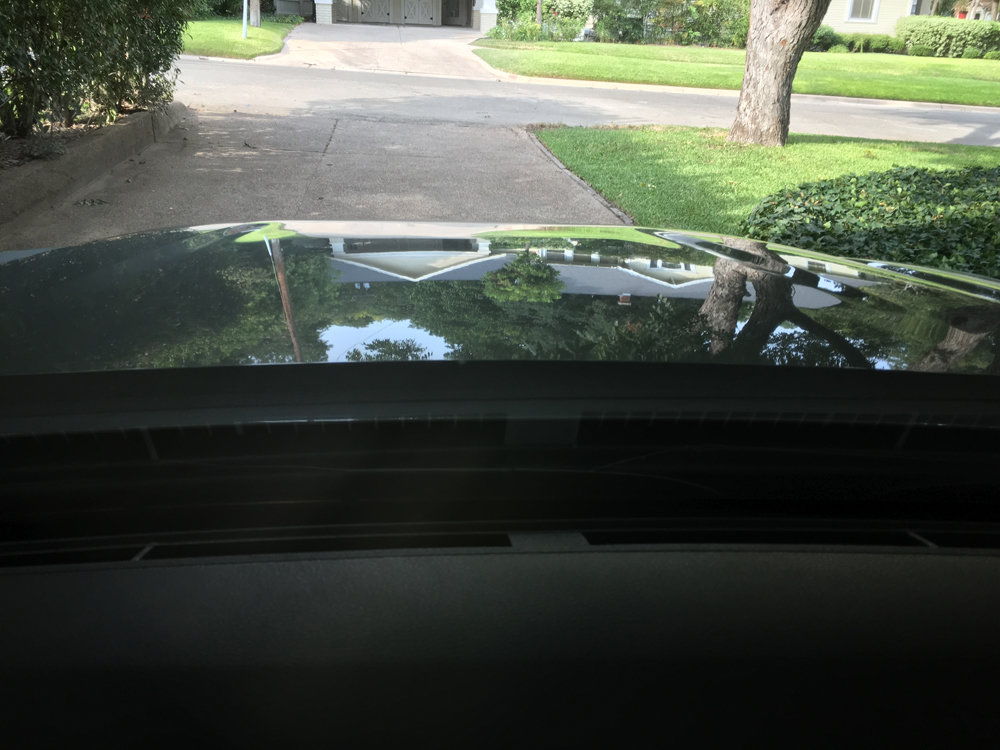

    Spent many hours detailing the Tacoma

    Last edited: Feb 18, 2018
  3. Feb 18, 2018 at 12:49 PM
    #3
    DavidM310

    DavidM310 [OP] Well-Known Member

    Joined:
    Jun 6, 2017
    Member:
    #220899
    Messages:
    493
    Gender:
    Male
    Temple, Texas
    Vehicle:
    2017 Tacoma/2015 4Runner/2015 IS250

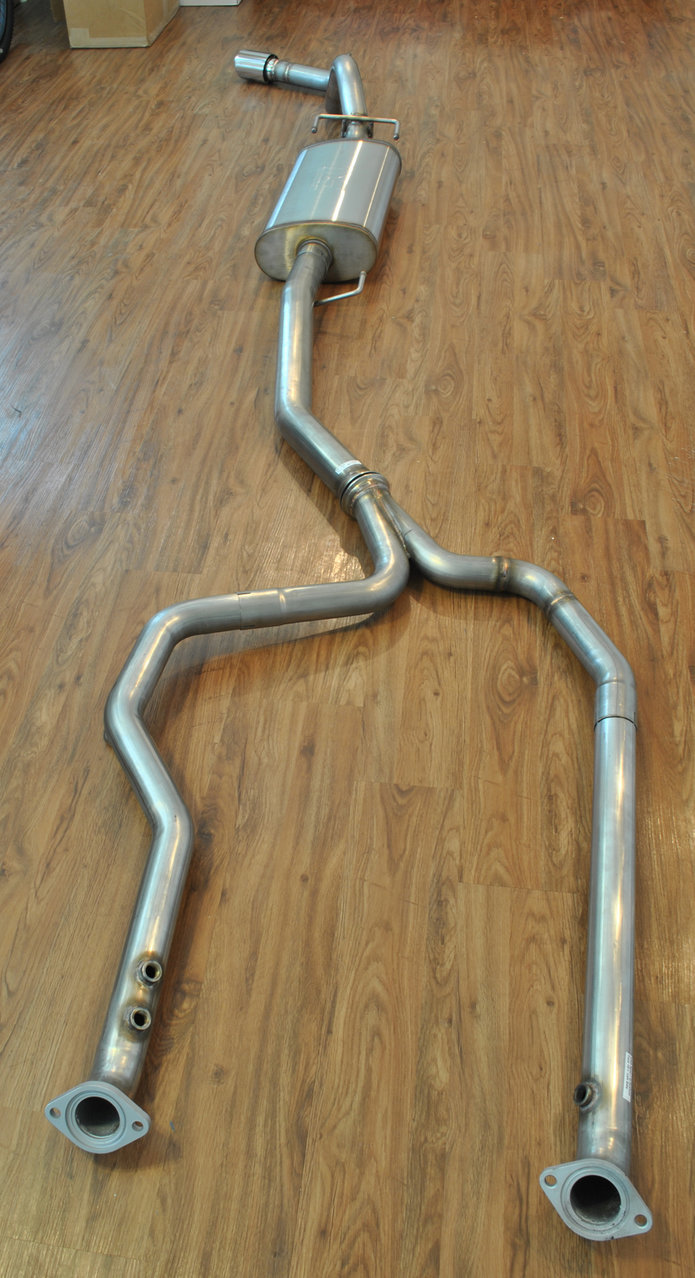

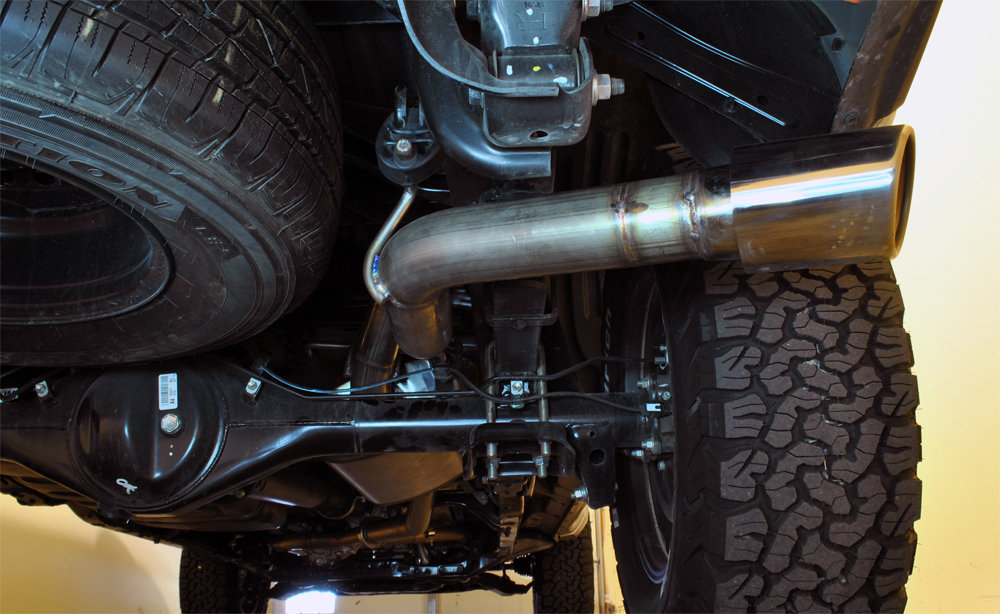

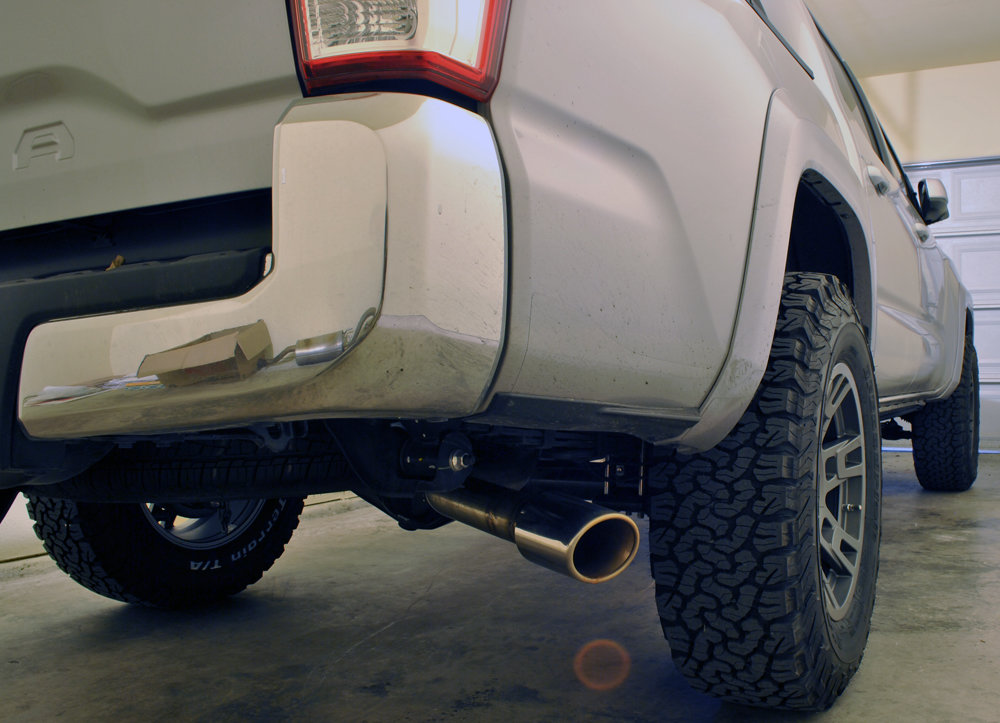

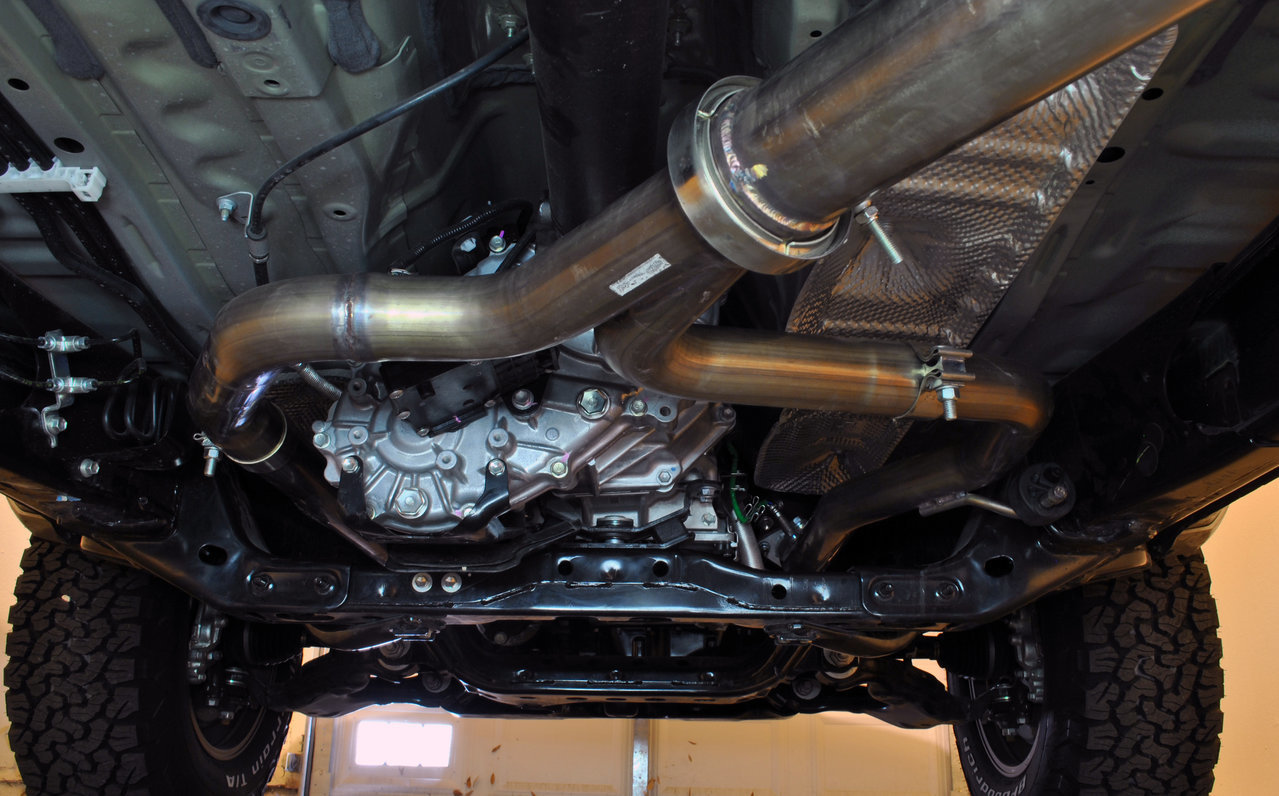

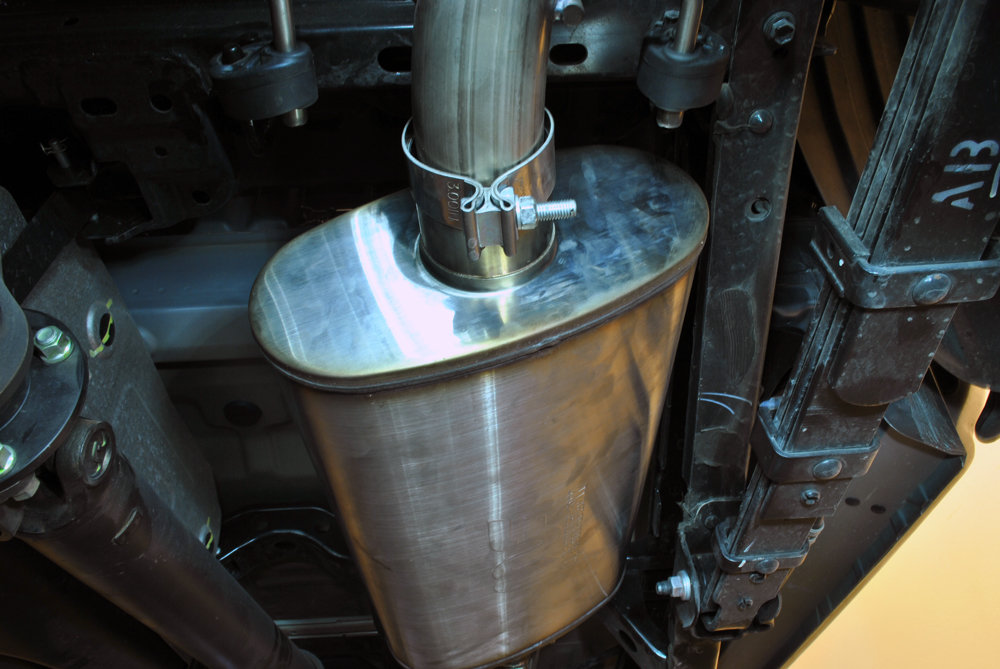

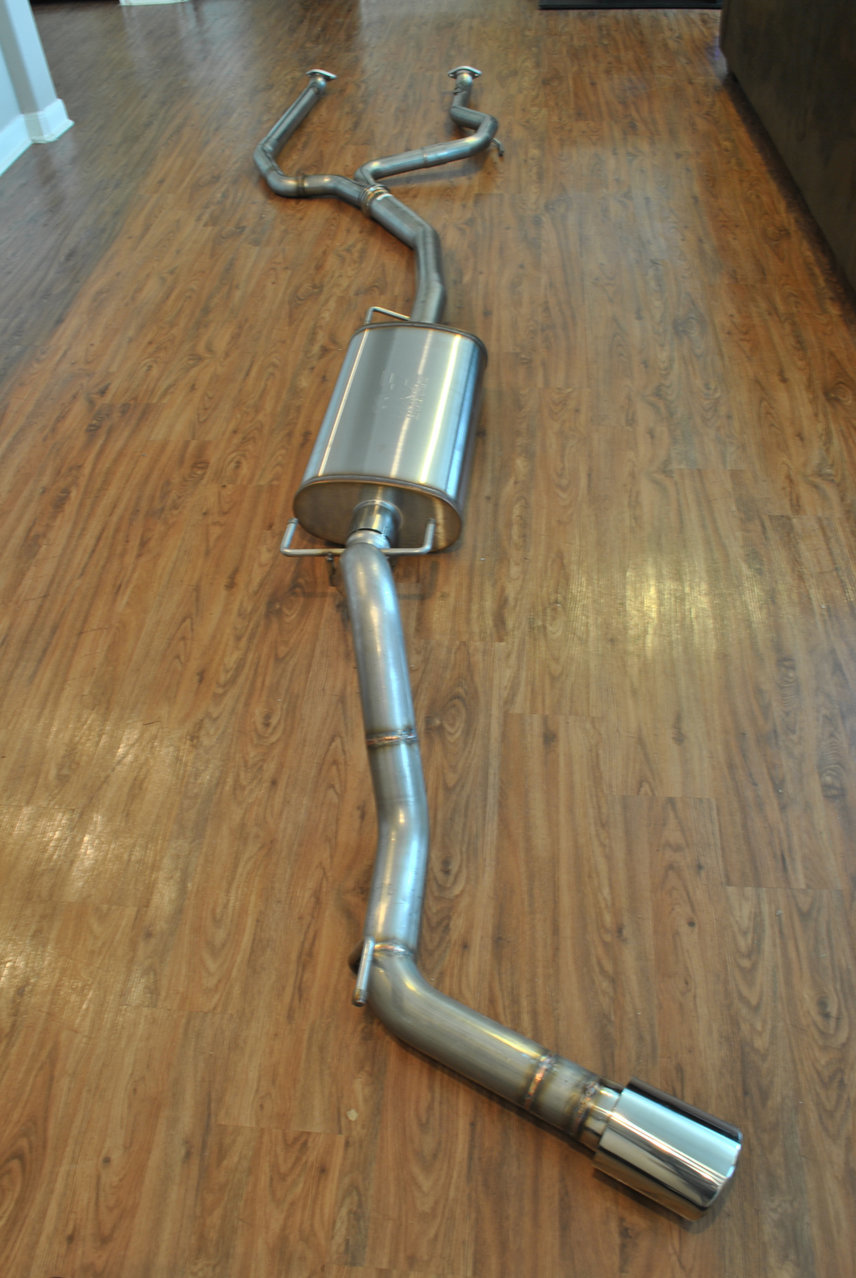

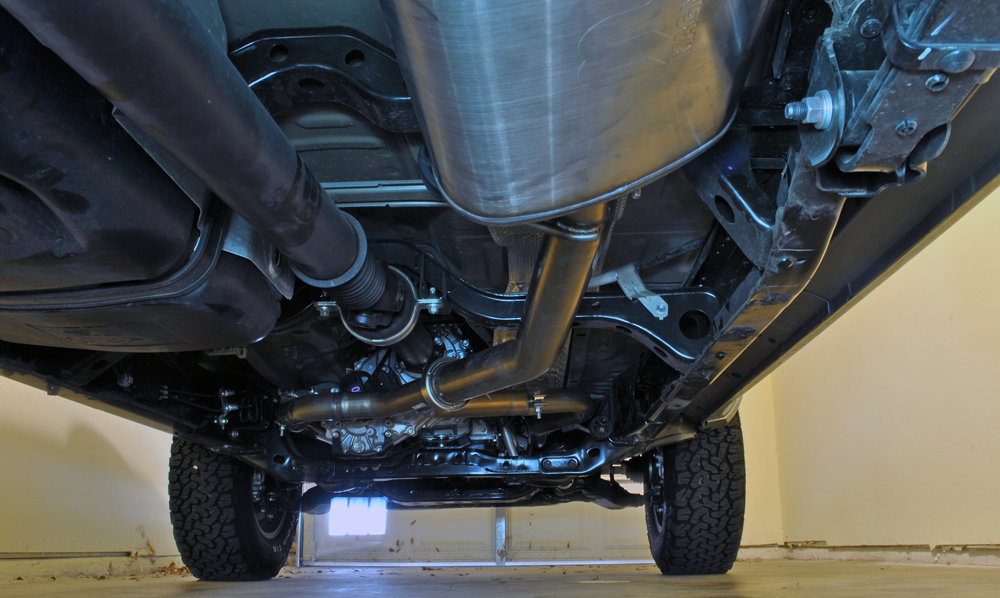

    URD SPEC-U Exhaust
    exh1.jpg exh2.jpg exh3.jpg exh4.jpg exh5.jpg exh6.jpg exh7.jpg

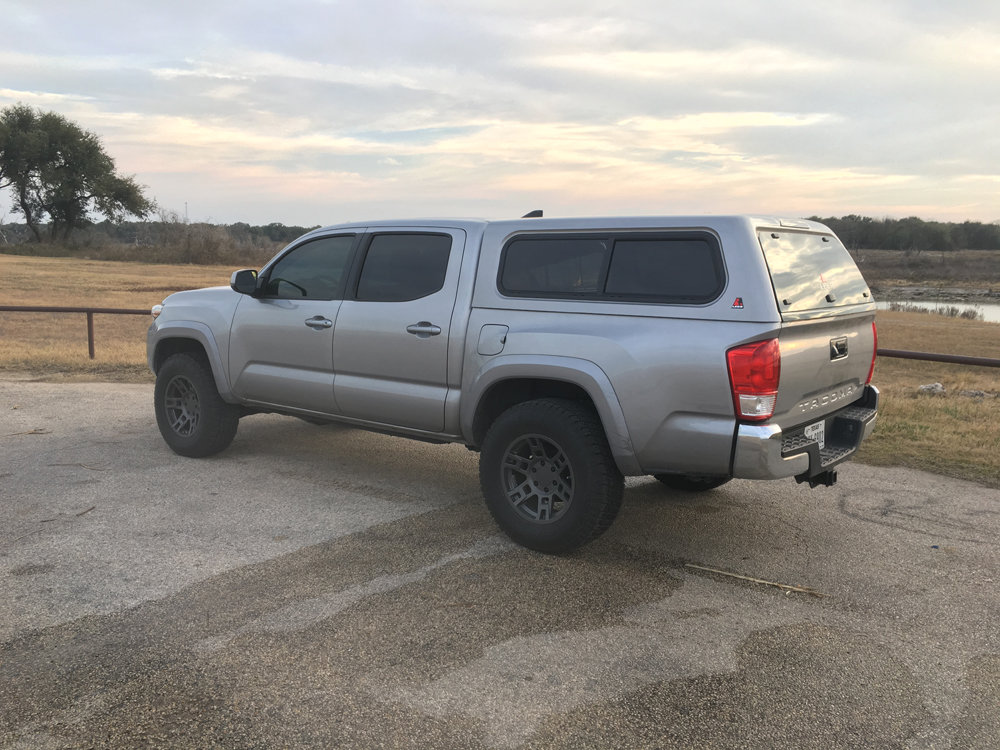

    Leer 100xr Bed Cap with sliding front glass, 50/50 windows with pet screens, and headliner. Swapped BFG KO2s for Nitto Terra Grappler G2 in standard load

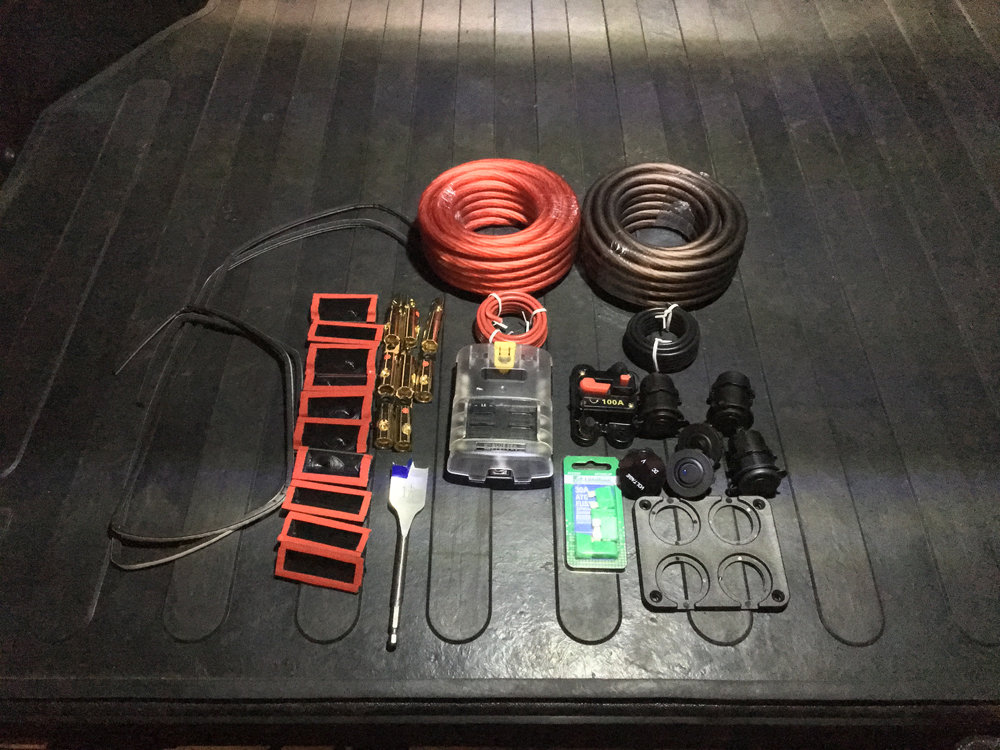

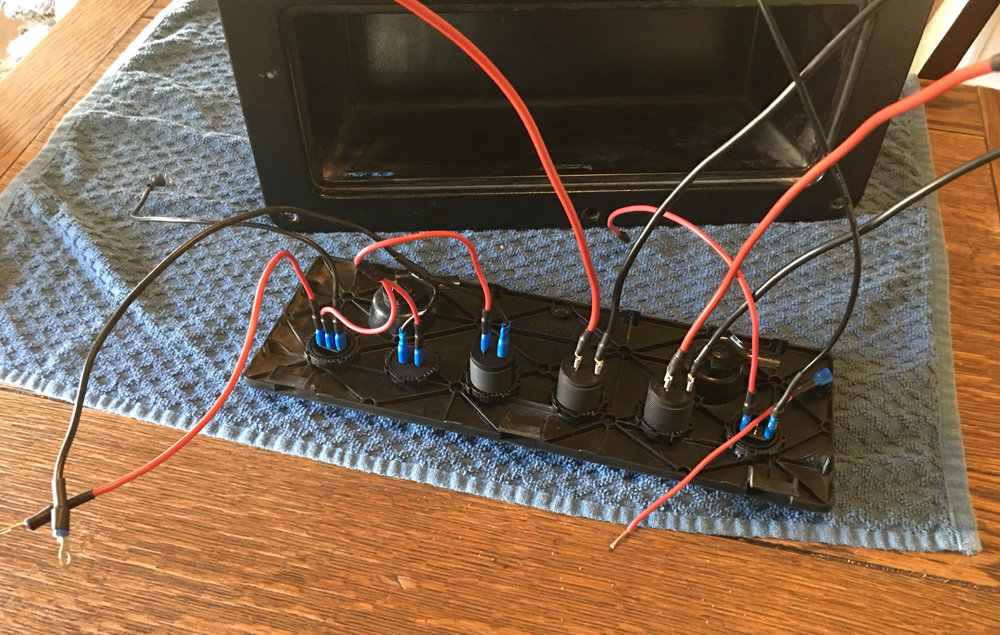

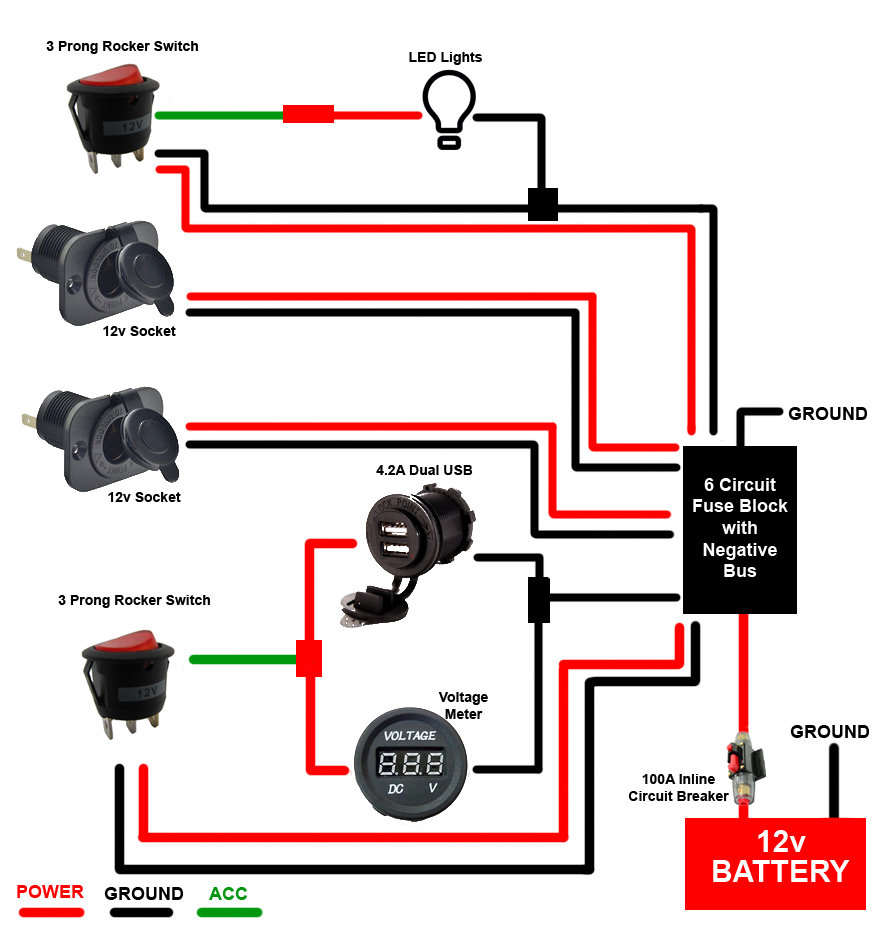

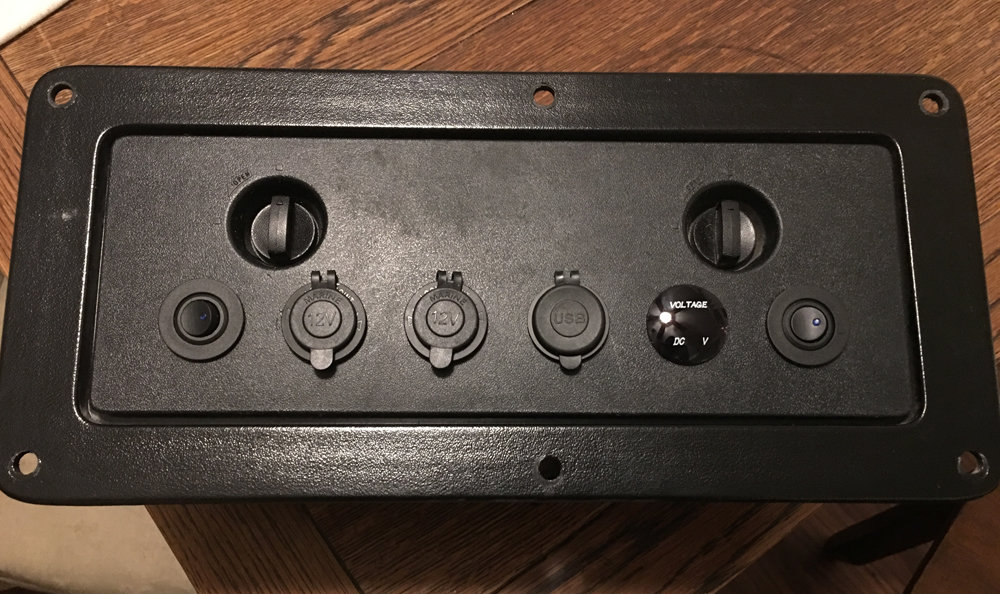

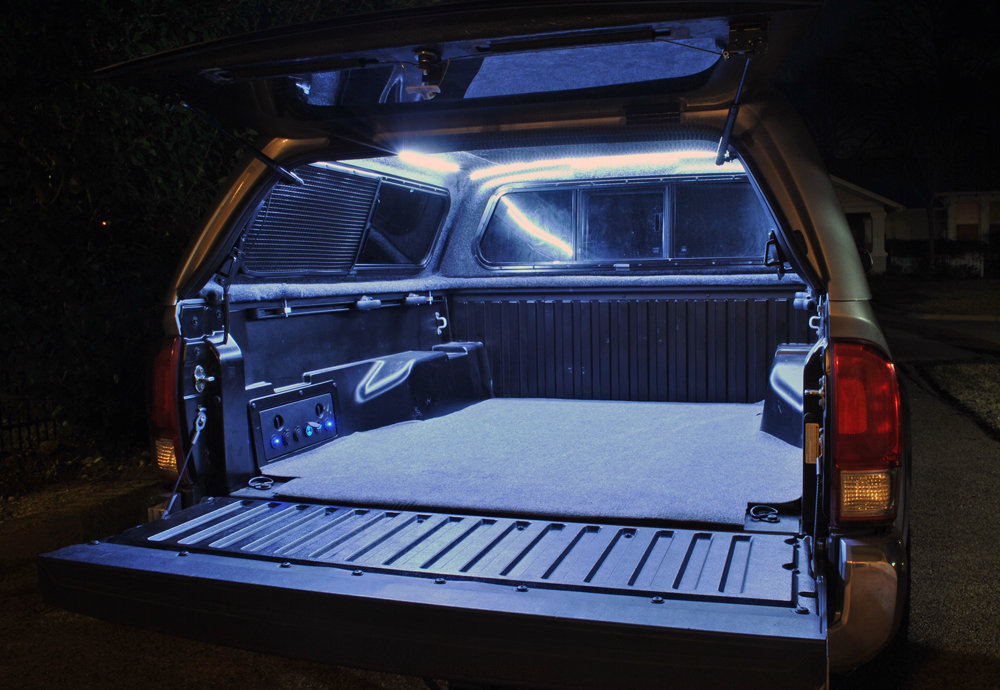

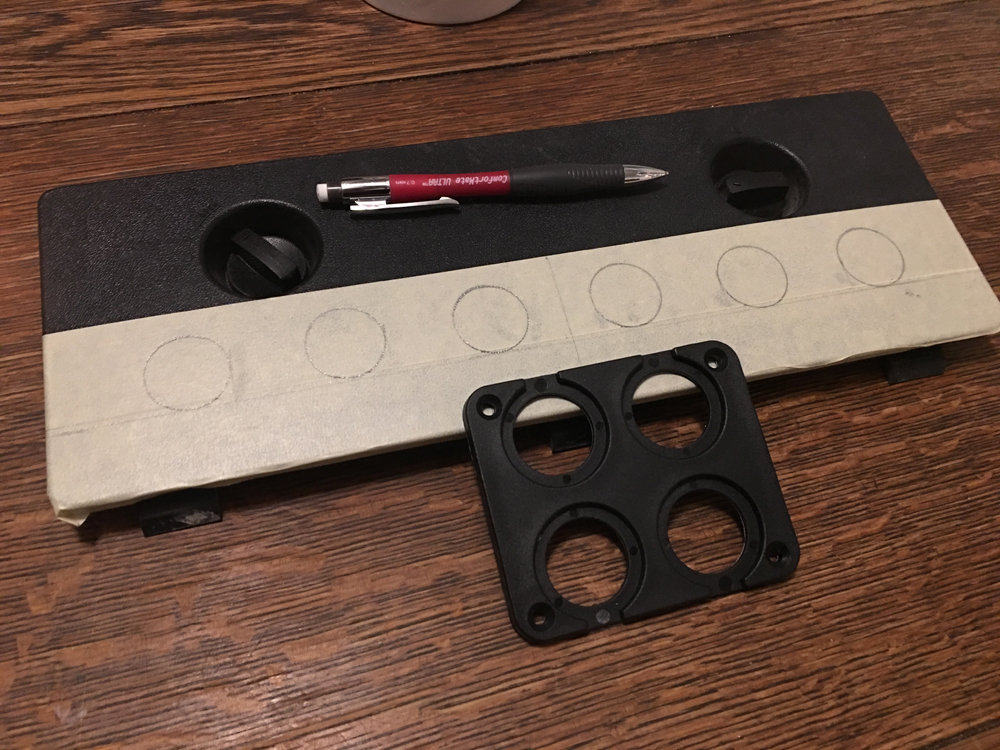

    I ran 12v power from the battery to the rear of the truck bed. I made this diagram in Photoshop to help with the electrical wiring
    12V Diagram copy.jpg 12v1.jpg 12v2.jpg 12v3.jpg 12v4.jpg

    Last edited: Feb 18, 2018
    Stash419, DannyD303 and Phoosa like this.
  4. Feb 18, 2018 at 12:49 PM
    #4
    DavidM310

    DavidM310 [OP] Well-Known Member

    Joined:
    Jun 6, 2017
    Member:
    #220899
    Messages:
    493
    Gender:
    Male
    Temple, Texas
    Vehicle:
    2017 Tacoma/2015 4Runner/2015 IS250
    Completed maintenance today now that I hit 20k miles. Here is a step by step guide.


    Engine Oil

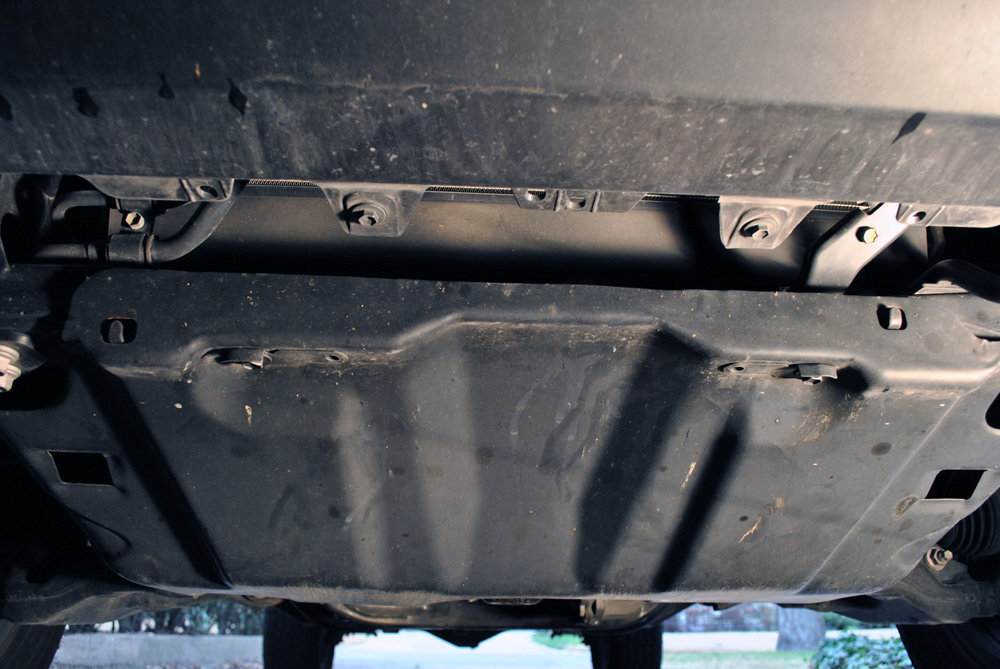

    Remove skid plate to access oil filter by removing 4 12mm bolts

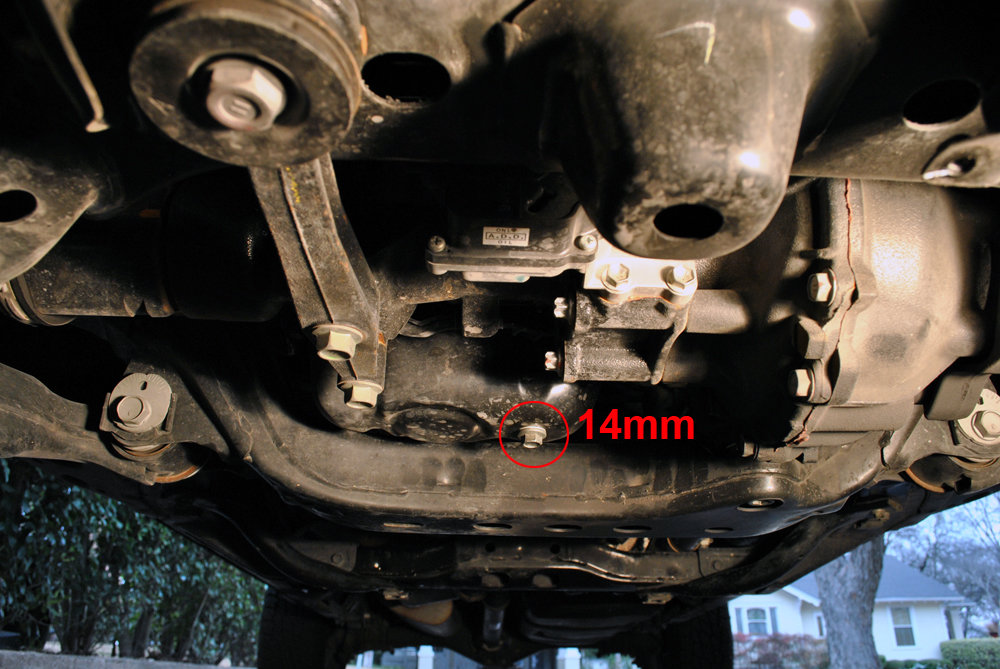

    Remove 14mm drain bolt from oil pan to drain the oil

    Allow oil to drain

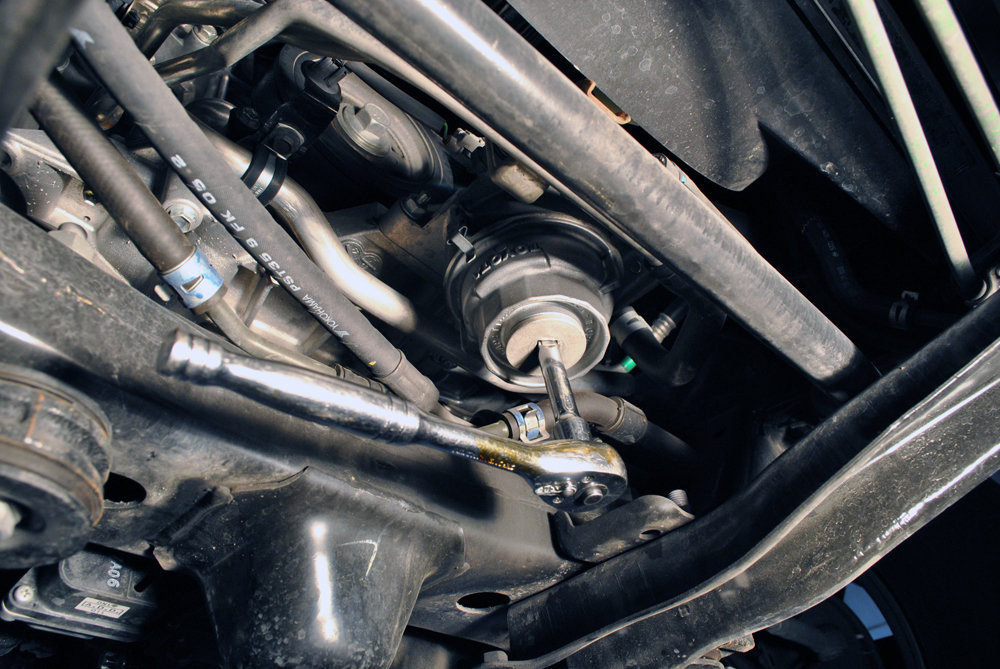

    Remove oil filter drain cover with a 3/8" extension

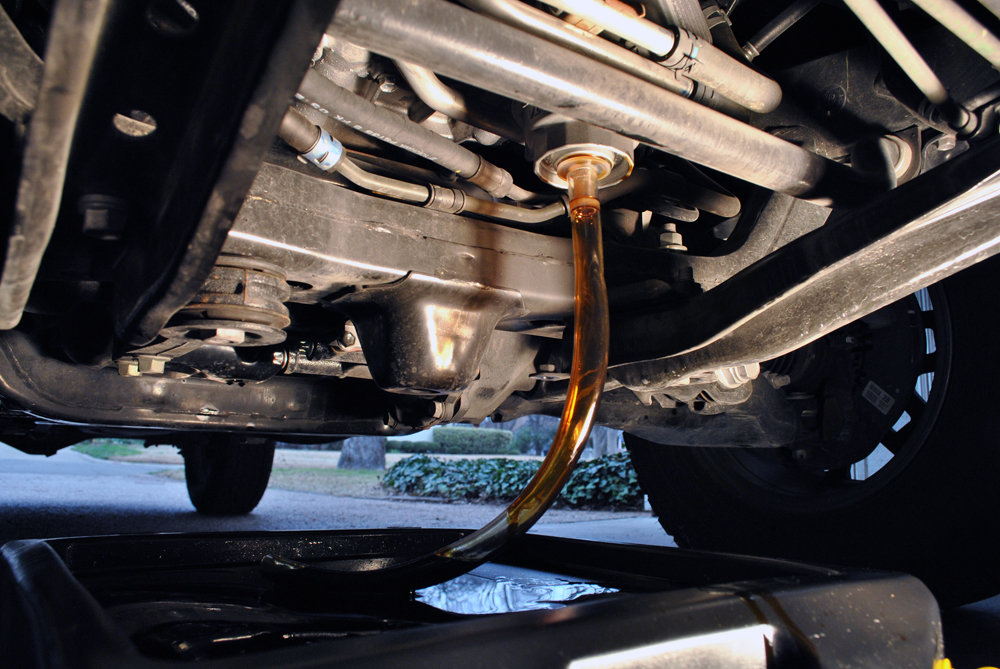

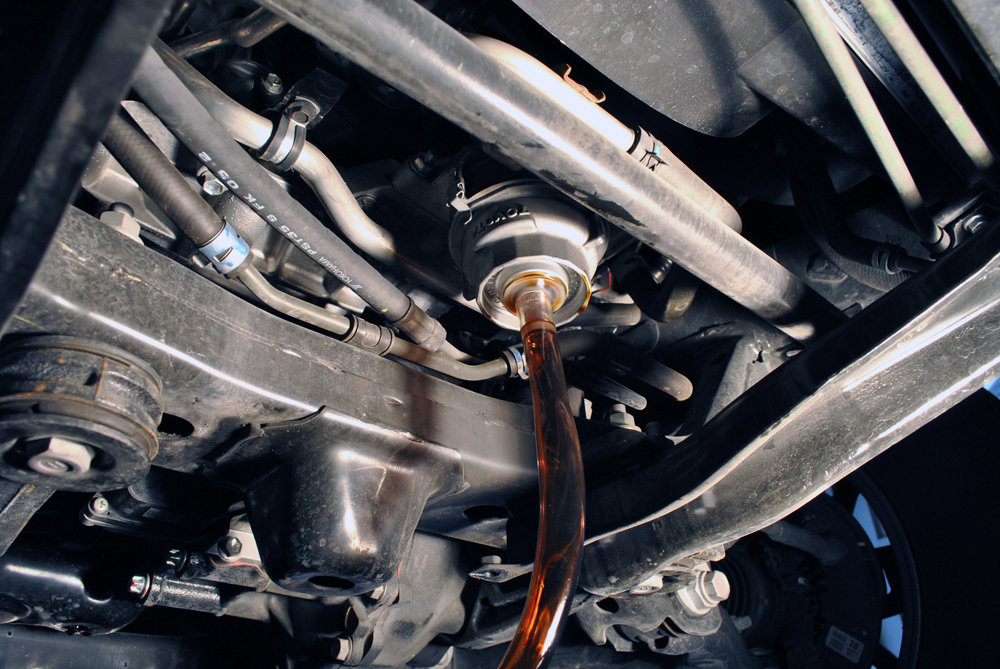

    Use a 5/8" ID tube and secure it over the oil filter drain adapter

    Allow filter oil to drain out of the tube

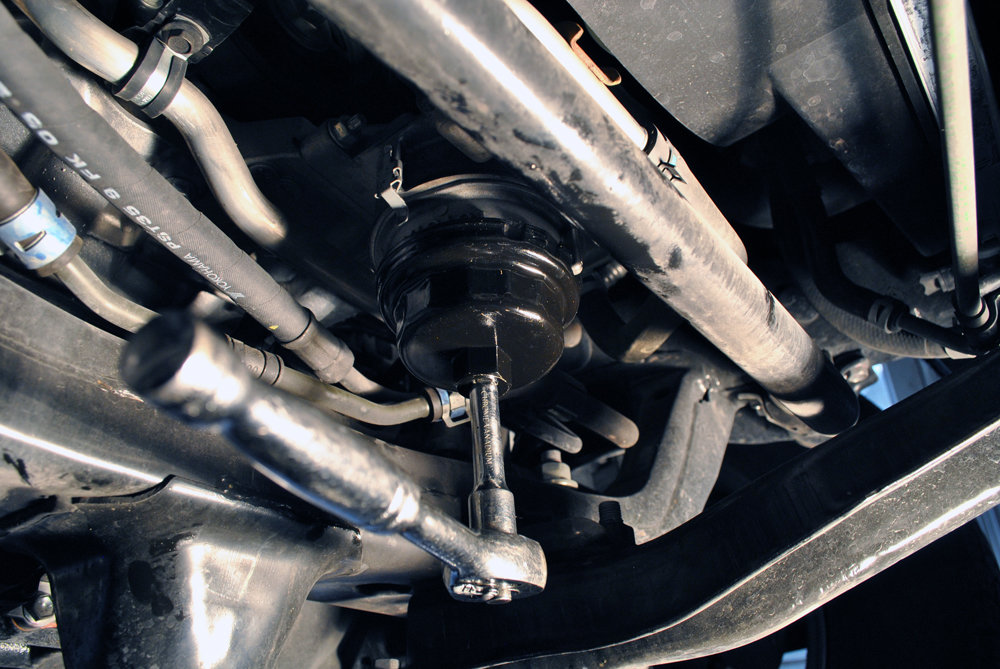

    Use TOY640 Filter Wrench to remove the oil filter canister

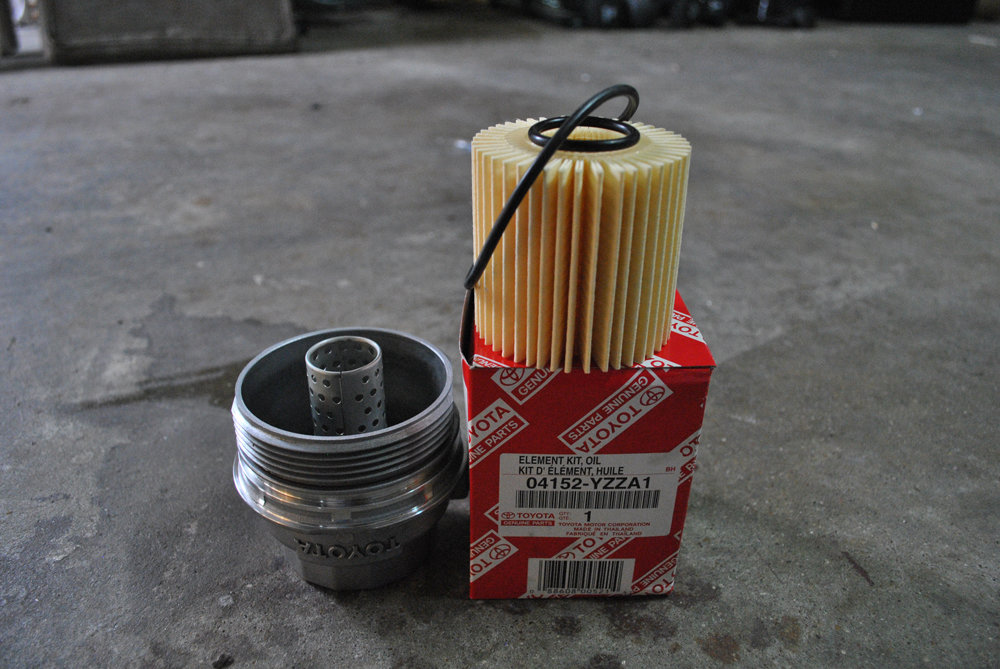

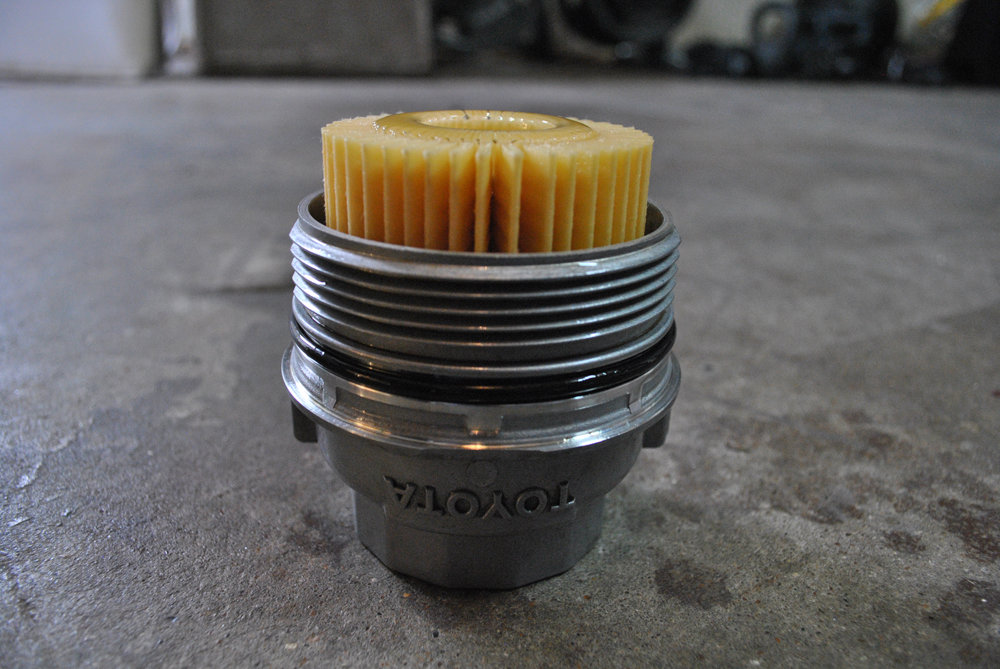

    Metal oil filter canister with Toyota filter part # 04152-YZZA1

    Filter pre-oiled with new canister gasket

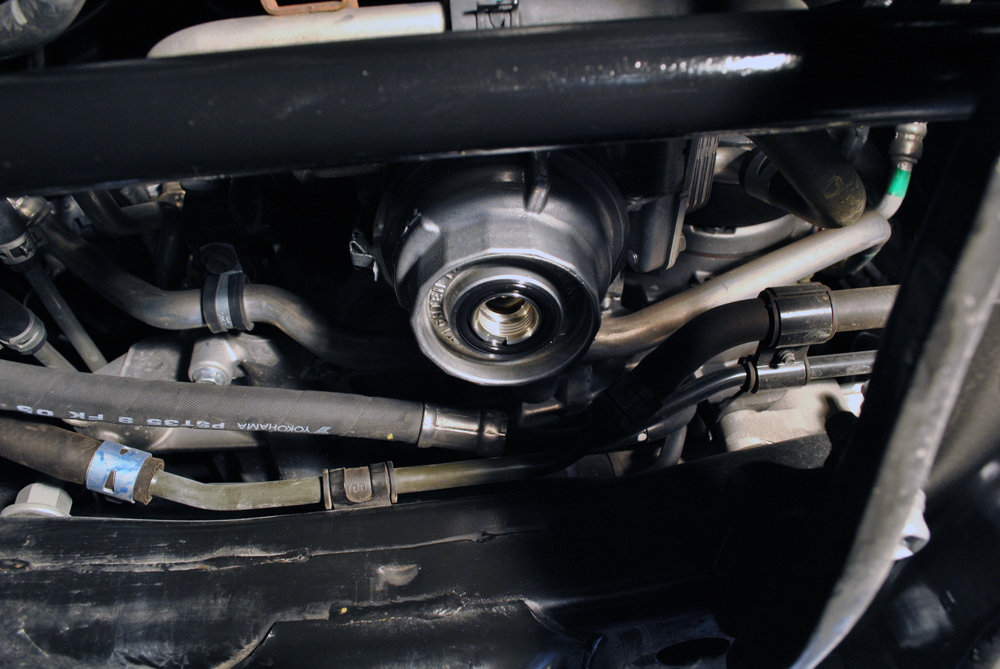

    Oil filter canister back in place with drain gasket in place

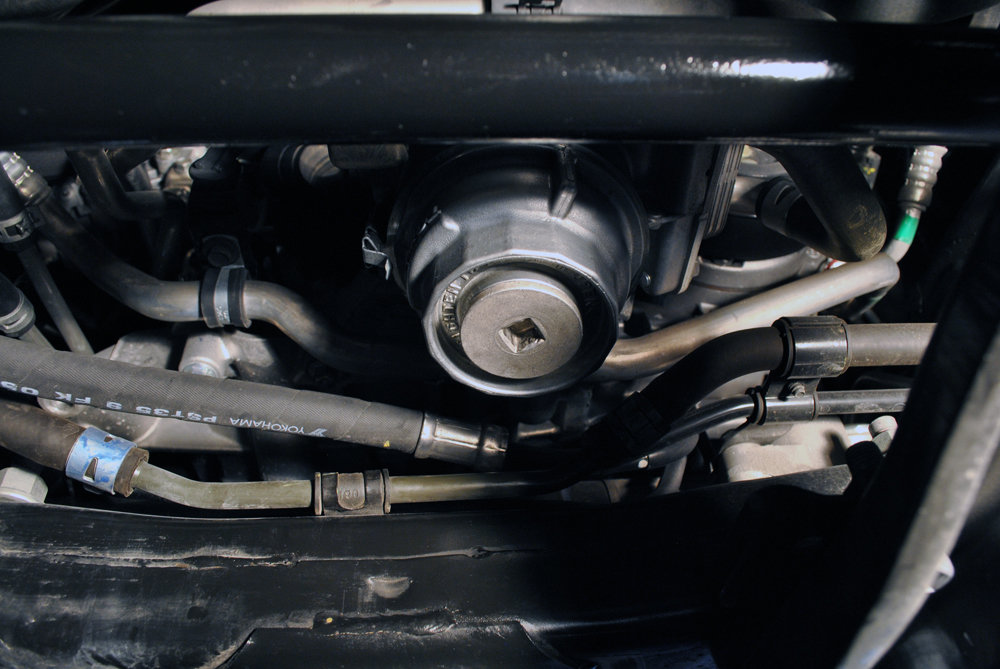

    Oil filter drain cover back on

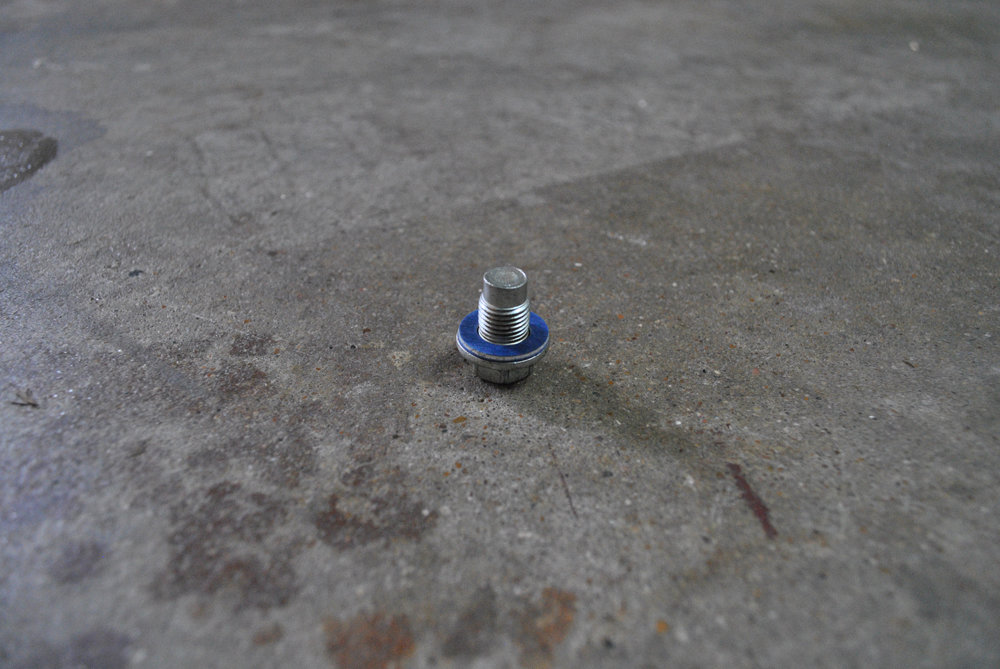

    Oil drain plug with new washer Toyota part # 90430-12031

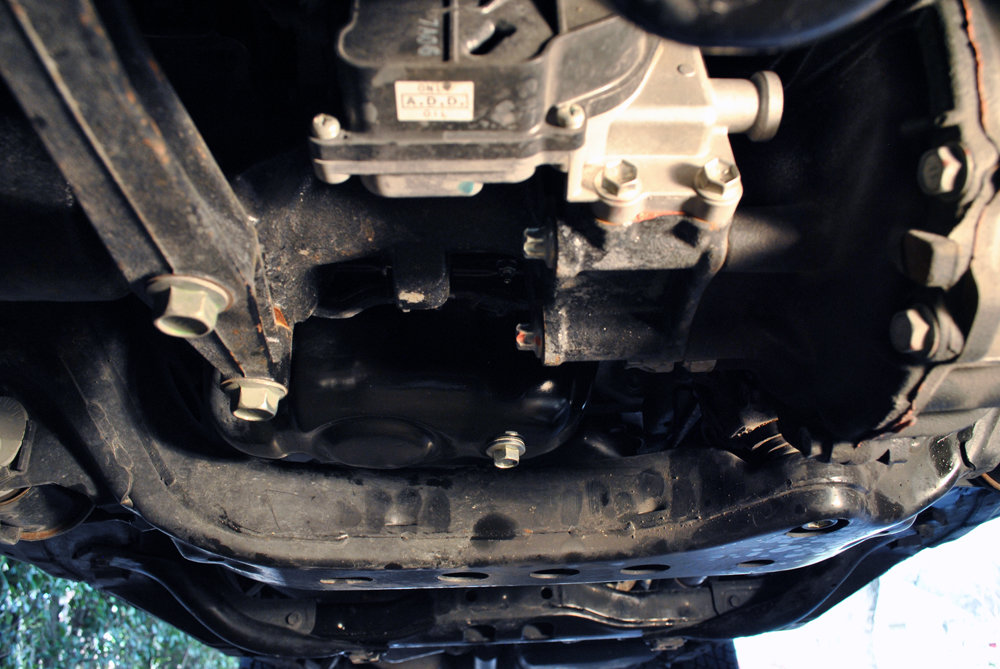

    Oil drain plug back in the pan

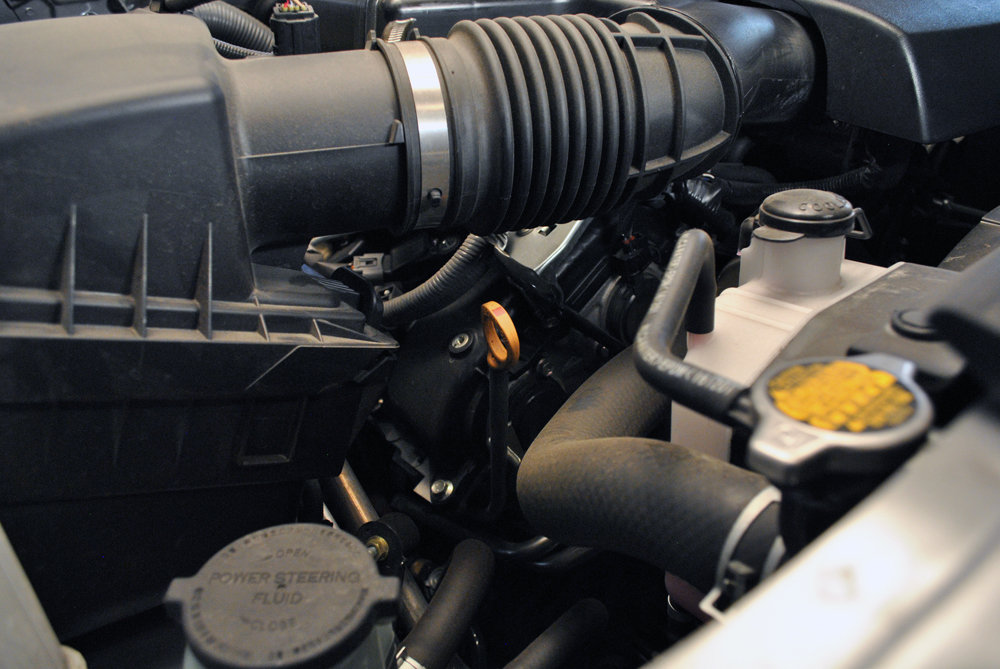

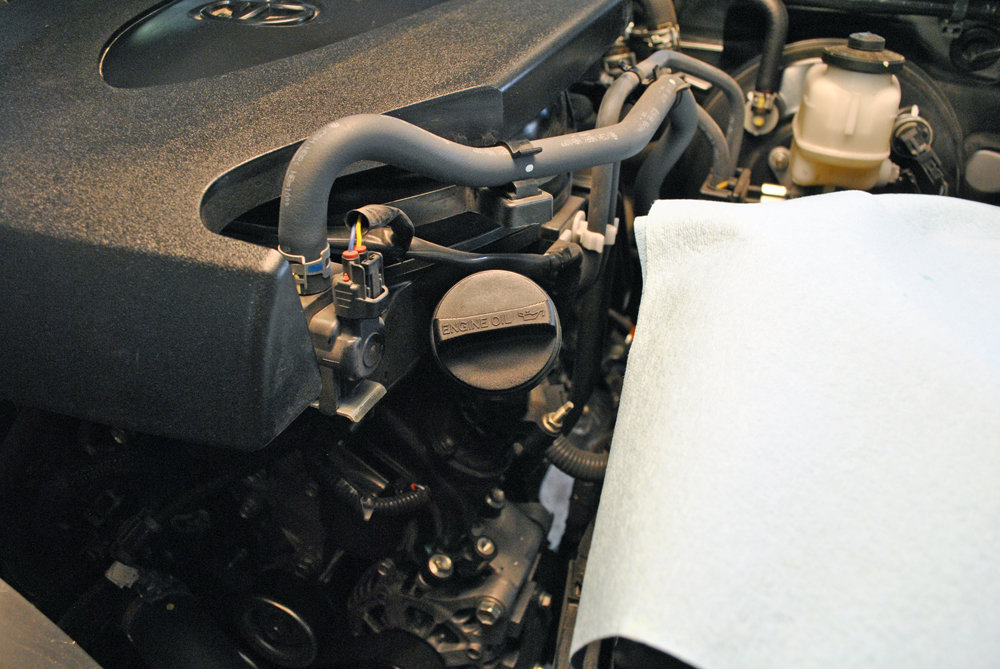

    Remove oil filler cap

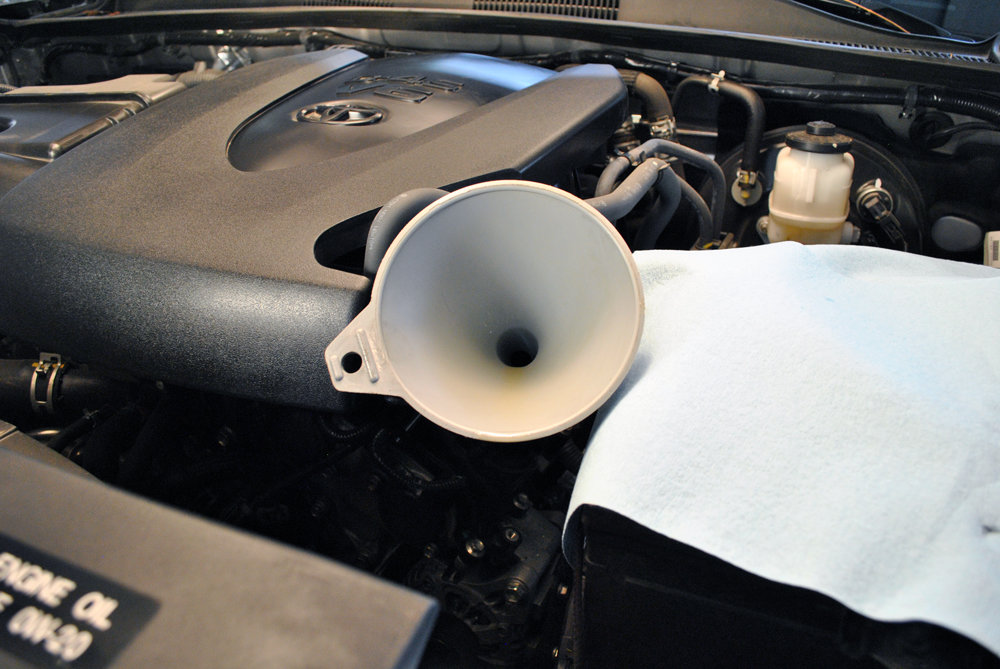

    Fill with 0W-20 oil Toyota part # 00279-0WQTE-01 or GF-5 equivalent. 6.1qts oil capacity without tow package and 6.2qts with tow package

    Run engine to circulate oil. Shut off engine, remove and wipe oil dipstick, allow 5 minutes before checking oil level


    Front Differential

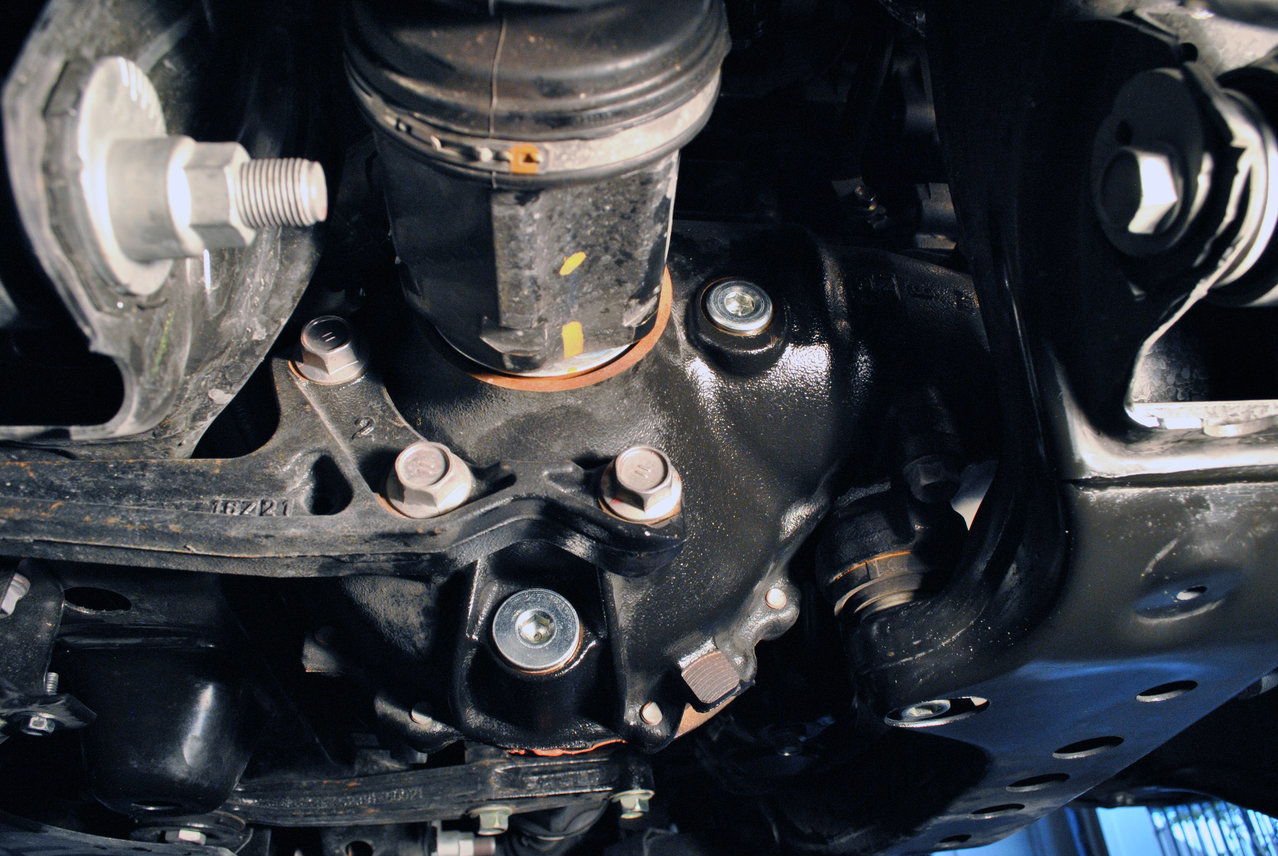

    Remove 10mm Hex fill plug first followed by 10mm hex drain plug


    Drain front differential gear oil

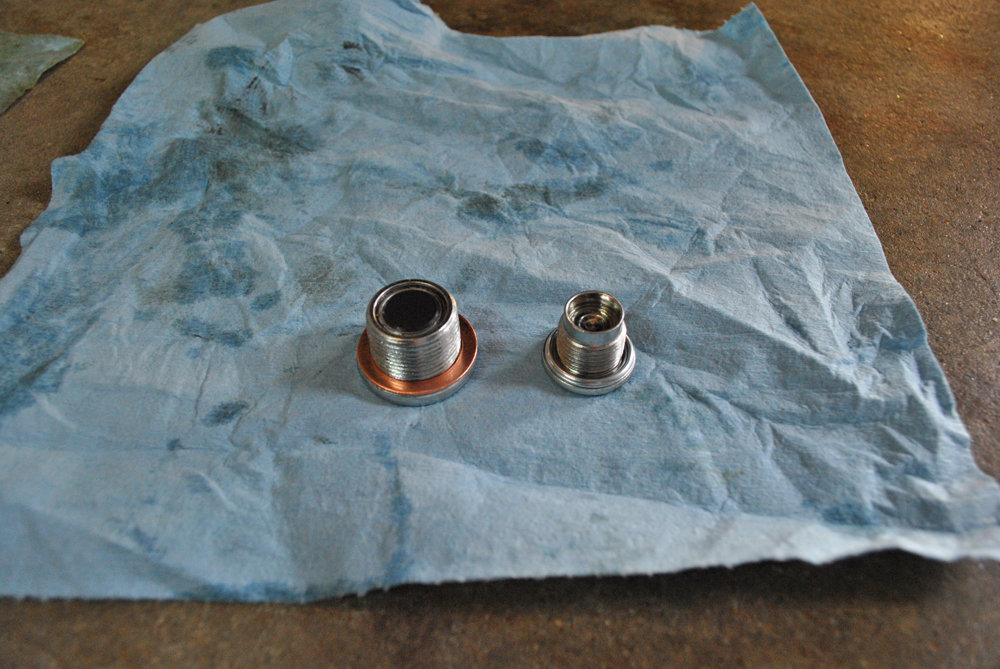

    Front differential drain plug with new copper flat gasket part # 90430-24003 and fill plug with new steel crush gasket part # 12157-10010

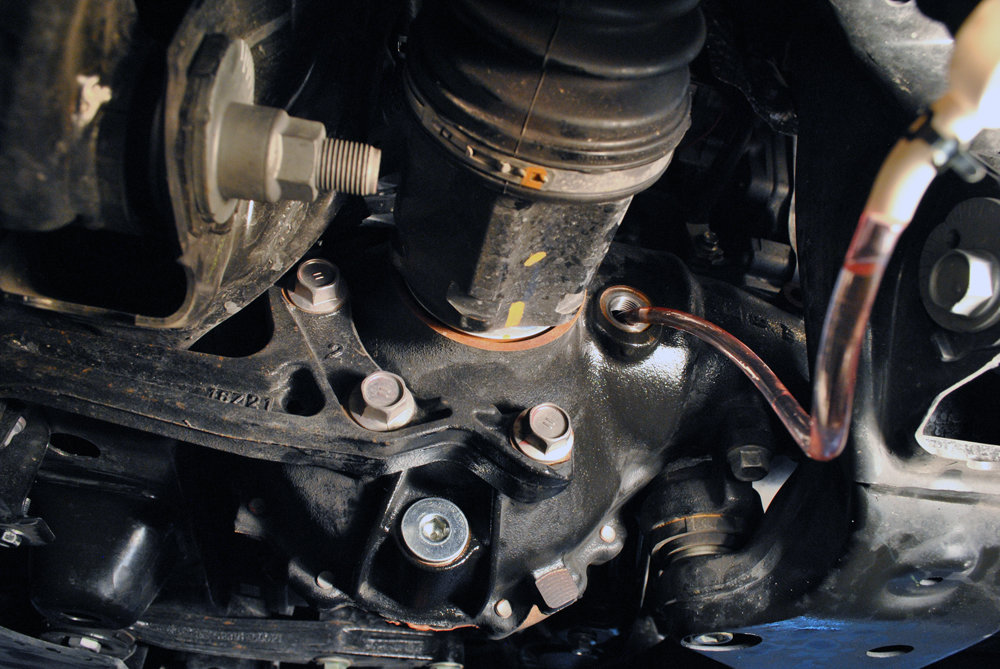

    Reinstall drain plug, and add 1.6qts of Toyota part #08885-02506 or 75w-85 GL-5 equivalent differential gear oil

    Reinstall fill plug once filling differential is complete

    Last edited: Feb 19, 2018
    roger2chris likes this.
  5. Feb 18, 2018 at 12:50 PM
    #5
    DavidM310

    DavidM310 [OP] Well-Known Member

    Joined:
    Jun 6, 2017
    Member:
    #220899
    Messages:
    493
    Gender:
    Male
    Temple, Texas
    Vehicle:
    2017 Tacoma/2015 4Runner/2015 IS250

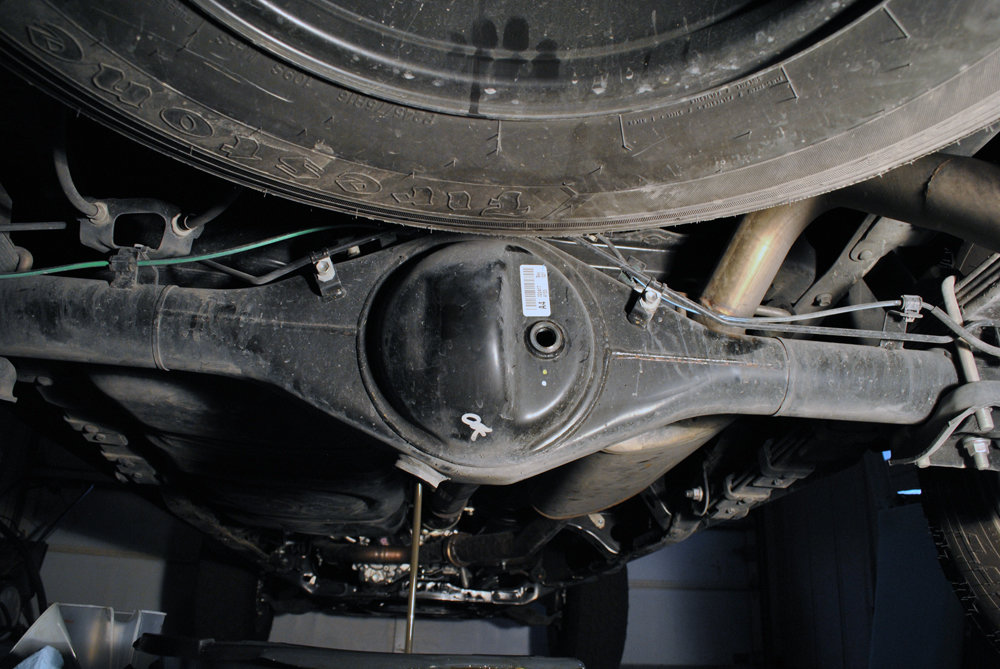

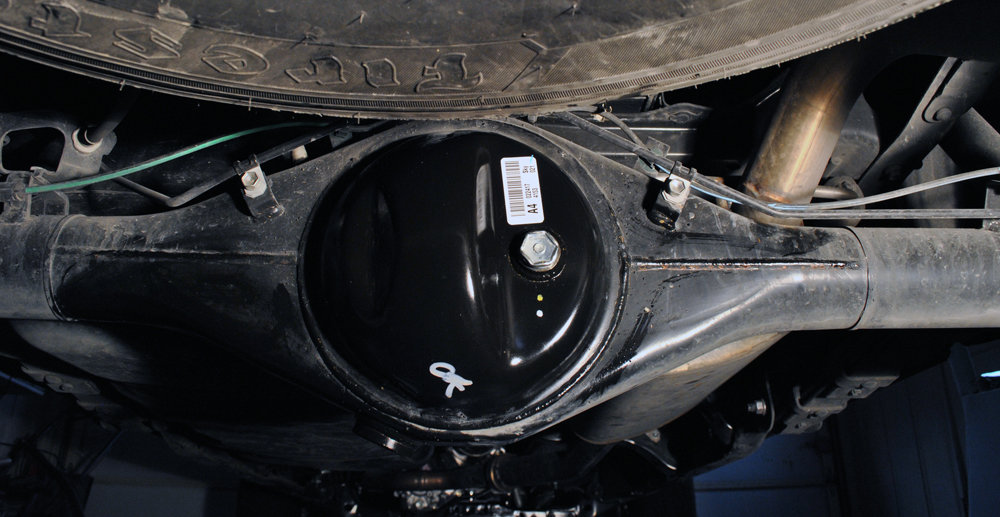

    Rear Differential

    Remove 24mm fill plug first followed by 24mm drain plug

    Drain rear differential gear oil

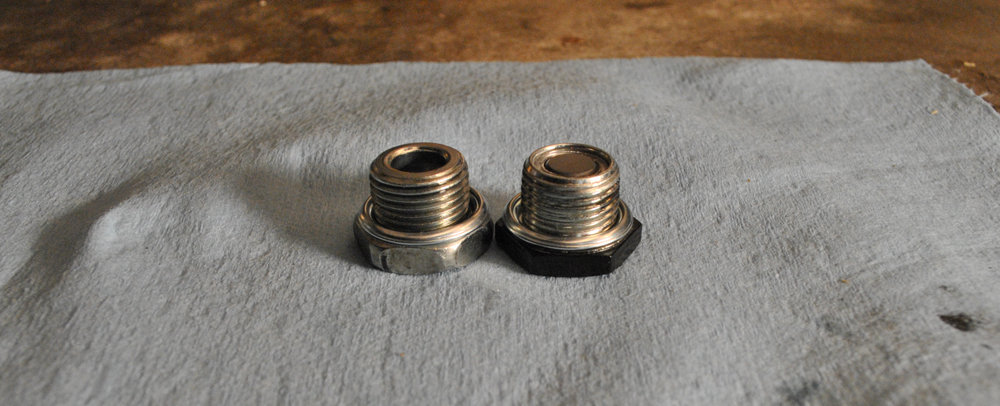

    Fill plug and drain plug with new steel crush washers part #12157-10010


    Reinstall drain plug, and add 3.1-4.2 qts of Toyota part #08885-02506 or 75w-85 GL-5 equivalent differential gear oil, reinstall fill plug
    *Check manual for identification of rear differential and gear oil capacity*


    Transfer Gear Oil

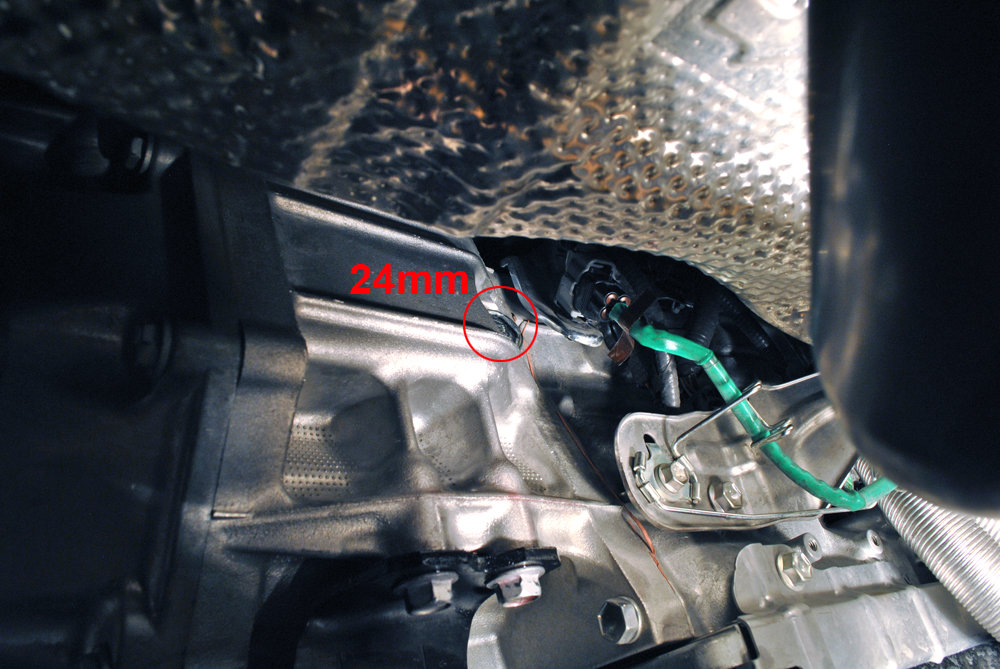

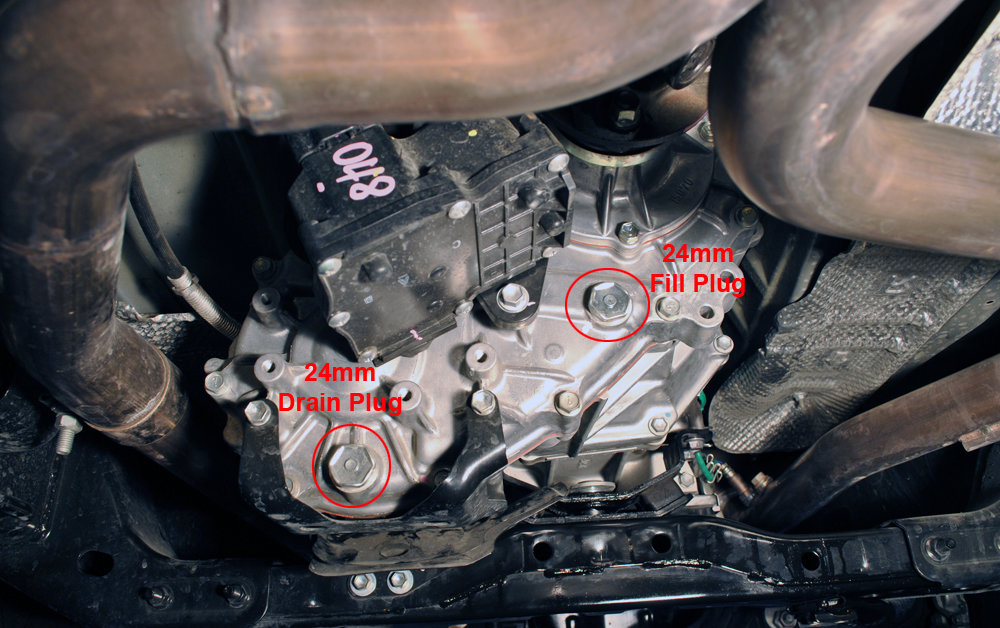

    -Remove 24mm fill plug first followed by 24mm drain plug
    -Allow transfer gear oil to drain
    -Install aluminum flat gasket part # 90430-A0003 on drain and fill plug
    -Reinstall drain plug
    -Fill transfer case with 1.1 qts of Toyota part # 08885-81080

    -Reinstall fill plug



    Transmission Fluid Check

    There is a large thread about 3rd Gen Tacomas rolling out the factory 1-2 qts short on transmission fluid. I have created the following steps to show how to check transmission fluid without TechStream or any other OBD2 software.

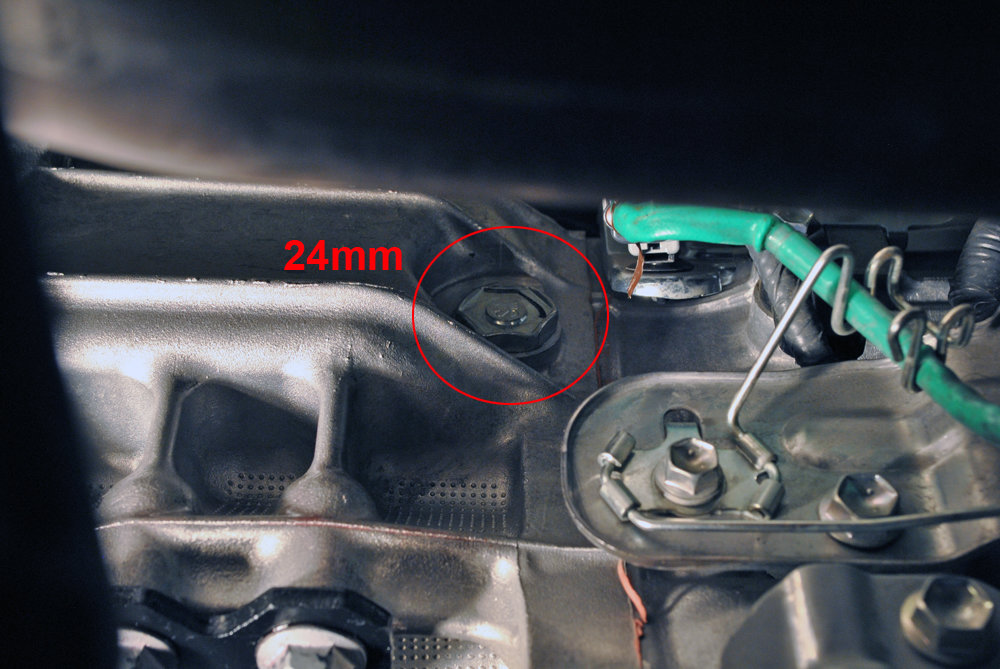

    Locate the transmission fill plug on the passenger side of the transmission

    Here is a better view. It will have "WS" on the bolt head

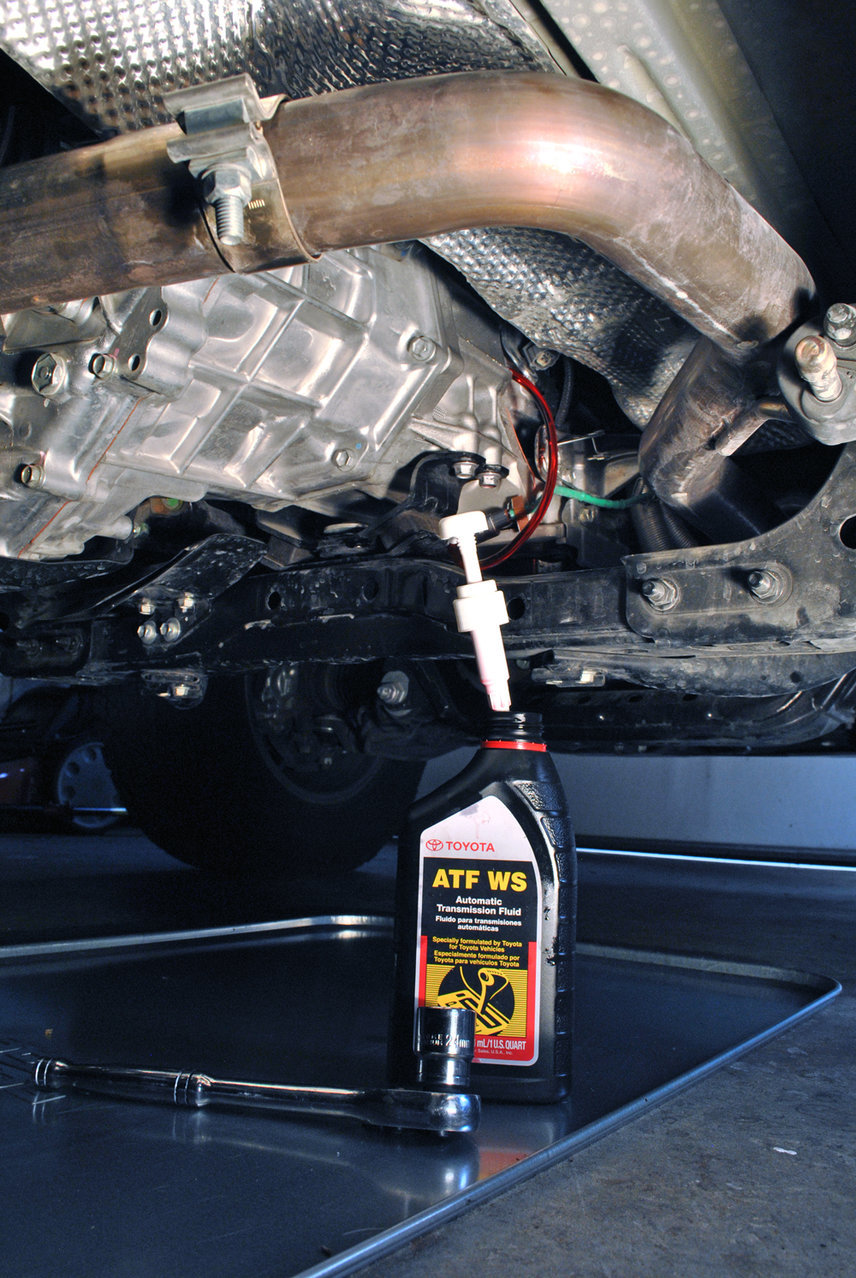

    I pumped 1qt of Toyota part # 00289-ATFWS and reinstalled the fill plug

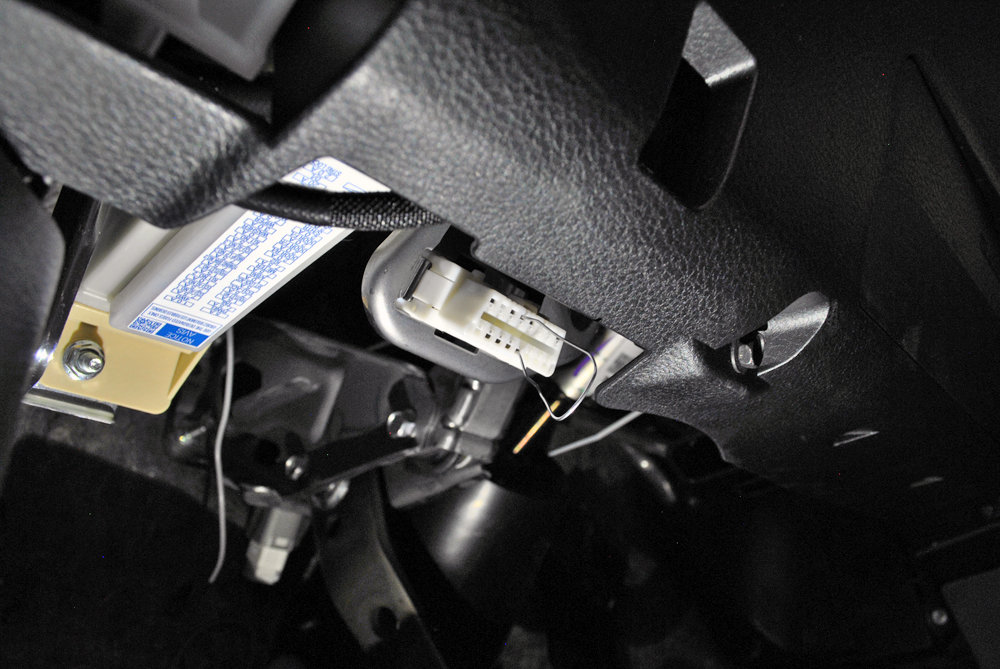

    -With the vehicle off, stick a paper clip together in the OBD2 connector port #4 and #13.

    -Top row from left to right #1-8.
    -Bottom row from left to right #9-16.
    -Press and hold the brake pedal and turn the engine on.
    -If you did this correctly, you will see indicator lights blinking on the tach when you turn the engine on.


    -Move shifter from P to S slowly and from S back to P
    -Move shifter back and forth between N and D at an interval of less than 1.5 seconds
    -You have entered the "Automatic Transmission Fluid Temperature Detection Mode" when the D indicator remains illuminated for more than 2 seconds
    -Move the shifter from N to P
    -Release brake pedal
    -Remove the paper clip
    -Allow the engine to idle to raise transmission fluid temperature
    -The D indicator will come on again when the transmission temperature has reached 95° F
    -The D indicator will blink when the temperature is above 113° F
    -The temperature range to check the transmission fluid is between 95°-113° F

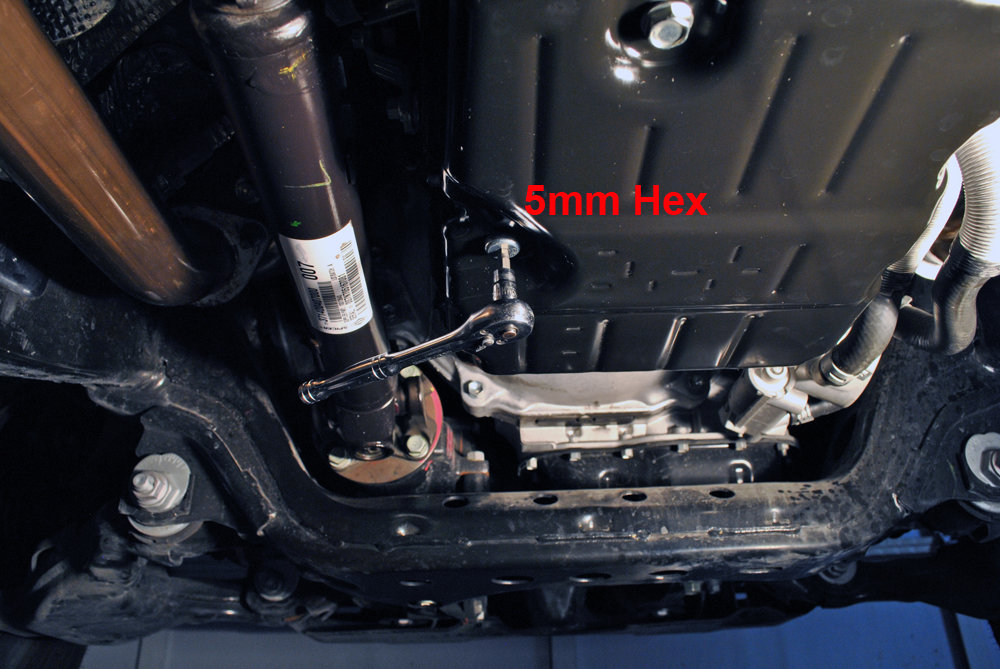

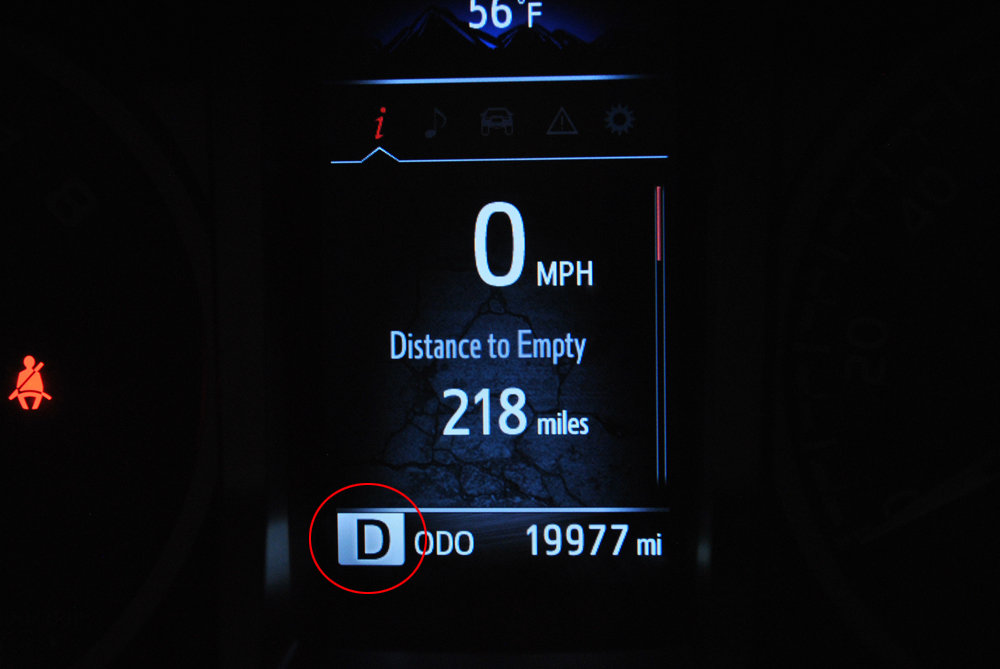

    -Once the D indicator illuminates, remove the 5mm hex fluid check plug, allow fluid to drain to a drip. Once the fluid is at a drip, reinstall 5mm hex check plug, turn the engine off, fluid check is complete
    -If the D indicator starts blinking, you are out of fluid adjustment range, reinstall check plug and turn the engine off, allow transmission to cool and reattempt once the fluid is below 95° F



    Grease Propeller Shaft

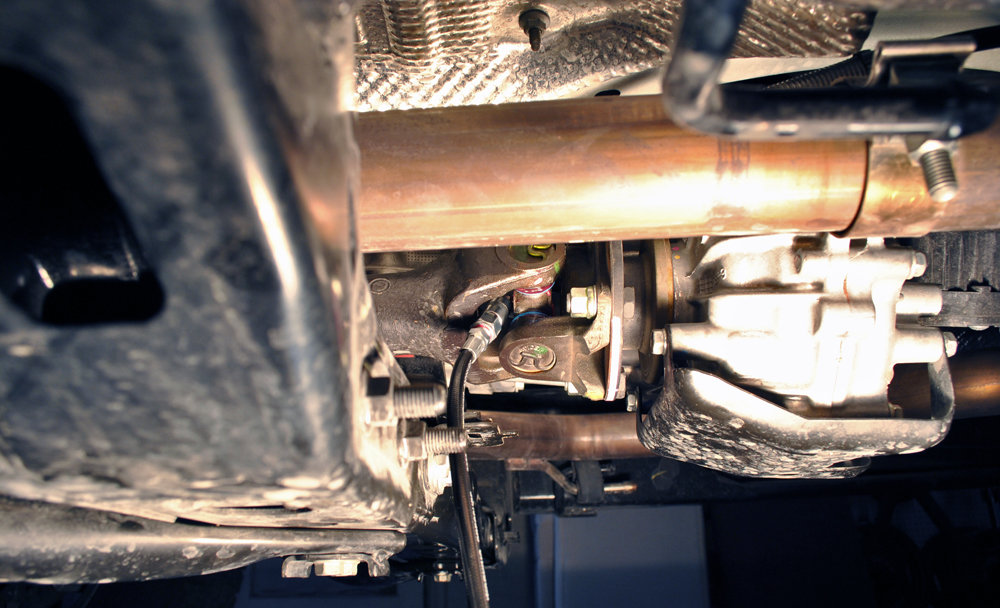

    Pre June/July 2016 4X4 Tacomas will have 5 zerk fittings for the driveshaft (propeller shaft) u-joints. 2 zerk fittings for the front and 3 for the rear. Post June/July 2016 4x4 Tacomas will only have 2 zerk fittings located in the front driveshaft. The rear driveshaft is now a sealed unit. 2WD do not have zerk fittings as they are a sealed unit. My Tacoma is a 2017 and will only have 2 zerk fittings.

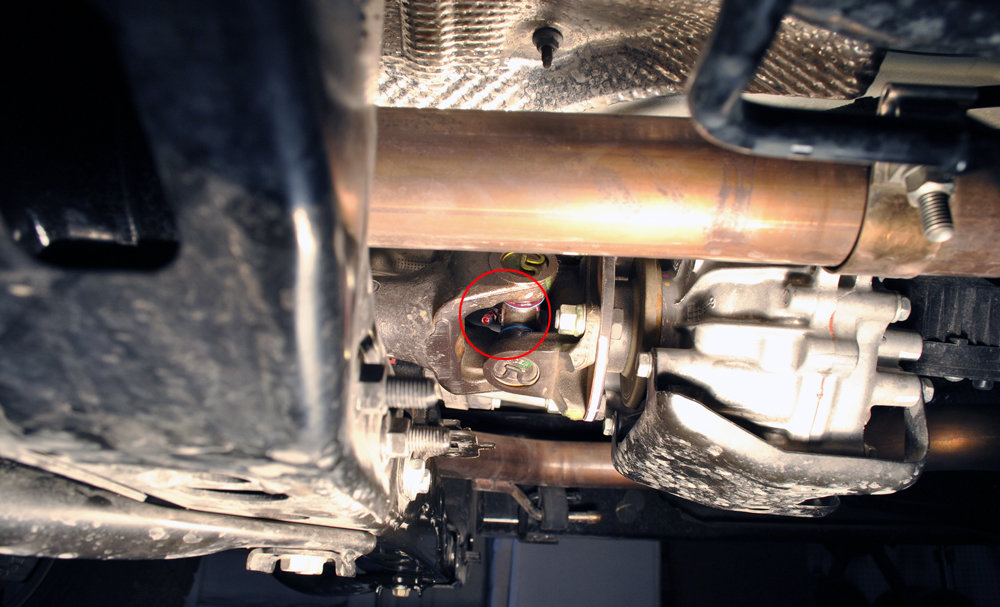

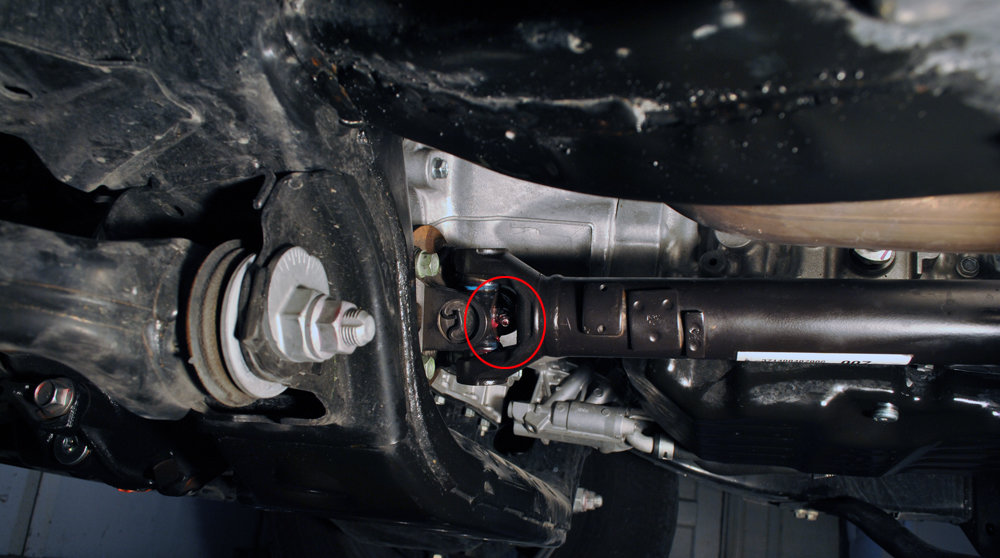

    Front driveshaft zerk fitting. Turn driveshaft by hand to the 7 o'clock position for easier access

    Connect grease gun to zerk fitting and fill cavity until new colored grease is purged from all bearing seals

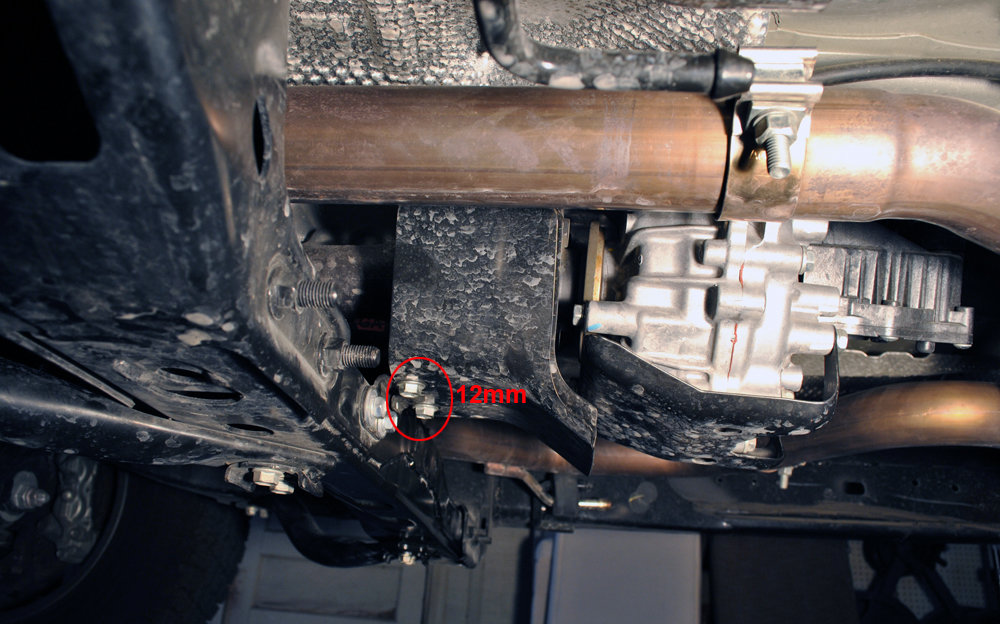

    Remove 2 12mm bolts and remove cover to access the rear zerk on the front driveshaft

    Turn driveshaft by hand to the 7 o'clock position for easier access


    Connect grease gun to zerk fitting and fill cavity until new colored grease is purged from all bearing seals


    Last edited: Feb 19, 2018
  6. Feb 18, 2018 at 12:50 PM
    #6
    DavidM310

    DavidM310 [OP] Well-Known Member

    Joined:
    Jun 6, 2017
    Member:
    #220899
    Messages:
    493
    Gender:
    Male
    Temple, Texas
    Vehicle:
    2017 Tacoma/2015 4Runner/2015 IS250
    Reserved 5

    LostHusker likes this.
  7. Feb 18, 2018 at 12:50 PM
    #7
    DavidM310

    DavidM310 [OP] Well-Known Member

    Joined:
    Jun 6, 2017
    Member:
    #220899
    Messages:
    493
    Gender:
    Male
    Temple, Texas
    Vehicle:
    2017 Tacoma/2015 4Runner/2015 IS250
    Reserved 6

    LostHusker likes this.
  8. Feb 18, 2018 at 7:51 PM
    #8
    Phoosa

    Phoosa I never saw nothing.

    Joined:
    Mar 8, 2015
    Member:
    #150436
    Messages:
    5,878
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    Truck
    Detailed....I like it.

    BassAckwards likes this.
  9. Feb 18, 2018 at 8:39 PM
    #9
    Norilsk

    Norilsk Well-Known Member

    Joined:
    Nov 12, 2015
    Member:
    #169435
    Messages:
    5,396
    Gender:
    Male
    First Name:
    Eugene
    kanata
    Vehicle:
    DiRtY5s and bEyoNd!
    subd! Those are perfect instructions!

  10. Feb 18, 2018 at 10:27 PM
    #10
    vietjdmboi

    vietjdmboi Well-Known Member

    Joined:
    Oct 6, 2015
    Member:
    #165979
    Messages:
    325
    Gender:
    Male
    First Name:
    Hieu
    Orange County
    Vehicle:
    '18 Tacoma TRD Off-Road
    Love the attention to detail!

  11. Feb 19, 2018 at 1:19 PM
    #11
    BassAckwards

    BassAckwards Well-Known Member

    Joined:
    May 3, 2016
    Member:
    #186002
    Messages:
    24,793
    Gender:
    Male
    First Name:
    Robert
    TX
    Vehicle:
    '09 I4 5spd & '13 V6 6spd
  12. Feb 23, 2018 at 8:52 AM
    #12
    Tcb619

    Tcb619 Member

    Joined:
    Nov 15, 2017
    Member:
    #236058
    Messages:
    11
    First Name:
    Tom
    Sweet build. The camper and wheels look great.

    I'm sure this info is out there but I'm curious what off-road features the SR5 package comes with? Do you have a locker/a-trac?

  13. Mar 1, 2018 at 6:25 AM
    #13
    DavidM310

    DavidM310 [OP] Well-Known Member

    Joined:
    Jun 6, 2017
    Member:
    #220899
    Messages:
    493
    Gender:
    Male
    Temple, Texas
    Vehicle:
    2017 Tacoma/2015 4Runner/2015 IS250
    Thank you!

    The SR5 model can be purchased in 4x4, it does not come with a rear locker/A-TRAC/MTS. If you are looking for more off-road friendly/ready, then perhaps the OR model will suit you better. It comes with Bilstein 4600 series shocks, rear locker/A-TRAC/MTS and I believe the rear end is 8.5” vs 8”. The OR model also comes in 6MT. Those are the off-road features + accesory upgrades.

  14. Mar 1, 2018 at 6:31 AM
    #14
    abodyjoe

    abodyjoe Well-Known Member

    Joined:
    Oct 1, 2017
    Member:
    #231695
    Messages:
    424
    Gender:
    Male
    First Name:
    joe
    Vehicle:
    2017 Tacoma double cab TRD Offroad. quicksand in color
    what brand and size is that? i need one for our truck.. the one i have was fine for th eoutback but doesn't fit our tacoma.

  15. Apr 16, 2018 at 4:08 PM
    #15
    Taco Slinger 4000

    Taco Slinger 4000 Active Member

    Joined:
    Apr 6, 2018
    Member:
    #249644
    Messages:
    41
    Gender:
    Male
    Volusia County FL
    Vehicle:
    2016 White Tacoma sr5
    This is exactly what I was looking for. I’m new to DIY stuff for my 2016 sr5 rwd. Do I need to utilize a torque wrench and specs for the rear differential fill plug and drain plug? Thanks

  16. Apr 17, 2018 at 7:01 AM
    #16
    Rocky.Mtn

    Rocky.Mtn Well-Known Member

    Joined:
    Aug 6, 2017
    Member:
    #226091
    Messages:
    426
    Canada
    Vehicle:
    2017 TRD OFF-ROAD DCSB
    Great write up!

  17. Feb 6, 2019 at 7:26 PM
    #17
    apocataco2015

    apocataco2015 Well-Known Member

    Joined:
    Jun 8, 2015
    Member:
    #157006
    Messages:
    701
    Gender:
    Male
    First Name:
    Clayton
    Salado, TX
    Vehicle:
    2017 Tacoma TRD OR 4x4
    Fox/OME/Icon lift. TRD Beadlocks. Toyo MT’s. Pelfreybilt, RCI, Mobtown armor.
    Saw your truck on Craigslist. I’m in Temple too. Not sure how I’ve never seen you. If I can ask, why are you selling? You’re truck is very well modded.

  18. Feb 6, 2019 at 7:36 PM
    #18
    Fearthisbeard

    Fearthisbeard Well-Known Member

    Joined:
    Jun 1, 2018
    Member:
    #255205
    Messages:
    585
    Gender:
    Male
    First Name:
    Josh
    Gilbert AZ
    Vehicle:
    Taco
    Good info here, nice.
