2019 OR Firewall pass through

Discussion in '3rd Gen. Tacomas (2016+)' started by LTG4087, Aug 2, 2020.

  1. Aug 2, 2020 at 8:33 AM
    #1
    LTG4087

    LTG4087 [OP] Well-Known Member

    Joined:
    Jul 3, 2012
    Member:
    #81852
    Messages:
    1,213
    Gender:
    Male
    First Name:
    LT
    DFW
    Vehicle:
    2019 TRD Off Road

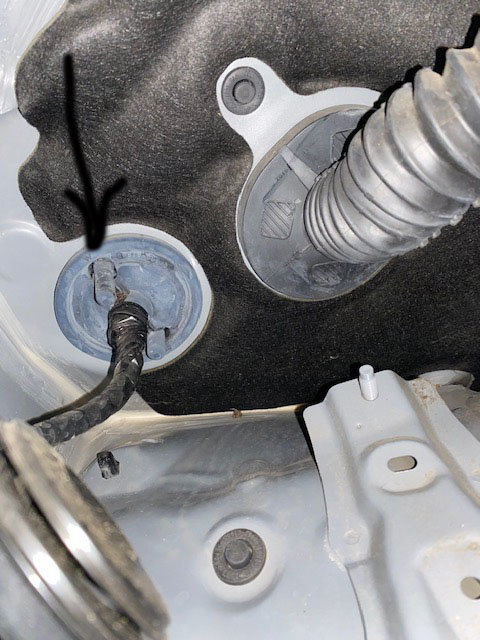

    Going to install Ham radio in my 2019 OR and need to get antenna & power lines run through the firewall. There seems to be a entry gramett on the passenger side the could work. Before I go poking through this, does anyone know where it comes out in the cab?firewall1.jpg

  2. Aug 2, 2020 at 8:35 AM
    #2
    Bertw192

    Bertw192 Well-Known Member

    Joined:
    Aug 3, 2017
    Member:
    #225852
    Messages:
    8,125
    Gender:
    Male
    First Name:
    Bert
    Seattle, WA
    Vehicle:
    2017 TRD OR DCSB
    Katzkins, sport hood, 17"×8.5" SCS Ray10 matte gunmetal wheels with BFG KO2 265/70/17 tires, heavily modified Mobtown bed bars, tinted windows, Mesojdm OR taillights, TRD Pro skid plate, ADS Ext Suspension, TRD Pro shift knob, TRD Pro Rigid fog lights, TRD Pro grille, passenger smart handle, SSO Slimline bumper with Warn M8000 synthetic winch, TC bed stiffeners, RCI hidden hitch rear bumper
    Under the dash on the passenger side. Pull the carpet up and locate it.

    shakerhood likes this.
  3. Aug 2, 2020 at 8:38 AM
    #3
    Thatbassguy

    Thatbassguy Derriere extraordinaire

    Joined:
    Mar 17, 2018
    Member:
    #247525
    Messages:
    3,822
    Gender:
    Male
    First Name:
    James
    Vehicle:
    '19 T4R, TRDORP, KDSS
    RSG sliders, Pro-Comp '05 wheels, Yakima offgrid basket
    I went through a similar location on the driver's side. I poked a small hole with a utility knife and pushed the wires through. Once I got a few inches through, it was easy to locate under the dash. It came through above the carpet.

    Edit: this is on a 4runner. I'm not sure where the wiring harness passes through on a Taco, but I imagine it's similar.

  4. Aug 2, 2020 at 8:58 AM
    #4
    LTG4087

    LTG4087 [OP] Well-Known Member

    Joined:
    Jul 3, 2012
    Member:
    #81852
    Messages:
    1,213
    Gender:
    Male
    First Name:
    LT
    DFW
    Vehicle:
    2019 TRD Off Road
    okay, thanks for the help. I thought it might be behind the glove box which would be more of a PITA. I'll look around under the carpet. I want to keep the power cable a little bit separated from the antenna to avoid interference and since there's two nipples this might work out.

    Thatbassguy likes this.
  5. Aug 2, 2020 at 9:45 AM
    #5
    jmauvais

    jmauvais Received 2 votes in a poll one time.

    Joined:
    Oct 13, 2016
    Member:
    #199716
    Messages:
    3,586
    Gender:
    Male
    First Name:
    Jason
    SoCal
    Vehicle:
    2018 TRD OR 4x4 DCSB
    ...stuff
    There’s another one on the driver side that’s easier to access. Don’t try to use the little pokey grommet, it’s a pain. Just cut a small hole in the rubber and push the cables through. On the driver side, it comes out just below the steering column near the fuse box, easy to work with.

  6. Aug 2, 2020 at 9:48 AM
    #6
    JdevTac

    JdevTac Bawnjourno

    Joined:
    Jan 8, 2012
    Member:
    #70234
    Messages:
    5,266
    Gender:
    Male
    First Name:
    Josh
    GA/MD
    Vehicle:
    2013 DC TRD-OR 4x4 Pyrite Mica (sold)
    Use the 3/4” grommet up and to the right. Way easier. There is carpet behind it, just poke a hole and run your wires in via coat hanger or something. The 3/4” grommet can always be replaced should you need to. That other larger main harness grommet for all intents and purposes cannot.

    there is a similar 3/4” grommet on driver side near the brake booster region. It’s actually easier since there isn’t a bunch of ECU equipment behind it. You can stick your head in the driver foot well and actually see your wires coming through.

  7. Aug 2, 2020 at 9:53 AM
    #7
    DES2009

    DES2009 Unknown Member

    Joined:
    Jul 22, 2014
    Member:
    #134426
    Messages:
    1,637
    Gender:
    Male
    Southeast Louisiana
    Vehicle:
    2017 MGM Limited
    OVT 2.0-Final 91 Stk Garmin DashCam 56 RFCC/Natika F-Cam Toyota PK3B6-35JS0 Power Tailgate Lock

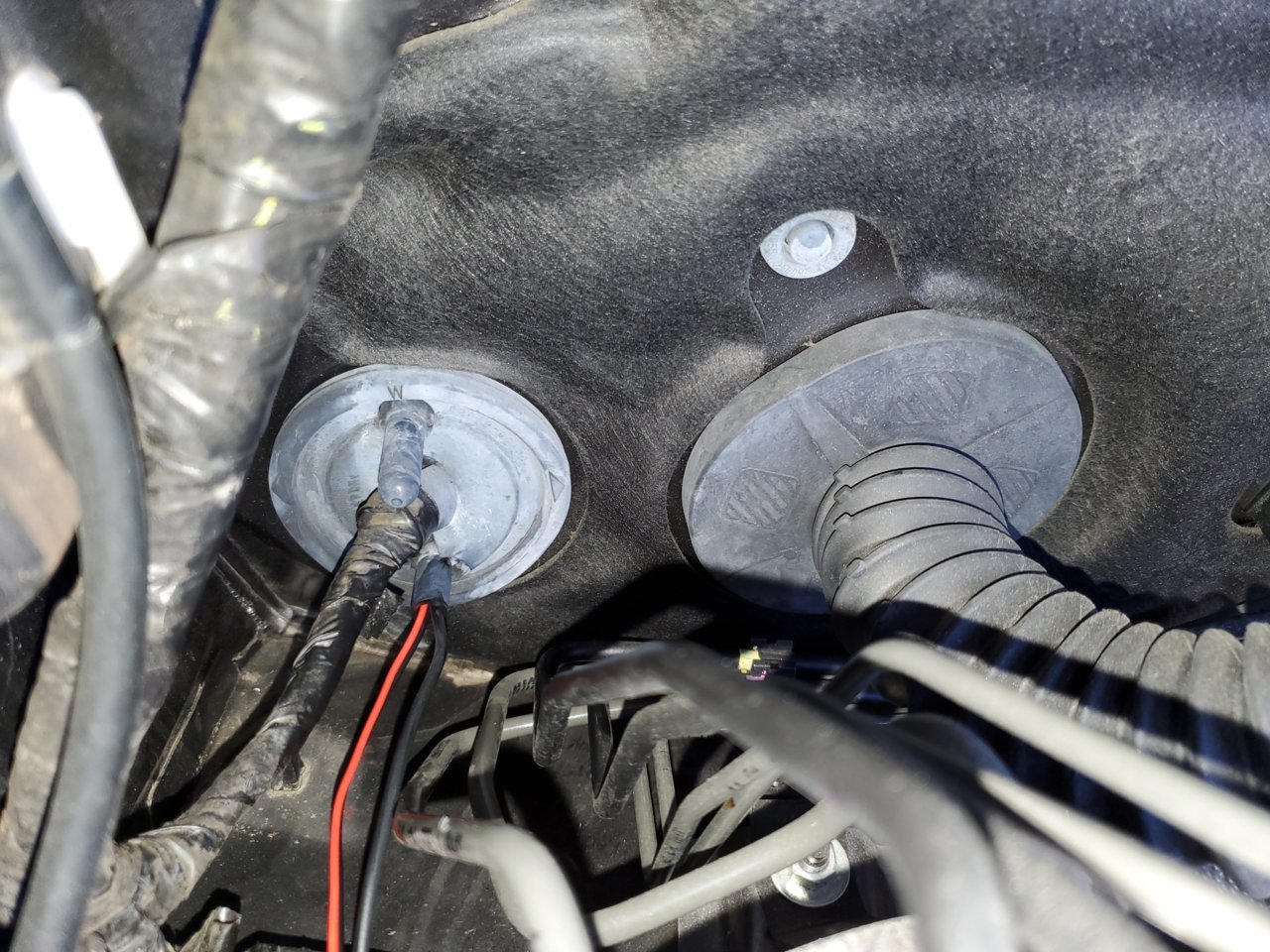

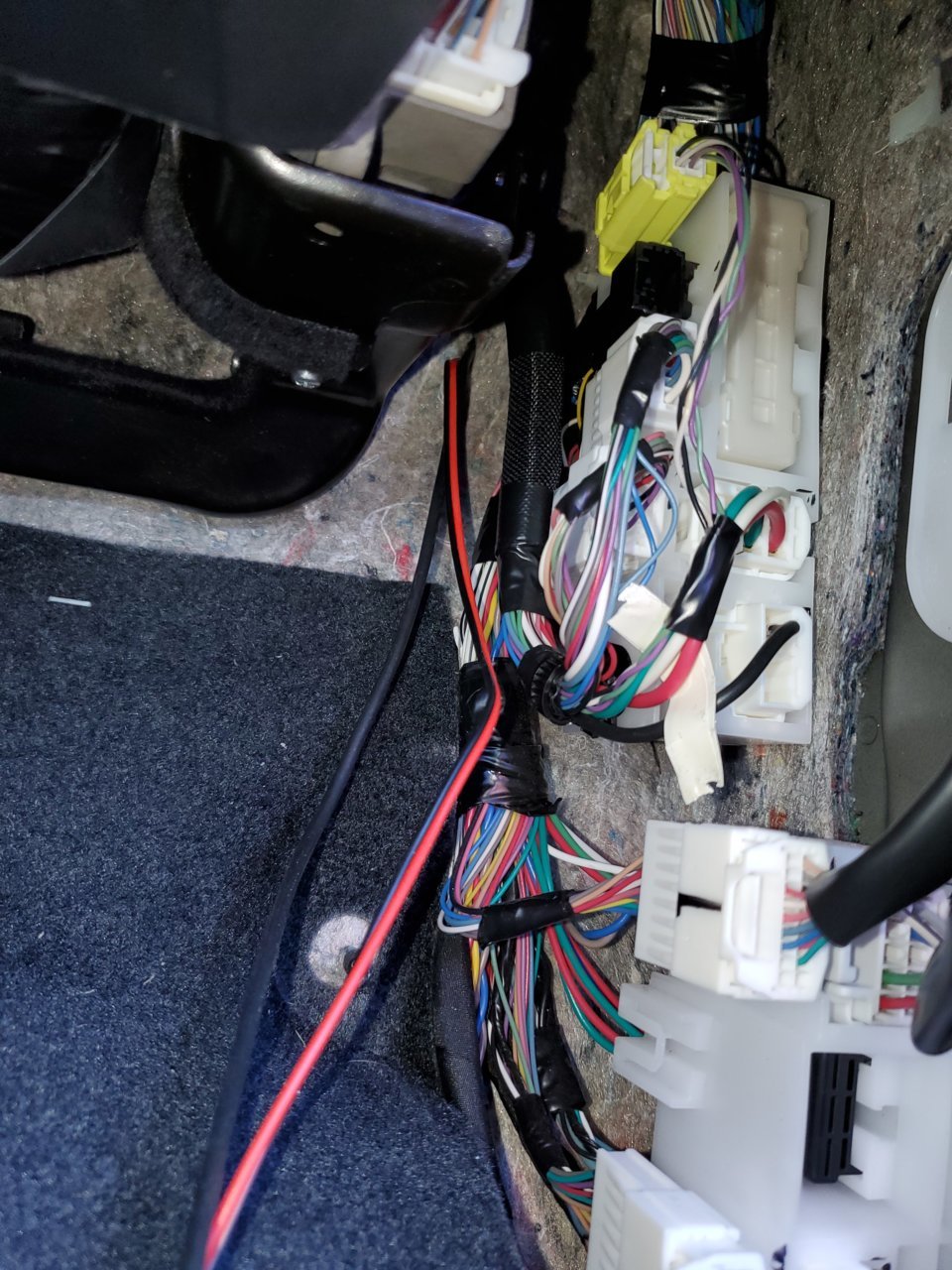

    I used the lower "nipple" because it seemed it was going to be easier to access the wires inside the cab. You'll need to remove the passenger side kick panel to get to them . . .

    20200228_115757.jpg 20200228_115836.jpg

  8. Aug 2, 2020 at 10:02 AM
    #8
    LTG4087

    LTG4087 [OP] Well-Known Member

    Joined:
    Jul 3, 2012
    Member:
    #81852
    Messages:
    1,213
    Gender:
    Male
    First Name:
    LT
    DFW
    Vehicle:
    2019 TRD Off Road
    I've got too much stuff on the drivers side which I'd need to remove to work with that entry point plus everything will be terminating on the passenger side so it just make sense to me to go through there.

  9. Aug 2, 2020 at 11:15 AM
    #9
    jruiz555

    jruiz555 Well-Known Member

    Joined:
    Jan 12, 2019
    Member:
    #279080
    Messages:
    688
    Gender:
    Male
    i missed the whole acronyms or something, what does OR stand for? i been living inside this whole year.

  10. Aug 2, 2020 at 11:24 AM
    #10
    Doobfucious

    Doobfucious I get it. It ain't makin' me laugh but I get it.

    Joined:
    Sep 9, 2019
    Member:
    #304743
    Messages:
    417
    First Name:
    Doobie
    WNC
    Vehicle:
    2020 TRDOR DCSB 6MT
    Stock AF. My 68 Bronco and 2000 2.5RS get the mods.
    Off road.

    There are service spots in the harness to run wires though, they're the nipples people are talking about. They are very much there on purpose.

    It's in your best interest to get some black butyl and seal up where you poked holes. Pull wire back a little, goober on the butyl, very slowly pull the wire through a bit extra, then push to settle it where it should really be. That's the easiest, fastest, most reliable way to seal it up. The butyl remains sticky and pliable for a very, very long time. Ever pull a door foil / moisture barrier on a 25 year old car and get that black goop everywhere? Butyl. It's magic. It can also be another version of car herpes and track everywhere, so be careful. Strong isopropyl alcohol will clean it up. Strong, like 92%.

    Interbeing likes this.
  11. Aug 3, 2020 at 11:55 AM
    #11
    LTG4087

    LTG4087 [OP] Well-Known Member

    Joined:
    Jul 3, 2012
    Member:
    #81852
    Messages:
    1,213
    Gender:
    Male
    First Name:
    LT
    DFW
    Vehicle:
    2019 TRD Off Road
    Thanks, That's exactly where it comes out. Under the kick panel which is perfect since I will then continue to route the cable under the front passenger seat where the radio body will sit. I ran a coat hanger through to see how it will work and although it's pretty tight I think I can get the RG58 coax through there but not with a connector on the end. I'll have to run it through as a bare cable and then install the PL259 connector once it's through. Kind of a PITA soldering on the truck floor but surely doable. I'll run the power cable through the other nipple and I guess I'll need to cut the inline fuses off and then re splice them back on.

    DES2009 likes this.
