2020 speaker harness help

Discussion in '3rd Gen. Tacomas (2016+)' started by Airheader911, Dec 22, 2019.

  1. Dec 22, 2019 at 9:50 AM
    #1
    Airheader911

    Airheader911 [OP] Active Member

    Joined:
    Nov 2, 2019
    Member:
    #309683
    Messages:
    30
    Gender:
    Male
    I am upgrading the stereo in my 2020 tacoma trd sport. I am adding an external lc7i and jlaudio amp to new speakers. I bought the metra wiring harness that worked with previous models but discovered the connectors changed for the 2020 head unit . Anyone have any idea what the wiring codes are as I will have to cut and splice into the factory harness

  2. Dec 22, 2019 at 9:57 AM
    #2
    Itchyfeet

    Itchyfeet Well-Known Member

    Joined:
    Apr 1, 2016
    Member:
    #183054
    Messages:
    8,599
    Cut and splice into the factory harness. Nope wouldn't do it

    dand likes this.
  3. Dec 22, 2019 at 10:06 AM
    #3
    Whitetail Assassin

    Whitetail Assassin Well-Known Member

    Joined:
    Nov 19, 2017
    Member:
    #236398
    Messages:
    3,046
    Gender:
    Male
    First Name:
    Tedric
    Virginia
    Vehicle:
    2019 Magnetic Gray TRD Off-Road 6 Speed MT
    If it’s door speaker stuff the rear are the same and the fronts are different. Do a search. It was just discussed in a thread recently.

    If it has to do with the actual head unit then not sure how you can figure that out easily.

    shakerhood likes this.
  4. Dec 22, 2019 at 11:02 AM
    #4
    Airheader911

    Airheader911 [OP] Active Member

    Joined:
    Nov 2, 2019
    Member:
    #309683
    Messages:
    30
    Gender:
    Male
    Yeah it is the harness at the head unit that has changed , no wiring pin out chart yet for 2020

  5. Dec 22, 2019 at 11:03 AM
    #5
    Matmo215

    Matmo215 Baylor ΣΑΕ

    Joined:
    Sep 15, 2016
    Member:
    #197333
    Messages:
    7,417
    Gender:
    Male
    First Name:
    Matthew
    Waco, TX
    Vehicle:
    2015 Sport DCSB
    I wouldn’t cut into the factory harness. I’d wait and see if I could find one for a 2020

    Whitetail Assassin likes this.
  6. Dec 22, 2019 at 12:54 PM
    #6
    Airheader911

    Airheader911 [OP] Active Member

    Joined:
    Nov 2, 2019
    Member:
    #309683
    Messages:
    30
    Gender:
    Male
    Rung out the wires as I may be the first one on here to make this mod.
    Will post the chart for others when I get a minute

  7. Jan 30, 2020 at 4:06 PM
    #7
    Airheader911

    Airheader911 [OP] Active Member

    Joined:
    Nov 2, 2019
    Member:
    #309683
    Messages:
    30
    Gender:
    Male
    Sorry for not adding this sooner:

    Red = (+) right rear
    White= (-) right rear

    Violet/ red stripe = (+) right front
    Violet/ purple stripe = ( - ) left front

    Black = (+) left rear
    Yellow = (-) left rear

    Violet/ green stripe = (+) right front
    Violet/ blue stripe = (-) right front

    Element Zero and dpm89 like this.
  8. Mar 17, 2020 at 12:34 PM
    #8
    VooDooComa

    VooDooComa New Member

    Joined:
    Jan 21, 2020
    Member:
    #316876
    Messages:
    2
    Gender:
    Male
    First Name:
    Phancy
    Vehicle:
    Voodoo
    N00b
    This is for 2020 right ? Im having the save issue. I did the metra ans all that. To find out its different pin .. Micro pin compare to what was being told or used.. Im myself bout to tapp in but need the speaker diagram. Ty.

  9. Apr 3, 2020 at 12:25 PM
    #9
    SmileyGuy

    SmileyGuy Well-Known Member

    Joined:
    Nov 21, 2019
    Member:
    #311305
    Messages:
    423
    Gender:
    Male
    First Name:
    Darrin
    Nova Scotia
    Vehicle:
    20 Tacoma Off Road Voodoo Blue DC SB TRD Premium CAN
  10. Apr 3, 2020 at 12:28 PM
    #10
    SmileyGuy

    SmileyGuy Well-Known Member

    Joined:
    Nov 21, 2019
    Member:
    #311305
    Messages:
    423
    Gender:
    Male
    First Name:
    Darrin
    Nova Scotia
    Vehicle:
    20 Tacoma Off Road Voodoo Blue DC SB TRD Premium CAN

    This would be at the non JBL head unit right?

  11. Apr 4, 2020 at 5:04 AM
    #11
    Airheader911

    Airheader911 [OP] Active Member

    Joined:
    Nov 2, 2019
    Member:
    #309683
    Messages:
    30
    Gender:
    Male
    Yes non jbl head unit

  12. Apr 4, 2020 at 6:32 AM
    #12
    DAS Taco

    DAS Taco Well-Known Member

    Joined:
    Mar 13, 2020
    Member:
    #322072
    Messages:
    1,340
    Gender:
    Male
    First Name:
    DAS
    Vehicle:
    2017 TRD Offroad
    Hi, this wire colour applies to what years?, I assume this is the speakers polarity?, thanks

  13. Apr 4, 2020 at 6:36 AM
    #13
    Airheader911

    Airheader911 [OP] Active Member

    Joined:
    Nov 2, 2019
    Member:
    #309683
    Messages:
    30
    Gender:
    Male
    Hint- see title of thread
    2020

  14. Apr 4, 2020 at 10:27 AM
    #14
    SmileyGuy

    SmileyGuy Well-Known Member

    Joined:
    Nov 21, 2019
    Member:
    #311305
    Messages:
    423
    Gender:
    Male
    First Name:
    Darrin
    Nova Scotia
    Vehicle:
    20 Tacoma Off Road Voodoo Blue DC SB TRD Premium CAN
    Thanks I have the non JBL head unit also, good to know if I ever decide to add an amp or sub. I also replaced my 4 door speakers with Kickers and swapped out the 2 tweeters with Subaru Kickers. I am quite happy with the improved bass and extra volume. Have you tried it at that stage before adding the jlaudio amp?

  15. Apr 4, 2020 at 10:42 AM
    #15
    RubenZ

    RubenZ Well-Known Member

    Joined:
    Feb 16, 2020
    Member:
    #319467
    Messages:
    451
    Gender:
    Male
    South Texas
    Vehicle:
    2020 Cement Tacoma TRD Off-Road DCSB
  16. Apr 4, 2020 at 10:57 AM
    #16
    Airheader911

    Airheader911 [OP] Active Member

    Joined:
    Nov 2, 2019
    Member:
    #309683
    Messages:
    30
    Gender:
    Male
    I didnt try without the amp. Can't imagine it would be great considering what Toyota had in mind for speakers when they put the system together.
    Can't imagine the head unit puts out much power

  17. Apr 4, 2020 at 12:45 PM
    #17
    RubenZ

    RubenZ Well-Known Member

    Joined:
    Feb 16, 2020
    Member:
    #319467
    Messages:
    451
    Gender:
    Male
    South Texas
    Vehicle:
    2020 Cement Tacoma TRD Off-Road DCSB
    You mean these factory speakers aren’t bad ass? Lol


  18. Apr 4, 2020 at 1:38 PM
    #18
    SmileyGuy

    SmileyGuy Well-Known Member

    Joined:
    Nov 21, 2019
    Member:
    #311305
    Messages:
    423
    Gender:
    Male
    First Name:
    Darrin
    Nova Scotia
    Vehicle:
    20 Tacoma Off Road Voodoo Blue DC SB TRD Premium CAN
    Yeah that crap gota go. I am curious what the upgraded JBL system uses!

    I did notice that a volume level of 25 with android auto is my normal listening level. Previous it was much higher with poor audio. Now I can feel the bass in the floor and seat. You just don't know what your missing when you drive off the lot. Funny my tire shop guy wanted to get a look in my vehicle and the first thing he noticed was the door speakers!

  19. Apr 4, 2020 at 1:48 PM
    #19
    SmileyGuy

    SmileyGuy Well-Known Member

    Joined:
    Nov 21, 2019
    Member:
    #311305
    Messages:
    423
    Gender:
    Male
    First Name:
    Darrin
    Nova Scotia
    Vehicle:
    20 Tacoma Off Road Voodoo Blue DC SB TRD Premium CAN

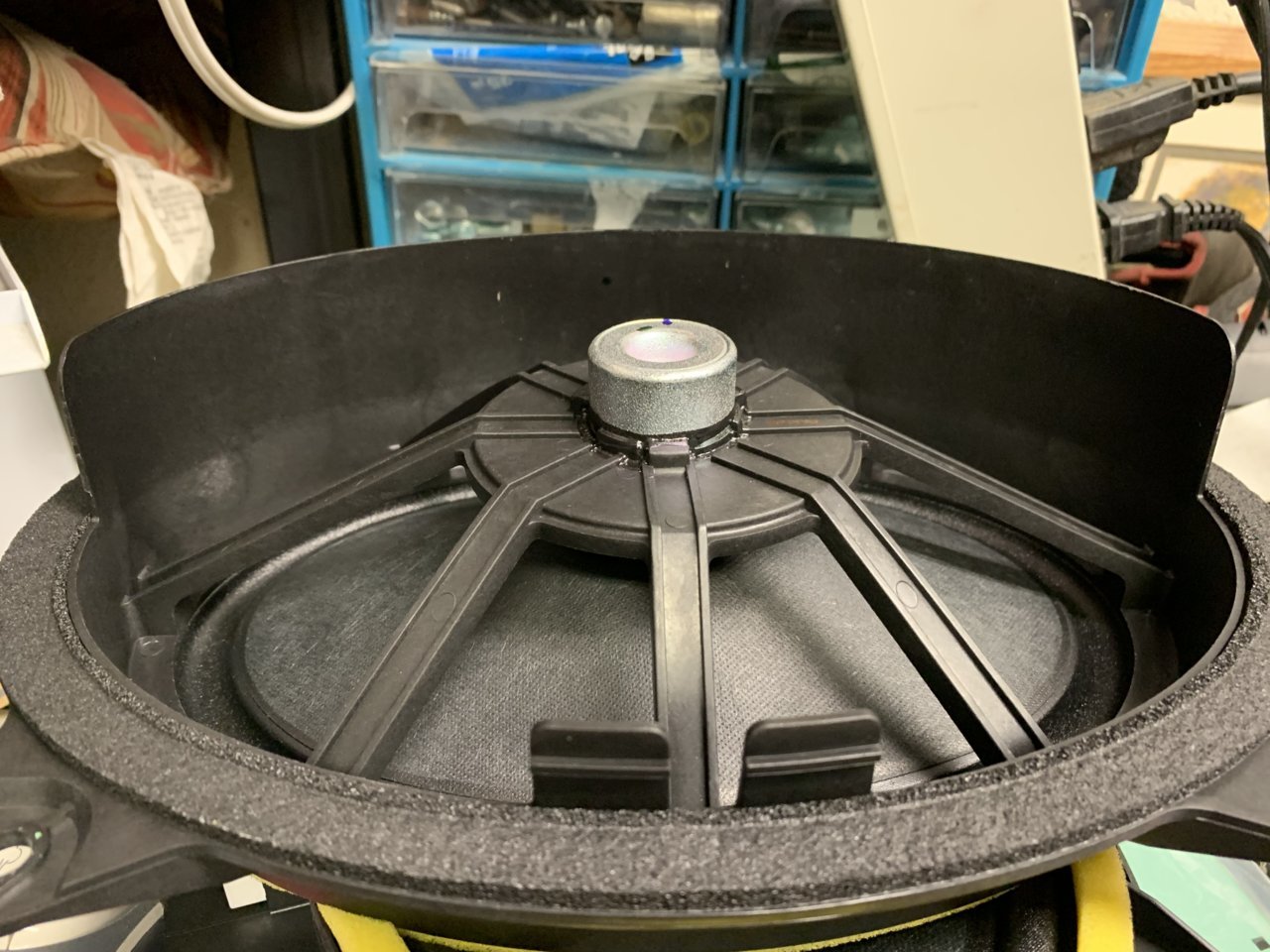

    6.4 oz of power vs 2 lb replacement!

  20. Apr 4, 2020 at 3:05 PM
    #20
    Infinite_Taco

    Infinite_Taco Well-Known Member

    Joined:
    Jul 23, 2018
    Member:
    #260293
    Messages:
    53
    Gender:
    Male
    First Name:
    Aaron
    Medford Oregon
    Vehicle:
    2020 Tacoma TRD PRO Magnetic Gray Metallic
    Damn that's a tiny magnet.
