2020 Tacoma Access Cab SR/SX Bed Light Mod

Discussion in '3rd Gen. Tacomas (2016+)' started by tgregory6852, Dec 17, 2020.

  1. Dec 17, 2020 at 5:07 AM
    #1
    tgregory6852

    tgregory6852 [OP] Retired Aerospace Engineer

    Joined:
    Nov 11, 2020
    Member:
    #346436
    Messages:
    29
    Gender:
    Male
    Upstate New York
    Vehicle:
    2020 Red Tacoma Access Cab, SR/SX
    Truxsport Tonneau Cover, HID Fog lights, remote start, nerf bars, dealer undercoat. OEM tailgate lock, Spiker hood struts, Gentex Autodim, compass, and Homelink rear view mirror, OEM Tacoma bed mat, cargo lighting kit w/switch and relay.
    I apologize for my ignorance as I’m new to the Mod world.
    The above Taco didn’t come with a cargo light switch in the dash. However it is wired for the lights in the bed wall under the tail lights.
    I ordered the below components based upon a note in the Amazon listing for the EOM light kit.
    Part Number Part Name
    PT857-35200 Bed Lighting Kit
    90080-87026 Fuel Pump Relay
    84267-0C020 Switch
    Note: I ordered these items from oempartsorce.com for around $80.00 plus shipping. Much better pricing than Amazon or eBay!

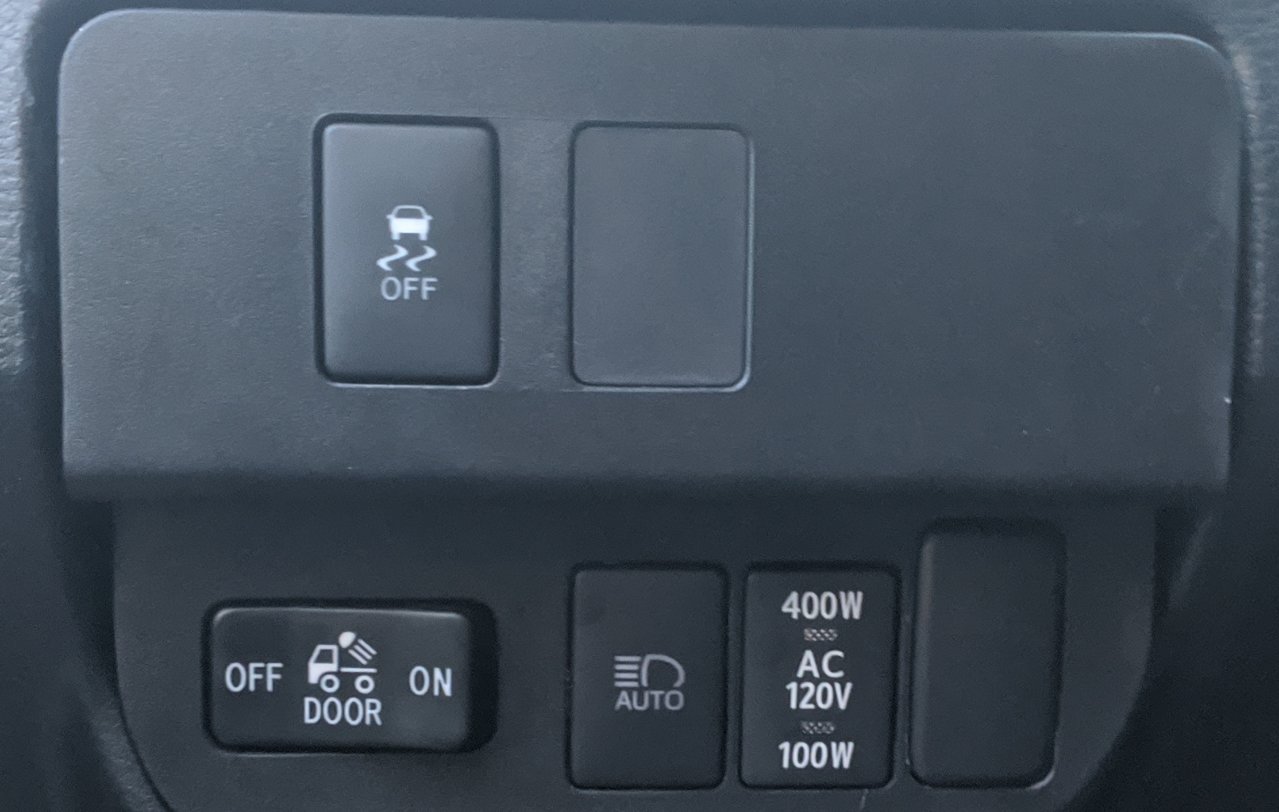

    I assume the cab is wired for this switch option as there is a vertical plug in the dash where I’ve seen the cargo switch on other versions of Taco’s.
    Now to my ignorance.
    1) I assume I can just push out the plug and there will be a harness there for it?
    2) Where does the relay plug in? I checked the main fuse/relay box under the hood but didn’t see a notation for the cab light/switch circuit?
    3) Will the vehicle automatically recognize the new parts and update the system so I can access the options for it in the system settings?
    4) Should I disconnect the battery before installing these components, and what consequences would that cause?

    Please review and advise at your convenience!
    Thanks,
    Tom

  2. Dec 17, 2020 at 6:39 AM
    #2
    SR5TacoMike

    SR5TacoMike Well-Known Member

    Joined:
    Dec 5, 2020
    Member:
    #348721
    Messages:
    74
    Gender:
    Male
    First Name:
    Mike
    Vehicle:
    2020 Tacoma SR5 V6 4X2 Metallic Grey Crew Cab Short Bed
    Interesting, I did not know this was an option. I too have a 2020 taco and I would like to do this too.

    SJBrown likes this.
  3. Dec 17, 2020 at 7:11 AM
    #3
    tgregory6852

    tgregory6852 [OP] Retired Aerospace Engineer

    Joined:
    Nov 11, 2020
    Member:
    #346436
    Messages:
    29
    Gender:
    Male
    Upstate New York
    Vehicle:
    2020 Red Tacoma Access Cab, SR/SX
    Truxsport Tonneau Cover, HID Fog lights, remote start, nerf bars, dealer undercoat. OEM tailgate lock, Spiker hood struts, Gentex Autodim, compass, and Homelink rear view mirror, OEM Tacoma bed mat, cargo lighting kit w/switch and relay.
    Go on YouTube and search on Tacoma mods. You’ll find hundreds of video’s.
    It’s addictive!
    Good luck

  4. Dec 17, 2020 at 10:29 AM
    #4
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,079
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    1- Only you can be sure when blank is pushed out.

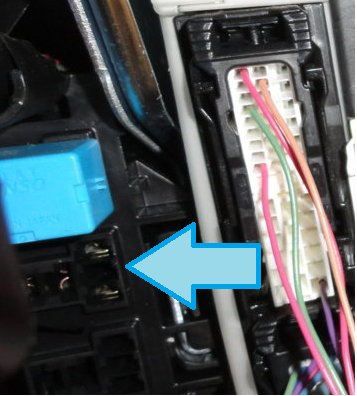

    2- upload_2020-12-17_14-25-40.jpgit's in the cab, not the engine bay.
    3- There's no magic/programming for the bed & cargo lamp on an SR. (it'll work)
    4- You should anytime you mess with the electrics and electronics of the vehicle. SR has no reset features after battery disconnected. It'll run rough until it relearns the engine settings again.

    P.S. Slot for switch should be horizontal. Unless you're OK with viewing the writing sideways (switch won't fit anyway) or use a Tundra switch.

    Last edited: Dec 17, 2020
    SJBrown likes this.
  5. Dec 17, 2020 at 11:24 AM
    #5
    tgregory6852

    tgregory6852 [OP] Retired Aerospace Engineer

    Joined:
    Nov 11, 2020
    Member:
    #346436
    Messages:
    29
    Gender:
    Male
    Upstate New York
    Vehicle:
    2020 Red Tacoma Access Cab, SR/SX
    Truxsport Tonneau Cover, HID Fog lights, remote start, nerf bars, dealer undercoat. OEM tailgate lock, Spiker hood struts, Gentex Autodim, compass, and Homelink rear view mirror, OEM Tacoma bed mat, cargo lighting kit w/switch and relay.
    Ok thanks, I’ll check out the relay location. Is it identified as such?
    My bad on the switch. There is a horizontal one.
    Tom

  6. Dec 17, 2020 at 11:27 AM
    #6
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,079
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Verify that the relay terminals are there...(inside the relay slot)

    SJBrown likes this.
  7. Dec 17, 2020 at 11:33 AM
    #7
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,079
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    A few members in the Forum had issues with the wire coming from the bed behind the tail lamps were not connected from the engine side to the cab. You should verify that also.

    SJBrown likes this.
  8. Dec 17, 2020 at 1:03 PM
    #8
    tgregory6852

    tgregory6852 [OP] Retired Aerospace Engineer

    Joined:
    Nov 11, 2020
    Member:
    #346436
    Messages:
    29
    Gender:
    Male
    Upstate New York
    Vehicle:
    2020 Red Tacoma Access Cab, SR/SX
    Truxsport Tonneau Cover, HID Fog lights, remote start, nerf bars, dealer undercoat. OEM tailgate lock, Spiker hood struts, Gentex Autodim, compass, and Homelink rear view mirror, OEM Tacoma bed mat, cargo lighting kit w/switch and relay.
    Ok will do.

  9. Dec 18, 2020 at 10:15 AM
    #9
    tgregory6852

    tgregory6852 [OP] Retired Aerospace Engineer

    Joined:
    Nov 11, 2020
    Member:
    #346436
    Messages:
    29
    Gender:
    Male
    Upstate New York
    Vehicle:
    2020 Red Tacoma Access Cab, SR/SX
    Truxsport Tonneau Cover, HID Fog lights, remote start, nerf bars, dealer undercoat. OEM tailgate lock, Spiker hood struts, Gentex Autodim, compass, and Homelink rear view mirror, OEM Tacoma bed mat, cargo lighting kit w/switch and relay.

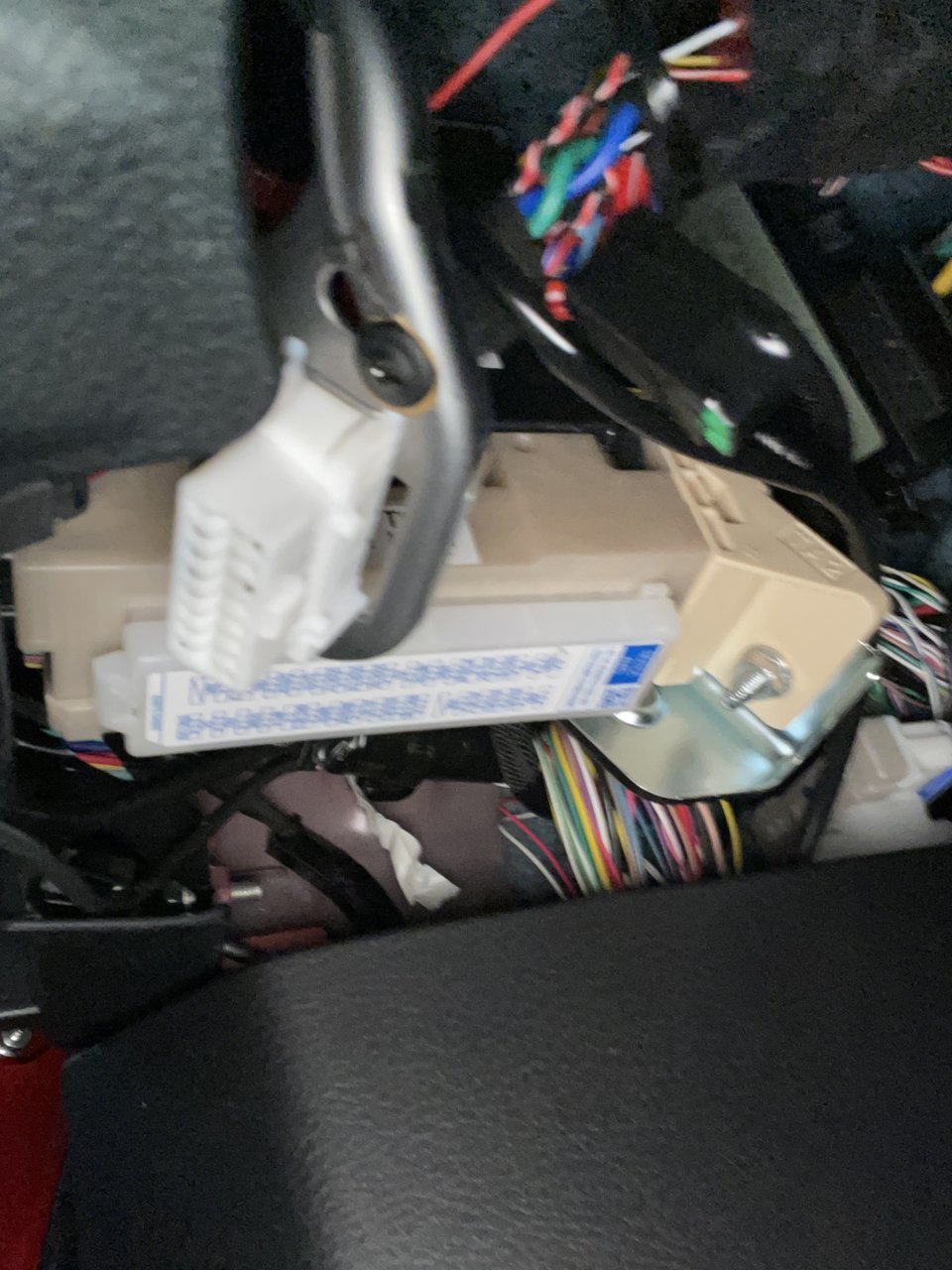

    Ok. Can’t get the plug out. Difficult to get to from behind. There is a harness with a couple plugs on it in that area. Will need the switch to determine which one would be correct. Also, I assume I should be looking on the drivers side for the relay block? I didn’t see one it see what is there below.
    Please advise.


    Attached Files:

    Last edited: Dec 18, 2020
    SJBrown likes this.
  10. Dec 18, 2020 at 10:22 AM
    #10
    kmorgan3

    kmorgan3 Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    854
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium

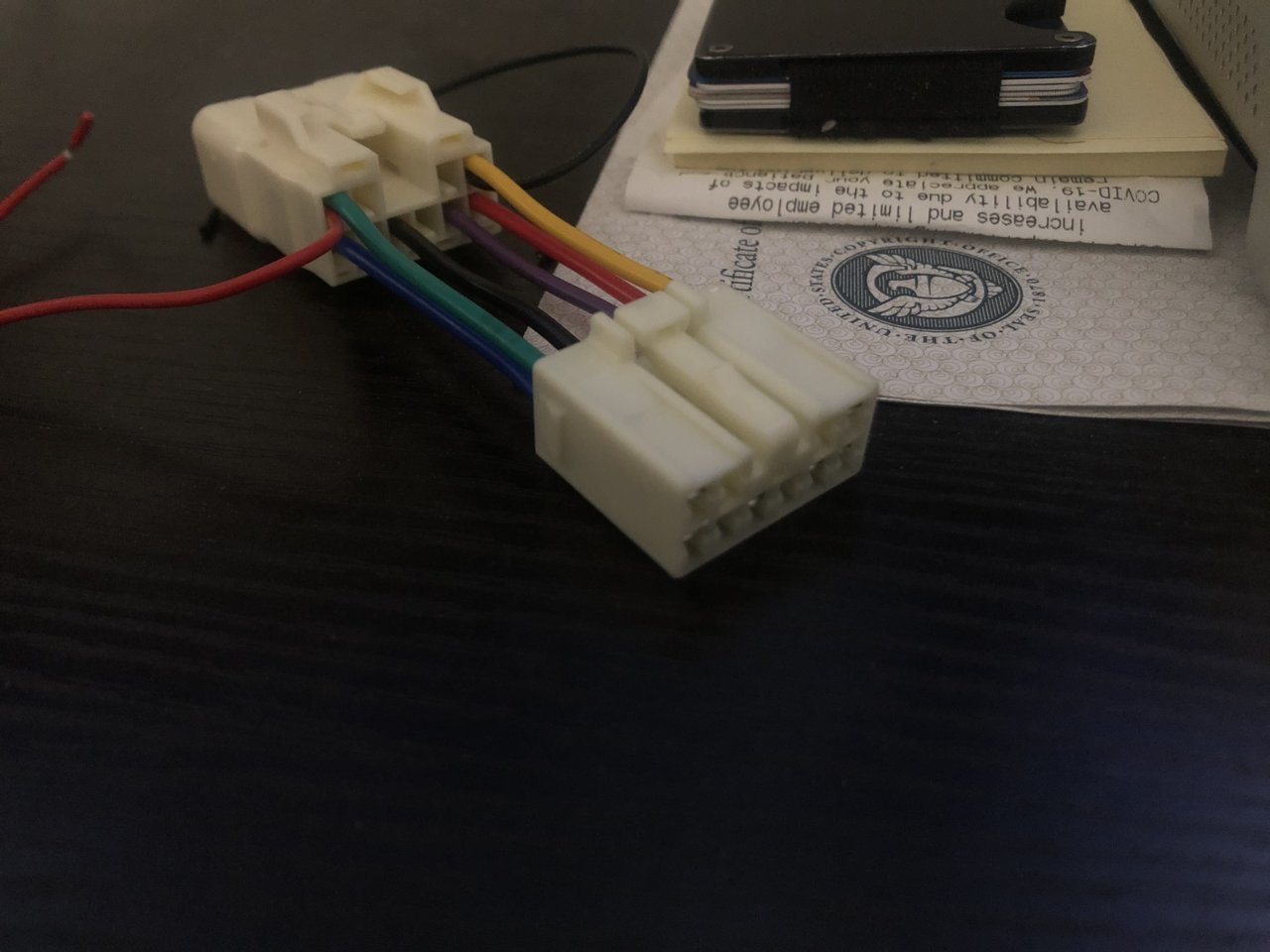

    Bed light switch connector looks like this but is black. It should be tucked into a plastic housing.


    For the relays check behind that kick panel in your images.

    *Edit: Also one thing to note is you probably won't have a switch blank for the horizontal bed light switch. You may need to order it aftermarket or get a different panel. @MESO sells panels for that side and can cut a bed light switch opening for you.

    Last edited: Dec 18, 2020
    SJBrown likes this.
  11. Dec 18, 2020 at 10:50 AM
    #11
    tgregory6852

    tgregory6852 [OP] Retired Aerospace Engineer

    Joined:
    Nov 11, 2020
    Member:
    #346436
    Messages:
    29
    Gender:
    Male
    Upstate New York
    Vehicle:
    2020 Red Tacoma Access Cab, SR/SX
    Truxsport Tonneau Cover, HID Fog lights, remote start, nerf bars, dealer undercoat. OEM tailgate lock, Spiker hood struts, Gentex Autodim, compass, and Homelink rear view mirror, OEM Tacoma bed mat, cargo lighting kit w/switch and relay.
    Ok. I did have the kick panel off but didn’t see the relay block. It’s got to be there somewhere as the vehicle has heated side mirrors as noted in the schematic above.
    Also, there is a horizontal blank on the dash. Can’t get the plug out.
    Thanks!

  12. Dec 18, 2020 at 10:55 AM
    #12
    kmorgan3

    kmorgan3 Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    854
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium
    Did you pull the whole assembly out to look at the horizontal blank? That whole assembly comes out with a little force.

  13. Dec 18, 2020 at 11:03 AM
    #13
    tgregory6852

    tgregory6852 [OP] Retired Aerospace Engineer

    Joined:
    Nov 11, 2020
    Member:
    #346436
    Messages:
    29
    Gender:
    Male
    Upstate New York
    Vehicle:
    2020 Red Tacoma Access Cab, SR/SX
    Truxsport Tonneau Cover, HID Fog lights, remote start, nerf bars, dealer undercoat. OEM tailgate lock, Spiker hood struts, Gentex Autodim, compass, and Homelink rear view mirror, OEM Tacoma bed mat, cargo lighting kit w/switch and relay.
    Ok. What’s the best way to get that out without damage?

  14. Dec 18, 2020 at 11:04 AM
    #14
    kmorgan3

    kmorgan3 Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    854
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium
  15. Dec 18, 2020 at 12:16 PM
    #15
    tgregory6852

    tgregory6852 [OP] Retired Aerospace Engineer

    Joined:
    Nov 11, 2020
    Member:
    #346436
    Messages:
    29
    Gender:
    Male
    Upstate New York
    Vehicle:
    2020 Red Tacoma Access Cab, SR/SX
    Truxsport Tonneau Cover, HID Fog lights, remote start, nerf bars, dealer undercoat. OEM tailgate lock, Spiker hood struts, Gentex Autodim, compass, and Homelink rear view mirror, OEM Tacoma bed mat, cargo lighting kit w/switch and relay.
    Gotta love YouTube if you know what to look for!! Worked like a charm.
    Thanks!

  16. Dec 18, 2020 at 12:22 PM
    #16
    tgregory6852

    tgregory6852 [OP] Retired Aerospace Engineer

    Joined:
    Nov 11, 2020
    Member:
    #346436
    Messages:
    29
    Gender:
    Male
    Upstate New York
    Vehicle:
    2020 Red Tacoma Access Cab, SR/SX
    Truxsport Tonneau Cover, HID Fog lights, remote start, nerf bars, dealer undercoat. OEM tailgate lock, Spiker hood struts, Gentex Autodim, compass, and Homelink rear view mirror, OEM Tacoma bed mat, cargo lighting kit w/switch and relay.
    Caribe Makaira
    Can you provide a more detailed location of the relay block. Is it behind the left kick panel?
    Thanks,
    Tom

  17. Dec 18, 2020 at 1:49 PM
    #17
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    5,079
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

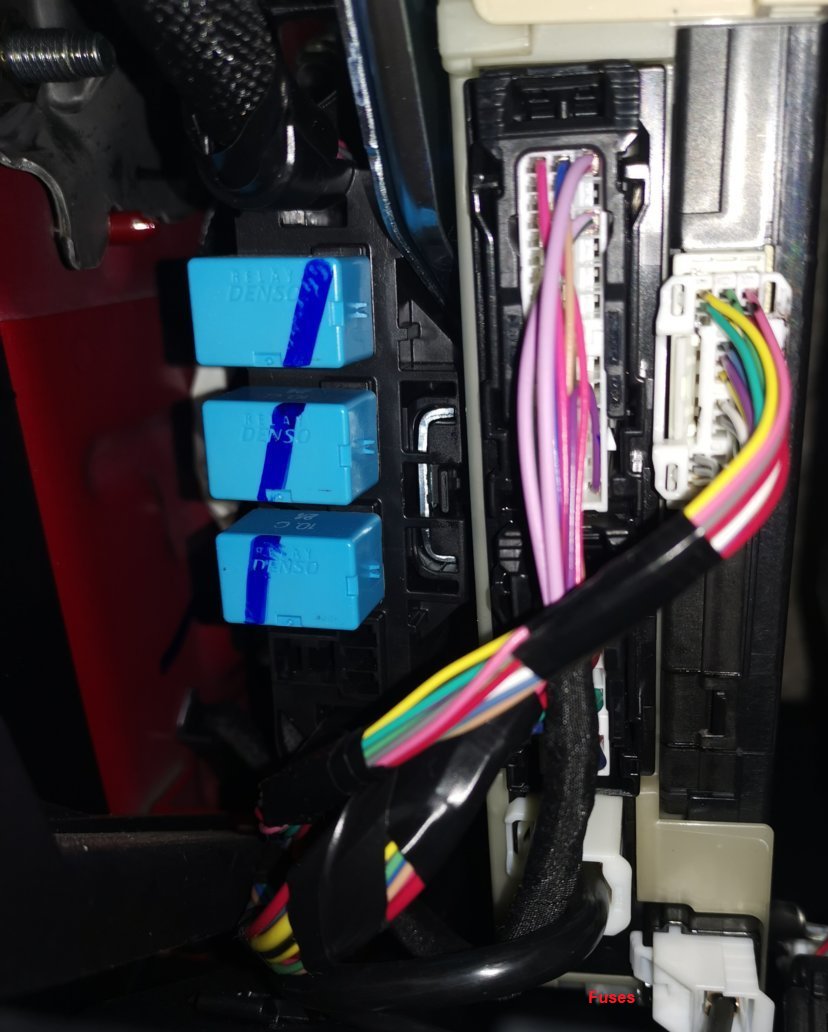

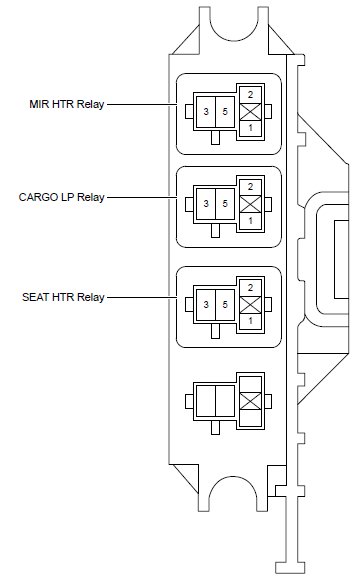

    If you found the cab fuse panel then the location you need is above and to the left.
    But if you removed the cubby, you should see the relay location right in the background.

  18. Dec 18, 2020 at 1:53 PM
    #18
    tgregory6852

    tgregory6852 [OP] Retired Aerospace Engineer

    Joined:
    Nov 11, 2020
    Member:
    #346436
    Messages:
    29
    Gender:
    Male
    Upstate New York
    Vehicle:
    2020 Red Tacoma Access Cab, SR/SX
    Truxsport Tonneau Cover, HID Fog lights, remote start, nerf bars, dealer undercoat. OEM tailgate lock, Spiker hood struts, Gentex Autodim, compass, and Homelink rear view mirror, OEM Tacoma bed mat, cargo lighting kit w/switch and relay.
    Ok I’ll check.
    Thanks

  19. Dec 18, 2020 at 2:15 PM
    #19
    NoVa TRD Sport

    NoVa TRD Sport Well-Known Member

    Joined:
    Nov 10, 2020
    Member:
    #346369
    Messages:
    228
    Gender:
    Male
    First Name:
    Alexander
    Northern Virginia
    Vehicle:
    2021 Army Green TRD Sport
    Leer cap
    That video makes removing the panel look easy -- one pry at the upper right corner and it pops off. Well, I'm here to tell you -- it's not that easy. I spent a couple of hours prying at various points around the panel and made no progress. Or rather, it seemed like things were about to break. I stopped because I didn't want to damage a brand-new truck. There are 10 clips that need to be released. If you pry the way it's shown in the video, some of those clips are going to break for sure. I need to see the real-world procedures that the professionals use.

  20. Dec 18, 2020 at 3:16 PM
    #20
    kmorgan3

    kmorgan3 Well-Known Member

    Joined:
    Aug 22, 2019
    Member:
    #302994
    Messages:
    854
    Gender:
    Male
    First Name:
    Kyle
    Vehicle:
    2019 Tacoma SR | 2020 4Runner SR5 Premium
    That's funny; I've ripped mine off about a dozen times and each time I Just pry at a corner and it pops off. You must have the super strength clip mod.

    caribe makaira likes this.
