2021 Tacoma Brake controller wiring harness

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Taco20212017, Apr 2, 2024.

  1. Apr 2, 2024 at 4:39 PM
    #1
    Taco20212017

    Taco20212017 [OP] Member

    Joined:
    Apr 2, 2024
    Member:
    #447152
    Messages:
    8
  2. Apr 2, 2024 at 4:42 PM
    #2
    Taco20212017

    Taco20212017 [OP] Member

    Joined:
    Apr 2, 2024
    Member:
    #447152
    Messages:
    8
    Here, blue wire is connected to black, and black wire is connected to blue. Does anyone have a picture of the Tacoma brake controller harness?

  3. Apr 2, 2024 at 6:38 PM
    #3
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,422
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Check your towing wires and connector under the Taco and under the tailgate area. Could've been a short, got wires hot.

    Stevie17 likes this.
  4. Apr 2, 2024 at 6:43 PM
    #4
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,422
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

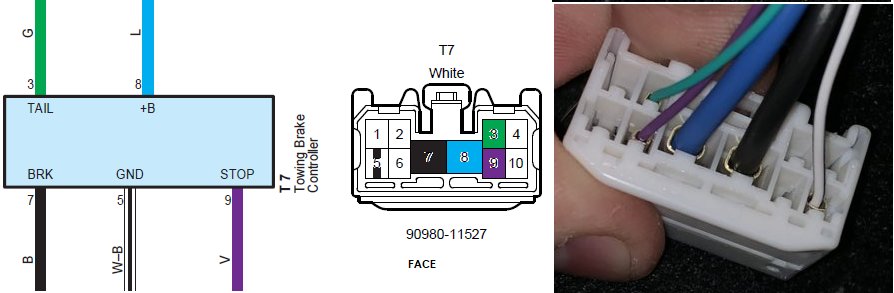

    Blue at vehicle side is fused power 40 amps (always juiced/hot)
    Black is to trailer electrical brakes
    Green is Dash/Tail illumination (Brake controller)
    White with Black stripe is ground (Brake controller)
    Violet is Brake signal input (Brake Controller)

    Stevie17 likes this.
  5. Apr 2, 2024 at 6:46 PM
    #5
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,422
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
  6. Apr 2, 2024 at 7:18 PM
    #6
    Taco20212017

    Taco20212017 [OP] Member

    Joined:
    Apr 2, 2024
    Member:
    #447152
    Messages:
    8
    Thanks! So the wiring harness is correct. Blue connects to black, and Black connects to Blue. So the truck doesn't start. Does the warranty cover this issue? Is the dealership going to fix this issue?

  7. Apr 2, 2024 at 7:20 PM
    #7
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,422
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    The wiring from the Taco is correct. The wiring from the Towing Brake module (visually) seems incorrect. I do not think the dealer will cover the meltdown.

    Chew likes this.
  8. Apr 2, 2024 at 8:05 PM
    #8
    Taco20212017

    Taco20212017 [OP] Member

    Joined:
    Apr 2, 2024
    Member:
    #447152
    Messages:
    8
    What do you mean by visually incorrect?

  9. Apr 2, 2024 at 8:19 PM
    #9
    Chew

    Chew Not so well known user

    Joined:
    Mar 6, 2019
    Member:
    #285575
    Messages:
    7,081
    Gender:
    Male
    First Name:
    Chewy
    Midwest
    Vehicle:
    19 TRD OR
    Amazon dog poo bed mat mod
    Warranty is cover manufacturing defects, sorry, this is not one of them. It’s tough enough to get them to cover what they should.

  10. Apr 2, 2024 at 8:29 PM
    #10
    caribe makaira

    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    10,422
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

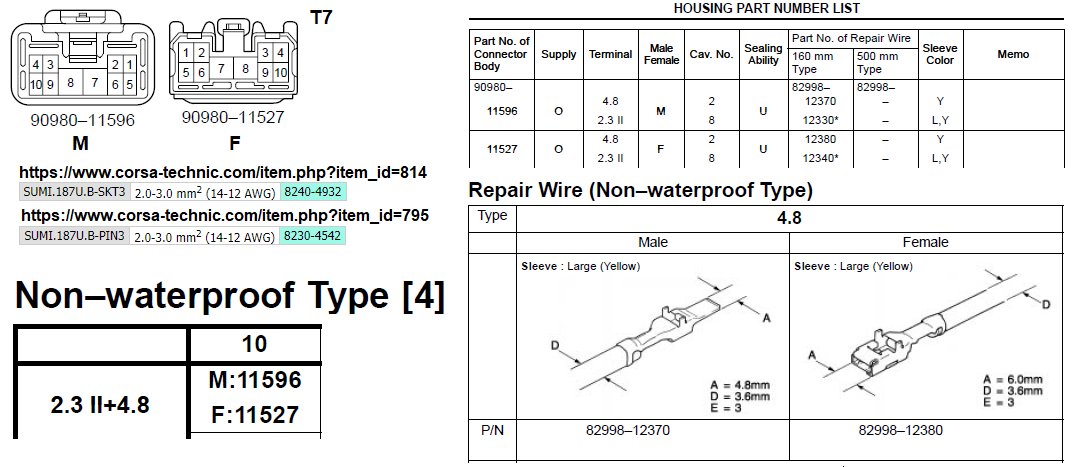

    wire colors do not mate. But colors do not necessarily correlate to the circuit they are attached to. (Worker could've inserted first color he saw, not following assembly guide)...

  11. Apr 2, 2024 at 8:36 PM
    #11
    2021SR5V64WD

    2021SR5V64WD Well-Known Member

    Joined:
    Mar 29, 2021
    Member:
    #360995
    Messages:
    2,713
    Gender:
    Male
    Vehicle:
    2021 SR5 V6 W4D ACESS CAB

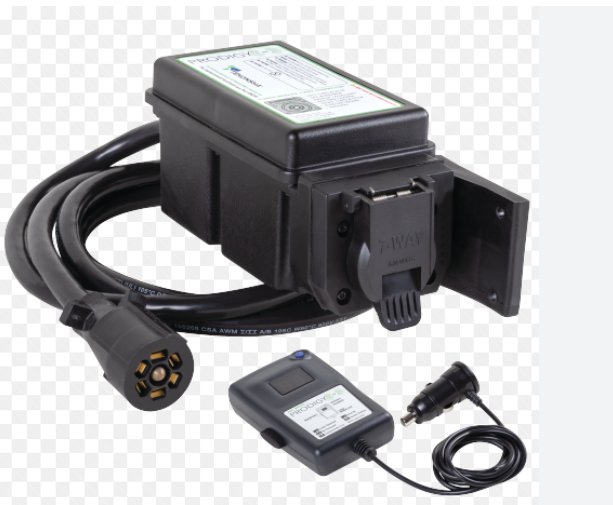

    I have this older style... the 902502 and I just plug into my 12v and away I go.
    Was a bit surprised when I first hooked up the little camper to the truck, plugged in the 7 pin, plugged to the 12v, and
    it worked right off the bat. Not as slick as the new-fangled setups but it works like a champ.


  12. Apr 3, 2024 at 11:28 AM
    #12
    Taco20212017

    Taco20212017 [OP] Member

    Joined:
    Apr 2, 2024
    Member:
    #447152
    Messages:
    8
