2022 TRD Off-Road LED Upgrade..Sorry

Hello, new to the forum and had a question. Just got a ‘22 TRD Off Road with the LED daytime running lights and halogen headlights. I’m ready to pull the trigger on the OEM full LEDs. Do I need the wiring harness adapter? What are the parts numbers for the OEM headlights if they came from the factory?

Thanks!



Welcome!
Yes, I do believe you need an adapter and I don’t think the OEM sells it.
There’s a guy here that makes and sells them, but I can’t remember his screen name. I bought a tail light adapter for a bed topper, great stuff!

@daveeasa ,,, that’s it!



@jna97

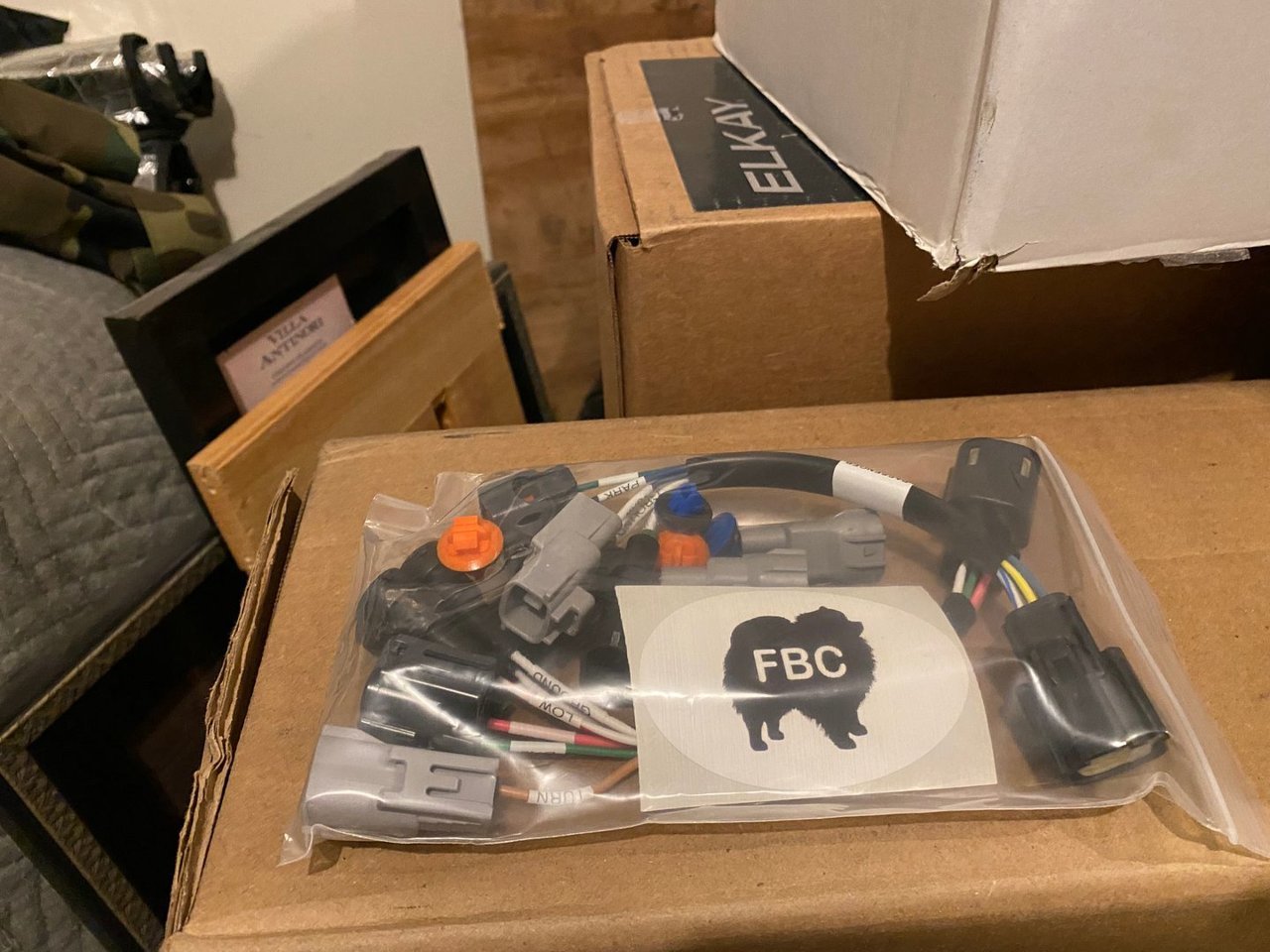

Here is the link to the one I bought. It’s made by @daveeasa
https://fbchs.square.site/product/toyota-tacoma-trd-2016-oem-led-headlight-conversion-harness/1



81110-04290 (right)
81150-04290 (left)

Part numbers for the non-TRD Pro factory LED headlights. +1 to @daveeasa for the harness!



Thanks guys!



Or snip the connectors and crimp these:
https://www.corsa-technic.com/item.php?item_id=1005



https://www.tacomaworld.com/threads/2020-tacoma-oem-led-headlight-megathread.592039/



If you ever encounter snow while driving, the LEDs will not melt the snow off the headlights. You will need to manually do that. If you are southern tier of the county then no worries.

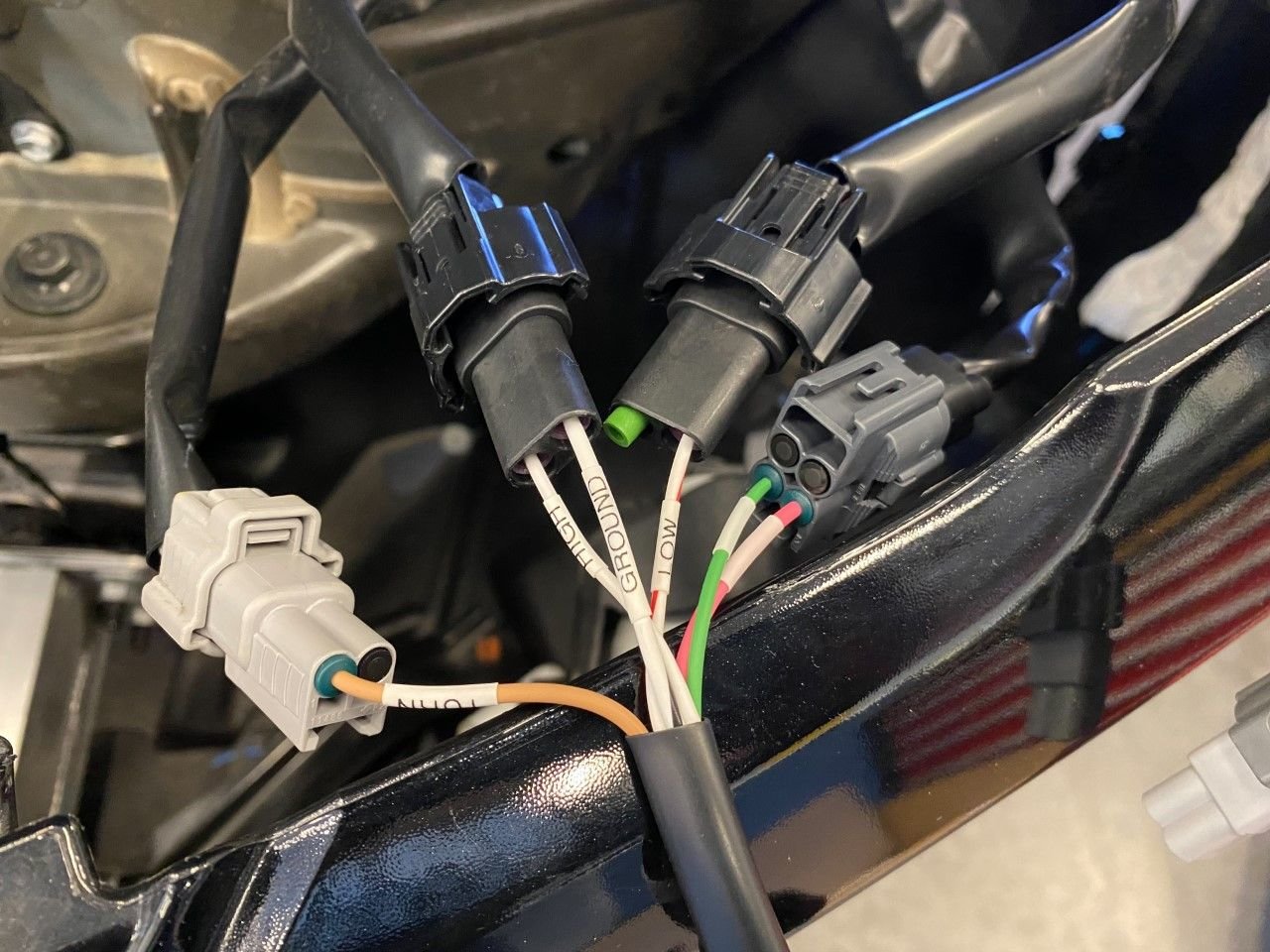

Buy @daveeasa Harness. The ones I bought from another retro source sucked. They were pinned backwards and blew the fuses. I ended up having to re-pin a harness I way overpaid for.



Looks like Dave is sold out



Read post #6



You could send him a PM to see about re-stock eta.

https://www.tacomaworld.com/threads/oem-led-headlight-conversion-harness.719405/

otherwise, there's others floating around if you can't wait; just have to do some searching...

https://square1offroad.com/products/29923



OP, if your not a wuss like most here, snip it, and crimp it. Way cheaper.

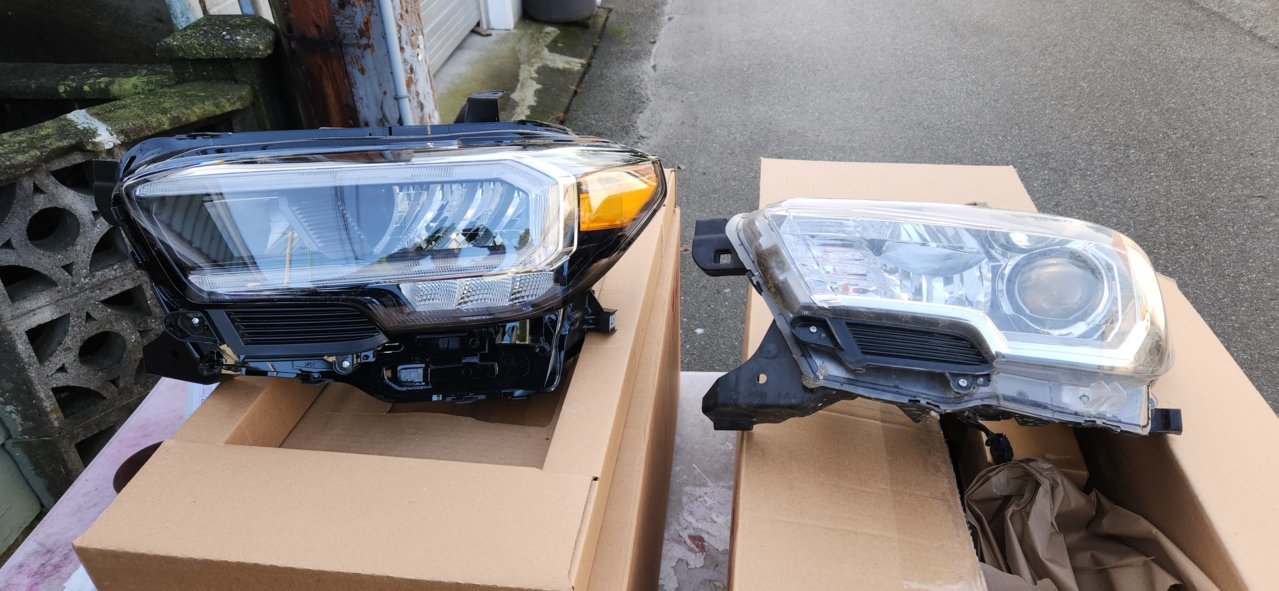

I bought my LED headlights off sparks parts and got dave's harnesses. Work flawlessly and I love them!



I’m a wuss



It's well worth the wait...Dave's Harness is the best!

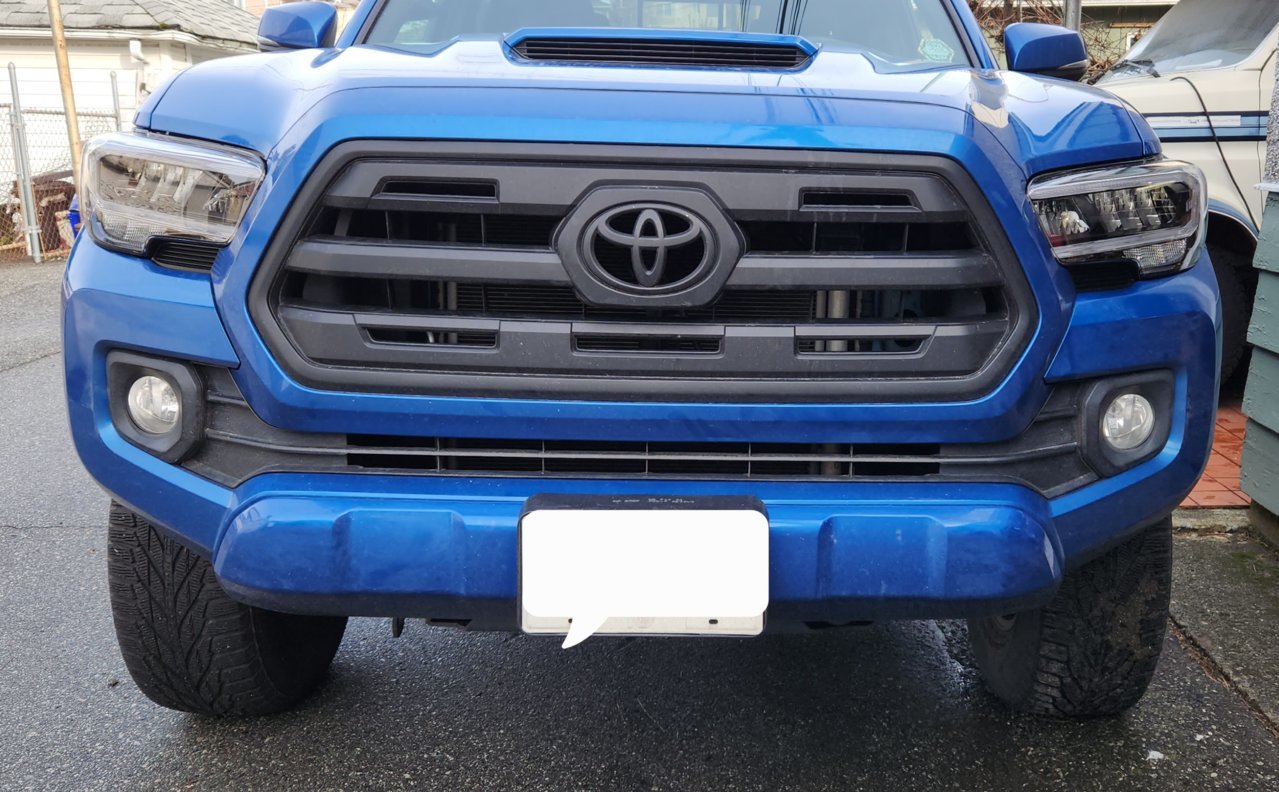

Satisfied with the results.



Just confirming these will work to upgrade a 2023 TRD Sport that came with the factory LED Foglights and DRL



@lossofvelocity

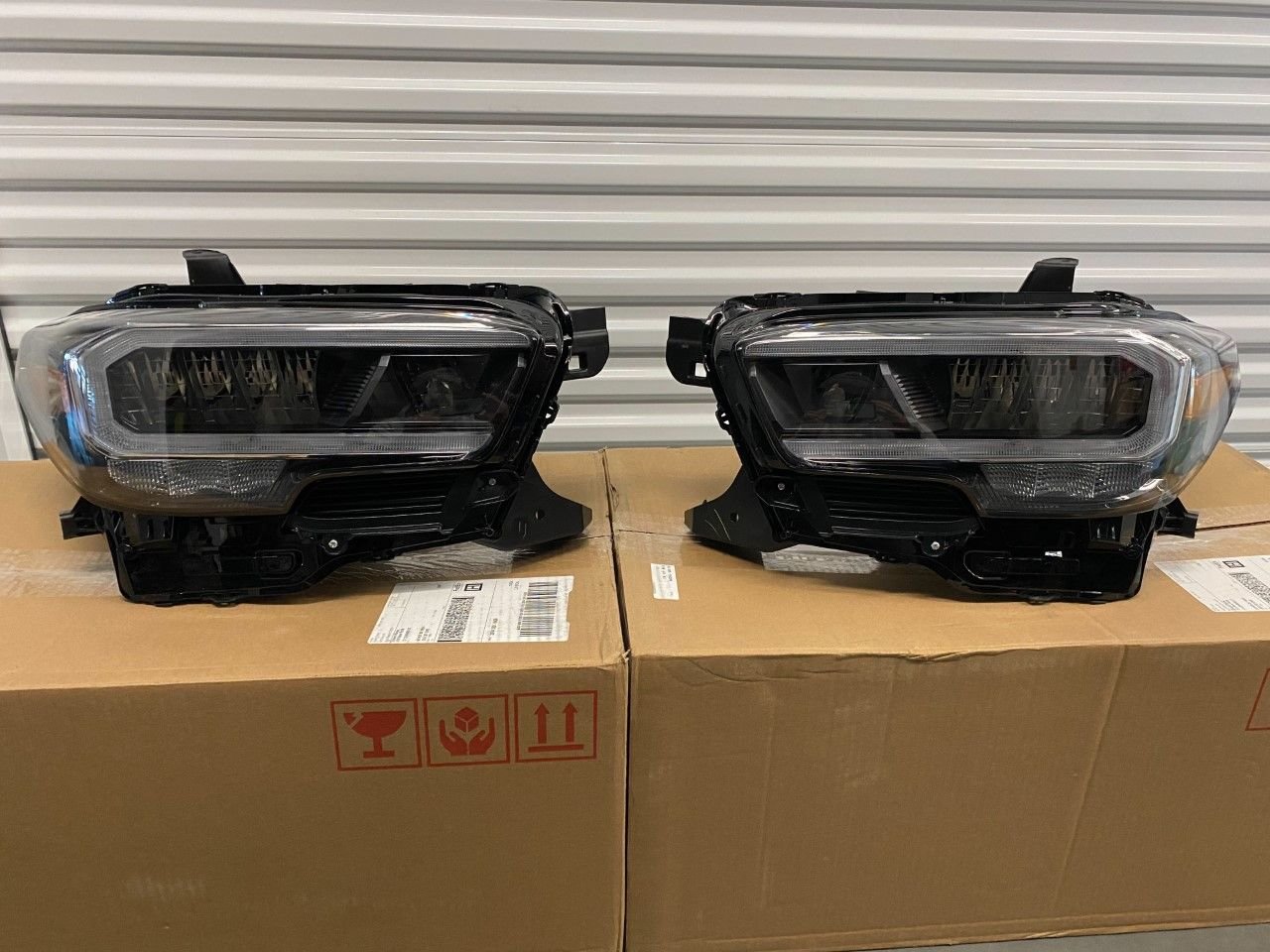

These are the part numbers & pricing from Sparks Toyota on Feb 1, 2022. I cried once but HAPPY with my OEM LED Headlights!

Part Number Part Name Price Quantity Total
81110-04290 LED Headlight (Right) $661.14 1 $661.14
81150-04290 LED Headlight (Left) $665.26 1 $665.26

Subtotal: $1,326.40
Estimated Shipping to 19904 via Standard Shipping: $43.34
Discount: -$10.84
Total: $1,358.90



I second the OEM LED headlamp upgrade, one of the best mods I have done to a vehicle like, hands down. And I have done a lot of big modifications on vehicles.



I need to re-find, but ...

Another post from daveeasa said he stopped. It said people unhappy with the overall LED upgrade (apparently not his product in particular) were trying to return the harness at full price. Maybe he is back in business, but I have decided to find other sources than him if I do it.
