2LO Plug & Play Harness Discussion

Discussion in '3rd Gen. Tacomas (2016+)' started by lapoltba, Feb 7, 2019.

  1. Jun 11, 2019 at 12:10 PM
    #281
    lapoltba

    lapoltba [OP] Well-Known Member

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    1,168
    Gender:
    Male
    06076
    Vehicle:
    '17 Sport ACLB V6/6MT OV-Tuned

    I should mention, the mounting bracket would be 3d printed. If I can get my printer fairly well calibrated I can print a bunch off and send them with the harness. Regardless I'll share the file for free if anyone wants to print it themselves.

    Pyrotech and tonered like this.
  2. Jun 11, 2019 at 3:32 PM
    #282
    lapoltba

    lapoltba [OP] Well-Known Member

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    1,168
    Gender:
    Male
    06076
    Vehicle:
    '17 Sport ACLB V6/6MT OV-Tuned
    More detailed pictures (also in the first post):



    02Duck, MOC221_, deusxanime and 5 others like this.
  3. Jun 11, 2019 at 4:16 PM
    #283
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    7,669
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Vehicle:
    2017 ACLB Sport 6MT BR
    1.05B 87, Functional Skewp, 7r41lbr34k3r knob, Debadge, Dechrome, MeSo switch panel and V4s
    That's real beauty right there. :cheers:

  4. Jun 11, 2019 at 4:23 PM
    #284
    smdcbr

    smdcbr Well-Known Member

    Joined:
    Mar 19, 2016
    Member:
    #181692
    Messages:
    85
    Gender:
    Male
    First Name:
    Steve
    Passaic county, NJ
    Vehicle:
    2016 Blue TRD Sport AC M/T
    That looks Nice! I wired my switch so the letter lighting comes on when my head lights are on, instead of all the time, but I may just ditch that and use yours. Not rushing you, but :spending:

  5. Jun 11, 2019 at 4:25 PM
    #285
    lapoltba

    lapoltba [OP] Well-Known Member

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    1,168
    Gender:
    Male
    06076
    Vehicle:
    '17 Sport ACLB V6/6MT OV-Tuned
    Since people need to put this switch in so many different places, it was too difficult to come up with a PnP way to get a dash light circuit. It is easy enough to modify if you want to do it that way though.

    tonered likes this.
  6. Jun 11, 2019 at 5:46 PM
    #286
    lapoltba

    lapoltba [OP] Well-Known Member

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    1,168
    Gender:
    Male
    06076
    Vehicle:
    '17 Sport ACLB V6/6MT OV-Tuned

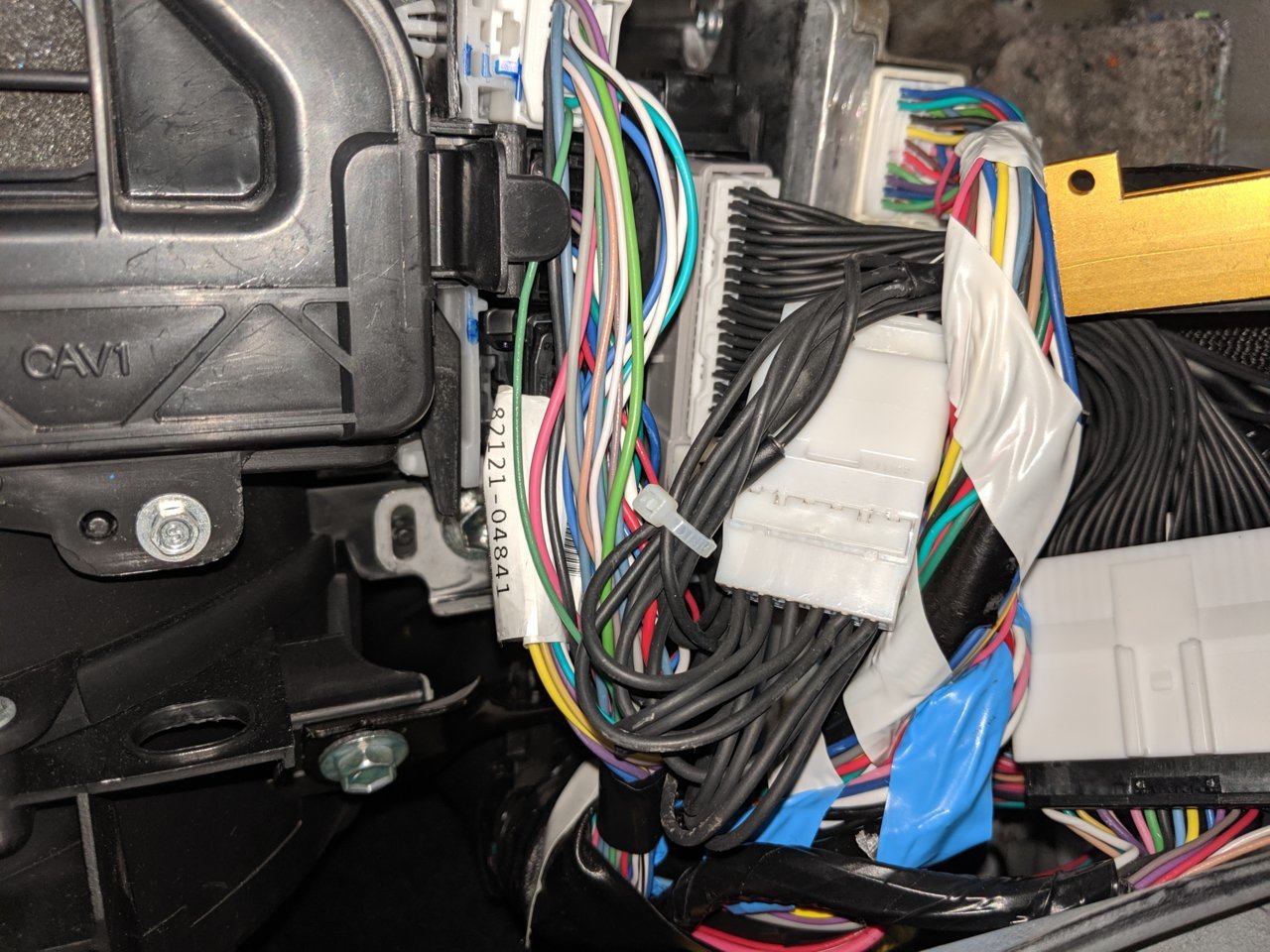

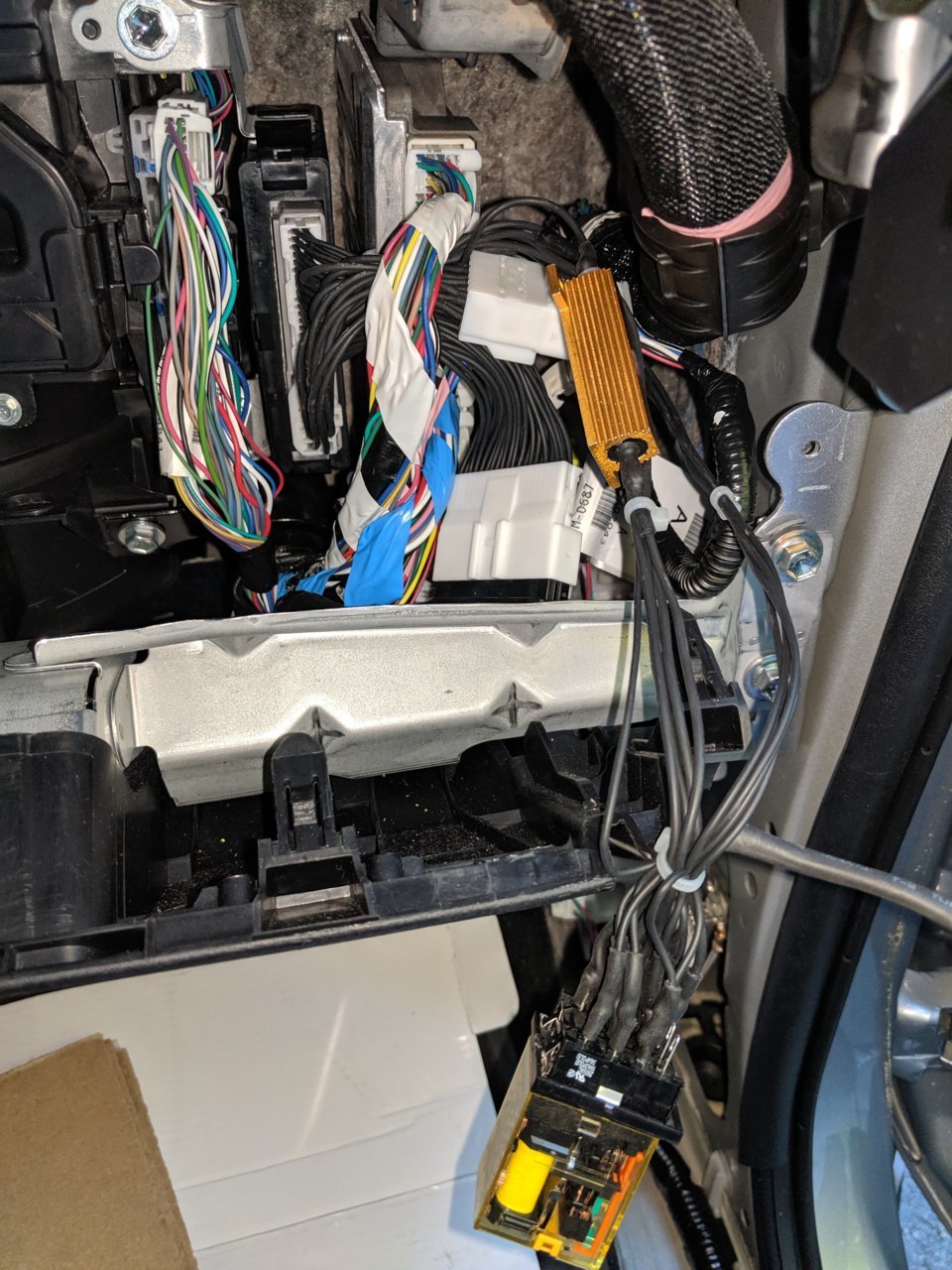

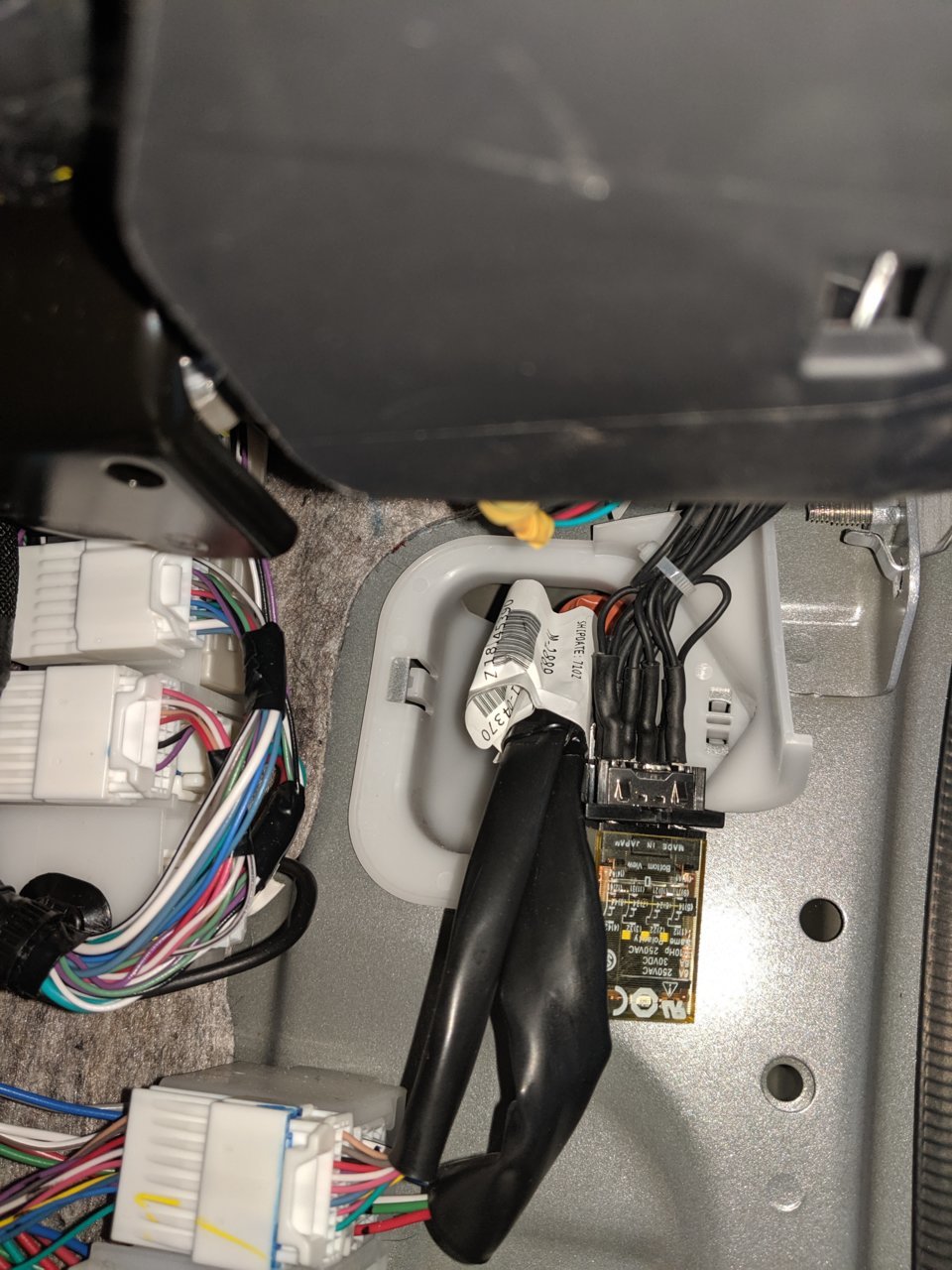

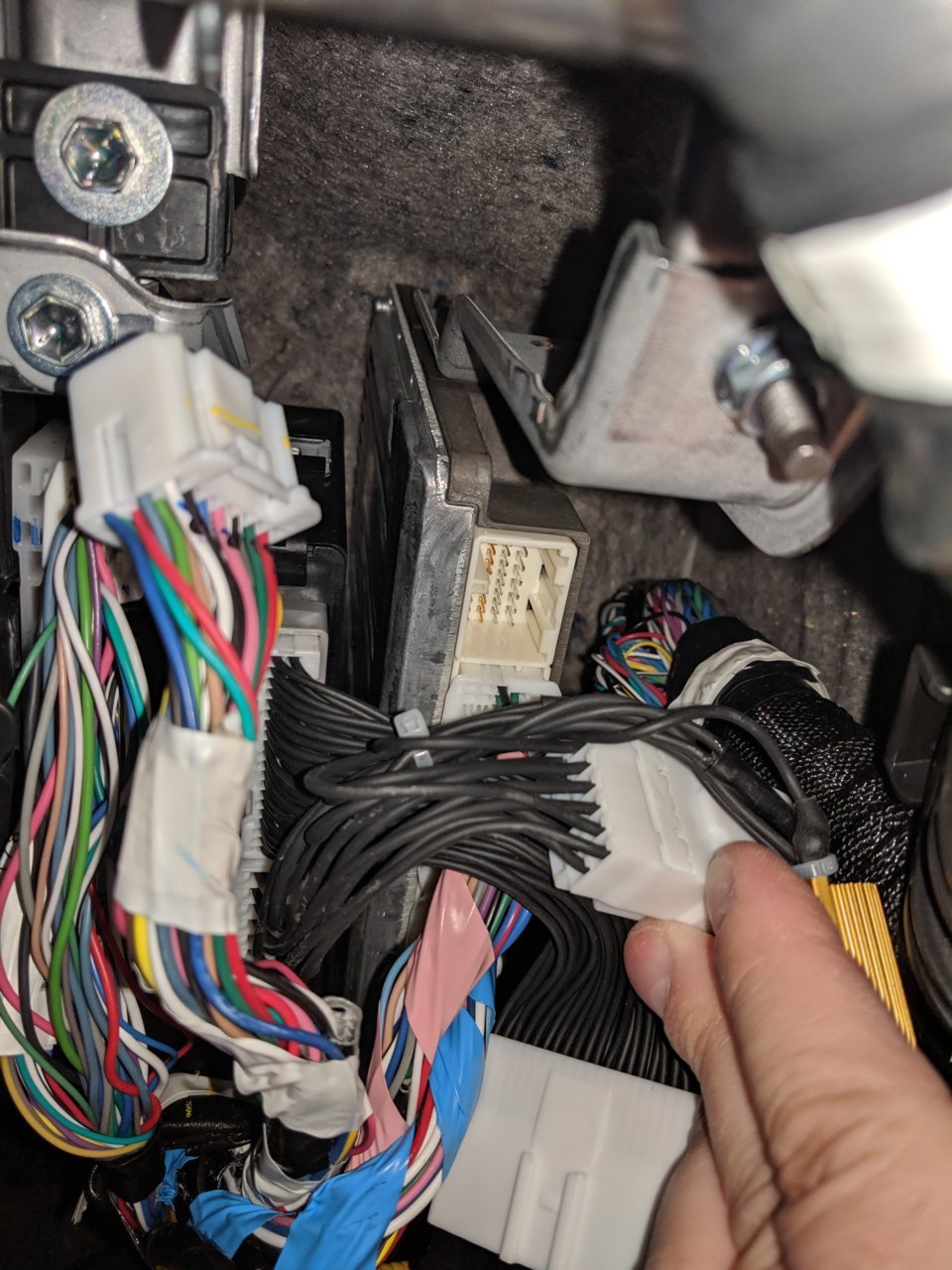

    Here are some pictures of my initial routing for the harness. The glove box sits right in front of the 4x4 ECU and when it is installed doesn't leave any room for wires to come straight out. I found that I could remove the upper plug from whatever computer is next to it and route the new harness under it and to the right to get it out of the way and secure. From there, the relay wiring can be tucked down toward the kick panel and secured there near where the door wiring exits. It's a nice easy spot to get to in the unlikely event that the relay needs to be replaced. The switch wiring can then be routed anywhere you like from there. It would be trivial to get it up to the overhead console, and easily routed above the glove box to the center console or left of the steering wheel. There is 8 feet of wire for the switch, and any extra can be zip tied to the metal subframe above the glove box.

    I don't think a bracket for the relay is even required. There is a clip to retain it in the socket that isn't on in the pictures.

    IMG_20190611_200219.jpg IMG_20190611_200245.jpg IMG_20190611_200153.jpg IMG_20190611_200304.jpg IMG_20190611_200414.jpg IMG_20190611_200425.jpg

    02Duck, MOC221_, pinochle and 5 others like this.
  7. Jun 12, 2019 at 8:45 AM
    #287
    MOC221_

    MOC221_ 3rd Gen GinGer StepchilD

    Joined:
    Feb 20, 2016
    Member:
    #178858
    Messages:
    5,559
    Gender:
    Male
    First Name:
    Frank
    Vehicle:
    2016 OR AC 6MT
    OVT 1.05 FOB 91
    Awesome update!

    I was just going to comment on putting a small zip tie around the relay body and across the underside of the socket to make sure it didn't wiggle it's way loose with vibration. The clip sounds like a much better idea.

    Shellshock likes this.
  8. Jun 12, 2019 at 11:35 AM
    #288
    lapoltba

    lapoltba [OP] Well-Known Member

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    1,168
    Gender:
    Male
    06076
    Vehicle:
    '17 Sport ACLB V6/6MT OV-Tuned
    Yep, the clips are like $0.20 each or something silly. If you're super paranoid, you can add a wrap of electrical tape around the clip. I'll snap a picture of it tonight.

    If I have time I will also be looking at final pricing. I am hoping to have a sale post up by the weekend. First two rounds of people that expressed interest I will be sending a group message to with the order form. The vendor says their lead time is only about a week, so the custom buttons may be what determines ship date to everyone.

  9. Jun 12, 2019 at 11:36 AM
    #289
    Sociopenguin

    Sociopenguin 2 Fang Engineering

    Joined:
    Jun 16, 2017
    Member:
    #221657
    Messages:
    1,691
    Gender:
    Male
    First Name:
    Tate
    NW MO
    Vehicle:
    DevilPenguin
    Schtuff
    Hell yeah! Gotta take mine apart soon anyway, knock this out at the same time maybe...

  10. Jun 12, 2019 at 11:37 AM
    #290
    02Duck

    02Duck manuals make it better

    Joined:
    Feb 18, 2013
    Member:
    #97842
    Messages:
    542
    Gender:
    Male
    Vehicle:
    2018 4WD TRD Off Road 6MT
    TRD Exhaust, Mobtown bolt on sliders and aluminum tailgate reinforcement, Reverse lights changed to yellow turn signals, LED pods added for reverse, ADD W1 oil catch can, Total Chaos bed reinforcement, rear diff breather to taillight mod, 12" combo led bars behind lower grill wired to high beams, Toyota led bed light kit, 400 watt anytime mod, SSO slimeline front bumper.
    Want this. Thank you for all the work.

  11. Jun 12, 2019 at 1:25 PM
    #291
    lapoltba

    lapoltba [OP] Well-Known Member

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    1,168
    Gender:
    Male
    06076
    Vehicle:
    '17 Sport ACLB V6/6MT OV-Tuned
  12. Jun 12, 2019 at 1:28 PM
    #292
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    7,669
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Vehicle:
    2017 ACLB Sport 6MT BR
    1.05B 87, Functional Skewp, 7r41lbr34k3r knob, Debadge, Dechrome, MeSo switch panel and V4s
  13. Jun 12, 2019 at 3:22 PM
    #293
    smdcbr

    smdcbr Well-Known Member

    Joined:
    Mar 19, 2016
    Member:
    #181692
    Messages:
    85
    Gender:
    Male
    First Name:
    Steve
    Passaic county, NJ
    Vehicle:
    2016 Blue TRD Sport AC M/T

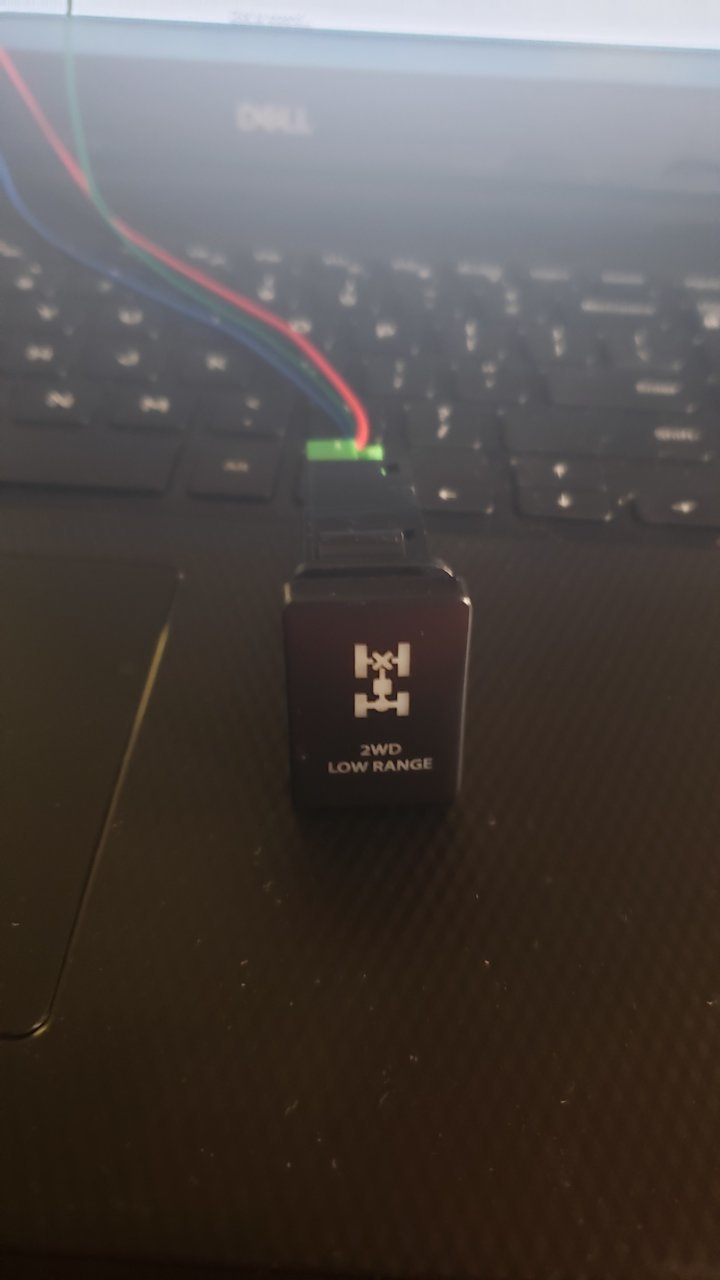

    fwiw, this is the one I got from CH4X4 in the "old" blue. The X in the front diff signifies to me it's disconnected.


  14. Jun 12, 2019 at 3:34 PM
    #294
    lapoltba

    lapoltba [OP] Well-Known Member

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    1,168
    Gender:
    Male
    06076
    Vehicle:
    '17 Sport ACLB V6/6MT OV-Tuned
    That's what I originally got, but everyone was saying it was the symbol for the locker, which according to the ISO symbol site I linked is "correct". It doesn't matter to me what people want, so I can make it an option. When I order the custom switches I can order in any quantity, size, orientation, color, and symbol combination.

    diff lock.jpg

    https://www.iso.org/obp/ui#iso:grs:7000:2476

    tonered and TeecoTaco like this.
  15. Jun 12, 2019 at 3:39 PM
    #295
    TeecoTaco

    TeecoTaco Well-Known Member

    Joined:
    Feb 26, 2017
    Member:
    #211739
    Messages:
    5,266
    SW Ontario
    Vehicle:
    16 Taco DCSB TRD Sport 6MT
    Modified the level of gas in the tank
    Have a picture of a butt dick, as long as when it's pushed 2wd low is achieved...is all I care

    tonered, Shellshock and lapoltba [OP] like this.
  16. Jun 12, 2019 at 3:42 PM
    #296
    Cav_BluTRD

    Cav_BluTRD BLUES! Stanley Cup Champs!

    Joined:
    Jan 30, 2019
    Member:
    #281288
    Messages:
    1,443
    First Name:
    Rich
    Lake Sherwood, MO
    Vehicle:
    2019 Calvary Blue OR, 1999 4Runner SR5
    OVTune, RCI stuff, BD lights, UpTopOverland roof rack, Mobtown Stuff
    Wait wait wait. Are we back in business @lapoltba

  17. Jun 12, 2019 at 3:42 PM
    #297
    lapoltba

    lapoltba [OP] Well-Known Member

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    1,168
    Gender:
    Male
    06076
    Vehicle:
    '17 Sport ACLB V6/6MT OV-Tuned
    That could be arranged. LOL!


    tonered, Shellshock and TeecoTaco like this.
  18. Jun 12, 2019 at 3:43 PM
    #298
    lapoltba

    lapoltba [OP] Well-Known Member

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    1,168
    Gender:
    Male
    06076
    Vehicle:
    '17 Sport ACLB V6/6MT OV-Tuned
    uhh, 2lo was always a thing, it's just taking longer than I would have liked.

    tonered, Shellshock and TeecoTaco like this.
  19. Jun 12, 2019 at 5:12 PM
    #299
    Cav_BluTRD

    Cav_BluTRD BLUES! Stanley Cup Champs!

    Joined:
    Jan 30, 2019
    Member:
    #281288
    Messages:
    1,443
    First Name:
    Rich
    Lake Sherwood, MO
    Vehicle:
    2019 Calvary Blue OR, 1999 4Runner SR5
    OVTune, RCI stuff, BD lights, UpTopOverland roof rack, Mobtown Stuff
    Well... it been a while since we have chatted about it!
    And by we I mean us lol

    tonered likes this.
  20. Jun 12, 2019 at 5:51 PM
    #300
    tonered

    tonered tacorider

    Joined:
    Sep 25, 2017
    Member:
    #231055
    Messages:
    7,669
    Gender:
    Male
    First Name:
    tony
    Lynnwood, WA
    Vehicle:
    2017 ACLB Sport 6MT BR
    1.05B 87, Functional Skewp, 7r41lbr34k3r knob, Debadge, Dechrome, MeSo switch panel and V4s
    Get a room! :rofl::rofl:

    Shellshock likes this.
