2LO Plug & Play Harness Discussion

Discussion in '3rd Gen. Tacomas (2016+)' started by lapoltba, Feb 7, 2019.

  1. Feb 7, 2019 at 4:54 PM
    #1
    lapoltba

    lapoltba [OP] Well-Known Member

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    1,168
    Gender:
    Male
    06076
    Vehicle:
    '17 Sport ACLB V6/6MT OV-Tuned
    The pre-order/interest list is CLOSED. If you are intersted in purchasing a kit please check out the thread in the 3rd Gen marketplace forum:

    The first post there will be updated in the next few days to have the google forms link to place your order.

    https://www.tacomaworld.com/threads...-for-the-3rd-gen-tacoma.614743/#post-20866428


    Come one, come all....

    This thread is to start the discussion about creating the plug and play harness. There are some design considerations that I would like to get some feedback on from those of you interested.

    I wanted to add a big thanks to @BigWhiteTRD for his work in developing this mod, and everyone else that helped get this working. The mod is documented in the thread below if you want more information on what it is and how it works. There is a ton of good information in there, including the diagrams to do this yourself if you don't want to wait for a harness.

    https://www.tacomaworld.com/threads/lock-stock-and-2wheel-low-3rd-gen-diy-mod.536677/

    The price will be $125 with the switch included, and $110 without the switch.

    I will be posting a thread in the for-sale section tomorrow evening. Everyone on the list so far will get a PM with the link to the order form. Once everyone there is all taken care of I will start taking more orders.

    Price is TBD once I settle on design and get pricing. I will not give a firm price yet. To give everyone a rough idea, The connectors alone are $35, Resistor and relay are another $15-$20, a PCB for the relays another $15-$20 (includes associated interconnects), and wire another $5 so that is ~$70. I will also need to add labor for crimping and assembly which I estimate to be around 2 hours (cost TBD). Im still actively working on the PCB and BOM for all the components and will update as soon as I have everything figured out. *Edit* - See below regarding relay PCB

    I will be making an initial batch of 20 of these and the following people have expressed interest. If you would like to be added to the list please send me a PM.

    1) @Shellshock
    2) @tonered
    3) @2016trdtacoma
    4) @Reluctanse
    5) @Mikeybuck
    6) @BigWhiteTRD
    7) @MOC221_
    8) @M1Awolf
    9) @flyinsquirel
    10) @02Duck
    11) @bigwill837
    12) @oconnor
    13) @nevadabugle
    14) @Jerrfylube
    15) @perkj
    16) @RedBeard1
    17) @mtip
    18) @Cav_BluTRD
    19) @TeecoTaco
    20) @Toki


    Round 2
    1) @Flash1034
    2) @woodsbuggy3
    3) @ian rogers
    4) @Sociopenguin
    5) @NotAJeep
    6) @MitchK
    7) @fredgoodsell
    8) @walterj
    9) @Comb
    10) @PB FAB
    11) @Portlandia
    12) @dutsmiller
    13) @aliu6294
    14) @Slick_16S
    15) @Vonhetzer
    16) @Taco16LB
    17) @offgrid taco
    18) @RushT
    19) @Jibbs
    20) @Dan's TRD
    21) @Steelhead Taco
    22) @cseigh
    23) @dgcarbs
    24) @Bisley4525
    25) @Roddy13

    Round 3
    1) @smdcbr
    2) @chaotic_taco
    3) @spdyrvlvr
    4) @deusxanime
    5) @Ruggybuggy
    6) @bestcoast91
    7) @RocTaco
    8) @St.Germain

    Questions:
    1. Do you want truly plug and play (With everything included), or just a bare bones harness? - Seems like 100% P&P is the consensus so far.

    2. I do not want to use the giant ice cube relays from Amazon. I am currently designing a PCB to house 2 smaller relays. Does this sound like a good plan? This is going to be too costly. I am just going to use an ice cube relay (4PDT) and a lug terminal base to eliminate the large terminal block. All the relay wires will go to a molex plug for ease of installation and assembly. No plug really necessary when using a base for the relay.

    3. If people like the aironboard.com switches, I can plan accordingly. Annoyingly, I cannot get the connector pigtail for their switch, unless someone has a source. I do not think i will include the switch due to personal preference. I will likely make provisions for easily wiring in whatever switch you want to use. I plan to include (tentatively) the switch below. It is the oem style one sized to fit in the open slots below the HVAC controls. There is also the larger style to fit in an open slot to the left of the steering wheel. I will be putting a poll up at some point to get a count who needs what location for the switch. It is going to be too difficult to include the different switches for everyone. I will supply the harness with enough wire to get to your desired location. This will include the connector attached for either style switch (they are the same)

    https://www.aironboard.com/online/p...oyota-oem-replacement-2wd-low-range-blue.html

    Aironboard.com New Blue:

    Aironboard.com Blue:

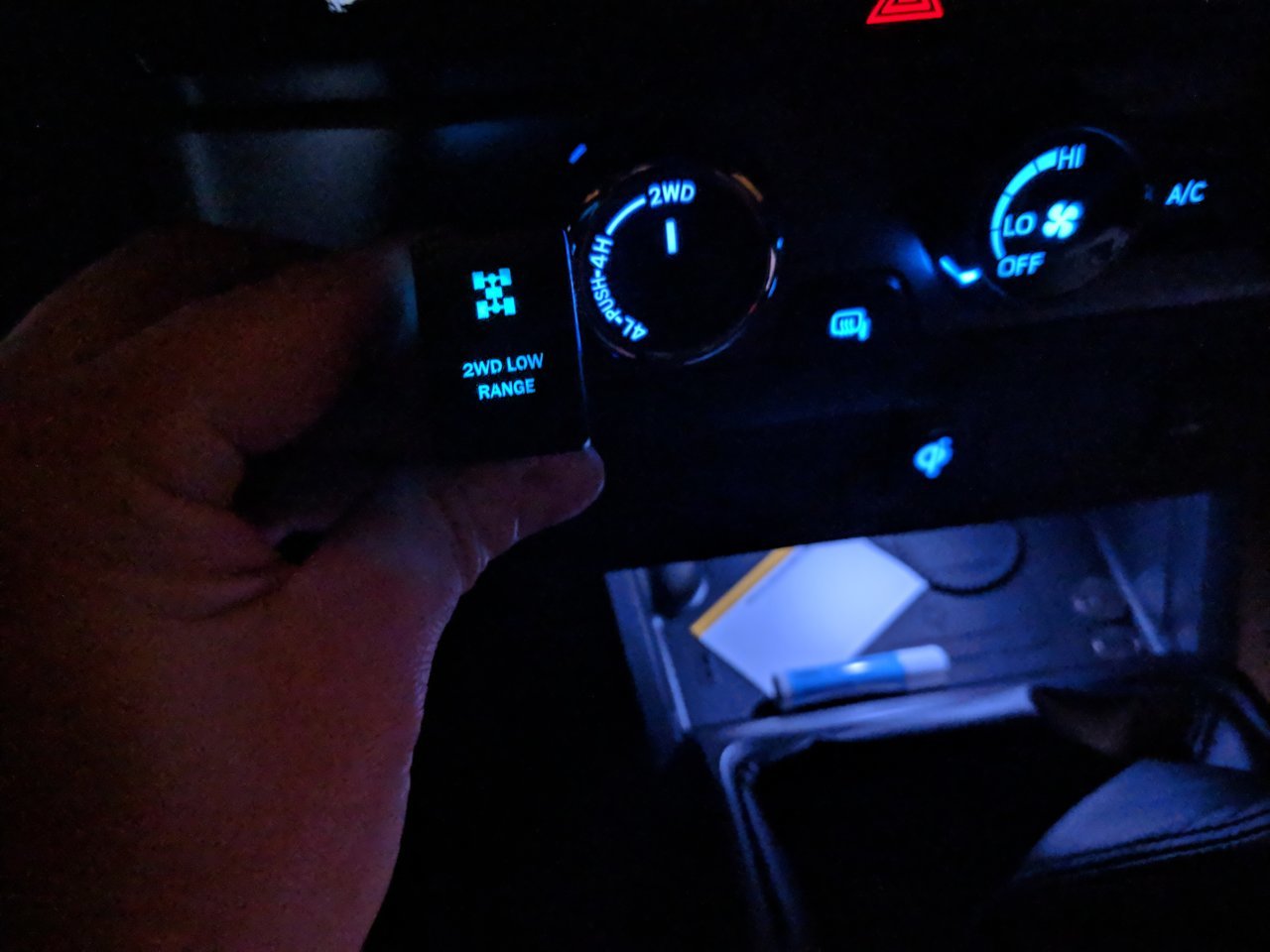

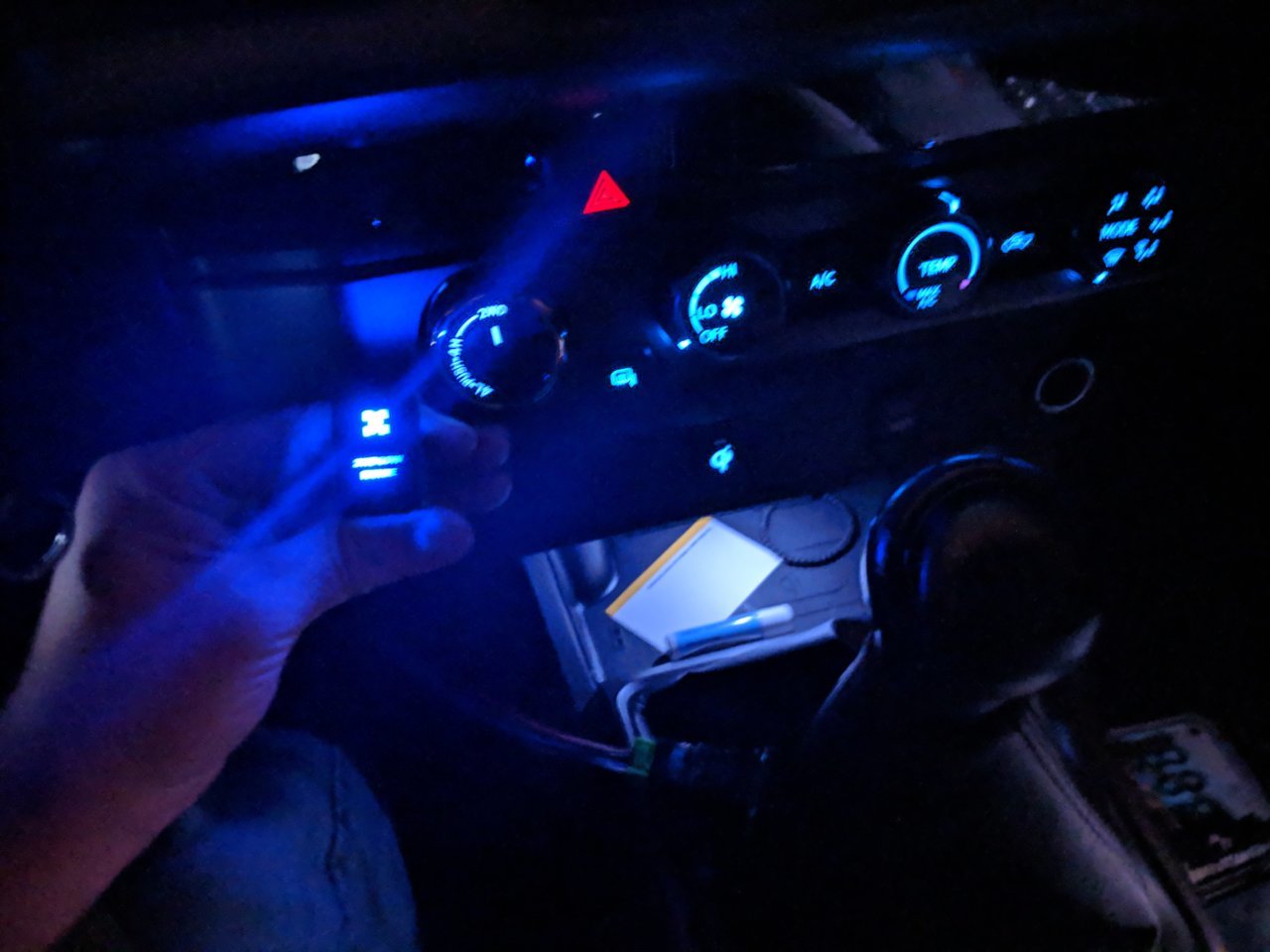

    Update 02/19/2019:

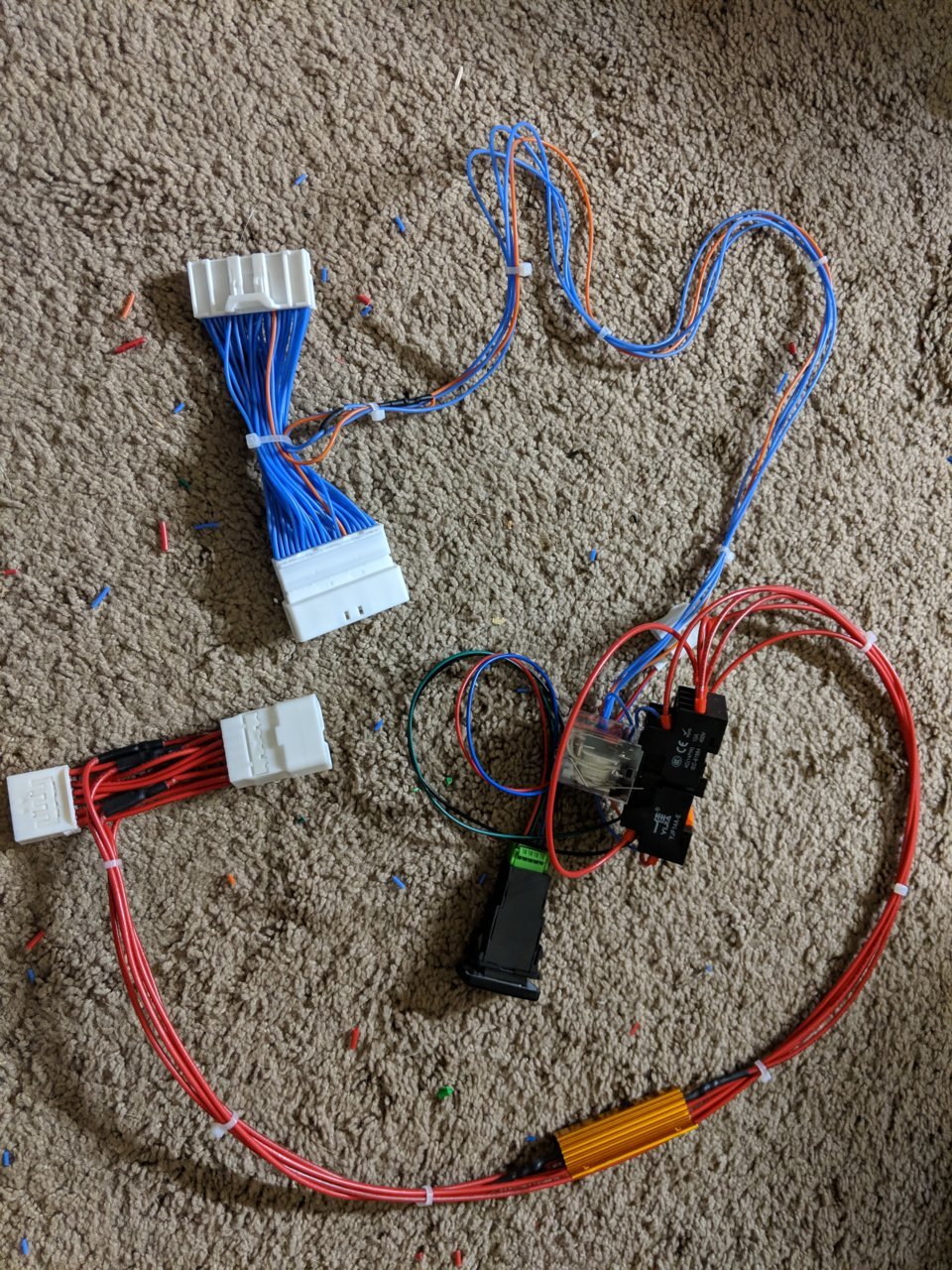

    I was able to finish up building my test harness. Before anyone says anything, yes the wires are super long between the connectors and relay. It was intentional. This was a quick and dirty test to prove out the concept of PnP. The better half is out of town this weekend so I have garage time all to myself. When I do the test install this weekend I will check wire lengths and figure out how to make it all pretty.

    I received the switch from the 2nd vendor and I can confirm they do use the same connector. I was also able to confirm that the larger (left mounted) switches from aironboard use the same connector. I can source this connector and have the harness ready to plug in to your choice of switch with the appropriate length wire attached.

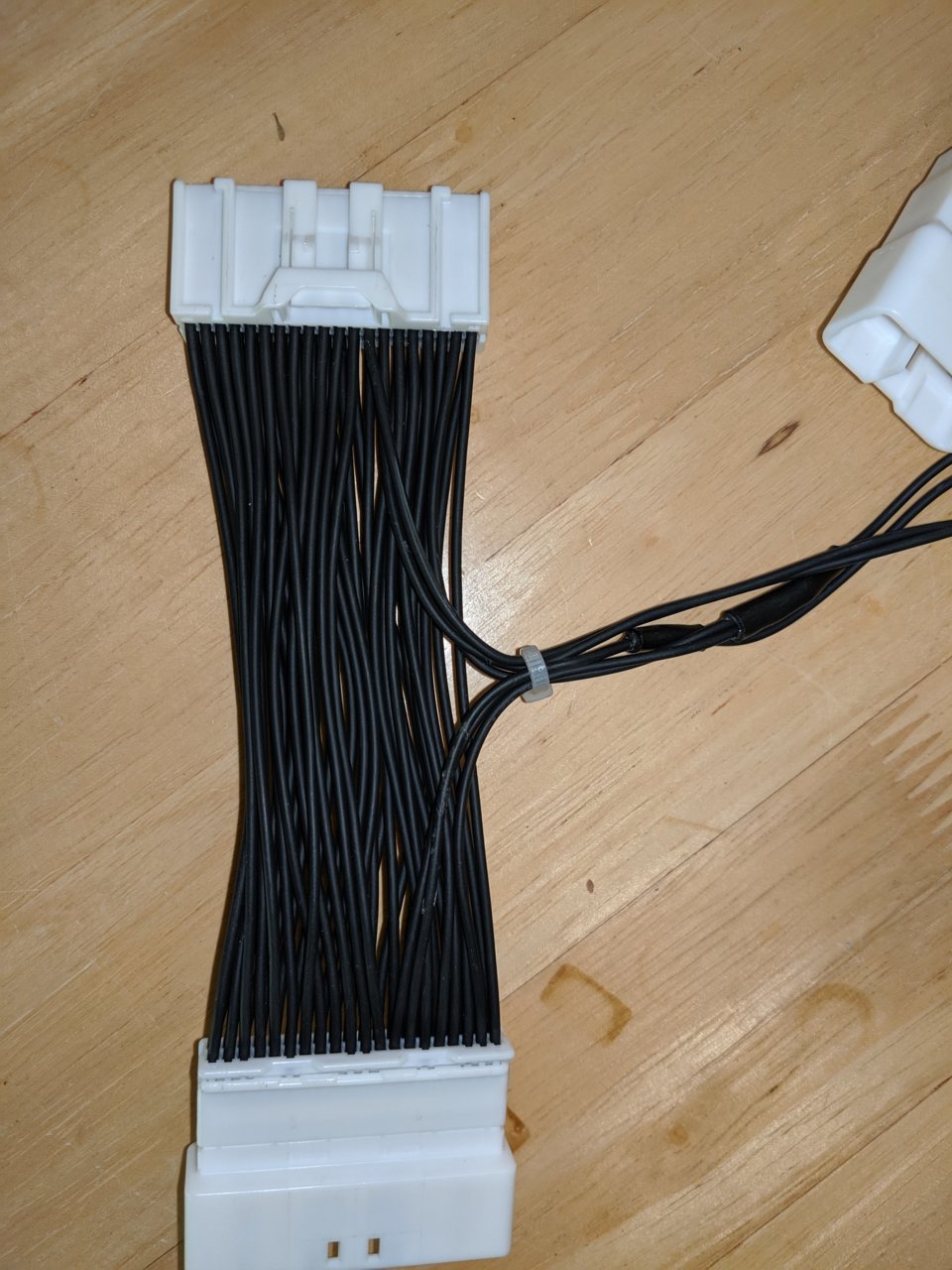

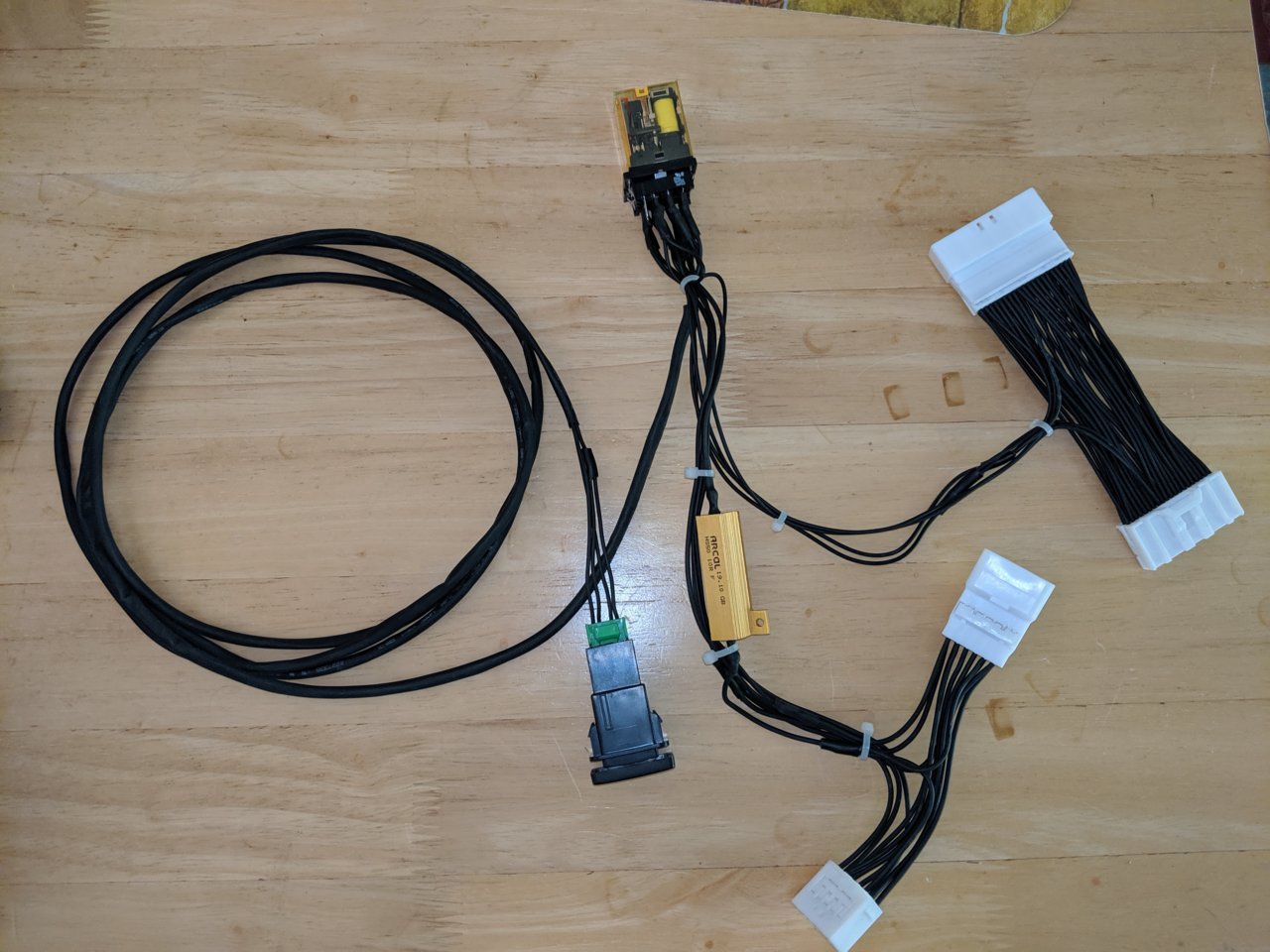

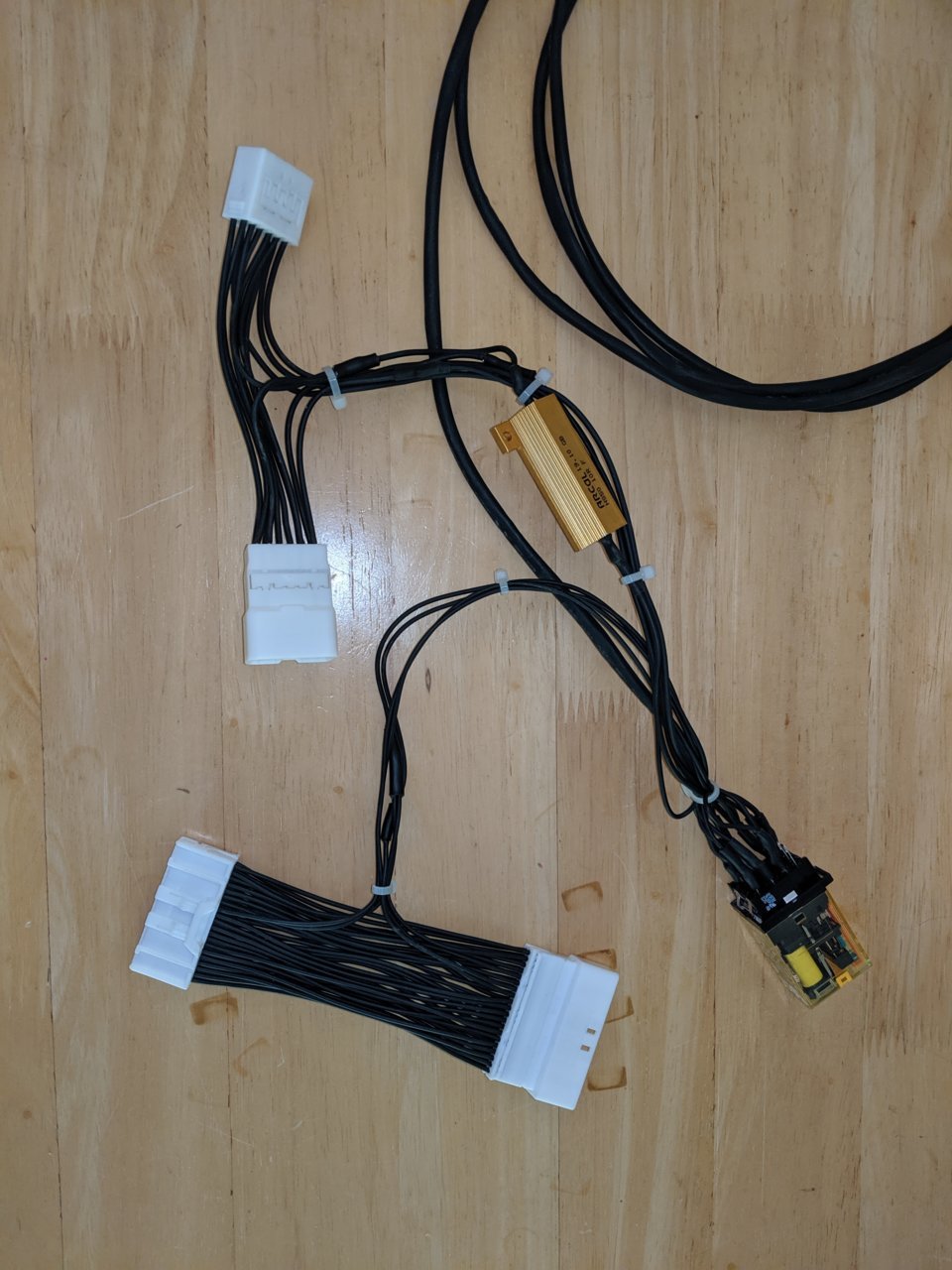

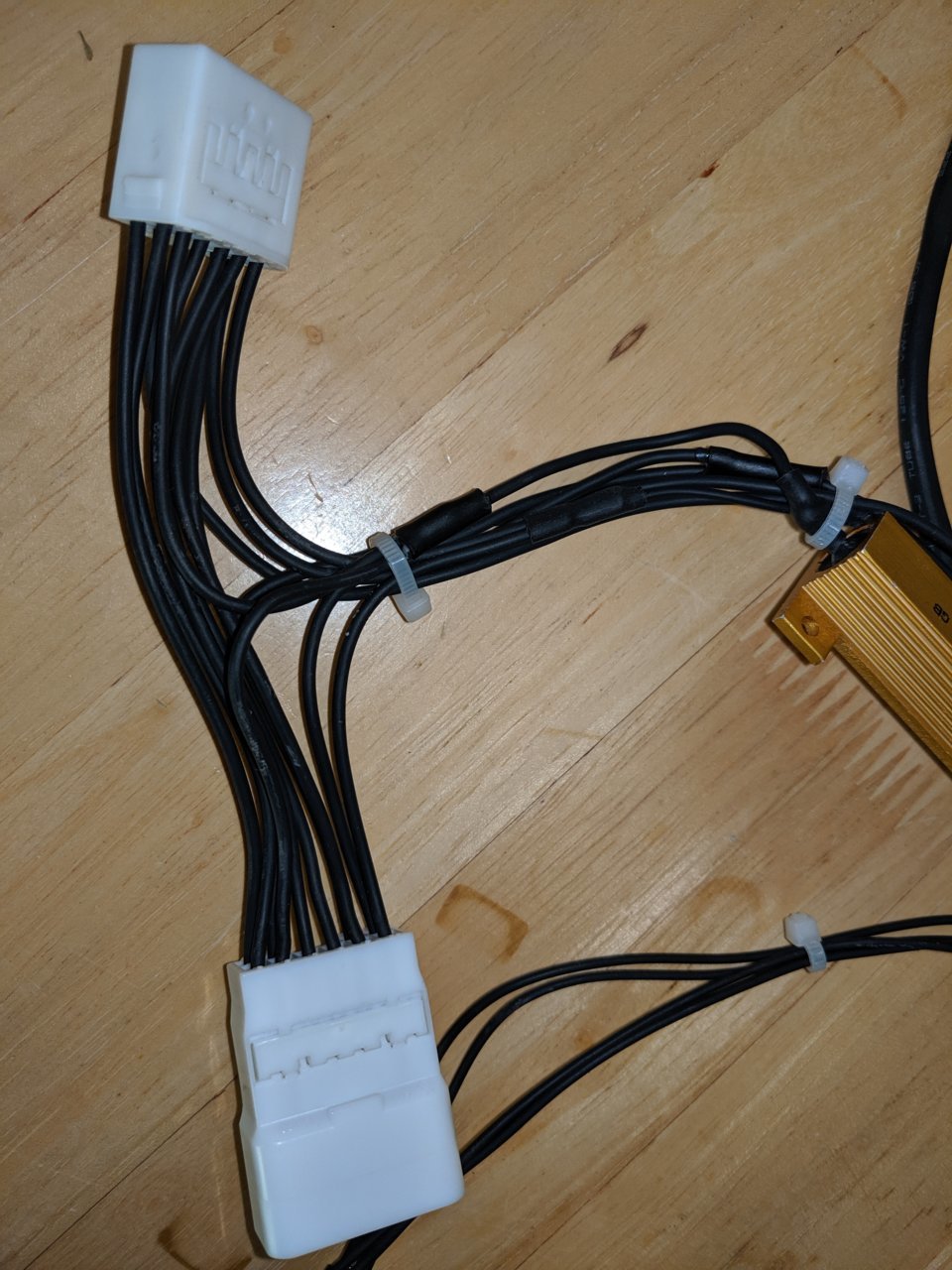

    Here is what I ended up with. I tested the relay and switch with a 12V power supply I had laying around. These Amazon relays are rather shitty. I will not be using them.



    In action:

    Here is a crappy video of going in and out of 2Low.

    Order of things I did in the video.
    1. Push the button. (on)
    2. Move selector to 4Hi and wait for it to engage. (I had to drive forward a few feet and turn the steering wheel to get it to line up)
    3. Move selector to 4Low (wait for it to engage. I have the MT so the truck beeped at me until I pushed in the clutch.)
    4. You are in 2WD low range. HORAY! :taco::dancingbacon::broccoli::kona::jellydance::goingcrazy:

    5. Push the button again. (off)
    6. Shift to 4Hi, then to 2Hi and wait for everything to disengage.

    I also showed normal 4HI and 4Low engagement at the end. I realize you can't see that it's in 2Low in the video, but trust me it is. Yesterday I pulled up the hill on the left (my yard covered in about 4" of wet heavy snow) and spun the back tires on the pavement. The front tires didn't do a damn thing.

    Yes, my seatbelt is not on, no my door is not a jar.

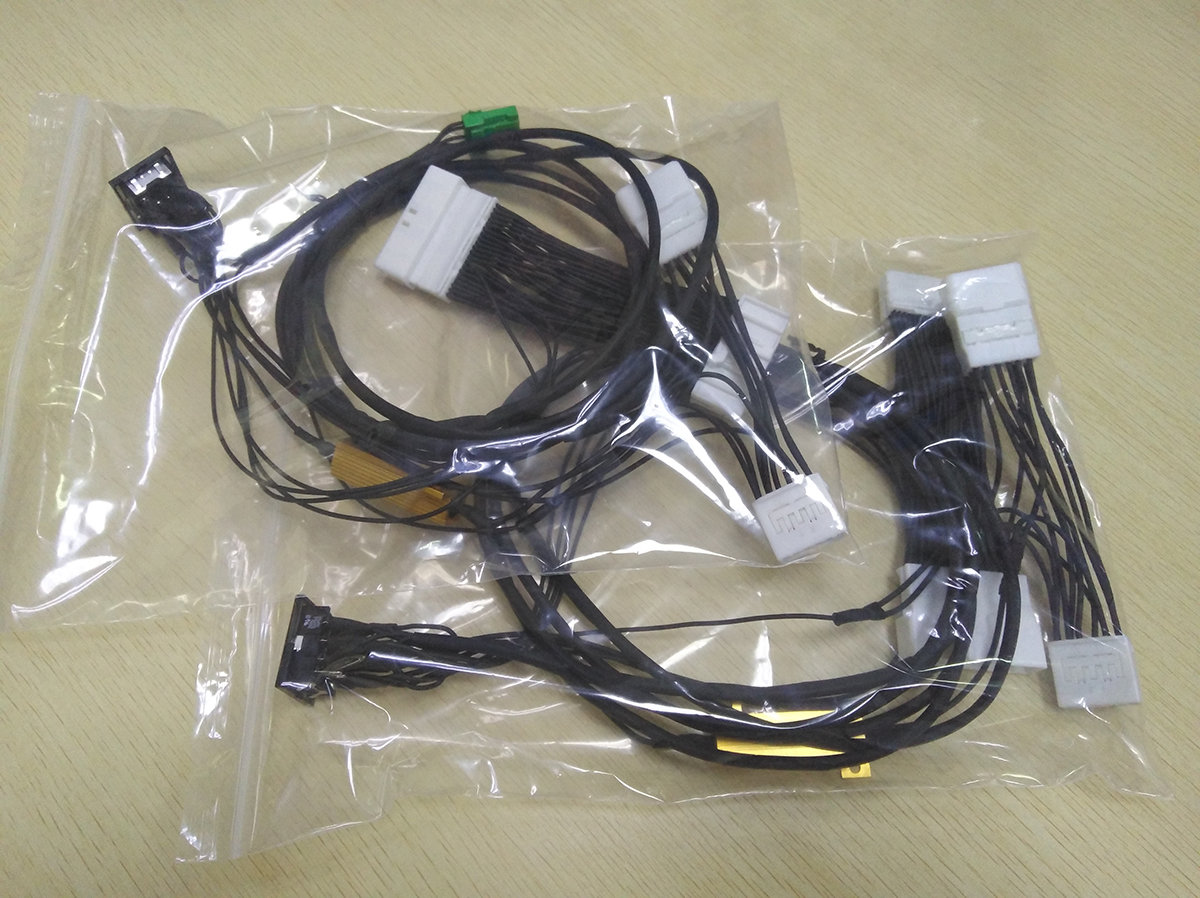

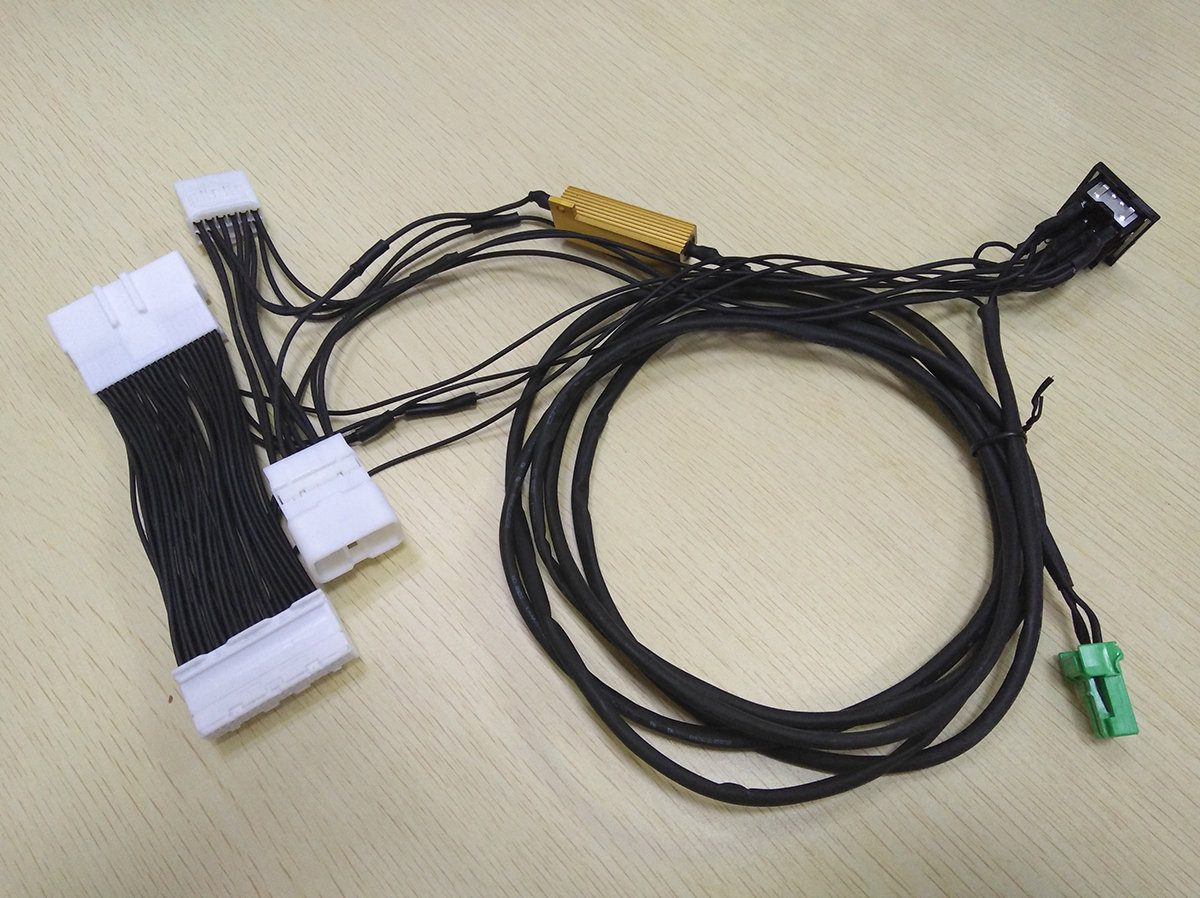

    Teaser of the samples:









    Last edited: Jun 15, 2019 at 3:37 PM
    spdyrvlvr, Rujack, helix66 and 9 others like this.
  2. Feb 7, 2019 at 4:56 PM
    #2
    Skydvrr

    Skydvrr Well-Known Member

    Joined:
    Sep 13, 2017
    Member:
    #229889
    Messages:
    1,759
    Gender:
    Male
    Gilbert, AZ
    Vehicle:
    Black '17 OR
    I like this idea

  3. Feb 7, 2019 at 4:56 PM
    #3
    TeecoTaco

    TeecoTaco Well-Known Member

    Joined:
    Feb 26, 2017
    Member:
    #211739
    Messages:
    5,266
    SW Ontario
    Vehicle:
    16 Taco DCSB TRD Sport 6MT
    Modified the level of gas in the tank
    Sub'd

    Edit: plug and play all the way to a switch preferred.

    And titanium, I'm kinda partial to Ti. If not possible, then I'll mainstream it.

    Last edited: Feb 7, 2019
  4. Feb 7, 2019 at 5:12 PM
    #4
    Shellshock

    Shellshock Guy who drives a lot

    Joined:
    Nov 21, 2015
    Member:
    #170338
    Messages:
    4,329
    Iowa
    Vehicle:
    2017 DCSB TRD OR MT QUICKSAND
    1) fully plug and play preferred
    2) sounds good to me
    3) I’d say don’t include switch, people will likely put them in diff places or want something special for a switch. Just include plenty of length of wire

    Idk about everyone else but personally I’m more than willing to pay more for a clean professional product.

    TeecoTaco, 02Duck and lapoltba [OP] like this.
  5. Feb 7, 2019 at 5:12 PM
    #5
    M1Awolf

    M1Awolf Well-Known Member

    Joined:
    Jun 16, 2017
    Member:
    #221701
    Messages:
    1,425
    Gender:
    Male
    First Name:
    Rob
    Montana
    Vehicle:
    2017 TRD Off Road DCSB M/T
    I would like a truly plug and play with a switch option,having a switch that fit one of the factory openings would be ideal.

    TeecoTaco likes this.
  6. Feb 7, 2019 at 5:14 PM
    #6
    M1Awolf

    M1Awolf Well-Known Member

    Joined:
    Jun 16, 2017
    Member:
    #221701
    Messages:
    1,425
    Gender:
    Male
    First Name:
    Rob
    Montana
    Vehicle:
    2017 TRD Off Road DCSB M/T
    Less chance of getting a wire crossed as well....

    Shellshock likes this.
  7. Feb 7, 2019 at 5:16 PM
    #7
    lapoltba

    lapoltba [OP] Well-Known Member

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    1,168
    Gender:
    Male
    06076
    Vehicle:
    '17 Sport ACLB V6/6MT OV-Tuned
  8. Feb 7, 2019 at 5:23 PM
    #8
    Shellshock

    Shellshock Guy who drives a lot

    Joined:
    Nov 21, 2015
    Member:
    #170338
    Messages:
    4,329
    Iowa
    Vehicle:
    2017 DCSB TRD OR MT QUICKSAND
    Well how about that, I didn’t realize there was actually one out there that said 2wd low. I’d be down for that included if others are. My only opening available is below the hvac controls

    02Duck and TeecoTaco like this.
  9. Feb 7, 2019 at 5:24 PM
    #9
    M1Awolf

    M1Awolf Well-Known Member

    Joined:
    Jun 16, 2017
    Member:
    #221701
    Messages:
    1,425
    Gender:
    Male
    First Name:
    Rob
    Montana
    Vehicle:
    2017 TRD Off Road DCSB M/T
    TeecoTaco likes this.
  10. Feb 7, 2019 at 5:25 PM
    #10
    lapoltba

    lapoltba [OP] Well-Known Member

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    1,168
    Gender:
    Male
    06076
    Vehicle:
    '17 Sport ACLB V6/6MT OV-Tuned
    Yes it does, and I would solder/terminate it appropriately. I wasn't going to mention it, but it is available in different colors. The only reason I wouldn't include it was if a significant number of people couldn't agree on which color configuration.

    TeecoTaco likes this.
  11. Feb 7, 2019 at 5:30 PM
    #11
    Joe23

    Joe23 Canuckistikian

    Joined:
    Oct 5, 2015
    Member:
    #165909
    Messages:
    10,475
    Gender:
    Male
    First Name:
    Joe
    The Great White North
    Vehicle:
    2017 TRD Off-road DCSB
    Check build thread
    I'm interested depending on price

    I would prefer completely plug and play
    I can source switch

  12. Feb 7, 2019 at 5:31 PM
    #12
    M1Awolf

    M1Awolf Well-Known Member

    Joined:
    Jun 16, 2017
    Member:
    #221701
    Messages:
    1,425
    Gender:
    Male
    First Name:
    Rob
    Montana
    Vehicle:
    2017 TRD Off Road DCSB M/T
    I suspect you could order however many you needed for each color after everyone picks their color preference and has made payment/deposit.

  13. Feb 7, 2019 at 5:38 PM
    #13
    lapoltba

    lapoltba [OP] Well-Known Member

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    1,168
    Gender:
    Male
    06076
    Vehicle:
    '17 Sport ACLB V6/6MT OV-Tuned
    Price is TBD once I settle on design and get pricing. I will not give a firm price yet, but I am confident it can be done for under $100. It should be possible to do it for under $75.

    Edit* Yeah, probably not. Labor is the killer here. Lots of wire to strip and crimps to make.

    Last edited: Feb 23, 2019
    Joe23, Shellshock and M1Awolf like this.
  14. Feb 7, 2019 at 5:44 PM
    #14
    M1Awolf

    M1Awolf Well-Known Member

    Joined:
    Jun 16, 2017
    Member:
    #221701
    Messages:
    1,425
    Gender:
    Male
    First Name:
    Rob
    Montana
    Vehicle:
    2017 TRD Off Road DCSB M/T
    Sounds very reasonable for price,just make sure not to underestimate the time you will have involved in not only production but shipping as well.

    02Duck likes this.
  15. Feb 7, 2019 at 5:45 PM
    #15
    lapoltba

    lapoltba [OP] Well-Known Member

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    1,168
    Gender:
    Male
    06076
    Vehicle:
    '17 Sport ACLB V6/6MT OV-Tuned
    Yep definitely TBD. I do not have pricing for the connector crimping/assembly yet and the 2+ hr labor for that is the biggest unknown. I won't be getting a price this week, but I should be able to have something in the next 2 weeks.

  16. Feb 7, 2019 at 5:51 PM
    #16
    M1Awolf

    M1Awolf Well-Known Member

    Joined:
    Jun 16, 2017
    Member:
    #221701
    Messages:
    1,425
    Gender:
    Male
    First Name:
    Rob
    Montana
    Vehicle:
    2017 TRD Off Road DCSB M/T
    No worries on my part,it takes time to get things right;)

  17. Feb 7, 2019 at 5:55 PM
    #17
    OnlyTaco

    OnlyTaco Well-Known Member

    Joined:
    Dec 18, 2016
    Member:
    #205117
    Messages:
    119
    Gender:
    Male
    PnP all the way, with the optional switch for the center console. Keep up the good work. I'm looking forward to this.

  18. Feb 7, 2019 at 5:55 PM
    #18
    Cav_BluTRD

    Cav_BluTRD BLUES! Stanley Cup Champs!

    Joined:
    Jan 30, 2019
    Member:
    #281288
    Messages:
    1,443
    First Name:
    Rich
    Lake Sherwood, MO
    Vehicle:
    2019 Calvary Blue OR, 1999 4Runner SR5
    OVTune, RCI stuff, BD lights, UpTopOverland roof rack, Mobtown Stuff
  19. Feb 7, 2019 at 5:55 PM
    #19
    lapoltba

    lapoltba [OP] Well-Known Member

    Joined:
    Aug 28, 2014
    Member:
    #137089
    Messages:
    1,168
    Gender:
    Male
    06076
    Vehicle:
    '17 Sport ACLB V6/6MT OV-Tuned
    Titanium is definitely one of my favorite metals. It's an absolute bitch to machine but god damn it's amazing.

    The wife and I are both pretty rough on jewelry. She works outside in environmental conservation, and I'm a controls engineer. If I had a normal wedding band it would be destroyed in hours.

    We have titanium bands with copper and silver inlay. Had 'em for a year and they still look new.

    TeecoTaco likes this.
  20. Feb 7, 2019 at 5:58 PM
    #20
    TeecoTaco

    TeecoTaco Well-Known Member

    Joined:
    Feb 26, 2017
    Member:
    #211739
    Messages:
    5,266
    SW Ontario
    Vehicle:
    16 Taco DCSB TRD Sport 6MT
    Modified the level of gas in the tank
    Nice...had I caught on earlier would have done same for wife and I...one day ill show ya my shift knob! Ti
