2nd and 3rd gen drum brake reference - not a white glove service

Discussion in 'Technical Chat' started by Sandman614, May 3, 2018.

  1. May 3, 2018 at 6:52 AM
    #1
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,270
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    I've been wanting to start a thread on drum brakes because there are soo many people that think it's hard or black magic.
    No special tools, though available, are needed. A couple screwdrivers, needle nose vice grips, channel locks, hook, etc will do the job.

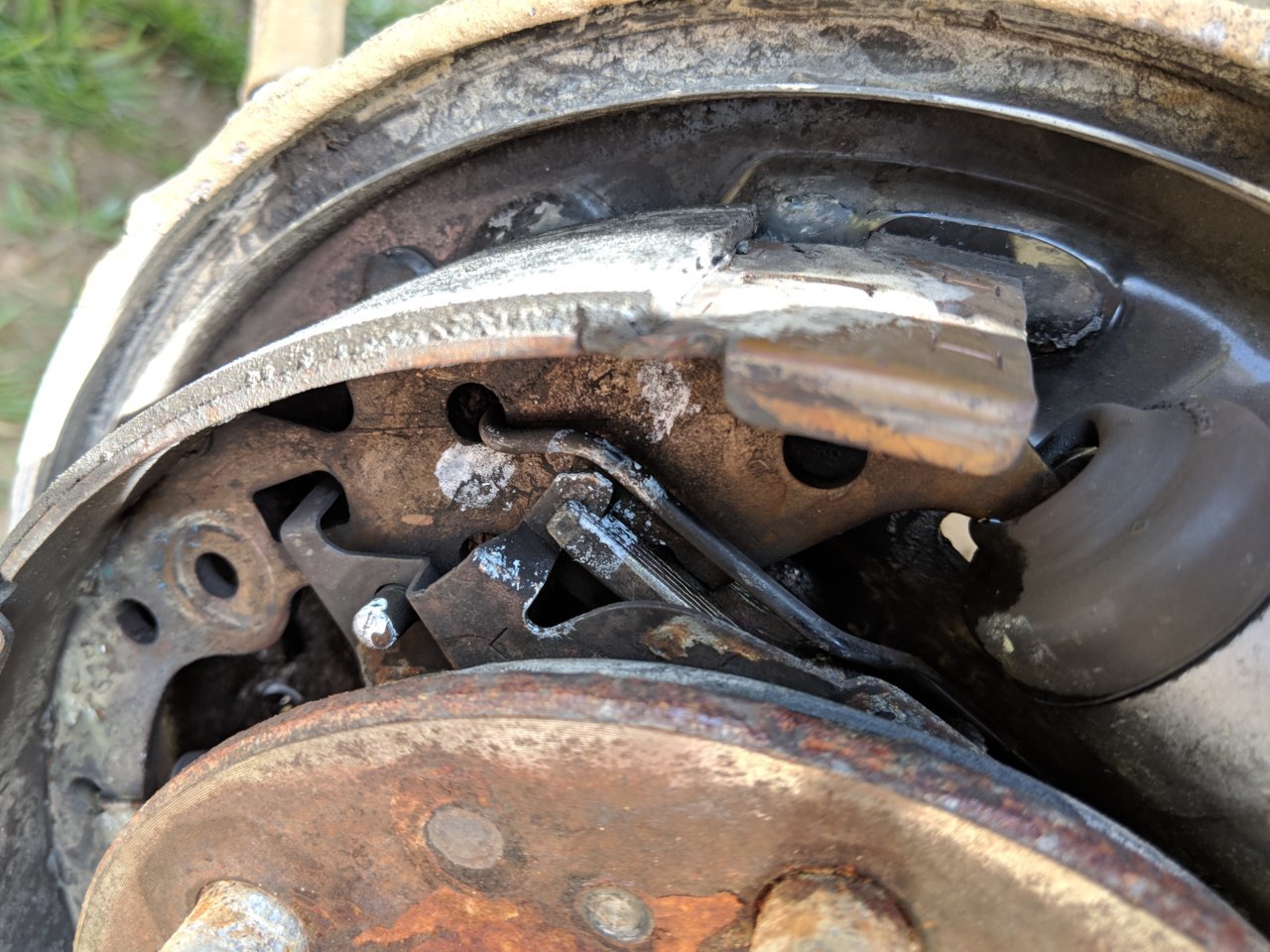

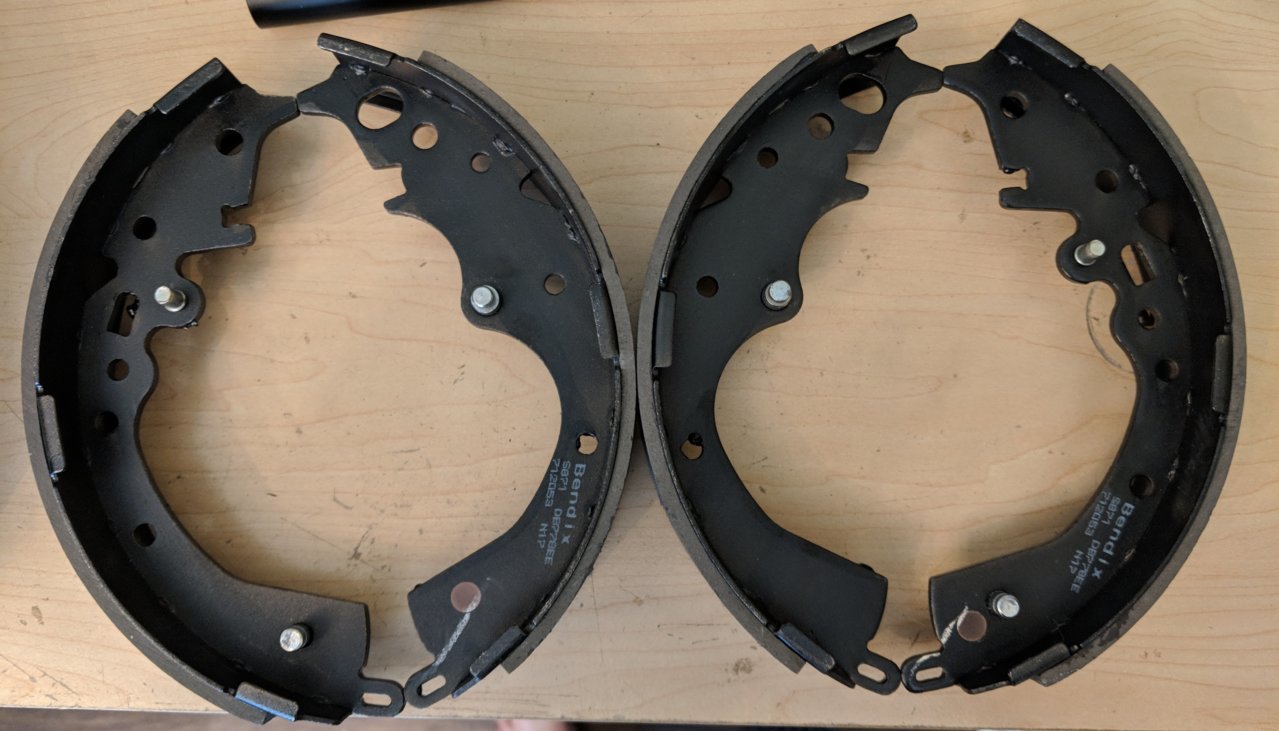

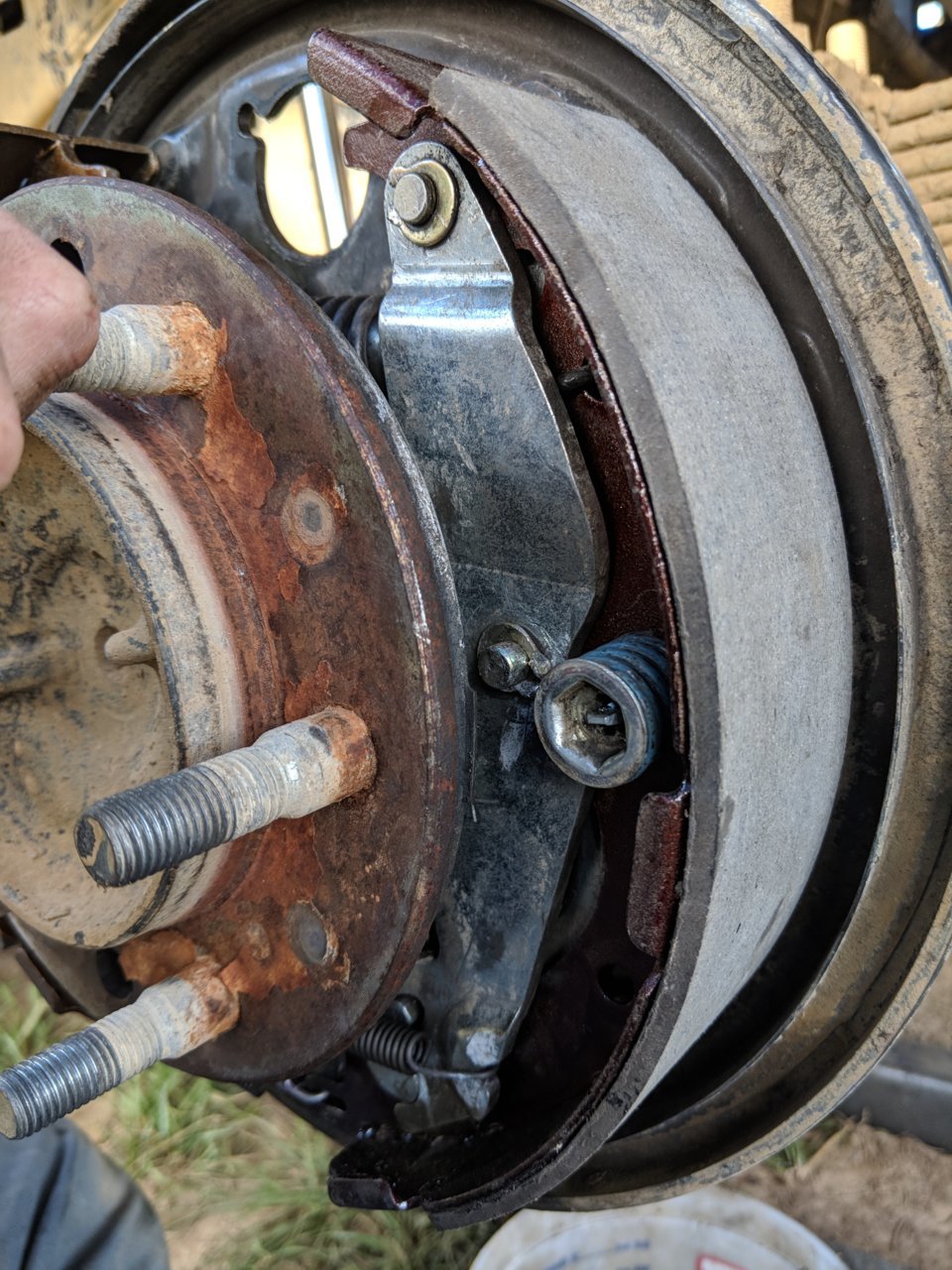

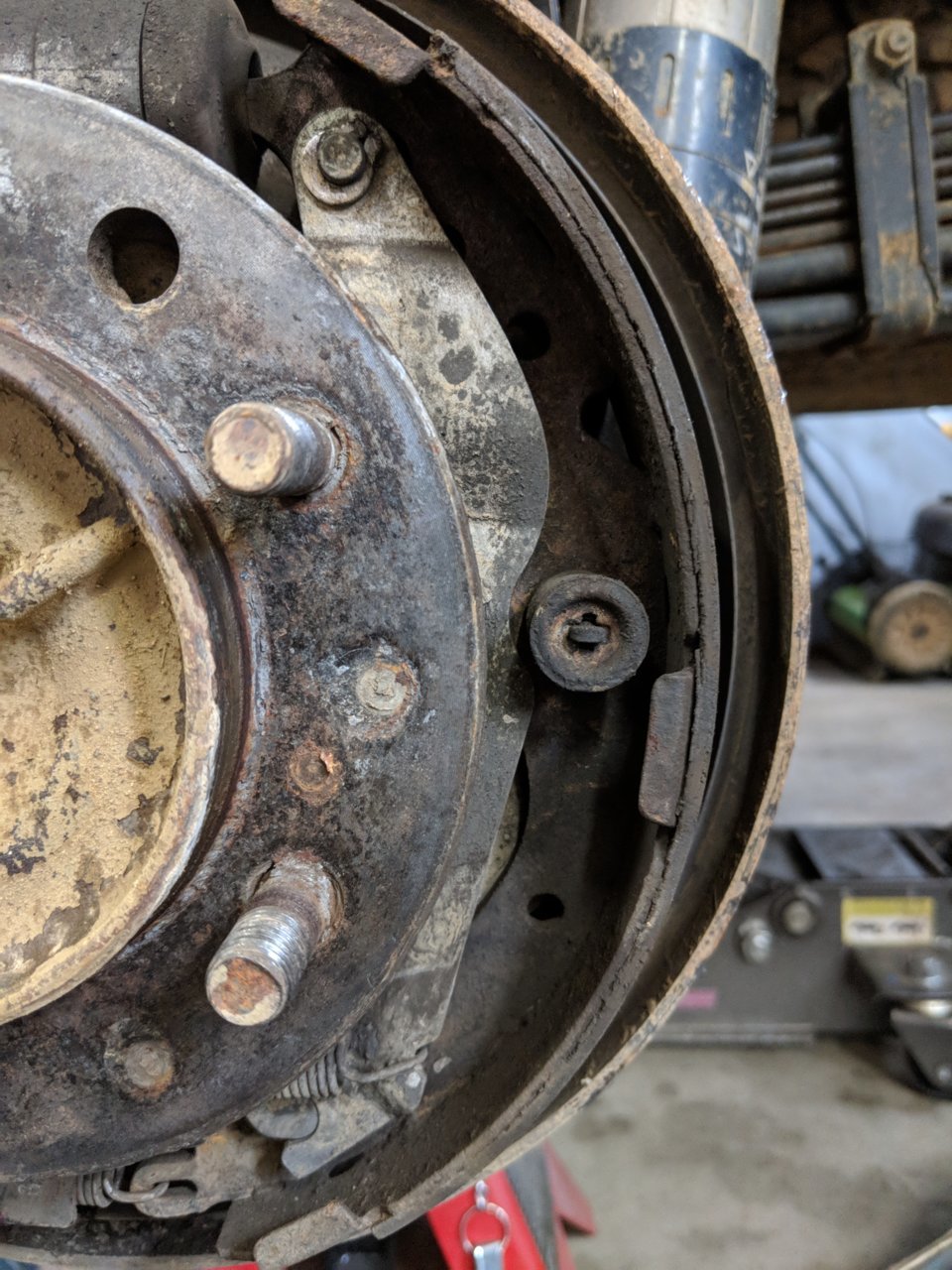

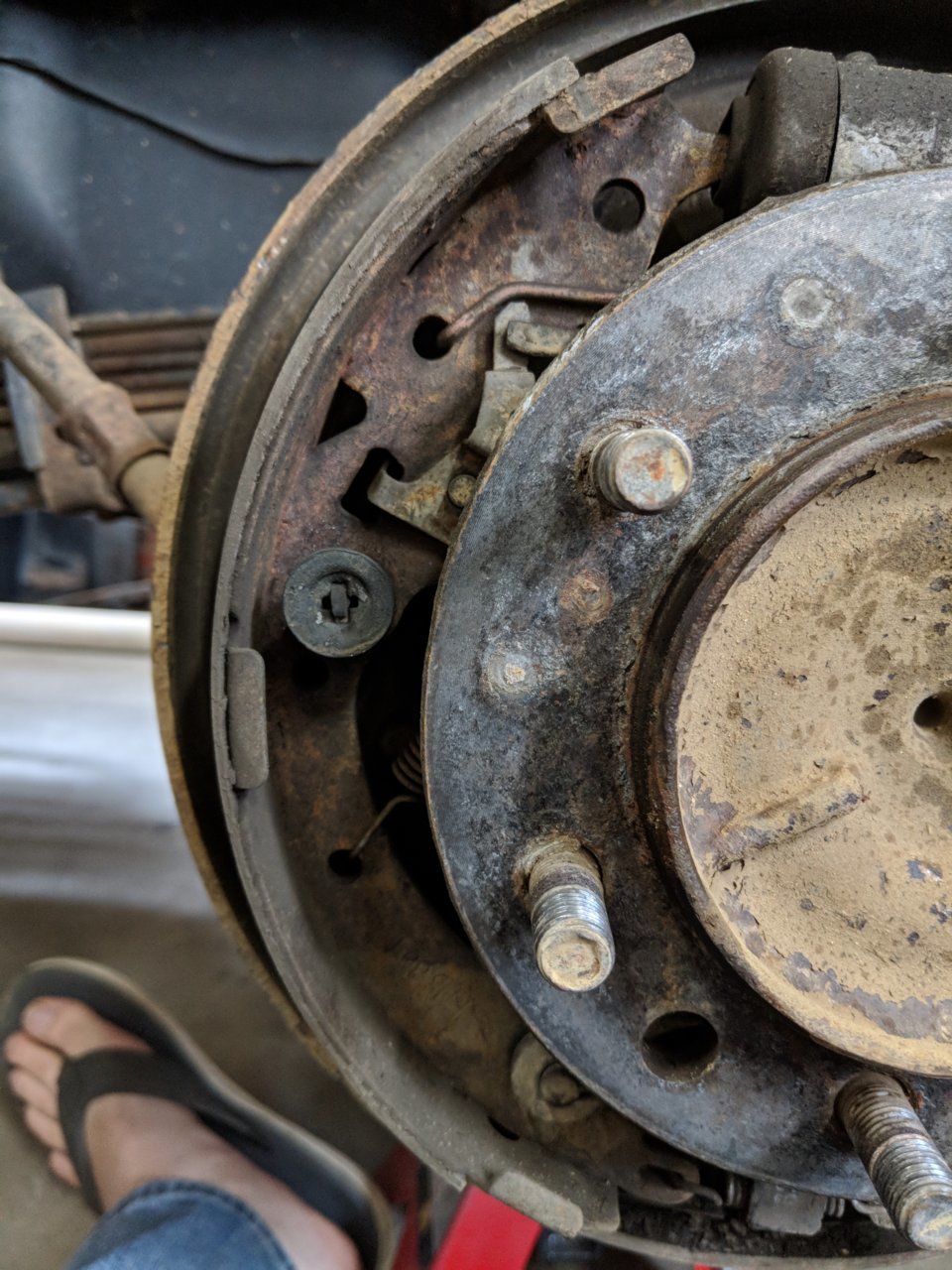

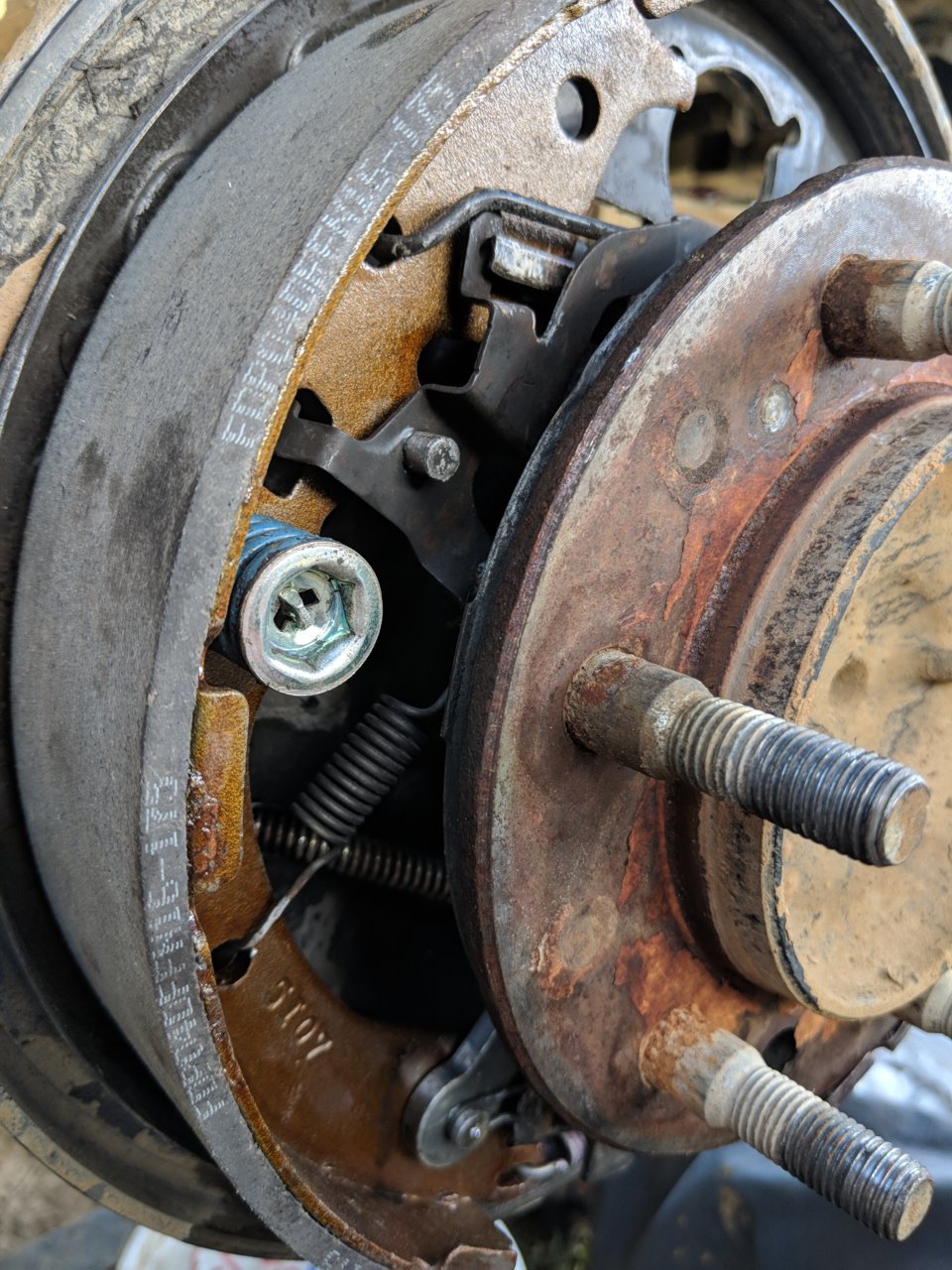

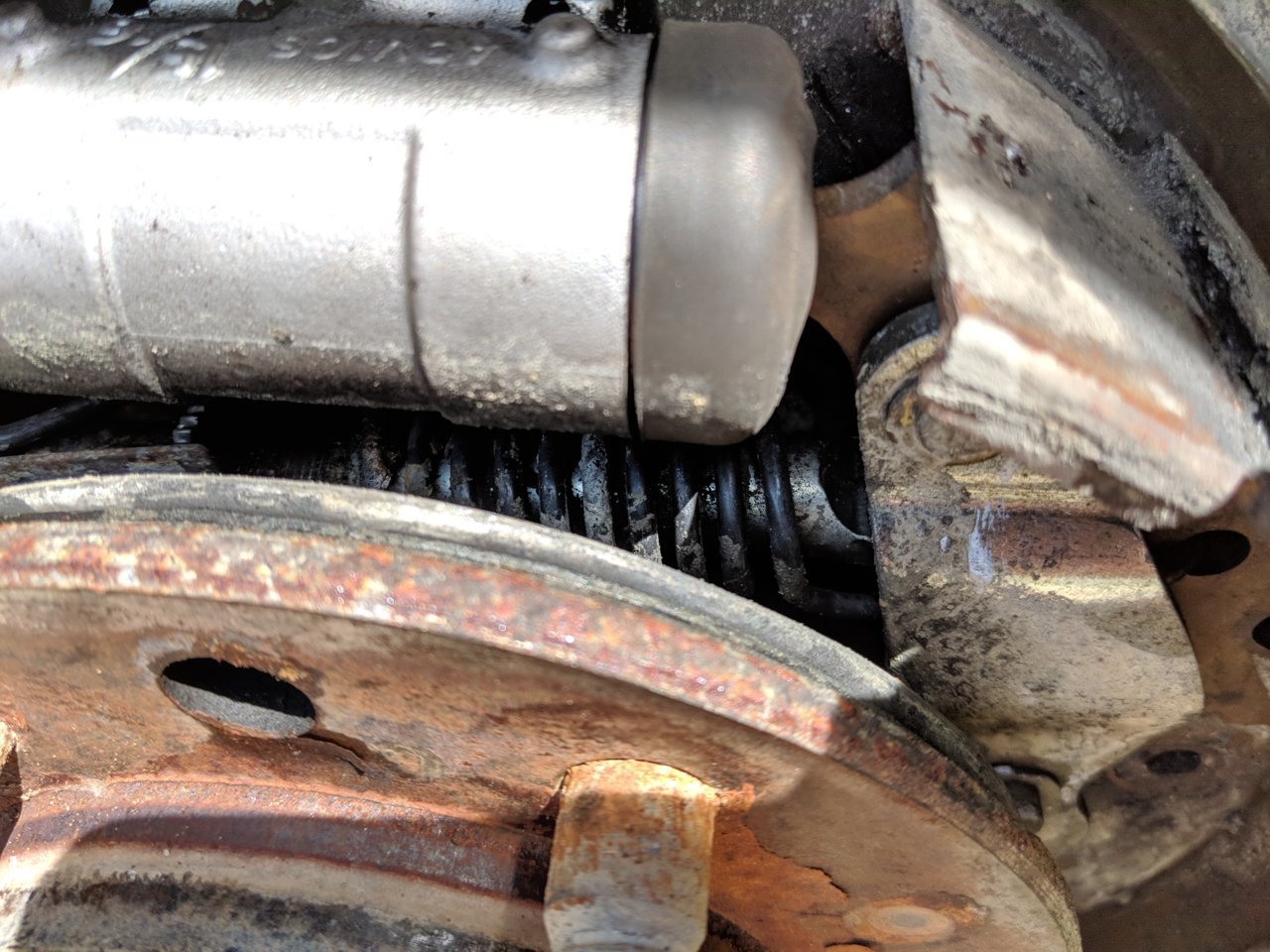

    IMG_20180428_114702.jpg IMG_20180427_121037.jpg IMG_20180425_113333.jpg IMG_20180425_113340.jpg IMG_20180421_173015.jpg IMG_20180421_173003.jpg IMG_20180421_172958.jpg IMG_20180421_134559.jpg IMG_20180421_134553.jpg


    *Based on these FSM screenshots it looks as though 2nd and 3rd gen drum brakes are the same. All the pictures I post will be from 2nd gen tacomas.


    Last edited: May 3, 2018
  2. May 3, 2018 at 7:04 AM
    #2
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,270
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
  3. May 4, 2018 at 5:47 AM
    #3
    423 TACO

    423 TACO Well-Known Member

    Joined:
    Jun 15, 2012
    Member:
    #80752
    Messages:
    4,018
    Gender:
    Male
    First Name:
    Daniel
    SC/TN
    Vehicle:
    13 MGM Sport 6sp AC
  4. May 6, 2018 at 4:43 AM
    #4
    Benny123

    Benny123 Kid from the late 70s

    Joined:
    Mar 2, 2018
    Member:
    #246042
    Messages:
    692
    Gender:
    Male
    First Name:
    Ben
    South Charlotte, NC
    Vehicle:
    2005 Speedway Blue Tacoma AC V6 TRD Off Road 4x4
    Replacing everything worn, broken, and rusted.
    Did this a few weeks ago, wasnt fun. But definitely a learning experience. Has the truck always been in Boone? We dont get that kind of corrosion in Charlotte. Hell mine was from PA and the pads werent that bad. And my drums were bad. Pics on post #26 here. https://www.tacomaworld.com/threads/when-to-change-rear-brakes.375192/page-2#post-17771107
    True, you dont have to have special tools, but a drum spring tool definitely makes life better and saves at least an hour of time.

    Last edited: Jul 20, 2018
  5. Jul 19, 2018 at 3:37 PM
    #5
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    12,404
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Lifted, Locked, Armored. Ready To Wheel.
    Good pics and info. I replaced mine a few years ago but lately have been having some issues. Gonna probably replace them and see what happens.

    I have them tight enough that it’s hard to remove or install a drum, but the ebrake won’t keep the truck from moving. Brakes have been horrible lately.

  6. Jul 19, 2018 at 3:49 PM
    #6
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,270
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings

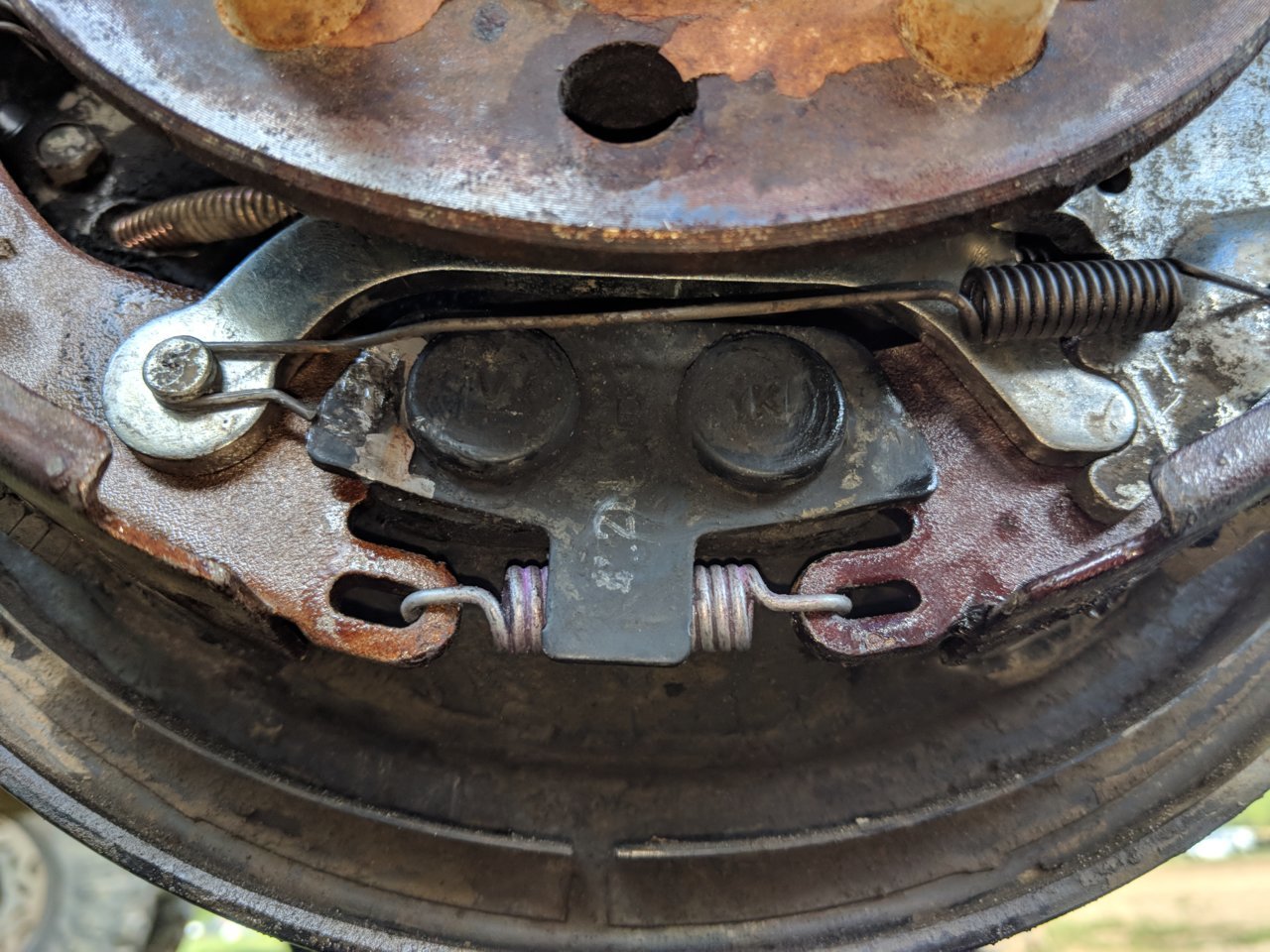

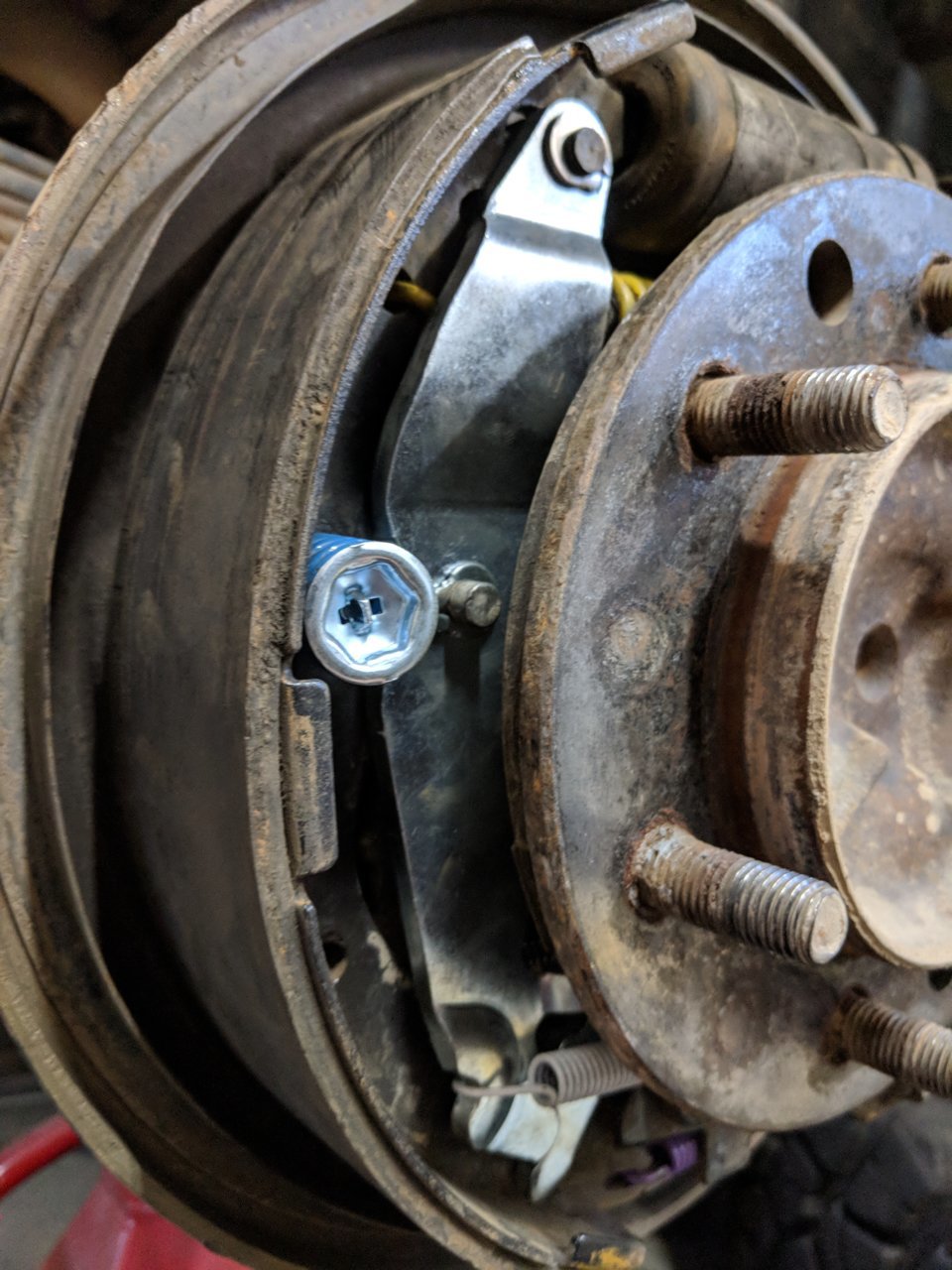

    Check that this bracket is in the right place. My passenger side one keeps moving. I just ordered new hardware kits and Parking brake lines.


  7. Jul 22, 2018 at 12:13 AM
    #7
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    12,404
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Lifted, Locked, Armored. Ready To Wheel.
    Thanks

  8. Jul 24, 2018 at 5:11 PM
    #8
    vssman

    vssman Rocket Engineer

    Joined:
    Jun 17, 2013
    Member:
    #106440
    Messages:
    8,758
    Gender:
    Male
    Naugatuck, CT
    Vehicle:
    2013 SR5 double cab
    Would anyone happen to know the thread size for the drum 'Jack screw'?

  9. Jul 24, 2018 at 7:26 PM
    #9
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,270
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    @Blkvoodoo I feel like that is something you would know off hand

  10. Jul 24, 2018 at 7:32 PM
    #10
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,270
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings

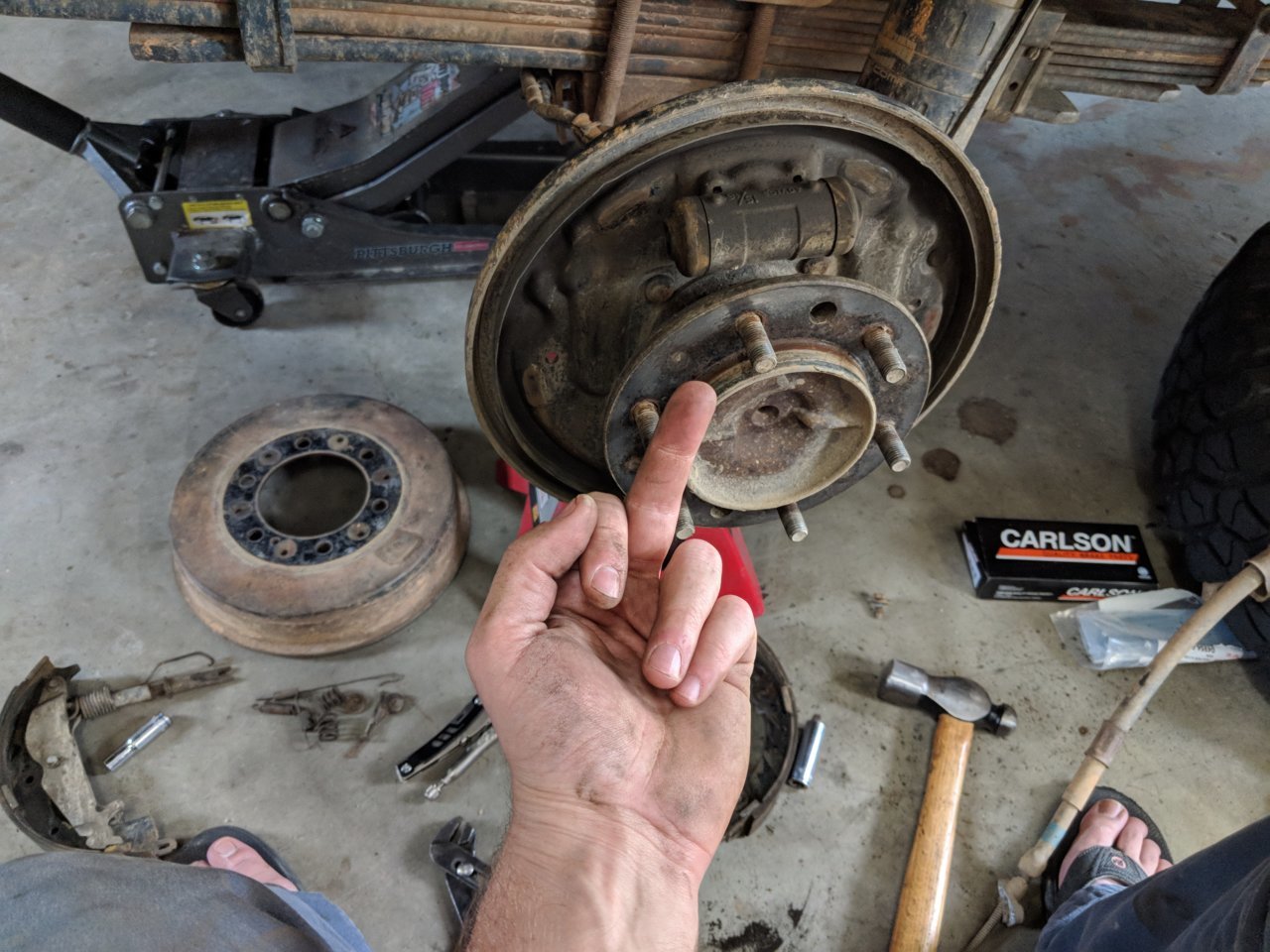

    :burp: welcome to this evenings adventure



    chris4x4 safety, toes first
    While this is out I might as well throw in some sound deadener, maybe my drinks won't get as hot.



    This is it for now.. Not pretty but will be good until I feel like taking the carpet out.



    Replaced the Parking brake cables on both sides and reaction plate on passenger side.











    Biscuits, toysrgood and Benny123 like this.
  11. Sep 29, 2018 at 6:14 AM
    #11
    303tacoma

    303tacoma Bad Karma is a Bitch

    Joined:
    Jan 19, 2014
    Member:
    #121024
    Messages:
    9,868
    Gender:
    Female
    First Name:
    Rebecca
    Sw Denver Concrete Jungle
    Vehicle:
    2008 TRD AC
    ICONS Front & extended Rears DAKARS LR UCAS Wheelers Super Bumps F/R Homersoshi & Bumper insert, Ultra Gauge, Wet Okole seat covers, AFE air filter, Truxedo tonneau cover, LED White Cluster swap by yosh2000, Audio upgrade, ECGS Bushing, rcbs204 Lighted 4x4switch, Bullaculla trailer harness relocate bracket SOS Concepts IFS skid & sliders Anti- Dark RedLine Hood Struts Matt Gecko Bed Lights BHLM Depo Tailights Fog light anytime mod ABS cancel mod Rear diff breather mod Brake light 35watt mod Relentless u bolt flip Mobtown Recovery Bar Sound deadener doors rear wall Modified bed extender
    @Sandman614
    Off subject a little
    In this pic, your bracket for the e brake looks to be in a different position than mine,is this to help with the stretching a lift can cause? It looks like it sitting above the leaves.E3D7EE05-7FA5-427F-B46D-8328DD545C6C.jpgIm doing my drums today
    Our local guys says I have some cable stretching from my lift.

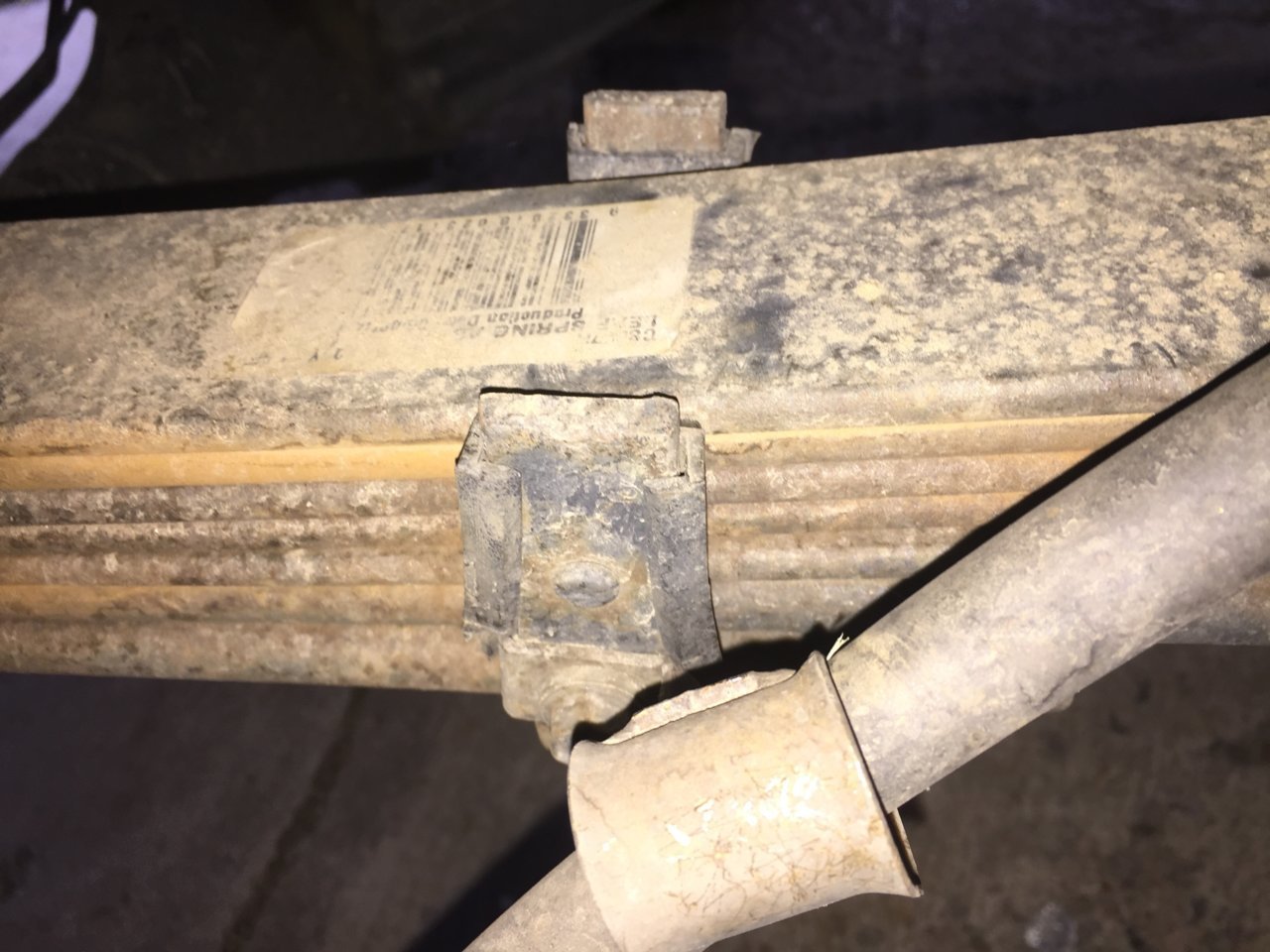

    This is how mine sits image.jpg

    YamaDirtrider likes this.
  12. Sep 29, 2018 at 6:48 AM
    #12
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,270
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Yes moved it with my leafs at full droop so it doesn't get pulled.

    303tacoma likes this.
  13. Sep 29, 2018 at 7:25 AM
    #13
    303tacoma

    303tacoma Bad Karma is a Bitch

    Joined:
    Jan 19, 2014
    Member:
    #121024
    Messages:
    9,868
    Gender:
    Female
    First Name:
    Rebecca
    Sw Denver Concrete Jungle
    Vehicle:
    2008 TRD AC
    ICONS Front & extended Rears DAKARS LR UCAS Wheelers Super Bumps F/R Homersoshi & Bumper insert, Ultra Gauge, Wet Okole seat covers, AFE air filter, Truxedo tonneau cover, LED White Cluster swap by yosh2000, Audio upgrade, ECGS Bushing, rcbs204 Lighted 4x4switch, Bullaculla trailer harness relocate bracket SOS Concepts IFS skid & sliders Anti- Dark RedLine Hood Struts Matt Gecko Bed Lights BHLM Depo Tailights Fog light anytime mod ABS cancel mod Rear diff breather mod Brake light 35watt mod Relentless u bolt flip Mobtown Recovery Bar Sound deadener doors rear wall Modified bed extender
    Thanks

  14. Sep 29, 2018 at 7:54 AM
    #14
    Woundedyak

    Woundedyak Well-Known Member

    Joined:
    Feb 21, 2013
    Member:
    #98113
    Messages:
    604
    Gender:
    Male
    Indy
    Yup, drums are not fun. Still trying to figure out why Toyota is all in with this setup.

  15. Sep 29, 2018 at 11:44 AM
    #15
    303tacoma

    303tacoma Bad Karma is a Bitch

    Joined:
    Jan 19, 2014
    Member:
    #121024
    Messages:
    9,868
    Gender:
    Female
    First Name:
    Rebecca
    Sw Denver Concrete Jungle
    Vehicle:
    2008 TRD AC

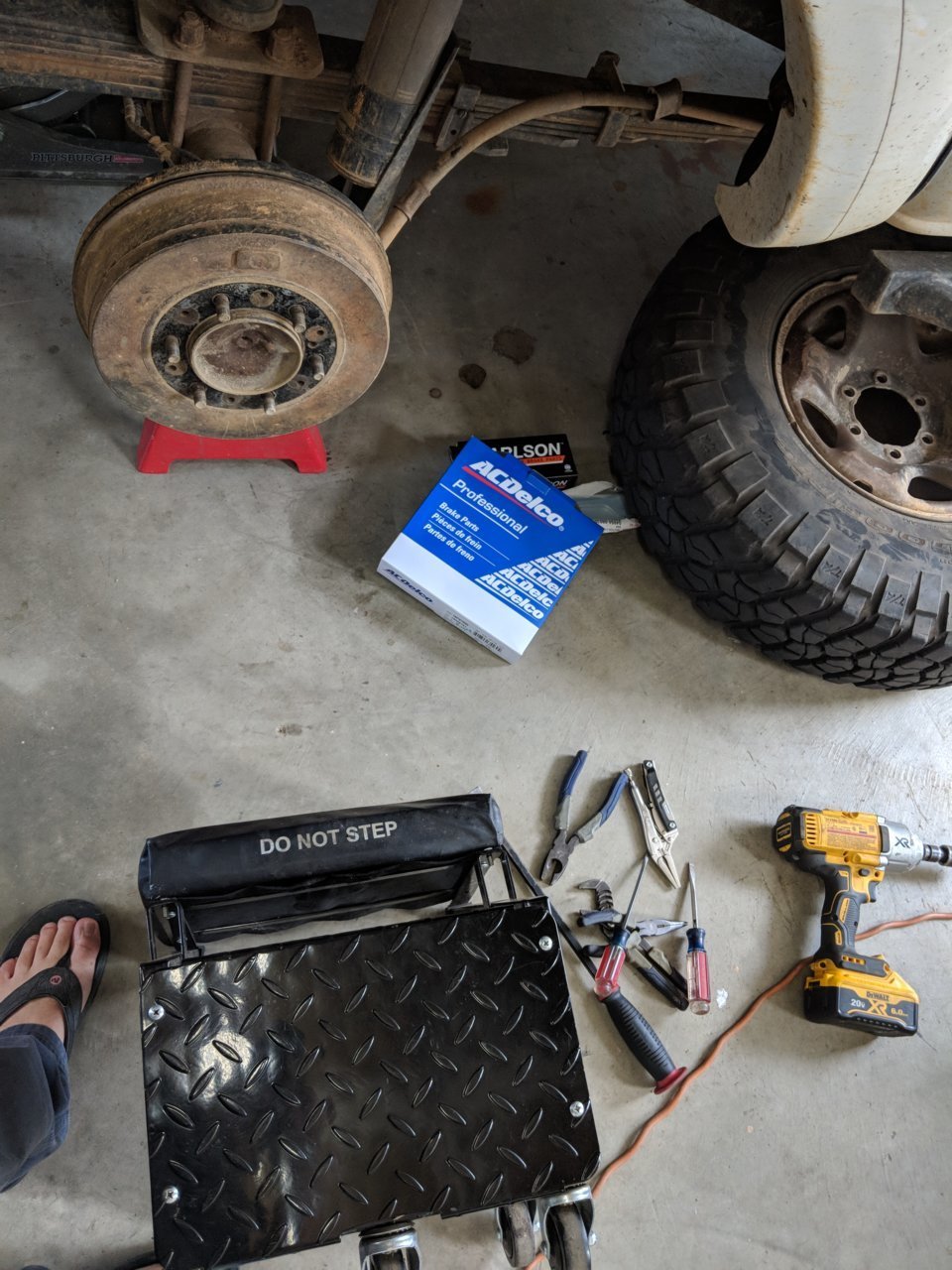

    ICONS Front & extended Rears DAKARS LR UCAS Wheelers Super Bumps F/R Homersoshi & Bumper insert, Ultra Gauge, Wet Okole seat covers, AFE air filter, Truxedo tonneau cover, LED White Cluster swap by yosh2000, Audio upgrade, ECGS Bushing, rcbs204 Lighted 4x4switch, Bullaculla trailer harness relocate bracket SOS Concepts IFS skid & sliders Anti- Dark RedLine Hood Struts Matt Gecko Bed Lights BHLM Depo Tailights Fog light anytime mod ABS cancel mod Rear diff breather mod Brake light 35watt mod Relentless u bolt flip Mobtown Recovery Bar Sound deadener doors rear wall Modified bed extender
    Wasn’t to bad,even though Rock auto sent the wrong brake shoes with the power stop kit,:annoyed: had to go the advanced, and pick up a set.

    lo2hi likes this.
  16. Sep 29, 2018 at 1:44 PM
    #16
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,270
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Easy peezy

    303tacoma likes this.
  17. Sep 30, 2018 at 10:57 AM
    #17
    Biscuits

    Biscuits Thorny Crown of Entropy

    Joined:
    Aug 8, 2010
    Member:
    #41397
    Messages:
    15,299
    Gender:
    Male
    Swiggity swangin' biggity bangin'
    Did you buy the hardware kit from Toyota or aftermarket?

  18. Aug 19, 2019 at 9:40 AM
    #18
    adk_tacoma

    adk_tacoma Well-Known Member

    Joined:
    Aug 8, 2017
    Member:
    #226289
    Messages:
    787
    Gender:
    Male
    First Name:
    Joe
    Waterford, NY
    Vehicle:
    2016 quicksand tacoma sr5
    Westin outdoors man winch brush guard, custom switch board, Custom machined tow hooks, 255/85/r16 tires, trd shocks and struts
    Do you have to back off the adjuster star before removing the drums? I really just want to check my pad life as this will be the first time I change the fronts in 65k miles I've owned the truck.

  19. Aug 19, 2019 at 9:52 AM
    #19
    JaCado

    JaCado I make bad choices

    Joined:
    Aug 29, 2016
    Member:
    #195947
    Messages:
    38,239
    Should be able to just take the drum off, check and slip it back on. Don't push the brake pedal while the drum is off.... it doesn't go well. Ask me how I know;)

  20. Aug 19, 2019 at 10:02 AM
    #20
    adk_tacoma

    adk_tacoma Well-Known Member

    Joined:
    Aug 8, 2017
    Member:
    #226289
    Messages:
    787
    Gender:
    Male
    First Name:
    Joe
    Waterford, NY
    Vehicle:
    2016 quicksand tacoma sr5
    Westin outdoors man winch brush guard, custom switch board, Custom machined tow hooks, 255/85/r16 tires, trd shocks and struts
    Yeah, thats a good way to pop brake cylinders. Did that in my dakota (previous truck). That truck I had to back the star wheel out or the lip on the drum would clean your springs off as you pried it off.
