2nd Gen 1GRFE Alternator Rebuild - Mud cleanout

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Sandman614, Oct 1, 2016.

  1. Oct 1, 2016 at 8:22 PM
    #1
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    31,598
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    https://youtu.be/J0CyhCAW9fc

    So after much, much, much, searching there isn't much info on this topic for 2005-2016 Tacomas. There is however a good amount of info for 1st gens.. My truck started making a whining sound, not coming through the speakers. After some deliberation and confirmation from this Youtube video I decided to rebuild my alternator.
    https://youtu.be/hmPUUVwIJUU

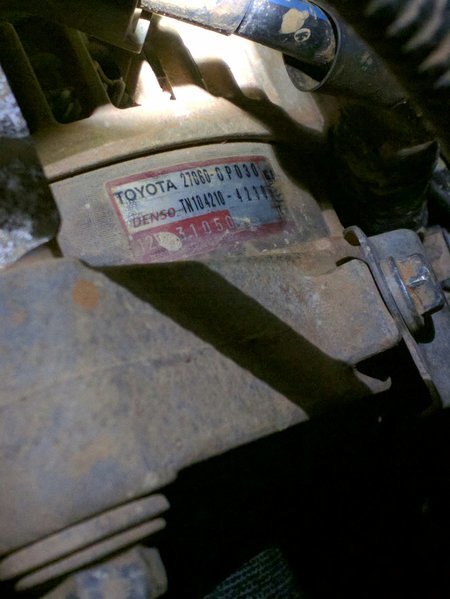

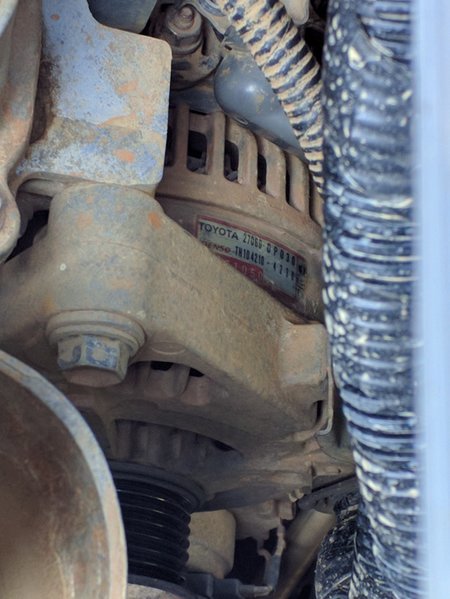

    Stock 100 amp non-towing Denso:
    Toyota 27060-0P030
    Denso TN104210-4230

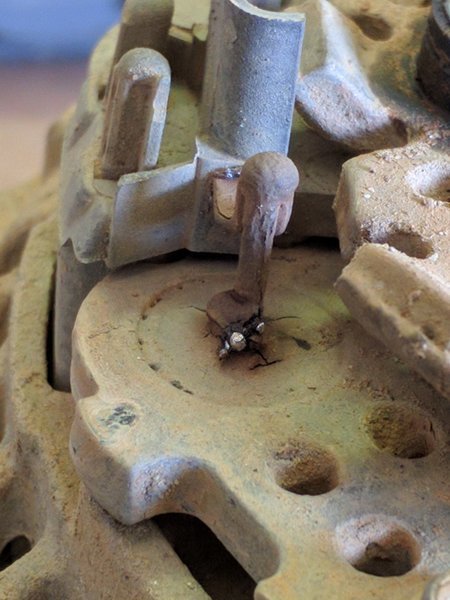

    Bad diode:

    Part: ALTERNATOR HD DIODE RECTIFIER http://www.ebay.com/itm/291236997680

    Step 1: Disconnect alternator from battery. I disconnected at the alternator connection in the fuse box.

    Step 2: Remove your alternator, 1 battery cable, 1 connectors, 2x14mm mounting bolts and 2x10mm wire loom bolts. Probably have to remove serpentine belt.
    https://www.tacomaworld.com/threads/how-to-change-the-alternator-on-a-2nd-gen-tacoma.175116/

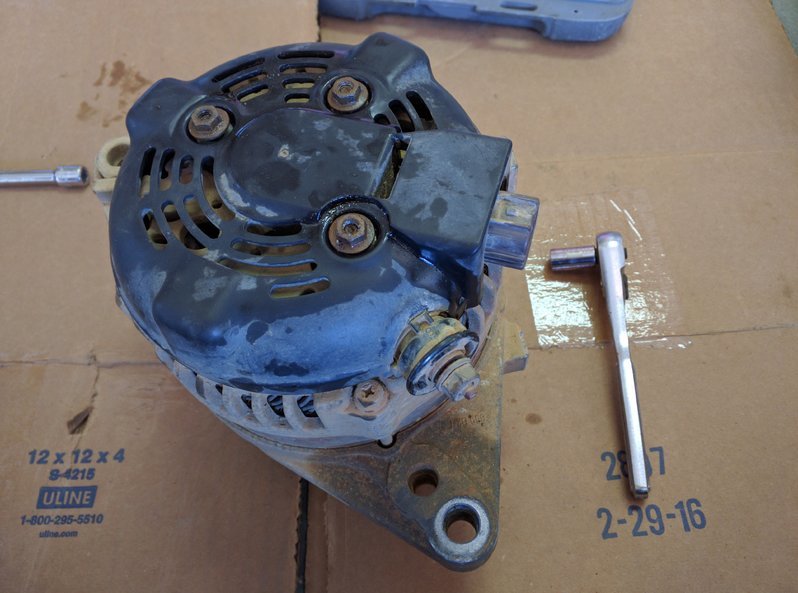

    Step 3: Remove rear cover, 3x8mm nuts.

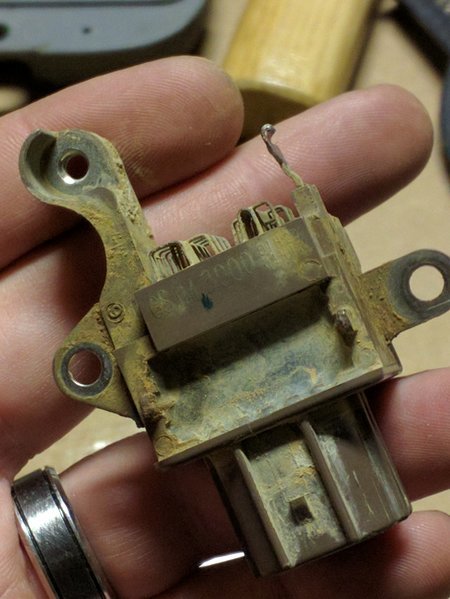

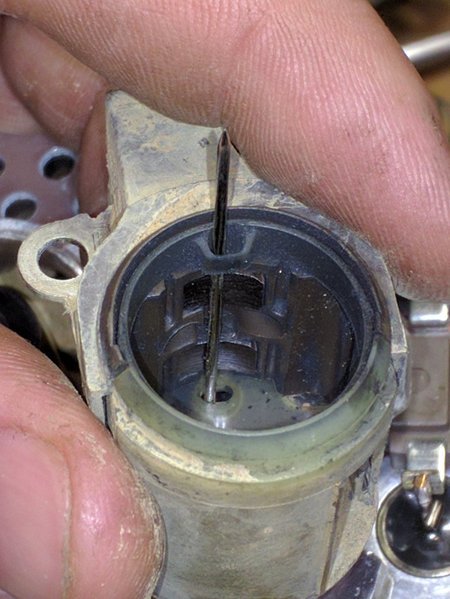

    Step 4: Remove brush housing, 2 phillips screws. Inspect and/or replace brushes. Stick a paperclip, needle, toothpic, etc through like this so you don't loose the brushes.

    Step 4.5: clean the mud out of the Brushes and reinstall
    Skip to step 10 if you are here for mud cleanout

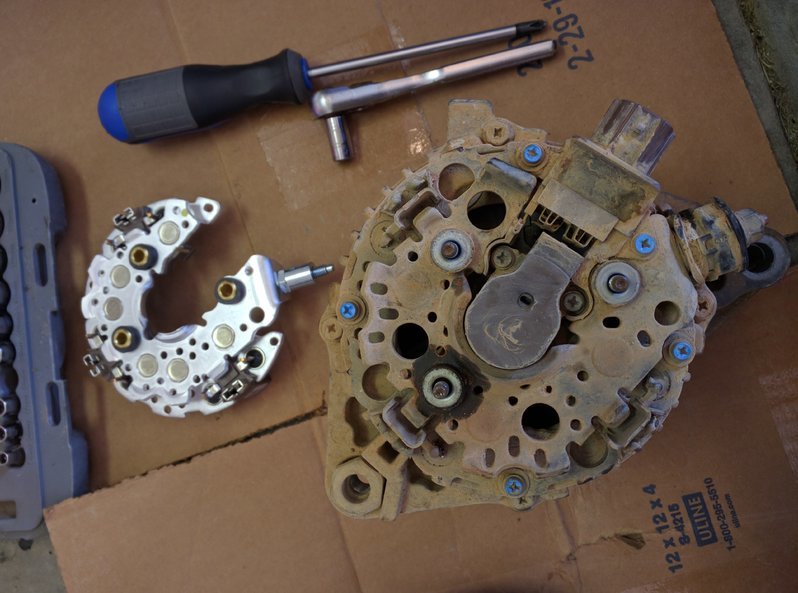

    Step 5: Remove diode assembly, phillips screws marked here in blue.

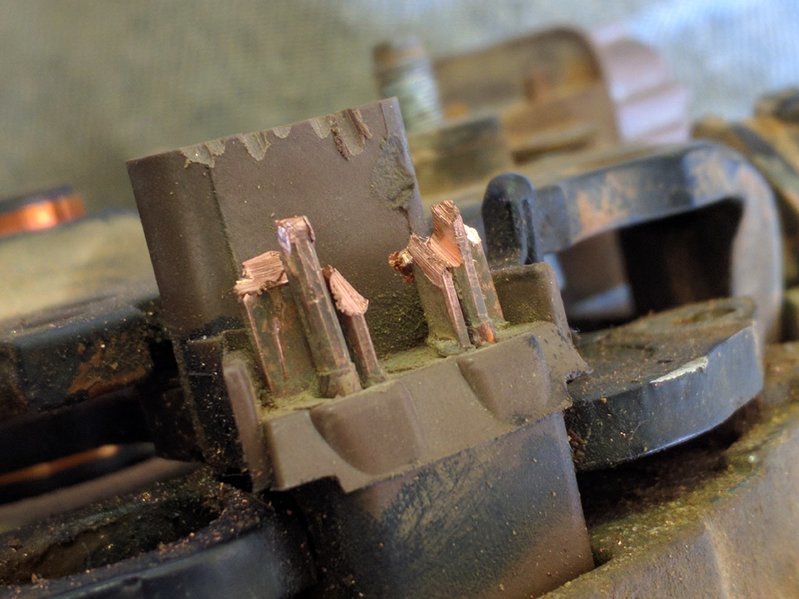

    Step 6: Disconnect the 3 sets of winding wires coming up through diode assembly. I used a dremel and carfully cut the 'welds'. Take care not to cut the wires short or thin.

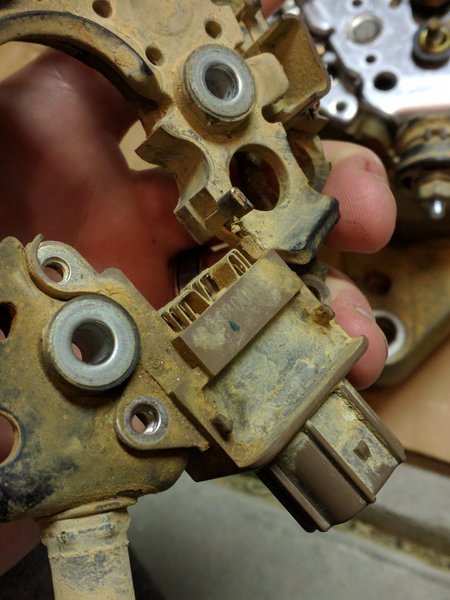

    Step 7: Remove the plug from the old diode assembly. I used the dremel again.

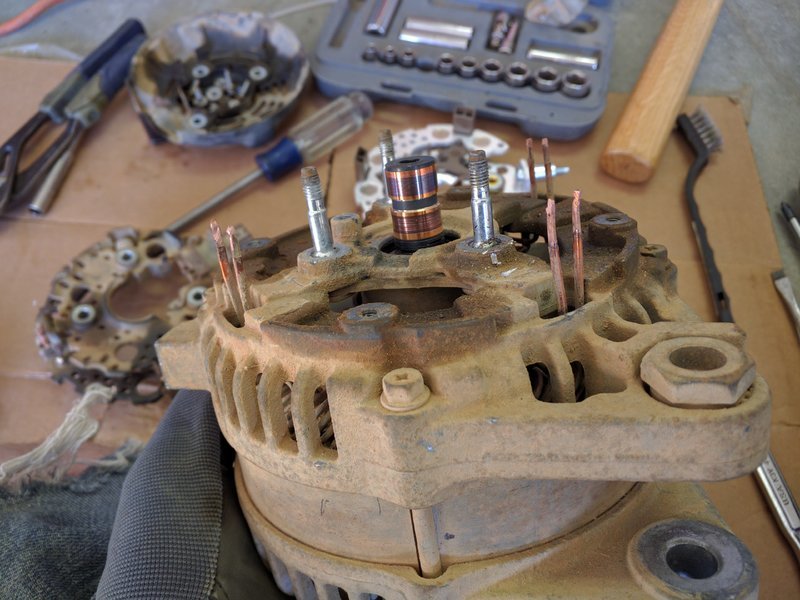

    Step 8: Remove old diode Assembly

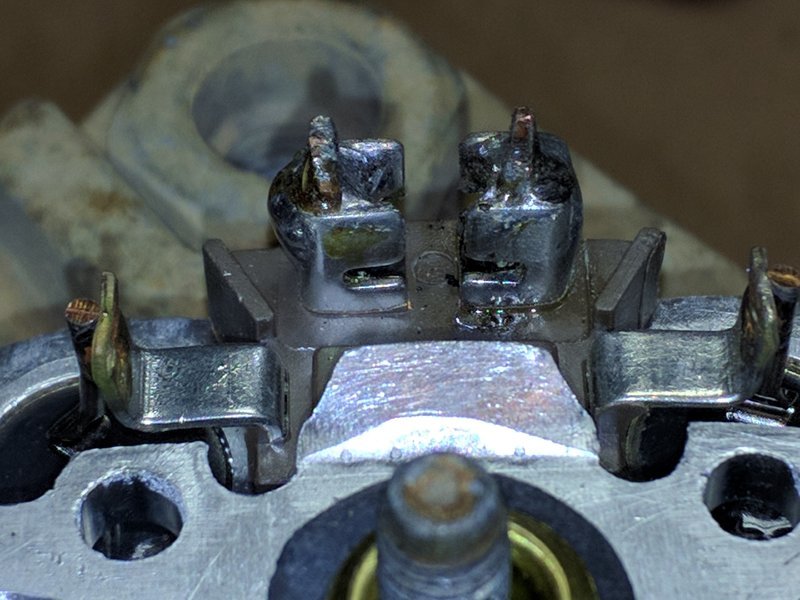

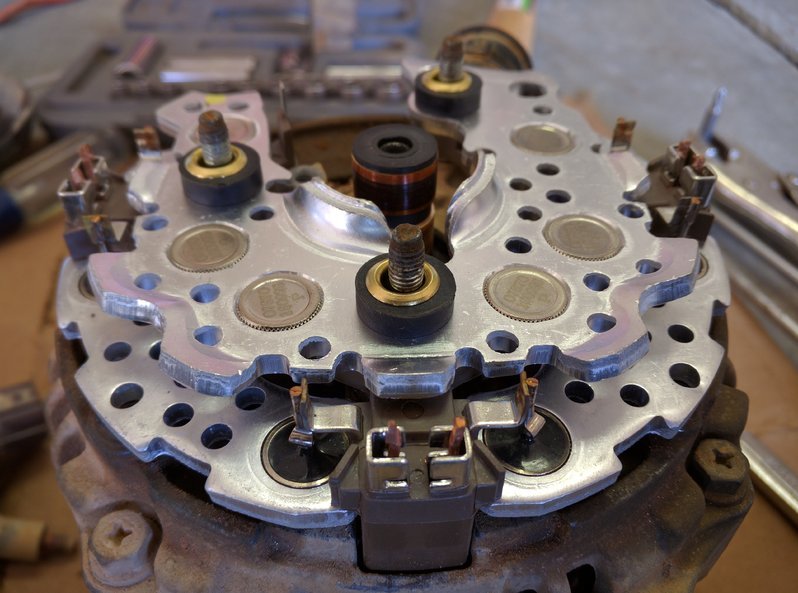

    Step 9: Install new diode Assembly and reconnect the 3 sets of winding wires. I soldered them on after seeing this video.
    https://youtu.be/ZupcMqBYeew

    Step 10: Reinstall brushes

    Step 11: Reinstall rear cover

    Step 12: Take alternator to Auto Parts store and have it bench tested.

    Last edited: May 3, 2017
  2. Oct 1, 2016 at 8:39 PM
    #2
    Dragons Taco

    Dragons Taco Well-Known Member

    Joined:
    Jan 19, 2012
    Member:
    #70993
    Messages:
    2,958
    Gender:
    Male
    First Name:
    Derek
    Cary/Raleigh NC
    Vehicle:
    06 Black TRD-S 4WD 4D 6SPD and MINE!
    Can ya spell Tonneau
    Great tutorial! Nice job with the pics! I know u wanted to do a thread on this as a trail fix, (cleaning mud from the brushes) but your rebuild details are also worth having if peeps can find a regulator.

    Caution to folks with a tow package. The regulator listed here may not be able to support the current available in the higher capacity alternator and be shorter lived if under a big load. (Dead battery for instance)

    seniorredwood likes this.
  3. Oct 1, 2016 at 8:42 PM
    #3
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    31,598
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Haha yea so Step 5.5: clean the mud out of the Brushes and reinstall lol.

    seniorredwood likes this.
  4. Oct 1, 2016 at 8:52 PM
    #4
    DukesTaco

    DukesTaco Well-Known Member

    Joined:
    Feb 19, 2015
    Member:
    #149086
    Messages:
    5,695
    Gender:
    Male
    AZ
    Vehicle:
    2nd Gen Double cab Pre Runner
    Nice write-up. Subbing for future rebuild.

    Sandman614 [OP] likes this.
  5. Oct 2, 2016 at 5:54 AM
    #5
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    31,598
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
  6. Oct 2, 2016 at 8:32 AM
    #6
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    31,598
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Autozone says it passed. Topping off my battery with my charger now.

    Manfred and seniorredwood like this.
  7. Oct 2, 2016 at 12:56 PM
    #7
    Tex-Tac

    Tex-Tac Well-Known Member

    Joined:
    May 5, 2009
    Member:
    #16844
    Messages:
    803
    Gender:
    Male
    TEXAS
    Vehicle:
    2008 Tacoma V6 PreRunner SR5 Extended Double Cab Desert Sand Mica
    Installed Overhead Compass and Temperature Display along with outside temperature sensor and wiring; LED lights reverse backup; LED license plate lights; Added GTA Bluetooth Audio kit to stock radio for iphone audio; Spare tire steel braided air hose extension connection to rear bumper; Installed new headlights along with new bulbs PIAA H4 XTreme and for fog lights PIAA H10 XTreme bulbs. Installed new hood with "hood-scoop". Installed Predator Side Steps. Replaced front chrome grill with customized color matched (Desert Sand Mica) grill with added TOYOTA lettering (also in matched color), installed and secured tailgate anti-theft devices. Also installed a new external TPMS monitor for all 4 tires.
    Sub'd

    seniorredwood likes this.
  8. Feb 25, 2017 at 4:03 PM
    #8
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    31,598
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Update: All is well

    Manfred and seniorredwood like this.
  9. Mar 13, 2017 at 9:23 PM
    #9
    T4RFTMFW

    T4RFTMFW #DBBeer

    Joined:
    Jul 23, 2014
    Member:
    #134525
    Messages:
    67,596
  10. Jun 29, 2017 at 1:52 PM
    #10
    ItalynStylion

    ItalynStylion Sounds Gooooood

    Joined:
    Jun 15, 2009
    Member:
    #18467
    Messages:
    5,668
    Gender:
    Male
    First Name:
    Steven
    DFW, Tx.
    Vehicle:
    09 Double Cab TRD Sport 4x4
    Great thread! That video of the alternator in the camry whining sounds JUST like mine. Pretty sure I have my marching orders.

    Sandman614 [OP] likes this.
  11. Oct 19, 2018 at 10:08 AM
    #11
    swede31188

    swede31188 Well-Known Member

    Joined:
    Oct 15, 2007
    Member:
    #3056
    Messages:
    62
    Gender:
    Male
    sierras
    Vehicle:
    07 trd sport ex.cab 4x4
    kn cold air intake,flowmaster cat back dual exhaust, dee-zee bedmat, extreme custom fit floor mats ,
  12. Apr 9, 2019 at 9:49 AM
    #12
    Manfred

    Manfred Well-Known Member

    Joined:
    Jun 25, 2014
    Member:
    #132699
    Messages:
    1,953
    Gender:
    Male
    First Name:
    Manfred
    Great White North
    Vehicle:
    2010 DCLB
    All of them
    I think you may have helped me diagnose the whinning sound coming from the drivers side of the engine bay but ill have to confirm with a screw driver. It started last july after going through a deep puddle SO its on my list of suspects.

  13. Apr 9, 2019 at 10:56 AM
    #13
    burntkat

    burntkat Well-Known Member

    Joined:
    Aug 16, 2018
    Member:
    #263029
    Messages:
    1,325
    Gender:
    Male
    First Name:
    Phillip
    Charleston, SC
    Vehicle:
    97 Extracab Tacoma
    Fyi, these parts store testers are a wild ass guess backed up with numbers. You want to test the item hot and in situ if at all possible, not on a bench.

  14. Apr 9, 2019 at 10:58 AM
    #14
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    31,598
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Better to have a guess with numbers than tear it back out again if you messed up or the new part is bad. But you do you

    PzTank and burntkat like this.
  15. Apr 9, 2019 at 11:19 AM
    #15
    burntkat

    burntkat Well-Known Member

    Joined:
    Aug 16, 2018
    Member:
    #263029
    Messages:
    1,325
    Gender:
    Male
    First Name:
    Phillip
    Charleston, SC
    Vehicle:
    97 Extracab Tacoma
    Absolutely, in event of a rebuild, it is worth the time. But it's kind of hard to screw up bolting parts in. ;)

  16. Apr 9, 2019 at 1:13 PM
    #16
    PzTank

    PzTank ☕️

    Joined:
    Sep 14, 2010
    Member:
    #43250
    Messages:
    1,536
    First Name:
    Jim
    New England
    Vehicle:
    ‘15 AC SR5 4X4 4.0 Auto
    ‘07 OR leather shift knob. Bob’s Gentex 453. KBB Bed Rail Caps Diamondback HD - pending
    How’s it holding out after 2 1/2 years post rebuild?

  17. Apr 9, 2019 at 1:13 PM
    #17
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    31,598
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Stilll going good!
