2nd gen Brake plug-and-play brake tap

Discussion in '2nd Gen Tacoma Parts Marketplace (2005-2015)' started by Puppypunter, Mar 20, 2021.

  1. Mar 20, 2021 at 12:19 AM
    #1
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    1,202
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR

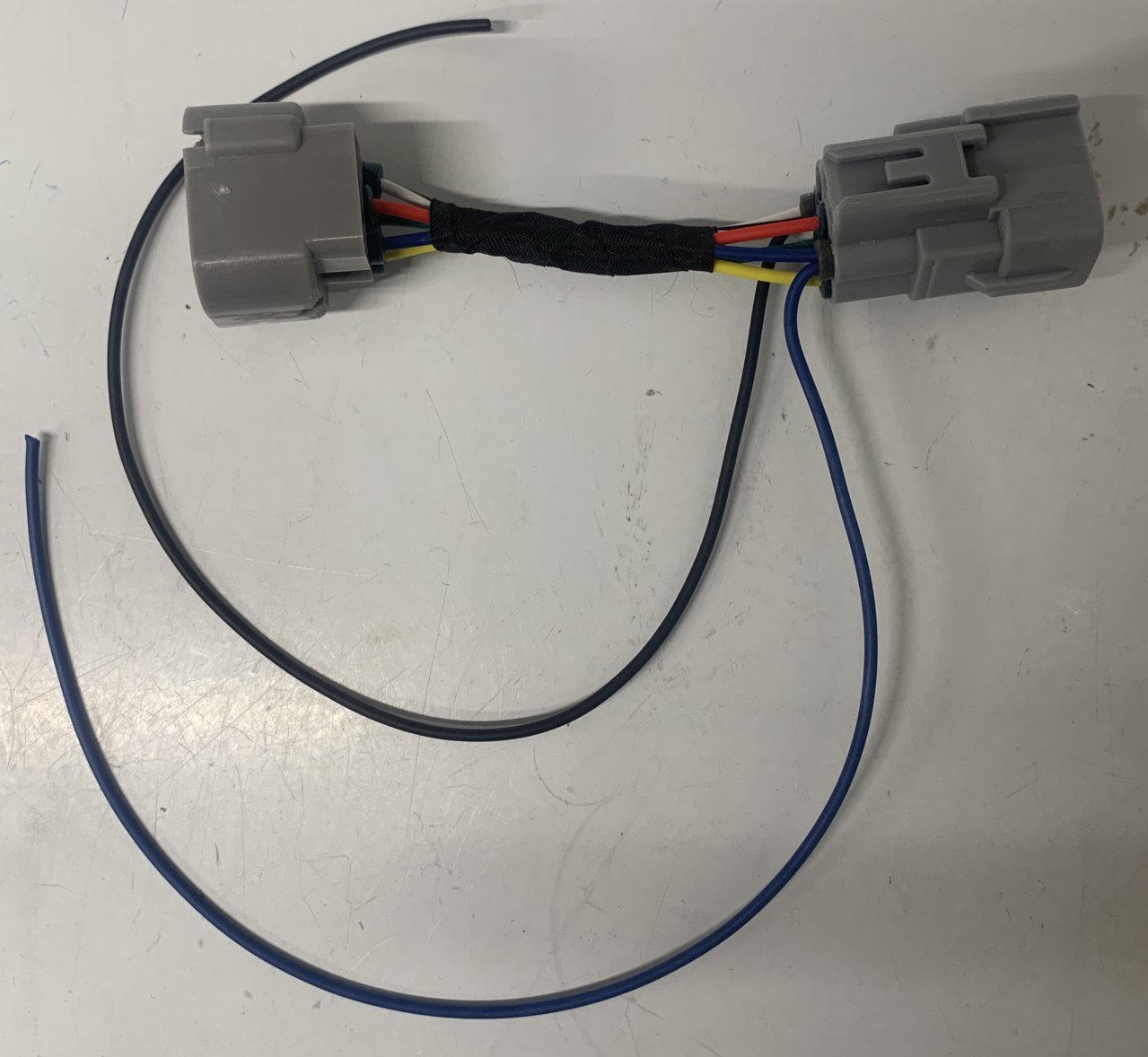

    Hello 2nd genners! I have been making brake taps for those that want to add third brake lights for toppers or racks or whatever they may need a tap to the brake light for. Anyway, I have finally gotten ahold of some parts to make some of these for the 2nd gens as well. So I will be selling these for $35 for the brake tap, which is a male and female plug with two wire leads (brake + and ground) about a foot long. So extra brake lights can be added without the use of vampire clips. It is more than I am selling the 3rd gen tap for, I know. I figure you guys probably have your trucks paid off by now... Just kidding! it really boils down to the parts being more expensive and needing a few more jumpers, so a little more work for these. Now here is the cool part with the 2nd gens: Everything on the taillights runs through one connector (except turn signals), so these are easily customizable. So, if you want an extra tap for running lights or a reverse signal, just say the word. If it just a short wire lead like the brake, I'm happy to do those. If you would like one to do reverse so you can add the Meso hitch light using the Baja Designs S1, reach out to @memario1214 and he will have what you need. If you would like to have a brake tap AND a reverse tap that will work with the Meso hitch light (a wire long and pretty, terminated already to plug into the S1), I will be offering those for $10 more as well.

    EDIT: I realized I wasn't too clear on the turn signal functionality of these. One tap can only do one turn signal. So if you want something that can do both turn signals (for an LED strip, auxiliary turn signals, whatever), you will need to get 2 of these. I will make one standard, and the other will have a 10' wire tapped off the turn signal. This should be long enough to go under and over to the other side, where it can join with the standard one and feed whatever you need.

    So, $35 for a basic brake tap
    $45 for a brake tap + Meso hitch light plug
    $10 extra shipping to Canada
    $65 for 2. That includes either 2 basics, or one basic with whatever taps you want, plus a second one with a 10' long turn signal.
    Since the 2nd gens have a little more going on, I am wiring the hot leads to match the OEM colors. So Blue is brake +. Black is ground.

    Here is how I am going to do this: I will do these in smaller batches, every few weeks maybe 10-15 of them (they are more work, so smaller batches is less likely to burn me out)

    You can just let me know here that you are interested, and I will update the list every few days. When I do a batch, I will reach out to as many people as that batch will cover via PM with further instructions. Hopefully that makes sense? Feel free to put any special request in you post as well, and I will note it. For example "I'm interested in one. Can you add a parking tap too?" or something like that. So now that I have rambled on way too long, lets kick off the interested list:

    -2. @JMcFly
    -1. @Toyomonkey59 (full set) (that is how I am labeling the turn, brake, park, reverse options)

    Last edited: Apr 11, 2021
  2. Mar 20, 2021 at 1:39 AM
    #2
    Davis85WV

    Davis85WV Well-Known Member

    Joined:
    Nov 14, 2017
    Member:
    #235965
    Messages:
    127
    Gender:
    Male
    First Name:
    Justin
    WV
    Vehicle:
    2002 DC TRD OR
    5speed swapped, Toytec boss lift, JBA uca's, Procomp Rockwells, Falken Wild Peaks 285/75/17, Snugtop, Afe CAI, Magnaflow muffler, Compustar Keyless and Remote start, Huskyliners, Ultragauge scan tool, Pioneer dd, LCE short throw shift kit, Marlin Clutch, Factory roof racks,
    I'm interested.
    Throw on a tap for reverse, park, and stop because why not?
    @puppyhunter

    Key-Rei likes this.
  3. Mar 20, 2021 at 4:05 AM
    #3
    fatfurious2

    fatfurious2 IG: great_white_taco

    Joined:
    Jun 28, 2014
    Member:
    #132884
    Messages:
    42,312
    Gender:
    Male
    First Name:
    David
    Ashburn, VA
    Vehicle:
    2010 TRD OR Access Cab
    Definitely in for a basic one!

  4. Mar 20, 2021 at 8:38 AM
    #4
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,472
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    @Puppypunter im in for 1 maybe 2. What option or asks can be dine? Reverse or parking seems clutch that was asked. Maybe a 12+/- for running some extras.

  5. Mar 20, 2021 at 8:39 AM
    #5
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,472
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    @Gruber1922 this would be good for upcoming shell setup

    Gruber1922 likes this.
  6. Mar 20, 2021 at 9:27 AM
    #6
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    1,202
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    The options on these are brake (included), reverse, parking/running, and turn. Turn only would include one side, so if you wanted both sides, it would be an extra $30 (no extra to cover shipping). So if you are adding an LED strip to you bed rack let’s say, and you want it to do turn signals, let me know. It would be $65, and will do one side with a turn signal tap and make the wire extra long so you can run it to the other side with the other wires and make your connection on one side. Hopefully that makes sense? The one thing these won’t do is a constant 12v+ for a dome light or anything like that.

    Last edited: Mar 20, 2021
  7. Mar 20, 2021 at 9:43 AM
    #7
    rustyfromskowhegan

    rustyfromskowhegan Well-Known Member

    Joined:
    Jan 31, 2017
    Member:
    #209215
    Messages:
    281
    Vehicle:
    2013 AC 4x4
    I’m definitely in for a basic one to wire up my caps brake light.

  8. Mar 20, 2021 at 11:54 AM
    #8
    gibby11

    gibby11 Well-Known Member

    Joined:
    Aug 6, 2013
    Member:
    #109927
    Messages:
    522
    Gender:
    Male
    First Name:
    Andrew
    Las Vegas, NV
    Vehicle:
    2nd gens are better, change my mind.
    @Puppypunter I’m in for one, add reverse and park.

    edit: add turn signal as well

    Last edited: Mar 23, 2021
  9. Mar 20, 2021 at 2:09 PM
    #9
    Alattaack

    Alattaack Well-Known Member

    Joined:
    May 2, 2016
    Member:
    #185910
    Messages:
    129
    Gender:
    Male
    First Name:
    Alec
    Rhode Island
    Vehicle:
    2011 Tacoma TRD Sport
    OME 887's, 5100s in the front with extended length rear shocks, light duty dakars, LR UCA's. 285/70/17 BFG KO2's on 17x9 Fuel Krank -12 offset
    @Shearboy2005 would something like this be worthwhile for the s2’s?

  10. Mar 20, 2021 at 2:15 PM
    #10
    Gruber1922

    Gruber1922 Well-Known Member

    Joined:
    Mar 31, 2019
    Member:
    #288634
    Messages:
    1,117
    Gender:
    Male
    Tacoma, WA
    Vehicle:
    2015 Tacoma Sport
    I am interested in a basic

    Last edited: Mar 20, 2021
    nudavinci64 likes this.
  11. Mar 20, 2021 at 2:58 PM
    #11
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    1,202
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    You could add turn signal functionality or brake light functionality to them depending on what color backlight you have. I personally am doing this. I have a set theat I will be using for auxiliary reverse lights, and got them with the red backlight, so they are a 4th/5th brake light as well.

  12. Mar 20, 2021 at 3:10 PM
    #12
    FastEddy59

    FastEddy59 TTC #0061

    Joined:
    Jan 20, 2017
    Member:
    #208155
    Messages:
    20,987
    Gender:
    Male
    First Name:
    Eddie
    Smack, Dab in the middle of Winnipeg
    Vehicle:
    '13 Barc. Red Tacoma SR5 4X4
    Rigid 23004 Radiance light bar Cheap 3K 18W LED Fogs General AT-2's Pioneer AVH4200NEX w/ iDatalink JL XD5003V2 Focal 165KRX2's JL 10TW3 Arcticstart 803
    In for one with Park & Reverse Please. :canada:

  13. Mar 20, 2021 at 4:09 PM
    #13
    Alattaack

    Alattaack Well-Known Member

    Joined:
    May 2, 2016
    Member:
    #185910
    Messages:
    129
    Gender:
    Male
    First Name:
    Alec
    Rhode Island
    Vehicle:
    2011 Tacoma TRD Sport
    OME 887's, 5100s in the front with extended length rear shocks, light duty dakars, LR UCA's. 285/70/17 BFG KO2's on 17x9 Fuel Krank -12 offset
    The S2’s i think are clear white spots that he threw in with the bumper i bought. Would look nice to have more brake lights though

  14. Mar 20, 2021 at 5:09 PM
    #14
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    1,202
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    Crap, I was thinking SSC2s (from diode dynamics). I think the S2 would probably be more amps than I would recommend pulling straight from a tap. You could use the tap to trigger a relay though. Run a 12 gauge wire from the battery, and power 5-6 pairs of them :D

  15. Mar 20, 2021 at 10:07 PM
    #15
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,472
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    I was thinking of running the reverse to a set of S2’s. If you want to do turn signals would it make sense to do 1 harness or 2? I was thinking of getting 2 just for more options. I had thought of the constant but I have that covered with power I ran to the back already.

  16. Mar 20, 2021 at 10:15 PM
    #16
    Puppypunter

    Puppypunter [OP] Well-Known Member

    Joined:
    Jan 4, 2020
    Member:
    #315086
    Messages:
    1,202
    Gender:
    Male
    First Name:
    Johnny
    Vehicle:
    2019 Black SR
    If you want to do turn signals, you will need to do 2 plugs. If they are S2 sports, you would probably be okay as they draw 0.9A each. I would at least make sure you have swapped the incandescent reverse bulbs for LEDs though, to get some headroom on amp pull. I can do a seperate reverse from each one, but 18ga is fine to do one wire for 2 lights.

  17. Mar 20, 2021 at 11:06 PM
    #17
    nudavinci64

    nudavinci64 Taco Outlaw

    Joined:
    Nov 14, 2013
    Member:
    #116533
    Messages:
    6,472
    Gender:
    Male
    First Name:
    Robert
    San Mateo/Cayucos, CA
    Vehicle:
    13 S/C TRD OffRoad 4x4
    Boosted Money Pit....
    Sounds good. having one on each will give me some options I may still run one. What needs to be done to tap into them but still have them run on the switch? Can you just tap into the hot on each one?

    I should have LEDs in them already and yes they are S2 sports

  18. Mar 21, 2021 at 6:23 AM
    #18
    HellsWells

    HellsWells Active Member

    Joined:
    Mar 24, 2011
    Member:
    #53610
    Messages:
    27
    Gender:
    Male
    First Name:
    Spencer
    Richmond, Va
    Vehicle:
    2011 TRD Off Road Double Cab
    I am definitely in. Can you include me for one with park and reverse as well?

  19. Mar 21, 2021 at 6:40 AM
    #19
    EB1

    EB1 New Member

    Joined:
    Mar 3, 2021
    Member:
    #358022
    Messages:
    2
    Im interested in a basic brake tap...thank you

  20. Mar 21, 2021 at 9:43 AM
    #20
    Toyomonkey59

    Toyomonkey59 Well-Known Member

    Joined:
    Aug 4, 2015
    Member:
    #161016
    Messages:
    122
    Gender:
    Male
    First Name:
    James
    Hedgesville Wv
    Vehicle:
    2012 toyota tacoma Trd 4.0 4x4 Doublecab
    I would like one with the works! brake,reverse and wiring for led strip for my rack with right and left signals.
