2nd gen bumper build

Discussion in '2nd Gen. Tacomas (2005-2015)' started by GsxRtaco, Sep 14, 2015.

  1. Sep 14, 2015 at 4:46 PM
    #1
    GsxRtaco

    GsxRtaco [OP] Well-Known Member

    Joined:
    Mar 26, 2013
    Member:
    #100653
    Messages:
    270
    Gender:
    Male
    First Name:
    Tony
    Wisconsin
    Vehicle:
    08
    Update: I've decided to post a picture of each finished build I make in this first post, I will try to keep this updated as I finish more projects.

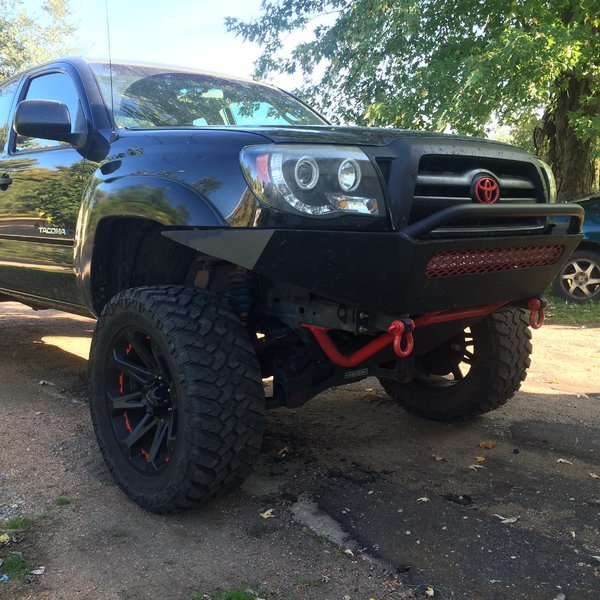

    Front bumper:

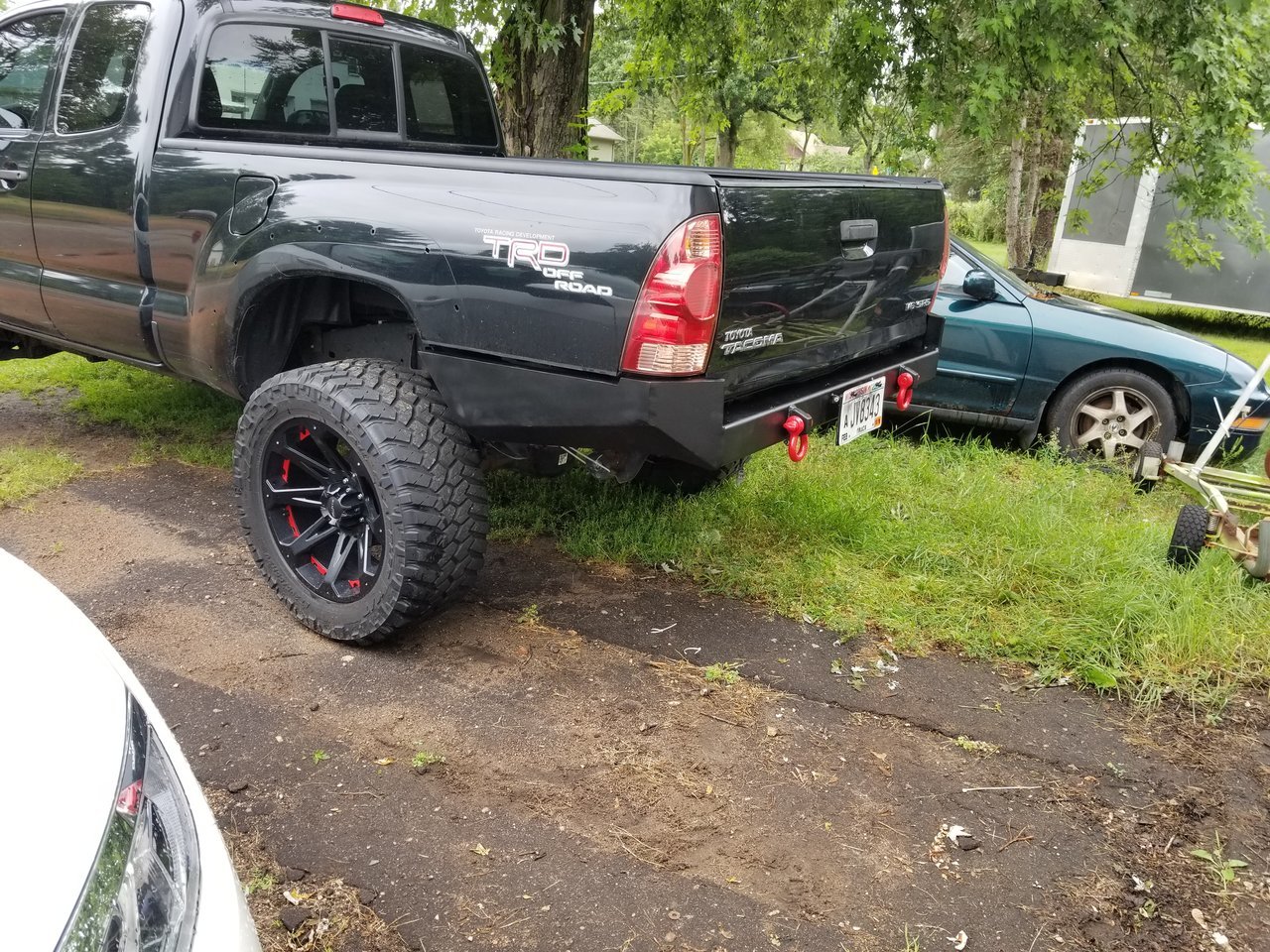

    High clearance rear bumper:


    In progress watch for near daily updates.

    Hi everybody decided to try building a plate bumper for my 2008. I'll try to post up pics as I make progress. This is my first bumper build so it will be a lot of trial and error feel free to leave feed back constructive criticism is welcome. I appreciate any input because if this doesn't turn out good I'll have to build another one.
    I also have a tube bender so once the base is complete I'll try making some hoops for on top.

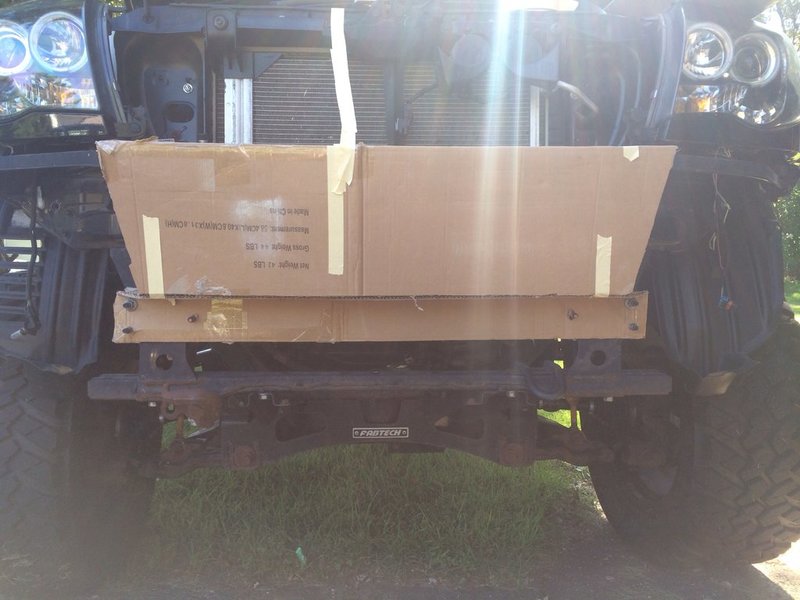

    First I made a cardboard template of the center of the bumper.image.jpgimage.jpg

    Once I was happy with the basic shape of the center piece I transferred the measurements on to 3/16" plate steel.



    I've looked all over for bumpers that have skids to protect a DB to no avail do I'll try to incorporate that into this build.
    I wrote all of my dimensions on incase any body cares to copy my design I looked all over the internet and couldn't find any free plans so take it for what it is. I will try to include all my dimensions as I go along, hopefully it will help somebody out in the future as well as help with any tips people have to make this thing turn out.





    Unfortunately I don't have a plasma cutter at home yet so I tried cutting it with a sawsall first but I couldn't get the lines as straight as I wanted. If I didn't think it would warp I would have preferred to torch it but I ended up resorting to my 4 1/2 Milwaukee grinder with cutoff discs.




    Once I had the basic shape cut out I began to cut about half the thickness of the plate where I plan on bending it to shape. Yes I could cut it completely apart and weld it but hopefully this will cut down on some of the welding. Less welding = less heat distortion. Once scored enough I clamped it to another piece of steel along the seam to try and bend it as cleanly as possible.


    Well that's where I'm at for the night hopefully I'll have some time to work on it more in the morning.


    Attached Files:

    Last edited: Jul 26, 2017
  2. Sep 14, 2015 at 5:02 PM
    #2
    taco wabo

    taco wabo Well-Known Member

    Joined:
    Feb 15, 2014
    Member:
    #123141
    Messages:
    47
    Gender:
    Male
    First Name:
    Ryan
    North Carolina
    Vehicle:
    '06 trd offroad, work in progress
    bilstein 5100 set at 2.5, 285/75/16 duratracs, spidertrax, fog light mod, omd chevy leaf mod
    :popcorn:
    Sounds like you're off to a good start! What kind of pipe bender do you have? I went the harbor freight route and haven't had a whole lot of time to play with it but I haven't had very good results yet.

    GsxRtaco [OP] likes this.
  3. Sep 14, 2015 at 5:21 PM
    #3
    GsxRtaco

    GsxRtaco [OP] Well-Known Member

    Joined:
    Mar 26, 2013
    Member:
    #100653
    Messages:
    270
    Gender:
    Male
    First Name:
    Tony
    Wisconsin
    Vehicle:
    08
    Thanks for your interest. I have a jd2 model 32 with 1 1/4" and 1 3/4" tubing dies

    ChadsPride likes this.
  4. Sep 14, 2015 at 6:28 PM
    #4
    GsxRtaco

    GsxRtaco [OP] Well-Known Member

    Joined:
    Mar 26, 2013
    Member:
    #100653
    Messages:
    270
    Gender:
    Male
    First Name:
    Tony
    Wisconsin
    Vehicle:
    08
    Here's a quick pic of my bender.... Don't mind the messy garage I just moved.image.jpg

    Reef4, markelhof and ChadsPride like this.
  5. Sep 14, 2015 at 6:34 PM
    #5
    SkyHighTacoma

    SkyHighTacoma Josh

    Joined:
    Aug 12, 2009
    Member:
    #21054
    Messages:
    1,290
    Gender:
    Male
    First Name:
    Josh
    Brazoria County Texas
    Vehicle:
    15 DCSB SR5 MGM
    Looks like your on the right track, I'm subbed.

    ChadsPride and GsxRtaco [OP] like this.
  6. Sep 14, 2015 at 7:01 PM
    #6
    Timbo89

    Timbo89 Well-Known Member

    Joined:
    Aug 8, 2013
    Member:
    #110078
    Messages:
    5,599
    Gender:
    Male
    First Name:
    Timothy
    Auburndale FL
    Vehicle:
    2013 prerunner
    MaxTrac spindles, 5100s at all corners. Front set @1.75 expo springs out back. Wheels are a 20x12 moto metal -44mm offset wrapped with 305/55/20 nitto Terras. Performance is just a drop in k&n and a Flowmaster thunder series exhaust and a few stickers ha.
    Sweet. Is a thread around for bumper builds? Would be a great idea.


    Wish I had access to a bender would have made mine much easier then to weld and smooth all the edges on the front

    ChadsPride and GsxRtaco [OP] like this.
  7. Sep 18, 2015 at 6:06 AM
    #7
    GsxRtaco

    GsxRtaco [OP] Well-Known Member

    Joined:
    Mar 26, 2013
    Member:
    #100653
    Messages:
    270
    Gender:
    Male
    First Name:
    Tony
    Wisconsin
    Vehicle:
    08
    Sorry about the lack of posts but I've only had a few minutes here and there to work on it this week.


    So I decided it would be easier to drill all the mounting holes before I got everything bent up. Here is a mock up to see if everything was lining up.image.jpg


    Then I brought it over to my redneck 2x4 break to assist in bending.


    This is we're it sits as of right now I will be working on it some more today.

    Dalandser and ChadsPride like this.
  8. Sep 18, 2015 at 10:36 AM
    #8
    mach1man001

    mach1man001 eh whatever

    Joined:
    Nov 4, 2009
    Member:
    #25415
    Messages:
    14,828
    Gender:
    Male
    First Name:
    Rob
    Blackstone, MA
    Vehicle:
    '09 Sport DCLB Met Grey
    Toyota bed mat (1st mod), Toyota all season floor mats, Rear spring TSB, Map light mod, Fog light mod, Putco yellow fog bulbs, Weather Tech window vents, Extra d-rings, Mounted mag light, TRD CAI with AFE pro dry filter, '05 front mud flaps (winter only), 2 set's of wheels/tires, 285/75/16 Hankook MT's, Black Painted 1st Gen TRD wheels (wheeling set) Black powder coated FJ Cruiser with 265/70/17 BFGoodrich KO2's (everyday), painted center of grill & bumper black, Devil horns, OME with 885's + spacers front, OME shocks w/OMD designed rear springs, Front diff drop, Rear trailer plug relocate, ATO IFS skid, Relentless Trans & Transfer skids, BAMF bolt on rock sliders, Relentless tailgate reinforcement, Uniden 75 CB radio, BAMF antenna bracket, TRD exhaust, high lift jack w/ATO mounts. And of course ProEFX Towing Mirrors!
  9. Nov 16, 2015 at 7:15 PM
    #9
    GsxRtaco

    GsxRtaco [OP] Well-Known Member

    Joined:
    Mar 26, 2013
    Member:
    #100653
    Messages:
    270
    Gender:
    Male
    First Name:
    Tony
    Wisconsin
    Vehicle:
    08
    It's been awhile but I've finally had time to work on this done more. Started by redoing the top plate. The first one didn't follow the curve of the grill very well.image.jpgNext
    I made the pieces for the top of the wings along with a small kicked up angle at the edges of the grill to follow the body lines. This wad the hardest part of the whole build so far and really makes me want a plasma cutter at home.image.jpgNext I made a small steel wedge on each side of the center section (sorry no pic of the work in progress but you can see it in the next pic) along with cardboard templates of the bottom portion of the wings.image.jpg Followed by steelimage.jpg which is tacked together and how it sits currently.image.jpg It's not perfect but I'm running out of time and had to whip something together before the snow flies. Did I mention this entire thing was cut with a 4" grinder. Plasma cutter is on my list now for sure lol.


  10. Nov 16, 2015 at 7:49 PM
    #10
    SkyHighTacoma

    SkyHighTacoma Josh

    Joined:
    Aug 12, 2009
    Member:
    #21054
    Messages:
    1,290
    Gender:
    Male
    First Name:
    Josh
    Brazoria County Texas
    Vehicle:
    15 DCSB SR5 MGM
    Very nice. I like seeing work done with basic tools, it takes alot of patience. Good job!

    ChadsPride and GsxRtaco [OP] like this.
  11. Nov 16, 2015 at 8:06 PM
    #11
    GsxRtaco

    GsxRtaco [OP] Well-Known Member

    Joined:
    Mar 26, 2013
    Member:
    #100653
    Messages:
    270
    Gender:
    Male
    First Name:
    Tony
    Wisconsin
    Vehicle:
    08
    Thanks I still have a lot to do on this project but it's been hard to find the time to work on it. Working with basic tools really makes you appreciate the luxuries such as a plasma cutter a lot more. The truth is if you have enough time and patients you can accomplish quite a bit with just the basics. It just takes a lot longer. This last update was all done in about three and a half hours very early this morning so I guess that's not too bad as far as time goes.

    ChadsPride likes this.
  12. Nov 16, 2015 at 8:07 PM
    #12
    Shmellmopwho

    Shmellmopwho Well-Known Member

    Joined:
    Apr 10, 2014
    Member:
    #127399
    Messages:
    7,733
    Gender:
    Male
    First Name:
    Ryan
    Lomita CA
    Vehicle:
    2013 White DCLB TRD sport
    Bunch of stuff
    Looking awesome!!!

    GsxRtaco [OP] likes this.
  13. Nov 21, 2015 at 8:15 PM
    #13
    GsxRtaco

    GsxRtaco [OP] Well-Known Member

    Joined:
    Mar 26, 2013
    Member:
    #100653
    Messages:
    270
    Gender:
    Male
    First Name:
    Tony
    Wisconsin
    Vehicle:
    08
    Made progress on the bumper build today. image.jpgIt is now mostly all welded up and ground smooth.image.jpgAlso removed the ugly factory tow hook bar, added gussets to the base, and another triangle piece to the bottom of each wing.image.jpg Now I need to figure out retrieval points and skid plates along with some led light bars. I haven't decided if I'm going to put hoops on it for sure or not. Then it will be time for some sort of finish that I'm also undecided about right now.image.jpgimage.jpg

  14. Jan 24, 2016 at 7:02 PM
    #14
    jackkpecoraa18

    jackkpecoraa18 I like to party.

    Joined:
    Sep 7, 2015
    Member:
    #163653
    Messages:
    324
    Gender:
    Male
    First Name:
    Jack
    Bradford, Pennsylvania
    Vehicle:
    2009 Silver Lifted Regular Cab
    3.5"F 3.0"R lift. 33" Mastercraft MXT Tires. Powder Coated Black 17" wheels. Leer 100XQ cap.
  15. Jan 28, 2016 at 10:52 AM
    #15
    GsxRtaco

    GsxRtaco [OP] Well-Known Member

    Joined:
    Mar 26, 2013
    Member:
    #100653
    Messages:
    270
    Gender:
    Male
    First Name:
    Tony
    Wisconsin
    Vehicle:
    08
    Sorry about the lack of updates time has been very hard to come by lately... But here is a small peak at what I've been up to when I have a few minutes here or there.image.jpgimage.jpg image.jpgimage.jpg I've also made d-ring mounts but they are still in progress then it's just a few reinforcements a skid and paint. Sorry don't have any pics with the light bar mounted but you get the idea. The expanded is aluminum an bolts on with threaded rod. I will be painting the expanded red and probably rhino liner or line-x the rest. Going slower then I planned but it's okay I'm not on a set schedule.

    Reef4, Kuntrykid and ChadsPride like this.
  16. Jan 28, 2016 at 11:01 AM
    #16
    SpruceMica12

    SpruceMica12 Nomadyota

    Joined:
    Jul 3, 2013
    Member:
    #107577
    Messages:
    55
    Gender:
    Male
    Eastern Manitoba, Canada
    Vehicle:
    2012 TRD OR AC/ 1983 Toyota Pickup
    Diff breather Duratracs Front bumper Bed rack Brake controller Sub/Amp/Stereo 7 Pin relocation Cell booster Dipped interior Shortened mudflaps Bug deflector Tailgate lock
    Looks good! I made my front bumper as well ( well I should add that the main frame of it is an Aries?? Brushguard that I cut apart and added all my own lower pieces) but did it all with an angle grinder and redneck bending same as you. Cost me nothing to do and I like the look. Nothing better than building something yourself and saving the money!

    Reef4, ChadsPride and GsxRtaco [OP] like this.
  17. Jan 28, 2016 at 11:03 AM
    #17
    GsxRtaco

    GsxRtaco [OP] Well-Known Member

    Joined:
    Mar 26, 2013
    Member:
    #100653
    Messages:
    270
    Gender:
    Male
    First Name:
    Tony
    Wisconsin
    Vehicle:
    08
    image.jpg image.jpg Here's a pic of the D-ring shackle mounts but there not finished yet

    Reef4, jeff b and ChadsPride like this.
  18. Jan 28, 2016 at 11:09 AM
    #18
    Leggo

    Leggo slow is smooth, and smooth is fast.

    Joined:
    Dec 16, 2010
    Member:
    #47805
    Messages:
    2,420
    Gender:
    Male
    First Name:
    Steve
    Newton,Ma.
    Vehicle:
    10 TRD Sport AC 4x4 MGM
    Kenwood HU,Infinity Kappa speakers (x4), Infinity reference tweeters(x2),10" Kicker sub, Box by Subthump, Infinty Five channel amp,DVD anytime bypass, DTRL Mod, Xtang trifecta, Fogs anytime Mod, Bed Mat,Westin running boards, Console vault, Maglite mod, Weathertechs,Autopage remote starter, Power tailgate lock, HID Bi Zenon, Hella Supertones,Rain guards,Rear leaf TSB,Steering shaft TSB, Fisher Homesteader plow, 886 reverse lights mod, Redline Hood struts, Hankook Dynapro ATM LT265/70R17, power sliding rear window, Auto dimming/on anytime Bed lights, Blue Sea fuse panel & 100amp Breaker, de- badged,Rear headrest's removed, imMrYo mirror relocation,Homeroshi grill
    Is that a couple old box springs from someones bedroom?I have never seen a welding table of that kind. :thumbsup:

    Reef4, ChadsPride and ManBeast like this.
  19. Jan 28, 2016 at 11:34 AM
    #19
    GsxRtaco

    GsxRtaco [OP] Well-Known Member

    Joined:
    Mar 26, 2013
    Member:
    #100653
    Messages:
    270
    Gender:
    Male
    First Name:
    Tony
    Wisconsin
    Vehicle:
    08
    Lol yea they were in my way and I plan on throwing them away so they worked to keep my work at waist height. I don't like working off the floor. And I guess I'm a little bit of a redneck haha.

    belrose likes this.
  20. Jan 29, 2016 at 5:20 PM
    #20
    GsxRtaco

    GsxRtaco [OP] Well-Known Member

    Joined:
    Mar 26, 2013
    Member:
    #100653
    Messages:
    270
    Gender:
    Male
    First Name:
    Tony
    Wisconsin
    Vehicle:
    08
    Had a chance to bolt it together and put it on the truck this morning not too much progress I just wanted to see it with the light bar and expanded in place.image.jpgimage.jpg image.jpgKind of a pain trying to work on anything in this weather and, I need to get a 7/8 drill bit for the shackle mounts before I can weld those on and then figure something out for a skid plate. But until next week here's where it is at. Also trying to decide weather or not to round the edges on the shackle mounts. What do you guys think? They are perfectly identical to each other side to side right now just worried if I round them they may not be.
