2nd Gen Clockspring Replacement How To

Discussion in '2nd Gen. Tacomas (2005-2015)' started by MYSUV, Aug 2, 2010.

  1. Aug 2, 2010 at 8:32 AM
    #1
    MYSUV

    MYSUV [OP] Member

    Joined:
    Nov 21, 2009
    Member:
    #26320
    Messages:
    18
    Gender:
    Male
    VT
    Vehicle:
    05 Bone Stock
    There is some information on clocksprings that I've found searching the site, but the only replacement "how to" was a link connecting you to a replacement on an older Tacoma. Here's the process I followed on my 2005 (without cruise control).

    I replaced it because my airbag light was on. After having it diagnosed by a local garage (half the cost of dealer diagnostic), I ordered the clockspring on-line because it's only a dealer part (used www.toyotapartscheap.com). By ordering on-line and doing the install myself, I saved $250.

    **Disclaimer: This isn't a difficult job, but it involves removing the airbag, therefore, there is some potential danger to body and wallet! I AM NOT A TRAINED MECHANIC, SO DO THIS AT YOUR OWN RISK.

    Tools needed:
    1.10 mm wrench or socket
    2.T-30 Torx
    3.Small flatblade screwdriver
    4.Philips screwdriver
    5.19mm Socket with 3 inch extension
    6.Steering wheel puller

    Here we go:
    1. Disconnect both battery terminals with 10mm wrench or socket and locate the leads where they cannot possibly come in contact with the battery or ground. This is to be sure there is no power to the truck. Now go mow the lawn or whatever to give the juice time to "drain" from the truck.

    2. With a small flat blade, remove the cover on either side of the steering wheel to expose the T-30 Torx screw that holds the airbag in place.

    Torx T-30.jpg

    3. Disconnect the black wire with the white connector and the black and orange leads going into the airbag. Get a thin flathead under the yellow tabs on the connectors and pry up on the tab, and then just pull the connector straight out.

    airbag connectors.jpg

    Disconnect Connectors.jpg

    4. Set airbag aside where it won't be disturbed.

    5. Remove steering wheel nut with 19mm socket with 3inch extension. Once it's removed, mark the steering wheel and spindle with a Sharpie to be sure you'll reallign it correctly when reinstalling. I marked at 12 and 3 o'clock on mine.


    6. Install your wheel puller. Be sure your bolts are the correct size so you do not strip the threads in the wheel. Remove steering wheel.

    Wheel Puller.jpg

    7. Once wheel is removed remove the 2 philips head screws on either side and remove the plastic trim pieces. I had to mess with them a bit, but they will come out. Just be sure not to muscle too much so you don't break any of the tabs that hold them together.

    wheel removed.jpg

    trim removed.jpg

    8. Remove 2 connectors on the bottom of the clockspring. One is black and one is yellow.

    connectors black and yellow.jpg

    9. Remove clockspring by disconnecting 3 plastic tabs. One on the top, and 1 on either side. Here's the top view. Note dog hair gets into your entire truck. Set clockspring aside for later dissection!

    Top connector.jpg

    clock removed.jpg

    10. Install new clockspring. It's already centered via the orange tab that keeps it from spinning. You'll snap this off later. In the picture you'll see I have black electrical tape keeping mine centered because I broke off the tab when messing with it when I took it out of the box. Reinstall your plastic trim once CS is inplace.

    New CS.jpg

    11. Pull your orange tab off freeing up the clockspring to spin, but keep it centered. Reinstall your steering wheel with wires feeding through the top. Line up wheel to the marks you made on the spindle. Tighten 19 mm nut.

    wheel install.jpg

    12. Connect orange and black to the airbag, and don't forget the other black wire. Once they are connected, put airbag back in place and tighten your Torx on either side of the steering wheel. Replace the covers for the Torx.

    Wires Reconnected.jpg

    Wheel Back to Normal.jpg

    13. Reconnect your battery and start truck to be sure your airbag light is now off. Test horn.

    Took me 1 hour 15 mins including time to take these pictures and write down notes.

  2. Aug 2, 2010 at 8:38 AM
    #2
    BlueT

    BlueT Well-Known Member

    Joined:
    Mar 30, 2009
    Member:
    #15341
    Messages:
    4,548
    Gender:
    Male
    NorthEast
    Vehicle:
    07 Dbl Cab LB with LSD
    I moded 1999 Taco so much it had turned to Land Cruiser
    Excellent write up :yay:

  3. Oct 30, 2010 at 10:27 PM
    #3
    jsrocket469

    jsrocket469 Well-Known Member

    Joined:
    Oct 29, 2010
    Member:
    #45411
    Messages:
    51
    Gender:
    Male
    First Name:
    James
    Guam
    Vehicle:
    05 DblCab 4x4
    NEW EMERALD GREEN METALIC PAINT, BUSWACKER FENDER FLARES, 6" PROCOMP LIFT, 35" NITTO MUD TERRAINS ON 20" BLACK CROME RIMS, CUSTOM SOUND, K&N FILTER AND INTAKE, MAGNAFLO CAT BACK STAINLESS STEEL EXHAUST, AUTOMATIC DROP DOWN SIDE STEPS, 4:88 GEARS
    Great Post – I just bought mine and noticed that the light was on as me and the seller were driving it down the road… He said it was supposed to be on – that way you know it is good 2 go, and pointed to center passenger light, “like this one”…. Yeah (NOT) – Owners manual says take to dealership immediately… he has some friends at the local dealer so we are going to meet there soon and figure it out. I still owe him $500 – so he should cover it???
    However - I know that a lot of people disconnect the airbags on lifted trucks – that way they don’t bust your face when you’re twisting the frame off-road…??

  4. Oct 31, 2010 at 5:44 AM
    #4
    Raylo

    Raylo Well-Known Member

    Joined:
    Nov 19, 2008
    Member:
    #10878
    Messages:
    428
    Gender:
    Male
    MD, USA
    Vehicle:
    2009 4x4 Access Cab, TRD Sport
    Excellent write-up. I will file this away with others I have found in a "maintenance" folder for when the time comes I need them. I need to develop the patience to take photos like this when I do a project. Great job with that here...

  5. Nov 19, 2010 at 3:32 PM
    #5
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,836
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    mine went bad this past week...n i was over warranty...but dealership covered it for me n did it all for free :D

  6. Nov 19, 2010 at 3:42 PM
    #6
    willard417

    willard417 Yeah

    Joined:
    Nov 5, 2007
    Member:
    #3370
    Messages:
    207
    Gender:
    Male
    First Name:
    Luke
    beaver county, PA
    Vehicle:
    06' access cab. 2.7L
    alpine head unit, removed secondary air filter, 18" XD Rockstars. 285/60/R18, 3" OME 884/AAL OME shocks all around.
    My light is on but there are two wires in the clockspring. A main and a backup. Seems like a lot of people have this problem. Anyway, the airbags still work which they should tell you because airbags are dangerous when you're not prepared for them.

  7. Sep 23, 2011 at 12:53 AM
    #7
    trib

    trib Well-Known Member

    Joined:
    Sep 24, 2009
    Member:
    #23280
    Messages:
    174
    Gender:
    Male
    I am getting ready to do this how-to as my airbag light is on. Does anyone know what the part # for the clockspring is?

  8. Sep 23, 2011 at 5:50 AM
    #8
    Manwithoutaplan

    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    46,510
    Gender:
    Male
    CA
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP
    nice write up. had mine go out to but at the time covred under warranty

  9. Sep 23, 2011 at 9:54 PM
    #9
    trib

    trib Well-Known Member

    Joined:
    Sep 24, 2009
    Member:
    #23280
    Messages:
    174
    Gender:
    Male
    So I went to Kragen (now I guess O'Rielly) and they don't stock 'em.

  10. Sep 23, 2011 at 10:03 PM
    #10
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,836
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    lol thats cuz u can only get them at dealer or junkyard :rolleyes: if theyre still good after an accident

  11. Sep 23, 2011 at 11:44 PM
    #11
    trib

    trib Well-Known Member

    Joined:
    Sep 24, 2009
    Member:
    #23280
    Messages:
    174
    Gender:
    Male
    Yeah I figured. Probably a low-volume part.

    Are any good junkyards within an hour drive of Orange County? Supposedly this part is upwards of $250.

  12. Sep 23, 2011 at 11:49 PM
    #12
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,836
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    Ya around there...cuz dealer wanted to charge me around $850 installed but they covered it n my warranty had just ended (I was at 61,000ish) :D

  13. Sep 24, 2011 at 12:33 AM
    #13
    LGE RAW

    LGE RAW Well-Known Member

    Joined:
    Mar 9, 2011
    Member:
    #52716
    Messages:
    237
    Gender:
    Male
    First Name:
    Rob
    Dothan
    Vehicle:
    PreRunner SR5 TRD Sport
    Bull bar, wet suit seat covers, Accessory meter repair, Fog Lights with stick on, console lock.
    I did this on my wife's 2001 Durango a few years ago. That to, was a dealer part. I saved a bundle changing it myself and it was no harder than yours other than having to buy a torx driver to fit 3 inches up the trim on the steering column. This post should be added to the how to section sticky. Great write up. +1 rep for you for the pics and detail.

  14. Nov 24, 2011 at 12:10 AM
    #14
    trib

    trib Well-Known Member

    Joined:
    Sep 24, 2009
    Member:
    #23280
    Messages:
    174
    Gender:
    Male
    Quick follow-up to my last post:

    So I fixed my clockspring/airbag light for $50 by taking it out via this how-to and sent it in for repair to a guy on ebay named krugger_auto. For anyone else who wants to do this just search 'toyota tacoma clockspring repair'. Wayyyy better than spending $250 for a new one or paying $850 to the stealer.

  15. Jan 29, 2012 at 5:08 PM
    #15
    sardog2111

    sardog2111 Well-Known Member

    Joined:
    Feb 10, 2008
    Member:
    #4678
    Messages:
    138
    Gender:
    Male
    Mobile, AL
    Vehicle:
    05 silver streak DC, 5100, borla exhuast
    5100's, Volant Intake, Borla Exhaust. FJ wheels, Wet Okole's. HID's, Go Rhino Steps bars.
    saved over 400 dollars between this write up and the services of myairbags.com, do this yourself and save a fortune, why pay the stealership the money to do this, send your part it, have it repaired and reinstall yourself and then you have a ton of moeny for mods. Thanks to the OP for this killer write-up, I vote for it to be a sticky.....:cheers:

  16. Feb 27, 2012 at 4:03 PM
    #16
    Airun

    Airun Well-Known Member

    Joined:
    Mar 19, 2010
    Member:
    #33516
    Messages:
    2,630
    Gender:
    Male
    First Name:
    Aaron
    Show Me State
    Vehicle:
    TRD sport, DCLB, 4wd
    Debadged, custom emblem, Husky liners, custom bedrail Yak Trak setup with load bars, , BakFlip Fibermax, OME 3" lift with LightRacing UCAs

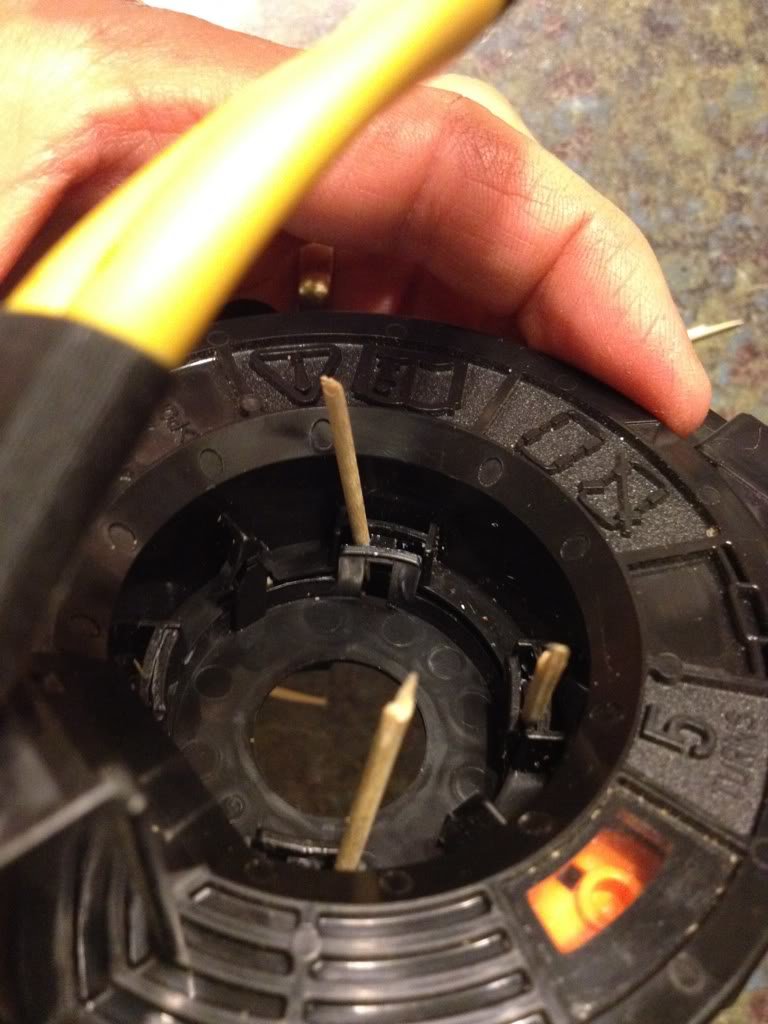

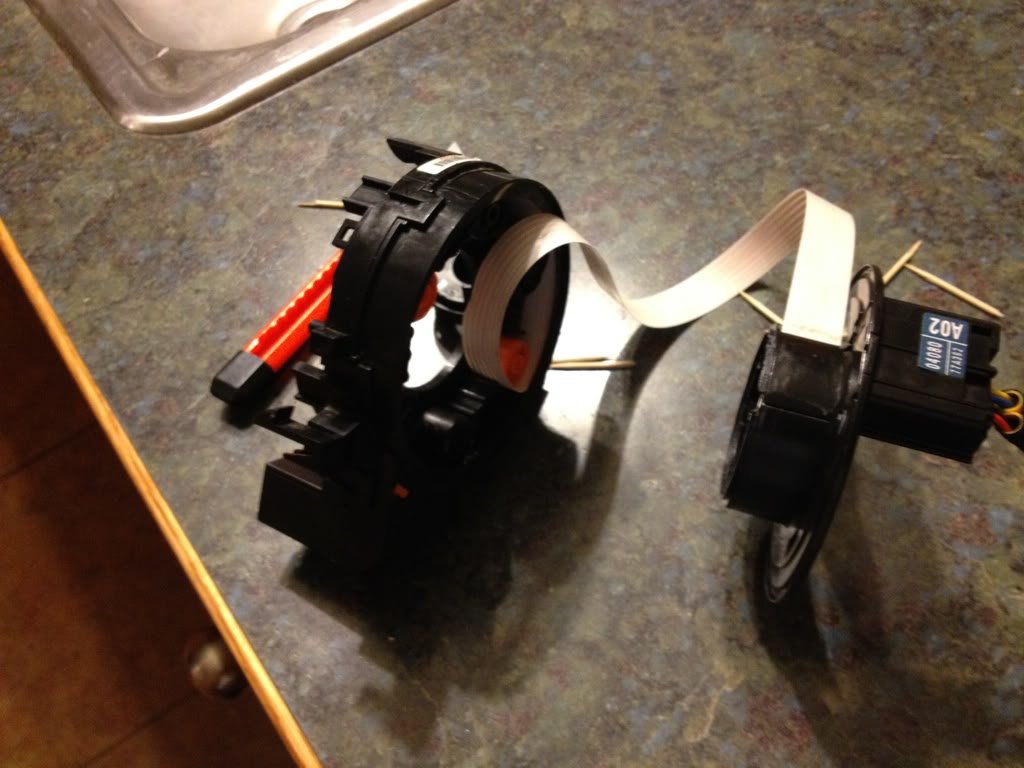

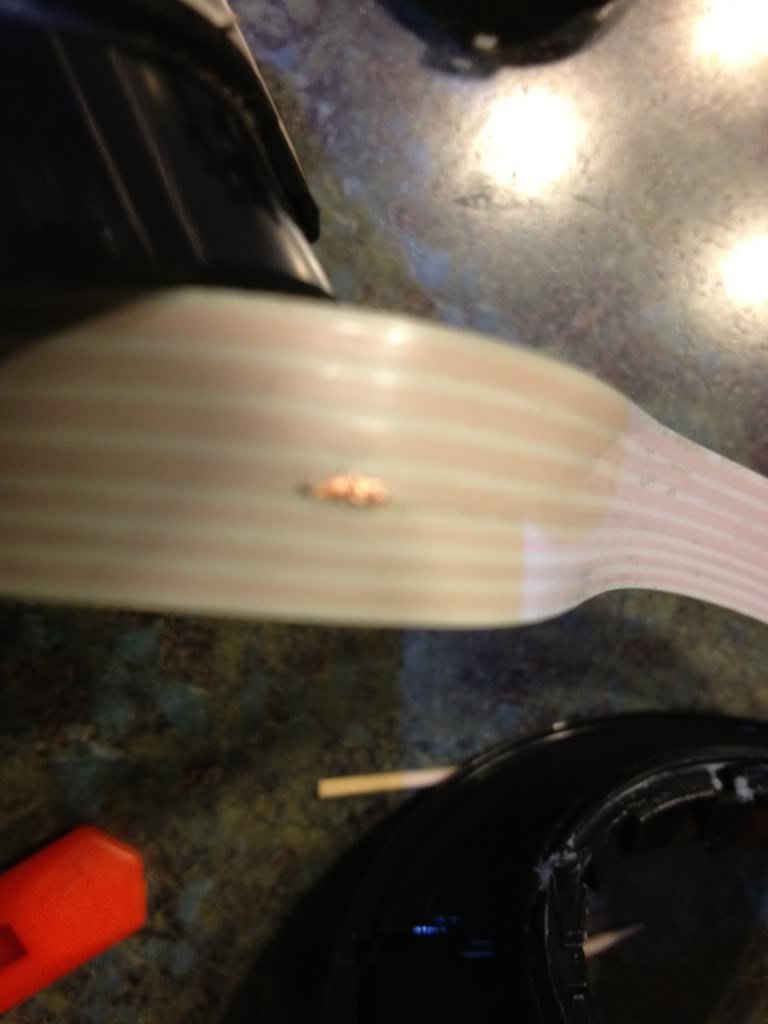

    Pulled my clockspring last night and sure enough I found what appeared to be a tiny defect in one of the wires. Contemplated trying to solder but didnt figure it would hold. So I called the eBay place that repairs them (Krugger Auto) and talked to Roman. He informed me that recently they had acquired access to new aftermarket parts for $75+$10 shipping so I went that route and ordered one. I think $50 and $15 shipping for repair plus cost of sending it to Charlotte NC.
    [​IMG]
    [​IMG]
    [​IMG]
    I'll post up once I get new part and report how it went. If this works out ok this is a major money saving DIY that isn't too tough.
    And a million thanks to OP for the awesome write-up and pics.

  17. Feb 27, 2012 at 5:28 PM
    #17
    AstroluxAtom

    AstroluxAtom Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73581
    Messages:
    55
    Gender:
    Male
    Sunnyvale, California
    Vehicle:
    '05 v6 4.0L DCSB Offroad Prerunner Debadged
    3" Pro-Comp lift kit, Pro-Comp Tires, Magnaflow exhaust dumped at rear axle.
    Thats what was wrong with mine, just a little bit of copper showing. I would just go get a fresh one from the dealer man, I wouldn't trust a "refurb airbag sensor". The $260 price tag sucks, but it beats having them do the install for you.

  18. Feb 27, 2012 at 6:51 PM
    #18
    Airun

    Airun Well-Known Member

    Joined:
    Mar 19, 2010
    Member:
    #33516
    Messages:
    2,630
    Gender:
    Male
    First Name:
    Aaron
    Show Me State
    Vehicle:
    TRD sport, DCLB, 4wd
    Debadged, custom emblem, Husky liners, custom bedrail Yak Trak setup with load bars, , BakFlip Fibermax, OME 3" lift with LightRacing UCAs
    It's acTually a brand new one not refurb or reman. It pisses me off to pay 200-300$ for something that every other make can be had for 30-60$. This is a piece of wire basically, not a high tech electronic device. Our Sequoia was ready for its third shitty plastic rear hatch handle (which is a major PITA to replace) when finally Dorman started selling an aftermarket part made of metal for less$ and much higher quality.
    I agree it's a crucial link in driver safety but it wouldn't surprise me if this is higher quality as well. I refuse to take an ass raping without looking around a little.
    I own 3 Toyotas because of quality and performance and this crap hacks me off. They can only charge ridiculous $ for a 10$ part because nobody else makes it.

  19. Feb 27, 2012 at 6:55 PM
    #19
    rcbs204

    rcbs204 Well-Known Member Vendor

    Joined:
    Oct 2, 2009
    Member:
    #23681
    Messages:
    3,697
    Gender:
    Male
    I just had this done at the Dealer, and it cost me $370.43.
    I really did not want to deal with the airbag!

  20. Feb 28, 2012 at 6:16 PM
    #20
    Airun

    Airun Well-Known Member

    Joined:
    Mar 19, 2010
    Member:
    #33516
    Messages:
    2,630
    Gender:
    Male
    First Name:
    Aaron
    Show Me State
    Vehicle:
    TRD sport, DCLB, 4wd
    Debadged, custom emblem, Husky liners, custom bedrail Yak Trak setup with load bars, , BakFlip Fibermax, OME 3" lift with LightRacing UCAs
    Why?
