2nd Gen DIY Big Brake KIt -OEM parts- Part #'s provided (INSTALLED)

Discussion in '2nd Gen. Tacomas (2005-2015)' started by craigFLA, Jul 31, 2016.

  1. Jul 31, 2016 at 10:26 AM
    #1
    craigFLA

    craigFLA [OP] Well-Known Member

    Joined:
    Oct 6, 2007
    Member:
    #2944
    Messages:
    424
    Gender:
    Male
    Ft. Lauderdale, Florida
    Vehicle:
    Tacoma TRD Sport Pkg.#1, XSP Package
    Leather, 20" rims, Borla cat-back exhaust, running boards, back up camera/3" screen in rear view mirror, carbon fiber interior trim. Tow Package. MODS: URD intake BHLM. Tinted tails & 3rd brake light Fog Light mod. 5pc Grill Craft (High Gloss Black powder-coat) T-Rex eye-lids AVS Wind Deflectors 3M Window Tint 15 front/30 rear OBX Sports Pedals Viper 5901 / remote start Pioneer AVIC F90BT-NAV Hybrid L8's in doors, L4's and Dynaudio MD102 tweets in custom kicks, morel rear-fill, JL TW5-13" sub, JBL MS-8, 2@Tru B475, Tru 4.65, PPI a600.2, PPI 456 X-over, Raamat BX2 and ensolite. relocated rear seats 3/4" Retrax cover electric dual "dead-bolt-lock" electric tailgate lock. electric Dynalock for Retrax Cover/custom fabricated case. kinetik second battery/power-gate isolation. Powerslot Cryogenic rotors, Hawks HPS Pads, SS lines,painted calipers&drums FULL trans flush mod OE Denso plugs
    Like many 2nd gen Tacoma owners one of my biggest complaints would be the OE front brakes. Rather it be my aggressive driving habits, occasional towing or a combination of both it seems like I am constantly warping rotors and eating pads.

    My 06 DC X-SP is 10-years old now, and over that time I have tried every front brake combination imaginable...pro-slots, brembro, Hawks, Napa, TRD...you name it and I've likely tried the combination at some point. No matter what front brake work seems to be needed every 8-10 months!!!

    It is important to note I have kept my rear drums adjusted, removed, checked and cleaned every 35k mi (roughly), and had just recently rebuilt (all new OE components including drums). My front brake issues are not due to faulty rears.

    Refusing to spend $2k plus on a big brake system for my 10 year old Tacoma with 106K miles, I set out to find an alternative.

    There are plenty of websites/forums for 1st gen Tacoma and 4-runner upgrades, however not much available for us 2nd gen owners. Much of the following information came from these sites:

    http://www.pirate4x4.com/forum/toyota-tacoma/1643050-brake-dimensions-specifications.html

    This following came from the first link above:


    13WG calipers match 319mm OD and 28mm thick rotors and accept the 199mm pads (this is the standard 2003-2009 4RUNNER caliper and 2005-2012 Tacoma and 2005-2012 FJ Cruiser)

    13WL calipers match 319mm OD (12.559-inch dia) and 28mm thick rotors and accept the 231mm pads (this is from 2000-2006 TUNDRA and 2003-2007 Sequoia and 2003-2005 and select 2003-2005 4runner)

    13WH calipers match 338mm OD (13.30 inch dia) and 28mm thick rotors and accept the 231mm pads (this is from 2003-2009 Lexus GX470 and select 2003-2009 4runner)

    All 3 of them are 4 piston 46mm bore fixed calipers
    -----------------------------------------------------------------------------------------------------
    In researching the expensive big brake kits, it appears StopTech and other kits include 345mm (13.5 inch dia) rotors.

    My next question was how the larger big brake kit rotors are installed using the OE dust covers...answer is they are not. The installation instructions have you basically cut the dust cover off! For some this may be acceptable, for me it is not. The dust covers not only protect the rotors but also assist in cooling them.

    After my research I decided to try something I have not seen done on a 2nd gen Tacoma in all my research......install larger rotors from a 2003-2009 Lexus GX470 and select 2003-2009 4runner, along with of course the larger (higher actually) WH calipers. I also chose to completely roll the dice as well and order a set of Toyota OE dust covers for a 2006 4-runner Sport with 17" wheels....hoping these larger diameter backing plates would fit my Tacoma.

    Before moving forward I must mention my 06 DC has 20" Enkei wheels as part of the X-SP package. Anyone considering something like this will need to do their own research to determine if their wheels will allow for the larger rotors and calipers. This set up was installed on SOME 06 4-runner sport editions with 17" factory wheels, so it seems plausible 17" OE Taco wheels would be fine, but again this is NOT something I researched as it did not pertain to my application.

    The following was my parts list:

    NAPA Eclipse calipers
    (WH cast) - L caliper (part#SE3318) R caliper (SE3317) $78.30 EA + $50 EA core

    Rotors (13.30 inch dia) from 2003-2009 Lexus GX470 and select 2003-2009 4runner)
    Part # 43512-60151 $57.20 EA (purchased on Ebay from Toyota Tampa Bay)

    OE Pads & Shims (purchased online from ToyotaPartsDeal.com)
    Pads (part#04465-35290) $62.13
    Shim kit (part #04945-35120) $41.14

    Toyota 4-runner Dust Covers (ToyotaPartsDeal.com)
    part#s 47781-60120 & 47782-60120 $62.16 EA

    Parts cost: Just under $500. Considering I needed new rotors/pads anyway, and one of my OE calipers was in need of replacement (I always replace calipers in pairs), so this made absolute perfect sense for me.

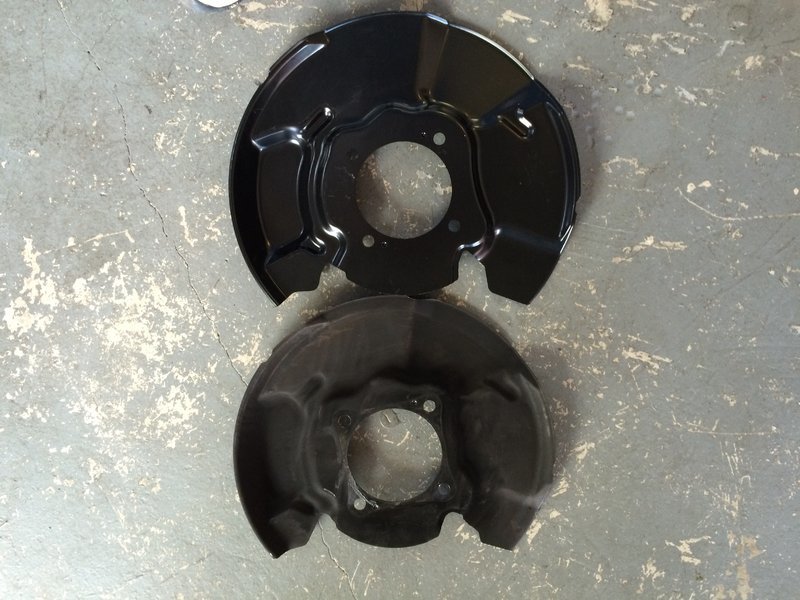

    You can see the difference between the larger dust cover vs the taco OE

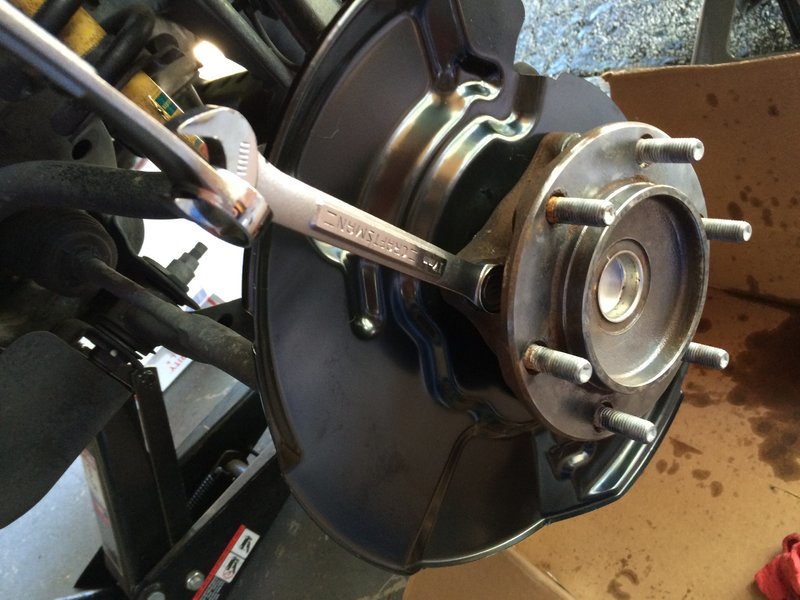

    Removing the wheel bearing hub to change out the dust covers

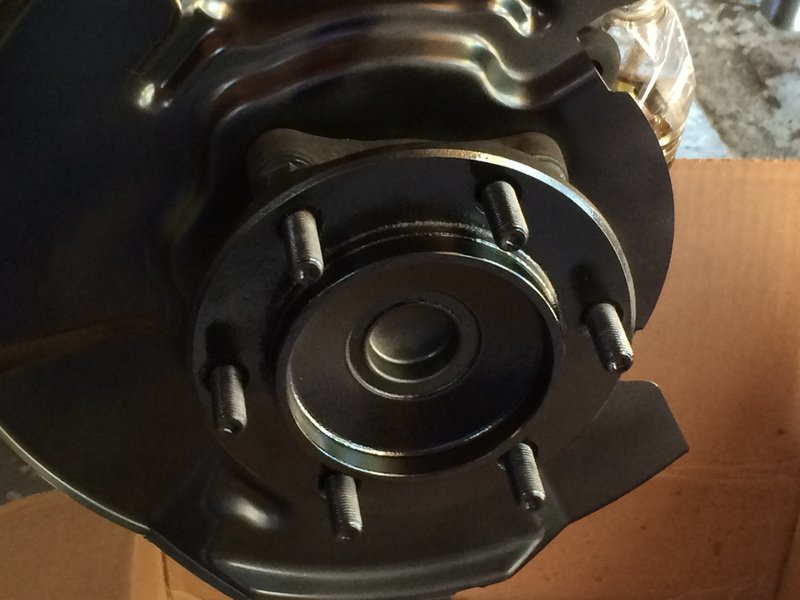

    While I had it apart I wire wheeled and sprayed the hub with a light coat of high-temp caliper paint. The Napa Eclipse calipers come black. No idea how long this finish will last but out of the box they looked good and saved me the work of painting them black.

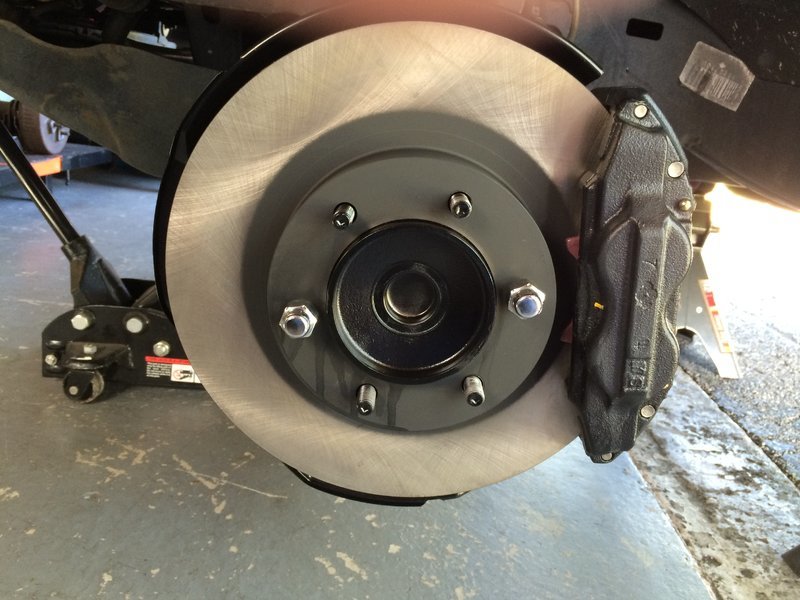

    completed

    I've had these installed now for just under a month. There is a noticeable difference in stopping power..more than I expected.

    How it is in comparison to a high dollar big brake kit I do not know as I have not driven a taco with one of these kits. My OE big brake install cost about 25% of one of these kits, and frankly I cannot imagine these kits providing 75% more stopping power or longevity. I used all OE (inexpensive/readily available) parts and still have dust/backing plates. I only wish I had done this sooner as I have no doubt the additional metal/rotor diameter will help with heat dissipation which should result in less rotor warping. Only time will tell.

    Last edited: Jul 31, 2016
    This site contains affiliate links for which the site may be compensated.
    #1
  2. Jul 31, 2016 at 10:39 AM
    #2
    craigFLA

    craigFLA [OP] Well-Known Member

    Joined:
    Oct 6, 2007
    Member:
    #2944
    Messages:
    424
    Gender:
    Male
    Ft. Lauderdale, Florida
    Vehicle:
    Tacoma TRD Sport Pkg.#1, XSP Package
    Leather, 20" rims, Borla cat-back exhaust, running boards, back up camera/3" screen in rear view mirror, carbon fiber interior trim. Tow Package. MODS: URD intake BHLM. Tinted tails & 3rd brake light Fog Light mod. 5pc Grill Craft (High Gloss Black powder-coat) T-Rex eye-lids AVS Wind Deflectors 3M Window Tint 15 front/30 rear OBX Sports Pedals Viper 5901 / remote start Pioneer AVIC F90BT-NAV Hybrid L8's in doors, L4's and Dynaudio MD102 tweets in custom kicks, morel rear-fill, JL TW5-13" sub, JBL MS-8, 2@Tru B475, Tru 4.65, PPI a600.2, PPI 456 X-over, Raamat BX2 and ensolite. relocated rear seats 3/4" Retrax cover electric dual "dead-bolt-lock" electric tailgate lock. electric Dynalock for Retrax Cover/custom fabricated case. kinetik second battery/power-gate isolation. Powerslot Cryogenic rotors, Hawks HPS Pads, SS lines,painted calipers&drums FULL trans flush mod OE Denso plugs
    I forgot to mention that I had already installed SS brake-lines some time ago. The WG cast calipers that come on our Taco's and the WH calipers installed in this upgrade are identical except for the length of the mounting "tabs". The WH calipers have longer "ears" to accommodate the larger diameter rotors. I was able to slightly bend/rework the hard brake line to fit the new calipers without issue.

    Pearson, Rick's 2012, MTopp and 6 others like this.
  3. Jul 31, 2016 at 10:51 AM
    #3
    craigFLA

    craigFLA [OP] Well-Known Member

    Joined:
    Oct 6, 2007
    Member:
    #2944
    Messages:
    424
    Gender:
    Male
    Ft. Lauderdale, Florida
    Vehicle:
    Tacoma TRD Sport Pkg.#1, XSP Package
    Leather, 20" rims, Borla cat-back exhaust, running boards, back up camera/3" screen in rear view mirror, carbon fiber interior trim. Tow Package. MODS: URD intake BHLM. Tinted tails & 3rd brake light Fog Light mod. 5pc Grill Craft (High Gloss Black powder-coat) T-Rex eye-lids AVS Wind Deflectors 3M Window Tint 15 front/30 rear OBX Sports Pedals Viper 5901 / remote start Pioneer AVIC F90BT-NAV Hybrid L8's in doors, L4's and Dynaudio MD102 tweets in custom kicks, morel rear-fill, JL TW5-13" sub, JBL MS-8, 2@Tru B475, Tru 4.65, PPI a600.2, PPI 456 X-over, Raamat BX2 and ensolite. relocated rear seats 3/4" Retrax cover electric dual "dead-bolt-lock" electric tailgate lock. electric Dynalock for Retrax Cover/custom fabricated case. kinetik second battery/power-gate isolation. Powerslot Cryogenic rotors, Hawks HPS Pads, SS lines,painted calipers&drums FULL trans flush mod OE Denso plugs

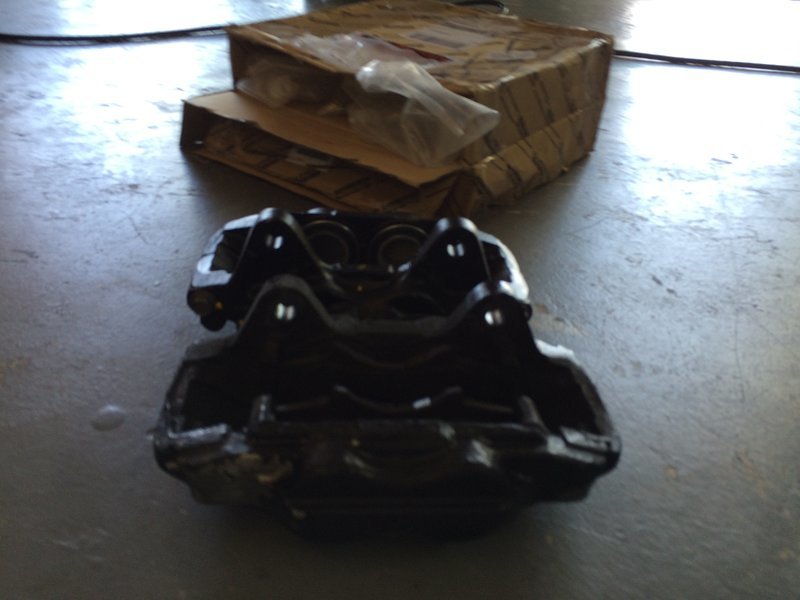

    not a good pic, but the oe WG caliper (front) and new WH caliper rear

    Pearson, saf023, eherlihy and 4 others like this.
  4. Jul 31, 2016 at 11:16 AM
    #4
    kaceman

    kaceman Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132874
    Messages:
    78
    Gender:
    Male
    First Name:
    kacey
    Vehicle:
    07 DCsb
    I have been researching to do this, didn't want to pull the trigger cause I couldn't verify that the spindle/ knuckles were the same... Have you noticed one pad dragging more than the other? I know the disk to hub placement were a little different since the larger rotors are also thicker...

  5. Jul 31, 2016 at 11:23 AM
    #5
    craigFLA

    craigFLA [OP] Well-Known Member

    Joined:
    Oct 6, 2007
    Member:
    #2944
    Messages:
    424
    Gender:
    Male
    Ft. Lauderdale, Florida
    Vehicle:
    Tacoma TRD Sport Pkg.#1, XSP Package
    Leather, 20" rims, Borla cat-back exhaust, running boards, back up camera/3" screen in rear view mirror, carbon fiber interior trim. Tow Package. MODS: URD intake BHLM. Tinted tails & 3rd brake light Fog Light mod. 5pc Grill Craft (High Gloss Black powder-coat) T-Rex eye-lids AVS Wind Deflectors 3M Window Tint 15 front/30 rear OBX Sports Pedals Viper 5901 / remote start Pioneer AVIC F90BT-NAV Hybrid L8's in doors, L4's and Dynaudio MD102 tweets in custom kicks, morel rear-fill, JL TW5-13" sub, JBL MS-8, 2@Tru B475, Tru 4.65, PPI a600.2, PPI 456 X-over, Raamat BX2 and ensolite. relocated rear seats 3/4" Retrax cover electric dual "dead-bolt-lock" electric tailgate lock. electric Dynalock for Retrax Cover/custom fabricated case. kinetik second battery/power-gate isolation. Powerslot Cryogenic rotors, Hawks HPS Pads, SS lines,painted calipers&drums FULL trans flush mod OE Denso plugs
    While the 1st gens did come with a smaller rotor "thickness", our 2nd gens came with 28mm rotors same as the Tundra, Lexus, and 4-runners mentioned in the post. Honestly this was a DIRECT swap, identical to any complete brake job with the exception of the dust covers which obviously required removal of the 4-bolt hub/wheel bearing which took me an extra 15 minutes per side. The rotors are centered in the caliper as they should be.

  6. Jul 31, 2016 at 4:18 PM
    #6
    kaceman

    kaceman Well-Known Member

    Joined:
    Jun 28, 2014
    Member:
    #132874
    Messages:
    78
    Gender:
    Male
    First Name:
    kacey
    Vehicle:
    07 DCsb
    good to know, gonna be doing this soon!

  7. Aug 1, 2016 at 5:58 PM
    #7
    Yoda's TRD

    Yoda's TRD Well-Known Member

    Joined:
    May 31, 2015
    Member:
    #156427
    Messages:
    382
    Gender:
    Male
    First Name:
    David
    Vehicle:
    2015 TRD Sport
    nice job

    thanks for the write up

  8. Aug 1, 2016 at 6:19 PM
    #8
    Ruggybuggy

    Ruggybuggy Well-Known Member

    Joined:
    Oct 11, 2015
    Member:
    #166403
    Messages:
    3,177
    Gender:
    Male
    NW ONT, CANADA
    Vehicle:
    2020 Tundra SX
    I wonder if you can do this if you have 16" rims?

  9. Aug 1, 2016 at 6:28 PM
    #9
    steveh_2007

    steveh_2007 Pro Member

    Joined:
    Jan 19, 2008
    Member:
    #4325
    Messages:
    641
    Gender:
    Male
    First Name:
    Steve
    NW Houston, TX
    Vehicle:
    07 TRD Sport PreRunner
    TRD Baja Suspension, FN Wheels BFD, TRD Cat-back Exhaust, TRD Cold Air Intake, TRD GrillCraft MX Grilles, FX-R 3.0 Bi-Xenon Retrofit with Osram CBI Bulbs, OEM Navigation/Bluetooth/Backup Camera Retrofit, WeatherTech Floorliners, Valentine One, ScanGuage II with custom V1/SGII BlendMount
    Subscribed. Thank you for posting this information! I will be doing the same when it comes time to replace brakes!

  10. Aug 1, 2016 at 6:35 PM
    #10
    IronPeak

    IronPeak PermaLurker

    Joined:
    Mar 9, 2016
    Member:
    #180799
    Messages:
    3,232
    Gender:
    Male
    First Name:
    AuggieX
    Back to Back
    Vehicle:
    2007 sr5 4x4 DCLB/2015 TRD sport 4x4 DCLB sold
    Bigger Taller Slower
    Sub' for when brakes wear out

  11. Aug 1, 2016 at 6:39 PM
    #11
    BAMFTACO

    BAMFTACO Another day another beer

    Joined:
    Feb 3, 2010
    Member:
    #30639
    Messages:
    10,904
    Gender:
    Male
    First Name:
    Juan
    Woodlandland hills , CA
    Vehicle:
    2007 Tacoma AC Prerunner
    Kings bruh
    Good job op this will be nice for future reference

  12. Aug 1, 2016 at 6:44 PM
    #12
    Toy4me

    Toy4me Well-Known Member

    Joined:
    Aug 19, 2012
    Member:
    #85061
    Messages:
    3,738
    Gender:
    Male
    First Name:
    Tom
    NNJ
    Vehicle:
    '10 DCLB TRD Sport MGM
    Wish I had known about this before doing my pad replacement last month.

    Taco 422 and RIDINRICKY like this.
  13. Aug 2, 2016 at 4:29 AM
    #13
    WebberLander

    WebberLander Well-Known Member

    Joined:
    Apr 1, 2014
    Member:
    #126706
    Messages:
    1,874
    Gender:
    Male
    First Name:
    Mark
    Colorado
    Vehicle:
    2011 SR5 4x4
    Overlanding Rig
    Very nice write up. Saved for future use.

  14. Aug 2, 2016 at 5:11 AM
    #14
    Norton

    Norton Senior Member

    Joined:
    Mar 10, 2011
    Member:
    #52729
    Messages:
    4,605
    Gender:
    Male
    First Name:
    Steve
    Colorado Springs, CO
    Vehicle:
    2013 Access Cab 4x4 V6 6MT, TRD OR & Tow Packages
    Magnuson S/C w/12TRDTacoma's Qwikchange Hub & 2.5" RIP-Modded Pulley, Roostfactor's Pulley Wrap Mod; FPR Mod; JustDSM Tune via HPT MPVI2; mightytacoman Intercooler Tank; aFe POWER Magnum FLOW Pro DRY S Air Filter; OME Suspension Lift (885 Coils, Dakar Leafs, NitroCharger Sports); TRD Quickshifter w/TRD 6-Spd Knob; TRD Exhaust; NSB-AGM27F Battery w/HKB Adjustable Voltage Booster & Coupe's TRD Battery Hold Down; Goodridge SS Brake Lines; Trident904's MT ADM; BFG All-Terrain T/A KO2s on FJ SE Anthracite Rims; N-Fab 6-Step Nerf Bars; BPF TRD Skid, Tow Hook, & Cooling Panel; jsi's Locker Anytime, Up2NoGood's 2Lo Module; ramonortiz55's Always on Power Outlet Relay, ND4's Fog Light Anytime, & Crom's Speed Bleeder Mods; crashnburn80's Ultimate Headlight & Fog Light Upgrades; ThreatLevelMidnight's Wireless Charger; 4Runner 4X4 & FJ Fog Light Switches; redtaco2007-inspired LED License Plate Lights; AudioControl LC2i LOC, JL Audio XD200/2v2 Amp, Focal PS165V1 Spkrs, Sound Ordnance B-8PTD Sub, Hushmat & Noico Sound Insulation; loginfailed-inspired Speedhut Boost & AFR Gauges in a Lotek Pillar Pod; Ltd Auto-Dim/Compass/Temp/Backup Camera/Homelink mirror on ImMrYo's Mirror Lift Bracket; TacomaBeast Glove Box & Console Organizers; Husky Floor Liners; UltraGauge EM; mesojdm's Ultimate LED Dome & Map Lights & GASSHOLE; Redline Tuning QuickLIFT Elite; Mobtown Offroad Locking Bed Storage Doors; Toyota Bed Mat; Cali Raised Led Bed Stiffeners; Pop & Lock Power Tailgate Lock w/TacomaTruckParts Support Bracket; ARE Z-Series Cap, SolarGard Tint; BlendMounted & MirrorTapped Uniden R3; CravenSpeed Stubby Antenna; Amsoil Lubricants; Adam's Detailing Supplies
    Nicely done, @craigFLA! Sub'd for future reference.

  15. Aug 2, 2016 at 10:27 AM
    #15
    Capt. Obvious

    Capt. Obvious Fearless Keyboard Warrior

    Joined:
    Aug 4, 2014
    Member:
    #135396
    Messages:
    1,637
    Gender:
    Male
    First Name:
    Darrick
    Gig Harbor
    Vehicle:
    '12 DCLB TRD
    6" body lift, LEDs errwhere, Jesus mural on the hood
    This will definitely be happening when it's time for new rotors/pads on my truck. Hopefully someone will be able to confirm these brakes will fit under 16" wheels by then...

    Pearson, Geronimo1111 and HBMurphy like this.
  16. Aug 2, 2016 at 1:54 PM
    #16
    rmepilot

    rmepilot Well-Known Member

    Joined:
    Jun 22, 2013
    Member:
    #106798
    Messages:
    11,001
    Gender:
    Male
    First Name:
    Rob
    Huntsville, AL
    Vehicle:
    '23 LR DCSB TRD OR 4x4 Premium Pkg
    2019 Jeep GC Summit 5.7l '15 DCLB S/C 4x4 Limited Pyrite Mica - Deceased
    Sub'd. :thumbsup:

  17. Aug 2, 2016 at 6:32 PM
    #17
    RobD

    RobD Well-Known Member

    Joined:
    Jul 29, 2013
    Member:
    #109307
    Messages:
    216
    Gender:
    Male
    First Name:
    Rob
    Calgary
    Vehicle:
    2013 Spruce Mica Tacoma Double Cab TRD
    I did the 13WL swap on my '99 4Runner. Such a huge difference in the rotor thickness. All that required was some very minor trimming of the dust shield.

    I love how these parts are basically just a bolt-in job.

    Crom likes this.
  18. Aug 2, 2016 at 6:44 PM
    #18
    bob4x4

    bob4x4 Active Member

    Joined:
    Nov 12, 2014
    Member:
    #142220
    Messages:
    32
    Gender:
    Male
    Vehicle:
    15 TRD OR dcsb
    16" wheels ??

    Geronimo1111 likes this.
  19. Aug 2, 2016 at 6:48 PM
    #19
    Pigpen

    Pigpen My truck is never clean

    Joined:
    Mar 6, 2012
    Member:
    #74319
    Messages:
    8,962
    Gender:
    Male
    Northwest Montana
    Vehicle:
    2012 AC Manual 4.0 4x4 Base Model
    Access cab toolbox/ dog bed with seats and headrests deleted, waterproof TRD seat covers, yellow wire mod, diff breather relocated to tail light, engine block heater, Leer topper with Yakima tracks and rack, Yakima rack on cab, Ride Rite with Daystar cradles, CBI hidden front hitch, wired for winch front and rear Warn quick connect, Warn x8000i on external carrier, sway bar delete, trailer plug relocated to bumper, Pelfreybilt IFS and Mid skids, ECGS front diff bushing, ARB CKMA12 compressor, 255/85/16 Backcountrry MT 3 load E tires on stock steel rims, Up2NoGood heated mirror kit, Husky X-act Contour front floor liners, Northstar AGM 24F battery, Pelfreybilt bolt on sliders with kickout and top plates, TRD Pro headlights, Depo smoked tail lights, Energy suspension body mount bushing kit, OME Dakar leaf packs with AAL, Billstein B110 rear shocks, OME 90021 front shocks with 885 coils, SPC LR UCAs, Up2NoGood 2wd low range mod, 4 Wheel Campers Grandby slide in camper
    This swap is for larger diameter rotors, I'm almost positive it won't work on our 16s. There's very little room with the stock parts.

  20. Aug 2, 2016 at 7:02 PM
    #20
    RobD

    RobD Well-Known Member

    Joined:
    Jul 29, 2013
    Member:
    #109307
    Messages:
    216
    Gender:
    Male
    First Name:
    Rob
    Calgary
    Vehicle:
    2013 Spruce Mica Tacoma Double Cab TRD
    On the '99 and up Limited 4Runners with the factory 5 spoke 16" rims, they fit with no modifications. With the three split spoke 16" rims they will not fit without grinding off some of the caliper to clearance them.

    I cannot say how they'd fit with the Tacoma rims.
