2nd Gen Eibach Toytec Gallery thread

Discussion in '2nd Gen. Tacomas (2005-2015)' started by lj973gm, Jan 9, 2012.

  1. Jan 9, 2012 at 6:03 PM
    #1
    lj973gm

    lj973gm [OP] Sold it, dont miss it yet.

    Joined:
    Sep 16, 2011
    Member:
    #63618
    Messages:
    859
    Gender:
    Male
    Ohio
    Vehicle:
    06 DCSB 4wd
    Lets see some 2nd Gens running Eibachs

    The 1st gen forum has a huge thread with 29 pages worth of pics and info.

    Time to put them all together for the second gens and making it easier for future searches and those looking for info. I see these being a popular setup for a long time to come.

    Add following info as well if know them:

    Measured height before and after
    Top spacer (s)
    Shocks- if 5100 what clip are you running them at
    Thoughts on overall setup
    Tire size, wheel, rubbing/clearance issues

    Wish I had a picture to post but I am currently awaiting toytec to get them back in stock. Probably have looked through 30-40 threads and most seem to be running eibachs/5100 at .85 and top plates to level and add height. Some running 285, most on 265.

    I finally got around to installing my front 5100 with Toytec springs at setting 0 with 1/4 lean spacer on drivers side, rear now has TSB as well. I picked up a lightly used set of rear springs, kept my old set and will add them in as needed for when they sag.

    Tires are an odd ball size that I could not find anyone else running. I care about MPG, 255/70/17 slight taller and skinnier than stock but weight in at 35.7lbs only. They are Hankook ATM, called them to verify weight. Will be adding 3/4" wheel spacers shortly.
    Stock tire 265/65/17 are 30.5 inches tall, 255/70/17 are 31.1, I wanted narrower for so it does not pull so hard in standing water and snow in my area.

    Drives much better than stock, no dive taking a corner or braking but still soft enough to not be jarring when going over bumps. I was stock before Off-Road TRD package.

    Measurements taken with no driver and fuel tank showing empty light. These are after lift install. I have before but need to find the sheet I wrote them down on.

    Front Pass 36 3/4" and 22 1/8"
    Front Driver 36 5/8" and 22"
    Rear Pass 37 3/8" and 22 1/4"
    Rear Driver 37 3/4" and 22 7/8"

    Last edited: Sep 6, 2014
  2. Jan 9, 2012 at 6:05 PM
    #2
    rab89

    rab89 Well-Known Member

    Joined:
    Jan 14, 2009
    Member:
    #12578
    Messages:
    5,467
    Gender:
    Male
    First Name:
    Ross
    Kelowna b.c canada
    Vehicle:
    2012 DCLB
    Grillcraft mx black upper and lower BHLM with Gloss black 265 70 17 bfg a/t center console light mini mag mounted in center console debadged bed lights 35W 5000k HID's
    First! I'll get measurements later :)
    this is 5100's at .85 with eibachs, and 1.5'' AAL
    265/70R17

    [​IMG]

  3. Jan 9, 2012 at 6:37 PM
    #3
    DIVERMAN

    DIVERMAN Well-Known Member

    Joined:
    Jan 23, 2010
    Member:
    #29888
    Messages:
    460
    Gender:
    Male
    First Name:
    Cullen
    Louisiana
    Vehicle:
    2012 Pyrite Mica 4x4 TRD O/R SWB
    Tailgate theft prevention, Locking rear window, Blind spot mirrors, Fogs on anytime, Rear diff breather relocated, Bed storage locks, LEDs in/out, Relocated trailer plug(custom!), OEM bed mat, OEM running boards, OEM bed divider, Bed lights, Rev lights, Raptor lights, WeatherTech floor mats and window vents, Extra D-rings, ImMrYo Bracket, UWS low pro black toolbox, Carhartt seat covers,
    sub'd

  4. Jan 9, 2012 at 6:50 PM
    #4
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    30,822
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    5100's at 0 and Eibach coils up front. Icon 3-leaf AAL with the overload leaf in place on the rear with 5100's. I'll post up measurements later. Unfortunately I don't have before measurements.
    [​IMG]

  5. Jan 9, 2012 at 7:12 PM
    #5
    wolfdog2314

    wolfdog2314 Well-Known Member

    Joined:
    Jul 16, 2009
    Member:
    #19745
    Messages:
    564
    Gender:
    Male
    Brush Prairie
    Vehicle:
    2011 Tacoma 4x4 Sport

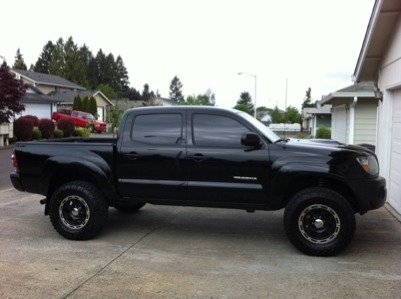

    Eibach coils. 5100's all around. AAL. WickedFlow
    Eibach springs, 5100's at .85, drivers side spacer, 285/70/17 duratracs, 17x8 eagle series 137 BS of 4.25, 2 inch AAL. Rubs in reverse.

    [​IMG]

  6. Jan 9, 2012 at 7:14 PM
    #6
    lj973gm

    lj973gm [OP] Sold it, dont miss it yet.

    Joined:
    Sep 16, 2011
    Member:
    #63618
    Messages:
    859
    Gender:
    Male
    Ohio
    Vehicle:
    06 DCSB 4wd
    Thanks for the posts and info so far. Nice looking trucks.

  7. Jan 9, 2012 at 7:42 PM
    #7
    3silvertoyotas

    3silvertoyotas Member

    Joined:
    Dec 9, 2011
    Member:
    #68485
    Messages:
    15
    Gender:
    Male
    Jacksonville Florida
    Vehicle:
    2012 4x4 DCSB TRD Off Road
    5100's set at .85 w/ Eibach Coils front 5100's, TSB w/ 1.5 AAL rear,
    No measurements before lift. Here's what I've got.
    5100's w/ Eibachs @ .85 and drivers side lean spacer. 5100's, 1.5 AAL w/ TSB and overload in place. Didn't need UCA's, allignment numbers gtg.

    Measurements from center of hub: 22 1/4" front and 24 1/4" rear
    Tires: 265/75R16 No rubbing.

    [​IMG]

    flafos likes this.
  8. Jan 9, 2012 at 7:56 PM
    #8
    1rooster

    1rooster TACOMA31750

    Joined:
    Jun 14, 2010
    Member:
    #38925
    Messages:
    702
    Gender:
    Male
    Fitzgerald,GA
    Vehicle:
    2007 TRD 4X4

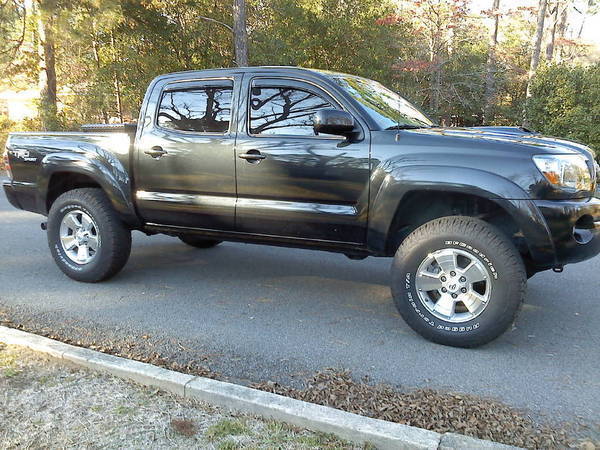

    5100's ALL WAY AROUND, 885X COILS, DRIVER SIDE LEAN SPACER, ICON PROGRESSIVE AAL W/O OVERLOAD, 265/75/16 KENDA KLEVER M/T. 1 1/4 SPIDERTRAC WHEEL SPACERS, GEN 1 TRD COLD AIR INTAKE, STOCK MUFFLER WITH CHOPPED TURNDOWN, 5% TINT OVER FACTORY, DEBADGED, TOYOTA RUBBER BED MAT, WEATHERTECH MATS,UWS TOOLBOX, UNDERCOVER SE, LOCKER MOD, REAR BUMPER, PIONEER DOUBLE DIN WITH PARKING BREAK OVER RIDE, CUSTOM OIL CATCH CAN, FULL LED INTERIOR, ARB BUMPER REPLACEMENT. COVERKING SEAT COVERS. MORIMOTO H1 MINI COVERSION WITH MINI GATLIN GUN SHROUDS AND 5000K MORIMOTO BULBS. TRAILER PLUG RELOCTED TO BUMPER. 20 INCH LED LIGHTBAR MOUNTED BEHIND CUSTOM PAINTED GRILL. STUBBY ATNENNA
    No eibach yet but soon to come. 5100's set at 2.5. 1in. block in rear. will post pic when springs installed.
    [​IMG]

  9. Jan 9, 2012 at 7:59 PM
    #9
    huntark03

    huntark03 I'd rather be hunting!

    Joined:
    Aug 4, 2010
    Member:
    #41207
    Messages:
    844
    Gender:
    Male
    First Name:
    Chris
    Maumelle, AR
    Vehicle:
    2005 Limited Tundra DC 4X4
    Spidertrax Wheel Spacers aFe Pro Dry Drop in Air Filter Weathertech Liners Bilstein 5100s w/ OME 885 coils and ToyTec 1.5" AALs Light Racing UCAs
    Eibach Springs/5100's @ .85, .25 inch driver's side spacer. TSB springs w/ 1.5 TSB AAL. 255/75/17 BFG Mud Terrains on stock Sport rims.

    [​IMG]

    Final measurements:
    Driver front: 21 7/8
    Passenger front: 22 3/16
    Driver rear: 23 15/16
    Passenger rear: 24 7/16


    New pictures hopefully this weekend:
    Added .5 inch driver side spacer/moved the .25 spacer to the passenger side and added an ARB Deluxe Bull Bar!

    JETSPD and flafos like this.
  10. Jan 15, 2012 at 2:03 PM
    #10
    lj973gm

    lj973gm [OP] Sold it, dont miss it yet.

    Joined:
    Sep 16, 2011
    Member:
    #63618
    Messages:
    859
    Gender:
    Male
    Ohio
    Vehicle:
    06 DCSB 4wd
  11. Jan 15, 2012 at 2:52 PM
    #11
    sfcadams

    sfcadams Retired Senior NCO

    Joined:
    Aug 13, 2011
    Member:
    #61645
    Messages:
    1,442
    Gender:
    Male
    First Name:
    Dan
    Elizabeth, Indiana
    Vehicle:
    2011 TRD Off Road DCSB Prerunner Skeewped

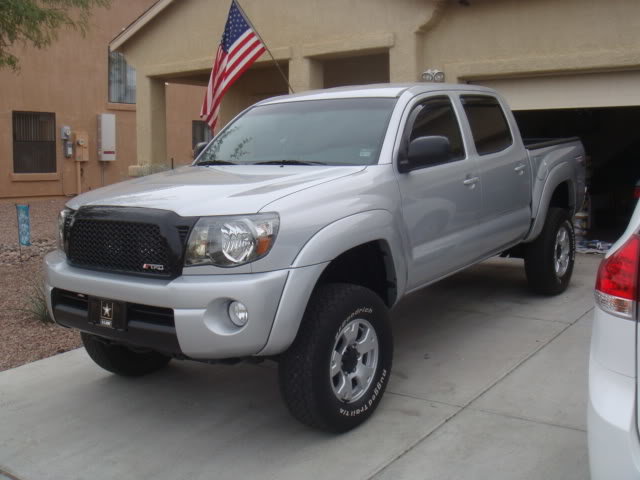

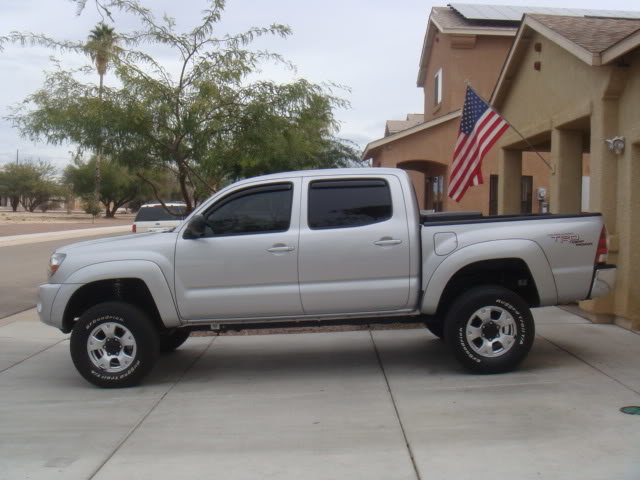

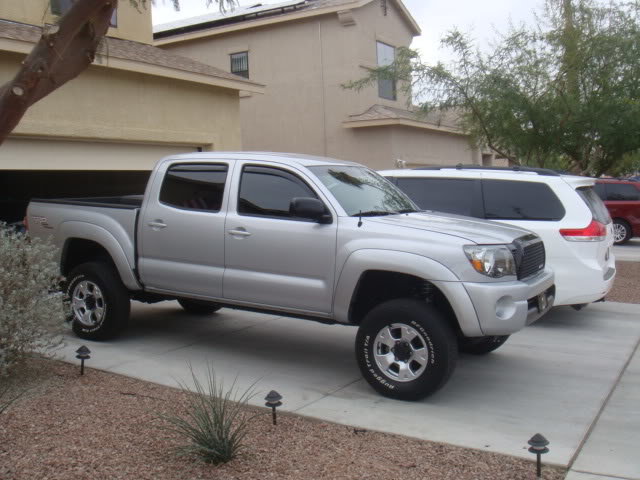

    Here is my 2011 Prerunner doublecab, still on factory 265/70/16s for now


    Here is what I have for the front lift (more expensive now it looks like)

    Running Bilstein 5100s set at .85 with Eibachs and the toytec top plate space (see link below)

    http://www.toyteclifts.com/index.ph...tegory_id=115&option=com_virtuemart&Itemid=72

    Here is what I have for the rear lift

    2" Toytex AAL, still running factory TRD rear shocks

    http://www.toyteclifts.com/index.ph...tegory_id=116&option=com_virtuemart&Itemid=72

    [​IMG]
    [​IMG]
    [​IMG]

    Measurements are 23.75" front and 24" in the rear

  12. Jan 15, 2012 at 3:09 PM
    #12
    Hairy Taco

    Hairy Taco Masterbrachiator

    Joined:
    Nov 25, 2011
    Member:
    #67666
    Messages:
    8,653
    First Name:
    Chris
    Manitoba
    Vehicle:
    08 TRD
    Bilstein 5100's, w/Eibachs @ 0
    1.5" aal (5 leaf)
    21.5" front, 24" rear measure.
    [​IMG]

  13. Jan 16, 2012 at 4:02 PM
    #13
    Maticuno

    Maticuno Resident Pine Swine

    Joined:
    May 26, 2011
    Member:
    #57287
    Messages:
    2,901
    Gender:
    Male
    California High Deserts
    Vehicle:
    08 DCLB Sport
    Pioneer AVIC-D3, SWI-PS, Sirius Satellite Radio, 2X In-Cab 110V Outlets, Constant Fog Light Mod, Inverter Always 400W Mod, Anti-Pack-Rat-In-Intake Mod, Eibachs on 5100's, 2" Toytec AAL, B.A.M.F Rear Diff Skid, 265/70R17 Goodyear Wrangler Authority tires
    Installed the 2" Toytec AAL last night, these are going on tomorrow:

    [​IMG]

  14. Jan 16, 2012 at 4:17 PM
    #14
    sfcadams

    sfcadams Retired Senior NCO

    Joined:
    Aug 13, 2011
    Member:
    #61645
    Messages:
    1,442
    Gender:
    Male
    First Name:
    Dan
    Elizabeth, Indiana
    Vehicle:
    2011 TRD Off Road DCSB Prerunner Skeewped
    Just updated my original post in this thread (post #11) with my truck's measurements....

  15. Jan 16, 2012 at 4:34 PM
    #15
    ajohnson

    ajohnson Glamour Shot

    Joined:
    Apr 19, 2009
    Member:
    #16145
    Messages:
    7,610
    Gender:
    Male
    First Name:
    Andy
    Charlotte, NC
    Vehicle:
    07 DCLB TRD Sport Prerunner 4x4
    Things and stuff and such
    Front: 5100's @ .85", Eibach springs, Toytec 3/4" lift top plate spacer on driver's side, 1/4" spacer on passenger side, Light Racing UCA's. 23" hub to fender

    Rear: 5100's, 1.5" Toytec AAL, no leaf TSB. 23 1/2" hub to fender

    265/75/16 Goodyear Duratracs

    [​IMG]

    [​IMG]

  16. Jan 17, 2012 at 12:18 PM
    #16
    Swanson52

    Swanson52 Well-Known Member

    Joined:
    Jul 1, 2011
    Member:
    #59130
    Messages:
    97
    Gender:
    Male
  17. Jan 17, 2012 at 5:57 PM
    #17
    NC15TRD

    NC15TRD Well-Known Member

    Joined:
    Sep 14, 2010
    Member:
    #43212
    Messages:
    6,274
    Gender:
    Male
    First Name:
    Nick
    PA
    Vehicle:
    16 Silverado Z71
    Stock
    5100s @.85 Eibach springs, TSB rear. stock tires. Hankook Dynapros coming in a couple weeks in 265/70/17 and soon after I'm lifting the rear!
    [​IMG]

  18. Jan 18, 2012 at 4:19 PM
    #18
    Maticuno

    Maticuno Resident Pine Swine

    Joined:
    May 26, 2011
    Member:
    #57287
    Messages:
    2,901
    Gender:
    Male
    California High Deserts
    Vehicle:
    08 DCLB Sport
    Pioneer AVIC-D3, SWI-PS, Sirius Satellite Radio, 2X In-Cab 110V Outlets, Constant Fog Light Mod, Inverter Always 400W Mod, Anti-Pack-Rat-In-Intake Mod, Eibachs on 5100's, 2" Toytec AAL, B.A.M.F Rear Diff Skid, 265/70R17 Goodyear Wrangler Authority tires
    [​IMG]

    Measurement from center of hubs.
    Front: 22"
    Rear: 24"

  19. Jan 21, 2012 at 3:33 PM
    #19
    bigswoleone

    bigswoleone Well-Known Member

    Joined:
    Sep 18, 2011
    Member:
    #63737
    Messages:
    48
    Gender:
    Male
    First Name:
    Craig
    Birmingham, AL
    Vehicle:
    11 DC PreRunner TRD Sport
    Alpine CDA-117 HU DLS Ultimate UP6i 6.5" comps Polk 6.5" coaxial rear-fill Polk MM series 10" sub Kicker ZX700.5 amp
  20. Jan 22, 2012 at 10:40 AM
    #20
    IndigoTac07

    IndigoTac07 Tortoise*

    Joined:
    Jan 7, 2012
    Member:
    #70150
    Messages:
    12,409
    Gender:
    Male
    First Name:
    AJ
    Houston
    Vehicle:
    '07 Tacoma
